TCGA-HNSC Cox & KM plot

Liu G, Zeng X, Wu B, et al. RNA-Seq analysis of peripheral blood mononuclear cells reveals unique transcriptional signatures associated with radiotherapy response of nasopharyngeal carcinoma and prognosis of head and neck cancer[J]. Cancer biology & therapy, 2020, 21(2): 139-146.

读入表达矩阵

发现上次的一个错误：

Ensembl ID 转换 symbol 后，表达矩阵没有去重，行名有重复（虽然不知道为什么没有报错….

library(AnnotationDbi)
library(org.Hs.eg.db)
library(survival)
library(survminer)

expr <- read.table('../TCGA-HNSC.htseq_counts.tsv',header = T,sep='\t')
dim(expr)
# [1] 60488   547
tail(expr[,1])
# [1] "ENSGR0000281849.1"      "__no_feature"           "__ambiguous"
# [4] "__too_low_aQual"        "__not_aligned"          "__alignment_not_unique"
expr <- expr[1:(nrow(expr)-5),]
class(expr[,1])
# [1] "factor"
expr[,1] <- as.character(expr[,1])
for (i in 1:nrow(expr)) {
  expr[i,1] <- strsplit(expr[i,1],"\\.")[[1]][1]
}
symb <- AnnotationDbi::select(org.Hs.eg.db,expr[,1],"SYMBOL","ENSEMBL")
symbtrim <- symb[match(unique(symb$SYMBOL),symb$SYMBOL),] %>% na.omit()
row.names(expr) <- expr[,1]
expr <- expr[,-1]
expr <-  expr[symbtrim$ENSEMBL,]
row.names(expr) <- symbtrim$SYMBOL

• 更正了之前log方法
• 筛选样本

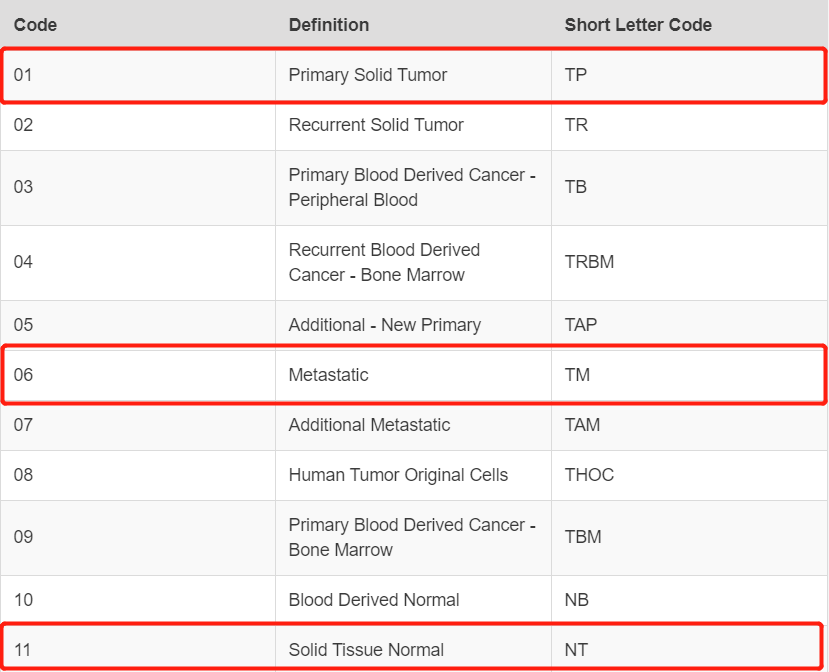

  Sample Type Codes


expr <- log2(edgeR::cpm(expr)+1)
kp <- substring(colnames(expr),14,15)=='01';table(kp)
# kp
# FALSE  TRUE
#    46   500
table(substring(colnames(expr),14,15))
#
#  01  06  11
# 500   2  44
expr <- expr[,kp]
dim(expr)
# [1] 25483   500
save(expr, file = "HNSC_expr.Rdata")

文章中的样本量是497，现在取500

The differential abundance of the expression of radiotherapy-associated genes was further tested in a total of 497 HNSC samples downloaded from TCGA.

读入临床信息

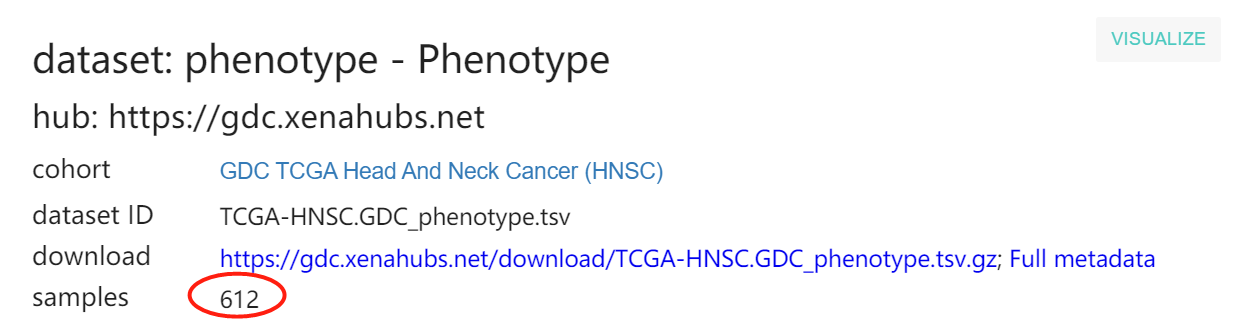

这次发现一个问题

## 上次并没有读取完整
clin <- read.table('./TCGA-HNSC.GDC_phenotype.tsv/TCGA-HNSC.GDC_phenotype.tsv',header = T,sep='\t')
dim(clin)
# [1] 306 139
clin <- read.table('./TCGA-HNSC.GDC_phenotype.tsv/TCGA-HNSC.GDC_phenotype.tsv',header = T,sep='\t',fill = T,quote = "")
dim(clin)
# [1] 612 139

clin$submitter_id.samples = gsub('-','.',clin$submitter_id.samples)
row.names(clin) <- clin[,1]
phe <- clin[substring(clin$submitter_id.samples,14,15)=='01',]
pid <- intersect(colnames(expr),rownames(phe))
expr <- expr[,pid]
phe <- phe[pid,]
phe <- phe[,c("race.demographic","age_at_initial_pathologic_diagnosis","clinical_stage","radiation_therapy")]

surv <- read.table('../TCGA-HNSC.survival.tsv',header = T,sep='\t')
surv$sample = gsub('-','.',surv$sample)
row.names(surv) <- surv[,1]
surv <- surv[pid,]
phe <- cbind(phe,surv[,c("OS.time","OS")])
colnames(phe) <- c("race","age","stage","radiation","time","event")
save(phe, file = "HNSC_phe.Rdata")

Cox regression

signature <- expr[c("CHAC2","CLEC9A","GNG10","JCHAIN","KLRB1",
                       "NOG","OLR1","PRELID2","SYT1","VWCE","ZNF443"),]
mySurv=with(phe,Surv(time, event))

univariate cox regression

unicox <-apply(signature, 1 ,function(gene){
  group=ifelse(gene>median(gene),'high','low')
  survival_dat <- data.frame(group=group,stage=phe$stage,age=phe$age,race=phe$race,
                             radiation=phe$radiation,stringsAsFactors = F)
  m=coxph(mySurv ~group, data =  survival_dat)
  beta <- coef(m)
  se <- sqrt(diag(vcov(m)))
  HR <- exp(beta)
  HRse <- HR * se
  tmp <- round(cbind(coef = beta, se = se, z = beta/se, p = 1 - pchisq((beta/se)^2, 1),
                     HR = HR, HRse = HRse,
                     HRz = (HR - 1) / HRse, HRp = 1 - pchisq(((HR - 1)/HRse)^2, 1),
                     HRCILL = exp(beta - qnorm(.975, 0, 1) * se),
                     HRCIUL = exp(beta + qnorm(.975, 0, 1) * se)), 3)
  return(tmp['grouplow',])
})
unicox=t(unicox)
table(unicox[,4]<0.05)
#
# FALSE  TRUE
#     3     8

multivariate cox regression

multicox <-apply(signature, 1 ,function(gene){
  group=ifelse(gene>median(gene),'high','low')
  survival_dat <- data.frame(group=group,stage=phe$stage,age=phe$age,race=phe$race,
                             radiation=phe$radiation,stringsAsFactors = F)
  m=coxph(mySurv ~   age + stage+ group+radiation+race, data =  survival_dat)
  beta <- coef(m)
  se <- sqrt(diag(vcov(m)))
  HR <- exp(beta)
  HRse <- HR * se
  tmp <- round(cbind(coef = beta, se = se, z = beta/se, p = 1 - pchisq((beta/se)^2, 1),
                     HR = HR, HRse = HRse,
                     HRz = (HR - 1) / HRse, HRp = 1 - pchisq(((HR - 1)/HRse)^2, 1),
                     HRCILL = exp(beta - qnorm(.975, 0, 1) * se),
                     HRCIUL = exp(beta + qnorm(.975, 0, 1) * se)), 3)
  return(tmp['grouplow',])
})
multicox=t(multicox)
table(multicox[,4]<0.05)
#
# FALSE  TRUE
#     2     9

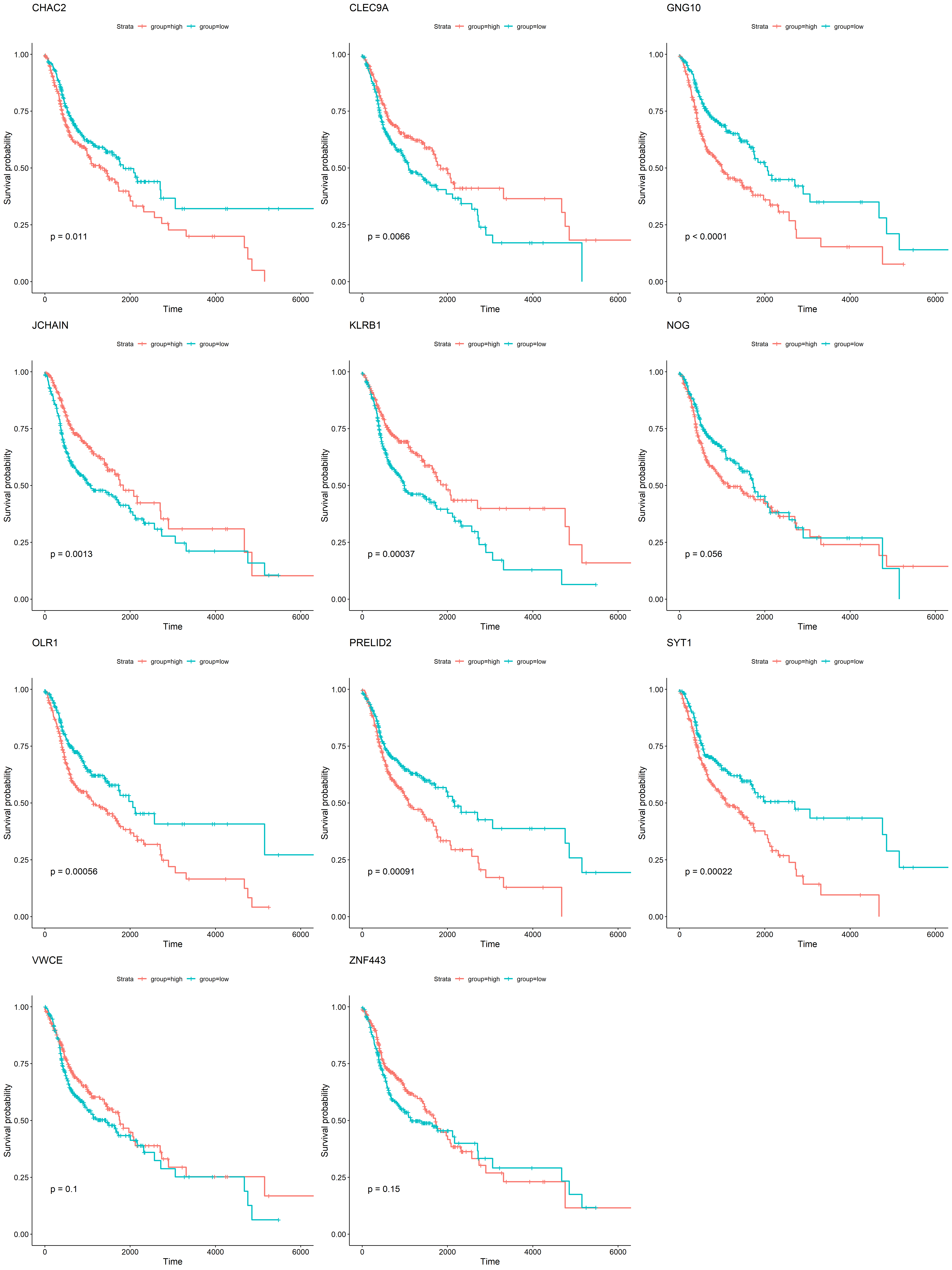

KM Plot

for (i in 1:nrow(signature)) {
  gene=as.numeric(signature[i,])
  phe$group=ifelse(gene>median(gene),'high','low')
  fit <- survfit(Surv(time, event) ~ group,
                 data = phe)
  survp=ggsurvplot(
    fit,
    pval = TRUE,
    title=row.names(signature)[i]
  )
  ggsave(filename = paste0('TCGA_gene_',i,'.png'),
         print(survp))
}
