实测http1和http2性能对比,并分析Network的Timing图

测试网站

https://http2.akamai.com/demo

测试样本

  1. 378个小图片(每个图片大小 1至4kb左右)
  2. 同时发出请求

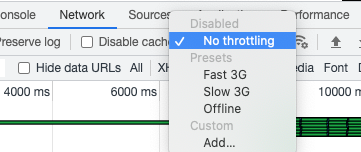

  3. 网络条件:正常,Fast 3G,Slow 3G (网速从快到慢)
    • network.png

测试结果:

网速 http1 http2
正常 耗时 25.9s 耗时 2.1s
Fast 3G(较慢) 耗时 37.1s 耗时 9.0s
Slow 3G(最慢) 耗时 126.5s 耗时 23.5s

正常网速

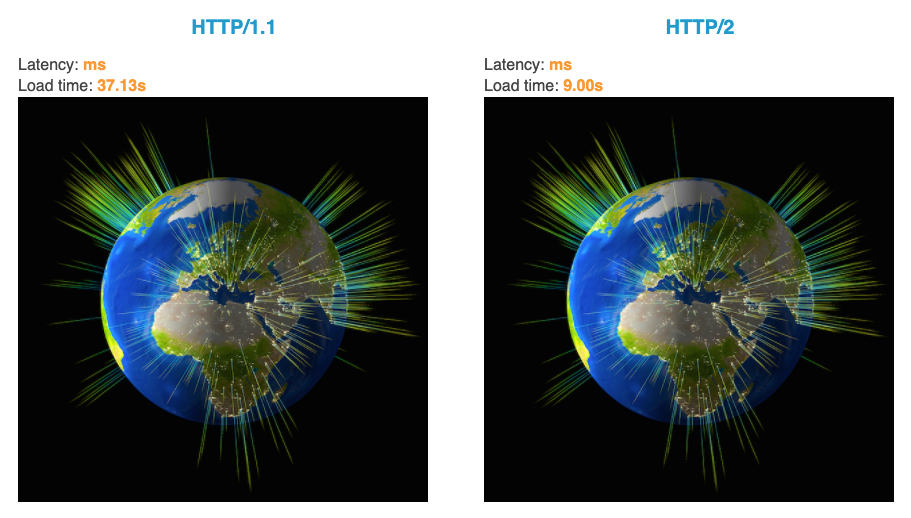

Fast 3G (比正常网速要慢)

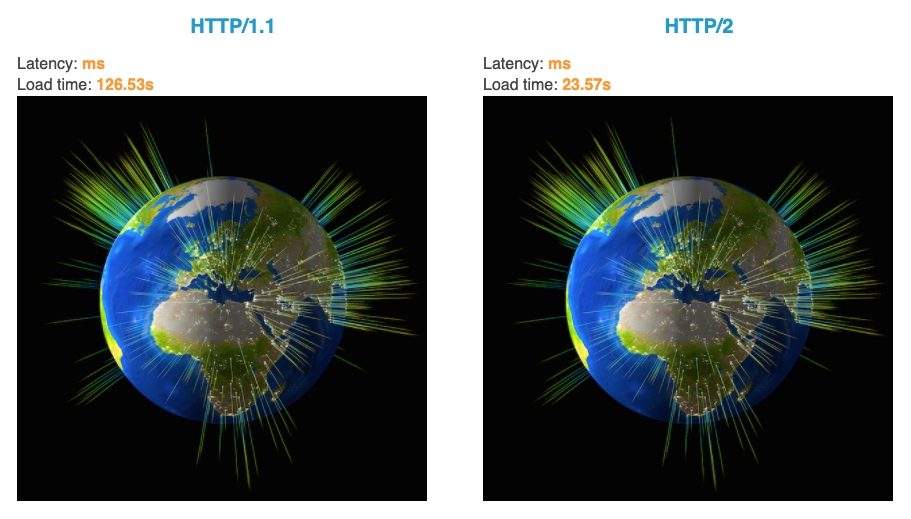

Slow 3G (最慢)

结论

http2的性能十分强劲。在并发请求多的情况下,和http1对比的性能差异更加明显

分析http1的队首阻塞问题,以及http2如何解决

通过chorme开发者工具内的 Network 来检测

  • (我当前谷歌版本:91.0.4472.77 )如果test的效果和我不一样可以考虑升级chorme

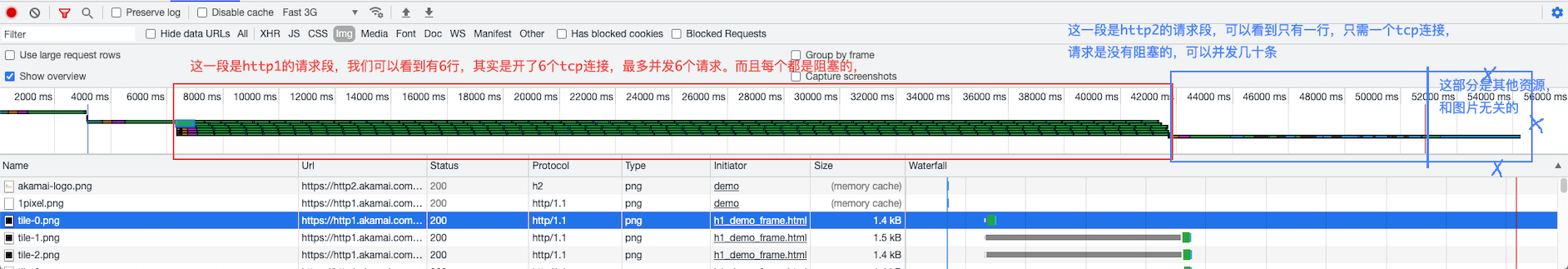

图片环境是 Fast 3G (Fast 3G的 http2的请求段会明显一点)


红色框是http1的请求段,

  • 我们可以看到有6行,其实是开了6个tcp连接最多并发6个请求。而且每个都是阻塞的(前面的处理完了,才会处理后面的)。

蓝色框是http2的请求段,

  • 可以看到只有一行,只需一个tcp连接,
  • 请求是没有阻塞的,可以并发100个请求
    • (可能是浏览器限制,并不是无限的。本人根据图片名判断,http2支持100个并发请求,然后开始会阻塞)

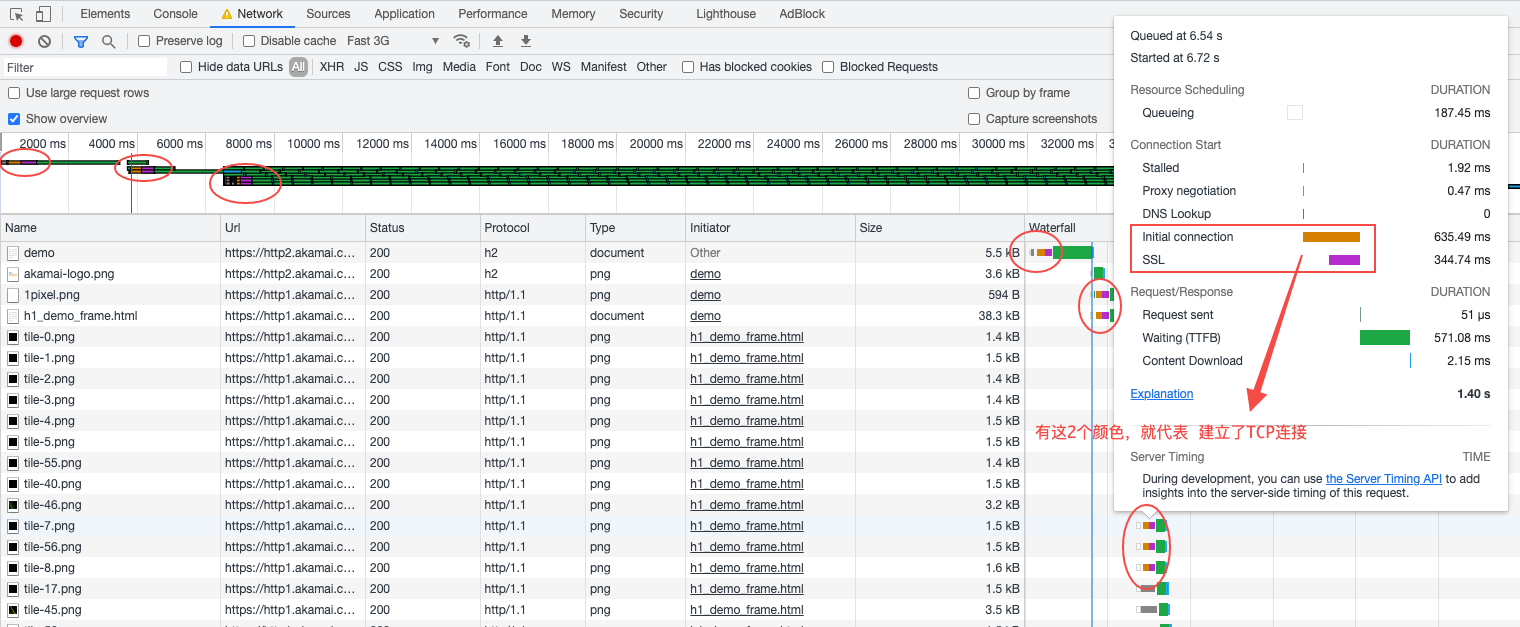

如何确定 http1的请求段 是开了6个tcp连接呢?


  • 橙色部分 Initial connection (连接初始化) 意思是:
    • The browser is establishing a connection, including TCP handshakes/retries and negotiating an SSL. (浏览器正在建立连接,包括 TCP 握手/重试和协商 SSL)

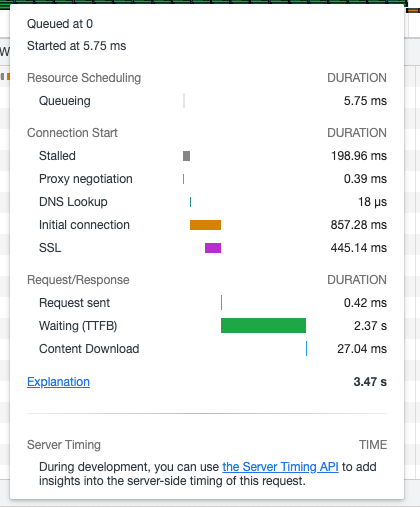

http1最后一个图片的请求情况


总结:

http2解决了队头阻塞的问题:可以一个连接并行处理多个请求,几乎不受限制(chorme最多支持100个并发)。在多请求并发的场景,性能对比http1得到了很大的提升

另外:在解析一下Timing图


来源:https://developer.chrome.com/docs/devtools/network/reference/#timing-explanation

附上英文原文,括号内是个人理解的翻译

  • Queueing(队列). The browser queues requests when: (浏览器在以下情况下会让新的请求加入排队等待:)
    • There are higher priority requests. (现有的请求优先级更高)
    • There are already six TCP connections open for this origin, which is the limit. Applies to HTTP/1.0 and HTTP/1.1 only. (现有的情况已经打开了六个 TCP 连接,到上限了。针对HTTP/1.0和 HTTP/1.1)
    • The browser is briefly allocating space in the disk cache (浏览器在磁盘缓存中短暂分配空间)(可以理解为浏览器正忙)
  • Stalled(阻塞). The request could be stalled for any of the reasons described in Queueing(队列) 。(Queueing(队列) 里的3种情况,都可以造成阻塞)
  • DNS Lookup DNS(查找). The browser is resolving the request’s IP address. 。(浏览器正在解析请求的 IP 地址)(DNS解析时间)
  • Initial connection (连接初始化). The browser is establishing a connection, including TCP handshakes/retries and negotiating an SSL. (浏览器正在建立连接,包括 TCP 握手/重试和协商 SSL)
  • Proxy negotiation (代理协商). The browser is negotiating the request with a proxy server. (浏览器正在与代理服务器协商请求)(用户访问的资源不一定来源于源主机,中间可能经过了其他服务的代理,比如nginx)
  • Request sent (发送请求). The request is being sent. (请求正在发送)
  • ServiceWorker Preparation (准备ServiceWorker). The browser is starting up the service worker. (浏览器正在启动service worker)
  • Request to ServiceWorker (向服务员提出申请). The request is being sent to the service worker. (请求正在发送到service worker)
  • Waiting (TTFB) (等候(Time To First Byte)) . The browser is waiting for the first byte of a response. TTFB stands for Time To First Byte. This timing includes 1 round trip of latency and the time the server took to prepare the response. (浏览器正在等待响应的第一个字节。TTFB 代表 Time To First Byte。这个计时包括1个往返的延迟和服务器准备响应所用的时间)
  • Content Download (内容下载). The browser is receiving the response. (浏览器正在接收响应的资源)(把资源下载到本地)
  • Receiving Push (接收服务端推送). The browser is receiving data for this response via HTTP/2 Server Push. (浏览器正在通过 HTTP/2的服务端推送功能 接收此响应的数据)
  • Reading Push (阅读推送). The browser is reading the local data previously received. (浏览器正在读取以前接收到的本地数据)(浏览器在读 服务端推送资源 的缓存)
