官方文档：http://spark.apache.org/docs/latest/sql-getting-started.html

2.1 SparkSession
在 Spark 2.0 之前：
- SQLContext 是创建 DataFrame 和执行 SQL 的入口
- HiveContext通过Hive sql语句操作Hive数据，兼Hhive操作，HiveContext继承自SQLContext
在 Spark 2.0 之后：
- 将这些入口点统一到了SparkSession，SparkSession 封装了 SqlContext 及 HiveContext；
- 实现了 SQLContext 及 HiveContext 所有功能；
- 通过SparkSession可以获取到SparkConetxt；
- ```scala import org.apache.spark.sql.SparkSession

val spark = SparkSession .builder() .appName(“Spark SQL basic example”) .config(“spark.some.config.option”, “some-value”) .getOrCreate()

// For implicit conversions like converting RDDs to DataFrames import spark.implicits._

<a name="znC9W"></a>
# 2.2 DataFrame & Dataset 的创建
- 刻意区分：DF、DS。DF是一种特殊的DS；ds.transformation => df
<a name="Dszcp"></a>
## 1 由range生成Dataset
```scala
val numDS = spark.range(5, 100, 5)
// orderBy 转换操作；desc：function；show：Action
numDS.orderBy(desc("id")).show(5)
// 统计信息
numDS.describe().show
// 显示schema信息
numDS.printSchema
// 使用RDD执行同样的操作
numDS.rdd.map(_.toInt).stats
// 检查分区数
numDS.rdd.getNumPartitions

2 由集合生成Dataset

Dataset = RDD[case class] ```scala case class Person(name:String, age:Int, height:Int)

// 注意 Seq 中元素的类型 val seq1 = Seq(Person(“Jack”, 28, 184), Person(“Tom”, 10, 144), Person(“Andy”, 16, 165)) val ds1 = spark.createDataset(seq1) // 显示schema信息 ds1.printSchema ds1.show

val seq2 = Seq((“Jack”, 28, 184), (“Tom”, 10, 144), (“Andy”, 16, 165)) val ds2 = spark.createDataset(seq2) ds2.show

<a name="aIe7T"></a>
## 3 由集合生成DataFrame

- DataFrame = RDD[Row] + Schema
```scala
val lst = List(("Jack", 28, 184), ("Tom", 10, 144), ("Andy", 16, 165))
val df1 = spark.createDataFrame(lst).
// 改单个字段名时简便
withColumnRenamed("_1", "name1").
withColumnRenamed("_2", "age1").
withColumnRenamed("_3", "height1")

df1.orderBy("age1").show(10)

// desc是函数，在IDEA中使用是需要导包
import org.apache.spark.sql.functions._
df1.orderBy(desc("age1")).show(10)

// 修改整个DF的列名
val df2 = spark.createDataFrame(lst).toDF("name", "age", "height")

4 RDD 转成 DataFrame

DataFrame = RDD[Row] + Schema ```scala import org.apache.spark.sql.Row import org.apache.spark.sql.types._

val arr = Array((“Jack”, 28, 184), (“Tom”, 10, 144), (“Andy”, 16, 165)) val rdd1 = sc.makeRDD(arr).map(f=>Row(f._1, f._2, f._3)) val schema = StructType( StructField(“name”, StringType, false) :: StructField(“age”, IntegerType, false) :: StructField(“height”, IntegerType, false) :: Nil)

val schema1 = (new StructType). add(“name”, “string”, false). add(“age”, “int”, false). add(“height”, “int”, false)

// RDD => DataFrame，要指明schema val rddToDF = spark.createDataFrame(rdd1, schema) rddToDF.orderBy(desc(“name”)).show(false)


```scala
import org.apache.spark.sql.Row
import org.apache.spark.sql.types._

val arr1 = Array(("Jack", 28, null), ("Tom", 10, 144), ("Andy", 16, 165))
val rdd1 = sc.makeRDD(arr1).map(f=>Row(f._1, f._2, f._3))
val structType = StructType(
  StructField("name", StringType, false) ::
  StructField("age", IntegerType, false) ::
  StructField("height", IntegerType, false) :: Nil)

// false 说明字段不能为空
val schema1 = structType
val df1 = spark.createDataFrame(rdd1, schema1)

// 下一句执行报错(因为有空字段)
df1.show

// true 允许该字段为空，语句可以正常执行
val schema2 = StructType(
  StructField("name", StringType, false) ::
  StructField("age", IntegerType, false) ::
  StructField("height", IntegerType, true) :: Nil)

val df2 = spark.createDataFrame(rdd1, schema2)

df2.show

// IDEA中需要，spark-shell中不需要
import spark.implicits._
val arr2 = Array(("Jack", 28, 150), ("Tom", 10, 144), ("Andy", 16, 165))
val rddToDF = sc.makeRDD(arr2).toDF("name", "age", "height")

case class Person(name:String, age:Int, height:Int)

val arr2 = Array(("Jack", 28, 150), ("Tom", 10, 144), ("Andy", 16, 165))
val rdd2: RDD[Person] = spark.sparkContext.makeRDD(arr2).map(f=>Person(f._1, f._2, f._3))
val ds2 = rdd2.toDS() // 反射推断，spark 通过反射从case class的定义得到类名
val df2 = rdd2.toDF() // 反射推断
ds2.printSchema
df2.printSchema
ds2.orderBy(desc("name")).show(10)
df2.orderBy(desc("name")).show(10)

5 RDD转Dataset

Dataset = RDD[case class]
DataFrame = RDD[Row] + Schema
```
val ds3 = spark.createDataset(rdd2)
ds3.show(10)
```
6 从文件创建DateFrame(以csv文件为例)
```scala val df1 = spark.read.csv(“data/people1.csv”) df1.printSchema() df1.show()

val df2 = spark.read.csv(“data/people2.csv”) df2.printSchema() df2.show()

// 指定参数 // spark 2.3.0 val schema = “name string, age int, job string” val df3 = spark.read .options(Map((“delimiter”, “;”), (“header”, “true”))) .schema(schema) .csv(“data/people2.csv”) df3.printSchema() df3.show

// 自动类型推断 val df4 = spark.read .option(“delimiter”, “;”) .option(“header”, “true”) .option(“inferschema”, “true”) .csv(“data/people2.csv”) df4.printSchema() df4.show

<a name="geX8p"></a>

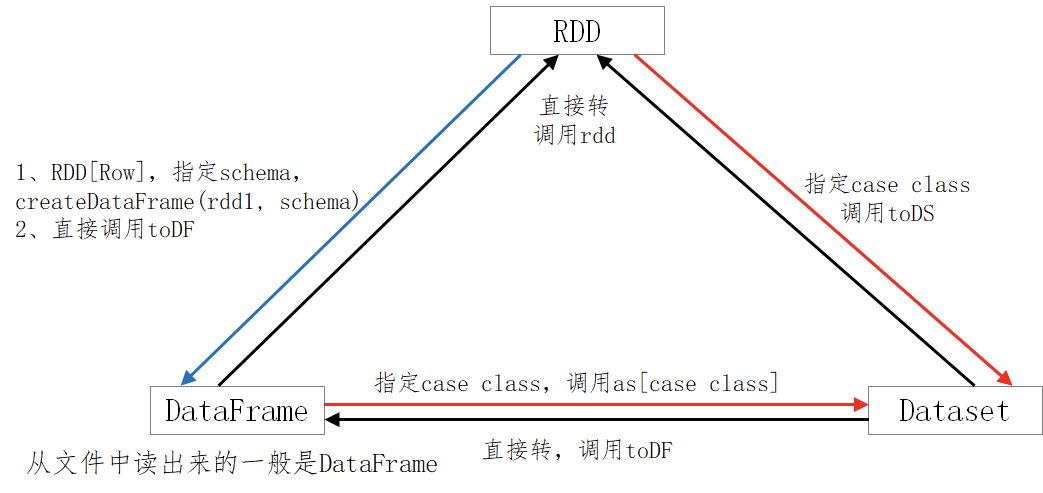

# 2.3 三者的转换
![image.png](https://cdn.nlark.com/yuque/0/2021/png/3013578/1611840252507-3f819556-8c73-4b68-9132-552813153697.png#align=left&display=inline&height=296&margin=%5Bobject%20Object%5D&name=image.png&originHeight=493&originWidth=1043&size=52303&status=done&style=none&width=627)

- SparkSQL提供了一个领域特定语言(DSL)以方便操作结构化数据。核心思想还是SQL；仅仅是一个语法的问题。
<a name="QI5tZ"></a>
# 2.4 Action操作

- 与RDD类似的操作
   - `show`、`collect`、`collectAsList`、`head`、`first`、`count`、`take`、`takeAsList`、`reduce`
- 与结构相关
   - `printSchema`、`explain`、`columns`、`dtypes`、`col`
```scala
EMPNO,ENAME,JOB,MGR,HIREDATE,SAL,COMM,DEPTNO
7369,SMITH,CLERK,7902,2001-01-02 22:12:13,800,,20
7499,ALLEN,SALESMAN,7698,2002-01-02 22:12:13,1600,300,30
7521,WARD,SALESMAN,7698,2003-01-02 22:12:13,1250,500,30
7566,JONES,MANAGER,7839,2004-01-02 22:12:13,2975,,20
7654,MARTIN,SALESMAN,7698,2005-01-02 22:12:13,1250,1400,30
7698,BLAKE,MANAGER,7839,2005-04-02 22:12:13,2850,,30
7782,CLARK,MANAGER,7839,2006-03-02 22:12:13,2450,,10
7788,SCOTT,ANALYST,7566,2007-03-02 22:12:13,3000,,20
7839,KING,PRESIDENT,,2006-03-02 22:12:13,5000,,10
7844,TURNER,SALESMAN,7698,2009-07-02 22:12:13,1500,0,30
7876,ADAMS,CLERK,7788,2010-05-02 22:12:13,1100,,20
7900,JAMES,CLERK,7698,2011-06-02 22:12:13,950,,30
7902,FORD,ANALYST,7566,2011-07-02 22:12:13,3000,,20
7934,MILLER,CLERK,7782,2012-11-02 22:12:13,1300,,10

// 处理了文件头，得到了字段名称
// 使用自动类型推断，基本得到了合理的值
val df1 = spark.read.
option("header", "true").
option("inferschema","true").
csv("data/emp.dat")

df1.count

// 缺省显示 20 行
df1.union(df1).show()

// 显示 2 行
df1.show(2)

// 不截断字符
df1.toJSON.show(false)

// 显示 10 行，不截断字符
df1.toJSON.show(10, false)
spark.catalog.listFunctions.show(10000, false)

// collect返回的是数组, Array[org.apache.spark.sql.Row]
val c1 = df1.collect()

// collectAsList返回的是List, List[org.apache.spark.sql.Row]
val c2 = df1.collectAsList()

// 返回 org.apache.spark.sql.Row
val h1 = df1.head()
val f1 = df1.first()

// 返回 Array[org.apache.spark.sql.Row]，长度为 3
val h2 = df1.head(3)
val f2 = df1.take(3)

// 返回 List[org.apache.spark.sql.Row]，长度为 2
val t2 = df1.takeAsList(2)

// 结构属性
df1.columns // 查看列名
df1.dtypes // 查看列名和类型
df1.explain() // 参看执行计划
df1.col("name") // 获取某个列
df1.printSchema // 常用

2.5 Transformation 操作

与RDD类似的操作
- map、filter、flatMap、mapPartitions、sample、 randomSplit、 limit、distinct、dropDuplicates、describe ```scala df1.map(row=>row.getAsInt).show

// randomSplit(与RDD类似，将DF、DS按给定参数分成多份) val df2 = df1.randomSplit(Array(0.5, 0.6, 0.7)) df2(0).count df2(1).count df2(2).count

// 取 10 行数据生成新的DataSet val df2 = df1.limit(10)

// distinct，去重 val df2 = df1.union(df1) df2.distinct.count

// dropDuplicates，按列值去重 df2.dropDuplicates.show df2.dropDuplicates(“mgr”, “deptno”).show df2.dropDuplicates(“mgr”).show df2.dropDuplicates(“deptno”).show

// 返回全部列的统计（count、mean、stddev、min、max） ds1.describe().show

// 返回指定列的统计 ds1.describe(“sal”).show ds1.describe(“sal”, “comm”).show


- 存储相关
   - `cacheTable`、`persist`、`checkpoint`、`unpersist`、`cache`
   - 备注：Dataset 默认的存储级别是 **MEMORY_AND_DISK**
```scala
import org.apache.spark.storage.StorageLevel
spark.sparkContext.setCheckpointDir("hdfs://linux121:9000/checkpoint")

df1.show()
df1.checkpoint()
df1.cache()
df1.persist(StorageLevel.MEMORY_ONLY)
df1.count()
df1.unpersist(true)

df1.createOrReplaceTempView("t1")
spark.catalog.cacheTable("t1")
spark.catalog.uncacheTable("t1")

select相关
- 列的多种表示、select、selectExpr
- drop、withColumn、withColumnRenamed、cast（内置函数） ```scala // 列的多种表示方法。使用””、$””、’、col()、ds(“”) // 注意：不要混用；必要时使用spark.implicitis._；并非每个表示在所有的地方都有效 df1.select($”ename”, $”hiredate”, $”sal”).show df1.select(“ename”, “hiredate”, “sal”).show df1.select(‘ename, ‘hiredate, ‘sal).show df1.select(col(“ename”), col(“hiredate”), col(“sal”)).show df1.select(df1(“ename”), df1(“hiredate”), df1(“sal”)).show

// 下面的写法无效，其他列的表示法有效 df1.select(“ename”, “hiredate”, “sal”+100).show df1.select(“ename”, “hiredate”, “sal+100”).show // 这样写才符合语法 df1.select($”ename”, $”hiredate”, $”sal”+100).show df1.select(‘ename, ‘hiredate, ‘sal+100).show

// 可使用expr表达式(expr里面只能使用引号) df1.select(expr(“comm+100”), expr(“sal+100”), expr(“ename”)).show df1.selectExpr(“ename as name”).show df1.selectExpr(“power(sal, 2)”, “sal”).show df1.selectExpr(“round(sal, -3) as newsal”, “sal”, “ename”).show

// drop、withColumn、 withColumnRenamed、casting // drop 删除一个或多个列，得到新的DF df1.drop(“mgr”) df1.drop(“empno”, “mgr”)

// withColumn，修改列值 val df2 = df1.withColumn(“sal”, $”sal”+1000) df2.show

// withColumnRenamed，更改列名 df1.withColumnRenamed(“sal”, “newsal”)

// 备注：drop、withColumn、withColumnRenamed返回的是DF

// cast，类型转换 df1.selectExpr(“cast(empno as string)”).printSchema

import org.apache.spark.sql.types._ df1.select(‘empno.cast(StringType)).printSchema


- where相关
   - where == filter
```scala
//filter操作
df1.filter("sal>1000").show
df1.filter("sal>1000 and job=='MANAGER'").show

//where操作
df1.where("sal>1000").show
df1.where("sal>1000 and job=='MANAGER'").show

groupBy相关
- groupBy、agg、max、min、avg、sum、count（后面 5 个为内置函数） ```scala // groupBy、max、min、mean、sum、count（与df1.count不同） df1.groupBy(“Job”).sum(“sal”).show df1.groupBy(“Job”).max(“sal”).show df1.groupBy(“Job”).min(“sal”).show df1.groupBy(“Job”).avg(“sal”).show df1.groupBy(“Job”).count.show

// 类似having子句 df1.groupBy(“Job”).avg(“sal”).where(“avg(sal) > 2000”).show df1.groupBy(“Job”).avg(“sal”).where($”avg(sal)” > 2000).show

// agg df1.groupBy(“Job”).agg(“sal”->”max”, “sal”->”min”, “sal”->”avg”, “sal”->”sum”, “sal”- >”count”).show df1.groupBy(“deptno”).agg(“sal”->”max”, “sal”->”min”, “sal”->”avg”, “sal”->”sum”, “sal”->”count”).show

// 这种方式更好理解 df1.groupBy(“Job”).agg(max(“sal”), min(“sal”), avg(“sal”), sum(“sal”), count(“sal”)).show

// 给列取别名 df1.groupBy(“Job”).agg(max(“sal”), min(“sal”), avg(“sal”), sum(“sal”), count(“sal”)).withColumnRenamed(“min(sal)”, “min1”).show

// 给列取别名，最简便 df1.groupBy(“Job”).agg(max(“sal”).as(“max1”), min(“sal”).as(“min2”), avg(“sal”).as(“avg3”), sum(“sal”).as(“sum4”), count(“sal”).as(“count5”)).show


- orderBy相关
   - orderBy == sort
```scala
// orderBy
df1.orderBy("sal").show
df1.orderBy($"sal").show
df1.orderBy($"sal".asc).show

// 降序
df1.orderBy(-$"sal").show
df1.orderBy('sal).show
df1.orderBy(col("sal")).show
df1.orderBy(df1("sal")).show
df1.orderBy($"sal".desc).show
df1.orderBy(-'sal).show
df1.orderBy(-'deptno, -'sal).show

// sort，以下语句等价
df1.sort("sal").show
df1.sort($"sal").show
df1.sort($"sal".asc).show
df1.sort('sal).show
df1.sort(col("sal")).show
df1.sort(df1("sal")).show
df1.sort($"sal".desc).show
df1.sort(-'sal).show
df1.sort(-'deptno, -'sal).show

join相关 ```scala // 1、笛卡尔积 df1.crossJoin(df1).count

// 2、等值连接（单字段）（连接字段empno，仅显示了一次） df1.join(df1, “empno”).count

// 3、等值连接（多字段）（连接字段empno、ename，仅显示了一次） df1.join(df1, Seq(“empno”, “ename”)).show

// 定义第一个数据集 case class StudentAge(sno: Int, name: String, age: Int) val lst = List(StudentAge(1,”Alice”, 18), StudentAge(2,”Andy”, 19), StudentAge(3,”Bob”, 17), StudentAge(4,”Justin”, 21), StudentAge(5,”Cindy”, 20))

val ds1 = spark.createDataset(lst) ds1.show()

// 定义第二个数据集 case class StudentHeight(sname: String, height: Int) val rdd = sc.makeRDD(List(StudentHeight(“Alice”, 160), StudentHeight(“Andy”, 159), StudentHeight(“Bob”, 170), StudentHeight(“Cindy”, 165), StudentHeight(“Rose”, 160))) val ds2 = rdd.toDS

// 备注：不能使用双引号，而且这里是 === ds1.join(ds2, $”name”===$”sname”).show ds1.join(ds2, ‘name===’sname).show ds1.join(ds2, ds1(“name”)===ds2(“sname”)).show ds1.join(ds2, ds1(“sname”)===ds2(“sname”), “inner”).show

// 多种连接方式 ds1.join(ds2, $”name”===$”sname”).show ds1.join(ds2, $”name”===$”sname”, “inner”).show ds1.join(ds2, $”name”===$”sname”, “left”).show ds1.join(ds2, $”name”===$”sname”, “left_outer”).show ds1.join(ds2, $”name”===$”sname”, “right”).show ds1.join(ds2, $”name”===$”sname”, “right_outer”).show ds1.join(ds2, $”name”===$”sname”, “outer”).show ds1.join(ds2, $”name”===$”sname”, “full”).show ds1.join(ds2, $”name”===$”sname”, “full_outer”).show

//备注：DS在join操作之后变成了DF


- 集合相关
   - `union==unionAll（过期）、intersect、except`
```scala
// union、unionAll、intersect、except。集合的交、并、差
val ds3 = ds1.select("name")
val ds4 = ds2.select("sname")

// union 求并集，不去重
ds3.union(ds4).show

// unionAll、union 等价；unionAll过期方法，不建议使用
ds3.unionAll(ds4).show

// intersect 求交
ds3.intersect(ds4).show

// except 求差
ds3.except(ds4).show

空值处理
- na.fill、na.drop ```scala // NaN (Not a Number) math.sqrt(-1.0) math.sqrt(-1.0).isNaN() df1.show

// 删除所有列的空值和NaN df1.na.drop.show

// 删除某列的空值和NaN df1.na.drop(Array(“mgr”)).show

// 对全部列填充；对指定单列填充；对指定多列填充 df1.na.fill(1000).show df1.na.fill(1000, Array(“comm”)).show df1.na.fill(Map(“mgr”->2000, “comm”->1000)).show

// 对指定的值进行替换 df1.na.replace(“comm” :: “deptno” :: Nil, Map(0 -> 100, 10 -> 100)).show

// 查询空值列或非空值列。isNull、isNotNull为内置函数 df1.filter(“comm is null”).show df1.filter($”comm”.isNull).show df1.filter(col(“comm”).isNull).show

df1.filter(“comm is not null”).show df1.filter(col(“comm”).isNotNull).show


- 窗口函数
   - 一般情况下窗口函数不用 DSL 处理，直接用SQL更方便
   - 参考源码Window.scala、WindowSpec.scala（主要）
```scala
import org.apache.spark.sql.expressions.Window
val w1 = Window.partitionBy("cookieid").orderBy("createtime")
val w2 = Window.partitionBy("cookieid").orderBy("pv")
val w3 = w1.rowsBetween(Window.unboundedPreceding, Window.currentRow)
val w4 = w1.rowsBetween(-1, 1)

// 聚组函数【用分析函数的数据集】
df.select($"cookieid", $"pv", sum("pv").over(w1).alias("pv1")).show
df.select($"cookieid", $"pv", sum("pv").over(w3).alias("pv1")).show
df.select($"cookieid", $"pv", sum("pv").over(w4).as("pv1")).show

// 排名
df.select($"cookieid", $"pv", rank().over(w2).alias("rank")).show
df.select($"cookieid", $"pv", dense_rank().over(w2).alias("denserank")).show
df.select($"cookieid", $"pv", row_number().over(w2).alias("rownumber")).show

// lag、lead
df.select($"cookieid", $"pv", lag("pv", 2).over(w2).alias("rownumber")).show
df.select($"cookieid", $"pv", lag("pv", -2).over(w2).alias("rownumber")).show

内建函数
- http://spark.apache.org/docs/latest/api/sql/index.html
  2.6 SQL语句
总体而言：SparkSQL与HQL兼容；与HQL相比，SparkSQL更简洁。
createTempView、createOrReplaceTempView、spark.sql(“SQL”)

package cn.lagou.sparksql
import org.apache.spark.rdd.RDD
import org.apache.spark.sql.{Dataset, SparkSession}

case class Info(id: String, tags: String)

object SQLDemo {
  def main(args: Array[String]): Unit = {
    val spark = SparkSession
    .builder()
    .appName("Demo1")
    .master("local[*]")
    .getOrCreate()

    val sc = spark.sparkContext
    sc.setLogLevel("warn")

    import spark.implicits._
    val arr = Array("1 1,2,3", "2 2,3", "3 1,2")
    val rdd: RDD[Info] = sc.makeRDD(arr).map {
      line => val fields: Array[String] = line.split("\\s+")
      Info(fields(0), fields(1))
    }

    val ds: Dataset[Info] = spark.createDataset(rdd)
    ds.createOrReplaceTempView("t1")
    spark.sql( """|select id, tag | from t1 | lateral view explode(split(tags, ",")) t2 as tag |""".stripMargin).show

    spark.sql( """|select id, explode(split(tags, ",")) | from t1 |""".stripMargin).show

    spark.close()
  }
}

2.7 输入与输出

SparkSQL内建支持的数据源包括：Parquet、JSON、CSV、Avro、Images、BinaryFiles（Spark 3.0）。其中Parquet是默认的数据源。 ```scala // 内部使用 DataFrameReader.format(args) .option(“key”, “value”) .schema(args) .load()

// 开发API SparkSession.read

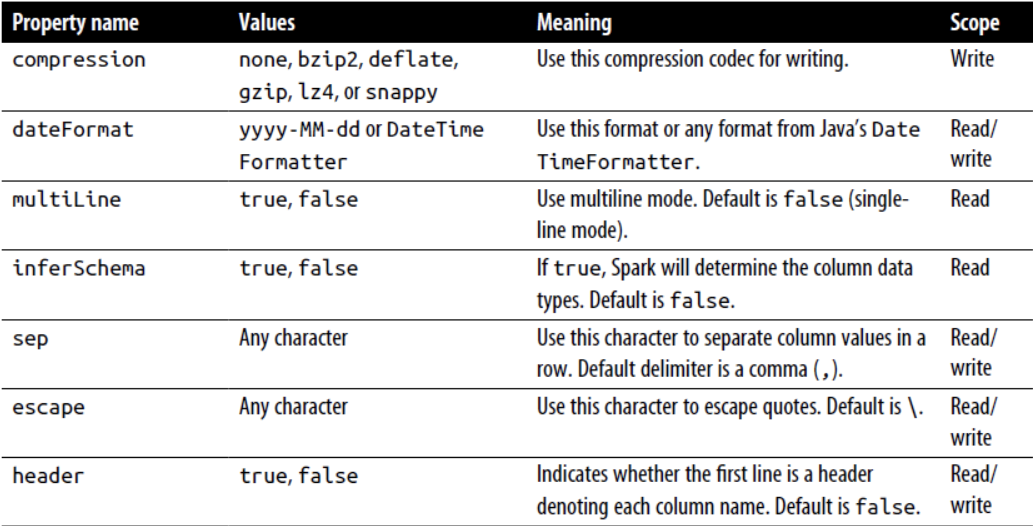

![image.png](https://cdn.nlark.com/yuque/0/2021/png/3013578/1612017155389-55ae9e80-79c1-4bdc-a70b-d314604642b8.png#align=left&display=inline&height=185&margin=%5Bobject%20Object%5D&name=image.png&originHeight=369&originWidth=974&size=27250&status=done&style=none&width=487)
```scala
val df1 = spark.read.format("parquet").load("data/users.parquet")

// Use Parquet; you can omit format("parquet") if you wish as it's the default
val df2 = spark.read.load("data/users.parquet")

// Use CSV
val df3 = spark.read.format("csv")
.option("inferSchema", "true")
.option("header", "true")
.load("data/people1.csv")

// Use JSON
val df4 = spark.read.format("json")
.load("data/emp.json")



// 内部使用
DataFrameWriter.format(args)
.option(args)
.bucketBy(args)
.partitionBy(args)
.save(path)

// 开发API
DataFrame.write

Parquet文件： ```scala spark.sql( “””

      |CREATE OR REPLACE TEMPORARY VIEW users
|USING parquet
|OPTIONS (path "data/users.parquet")
|""".stripMargin )

spark.sql(“select * from users”).show

df.write.format(“parquet”) .mode(“overwrite”) .option(“compression”, “snappy”) .save(“data/parquet”)


- json文件：
```scala
val fileJson = "data/emp.json"
val df6 = spark.read.format("json").load(fileJson)

spark.sql("""
            |CREATE OR REPLACE TEMPORARY VIEW emp
      | USING json
      | options(path "data/emp.json")
      |""".stripMargin)

spark.sql("SELECT * FROM emp").show()
spark.sql("SELECT * FROM emp").write
.format("json")
.mode("overwrite")
.save("data/json")

CSV文件: ```scala // CSV val fileCSV = “data/people1.csv”

val df = spark.read.format(“csv”) .option(“header”, “true”) .option(“inferschema”, “true”) .load(fileCSV)

spark.sql(“select * from people”) .write .format(“csv”) .mode(“overwrite”) .save(“data/csv”)

<a name="1327ba4c"></a>

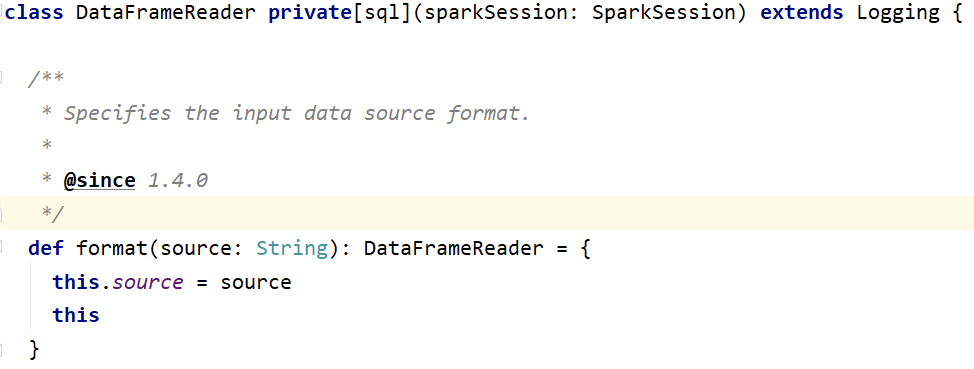

### ![image.png](https://cdn.nlark.com/yuque/0/2021/png/3013578/1612089239220-96cdbfbc-5cab-45cb-a79b-132b4d0adef6.png#align=left&display=inline&height=344&margin=%5Bobject%20Object%5D&name=image.png&originHeight=526&originWidth=1033&size=218584&status=done&style=none&width=676)

- SparkSQL还支持使用JDBC的方式连接到外部数据源：
```scala
val jdbcDF = spark
.read
.format("jdbc")
.option("url", "jdbc:mysql://linux123:3306/ebiz?useSSL=false")
//&useUnicode=true
.option("driver", "com.mysql.jdbc.Driver")
.option("dbtable", "lagou_product_info")
.option("user", "hive")
.option("password", "12345678")
.load()
jdbcDF.show()

jdbcDF.write
.format("jdbc")
.option("url", "jdbc:mysql://linux123:3306/ebiz?useSSL=false&characterEncoding=utf8")
.option("user", "hive")
.option("password", "12345678")
.option("driver", "com.mysql.jdbc.Driver")
.option("dbtable", "lagou_product_info_back")
.mode("append")
.save

备注：如果有中文注意表的字符集，否则会有乱码
- SaveMode.ErrorIfExists（默认）。若表存在，则会直接报异常，数据不能存入数据库
- SaveMode.Append。若表存在，则追加在该表中；若该表不存在，则会先创建表，再插入数据
- SaveMode.Overwrite。先将已有的表及其数据全都删除，再重新创建该表，最后插入新的数据
- SaveMode.Ignore。若表不存在，则创建表并存入数据；若表存在，直接跳过数据的存储，不会报错 ```sql — 创建表 create table lagou_product_info_back as select * from lagou_product_info;

— 检查表的字符集 show create table lagou_product_info_back; show create table lagou_product_info;

— 修改表的字符集 alter table lagou_product_info_back convert to character set utf8;

![image.png](https://cdn.nlark.com/yuque/0/2021/png/3013578/1612093482188-04769369-17c4-43e9-a6c3-a562857684fe.png#align=left&display=inline&height=264&margin=%5Bobject%20Object%5D&name=image.png&originHeight=311&originWidth=828&size=61610&status=done&style=none&width=703)<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/3013578/1612093508850-589e2578-a507-4c35-b08d-853e9facb78c.png#align=left&display=inline&height=199&margin=%5Bobject%20Object%5D&name=image.png&originHeight=229&originWidth=827&size=52393&status=done&style=none&width=720)
<a name="LlOay"></a>
# 2.8 UDF & UDAF
<a name="VGVNy"></a>
## 1 UDF

- UDF(User Defined Function)，自定义函数。函数的输入、输出都是一条数据记录，类似于Spark SQL中普通的数学或字符串函数。实现上看就是普通的Scala函数；
- UDAF（User Defined Aggregation Funcation），用户自定义聚合函数。函数本身作用于数据集合，能够在聚合操作的基础上进行自定义操作（多条数据输入，一条数据输出）；类似于在group by之后使用的sum、avg等函数；
- 用Scala编写的UDF与普通的Scala函数几乎没有任何区别，唯一需要多执行的一个步骤是要在SQLContext注册它。
```scala
def len(bookTitle: String):Int = bookTitle.length
spark.udf.register("len", len _)
val booksWithLongTitle = spark.sql("select title, author from books where len(title) > 10")

编写的UDF可以放到SQL语句的fields部分，也可以作为where、groupBy或者having子句的一部分。

也可以在使用UDF时，传入常量而非表的列名。稍稍修改一下前面的函数，让长度 10 作为函数的参数传入：

def lengthLongerThan(bookTitle: String, length: Int): Boolean = bookTitle.length > length
spark.udf.register("longLength", lengthLongerThan _)
val booksWithLongTitle = spark.sql("select title, author from books where longLength(title,10)")

若使用DataFrame的API，则以字符串的形式将UDF传入：

val booksWithLongTitle = dataFrame.filter("longLength(title, 10)")

DataFrame的API也可以接收Column对象，可以用 $SparkSQL编程 - 图6$ 是定义在SQLImplicits 对象中的一个隐式转换。此时，UDF的定义也不相同，不能直接定义Scala函数，而是要用定义在org.apache.spark.sql.functions中的 udf 方法来接收一个函数。这种方式无需register：
```
import org.apache.spark.sql.functions._
val longLength = udf((bookTitle: String, length: Int) => bookTitle.length > length)
import spark.implicits._
val booksWithLongTitle = dataFrame.filter(longLength($"title", lit(10)))
```
完整示例： ```scala package cn.lagou.sparksql

import org.apache.spark.sql.{Row, SparkSession}

class UDF { def main(args: Array[String]): Unit = { val spark = SparkSession.builder() .appName(this.getClass.getCanonicalName) .master(“local[*]”) .getOrCreate()

spark.sparkContext.setLogLevel("WARN")

val data = List(("scala", "author1"), ("spark", "author2"), ("hadoop", "author3"), ("hive", "author4"), ("strom", "author5"), ("kafka", "author6"))
val df = spark.createDataFrame(data).toDF("title", "author")
df.createTempView("books")

// 定义函数并注册
def len1(bookTitle: String):Int = bookTitle.length
spark.udf.register("len1", len1 _)

// UDF可以在select语句、where语句等多处使用
spark.sql("select title, author, len1(title) from books").show
spark.sql("select title, author from books where len1(title)>5").show

// UDF可以在DataFrame、Dataset的API中使用
import spark.implicits._
df.filter("len1(title)>5").show

// 不能通过编译
// df.filter(len1($"title")>5).show
// 能通过编译，但不能执行
// df.select("len1(title)").show
// 不能通过编译
// df.select(len1($"title")).show
// 如果要在DSL语法中使用$符号包裹字符串表示一个Column，需要用udf方法来接收函数。这种函数无需注册
import org.apache.spark.sql.functions._
// val len2 = udf((bookTitle: String) => bookTitle.length)

// val a:(String) => Int = (bookTitle: String) => bookTitle.length
// val len2 = udf(a)

val len2 = udf(len1 _)
df.filter(len2($"title") > 5).show
df.select($"title", $"author", len2($"title")).show

// 不使用UDF
df.map{case Row(title: String, author: String) => (title, author, title.length)}.show

spark.stop()

} }

<a name="wyEs7"></a>
## 2 UDAF

- 数据如下：
```scala
id, name, sales, discount, state, saleDate
1, "Widget Co", 1000.00, 0.00, "AZ", "2019-01-01"
2, "Acme Widgets", 2000.00, 500.00, "CA", "2019-02-01"
3, "Widgetry", 1000.00, 200.00, "CA", "2020-01-11"
4, "Widgets R Us", 2000.00, 0.0, "CA", "2020-02-19"
5, "Ye Olde Widgete", 3000.00, 0.0, "MA", "2020-02-28"

最后要得到的结果为：
(2020年的合计值 – 2019年的合计值) / 2019年的合计值
(6000 - 3000) / 3000 = 1

执行以下SQL得到最终的结果：
select userFunc(sales, saleDate) from table1;
即计算逻辑在userFunc中实现

普通的UDF不支持数据的聚合运算。如当要对销售数据执行年度同比计算，就需要对当年和上一年的销量分别求和，然后再利用公式进行计算。此时需要使用UDAF，Spark为所有的UDAF定义了一个父类UserDefinedAggregateFunction 。要继承这个类，需要实现父类的几个抽象方法：
inputSchema用于定义与DataFrame列有关的输入样式
bufferSchema用于定义存储聚合运算时产生的中间数据结果的Schema
dataType标明了UDAF函数的返回值类型
deterministic是一个布尔值，用以标记针对给定的一组输入，UDAF是否总是生成相同的结果
initialize对聚合运算中间结果的初始化
update函数的第一个参数为bufferSchema中两个Field的索引，默认以 0 开始；UDAF的核心计算都发生在
update函数中；update函数的第二个参数input: Row对应的并非DataFrame的行，而是被inputSchema投影了的行
merge函数负责合并两个聚合运算的buffer，再将其存储到MutableAggregationBuffer中
evaluate函数完成对聚合Buffer值的运算，得到最终的结果
UDAF—类型不安全 ```scala package cn.lagou.sparksql import org.apache.log4j.{Level, Logger} import org.apache.spark.sql.{Row, SparkSession, TypedColumn} import org.apache.spark.sql.expressions.{MutableAggregationBuffer, UserDefinedAggregateFunction} import org.apache.spark.sql.types.{DataType, DoubleType, StringType, StructType}

class TypeUnsafeUDAF extends UserDefinedAggregateFunction {

// UDAF与DataFrame列有关的输入样式 override def inputSchema: StructType = new StructType().add(“sales”, DoubleType).add(“saledate”, StringType)

// 缓存中间结果 override def bufferSchema: StructType = new StructType().add(“year2019”, DoubleType).add(“year2020”, DoubleType)

// UDAF函数的返回值类型 override def dataType: DataType = DoubleType

// 布尔值，用以标记针对给定的一组输入，UDAF是否总是生成相同的结果。通常用true override def deterministic: Boolean = true

// initialize就是对聚合运算中间结果的初始化 override def initialize(buffer: MutableAggregationBuffer): Unit = { buffer(0) = 0.0 buffer(1) = 0.0 }

// UDAF的核心计算都发生在update函数中。 // 扫描每行数据，都会调用一次update，输入buffer（缓存中间结果）、input（这一行的输入值） // update函数的第一个参数为bufferSchema中两个Field的索引，默认以0开始 // update函数的第二个参数input: Row对应的是被inputSchema投影了的行。 // 本例中每一个input就应该只有两个Field的值，input(0)代表销量，input(1)代表销售日期 override def update(buffer: MutableAggregationBuffer, input: Row): Unit = { val salenumber = input.getAsDouble // 输入的字符串为：2014-01-02，take(4) 取出有效的年份 input.getString(1).take(4) match { case “2019” => buffer(0) = buffer.getAsDouble + salenumber case “2020” => buffer(1) = buffer.getAsDouble + salenumber case _ => println(“ERROR!”) } }

// 合并两个分区的buffer1、buffer2，将最终结果保存在buffer1中 override def merge(buffer1: MutableAggregationBuffer, buffer2: Row): Unit = { buffer1(0) = buffer1.getDouble(0) + buffer2.getDouble(0) buffer1(1) = buffer1.getDouble(1) + buffer2.getDouble(1) }

// 取出buffer（缓存的值）进行运算，得到最终结果 override def evaluate(buffer: Row): Double = { println(s”evaluate : ${buffer.getDouble(0)}, ${buffer.getDouble(1)}”) if (buffer.getDouble(0) == 0.0) 0.0 else (buffer.getDouble(1) - buffer.getDouble(0)) / buffer.getDouble(0) } }

object TypeUnsafeUDAFTest{ def main(args: Array[String]): Unit = { Logger.getLogger(“org”).setLevel(Level.WARN)

val spark = SparkSession.builder()
.appName(s"${this.getClass.getCanonicalName}")
.master("local[*]")
.getOrCreate()

val sales = Seq(
  (1, "Widget Co", 1000.00, 0.00, "AZ", "2019-01-02"),
  (2, "Acme Widgets", 2000.00, 500.00, "CA", "2019-02-01"),
  (3, "Widgetry", 1000.00, 200.00, "CA", "2020-01-11"),
  (4, "Widgets R Us", 2000.00, 0.0, "CA", "2020-02-19"),
  (5, "Ye Olde Widgete", 3000.00, 0.0, "MA", "2020-02-28"))

val salesDF = spark.createDataFrame(sales).toDF("id", "name", "sales", "discount", "state", "saleDate")
salesDF.createTempView("sales")

val userFunc = new TypeUnsafeUDAF

spark.udf.register("userFunc", userFunc)
spark.sql("select userFunc(sales, saleDate) as rate from sales").show()

spark.stop()

} }

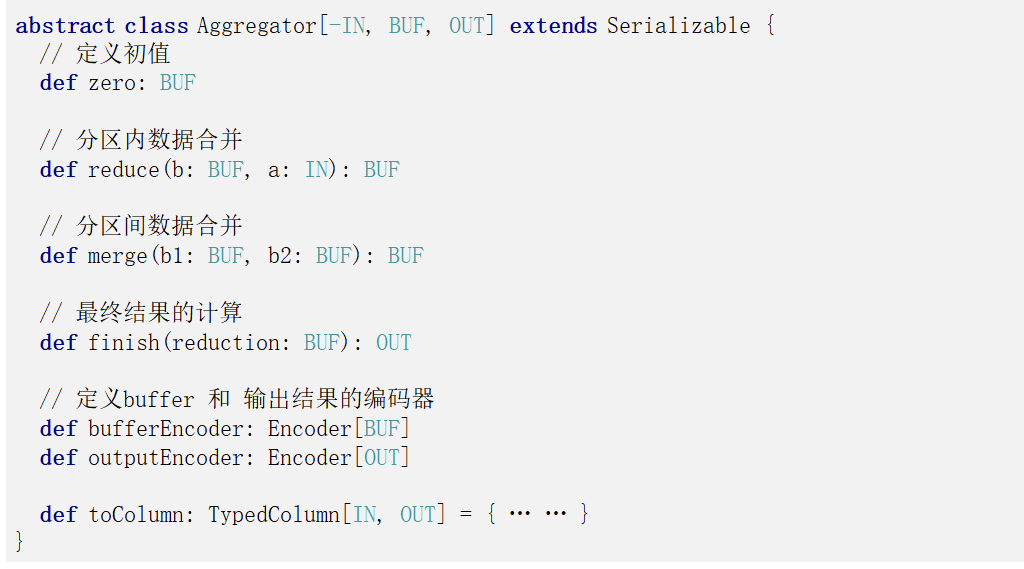

- **UDAF--类型安全**

![image.png](https://cdn.nlark.com/yuque/0/2021/png/3013578/1612094559922-467ded97-682a-406a-a924-c238e3e77b92.png#align=left&display=inline&height=385&margin=%5Bobject%20Object%5D&name=image.png&originHeight=569&originWidth=1024&size=56642&status=done&style=none&width=693)
```scala
package cn.lagou.sparksql
import org.apache.log4j.{Level, Logger}
import org.apache.spark.sql.{Encoder, Encoders, SparkSession, TypedColumn}
import org.apache.spark.sql.expressions.Aggregator

case class Sales(id: Int, name1: String, sales: Double, discount: Double, name2: String, stime: String)

case class SalesBuffer(var sales2019: Double, var sales2020: Double)

class TypeSafeUDAF extends Aggregator[Sales, SalesBuffer, Double]{
  // 定义初值
  override def zero: SalesBuffer = SalesBuffer(0, 0)

  // 分区内数据合并
  override def reduce(buf: SalesBuffer, inputRow: Sales): SalesBuffer = {
    val sales: Double = inputRow.sales
    val year: String = inputRow.stime.take(4) year match {
      case "2019" => buf.sales2019 += sales
      case "2020" => buf.sales2020 += sales
      case _ => println("ERROR!")
    }
    buf
  }

  // 分区间数据合并
  override def merge(part1: SalesBuffer, part2: SalesBuffer): SalesBuffer = {
    val sales1 = part1.sales2019 + part2.sales2019
    val sales2 = part1.sales2020 + part2.sales2020
    SalesBuffer(sales1, sales2)
  }

  // 最终结果的计算
  override def finish(reduction: SalesBuffer): Double = {
    if (math.abs(reduction.sales2019) < 0.0000000001) 0
    else (reduction.sales2020 - reduction.sales2019) / reduction.sales2019
  }

  // 定义buffer 和 输出结果的编码器
  override def bufferEncoder: Encoder[SalesBuffer] = Encoders.product
  override def outputEncoder: Encoder[Double] = Encoders.scalaDouble
}

object TypeSafeUDAFTest{
  def main(args: Array[String]): Unit = {
    Logger.getLogger("org").setLevel(Level.WARN)

    val spark = SparkSession.builder()
    .appName(s"${this.getClass.getCanonicalName}")
    .master("local[*]")
    .getOrCreate()

    val sales = Seq(
      Sales(1, "Widget Co", 1000.00, 0.00, "AZ", "2019-01-02"),
      Sales(2, "Acme Widgets", 2000.00, 500.00, "CA", "2019-02-01"),
      Sales(3, "Widgetry", 1000.00, 200.00, "CA", "2020-01-11"),
      Sales(4, "Widgets R Us", 2000.00, 0.0, "CA", "2020-02-19"),
      Sales(5, "Ye Olde Widgete", 3000.00, 0.0, "MA", "2020-02-28"))

    import spark.implicits._
    val ds = spark.createDataset(sales)
    ds.show

    // name 会作为列名
    val rate: TypedColumn[Sales, Double] = new TypeSafeUDAF().toColumn.name("rate")
    ds.select(rate).show

    spark.stop()
  }
}

2.9 访问Hive

在 pom 文件中增加依赖：

<dependency>
<groupId>org.apache.spark</groupId>
<artifactId>spark-hive_2.12</artifactId>
<version>${spark.version}</version>
</dependency>

在 resources中增加hive-site.xml文件，在文件中增加内容：

<configuration>
<property>
  <name>hive.metastore.uris</name>
  <value>thrift://linux123:9083</value>
</property>
</configuration>

备注：最好使用 metastore service 连接Hive；使用直连 metastore 的方式时，SparkSQL程序会修改 Hive 的版本信息；
默认Spark使用 Hive 1.2.1进行编译，包含对应的serde, udf, udaf等。
```scala package cn.lagou.sparksql import org.apache.spark.sql.{DataFrame, SaveMode, SparkSession}

object AccessHive { def main(args: Array[String]): Unit = { val spark = SparkSession .builder() .appName(“Demo1”) .master(“local[*]”) .enableHiveSupport() // 设为true时，Spark使用与Hive相同的约定来编写Parquet数据 .config(“spark.sql.parquet.writeLegacyFormat”, true) .getOrCreate()

val sc = spark.sparkContext sc.setLogLevel("warn")

spark.sql("show databases").show
spark.sql("select * from ods.ods_trade_product_info").show

val df: DataFrame = spark.table("ods.ods_trade_product_info")
df.show()

df.write.mode(SaveMode.Append).saveAsTable("ods.ods_trade_product_info_back")
spark.table("ods.ods_trade_product_info_back").show

spark.close()

} } ```

SparkSQL编程

2.1 SparkSession
