1. master选举
2. 数据发布订阅
3. 负载均衡
4. 分布式锁
5. 分布式队列
6. 分布式命名服务
- 代码实现

1. master选举

考虑7*24小时向外提供服务的系统，不能有单点故障，于是我们使用集群，采用的是Master+Slave。集群中有一台主机和多台备机，由主机向外提供服务，备机监听主机状态，一旦主机宕机，备机必需迅速接管主机继续向外提供服务。在这个过程中，从备机选出一台机作为主机的过程，就是Master选举。

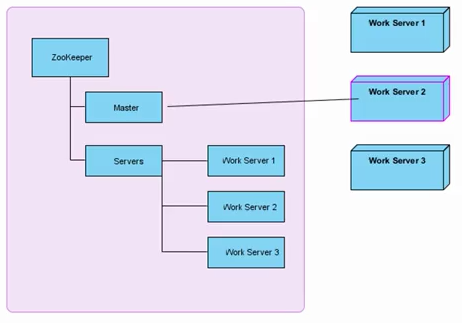

架构图

Zookeeper使用案例 - 图1

左边是ZooKeeper集群，右边是3台工作服务器。工作服务器启动时，会去ZooKeeper的Servers节点下创建临时节点，并把基本信息写入临时节点。这个过程叫服务注册，系统中的其他服务可以通过获取Servers节点的子节点列表，来了解当前系统哪些服务器可用，这该过程叫做服务发现。接着这些服务器会尝试创建Master临时节点，谁创建成功谁就是Master，其他的两台就作为Slave。所有的Work Server必需关注Master节点的删除事件。通过监听Master节点的删除事件，来了解Master服务器是否宕机（创建临时节点的服务器一旦宕机，它所创建的临时节点即会自动删除）。一旦Master服务器宕机，必需开始新一轮的Master选举。

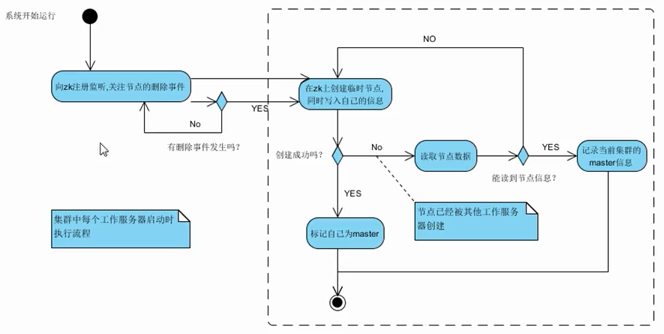

流程图

Zookeeper使用案例 - 图2

核心类图

Zookeeper使用案例 - 图3

WorkServer对应架构图的WorkServer，是主工作类；
RunningData用来描述WorkServer的基本信息；
LeaderSelectorZkClient作为调度器来启动和停止WorkServer；

代码实现

/**
 * 工作服务器信息
 */
public class RunningData implements Serializable {
    private static final long serialVersionUID = 4260577459043203630L;
    private Long cid;
    private String name;
    public Long getCid() {
        return cid;
    }
    public void setCid(Long cid) {
        this.cid = cid;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
}

/**
 * 工作服务器
 */
public class WorkServer {
    // 记录服务器状态
    private volatile boolean running = false;
    private ZkClient zkClient;
    // Master节点对应zookeeper中的节点路径
    private static final String MASTER_PATH = "/master";
    // 监听Master节点删除事件
    private IZkDataListener dataListener;
    // 记录当前节点的基本信息
    private RunningData serverData;
    // 记录集群中Master节点的基本信息
    private RunningData masterData;
    private ScheduledExecutorService delayExector = Executors.newScheduledThreadPool(1);
    private int delayTime = 5;
    public WorkServer(RunningData rd) {
        this.serverData = rd; // 记录服务器基本信息
        this.dataListener = new IZkDataListener() {
            public void handleDataDeleted(String dataPath) throws Exception {
                //takeMaster();
                if (masterData != null && masterData.getName().equals(serverData.getName())){
                    // 自己就是上一轮的Master服务器，则直接抢
                    takeMaster();
                } else {
                    // 否则，延迟5秒后再抢。主要是应对网络抖动，给上一轮的Master服务器优先抢占master的权利，避免不必要的数据迁移开销
                    delayExector.schedule(new Runnable(){
                        public void run(){
                            takeMaster();
                        }
                    }, delayTime, TimeUnit.SECONDS);
                }
            }
            public void handleDataChange(String dataPath, Object data)
                    throws Exception {
            }
        };
    }
    public ZkClient getZkClient() {
        return zkClient;
    }
    public void setZkClient(ZkClient zkClient) {
        this.zkClient = zkClient;
    }
    // 启动服务器
    public void start() throws Exception {
        if (running) {
            throw new Exception("server has startup...");
        }
        running = true;
        // 订阅Master节点删除事件
        zkClient.subscribeDataChanges(MASTER_PATH, dataListener);
        // 争抢Master权利
        takeMaster();
    }
    // 停止服务器
    public void stop() throws Exception {
        if (!running) {
            throw new Exception("server has stoped");
        }
        running = false;
        delayExector.shutdown();
        // 取消Master节点事件订阅
        zkClient.unsubscribeDataChanges(MASTER_PATH, dataListener);
        // 释放Master权利
        releaseMaster();
    }
    // 争抢Master
    private void takeMaster() {
        if (!running)
            return;
        try {
            // 尝试创建Master临时节点
            zkClient.create(MASTER_PATH, serverData, CreateMode.EPHEMERAL);
            masterData = serverData;
            System.out.println(serverData.getName()+" is master");
            // 作为演示，我们让服务器每隔5秒释放一次Master权利
            delayExector.schedule(new Runnable() {
                public void run() {
                    // TODO Auto-generated method stub
                    if (checkMaster()){
                        releaseMaster();
                    }
                }
            }, 5, TimeUnit.SECONDS);
        } catch (ZkNodeExistsException e) { // 已被其他服务器创建了
            // 读取Master节点信息
            RunningData runningData = zkClient.readData(MASTER_PATH, true);
            if (runningData == null) {
                takeMaster(); // 没读到，读取瞬间Master节点宕机了，有机会再次争抢
            } else {
                masterData = runningData;
            }
        } catch (Exception e) {
            // ignore;
        }
    }
    // 释放Master权利
    private void releaseMaster() {
        if (checkMaster()) {
            zkClient.delete(MASTER_PATH);
        }
    }
    // 检测自己是否为Master
    private boolean checkMaster() {
        try {
            RunningData eventData = zkClient.readData(MASTER_PATH);
            masterData = eventData;
            if (masterData.getName().equals(serverData.getName())) {
                return true;
            }
            return false;
        } catch (ZkNoNodeException e) {
            return false; // 节点不存在，自己肯定不是Master了
        } catch (ZkInterruptedException e) {
            return checkMaster();
        } catch (ZkException e) {
            return false;
        }
    }
}

/**
 * 调度器
 */
public class LeaderSelectorZkClient {
    //启动的服务个数
    private static final int        CLIENT_QTY = 10;
    //zookeeper服务器的地址
    private static final String     ZOOKEEPER_SERVER = "192.168.1.105:2181";
    public static void main(String[] args) throws Exception {
        //保存所有zkClient的列表
        List<ZkClient>  clients = new ArrayList<ZkClient>();
        //保存所有服务的列表
        List<WorkServer>  workServers = new ArrayList<WorkServer>();
        try {
            for ( int i = 0; i < CLIENT_QTY; ++i ) { // 模拟创建10个服务器并启动
                //创建zkClient
                ZkClient client = new ZkClient(ZOOKEEPER_SERVER, 5000, 5000, new SerializableSerializer());
                clients.add(client);
                //创建serverData
                RunningData runningData = new RunningData();
                runningData.setCid(Long.valueOf(i));
                runningData.setName("Client #" + i);
                //创建服务
                WorkServer  workServer = new WorkServer(runningData);
                workServer.setZkClient(client);
                workServers.add(workServer);
                workServer.start();
            }
            System.out.println("敲回车键退出！\n");
            new BufferedReader(new InputStreamReader(System.in)).readLine();
        } finally {
            System.out.println("Shutting down...");
            for ( WorkServer workServer : workServers ) {
                try {
                    workServer.stop();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
            for ( ZkClient client : clients ) {
                try {
                    client.close();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        }
    }
}

2. 数据发布订阅

多个订阅者对象同时监听同一主题对象，主题对象状态变化时通知所有订阅者对象更新自身状态。发布方和订阅方独立封装、独立改变，当一个对象的改变需要同时改变其他对象，并且它不知道有多少个对象需要改变时，可以使用发布订阅模式。

在分布式系统中的顶级应用有配置管理和服务发现。

配置管理：指集群中的机器拥有某些配置，并且这些配置信息需要动态地改变，那么我们就可以使用发布订阅模式把配置做统一的管理，让这些机器订阅配置信息的改变，但是配置改变时这些机器得到通知并更新自己的配置。

服务发现：指对集群中的服务上下线做统一管理，每个工作服务器都可以作为数据的发布方，向集群注册自己的基本信息，而让某些监控服务器作为订阅方，订阅工作服务器的基本信息。当工作服务器的基本信息改变时，如服务上下线、服务器的角色或服务范围变更，那么监控服务器可以得到通知并响应这些变化。

架构图

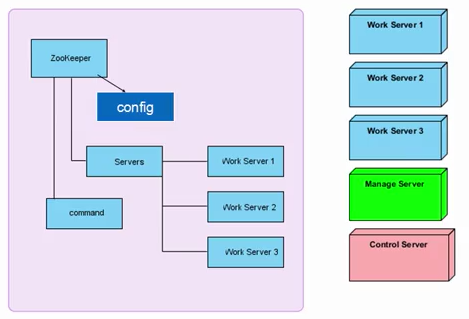

Zookeeper使用案例 - 图4

左边代表Zookeeper集群，右侧代表服务器集群。其中前3个为工作服务器Work Server，绿色为管理服务器Manage Server，最下面的是控制服务器Control Server。

config节点，用于配置管理。Manage Server通过config节点下发配置信息，Work Server可以通过订阅config节点的改变来更新自己的配置。

Servers节点，用于服务发现，每个Work Server在启动时都会在Servers节点下创建一个临时节点，Manage Server充当monitor，通过监听Servers节点的子节点列表的变化来更新自己内存中工作服务器列表的信息。

通过Control Server由Command节点作为中介，向Manage Server发送控制指令。Control Server向command节点写入命令信息，Manage Server订阅command节点的数据改变来监听并执行命令。

流程图

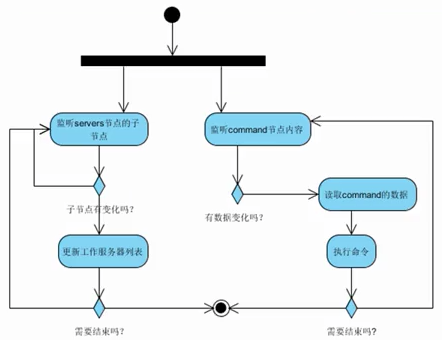

Manage Server程序主体流程

Zookeeper使用案例 - 图5

核心类图

Zookeeper使用案例 - 图6

WorkServer对应架构图的Work Server；
ManageServer对应架构图的Manage Server；
ServerConfig用于记录Work Server的配置信息；
ServerData用于记录Work Server的基本信息；
SubscribeZkClient作为示例程序入口服务站启动Work Server和Manage Server

实现代码

/**
 * 配置信息
 */
public class ServerConfig {
    private String dbUrl;
    private String dbPwd;
    private String dbUser;
    public String getDbUrl() {
        return dbUrl;
    }
    public void setDbUrl(String dbUrl) {
        this.dbUrl = dbUrl;
    }
    public String getDbPwd() {
        return dbPwd;
    }
    public void setDbPwd(String dbPwd) {
        this.dbPwd = dbPwd;
    }
    public String getDbUser() {
        return dbUser;
    }
    public void setDbUser(String dbUser) {
        this.dbUser = dbUser;
    }
    @Override
    public String toString() {
        return "ServerConfig [dbUrl=" + dbUrl + ", dbPwd=" + dbPwd
                + ", dbUser=" + dbUser + "]";
    }
}

/**
 * 服务器基本信息
 */
public class ServerData {
    private String address;
    private Integer id;
    private String name;
    public String getAddress() {
        return address;
    }
    public void setAddress(String address) {
        this.address = address;
    }
    public Integer getId() {
        return id;
    }
    public void setId(Integer id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    @Override
    public String toString() {
        return "ServerData [address=" + address + ", id=" + id + ", name="
                + name + "]";
    }
}

/**
 * 代表工作服务器
 */
public class WorkServer {
    private ZkClient zkClient;
    // ZooKeeper
    private String configPath;
    // ZooKeeper集群中servers节点的路径
    private String serversPath;
    // 当前工作服务器的基本信息
    private ServerData serverData;
    // 当前工作服务器的配置信息
    private ServerConfig serverConfig;
    private IZkDataListener dataListener;
    public WorkServer(String configPath, String serversPath,
            ServerData serverData, ZkClient zkClient, ServerConfig initConfig) {
        this.zkClient = zkClient;
        this.serversPath = serversPath;
        this.configPath = configPath;
        this.serverConfig = initConfig;
        this.serverData = serverData;
        this.dataListener = new IZkDataListener() {
            public void handleDataDeleted(String dataPath) throws Exception {
            }
            public void handleDataChange(String dataPath, Object data)
                    throws Exception {
                String retJson = new String((byte[])data);
                ServerConfig serverConfigLocal = (ServerConfig)JSON.parseObject(retJson,ServerConfig.class);
                updateConfig(serverConfigLocal);
                System.out.println("new Work server config is:"+serverConfig.toString());
            }
        };
    }
    // 启动服务器
    public void start() {
        System.out.println("work server start...");
        initRunning();
    }
    // 停止服务器
    public void stop() {
        System.out.println("work server stop...");
        zkClient.unsubscribeDataChanges(configPath, dataListener); // 取消监听config节点
    }
    // 服务器初始化
    private void initRunning() {
        registMe(); // 注册自己
        zkClient.subscribeDataChanges(configPath, dataListener); // 订阅config节点的改变事件
    }
    // 启动时向zookeeper注册自己的注册函数
    private void registMe() {
        String mePath = serversPath.concat("/").concat(serverData.getAddress());
        try {
            zkClient.createEphemeral(mePath, JSON.toJSONString(serverData)
                    .getBytes());
        } catch (ZkNoNodeException e) {
            zkClient.createPersistent(serversPath, true);
            registMe();
        }
    }
    // 更新自己的配置信息
    private void updateConfig(ServerConfig serverConfig) {
        this.serverConfig = serverConfig;
    }
}

public class ManageServer {
    // zookeeper的servers节点路径
    private String serversPath;
    // zookeeper的command节点路径
    private String commandPath;
    // zookeeper的config节点路径
    private String configPath;
    private ZkClient zkClient;
    private ServerConfig config;
    // 用于监听servers节点的子节点列表的变化
    private IZkChildListener childListener;
    // 用于监听command节点数据内容的变化
    private IZkDataListener dataListener;
    // 工作服务器的列表
    private List<String> workServerList;
    public ManageServer(String serversPath, String commandPath,
            String configPath, ZkClient zkClient, ServerConfig config) {
        this.serversPath = serversPath;
        this.commandPath = commandPath;
        this.zkClient = zkClient;
        this.config = config;
        this.configPath = configPath;
        this.childListener = new IZkChildListener() {
            public void handleChildChange(String parentPath,
                    List<String> currentChilds) throws Exception {
                // TODO Auto-generated method stub
                workServerList = currentChilds; // 更新内存中工作服务器列表
                System.out.println("work server list changed, new list is ");
                execList();
            }
        };
        this.dataListener = new IZkDataListener() {
            public void handleDataDeleted(String dataPath) throws Exception {
                // TODO Auto-generated method stub
                // ignore;
            }
            public void handleDataChange(String dataPath, Object data)
                    throws Exception {
                // TODO Auto-generated method stub
                String cmd = new String((byte[]) data);
                System.out.println("cmd:"+cmd);
                exeCmd(cmd); // 执行命令
            }
        };
    }
    private void initRunning() {
        zkClient.subscribeDataChanges(commandPath, dataListener);
        zkClient.subscribeChildChanges(serversPath, childListener);
    }
    /*
     * 1: list 2: create 3: modify
     */
    private void exeCmd(String cmdType) {
        if ("list".equals(cmdType)) {
            execList();
        } else if ("create".equals(cmdType)) {
            execCreate();
        } else if ("modify".equals(cmdType)) {
            execModify();
        } else {
            System.out.println("error command!" + cmdType);
        }
    }
    // 列出工作服务器列表
    private void execList() {
        System.out.println(workServerList.toString());
    }
    // 创建config节点
    private void execCreate() {
        if (!zkClient.exists(configPath)) {
            try {
                zkClient.createPersistent(configPath, JSON.toJSONString(config)
                        .getBytes());
            } catch (ZkNodeExistsException e) {
                zkClient.writeData(configPath, JSON.toJSONString(config)
                        .getBytes()); // config节点已经存在，则写入内容就可以了
            } catch (ZkNoNodeException e) {
                String parentDir = configPath.substring(0,
                        configPath.lastIndexOf('/'));
                zkClient.createPersistent(parentDir, true);
                execCreate();
            }
        }
    }
    // 修改config节点内容
    private void execModify() {
        // 我们随意修改config的一个属性就可以了
        config.setDbUser(config.getDbUser() + "_modify");
        try {
            zkClient.writeData(configPath, JSON.toJSONString(config).getBytes());
        } catch (ZkNoNodeException e) {
            execCreate(); // 写入时config节点还未存在，则创建它
        }
    }
    // 启动工作服务器
    public void start() {
        initRunning();
    }
    // 停止工作服务器
    public void stop() {
        zkClient.unsubscribeChildChanges(serversPath, childListener);
        zkClient.unsubscribeDataChanges(commandPath, dataListener);
    }
}

/**
 * 调度类
 */
public class SubscribeZkClient {
       private static final int  CLIENT_QTY = 5; // Work Server数量
        private static final String  ZOOKEEPER_SERVER = "192.168.1.105:2181";
        private static final String  CONFIG_PATH = "/config";
        private static final String  COMMAND_PATH = "/command";
        private static final String  SERVERS_PATH = "/servers";
        public static void main(String[] args) throws Exception {
            List<ZkClient>  clients = new ArrayList<ZkClient>();
            List<WorkServer>  workServers = new ArrayList<WorkServer>();
            ManageServer manageServer = null;
            try {
                // 创建一个默认的配置
                ServerConfig initConfig = new ServerConfig();
                initConfig.setDbPwd("123456");
                initConfig.setDbUrl("jdbc:mysql://localhost:3306/mydb");
                initConfig.setDbUser("root");
                // 实例化一个Manage Server
                ZkClient clientManage = new ZkClient(ZOOKEEPER_SERVER, 5000, 5000, new BytesPushThroughSerializer());
                manageServer = new ManageServer(SERVERS_PATH, COMMAND_PATH,CONFIG_PATH,clientManage,initConfig);
                manageServer.start(); // 启动Manage Server
                // 创建指定个数的工作服务器
                for ( int i = 0; i < CLIENT_QTY; ++i ) {
                    ZkClient client = new ZkClient(ZOOKEEPER_SERVER, 5000, 5000, new BytesPushThroughSerializer());
                    clients.add(client);
                    ServerData serverData = new ServerData();
                    serverData.setId(i);
                    serverData.setName("WorkServer#"+i);
                    serverData.setAddress("192.168.1."+i);
                    WorkServer  workServer = new WorkServer(CONFIG_PATH, SERVERS_PATH, serverData, client, initConfig);
                    workServers.add(workServer);
                    workServer.start();    // 启动工作服务器
                }
                System.out.println("敲回车键退出！\n");
                new BufferedReader(new InputStreamReader(System.in)).readLine();
            } finally {
                System.out.println("Shutting down...");
                for ( WorkServer workServer : workServers ) {
                    try {
                        workServer.stop();
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
                for ( ZkClient client : clients ) {
                    try {
                        client.close();
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
            }
        }
}

我们用zookeeper的命令行客户端向Manage Server下达指令。
执行zkCli命令：

create /command list

java控制台输出：

cmd:list
[192.168.1.1, 192.168.1.0, 192.168.1.3, 192.168.1.2, 192.168.1.4]

执行zkCli命令：

set /command create

java控制台输出：

cmd:create
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456, dbUser=root]

执行zkCli命令：

set /command modify

java控制台输出：

cmd:modify
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456_modify, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456_modify, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456_modify, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456_modify, dbUser=root]
new Work server config is: ServerConfig [dbUrl=jdbc:mysql://localhost:3306/mydb, dbPwd=123456_modi

3. 负载均衡

负载均衡是一种手段，用来把对某种资源的访问分摊给不同的设备，从而减轻单点的压力。

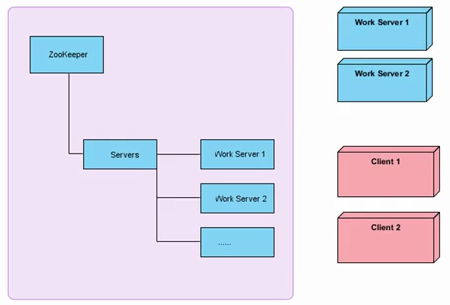

架构图

Zookeeper使用案例 - 图7

图中左侧为ZooKeeper集群，右侧上方为工作服务器，下面为客户端。每台工作服务器在启动时都会去zookeeper的servers节点下注册临时节点，每台客户端在启动时都会去servers节点下取得所有可用的工作服务器列表，并通过一定的负载均衡算法计算得出一台工作服务器，并与之建立网络连接。网络连接我们采用开源框架netty。

流程图

负载均衡客户端流程

Zookeeper使用案例 - 图8

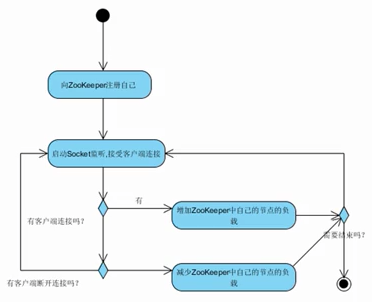

服务端主体流程

Zookeeper使用案例 - 图9

类图

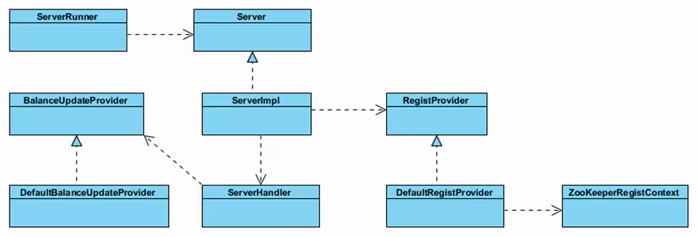

Server端核心类

Zookeeper使用案例 - 图10
每个服务端对应一个Server接口，ServiceImpl是服务端的实现类。把服务端启动时的注册过程抽出为一个接口RegistProvider，并给予一个默认实现DefaultRegistProvider，它将用到一个上下文的类ZooKeeperRegistContext。我们的服务端是给予Netty的，它需要ServerHandler来处理与客户端之间的连接，当有客户端建立或失去连接时，我们都需要去修改当前服务器的负载信息，我们把修改负载信息的过程也抽出为一个接口BalanceUpdateProvider，并且给予了一个默认实现DefaultBalanceUpdateProvider。ServerRunner是调度类，负责调度我们的Server。

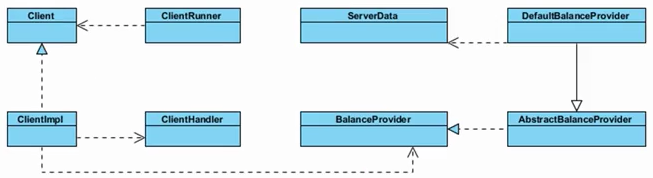

Client端核心类

Zookeeper使用案例 - 图11
每个客户端都需要实现一个Client接口，ClientImpl是实现，Client需要ClientHandler来处理与服务器之前的通讯，同时它需要BalanceProvider为它提供负载均衡的算法。BalanceProvider是接口，它有2个实现类，一个是抽象的实现AbstractBalanceProvider，一个是默认的实现DefaultBalanceProvider。ServerData是服务端和客户端共用的一个类，服务端会把自己的基本信息，包括负载信息，打包成ServerData并写入到zookeeper中，客户端在计算负载的时候需要到zookeeper中拿到ServerData，并取得服务端的地址和负载信息。ClientRunner是客户端的调度类，负责启动客户端。

代码实现

先是Server端的代码：

public class ServerData implements Serializable,Comparable<ServerData> {
    private static final long serialVersionUID = -8892569870391530906L;
    private Integer balance;
    private String host;
    private Integer port;
    public Integer getBalance() {
        return balance;
    }
    public void setBalance(Integer balance) {
        this.balance = balance;
    }
    public String getHost() {
        return host;
    }
    public void setHost(String host) {
        this.host = host;
    }
    public Integer getPort() {
        return port;
    }
    public void setPort(Integer port) {
        this.port = port;
    }
    @Override
    public String toString() {
        return "ServerData [balance=" + balance + ", host=" + host + ", port="
                + port + "]";
    }
    public int compareTo(ServerData o) {
        return this.getBalance().compareTo(o.getBalance());
    }
}

public interface Server {
    public void bind();
}

public class ServerImpl implements Server {
    private EventLoopGroup bossGroup = new NioEventLoopGroup();
    private EventLoopGroup workGroup = new NioEventLoopGroup();
    private ServerBootstrap bootStrap = new ServerBootstrap();
    private ChannelFuture cf;
    private String zkAddress;
    private String serversPath;
    private String currentServerPath;
    private ServerData sd;
    private volatile boolean binded = false;
    private final ZkClient zc;
    private final RegistProvider registProvider;
    private static final Integer SESSION_TIME_OUT = 10000;
    private static final Integer CONNECT_TIME_OUT = 10000;
    public String getCurrentServerPath() {
        return currentServerPath;
    }
    public String getZkAddress() {
        return zkAddress;
    }
    public String getServersPath() {
        return serversPath;
    }
    public ServerData getSd() {
        return sd;
    }
    public void setSd(ServerData sd) {
        this.sd = sd;
    }
    public ServerImpl(String zkAddress, String serversPath, ServerData sd){
        this.zkAddress = zkAddress;
        this.serversPath = serversPath;
        this.zc = new ZkClient(this.zkAddress,SESSION_TIME_OUT,CONNECT_TIME_OUT,new SerializableSerializer());
        this.registProvider = new DefaultRegistProvider();
        this.sd = sd;
    }
    //初始化服务端
    private void initRunning() throws Exception {
        String mePath = serversPath.concat("/").concat(sd.getPort().toString());
        //注册到zookeeper
        registProvider.regist(new ZooKeeperRegistContext(mePath,zc,sd));
        currentServerPath = mePath;
    }
    public void bind() {
        if (binded){
            return;
        }
        System.out.println(sd.getPort()+":binding...");
        try {
            initRunning();
        } catch (Exception e) {
            e.printStackTrace();
            return;
        }
        bootStrap.group(bossGroup,workGroup)
        .channel(NioServerSocketChannel.class)
        .option(ChannelOption.SO_BACKLOG, 1024)
        .childHandler(new ChannelInitializer<SocketChannel>() {
            @Override
            public void initChannel(SocketChannel ch) throws Exception {
                ChannelPipeline p = ch.pipeline();
                p.addLast(new ServerHandler(new DefaultBalanceUpdateProvider(currentServerPath,zc)));
            }
        });
        try {
            cf =  bootStrap.bind(sd.getPort()).sync();
            binded = true;
            System.out.println(sd.getPort()+":binded...");
            cf.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }finally{
            bossGroup.shutdownGracefully();
            workGroup.shutdownGracefully();
        }
    }
}

public interface RegistProvider {
    public void regist(Object context) throws Exception;
    public void unRegist(Object context) throws Exception;
}

public class DefaultRegistProvider implements RegistProvider {
    // 在zookeeper中创建临时节点并写入信息
    public void regist(Object context) throws Exception {
        // Server在zookeeper中注册自己，需要在zookeeper的目标节点上创建临时节点并写入自己
        // 将需要的以下3个信息包装成上下文传入
        // 1:path
        // 2:zkClient
        // 3:serverData
        ZooKeeperRegistContext registContext = (ZooKeeperRegistContext) context;
        String path = registContext.getPath();
        ZkClient zc = registContext.getZkClient();
        try {
            zc.createEphemeral(path, registContext.getData());
        } catch (ZkNoNodeException e) {
            String parentDir = path.substring(0, path.lastIndexOf('/'));
            zc.createPersistent(parentDir, true);
            regist(registContext);
        }
    }
    public void unRegist(Object context) throws Exception {
        return;
    }
}

public class ZooKeeperRegistContext {
    private String path;
    private ZkClient zkClient;
    private Object data;
    public ZooKeeperRegistContext(String path, ZkClient zkClient, Object data) {
        super();
        this.path = path;
        this.zkClient = zkClient;
        this.data = data;
    }
    public String getPath() {
        return path;
    }
    public void setPath(String path) {
        this.path = path;
    }
    public ZkClient getZkClient() {
        return zkClient;
    }
    public void setZkClient(ZkClient zkClient) {
        this.zkClient = zkClient;
    }
    public Object getData() {
        return data;
    }
    public void setData(Object data) {
        this.data = data;
    }
}

/**
 * 处理服务端与客户端之间的通信
 */
public class ServerHandler extends ChannelHandlerAdapter{
    private final BalanceUpdateProvider balanceUpdater;
    private static final Integer BALANCE_STEP = 1;
    public ServerHandler(BalanceUpdateProvider balanceUpdater){
        this.balanceUpdater = balanceUpdater;
    }
    public BalanceUpdateProvider getBalanceUpdater() {
        return balanceUpdater;
    }
    // 建立连接时增加负载
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        System.out.println("one client connect...");
        balanceUpdater.addBalance(BALANCE_STEP);
    }
    // 断开连接时减少负载
    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        balanceUpdater.reduceBalance(BALANCE_STEP);
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {
        cause.printStackTrace();
        ctx.close();
    }
}

public interface BalanceUpdateProvider {
    // 增加负载
    public boolean addBalance(Integer step);
    // 减少负载
    public boolean reduceBalance(Integer step);
}

public class DefaultBalanceUpdateProvider implements BalanceUpdateProvider {
    private String serverPath;
    private ZkClient zc;
    public DefaultBalanceUpdateProvider(String serverPath, ZkClient zkClient) {
        this.serverPath = serverPath;
        this.zc = zkClient;
    }
    public boolean addBalance(Integer step) {
        Stat stat = new Stat();
        ServerData sd;
        // 增加负载：读取服务器的信息ServerData，增加负载，并写回zookeeper
        while (true) {
            try {
                sd = zc.readData(this.serverPath, stat);
                sd.setBalance(sd.getBalance() + step);
                // 带上版本，因为可能有其他客户端连接到服务器修改了负载
                zc.writeData(this.serverPath, sd, stat.getVersion());
                return true;
            } catch (ZkBadVersionException e) {
                // ignore
            } catch (Exception e) {
                return false;
            }
        }
    }
    public boolean reduceBalance(Integer step) {
        Stat stat = new Stat();
        ServerData sd;
        while (true) {
            try {
                sd = zc.readData(this.serverPath, stat);
                final Integer currBalance = sd.getBalance();
                sd.setBalance(currBalance>step?currBalance-step:0);
                zc.writeData(this.serverPath, sd, stat.getVersion());
                return true;
            } catch (ZkBadVersionException e) {
                // ignore
            } catch (Exception e) {
                return false;
            }
        }
    }
}

/**
 * 用于测试,负责启动Work Server
 */
public class ServerRunner {
    private static final int  SERVER_QTY = 2;
    private static final String  ZOOKEEPER_SERVER = "192.168.1.105:2181";
    private static final String  SERVERS_PATH = "/servers";
    public static void main(String[] args) {
        List<Thread> threadList = new ArrayList<Thread>();
        for(int i=0; i<SERVER_QTY; i++){
            final Integer count = i;
            Thread thread = new Thread(new Runnable() {
                public void run() {
                    ServerData sd = new ServerData();
                    sd.setBalance(0);
                    sd.setHost("127.0.0.1");
                    sd.setPort(6000+count);
                    Server server = new ServerImpl(ZOOKEEPER_SERVER,SERVERS_PATH,sd);
                    server.bind();
                }
            });
            threadList.add(thread);
            thread.start();
        }
        for (int i=0; i<threadList.size(); i++){
            try {
                threadList.get(i).join();
            } catch (InterruptedException ignore) {
                //
            }
        }
    }
}

再看Client端的代码：

public interface Client {
    // 连接服务器
    public void connect() throws Exception;
    // 断开服务器
    public void disConnect() throws Exception;
}

public class ClientImpl implements Client {
    private final BalanceProvider<ServerData> provider;
    private EventLoopGroup group = null;
    private Channel channel = null;
    private final Logger log = LoggerFactory.getLogger(getClass());
    public ClientImpl(BalanceProvider<ServerData> provider) {
        this.provider = provider;
    }
    public BalanceProvider<ServerData> getProvider() {
        return provider;
    }
    public void connect(){
        try{
            ServerData serverData = provider.getBalanceItem(); // 获取负载最小的服务器信息，并与之建立连接
            System.out.println("connecting to "+serverData.getHost()+":"+serverData.getPort()+", it's balance:"+serverData.getBalance());
            group = new NioEventLoopGroup();
            Bootstrap b = new Bootstrap();
            b.group(group)
            .channel(NioSocketChannel.class)
            .handler(new ChannelInitializer<SocketChannel>() {
                @Override
                public void initChannel(SocketChannel ch) throws Exception {
                    ChannelPipeline p = ch.pipeline();
                    p.addLast(new ClientHandler());
                }
            });
            ChannelFuture f = b.connect(serverData.getHost(),serverData.getPort()).syncUninterruptibly();
            channel = f.channel();
            System.out.println("started success!");
        }catch(Exception e){
            System.out.println("连接异常:"+e.getMessage());
        }
    }
    public void disConnect(){
        try{
            if (channel!=null)
                channel.close().syncUninterruptibly();
            group.shutdownGracefully();
            group = null;
            log.debug("disconnected!");
        }catch(Exception e){
            log.error(e.getMessage());
        }
    }
}

public class ClientHandler extends ChannelHandlerAdapter {
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {
        // Close the connection when an exception is raised.
        cause.printStackTrace();
        ctx.close();
    }
}

public interface BalanceProvider<T> {
    public T getBalanceItem();
}

public abstract class AbstractBalanceProvider<T> implements BalanceProvider<T> {
    protected abstract T balanceAlgorithm(List<T> items);
    protected abstract List<T> getBalanceItems();
    public T getBalanceItem(){
        return balanceAlgorithm(getBalanceItems());
    }
}

public class DefaultBalanceProvider extends AbstractBalanceProvider<ServerData> {
    private final String zkServer; // zookeeper服务器地址
    private final String serversPath; // servers节点路径
    private final ZkClient zc;
    private static final Integer SESSION_TIME_OUT = 10000;
    private static final Integer CONNECT_TIME_OUT = 10000;
    public DefaultBalanceProvider(String zkServer, String serversPath) {
        this.serversPath = serversPath;
        this.zkServer = zkServer;
        this.zc = new ZkClient(this.zkServer, SESSION_TIME_OUT, CONNECT_TIME_OUT,
                new SerializableSerializer());
    }
    @Override
    protected ServerData balanceAlgorithm(List<ServerData> items) {
        if (items.size()>0){
            Collections.sort(items); // 根据负载由小到大排序
            return items.get(0); // 返回负载最小的那个
        }else{
            return null;
        }
    }
    /**
     * 从zookeeper中拿到所有工作服务器的基本信息
     */
    @Override
    protected List<ServerData> getBalanceItems() {
        List<ServerData> sdList = new ArrayList<ServerData>();
        List<String> children = zc.getChildren(this.serversPath);
        for(int i=0; i<children.size();i++){
            ServerData sd = zc.readData(serversPath+"/"+children.get(i));
            sdList.add(sd);
        }
        return sdList;
    }
}

public class ClientRunner {
        private static final int  CLIENT_QTY = 3;
        private static final String  ZOOKEEPER_SERVER = "192.168.1.105:2181";
        private static final String  SERVERS_PATH = "/servers";
        public static void main(String[] args) {
            List<Thread> threadList = new ArrayList<Thread>(CLIENT_QTY);
            final List<Client> clientList = new ArrayList<Client>();
            final BalanceProvider<ServerData> balanceProvider = new DefaultBalanceProvider(ZOOKEEPER_SERVER, SERVERS_PATH);
            try{
                for(int i=0; i<CLIENT_QTY; i++){
                    Thread thread = new Thread(new Runnable() {
                        public void run() {
                            Client client = new ClientImpl(balanceProvider);
                            clientList.add(client);
                            try {
                                client.connect();
                            } catch (Exception e) {
                                e.printStackTrace();
                            }
                        }
                    });
                    threadList.add(thread);
                    thread.start();
                    //延时
                    Thread.sleep(2000);
                }
                System.out.println("敲回车键退出！\n");
                new BufferedReader(new InputStreamReader(System.in)).readLine();
            }catch(Exception e){
                e.printStackTrace();
            }finally{
                //关闭客户端
                for (int i=0; i<clientList.size(); i++){
                    try {
                        clientList.get(i);
                        clientList.get(i).disConnect();
                    } catch (Exception ignore) {
                        //ignore
                    }
                }
                //关闭线程
                for (int i=0; i<threadList.size(); i++){
                    threadList.get(i).interrupt();
                    try{
                        threadList.get(i).join();
                    }catch (InterruptedException e){
                        //ignore
                    }
                }
            }
        }
}

我们先启动服务端ServerRunner

6000:binding...
6000:binded...
6001:binding...
6001:binded...

再来启动客户端ClientRunner

connecting to 127.0.0.1:6000, it's balance 0
started success!
connecting to 127.0.0.1:6001, it's balance 0
started success!
connecting to 127.0.0.1:6000, it's balance 1
started success!
敲回车退出!

4. 分布式锁

我们常说的锁是单进程多线程锁，在多线程并发编程中，用于线程之间的数据同步，保护共享资源的访问。而分布式锁，指在分布式环境下，保护跨进程、跨主机、跨网络的共享资源，实现互斥访问，保证一致性。

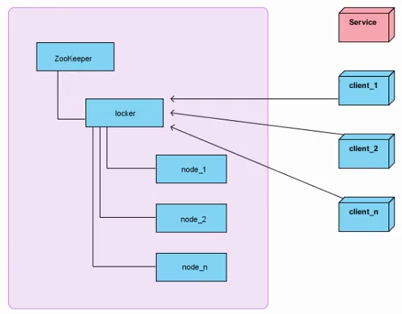

架构图

Zookeeper使用案例 - 图12

左侧是zookeeper集群，locker是数据节点，node_1到node_n代表一系列的顺序节点。

右侧client_1至client_n代表客户端，Service代表需要互斥访问的服务。

总实现思路，是在获取锁的时候在locker节点下创建顺序节点，在释放锁的时候，把自己创建的节点删除。

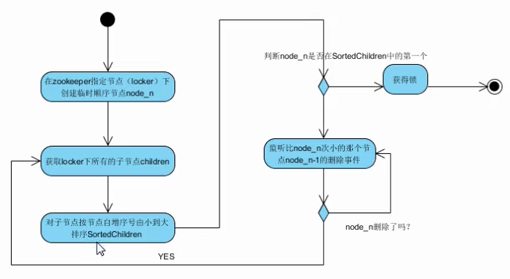

流程图

Zookeeper使用案例 - 图13

类图

代码实现

public interface DistributedLock {
    /*
     * 获取锁，如果没有得到就等待
     */
    public void acquire() throws Exception;
    /*
     * 获取锁，直到超时
     */
    public boolean acquire(long time, TimeUnit unit) throws Exception;
    /*
     * 释放锁
     */
    public void release() throws Exception;
}

public class SimpleDistributedLockMutex extends BaseDistributedLock implements
        DistributedLock {
    //锁名称前缀,成功创建的顺序节点如lock-0000000000,lock-0000000001,...
    private static final String LOCK_NAME = "lock-";
    // zookeeper中locker节点的路径
    private final String basePath;
    // 获取锁以后自己创建的那个顺序节点的路径
    private String ourLockPath;
    private boolean internalLock(long time, TimeUnit unit) throws Exception {
        ourLockPath = attemptLock(time, unit);
        return ourLockPath != null;
    }
    public SimpleDistributedLockMutex(ZkClientExt client, String basePath){
        super(client,basePath,LOCK_NAME);
        this.basePath = basePath;
    }
    // 获取锁
    public void acquire() throws Exception {
        if ( !internalLock(-1, null) ) {
            throw new IOException("连接丢失!在路径:'"+basePath+"'下不能获取锁!");
        }
    }
    // 获取锁，可以超时
    public boolean acquire(long time, TimeUnit unit) throws Exception {
        return internalLock(time, unit);
    }
    // 释放锁
    public void release() throws Exception {
        releaseLock(ourLockPath);
    }
}

public class BaseDistributedLock {
    private final ZkClientExt client;
    private final String  path;
    private final String  basePath;
    private final String  lockName;
    private static final Integer  MAX_RETRY_COUNT = 10;
    public BaseDistributedLock(ZkClientExt client, String path, String lockName){
        this.client = client;
        this.basePath = path;
        this.path = path.concat("/").concat(lockName);
        this.lockName = lockName;
    }
    // 删除成功获取锁之后所创建的那个顺序节点
    private void deleteOurPath(String ourPath) throws Exception{
        client.delete(ourPath);
    }
    // 创建临时顺序节点
    private String createLockNode(ZkClient client,  String path) throws Exception{
        return client.createEphemeralSequential(path, null);
    }
    // 等待比自己次小的顺序节点的删除
    private boolean waitToLock(long startMillis, Long millisToWait, String ourPath) throws Exception{
        boolean  haveTheLock = false;
        boolean  doDelete = false;
        try {
            while ( !haveTheLock ) {
                // 获取/locker下的经过排序的子节点列表
                List<String> children = getSortedChildren();
                // 获取刚才自己创建的那个顺序节点名
                String sequenceNodeName = ourPath.substring(basePath.length()+1);
                // 判断自己排第几个
                int  ourIndex = children.indexOf(sequenceNodeName);
                if (ourIndex < 0){ // 网络抖动，获取到的子节点列表里可能已经没有自己了
                    throw new ZkNoNodeException("节点没有找到: " + sequenceNodeName);
                }
                // 如果是第一个，代表自己已经获得了锁
                boolean isGetTheLock = ourIndex == 0;
                // 如果自己没有获得锁，则要watch比我们次小的那个节点
                String  pathToWatch = isGetTheLock ? null : children.get(ourIndex - 1);
                if ( isGetTheLock ){
                    haveTheLock = true;
                } else {
                    // 订阅比自己次小顺序节点的删除事件
                    String  previousSequencePath = basePath .concat( "/" ) .concat( pathToWatch );
                    final CountDownLatch    latch = new CountDownLatch(1);
                    final IZkDataListener previousListener = new IZkDataListener() {
                        public void handleDataDeleted(String dataPath) throws Exception {
                            latch.countDown(); // 删除后结束latch上的await
                        }
                        public void handleDataChange(String dataPath, Object data) throws Exception {
                            // ignore
                        }
                    };
                    try {
                        //订阅次小顺序节点的删除事件，如果节点不存在会出现异常
                        client.subscribeDataChanges(previousSequencePath, previousListener);
                        if ( millisToWait != null ) {
                            millisToWait -= (System.currentTimeMillis() - startMillis);
                            startMillis = System.currentTimeMillis();
                            if ( millisToWait <= 0 ) {
                                doDelete = true;    // timed out - delete our node
                                break;
                            }
                            latch.await(millisToWait, TimeUnit.MICROSECONDS); // 在latch上await
                        } else {
                            latch.await(); // 在latch上await
                        }
                        // 结束latch上的等待后，继续while重新来过判断自己是否第一个顺序节点
                    }
                    catch ( ZkNoNodeException e ) {
                        //ignore
                    } finally {
                        client.unsubscribeDataChanges(previousSequencePath, previousListener);
                    }
                }
            }
        }
        catch ( Exception e ) {
            //发生异常需要删除节点
            doDelete = true;
            throw e;
        } finally {
            //如果需要删除节点
            if ( doDelete ) {
                deleteOurPath(ourPath);
            }
        }
        return haveTheLock;
    }
    private String getLockNodeNumber(String str, String lockName) {
        int index = str.lastIndexOf(lockName);
        if ( index >= 0 ) {
            index += lockName.length();
            return index <= str.length() ? str.substring(index) : "";
        }
        return str;
    }
    // 获取/locker下的经过排序的子节点列表
    List<String> getSortedChildren() throws Exception {
        try{
            List<String> children = client.getChildren(basePath);
            Collections.sort(
                children, new Comparator<String>() {
                    public int compare(String lhs, String rhs) {
                        return getLockNodeNumber(lhs, lockName).compareTo(getLockNodeNumber(rhs, lockName));
                    }
                }
            );
            return children;
        } catch (ZkNoNodeException e){
            client.createPersistent(basePath, true);
            return getSortedChildren();
        }
    }
    protected void releaseLock(String lockPath) throws Exception{
        deleteOurPath(lockPath);
    }
    protected String attemptLock(long time, TimeUnit unit) throws Exception {
        final long      startMillis = System.currentTimeMillis();
        final Long      millisToWait = (unit != null) ? unit.toMillis(time) : null;
        String          ourPath = null;
        boolean         hasTheLock = false;
        boolean         isDone = false;
        int             retryCount = 0;
        //网络闪断需要重试一试
        while ( !isDone ) {
            isDone = true;
            try {
                // 在/locker下创建临时的顺序节点
                ourPath = createLockNode(client, path);
                // 判断自己是否获得了锁，如果没有获得那么等待直到获得锁或者超时
                hasTheLock = waitToLock(startMillis, millisToWait, ourPath);
            } catch ( ZkNoNodeException e ) { // 捕获这个异常
                if ( retryCount++ < MAX_RETRY_COUNT ) { // 重试指定次数
                    isDone = false;
                } else {
                    throw e;
                }
            }
        }
        if ( hasTheLock ) {
            return ourPath;
        }
        return null;
    }
}

public class TestDistributedLock {
    public static void main(String[] args) {
        final ZkClientExt zkClientExt1 = new ZkClientExt("192.168.1.105:2181", 5000, 5000, new BytesPushThroughSerializer());
        final SimpleDistributedLockMutex mutex1 = new SimpleDistributedLockMutex(zkClientExt1, "/Mutex");
        final ZkClientExt zkClientExt2 = new ZkClientExt("192.168.1.105:2181", 5000, 5000, new BytesPushThroughSerializer());
        final SimpleDistributedLockMutex mutex2 = new SimpleDistributedLockMutex(zkClientExt2, "/Mutex");
        try {
            mutex1.acquire();
            System.out.println("Client1 locked");
            Thread client2Thd = new Thread(new Runnable() {
                public void run() {
                    try {
                        mutex2.acquire();
                        System.out.println("Client2 locked");
                        mutex2.release();
                        System.out.println("Client2 released lock");
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
            });
            client2Thd.start();
            Thread.sleep(5000);
            mutex1.release();
            System.out.println("Client1 released lock");
            client2Thd.join();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

public class ZkClientExt extends ZkClient {
    public ZkClientExt(String zkServers, int sessionTimeout, int connectionTimeout, ZkSerializer zkSerializer) {
        super(zkServers, sessionTimeout, connectionTimeout, zkSerializer);
    }
    @Override
    public void watchForData(final String path) {
        retryUntilConnected(new Callable<Object>() {
            public Object call() throws Exception {
                Stat stat = new Stat();
                _connection.readData(path, stat, true);
                return null;
            }
        });
    }
}

5. 分布式队列

在传统的单进程编程中，我们使用队列来存储一些数据结构，用来在多线程之间共享或传递数据。

分布式环境下，我们同样需要一个类似单进程队列的组件，用来实现跨进程、跨主机、跨网络的数据共享和数据传递，这就是我们的分布式队列。

zookeeper可以通过顺序节点实现分布式队列。

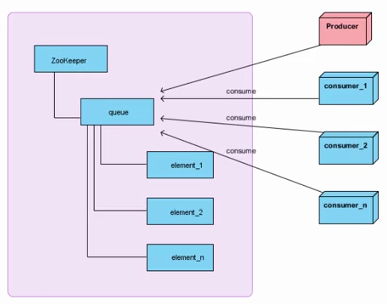

架构图

Zookeeper使用案例 - 图14

图中左侧代表zookeeper集群，右侧代表消费者和生产者。
生产者通过在queue节点下创建顺序节点来存放数据，消费者通过读取顺序节点来消费数据。

流程图

offer核心算法流程

Zookeeper使用案例 - 图15

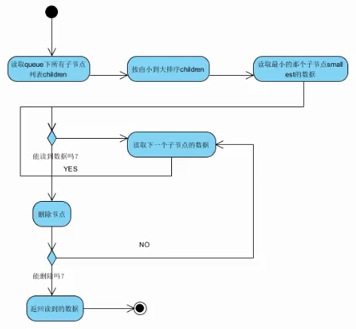

poll核心算法流程

Zookeeper使用案例 - 图16

代码实现

/**
 * 简单分布式队列
 */
public class DistributedSimpleQueue<T> {
    protected final ZkClient zkClient;
    // queue节点
    protected final String root;
    // 顺序节点前缀
    protected static final String Node_NAME = "n_";
    public DistributedSimpleQueue(ZkClient zkClient, String root) {
        this.zkClient = zkClient;
        this.root = root;
    }
    // 判断队列大小
    public int size() {
        return zkClient.getChildren(root).size();
    }
    // 判断队列是否为空
    public boolean isEmpty() {
        return zkClient.getChildren(root).size() == 0;
    }
    // 向队列提供数据
    public boolean offer(T element) throws Exception{
        // 创建顺序节点
        String nodeFullPath = root .concat( "/" ).concat( Node_NAME );
        try {
            zkClient.createPersistentSequential(nodeFullPath , element);
        }catch (ZkNoNodeException e) {
            zkClient.createPersistent(root);
            offer(element);
        } catch (Exception e) {
            throw ExceptionUtil.convertToRuntimeException(e);
        }
        return true;
    }
    // 从队列取数据
    public T poll() throws Exception {
        try {
            // 获取所有顺序节点
            List<String> list = zkClient.getChildren(root);
            if (list.size() == 0) {
                return null;
            }
            // 排序
            Collections.sort(list, new Comparator<String>() {
                public int compare(String lhs, String rhs) {
                    return getNodeNumber(lhs, Node_NAME).compareTo(getNodeNumber(rhs, Node_NAME));
                }
            });
            // 循环每个顺序节点名
            for ( String nodeName : list ){
                // 构造出顺序节点的完整路径
                String nodeFullPath = root.concat("/").concat(nodeName);
                try {
                    // 读取顺序节点的内容
                    T node = (T) zkClient.readData(nodeFullPath);
                    // 删除顺序节点
                    zkClient.delete(nodeFullPath);
                    return node;
                } catch (ZkNoNodeException e) {
                    // ignore 由其他客户端把这个顺序节点消费掉了
                }
            }
            return null;
        } catch (Exception e) {
            throw ExceptionUtil.convertToRuntimeException(e);
        }
    }
    private String getNodeNumber(String str, String nodeName) {
        int index = str.lastIndexOf(nodeName);
        if (index >= 0) {
            index += Node_NAME.length();
            return index <= str.length() ? str.substring(index) : "";
        }
        return str;
    }
}

public class User implements Serializable {
    String name;
    String id;
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public String getId() {
        return id;
    }
    public void setId(String id) {
        this.id = id;
    }
}

public class TestDistributedSimpleQueue {
    public static void main(String[] args) {
        ZkClient zkClient = new ZkClient("192.168.1.105:2181", 5000, 5000, new SerializableSerializer());
        DistributedSimpleQueue<User> queue = new DistributedSimpleQueue<User>(zkClient,"/Queue");
        User user1 = new User();
        user1.setId("1");
        user1.setName("xiao wang");
        User user2 = new User();
        user2.setId("2");
        user2.setName("xiao wang");
        try {
            queue.offer(user1);
            queue.offer(user2);
            User u1 = (User) queue.poll();
            User u2 = (User) queue.poll();
            if (user1.getId().equals(u1.getId()) && user2.getId().equals(u2.getId())){
                System.out.println("Success!");
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

上面实现了一个简单分布式队列，在此基础上，我们再扩展一个阻塞分布式队列。代码如下：

/**
 * 阻塞分布式队列
 * 扩展自简单分布式队列，在拿不到队列数据时，进行阻塞直到拿到数据
 */
public class DistributedBlockingQueue<T> extends DistributedSimpleQueue<T>{
    public DistributedBlockingQueue(ZkClient zkClient, String root) {
        super(zkClient, root);
    }
    @Override
    public T poll() throws Exception {
        while (true){ // 结束在latch上的等待后，再来一次
            final CountDownLatch    latch = new CountDownLatch(1);
            final IZkChildListener childListener = new IZkChildListener() {
                public void handleChildChange(String parentPath, List<String> currentChilds)
                        throws Exception {
                    latch.countDown(); // 队列有变化，结束latch上的等待
                }
            };
            zkClient.subscribeChildChanges(root, childListener);
            try{
                T node = super.poll(); // 获取队列数据
                if ( node != null ){
                    return node;
                } else {
                    latch.await(); // 拿不到队列数据，则在latch上await
                }
            } finally {
                zkClient.unsubscribeChildChanges(root, childListener);
            }
        }
    }
}

public class TestDistributedBlockingQueue {
    public static void main(String[] args) {
        ScheduledExecutorService delayExector = Executors.newScheduledThreadPool(1);
        int delayTime = 5;
        ZkClient zkClient = new ZkClient("192.168.1.105:2181", 5000, 5000, new SerializableSerializer());
        final DistributedBlockingQueue<User> queue = new DistributedBlockingQueue<User>(zkClient,"/Queue");
        final User user1 = new User();
        user1.setId("1");
        user1.setName("xiao wang");
        final User user2 = new User();
        user2.setId("2");
        user2.setName("xiao wang");
        try {
            delayExector.schedule(new Runnable() {
                public void run() {
                    try {
                        queue.offer(user1);
                        queue.offer(user2);
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
            }, delayTime , TimeUnit.SECONDS);
            System.out.println("ready poll!");
            User u1 = (User) queue.poll();
            User u2 = (User) queue.poll();
            if (user1.getId().equals(u1.getId()) && user2.getId().equals(u2.getId())){
                System.out.println("Success!");
            }
        } catch (Exception e) {
            e.printStackTrace();
        } finally{
            delayExector.shutdown();
            try {
                delayExector.awaitTermination(2, TimeUnit.SECONDS);
            } catch (InterruptedException e) {
            }
        }
    }
}

6. 分布式命名服务

zookeeper的命名服务有两个应用方向，一个是提供类似JNDI的功能，利用zookeepeer的树型分层结构，可以把系统中各种服务的名称、地址以及目录信息存放在zookeeper，需要的时候去zookeeper中读取。

另一个，是利用zookeeper顺序节点的特性，制作分布式的ID生成器，写过数据库应用的朋友都知道，我们在往数据库表中插入记录时，通常需要为该记录创建唯一的ID，在单机环境中我们可以利用数据库的主键自增功能。但在分布式环境则无法使用，有一种方式可以使用UUID，但是它的缺陷是没有规律，很难理解。利用zookeeper顺序节点的特性，我们可以生成有顺序的，容易理解的，同时支持分布式环境的序列号。

代码实现

public class IdMaker {
    private ZkClient client = null;
    private final String server;
    // zookeeper顺序节点的父节点
    private final String root;
    // 顺序节点的名称
    private final String nodeName;
    // 标识当前服务是否正在运行
    private volatile boolean running = false;
    private ExecutorService cleanExector = null;
    public enum RemoveMethod{
        NONE,IMMEDIATELY,DELAY
    }
    public IdMaker(String zkServer,String root,String nodeName){
        this.root = root;
        this.server = zkServer;
        this.nodeName = nodeName;
    }
    // 启动服务
    public void start() throws Exception {
        if (running)
            throw new Exception("server has stated...");
        running = true;
        init();
    }
    // 停止服务
    public void stop() throws Exception {
        if (!running)
            throw new Exception("server has stopped...");
        running = false;
        freeResource();
    }
    // 初始化服务资源
    private void init(){
        client = new ZkClient(server,5000,5000,new BytesPushThroughSerializer());
        cleanExector = Executors.newFixedThreadPool(10);
        try{
            client.createPersistent(root,true);
        }catch (ZkNodeExistsException e){
            //ignore;
        }
    }
    // 释放服务器资源
    private void freeResource(){
        // 释放线程池
        cleanExector.shutdown();
        try{
            cleanExector.awaitTermination(2, TimeUnit.SECONDS);
        }catch(InterruptedException e){
            e.printStackTrace();
        }finally{
            cleanExector = null;
        }
        if (client!=null){
            client.close();
            client=null;
        }
    }
    // 检测当前服务是否正在运行
    private void checkRunning() throws Exception {
        if (!running)
            throw new Exception("请先调用start");
    }
    // 从顺序节点名中提取我们要的ID值
    private String ExtractId(String str){
        int index = str.lastIndexOf(nodeName);
        if (index >= 0){
            index+=nodeName.length();
            return index <= str.length()?str.substring(index):"";
        }
        return str;
    }
    // 生成ID
    public String generateId(RemoveMethod removeMethod) throws Exception{
        checkRunning();
        // 构造顺序节点的完整路径
        final String fullNodePath = root.concat("/").concat(nodeName);
        // 创建持久化顺序节点
        final String ourPath = client.createPersistentSequential(fullNodePath, null);
        // 避免zookeeper的顺序节点暴增，直接删除掉刚创建的顺序节点
        if (removeMethod.equals(RemoveMethod.IMMEDIATELY)){ // 立即删除
            client.delete(ourPath);
        }else if (removeMethod.equals(RemoveMethod.DELAY)){ // 延迟删除
            cleanExector.execute(new Runnable() { // 用线程池执行删除，让generateId()方法尽快返回
                public void run() {
                    client.delete(ourPath);
                }
            });
        }
        //node-0000000000, node-0000000001
        return ExtractId(ourPath);
    }
}

public class TestIdMaker {
    public static void main(String[] args) throws Exception {
        IdMaker idMaker = new IdMaker("192.168.1.105:2181",
                "/NameService/IdGen", "ID");
        idMaker.start();
        try {
            for (int i = 0; i < 10; i++) {
                String id = idMaker.generateId(RemoveMethod.DELAY);
                System.out.println(id);
            }
        } finally {
            idMaker.stop();
        }
    }
}
