前言

市面多数设备支持阿里云物联网平台的ALink协议，假设这类网关无法更改上下行协议，如何接入tb平台？
文章是个人调研过程中的理解和分享，顺便通过偏实战的方式，更全面的实践tb网关的mqtt连接器使用。看官网介绍的时候觉得很简单，真正用起来，细节和文档缺失的介绍还是很多的（比如官网只介绍了使用tb网关时，设备如何订阅共享属性更新，却没有介绍设备还可以主动请求共享属性）。
由于thingsboard平台和阿里物联网平台对物联网中的相关定义及功能设计不一致。以个人浅显理解，使用下面的对应关系做接入。

ALink协议文档
tb-gateway mqtt连接器文档

ALink协议 ThingsBoard协议 [tb-gateway]
设备身份注册 自动注册
管理拓扑关系 不需要
子设备上下线 连接/断开连接请求
设备只读属性 客户端属性/遥测
设备读写属性 上行客户端属性 下行RPC
设备上报事件 遥测+规则链/客户端属性 ？
设备服务（异步同步） 服务端RPC（oneway/twoway）
设备期望属性值 待完善
设备禁用/启用/删除 上行客户端属性(属性名method)下行RPC
设备标签 上行客户端属性 下行RPC
ack 遥测+规则链
TSL模板 共享属性 待完善
OTA 待完善
远程配置 共享属性 待完善
设备日志上报 待完善
设备网络状态 待完善
设备分发 待完善
设备任务 待完善

整体规划

  1. ALink网关及网关子设备 用js模拟（硬件没到，手动调研吧）

需要依赖 npm install mqtt

  1. 使用tb-gateway接入ALink网关

  2. tb web页面添加ALink网关

    调用流程

    数据上传：（上行）
    ALink网关js 发送mqtt到EMQX，tb-gateway订阅EMQX相关主题，并将数据格式及上下行协议转为tb格式 发送到tb
    数据下发：（下行）
    tb服务端下发指定 到 tb-gateway，tb-gateway转换主题和数据格式 发送到 EMQX，js订阅EMQX收到消息
    下行如果需要回复：js 收到消息后发送数据到EMQX，tb-gateway订阅回复主题 并转换消息及上行协议格式 发送数据到tb

    开始

  3. tb web添加设备 阿里云ALink协议网关 并勾选 是网关

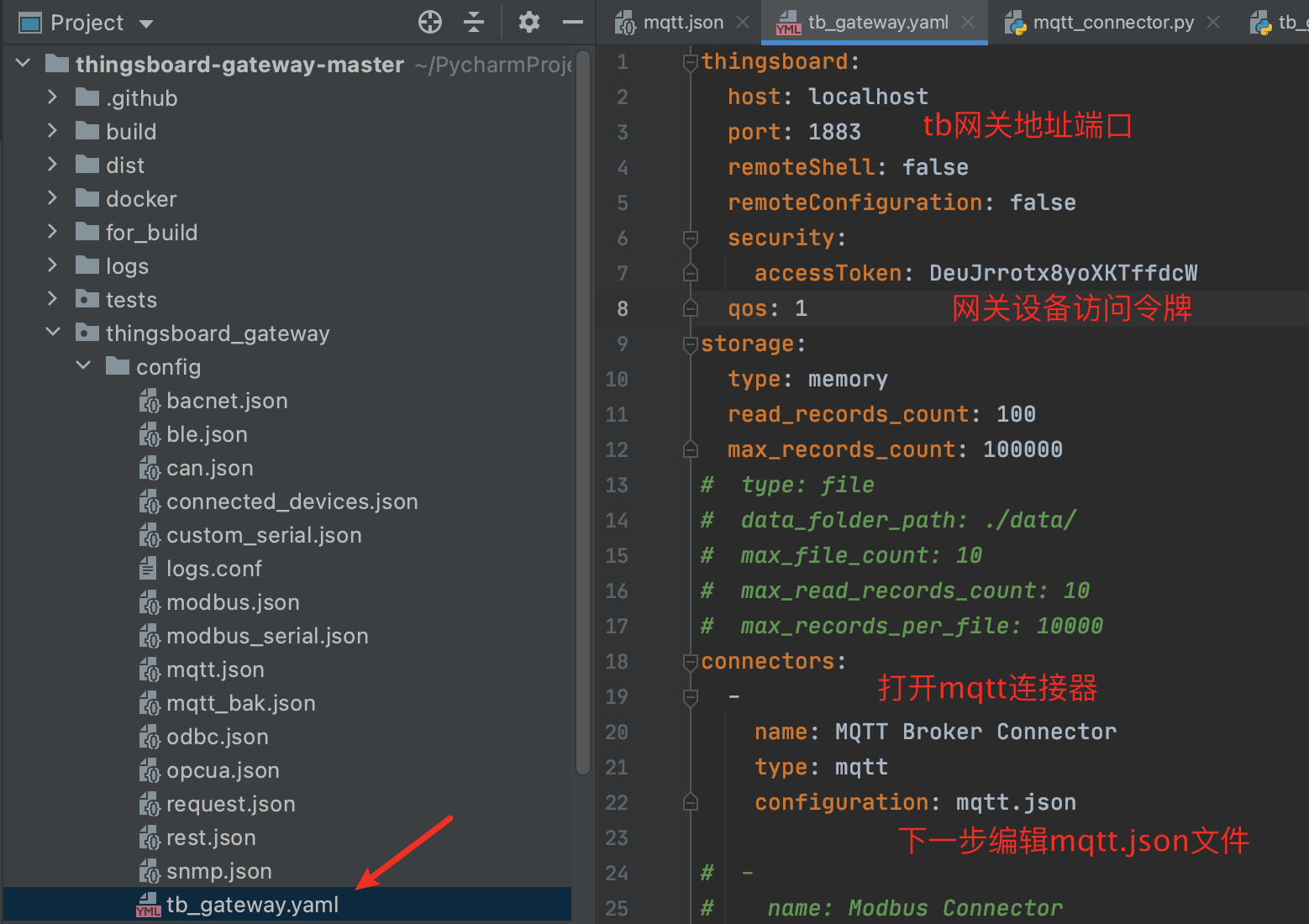

  1. 点击 复制访问令牌将令牌粘贴到 tb-gateway的tb_gateway.yaml中,并设置tb的地址和端口以及打开mqtt连接器


  1. 大体看下js中规划的功能，接下来根据各个功能配置mqtt.json文件 ```javascript //设备读写属性 var power = ‘on’; var publish_telemetry_interval = 10; var publish_label_interval = 30; //设备只读属性 var temperature; //设备标签 var model = ‘AHT15’//型号 var vendor = ‘jin_shi_da’;//厂商 var area = ‘beijing’; //设备禁用/启用/删除 var status = ‘enable’;

/ topic定义 / //下行 alink属性 var set_attributes_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/property/set’; //下行 alink属性响应 var set_attributes_topic_reply = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/property/set_reply’; //上行 alink属性 var property_post_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/event/property/post’; //上行 子设备上线 var device_login_topic = ‘/ext/session/‘ + productKey + ‘/‘ + deviceName + ‘/combine/login’; //上行 子设备下线 var device_logout_topic = ‘/ext/session/‘ + productKey + ‘/‘ + deviceName + ‘/combine/logout’; //下行 子设备禁用/启用/删除 var device_disable_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/disable’; var device_enable_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/enable’; var device_delete_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/delete’; //上行 设备标签上报 var label_upload_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/update’; //下行 设备标签上报 var label_upload_reply_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/update_reply’; //上行 删除标签信息 var label_delete_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/delete’; //下行 删除标签信息 var label_delete_reply_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/delete_reply’; //下行 服务调用 var service_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/+’; //上行 服务调用响应 var service_reply_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/+’ + ‘_reply’;

  2. 4. 配置mqtt.json [json文件不能注释，下面这个文件加了注释，文章最后贴出无注释的mqtt.json文件]

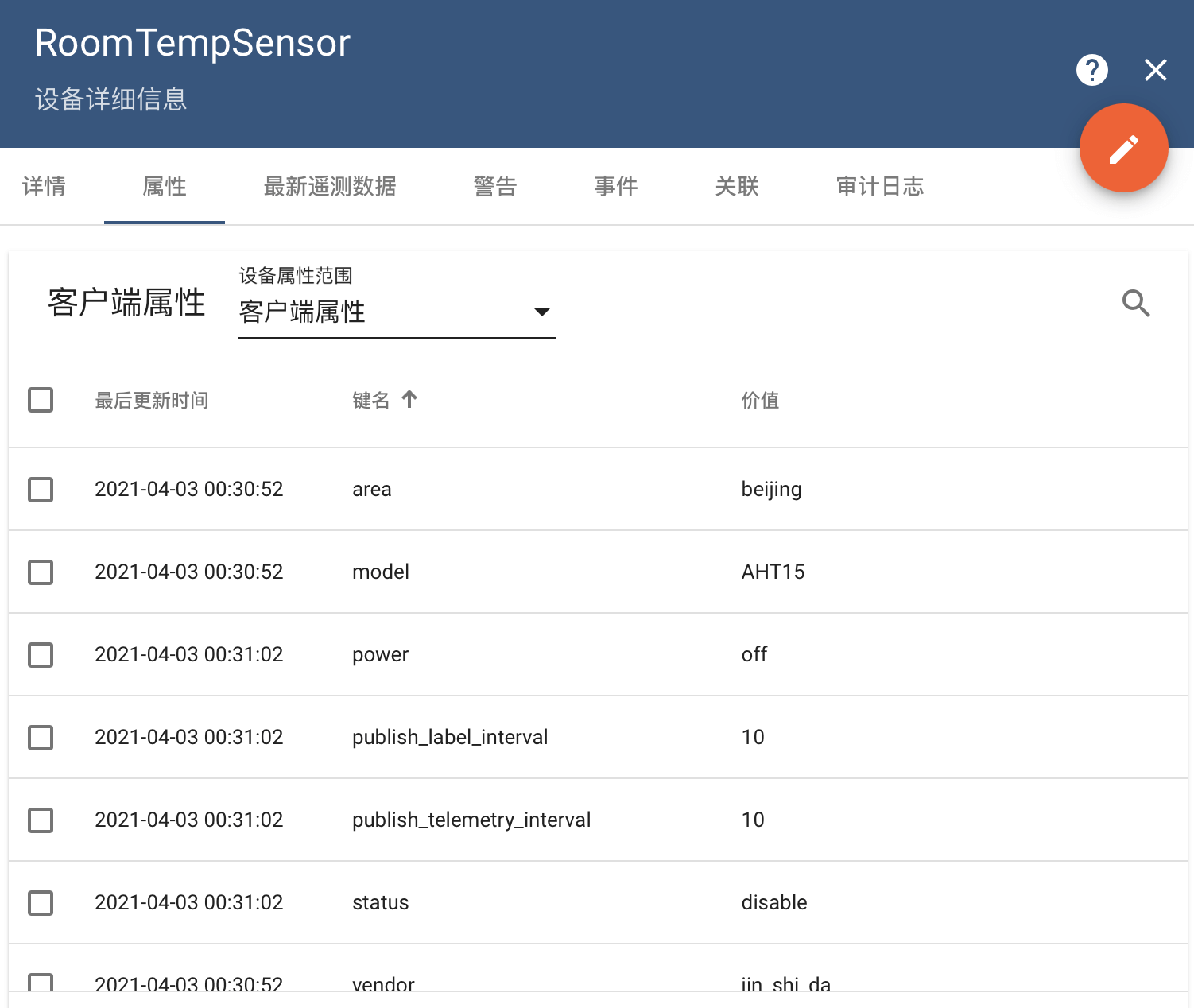

  4. 模拟演示一个温度传感器经过ALink网关上传数据：<br />有`temperature`属性作为遥测，通过ALink上行属性topic上传。<br />`power`属性作为客户端属性，通过ALink上行属性topic上传。tb通过服务改变`power`的值，控制温度传感器的工作与否。<br />`publish_telemetry_interval`属性作为客户端属性，通过ALink上行属性topic上传。下行属性控制ALink上行属性topic上传间隔。<br />`model`型号`vendor`厂商`area`地址，作为客户端属性，通过ALink上行标签topic上传。<br />`status`设备状态，作为客户端属性，通过ALink下行 子设备禁用/启用/删除topic控制。<br />子设备上线、子设备下线<br />设置属性<br />调用服务<br />下行响应
  5. ```json
  6. {
  7.   "broker": {
  8.     "name": "Default Local Broker", //外部mqtt服务器名称 这里使用主流 EMQX Broker
  9.     "host": "192.168.7.190", //外部mqtt服务器地址
  10.     "port": 1883, //外部mqtt服务器端口
  11.     "clientId": "ThingsBoard_gateway", //客户端ID
  12.     "security": {
  13.       "type": "basic",
  14.       "username": "admin", //emqx客户端账号
  15.       "password": "admin" //emqx客户端密码， 没有可以删掉这一项
  16.     }
  17.   },
  18.   "mapping": [
  19.     //这个对象将ALink网关的上行属性，根据属性特征转换为tb的客户端属性和遥测消息.
  20.     //ALink属性上行协议params中没有deviceName、productKey俩字段，由于目前没有时间研究deviceNameTopicExpression，就简单使用deviceNameJsonExpression
  21.     //所以在属性上传时params加了deviceName、productKey俩个字段。应该从topic获取就完美了，后面有时间补上
  22.     {
  23.       "topicFilter": "/sys/+/+/thing/event/property/post",
  24.       "subscriptionQos": 0, //qos可以不设置，默认1，只支持 0，1
  25.       "converter": {
  26.         "type": "json",
  27.         "deviceNameJsonExpression": "${params.deviceName}",
  28.         "deviceTypeJsonExpression": "${params.productKey}",
  29.         "timeout": 60000,
  30.         "attributes": [
  31.           {
  32.             "type": "string",
  33.             "key": "power",
  34.             "value": "${params.power.value}"
  35.           },
  36.           {
  37.             "type": "int",
  38.             "key": "publish_telemetry_interval",
  39.             "value": "${params.publish_telemetry_interval.value}"
  40.           },
  41.           {
  42.             "type": "int",
  43.             "key": "publish_label_interval",
  44.             "value": "${params.publish_telemetry_interval.value}"
  45.           },
  46.           {
  47.             "type": "string",
  48.             "key": "status",
  49.             "value": "${params.status.value}"
  50.           }
  51.         ],
  52.         "timeseries": [
  53.           {
  54.             "type": "float",
  55.             "key": "temperature",
  56.             "value": "${params.temperature.value}"
  57.           }
  58.         ]
  59.       }
  60.     },
  61.     {
  62.       "topicFilter": "/sys/+/+/thing/deviceinfo/update",
  63.       "subscriptionQos": 0,
  64.       "converter": {
  65.         "type": "json",
  66.         "deviceNameJsonExpression": "${sys.deviceName}",
  67.         "deviceTypeJsonExpression": "${sys.productKey}",
  68.         "timeout": 60000,
  69.         "attributes": [
  70.           {
  71.             "type": "string",
  72.             "key": "model",
  73.             "value": "${params[0].attrValue}"
  74.           },
  75.           {
  76.             "type": "string",
  77.             "key": "vendor",
  78.             "value": "${params[1].attrValue}"
  79.           },
  80.           {
  81.             "type": "string",
  82.             "key": "area",
  83.             "value": "${params[2].attrValue}"
  84.           }
  85.         ]
  86.       }
  87.     }
  88.   ],
  89.   "connectRequests": [
  90.     {
  91.       "topicFilter": "/ext/session/+/+/combine/login",
  92.       "deviceNameJsonExpression": "${params.deviceName}",
  93.       "deviceTypeJsonExpression": "${params.productKey}"
  94.     }
  95.   ],
  96.   "disconnectRequests": [
  97.     {
  98.       "topicFilter": "/ext/session/+/+/combine/logout",
  99.       "deviceNameJsonExpression": "${params.deviceName}",
  100.       "deviceTypeJsonExpression": "${params.productKey}"
  101.     }
  102.   ],
  103.   "attributeUpdates": [
  104.   ],
  105.   "attributeRequests": [
  106.   ],
  107.   "serverSideRpc": [
  108.     {
  109.       "deviceNameFilter": ".*",
  110.       "methodFilter": "setStatus",
  111.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/${params}",
  112.       "responseTopicExpression": "/sys/${deviceType}/${deviceName}/thing/${params}_reply",
  113.       "responseTimeout": 10000,
  114.       "valueExpression": "{\"id\":\"123\",\"version\":\"1.0\",\"params\":{},\"method\":\"thing.${params}\"}"
  115.     },
  116.     {
  117.       "deviceNameFilter": ".*",
  118.       "methodFilter": "setProperty",
  119.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/service/property/set",
  120.       "responseTopicExpression": "/sys/${deviceType}/${deviceName}/thing/service/property/set_reply",
  121.       "responseTimeout": 10000,
  122.       "valueExpression": "{\"id\":\"123\",\"version\":\"1.0\",\"params\":${params},\"method\":\"thing.service.property.set\"}"
  123.     },
  124.     {
  125.       "deviceNameFilter": ".*",
  126.       "methodFilter": "replyLabelUpdate",
  127.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/deviceinfo/update_reply",
  128.       "valueExpression": "{\"id\":\"123\",\"code\":200,\"data\":{}}"
  129.     },
  130.     {
  131.       "deviceNameFilter": ".*",
  132.       "methodFilter": "service.*",
  133.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/service/${methodName}",
  134.       "valueExpression": "{\"id\":\"123\",\"version\":\"1.0\",\"params\":${params},\"method\":\"thing.service.${methodName}\"}"
  135.     }
  136.   ]
  137. }
  1. 完整js ```javascript var mqtt = require(‘mqtt’); var client = mqtt.connect(‘mqtt://localhost:1884’, { username: ‘admin’, password: ‘admin’ }); // 设备预置参数 var productKey = “a1CpLSEvPUk”; var deviceName = “RoomTempSensor”; var version = “1.0”; var clientId = ‘asdasdasdaedqwe123123123123’; //设备读写属性 var power = ‘on’; var publish_telemetry_interval = 10; var publish_label_interval = 30; //设备只读属性 var temperature; //设备标签 var model = ‘AHT15’//型号 var vendor = ‘jin_shi_da’;//厂商 var area = ‘beijing’; // var model = ‘LM35DZ’; // var model = ‘LM35’; //设备禁用/启用/删除 var status = ‘enable’;

/ topic定义 / //下行 alink属性 var set_attributes_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/property/set’; //下行 alink属性响应 var set_attributes_topic_reply = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/property/set_reply’; //上行 alink属性 var property_post_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/event/property/post’; //上行 子设备上线 var device_login_topic = ‘/ext/session/‘ + productKey + ‘/‘ + deviceName + ‘/combine/login’; //上行 子设备下线 var device_logout_topic = ‘/ext/session/‘ + productKey + ‘/‘ + deviceName + ‘/combine/logout’; //下行 子设备禁用/启用/删除 var device_disable_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/disable’; var device_enable_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/enable’; var device_delete_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/delete’; //上行 设备标签上报 var label_upload_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/update’; //下行 设备标签上报 var label_upload_reply_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/update_reply’; //上行 删除标签信息 var label_delete_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/delete’; //下行 删除标签信息 var label_delete_reply_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/deviceinfo/delete_reply’; //下行 服务调用 var service_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/+’; //上行 服务调用响应 var service_reply_topic = ‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/service/+’ + ‘_reply’;

//程序变量 var id = 0; var pre_interval_property; var pre_interval_label; var success = JSON.stringify({“id”: “123”, “code”: 200, “data”: {}}) //设备连接回调 client.on(‘connect’, function () { console.log(‘connected’); connect(); client.subscribe(set_attributes_topic) client.subscribe(device_disable_topic) client.subscribe(device_enable_topic) client.subscribe(device_delete_topic) client.subscribe(service_topic) pre_interval_property = setPublishPropertyInterval(null, publish_telemetry_interval 1000); pre_interval_label = setPublishLabelInterval(null, publish_label_interval 1000); }); //收到消息回调 client.on(‘message’, function (topic, message) { console.log(‘on message:’) console.log(topic); console.log(message.toString()); console.log(‘———————————————————‘) let data = JSON.parse(message); //下行 服务调用正则验证 var service_topic_regex = new RegExp(service_topic.replace(“+”, “[^/]+”)) switch (topic) { case set_attributes_topic: if (data.params.hasOwnProperty(‘publish_telemetry_interval’)) { publish_telemetry_interval = data.params.publish_telemetry_interval; pre_interval_property = setPublishPropertyInterval(pre_interval_property, data.params.publish_telemetry_interval 1000); } if (data.params.hasOwnProperty(‘publish_label_interval’)) { publish_label_interval = data.params.publish_label_interval; pre_interval_label = setPublishPropertyInterval(pre_interval_label, data.params.publish_label_interval 1000); } if (data.params.hasOwnProperty(‘power’)) { power = data.params.power; } //响应设置设备属性 publish(set_attributes_topic_reply, success) break; case device_disable_topic: case device_enable_topic: case device_delete_topic: //模拟设备禁用启用删除 if (data.hasOwnProperty(‘method’)) { status = data.method.split(‘.’)[1]; //响应设备禁用启用删除 publish(‘/sys/‘ + productKey + ‘/‘ + deviceName + ‘/thing/‘ + status + ‘_reply’, success) } break; case label_delete_reply_topic: //下行 删除设备标签响应 break; case label_upload_reply_topic: //下行 标签信息上报响应 break; } //下行 服务调用 if (service_topic_regex.test(topic)) { if (data.hasOwnProperty(‘method’)) { var methodName = data.method.split(‘.’)[2] if (methodName === “power”) { power = data.params.power; } //上行 服务调用响应 publish(service_reply_topic.replace(‘+’, data.method), success);

  1.     }
  2. }

}); //ctrl+c回调 client.on(‘SIGINT’, function () { console.log(‘disconnected’); disconnect(); client.end(); console.log(‘Exited!’); process.exit(2); }); //捕获异常 process.on(‘uncaughtException’, function (e) { console.log(‘Uncaught Exception…’); console.log(e.stack); process.exit(99); });

//alink属性上传 function publishTelemetry() { var message = { “id”: ++id, “version”: version, “sys”: { “ack”: 0 }, “params”: { “productKey”: productKey, “deviceName”: deviceName, “power”: { //alink读写属性 “value”: power, “time”: new Date().getTime() }, “publish_telemetry_interval”: { //alink读写属性 “value”: publish_telemetry_interval, “time”: new Date().getTime() }, “publish_label_interval”: { //alink读写属性 “value”: publish_label_interval, “time”: new Date().getTime() }, “temperature”: { //alink只读属性 “value”: genNextValue(23.6, 0, 45), “time”: new Date().getTime() }, ‘status’: { //alink设备启用禁用删除 ‘value’: status, ‘time’: new Date().getTime() }, “model”: { “value”: model, “time”: new Date().getTime() }, “vendor”: { “value”: vendor, “time”: new Date().getTime() }, “area”: { “value”: area, “time”: new Date().getTime() } }, “method”: “thing.event.property.post” } publish(property_post_topic, message); }

//alink标签上传 function publishLabel() { var message = { “id”: ++id, “version”: version, “sys”: { “ack”: 0, “productKey”: productKey, “deviceName”: deviceName }, “params”: [ { “attrKey”: “model”, “attrValue”: model }, { “attrKey”: “vendor”, “attrValue”: vendor }, { “attrKey”: “area”, “attrValue”: area } ], “method”: “thing.deviceinfo.update” } publish(label_upload_topic, message); }

//子设备上线 function connect() { var message = { “id”: ++id, “params”: { “productKey”: productKey, “deviceName”: deviceName, “clientId”: clientId, “timestamp”: new Date().getTime(), “signMethod”: “hmacmd5”, “sign”: “9B9C732412A4F84B981E1AB97CAB**“, “cleanSession”: “true” } } publish(device_login_topic, message); }

//子设备下线 function disconnect() { var message = { “id”: ++id, “params”: { “productKey”: productKey, “deviceName”: deviceName } } publish(device_logout_topic, JSON.stringify(message)); }

//发送数据+打印日志 function publish(topic, message) { client.publish(topic, JSON.stringify(message)); log(topic, message); }

//定时上传属性数据 function setPublishPropertyInterval(preInterval, interval) { if (status === ‘enable’) { if (preInterval != null) { clearInterval(preInterval); } return setInterval(publishTelemetry, interval); } return null; }

//定时上传标签数据 function setPublishLabelInterval(preInterval, interval) { if (status === ‘enable’) { if (preInterval != null) { clearInterval(preInterval); } return setInterval(publishLabel, interval); } return null; }

// Generates new random value that is within 3% range from previous value function genNextValue(prevValue, min, max) { var value = prevValue + ((max - min) (Math.random() - 0.5)) 0.03; value = Math.max(min, Math.min(max, value)); return Math.round(value * 10) / 10; }

//控制台打印 function log(topic, message) { console.log(‘send message:’) console.log(topic) console.log(JSON.stringify(message)) console.log(‘===================================’) }

  2. 6. 完整mqtt.json
  3. ```json
  4. {
  5.   "broker": {
  6.     "name": "emqx",
  7.     "host": "localhost",
  8.     "port": 1884,
  9.     "clientId": "ThingsBoard_gateway",
  10.     "security": {
  11.       "type": "basic",
  12.       "username": "admin",
  13.       "password": "admin"
  14.     }
  15.   },
  16.   "mapping": [
  17.     {
  18.       "topicFilter": "/sys/+/+/thing/event/property/post",
  19.       "subscriptionQos": 0,
  20.       "converter": {
  21.         "type": "json",
  22.         "deviceNameJsonExpression": "${params.deviceName}",
  23.         "deviceTypeJsonExpression": "${params.productKey}",
  24.         "timeout": 60000,
  25.         "attributes": [
  26.           {
  27.             "type": "string",
  28.             "key": "power",
  29.             "value": "${params.power.value}"
  30.           },
  31.           {
  32.             "type": "int",
  33.             "key": "publish_telemetry_interval",
  34.             "value": "${params.publish_telemetry_interval.value}"
  35.           },
  36.           {
  37.             "type": "int",
  38.             "key": "publish_label_interval",
  39.             "value": "${params.publish_telemetry_interval.value}"
  40.           },
  41.           {
  42.             "type": "string",
  43.             "key": "status",
  44.             "value": "${params.status.value}"
  45.           }
  46.         ],
  47.         "timeseries": [
  48.           {
  49.             "type": "float",
  50.             "key": "temperature",
  51.             "value": "${params.temperature.value}"
  52.           }
  53.         ]
  54.       }
  55.     },
  56.     {
  57.       "topicFilter": "/sys/+/+/thing/deviceinfo/update",
  58.       "subscriptionQos": 0,
  59.       "converter": {
  60.         "type": "json",
  61.         "deviceNameJsonExpression": "${sys.deviceName}",
  62.         "deviceTypeJsonExpression": "${sys.productKey}",
  63.         "timeout": 60000,
  64.         "attributes": [
  65.           {
  66.             "type": "string",
  67.             "key": "model",
  68.             "value": "${params[0].attrValue}"
  69.           },
  70.           {
  71.             "type": "string",
  72.             "key": "vendor",
  73.             "value": "${params[1].attrValue}"
  74.           },
  75.           {
  76.             "type": "string",
  77.             "key": "area",
  78.             "value": "${params[2].attrValue}"
  79.           }
  80.         ]
  81.       }
  82.     }
  83.   ],
  84.   "connectRequests": [
  85.     {
  86.       "topicFilter": "/ext/session/+/+/combine/login",
  87.       "deviceNameJsonExpression": "${params.deviceName}",
  88.       "deviceTypeJsonExpression": "${params.productKey}"
  89.     }
  90.   ],
  91.   "disconnectRequests": [
  92.     {
  93.       "topicFilter": "/ext/session/+/+/combine/logout",
  94.       "deviceNameJsonExpression": "${params.deviceName}",
  95.       "deviceTypeJsonExpression": "${params.productKey}"
  96.     }
  97.   ],
  98.   "attributeUpdates": [
  99.   ],
  100.   "attributeRequests": [
  101.   ],
  102.   "serverSideRpc": [
  103.     {
  104.       "deviceNameFilter": ".*",
  105.       "methodFilter": "setStatus",
  106.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/${params}",
  107.       "responseTopicExpression": "/sys/${deviceType}/${deviceName}/thing/${params}_reply",
  108.       "responseTimeout": 10000,
  109.       "valueExpression": "{\"id\":\"123\",\"version\":\"1.0\",\"params\":{},\"method\":\"thing.${params}\"}"
  110.     },
  111.     {
  112.       "deviceNameFilter": ".*",
  113.       "methodFilter": "setProperty",
  114.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/service/property/set",
  115.       "responseTopicExpression": "/sys/${deviceType}/${deviceName}/thing/service/property/set_reply",
  116.       "responseTimeout": 10000,
  117.       "valueExpression": "{\"id\":\"123\",\"version\":\"1.0\",\"params\":${params},\"method\":\"thing.service.property.set\"}"
  118.     },
  119.     {
  120.       "deviceNameFilter": ".*",
  121.       "methodFilter": "replyLabelUpdate",
  122.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/deviceinfo/update_reply",
  123.       "valueExpression": "{\"id\":\"123\",\"code\":200,\"data\":{}}"
  124.     },
  125.     {
  126.       "deviceNameFilter": ".*",
  127.       "methodFilter": "service.*",
  128.       "requestTopicExpression": "/sys/${deviceType}/${deviceName}/thing/service/${methodName}",
  129.       "valueExpression": "{\"id\":\"123\",\"version\":\"1.0\",\"params\":${params},\"method\":\"thing.${methodName}\"}",
  130.       "responseTopicExpression":  "/sys/${deviceType}/${deviceName}/thing/service/thing.${methodName}_reply",
  131.       "responseTimeout": 10000
  132.     }
  133.   ]
  134. }

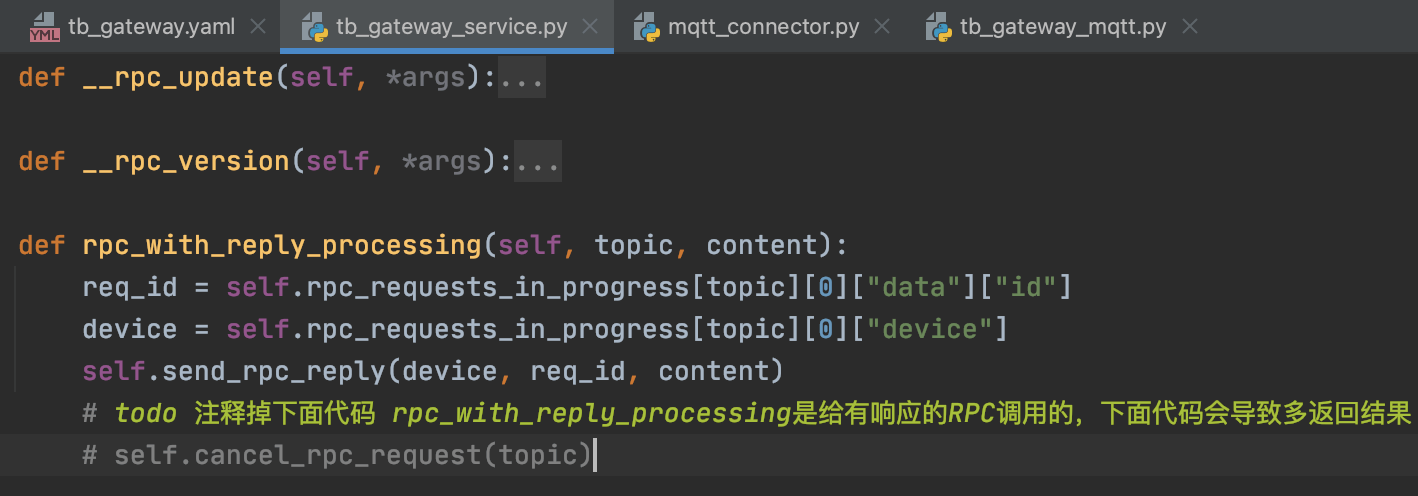

  1. tb-gateway代码修改。有几处不能满足要求（ALink协议必须要productKey），添加一行，有些bug修复。这里暂时就不一一指出了。

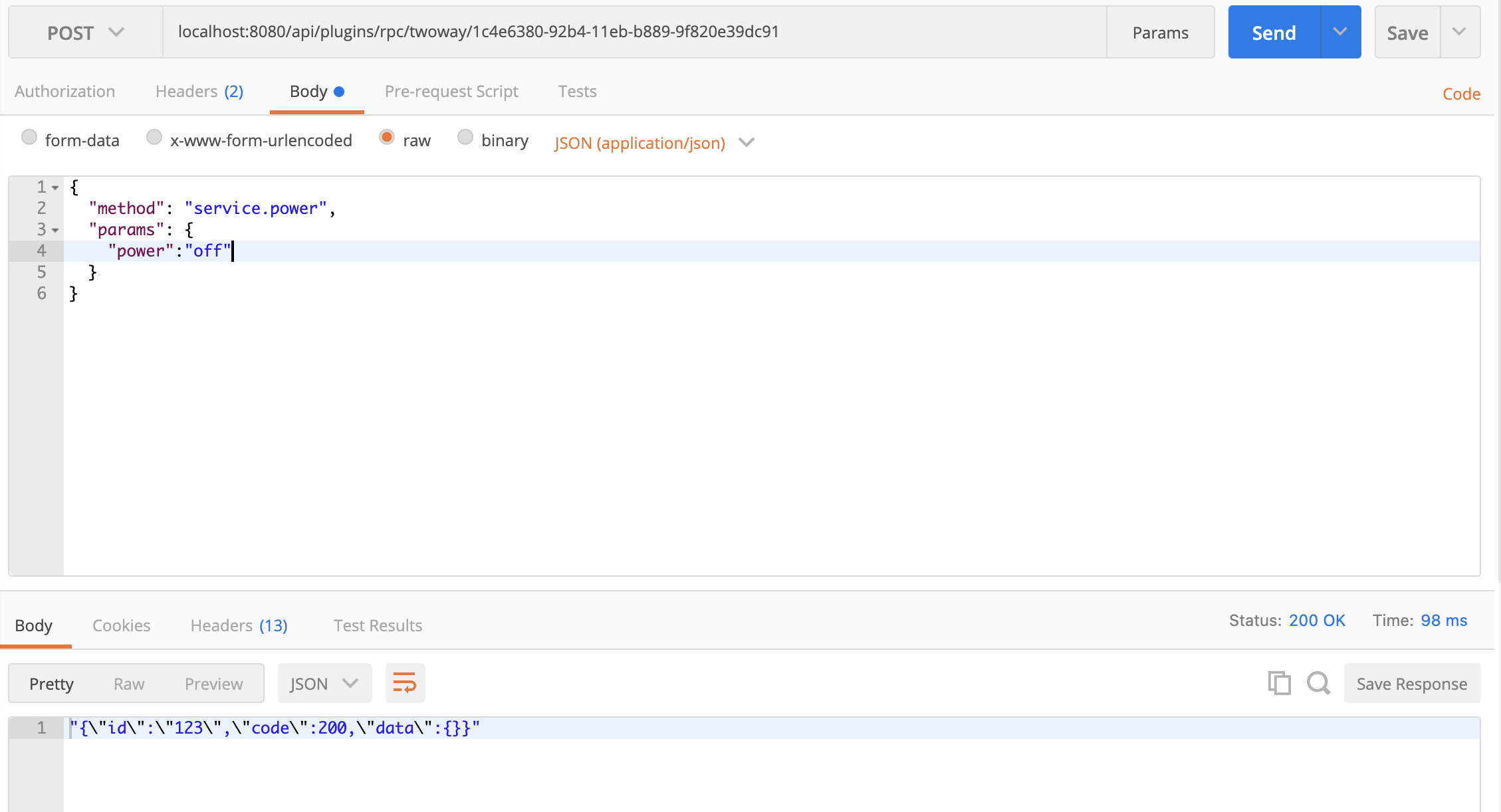

  1. post模拟服务端RPC

全部使用twoway有响应的RPC调用
获取token
设备启用禁用删除
tb页面 客户端属性上报也会变
设置属性

总结

要使用mqtt连接器，要熟悉源码，方便调试甚至更改源码BUG（bug不多）。在调试过程中可能有一些隐蔽的自身程序的问题，但看起来像tb网关出问题了，这类问题先找自身程序原因，不要有问题就说网关有bug，除非能从源码断定。

要熟练掌握mqtt.json的配置方式，还有源码，因为有些值不提供但你一定要用，就需要自己做些修改，比如alink协议topic上的productKey。以及掌握交互流程，这个比较容易晕头，因为子设备到tb，有俩个网关，俩个mqtt服务器，中间还要做格式转换。

了解俩种平台的上下行协议及功能对应。

后续还有些功能没有来得及实现，找机会补上，或者不补了吧。
没有什么不可能。
