Spring Boot与Swagger bootstrapUI整合

Swagger用来提供api文档
bootstrapUI相比swagger自带的ui而言更直观人性化

Maven依赖

<properties>
        <!-- 斯瓦格api版本配置 -->
    <springfox-swagger2.version>2.9.2</springfox-swagger2.version>
    <!-- 斯瓦格注解包版本配置 -->
    <swagger-annotations.verion>1.5.20</swagger-annotations.verion>
    <!-- 斯瓦格bootstrap UI版本配置 -->
    <swagger-bootstrap-ui.version>1.9.6</swagger-bootstrap-ui.version>
</properties>
<!-- 集成RESTFUL API文档插件依赖 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>${springfox-swagger2.version}</version>
</dependency>
<!-- 定义swagger核心注解插件依赖 -->
<dependency>
    <groupId>io.swagger</groupId>
    <artifactId>swagger-annotations</artifactId>
    <version>${swagger-annotations.verion}</version>
</dependency>
<!-- 集成swagger-bootstrap-ui文档插件依赖 -->
<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>swagger-bootstrap-ui</artifactId>
    <version>${swagger-bootstrap-ui.version}</version>
</dependency>

配置类

前后端分离项目中，在请求头中使用令牌请求接口，一定要配置token

@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class SwaggerConfig {

    /**
     * 创建SwaggerApi
     *
     * @return springfox.documentation.spring.web.plugins.Docket
     * @author YangYudi
     * @date 2020/12/14 14:02
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.halayang.server"))
                .paths(PathSelectors.any())
                .build()
                .securitySchemes(Lists.newArrayList(apiKey()));
    }

    /**
     * Swagger API基本信息
     *
     * @return springfox.documentation.service.ApiInfo
     * @author YangYudi
     * @date 2020/12/14 14:02
     */
    private ApiInfo apiInfo() {
        Contact contact = new Contact("yudi", "http://localhost:9000/doc.html", "529699377@qq.com");
        return new ApiInfoBuilder()
                .title("course-online-swagger-ui RESTFul APIs")
                .description("course-online-swagger-ui")
                .termsOfServiceUrl("http://localhost:9000/")
                .contact(contact)
                .version("1.0")
                .build();
    }

    /**
     * 配置token类型为Bearer
     *
     * @return springfox.documentation.service.ApiKey
     * @author YangYudi
     * @date 2020/12/14 14:02
     */
    private ApiKey apiKey() {
        return new ApiKey("BearerToken", "Authorization", "header");
    }

}

界面直观简洁

鉴权的令牌配置

配置Security不对swagger页面拦截

在security配置类相应方法中进行配置

@Override
public void configure(HttpSecurity http) throws Exception {
    // 过滤不需要认证的资源
    http.authorizeRequests()
            .antMatchers("/doc.html", "/swagger-resources/**", "/v2/api-docs/**", "/webjars/**", "/actuator", "/actuator/**")
            .permitAll()
            .anyRequest().authenticated();
}

Spring Cloud Gateway聚合swagger

现在都喜欢搞微服务项目，项目会比较多，每个项目都配置了swagger之后，都需要重新输入网址，就比较麻烦了
在gateway项目中聚合所有接入网关的项目swagger

maven依赖

使用nacos为注册中心

<dependencies>
    <!--服务注册-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!--  gateway依赖，该依赖中已经引入了web相关依赖了  -->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-gateway</artifactId>
    </dependency>
    <!-- 集成RESTFUL API文档插件依赖 -->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger2</artifactId>
    </dependency>
    <!-- 集成swagger-bootstrap-ui档插件依赖 -->
    <dependency>
        <groupId>com.github.xiaoymin</groupId>
        <artifactId>swagger-bootstrap-ui</artifactId>
    </dependency>
</dependencies>

配置类

配置路由断点

@Component
@Primary
public class SwaggerProvider implements SwaggerResourcesProvider {

    public static final String API_URI = "/v2/api-docs";

    private final RouteLocator routeLocator;

    private final GatewayProperties gatewayProperties;

    @Autowired
    public SwaggerProvider(RouteLocator routeLocator, GatewayProperties gatewayProperties) {
        this.routeLocator = routeLocator;
        this.gatewayProperties = gatewayProperties;
    }

    @Override
    public List<SwaggerResource> get() {
        List<SwaggerResource> resources = new ArrayList<>();
        List<String> routes = new ArrayList<>();
        //取出gateway的route
        routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));
        //结合配置的route-路径(Path)，和route过滤，只获取有效的route节点
        gatewayProperties.getRoutes().stream()
                .filter(routeDefinition -> routes.contains(routeDefinition.getId()))
                .forEach(routeDefinition -> routeDefinition.getPredicates().stream()
                        .filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName()))
                        .forEach(predicateDefinition ->
                                resources.add(swaggerResource(routeDefinition.getId(),
                                        predicateDefinition.getArgs().get(NameUtils.GENERATED_NAME_PREFIX + "0")
                                                .replace("/**", API_URI)))));
        return resources;
    }

    private SwaggerResource swaggerResource(String name, String location) {
        SwaggerResource swaggerResource = new SwaggerResource();
        swaggerResource.setName(name);
        swaggerResource.setLocation(location);
        swaggerResource.setSwaggerVersion("2.0");
        return swaggerResource;
    }
}

配置swagger资源，写一个controller类

@RestController
public class SwaggerHandlerController {

    private final SwaggerResourcesProvider swaggerResources;

    public SwaggerHandlerController(SwaggerResourcesProvider swaggerResources) {
        this.swaggerResources = swaggerResources;
    }

    @GetMapping("/swagger-resources")
    public Mono<ResponseEntity<?>> swaggerResources() {
        return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));
    }

}

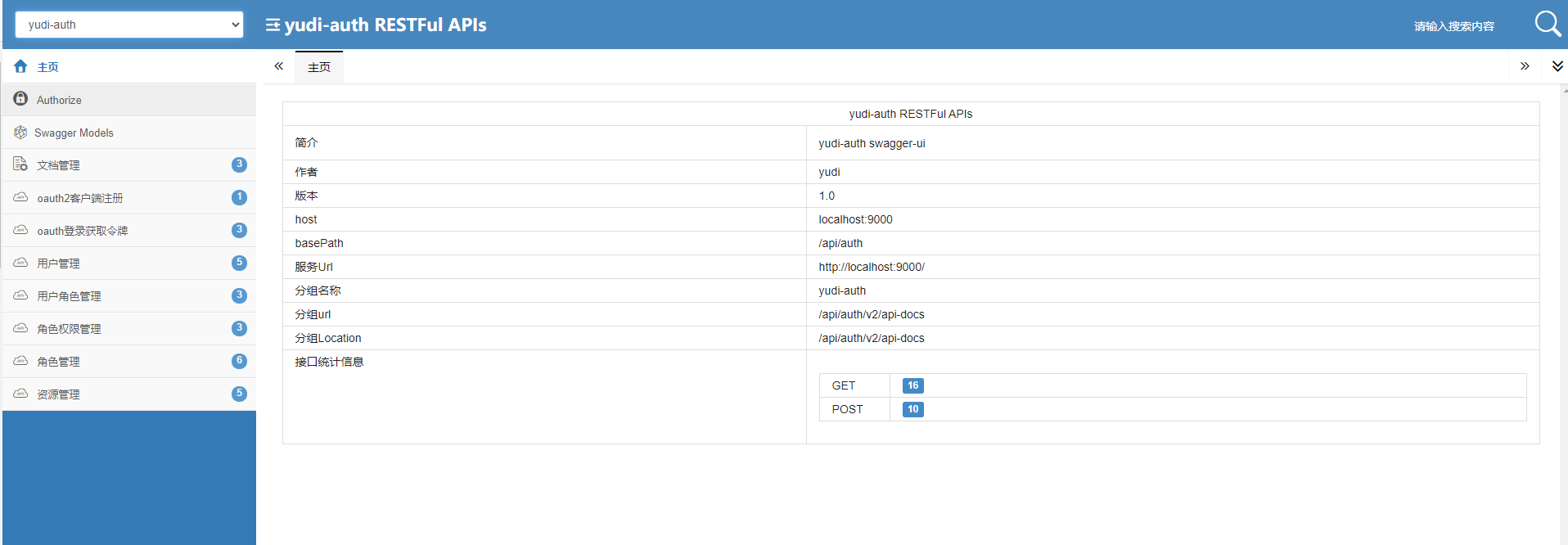

效果

在左上角选择接入网关的服务，展示对应服务的swagger
