etcd备份
etcd还原

etcd备份

所有master节点上先复制出容器里的etcdctl

docker cp `docker ps -a | awk '/k8s_etcd/{print $1}'|head -n1`:/usr/local/bin/etcdctl /usr/local/bin/etcdctl

编写一个简单别名，记得替换对应的ip

cat >/etc/profile.d/etcd.sh<<'EOF'
ETCD_CERET_DIR=/etc/kubernetes/pki/etcd/
ETCD_CA_FILE=ca.crt
ETCD_KEY_FILE=healthcheck-client.key
ETCD_CERT_FILE=healthcheck-client.crt
ETCD_EP=https://192.168.33.101:2379,https://192.168.33.102:2379,https://192.168.33.103:2379
alias etcd_v3="ETCDCTL_API=3 \
    etcdctl   \
   --cert ${ETCD_CERET_DIR}/${ETCD_CERT_FILE} \
   --key ${ETCD_CERET_DIR}/${ETCD_KEY_FILE} \
   --cacert ${ETCD_CERET_DIR}/${ETCD_CA_FILE} \
   --endpoints $ETCD_EP"
EOF

source  /etc/profile.d/etcd.sh

etcd_v3 endpoint status --write-out=table
+-----------------------------+------------------+---------+---------+-----------+-----------+------------+
|          ENDPOINT           |        ID        | VERSION | DB SIZE | IS LEADER | RAFT TERM | RAFT INDEX |
+-----------------------------+------------------+---------+---------+-----------+-----------+------------+
| https://192.168.33.101:2379 | c724c500884441af |  3.3.17 |  1.6 MB |      true |         7 |       1865 |
| https://192.168.33.102:2379 | 3dcceec24ad5c5d4 |  3.3.17 |  1.6 MB |     false |         7 |       1865 |
| https://192.168.33.103:2379 | bc21062efb4a5d4c |  3.3.17 |  1.5 MB |     false |         7 |       1865 |
+-----------------------------+------------------+---------+---------+-----------+-----------+------------+

etcd_v3 endpoint health --write-out=table
+-----------------------------+--------+-------------+-------+
|          ENDPOINT           | HEALTH |    TOOK     | ERROR |
+-----------------------------+--------+-------------+-------+
| https://192.168.33.103:2379 |   true | 19.288026ms |       |
| https://192.168.33.102:2379 |   true |   19.2603ms |       |
| https://192.168.33.101:2379 |   true | 22.490443ms |       |
+-----------------------------+--------+-------------+-------+

配置etcd备份脚本
记得替换对应的ip

mkdir -p /opt/etcd
cat>/opt/etcd/etcd_cron.sh<<'EOF'
#!/bin/bash
set -e
source  /etc/profile
export PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin
master=`ETCDCTL_API=3 etcdctl --endpoints="https://192.168.33.101:2379,https://192.168.33.102:2379,https://192.168.33.103:2379" --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key --cacert=/etc/kubernetes/pki/etcd/ca.crt  endpoint status  | grep true|awk -F"," '{print $1}'`
:  ${bak_dir:=/root/} #缺省备份目录,可以修改成存在的目录
:  ${cert_dir:=/etc/kubernetes/pki/etcd/}
:  ${endpoints:=$master}
bak_prefix='etcd-'
cmd_suffix='date +%Y-%m-%d-%H-%M'
bak_suffix='.db'
#将规范化后的命令行参数分配至位置参数（$1,$2,...)
temp=`getopt -n $0 -o c:d: -u -- "$@"`
[ $? != 0 ] && {
    echo '
Examples:
  # just save once
  bash $0 /tmp/etcd.db
  # save in contab and  keep 5
  bash $0 -c 5
    '
    exit 1
    }
set -- $temp
# -c 备份保留副本数量
# -d 指定备份存放目录
while true;do
    case "$1" in
        -c)
            [ -z "$bak_count" ] && bak_count=$2
            printf -v null %d "$bak_count" &>/dev/null || \
                { echo 'the value of the -c must be number';exit 1; }
            shift 2
            ;;
        -d)
            [ ! -d "$2" ] && mkdir -p $2
            bak_dir=$2
            shift 2
            ;;
         *)
            [[ -z "$1" || "$1" == '--' ]] && { shift;break; }
            echo "Internal error!"
            exit 1
            ;;
    esac
done
etcd::cron::save(){
    cd $bak_dir/
    ETCDCTL_API=3 etcdctl --endpoints=$endpoints --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key --cacert=/etc/kubernetes/pki/etcd/ca.crt  snapshot save  $bak_prefix$($cmd_suffix)$bak_suffix
    rm_files=`ls -t $bak_prefix*$bak_suffix | tail -n +$[bak_count+1]`
    if [ -n "$rm_files" ];then
        rm -f $rm_files
    fi
}
main(){
    [ -n "$bak_count" ] && etcd::cron::save || etcd_v3 snapshot save $@
}
main $@
EOF

备份

bash /opt/etcd/etcd_cron.sh  -c 4 -d /opt/etcd/

定时备份
crontab -e添加下面内容自动保留四个备份副本

0 * * * * bash /opt/etcd/etcd_cron.sh  -c 4 -d /opt/etcd/ &>/dev/null

etcd还原

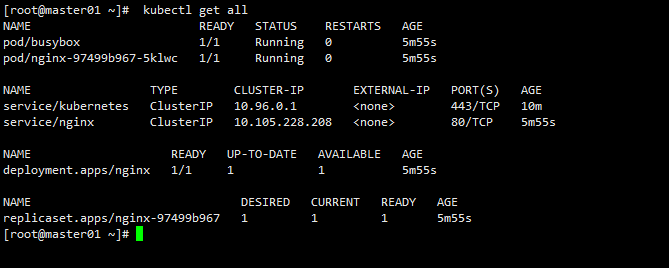

举个例子，先查看default下资源，发现一个pod 一个deployemnt 一个svc

 kubectl get all

先备份一下当前的信息

bash /opt/etcd/etcd_cron.sh  -c 4 -d /tmp

将备份信息发给其他2个master节点

删掉pod deployment svc

还原备份记录到新的存储目录

在3个etcd节点都执行一遍还原操作
master01

ETCDCTL_API=3 etcdctl \
     --cacert=/etc/kubernetes/pki/etcd/ca.crt \
     --name=master01 \
     --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key \
     --data-dir /var/lib/etcd-from-backup \
     --initial-cluster=master01=https://192.168.33.101:2380,master02=https://192.168.33.102:2380,master03=https://192.168.33.103:2380 \
     --initial-cluster-token=etcd-cluster-1 \
     --initial-advertise-peer-urls=https://192.168.33.101:2380 \
     snapshot restore /tmp/etcd-2020-06-10-07-21.db

master02

ETCDCTL_API=3 etcdctl \
     --cacert=/etc/kubernetes/pki/etcd/ca.crt \
     --name=master02 \
     --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key \
     --data-dir /var/lib/etcd-from-backup \
     --initial-cluster=master01=https://192.168.33.101:2380,master02=https://192.168.33.102:2380,master03=https://192.168.33.103:2380 \
     --initial-cluster-token=etcd-cluster-1 \
     --initial-advertise-peer-urls=https://192.168.33.102:2380 \
     snapshot restore /tmp/etcd-2020-06-10-07-21.db

master03

ETCDCTL_API=3 etcdctl \
     --cacert=/etc/kubernetes/pki/etcd/ca.crt \
     --name=master03 \
     --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key \
     --data-dir /var/lib/etcd-from-backup \
     --initial-cluster=master01=https://192.168.33.101:2380,master02=https://192.168.33.102:2380,master03=https://192.168.33.103:2380 \
     --initial-cluster-token=etcd-cluster-1 \
     --initial-advertise-peer-urls=https://192.168.33.103:2380 \
     snapshot restore /tmp/etcd-2020-06-10-07-21.db

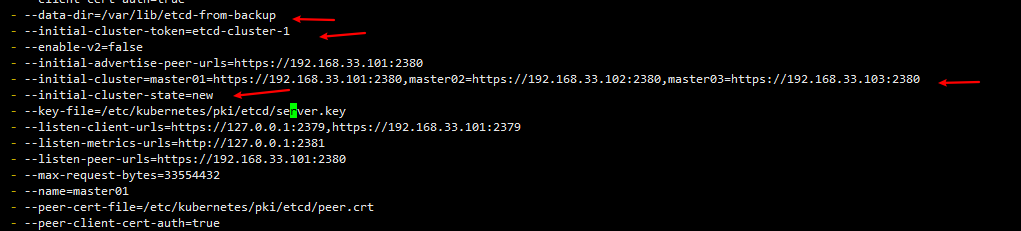

统计修改3个节点上的/etc/kubernetes/manifests/etcd.yaml
更新—data-dir

--data-dir=/var/lib/etcd-from-backup

添加 initial-cluster-token

--initial-cluster-token=etcd-cluster-1

更新—initial-cluste

--initial-cluster=master01=https://192.168.33.101:2380,master02=https://192.168.33.102:2380,master03=https://192.168.33.103:2380

更新- —initial-cluster-state

- --initial-cluster-state=new

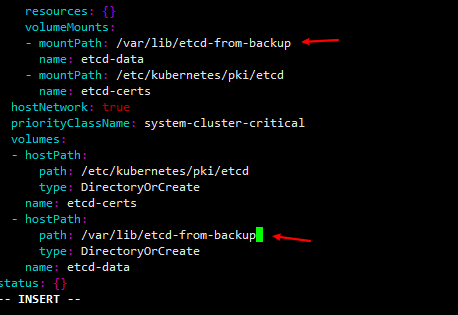

更新目录

   volumeMounts:
    - mountPath: /var/lib/etcd-from-backup
      name: etcd-data
    - mountPath: /etc/kubernetes/pki/etcd
      name: etcd-certs
  hostNetwork: true
  priorityClassName: system-cluster-critical
  volumes:
  - hostPath:
      path: /var/lib/etcd-from-backup
      type: DirectoryOrCreate
    name: etcd-data
  - hostPath:
      path: /etc/kubernetes/pki/etcd
      type: DirectoryOrCreate
    name: etcd-certs

然后保存退出即可
之后发现已还原

如果遇到3个etcd 一直处于pending时，重启主机即可。
