37.k8s 部署 pgsql - 《kubernetes学习》

准备k8s集群
准备local pv
访问pg

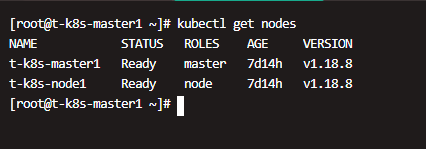

准备k8s集群

准备local pv

local pv前提条件

节点上需要打上调度需要的label
节点上手动创建目录
```
mkdir -p /data/pg_data
```
```
kubectl label  nodes t-k8s-node1  pg=true
```
创建db名称空间
```
kubectl create ns db
```
编写local-pv yaml ``` cat > local-pv.yaml << EOF kind: StorageClass apiVersion: storage.k8s.io/v1
metadata: name: local-storage namespace: db provisioner: kubernetes.io/no-provisioner

apiVersion: v1 kind: PersistentVolume metadata: name: local-pv namespace: db spec: capacity: storage: 20Gi accessModes:

ReadWriteOnce persistentVolumeReclaimPolicy: Retain storageClassName: local-storage local: path: /data/pg_data nodeAffinity: required: nodeSelectorTerms:
- matchExpressions:
  - key: pg operator: Exists EOF
```
![image.png](https://cdn.nlark.com/yuque/0/2020/png/1176682/1599017346900-215935a2-15aa-485b-8b01-a5bb41be7e61.png#align=left&display=inline&height=163&margin=%5Bobject%20Object%5D&name=image.png&originHeight=163&originWidth=769&size=15736&status=done&style=none&width=769)
<a name="fiNMH"></a>
## 部署pg
创建docker私有库的secret
```
    kubectl create secret docker-registry hz-registry-secret —namespace=db —docker-server=registry.cn-hangzhou.aliyuncs.com —docker-username=杭州艾麦科技 —docker-password=xxxxxxx cat > pg-statefulset.yaml << EOF apiVersion: apps/v1 kind: StatefulSet metadata: name: pg namespace: db spec: serviceName: “pg” replicas: 1 selector: matchLabels: app: pg template: metadata: labels: app: pg spec: terminationGracePeriodSeconds: 10 imagePullSecrets:
  - name: hz-registry-secret containers:
  - name: pg image: registry.cn-hangzhou.aliyuncs.com/hz-imile/hz:pg-12.4 imagePullPolicy: IfNotPresent readinessProbe: tcpSocket:
```
port: 5432
```
    initialDelaySeconds: 20 timeoutSeconds: 5 periodSeconds: 3 livenessProbe: tcpSocket:
```
port: 5432
```
    initialDelaySeconds: 30 timeoutSeconds: 5 periodSeconds: 3 env:
    - name: POSTGRES_PASSWORD value: pgsql@123 ports:
    - containerPort: 5432 volumeMounts:
    - name: datadir mountPath: /var/lib/postgresql/data volumeClaimTemplates:
metadata: name: datadir spec: accessModes: [ “ReadWriteOnce” ] storageClassName: local-storage resources:
```
requests:
  storage: 20Gi
```

apiVersion: v1 kind: Service metadata: name: pg namespace: db spec: type: NodePort ports:

port: 5432 targetPort: 5432 nodePort: 30002 selector: app: pg EOF ```

kubectl apply -f pg-statefulset.yaml

访问pg

安装pg客户端

 yum install postgresql -y

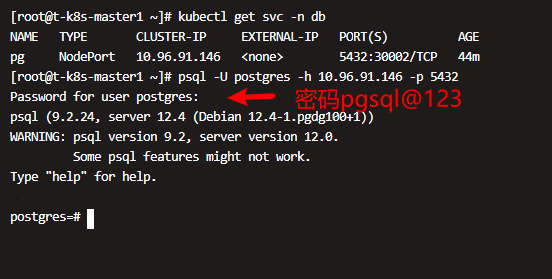

利用service连接pg

 psql -U postgres -h xxxxx -p 5432

利用nodeport访问

 psql -U postgres -h 10.10.0.4 -p 30002
