Log 对象的常见操作

03 日志（下）：彻底搞懂Log对象的常见操作 - 图1

一、高水位管理操作

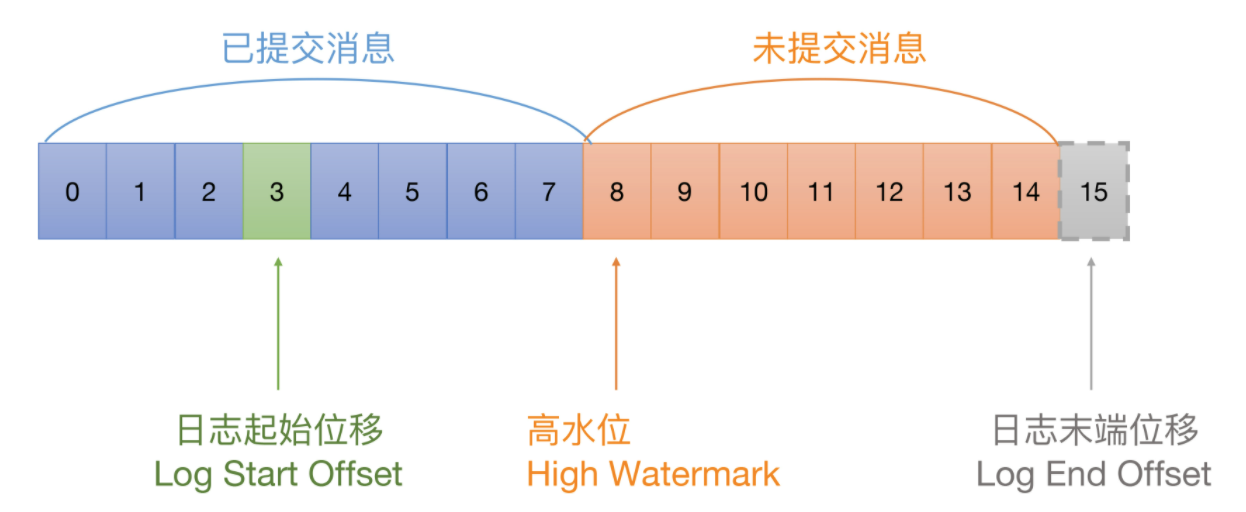

高水位就是指的已提交信息后面那个位置

一）高水位的定义

  • 使用 logStartOffset 作为初始值
  • 使用 @volatile 定义，表示是多线程读取修改
    1. /* Keep track of the current high watermark in order to ensure that segments containing offsets at or above it are
    2.  * not eligible for deletion. This means that the active segment is only eligible for deletion if the high watermark
    3.  * equals the log end offset (which may never happen for a partition under consistent load). This is needed to
    4.  * prevent the log start offset (which is exposed in fetch responses) from getting ahead of the high watermark.
    5.  */
    6. @volatile private var highWatermarkMetadata: LogOffsetMetadata = LogOffsetMetadata(logStartOffset)
    它的类型是 LogOffsetMetadata，看下这个类的定义：
    case定义样例类，可以理解为 java bean
    1. /*
    2. * A log offset structure, including:
    3. *  1. the message offset  # 消息位移值，这里面就是指的高水位值
    4. *  2. the base message offset of the located segment # 保存该位移值所在日志段的起始位移值，用于判断两条消息是否处于同一个日志段
    5. *  3. the physical position on the located segment # 所在日志段的物理磁盘位置，用于计算两条消息之间的数据大小
    6. */
    7. case class LogOffsetMetadata(messageOffset: Long,
    8.                            segmentBaseOffset: Long = Log.UnknownOffset,
    9.                            relativePositionInSegment: Int = LogOffsetMetadata.UnknownFilePosition) {
    接着说回高水位，要重点关注下获取和设置高水位值、更新高水位值、读取高水位值的方法。（增改查）

二）获取和设置高水位

  1.   private def updateHighWatermarkMetadata(newHighWatermark: LogOffsetMetadata): Unit = {
  2.     if (newHighWatermark.messageOffset < 0)  // 高水位不能是负数
  3.       throw new IllegalArgumentException("High watermark offset should be non-negative")
  5.     lock synchronized { // 保护 log 对象修改的 monitor 锁
  6.       highWatermarkMetadata = newHighWatermark
  7.       // 下面是事务相关的处理，暂时不用管
  8.       producerStateManager.onHighWatermarkUpdated(newHighWatermark.messageOffset)
  9.       maybeIncrementFirstUnstableOffset()
  10.     }
  11.     trace(s"Setting high watermark $newHighWatermark")
  12.   }

三）更新高水位值

有两个方法 updateHighWatermark是给 Follower 用的， 是给 maybeIncrementHighWatermark leader 用的。

疑问： 分成两个的原因写的是给不同副本用，可以理解 Leader 上需要加锁。 但是为什么还多了很多判断条件？ 以及后面判断新旧 HighWatermark 是否在同一个 segment 上时，为什么是 old.HW == new.HW？

  1. /**
  2. * Update the high watermark to a new offset. The new high watermark will be lower
  3. * bounded by the log start offset and upper bounded by the log end offset.
  4. *
  5. * This is intended to be called when initializing the high watermark or when updating
  6. * it on a follower after receiving a Fetch response from the leader.
  7. *
  8. * @param hw the suggested new value for the high watermark
  9. * @return the updated high watermark offset
  10. */
  11. def updateHighWatermark(hw: Long): Long = {
  12.   val newHighWatermark = if (hw < logStartOffset)
  13.   logStartOffset
  14.   else if (hw > logEndOffset)
  15.   logEndOffset
  16.   else
  17.   hw
  18.   updateHighWatermarkMetadata(LogOffsetMetadata(newHighWatermark))
  19.   newHighWatermark
  20.   }
  23.   /**
  24.    * Update the high watermark to a new value if and only if it is larger than the old value. It is
  25.    * an error to update to a value which is larger than the log end offset.
  26.    *
  27.    * This method is intended to be used by the leader to update the high watermark after follower
  28.    * fetch offsets have been updated.
  29.    *
  30.    * @return the old high watermark, if updated by the new value
  31.    */
  32.   def maybeIncrementHighWatermark(newHighWatermark: LogOffsetMetadata): Option[LogOffsetMetadata] = {
  33.     if (newHighWatermark.messageOffset > logEndOffset)
  34.       throw new IllegalArgumentException(s"High watermark $newHighWatermark update exceeds current " +
  35.         s"log end offset $logEndOffsetMetadata")
  37.     lock.synchronized {
  38.       val oldHighWatermark = fetchHighWatermarkMetadata
  40.       // Ensure that the high watermark increases monotonically. We also update the high watermark when the new
  41.       // offset metadata is on a newer segment, which occurs whenever the log is rolled to a new segment.
  42.       if (oldHighWatermark.messageOffset < newHighWatermark.messageOffset ||
  43.         (oldHighWatermark.messageOffset == newHighWatermark.messageOffset && oldHighWatermark.onOlderSegment(newHighWatermark))) {
  44.         updateHighWatermarkMetadata(newHighWatermark)
  45.         Some(oldHighWatermark)
  46.       } else {
  47.         None
  48.       }
  49.     }
  50.   }

四）读取高水位值

  1.   /**
  2.    * Get the offset and metadata for the current high watermark. If offset metadata is not
  3.    * known, this will do a lookup in the index and cache the result.
  4.    */
  5.   private def fetchHighWatermarkMetadata: LogOffsetMetadata = {
  6.     checkIfMemoryMappedBufferClosed()  // 读取时确保日志不被关闭
  8.     val offsetMetadata = highWatermarkMetadata  // 保存到本地变量，防止多线程修改
  9.     if (offsetMetadata.messageOffsetOnly) {
  10.       lock.synchronized {
  11.         // 如果 HW 信息不完整，就从日志文件中重新读取 HW
  12.         val fullOffset = convertToOffsetMetadataOrThrow(highWatermark)
  13.         updateHighWatermarkMetadata(fullOffset)
  14.         fullOffset
  15.       }
  16.     } else {
  17.       offsetMetadata
  18.     }
  19.   }

二、日志段管理

日志是日志段的容器

  1. private val segments: ConcurrentNavigableMap[java.lang.Long, LogSegment] = new ConcurrentSkipListMap[java.lang.Long, LogSegment]

使用的是 Java 中的 ConcurrentSkipListMap 来保存日志段对象
