一、ApplicationMaster 整体运行流程

二、ApplicationMaster 启动流程源码分析

2.1 应用程序提交

不管是什么类型的应用程序，提交到 Yarn 上的入口，都是通过 YarnClient 这个接口 api 提交的，具体提交方法为 submitApplication()。

  1. //位置：org/apache/hadoop/yarn/client/api/YarnClient.java
  2.   public abstract ApplicationId submitApplication(
  3.       ApplicationSubmissionContext appContext) throws YarnException,
  4.       IOException;

2.3 启动 AM

相关代码在这里：
在 ApplicationMasterLauncher 类中处理相关的启动事件

  1. public class ApplicationMasterLauncher extends AbstractService implements
  2.     EventHandler<AMLauncherEvent> {
  4. // ...
  6. // handle 函数中走 LAUNCH 分支，处理 AM LAUNCH 事件
  7.   public synchronized void  handle(AMLauncherEvent appEvent) {
  8.     AMLauncherEventType event = appEvent.getType();
  9.     RMAppAttempt application = appEvent.getAppAttempt();
  10.     switch (event) {
  11.     case LAUNCH:
  12.       launch(application);
  13.       break;
  14.     case CLEANUP:
  15.       cleanup(application);
  16.       break;
  17.     default:
  18.       break;
  19.     }
  20.   }

launch 函数这里创建处理线程，并加入到 masterEvents 处理队列中

  1.   private void launch(RMAppAttempt application) {
  2.     Runnable launcher = createRunnableLauncher(application,
  3.         AMLauncherEventType.LAUNCH);
  4.     masterEvents.add(launcher);
  5.   }

然后在 LauncherThread 的线程类的 run 方法中去消费事件

  1.   private class LauncherThread extends Thread {
  3.     public LauncherThread() {
  4.       super("ApplicationMaster Launcher");
  5.     }
  7.     @Override
  8.     public void run() {
  9.       while (!this.isInterrupted()) {
  10.         Runnable toLaunch;
  11.         try {
  12.           toLaunch = masterEvents.take();
  13.           launcherPool.execute(toLaunch);
  14.         } catch (InterruptedException e) {
  15.           LOG.warn(this.getClass().getName() + " interrupted. Returning.");
  16.           return;
  17.         }
  18.       }
  19.     }
  20.   }

取出事件后具体的执行逻辑就交给 AMLaunch 类了，在 run 方法中处理

  1. //org/apache/hadoop/yarn/server/resourcemanager/amlauncher/AMLauncher.java
  2.   public void run() {
  3.     switch (eventType) {
  4.     case LAUNCH:
  5.       try {
  6.         LOG.info("Launching master" + application.getAppAttemptId());
  7.         // 启动 launch() 方法
  8.         launch();
  9.         // 发送 RMAppAttemptEventType.LAUNCHED 事件
  10.         handler.handle(new RMAppAttemptEvent(application.getAppAttemptId(),
  11.             RMAppAttemptEventType.LAUNCHED));
  12.       } catch(Exception ie) {
  13.         String message = "Error launching " + application.getAppAttemptId()
  14.             + ". Got exception: " + StringUtils.stringifyException(ie);
  15.         LOG.info(message);
  16.         handler.handle(new RMAppAttemptLaunchFailedEvent(application
  17.             .getAppAttemptId(), message));
  18.       }
  19.       break;
  20.     case CLEANUP: // 省略
  21.     default:
  22.       LOG.warn("Received unknown event-type " + eventType + ". Ignoring.");
  23.       break;
  24.     }
  25.   }

AMLaunch 类的 launch() 方法操作会调用 RPC 函数与 NodeManager 通信，来启动 AM Container，这里 AM 与 NM 交互是通过 ContainerManagementProtocol 协议来实现 RPC 调用的。launch() 方法运行完成后会向调度器发送 RMAppAttemptEventType.LAUNCHED 事件，并将 AppAttempt 的状态从 ALLOCATED 转换为 LAUNCHED。

  1. //位置：org/apache/hadoop/yarn/server/resourcemanager/amlauncher/AMLauncher.java
  2.   private void launch() throws IOException, YarnException {
  3.     // ...
  4.     // 构建 Container 请求信息
  5.     StartContainerRequest scRequest =
  6.         StartContainerRequest.newInstance(launchContext,
  7.           masterContainer.getContainerToken());
  8.     List<StartContainerRequest> list = new ArrayList<StartContainerRequest>();
  9.     list.add(scRequest);
  10.     StartContainersRequest allRequests =
  11.         StartContainersRequest.newInstance(list);
  13.     // 重点：调用 RPC 函数启动 Container
  14.     StartContainersResponse response =
  15.         containerMgrProxy.startContainers(allRequests);
  16.     if (response.getFailedRequests() != null
  17.         && response.getFailedRequests().containsKey(masterContainerID)) {
  18.       Throwable t =
  19.           response.getFailedRequests().get(masterContainerID).deSerialize();
  20.       parseAndThrowException(t);
  21.     } else {
  22.       LOG.info("Done launching container " + masterContainer + " for AM "
  23.           + application.getAppAttemptId());
  24.     }
  25.   }

至此，用于运行 ApplicationMaster 的 Container 已经启动，AM Container 在具体的 NodeManager 上启动后，Container 会根据上下文信息启动 ApplicationMaster 进程，ApplicationMaster 生命周期的第一步 ApplicationMaster 启动在这里已经完成了。

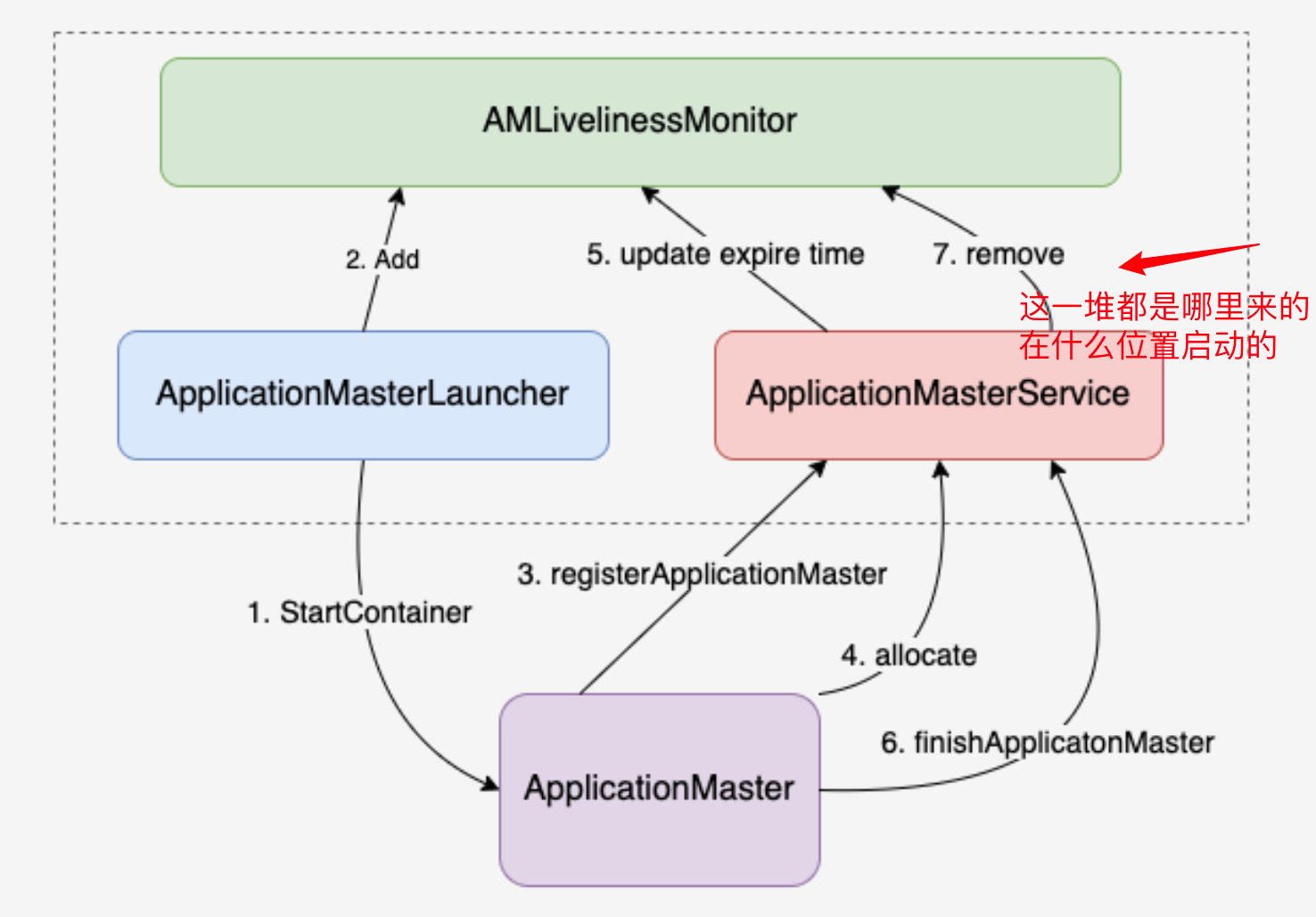

疑惑：
