集成 - SpringBoot整合Knife4j - 《clown》

knife4j官网： https://doc.xiaominfo.com/guide/useful.html#java%E5%BC%80%E5%8F%91
这玩艺就swagger的升级版,但是用起来比swagger方便多了，至少不会出现莫名的版本兼容问题
下面记录一个配置示例

POM ```xml <?xml version=”1.0” encoding=”UTF-8”?> <project xmlns=”http://maven.apache.org/POM/4.0.0“ xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance“
```
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
```
4.0.0 org.springframework.boot spring-boot-starter-parent 2.2.5.RELEASE com.example knife4j-demo 0.0.1-SNAPSHOT knife4j-demo
Demo project for Spring Boot 1.8 org.springframework.boot spring-boot-starter-web org.springframework.boot spring-boot-starter-test test org.junit.vintage junit-vintage-engine com.github.xiaoymin knife4j-spring-boot-starter 2.0.2 com.alibaba fastjson 1.2.58 org.projectlombok lombok 1.18.10 org.springframework.boot spring-boot-maven-plugin


2. 配置类
```java
package com.example.knife4j.demo.config;
import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import springfox.bean.validators.configuration.BeanValidatorPluginsConfiguration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
@Configuration
@EnableSwagger2
@EnableKnife4j
@Import(BeanValidatorPluginsConfiguration.class)
public class SwaggerConfiguration {
    @Bean(value = "defaultApi2")
    public Docket defaultApi2() {
        Docket docket=new Docket(DocumentationType.SWAGGER_2)
            .apiInfo(apiInfo())
            //分组名称
            .groupName("2.X版本")
            .select()
            //这里指定Controller扫描包路径(项目路径也行)
            .apis(RequestHandlerSelectors.basePackage("com.example.knife4j.demo"))
            .paths(PathSelectors.any())
            .build();
        return docket;
    }
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
            .title("不重要")
            .description("测试名称不重要")
            .termsOfServiceUrl("http://localhost:88888/")
            .contact("10086@mail.com")
            .version("1.0")
            .build();
    }
}

模型Bean ```java package com.example.knife4j.demo.beans;

import io.swagger.annotations.ApiModel; import io.swagger.annotations.ApiModelProperty;

@ApiModel(value = “用户模型”) public class UserEntity { @ApiModelProperty(value=”id” ,required= true,example = “123”) private Integer id; @ApiModelProperty(value=”用户姓名” ,required=true,example = “郑钦锋”) private String name;

public Integer getId() {
    return id;
}
public void setId(Integer id) {
    this.id = id;
}
public String getName() {
    return name;
}
public void setName(String name) {
    this.name = name;
}
@Override
public String toString() {
    return "DemoDoctor [id=" + id + ", name=" + name + "]";
}

}


5. 接口
```java
package com.example.knife4j.demo.controller;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@Api(value = "IndexController测试接口")
@RestController
public class IndexController {
    @ApiOperation(value = "测试index接口", nickname = "测试IndexController的index接口")
    @GetMapping("/index")
    public String index() {
        return "测试IndexController的index接口...";
    }
}

package com.example.knife4j.demo.controller;
import com.example.knife4j.demo.beans.UserEntity;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.*;
@Api(value = "用户接口")
@RestController
public class UserController {
    @ApiOperation(value = "获取用户信息接口", nickname = "根据用户ID获取用户相关信息")
    @ApiImplicitParam(name = "id", value = "用户ID", required = true, dataType = "int")
    @PostMapping("/postMember")
    public UserEntity postMember(@RequestParam Integer id) {
        UserEntity userEntity = new UserEntity();
        userEntity.setId(id);
        userEntity.setName("admin");
        return userEntity;
    }
    @ApiOperation(value = "添加用户", nickname = "添加用户接口1", notes = "入参是复杂对象", produces = "application/json")
    @PostMapping("/postUser")
    @ResponseBody
    @ApiImplicitParam(paramType = "query", name = "userId", value = "用户id", required = true, dataType = "int")
    public UserEntity postUser(@RequestBody UserEntity user, @RequestParam("userId") int userId) { // 这里用包装类竟然报错
        if (user.getId() == userId) {
            return user;
        }
        return new UserEntity();
    }
    @ApiOperation(value = "添加用户", nickname = "添加用户接口2", notes = "入参是简单对象", produces = "application/json")
    @PostMapping("/addUser")
    @ResponseBody
    @ApiImplicitParams({
            @ApiImplicitParam(paramType = "query", name = "userName", value = "用户姓名", required = true, dataType = "String"),
            @ApiImplicitParam(paramType = "query", name = "id", value = "用户id", required = true, dataType = "int")})
    public UserEntity addUser(String userName, int id) {
        UserEntity userEntity = new UserEntity();
        userEntity.setName(userName);
        userEntity.setId(id);
        return userEntity;
    }
}

启动类 ```java package com.example.knife4j.demo;

import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.autoconfigure.condition.ConditionalOnClass; import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry; import org.springframework.web.servlet.config.annotation.WebMvcConfigurer; import springfox.documentation.spring.web.SpringfoxWebMvcConfiguration;

@ConditionalOnClass(SpringfoxWebMvcConfiguration.class) @SpringBootApplication public class Knife4jDemoApplication implements WebMvcConfigurer {

public static void main(String[] args) {
    SpringApplication.run(Knife4jDemoApplication.class, args);
}
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
    registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
    registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
}

}

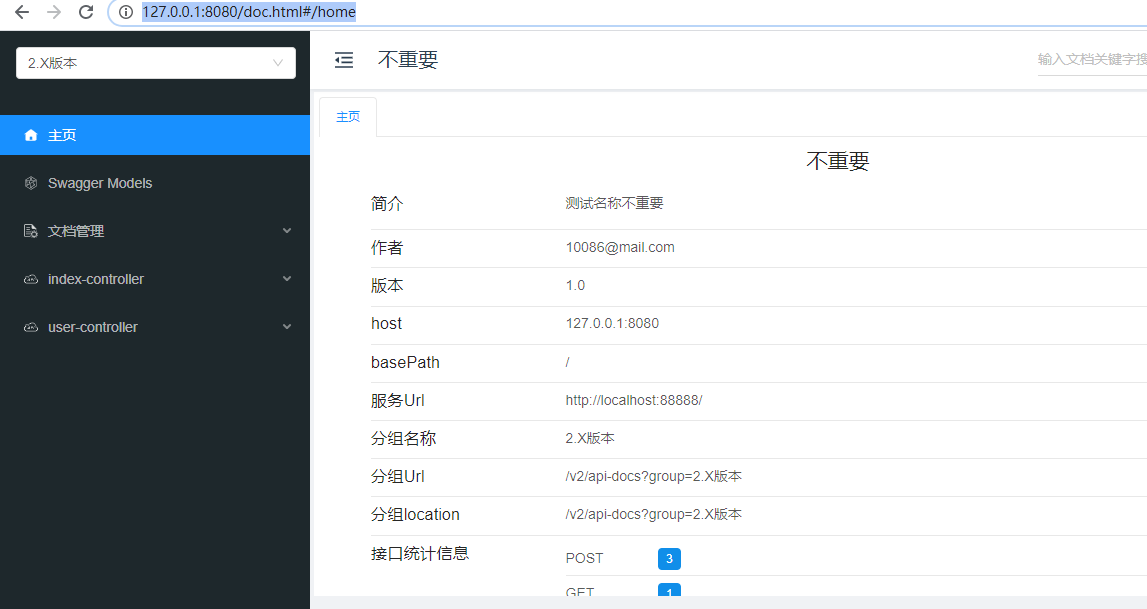

这样简单一配置，就ok了，浏览器访问： [http://127.0.0.1:8080/doc.html#/home](http://127.0.0.1:8080/doc.html#/home)<br />![image.png](https://cdn.nlark.com/yuque/0/2022/png/2693613/1655805421424-fad331ee-fb94-4e20-8ecf-1ebb708bf089.png#clientId=ua7a6b795-e906-4&crop=0&crop=0&crop=1&crop=1&from=paste&id=u29b8042d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=609&originWidth=1147&originalType=url&ratio=1&rotation=0&showTitle=false&size=46415&status=done&style=none&taskId=u2027862e-83d1-4f93-9743-c1be5f062df&title=)<br />不过，在项目中我使用了 ResponseBodyAdvice 接口对项目接口响应内容做统一处理， 然后使用knife4j就出问题了。<br />ResponseBodyAdvice接口实现如下：
```java
import org.springframework.context.annotation.Configuration;
import org.springframework.core.MethodParameter;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.web.bind.annotation.RestControllerAdvice;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.mvc.method.annotation.ResponseBodyAdvice;
/**
 * 自定义advise ，对restful请求响应体进行统一规范
 */
@EnableWebMvc
@Configuration
@RestControllerAdvice
public class ResponseAdvise implements ResponseBodyAdvice<Object> {
    @Override
    public boolean supports(MethodParameter returnType, Class<? extends HttpMessageConverter<?>> converterType) {
        return true;
    }
    @Override
    public Object beforeBodyWrite(Object object, MethodParameter returnType, MediaType selectedContentType, Class<? extends HttpMessageConverter<?>> selectedConverterType, ServerHttpRequest request, ServerHttpResponse response) {
        if (object instanceof ResponseData) {
            return object;
        }
        return ResponseData.of().setData(object);
    }
}

请求报错

而且后台还说找不到映射路径

2020-03-10 23:31:01.533  WARN 7940 --- [nio-8080-exec-1] o.s.web.servlet.PageNotFound             : No mapping for GET /service-worker.js
2020-03-10 23:31:01.560  WARN 7940 --- [nio-8080-exec-4] o.s.web.servlet.PageNotFound             : No mapping for GET /favicon.ico
2020-03-10 23:31:14.468  WARN 7940 --- [nio-8080-exec-8] o.s.web.servlet.PageNotFound             : No mapping for GET /service-worker.js

然后，我在 ResponseAdvise# beforeBodyWrite方法中打上断点，发现我将swagger的请求内容进行了修改，以至于报了404。

最后在ResponseAdvise类上声明只对本项目的响应体内容进行统一处理

@RestControllerAdvice(basePackages = "com.example.knife4j.demo")
