前端 - 1.登录页基本布局 - 《Vue 3.0 管理系统》

效果
准备
- 背景图svg
- 注册相关element组件
注册登录路由
创建login路由
本节参考源码

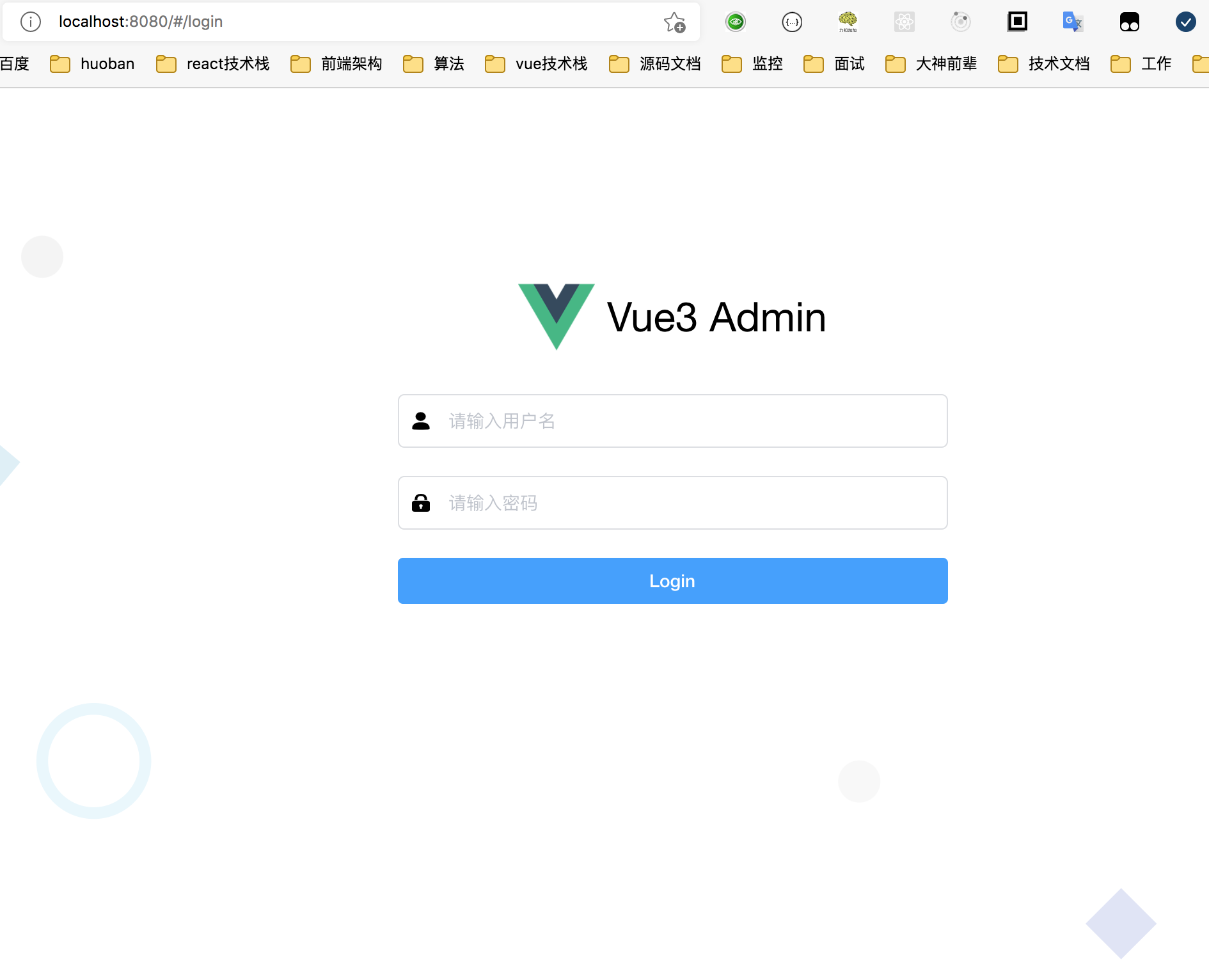

效果

准备

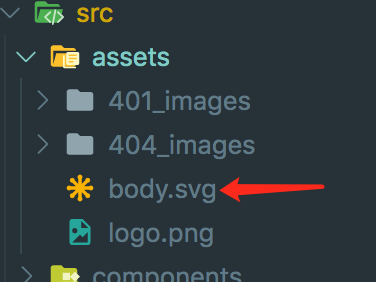

背景图svg

准备body.svg

src/assets/body.svg

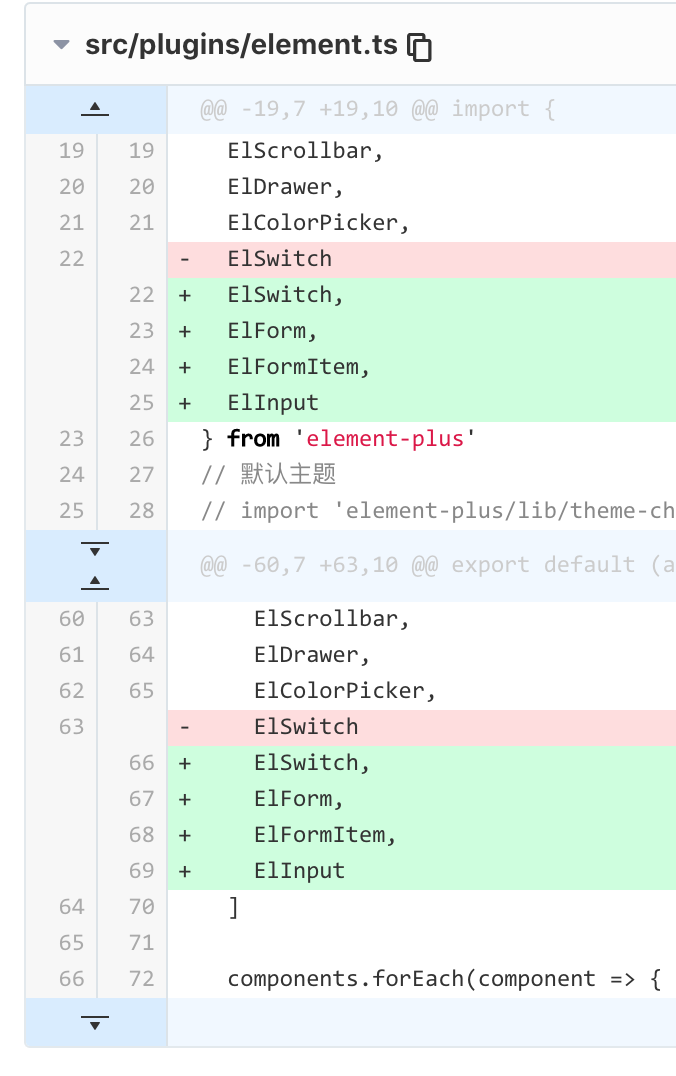

注册相关element组件

src/plugins/element.ts

import { App } from 'vue'
import {
  locale,
  ElButton,
  ElMessage,
  ElNotification,
  ElMessageBox,
  ElMenu,
  ElMenuItem,
  ElSubmenu,
  ElRow,
  ElCol,
  ElBreadcrumb,
  ElBreadcrumbItem,
  ElTooltip,
  ElDropdown,
  ElDropdownMenu,
  ElDropdownItem,
  ElScrollbar,
  ElDrawer,
  ElColorPicker,
  ElSwitch,
  ElForm,
  ElFormItem,
  ElInput
} from 'element-plus'
// 默认主题
// import 'element-plus/lib/theme-chalk/index.css'
// Element Plus 组件内部默认使用英语
// https://element-plus.gitee.io/#/zh-CN/component/i18n
import lang from 'element-plus/lib/locale/lang/zh-cn'
// Element Plus 直接使用了 Day.js 项目的时间日期国际化设置, 并且会自动全局设置已经导入的 Day.js 国际化配置。
import 'dayjs/locale/zh-cn'
// $ELEMENT size属性类型
export type Size = 'default' | 'medium' | 'small' | 'mini'
interface ElementOptions {
  size: Size
}
export default (app: App, options: ElementOptions): void => {
  locale(lang)
  // 按需导入组件列表
  const components = [
    ElButton,
    ElMessage,
    ElNotification,
    ElMessageBox,
    ElMenu,
    ElMenuItem,
    ElSubmenu,
    ElRow,
    ElCol,
    ElBreadcrumb,
    ElBreadcrumbItem,
    ElTooltip,
    ElDropdown,
    ElDropdownMenu,
    ElDropdownItem,
    ElScrollbar,
    ElDrawer,
    ElColorPicker,
    ElSwitch,
    ElForm,
    ElFormItem,
    ElInput
  ]
  components.forEach(component => {
    app.component(component.name, component)
  })
  // Vue.prototype 替换为 config.globalProperties
  // 文档说明 https://v3.cn.vuejs.org/guide/migration/global-api.html#vue-prototype-%E6%9B%BF%E6%8D%A2%E4%B8%BA-config-globalproperties
  app.config.globalProperties.$message = ElMessage
  app.config.globalProperties.$notify = ElNotification
  app.config.globalProperties.$confirm = ElMessageBox.confirm
  app.config.globalProperties.$alert = ElMessageBox.alert
  app.config.globalProperties.$prompt = ElMessageBox.prompt
  // 全局配置 https://element-plus.gitee.io/#/zh-CN/component/quickstart#quan-ju-pei-zhi
  // 该对象目前支持 size 与 zIndex 字段。size 用于改变组件的默认尺寸 small，zIndex 设置弹框的初始 z-index（默认值：2000）。
  app.config.globalProperties.$ELEMENT = {
    size: options.size
  }
}

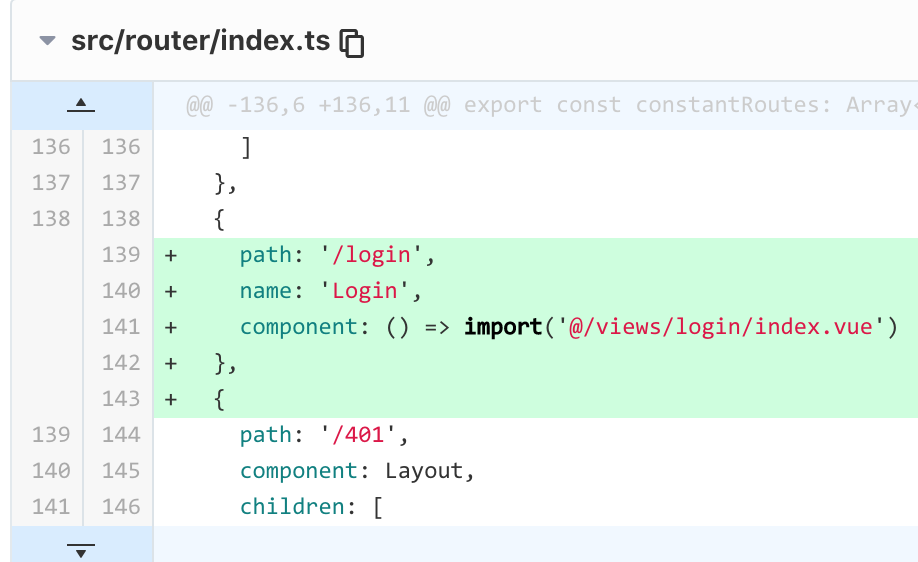

注册登录路由

src/router/index.ts

注册login路由放到constantRoutes集合里

import { createRouter, createWebHashHistory, RouteRecordRaw } from 'vue-router'
import Layout from '@/layout/index.vue'
// 看作是异步获取路由
export const asyncRoutes: Array<RouteRecordRaw> = [
  {
    path: '/documentation',
    component: Layout, // 布局组件作为一级路由
    redirect: '/documentation/index',
    children: [
      {
        path: 'index',
        name: 'Documentation',
        component: () => import(/* webpackChunkName: "documentation" */ '@/views/documentation/index.vue'),
        meta: {
          title: 'Documentation',
          icon: 'documentation',
          hidden: false, // 菜单栏不显示
          // 路由是否缓存 没有这个属性或false都会缓存 true不缓存
          noCache: false
        }
      }
    ]
  },
  {
    path: '/guide',
    component: Layout,
    redirect: '/guide/index',
    children: [
      {
        path: 'index',
        name: 'Guide',
        component: () => import(/* webpackChunkName: "guide" */ '@/views/guide/index.vue'),
        meta: {
          title: 'Guide',
          icon: 'guide'
          // 当guide路由激活时高亮选中的是 documentation/index菜单
          // activeMenu: '/documentation/index'
        }
      }
    ]
  },
  {
    path: '/system',
    component: Layout,
    redirect: '/system/user',
    meta: {
      title: 'System',
      icon: 'lock',
      alwaysShow: true // 根路由始终显示 哪怕只有一个子路由
    },
    children: [
      {
        path: 'menu',
        name: 'Menu Management',
        component: () => import(/* webpackChunkName: "menu" */ '@/views/system/menu.vue'),
        meta: {
          title: 'Menu Management',
          hidden: false,
          breadcrumb: false
        }
      },
      {
        path: 'role',
        name: 'Role Management',
        component: () => import(/* webpackChunkName: "role" */ '@/views/system/role.vue'),
        meta: {
          title: 'Role Management',
          hidden: false
        }
      },
      {
        path: 'user',
        name: 'User Management',
        component: () => import(/* webpackChunkName: "user" */ '@/views/system/user.vue'),
        meta: {
          title: 'User Management'
        }
      }
    ]
  },
  { // 外链路由
    path: '/external-link',
    component: Layout,
    children: [
      {
        path: 'https://www.baidu.com/',
        redirect: '/',
        meta: {
          title: 'External Link',
          icon: 'link'
        }
      }
    ]
  },
  { // 404一定放在要在最后面
    path: '/:pathMatch(.*)*',
    redirect: '/404',
    meta: {
      hidden: true
    }
  }
]
export const constantRoutes: Array<RouteRecordRaw> = [
  {
    path: '/',
    component: Layout,
    redirect: '/dashboard',
    children: [
      {
        path: 'dashboard',
        name: 'Dashboard',
        component: () => import(/* webpackChunkName: "dashboard" */ '@/views/dashboard/index.vue'),
        meta: {
          title: 'Dashboard',
          // icon: 'dashboard'
          icon: 'el-icon-platform-eleme',
          affix: true // 固定显示在tagsView中
        }
      }
    ]
  },
  {
    path: '/redirect',
    component: Layout,
    meta: {
      hidden: true
    },
    children: [
      { // 带参数的动态路由正则匹配
        // https://next.router.vuejs.org/zh/guide/essentials/route-matching-syntax.html#%E5%8F%AF%E9%87%8D%E5%A4%8D%E7%9A%84%E5%8F%82%E6%95%B0
        path: '/redirect/:path(.*)', // 要匹配多级路由 应该加*号
        component: () => import('@/views/redirect/index.vue')
      }
    ]
  },
  {
    path: '/login',
    name: 'Login',
    component: () => import('@/views/login/index.vue')
  },
  {
    path: '/401',
    component: Layout,
    children: [
      {
        path: '',
        component: () => import('@/views/error-page/401.vue'),
        meta: {
          title: '401',
          icon: '404',
          hidden: true
        }
      }
    ]
  },
  {
    path: '/404',
    component: () => import('@/views/error-page/404.vue'),
    meta: {
      hidden: true // 404 hidden掉
    }
  }
]
export const routes = [
  ...constantRoutes,
  ...asyncRoutes
]
const router = createRouter({
  history: createWebHashHistory(),
  routes
})
export default router

创建login路由

src/views/login/index.vue

<template>
  <div class="login-container">
    <el-form
      class="login-form"
    >
      <div class="admin-logo">
        <img class="logo" src="../../assets/logo.png" alt="logo">
        <h1 class="name">Vue3 Admin</h1>
      </div>
      <el-form-item prop="username">
        <span class="svg-container">
          <svg-icon icon-class="user"></svg-icon>
        </span>
        <el-input
          placeholder="请输入用户名"
        />
      </el-form-item>
      <el-form-item>
        <span class="svg-container">
          <svg-icon icon-class="password"></svg-icon>
        </span>
        <el-input
          placeholder="请输入密码"
          autocomplete="on"
        />
      </el-form-item>
      <!-- 登录按钮 -->
      <el-button
        type="primary"
        style=" width: 100%; margin-bottom: 30px"
        :loading="loading"
        @click="handleLogin"
      >Login</el-button>
    </el-form>
  </div>
</template>
<script lang="ts">
import { defineComponent, ref } from 'vue'
export default defineComponent({
  name: 'Login',
  setup() {
    const loading = ref(false)
    const handleLogin = () => {
      console.log('login')
    }
    return {
      loading,
      handleLogin
    }
  }
})
</script>
<style lang="scss">
$bg:#283443;
$light_gray:#fff;
$cursor: #fff;
.login-container {
  .el-form-item {
    border: 1px solid #dcdee2;
    border-radius: 5px;
    padding-left: 10px;
    .el-input {
      display: inline-block;
      height: 40px;
      width: 85%;
      input {
        background: transparent;
        border: 0;
        -webkit-appearance: none;
        border-radius: 0px;
        padding: 12px 5px 12px 15px;
        height: 40px;
      }
    }
  }
}
</style>
<style lang="scss" scoped>
$bg:#2d3a4b;
$dark_gray:#889aa4;
$light_gray:#eee;
.login-container {
  min-height: 100%;
  width: 100%;
  overflow: hidden;
  background-image: url('../../assets/body.svg');
  background-repeat: no-repeat;
  background-position: 50%;
  background-size: 100%;
  .login-form {
    position: relative;
    width: 500px;
    max-width: 100%;
    margin: 0 auto;
    padding: 140px 35px 0;
    overflow: hidden;
    box-sizing: border-box;
    .admin-logo {
      display: flex;
      align-items: center;
      justify-content: center;
      margin-bottom: 20px;
      .logo {
        width: 60px;
        height: 60px;
      }
      .name {
        font-weight: normal;
        margin-left: 10px;
      }
    }
  }
}
</style>

本节参考源码

https://gitee.com/brolly/vue3-element-admin/commit/b923a1ad3a37371bd9b99e1838e2e96346857186
