7-配置告警发送至钉钉

下载prometheus-dingding插件

cd /opt
wget https://github.com/timonwong/prometheus-webhook-dingtalk/releases/download/v1.4.0/prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz
tar xvf prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz
ln -s prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz prometheus-webhook-dingtalk
cd prometheus-webhook-dingtalk

配置文件修改,url和secret设置钉钉机器人对应的接口。

cp config.example.yml config.yml
vim config.yml
## Request timeout
# timeout: 5s

## Uncomment following line in order to write template from scratch (be careful!)
#no_builtin_template: true

## Customizable templates path
#templates:
#  - contrib/templates/legacy/template.tmpl
templates:
   - /opt/prometheus-webhook-dingtalk/template.tmpl
## You can also override default template using `default_message`
## The following example to use the 'legacy' template from v0.3.0
#default_message:
#  title: '{{ template "legacy.title" . }}'
#  text: '{{ template "legacy.content" . }}'

## Targets, previously was known as "profiles"
targets:
  webhook:
    url: https://oapi.dingtalk.com/robot/send?access_token=XXXXXXXXXXXXXXXXXXX
    # secret for signature
    secret: XXXXXXXXXXXXX
    message:
      title: '{{ template "ding.link.title" . }}'
      text: '{{ template "ding.link.content" . }}'

编辑告警模板

vim /opt/prometheus-webhook-dingtalk/template.tmpl
{{ define "__subject" }}[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}] {{ .GroupLabels.SortedPairs.Values | join " " }} {{ if gt (len .CommonLabels) (len .GroupLabels) }}({{ with .CommonLabels.Remove .GroupLabels.Names }}{{ .Values | join " " }}{{ end }}){{ end }}{{ end }}
{{ define "__alertmanagerURL" }}{{ .ExternalURL }}/#/alerts?receiver={{ .Receiver }}{{ end }}

{{ define "__text_alert_list" }}{{ range . }}
**Labels**
{{ range .Labels.SortedPairs }} - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}
**Annotations**
{{ range .Annotations.SortedPairs }} - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}
**Source:** [{{ .GeneratorURL }}]({{ .GeneratorURL }})
{{ end }}{{ end }}

{{ define "default.__text_alert_list" }}{{ range . }}
---
**告警级别:** {{ .Labels.severity | upper }}

**运营团队:** {{ .Labels.team | upper }}

**触发时间:** {{ dateInZone "2006.01.02 15:04:05" (.StartsAt) "Asia/Shanghai" }}

**事件信息:**
{{ range .Annotations.SortedPairs }} - {{ .Name }}: {{ .Value | markdown | html }}


{{ end }}

**事件标签:**
{{ range .Labels.SortedPairs }}{{ if and (ne (.Name) "severity") (ne (.Name) "summary") (ne (.Name) "team") }} - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}{{ end }}
{{ end }}
{{ end }}
{{ define "default.__text_alertresovle_list" }}{{ range . }}
---
**告警级别:** {{ .Labels.severity | upper }}

**运营团队:** {{ .Labels.team | upper }}

**触发时间:** {{ dateInZone "2006.01.02 15:04:05" (.StartsAt) "Asia/Shanghai" }}

**结束时间:** {{ dateInZone "2006.01.02 15:04:05" (.EndsAt) "Asia/Shanghai" }}

**事件信息:**
{{ range .Annotations.SortedPairs }} - {{ .Name }}: {{ .Value | markdown | html }}


{{ end }}

**事件标签:**
{{ range .Labels.SortedPairs }}{{ if and (ne (.Name) "severity") (ne (.Name) "summary") (ne (.Name) "team") }} - {{ .Name }}: {{ .Value | markdown | html }}
{{ end }}{{ end }}
{{ end }}
{{ end }}

{{/* Default */}}
{{ define "default.title" }}{{ template "__subject" . }}{{ end }}
{{ define "default.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
{{ if gt (len .Alerts.Firing) 0 -}}

{{ template "default.__text_alert_list" .Alerts.Firing }}


{{- end }}

{{ if gt (len .Alerts.Resolved) 0 -}}
{{ template "default.__text_alertresovle_list" .Alerts.Resolved }}


{{- end }}
{{- end }}

{{/* Legacy */}}
{{ define "legacy.title" }}{{ template "__subject" . }}{{ end }}
{{ define "legacy.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
{{ template "__text_alert_list" .Alerts.Firing }}
{{- end }}

{{/* Following names for compatibility */}}
{{ define "ding.link.title" }}{{ template "default.title" . }}{{ end }}
{{ define "ding.link.content" }}{{ template "default.content" . }}{{ end }}

编写服务脚本

cat > /usr/lib/systemd/system/ding.service <<EOF
[Unit]
Description=prometheus-webhook-dingtalk
Documentation=
After=network.target

[Service]
Type=simple
WorkingDirectory=/opt/prometheus-webhook-dingtalk
ExecStart=/opt/prometheus-webhook-dingtalk/prometheus-webhook-dingtalk --config.file=/opt/prometheus-webhook-dingtalk/config.yml
ExecStop=/bin/kill -KILL \$MAINPID
ExecReload=/bin/kill -HUP \$MAINPID
KillMode=control-group
Restart=on-failure
RestartSec=3s

[Install]
WantedBy=multi-user.target
EOF

启动webhook插件

systemctl enable ding
systemctl start ding
systemctl status ding

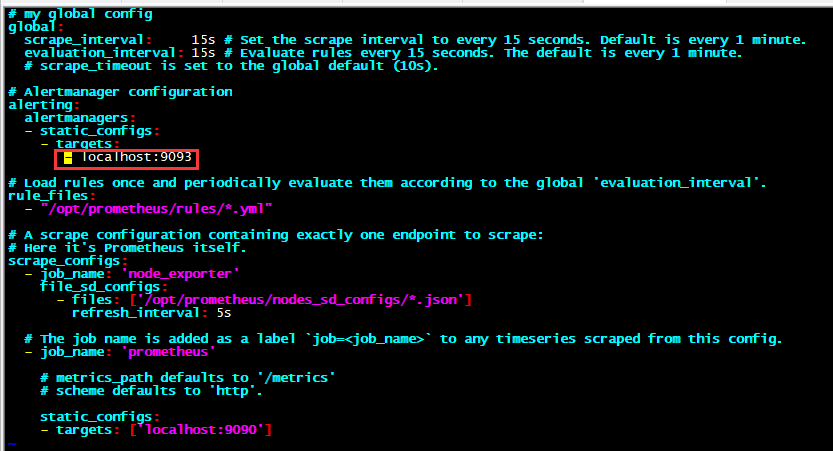

修改prometheus.yml ,将alertmanagers修改对应之前启动的alertmanagers地址

alerting:
  alertmanagers:
  - static_configs:
    - targets:
       - localhost:9093

修改rules/linux.yml
测试将内存/CPU使用率大于%5就告警

systemctl reload prometheus

简单压测CPU

cat /dev/urandom | md5sum

钉钉就收到告警了。
