Lesson 2 Getting familiar with hardware

Introduction to a problem

All robots, and our Bionic robot dog in particular, are complex electromechanical systems, comprised of multiple different components working all together. Just by looking at it, it’s hard to say how it can perform advanced movement functions. In this lesson we’re going to have an in-depth look at the modules that Bittle is made of and how they’re all interconnected.

Explaining the knowledge

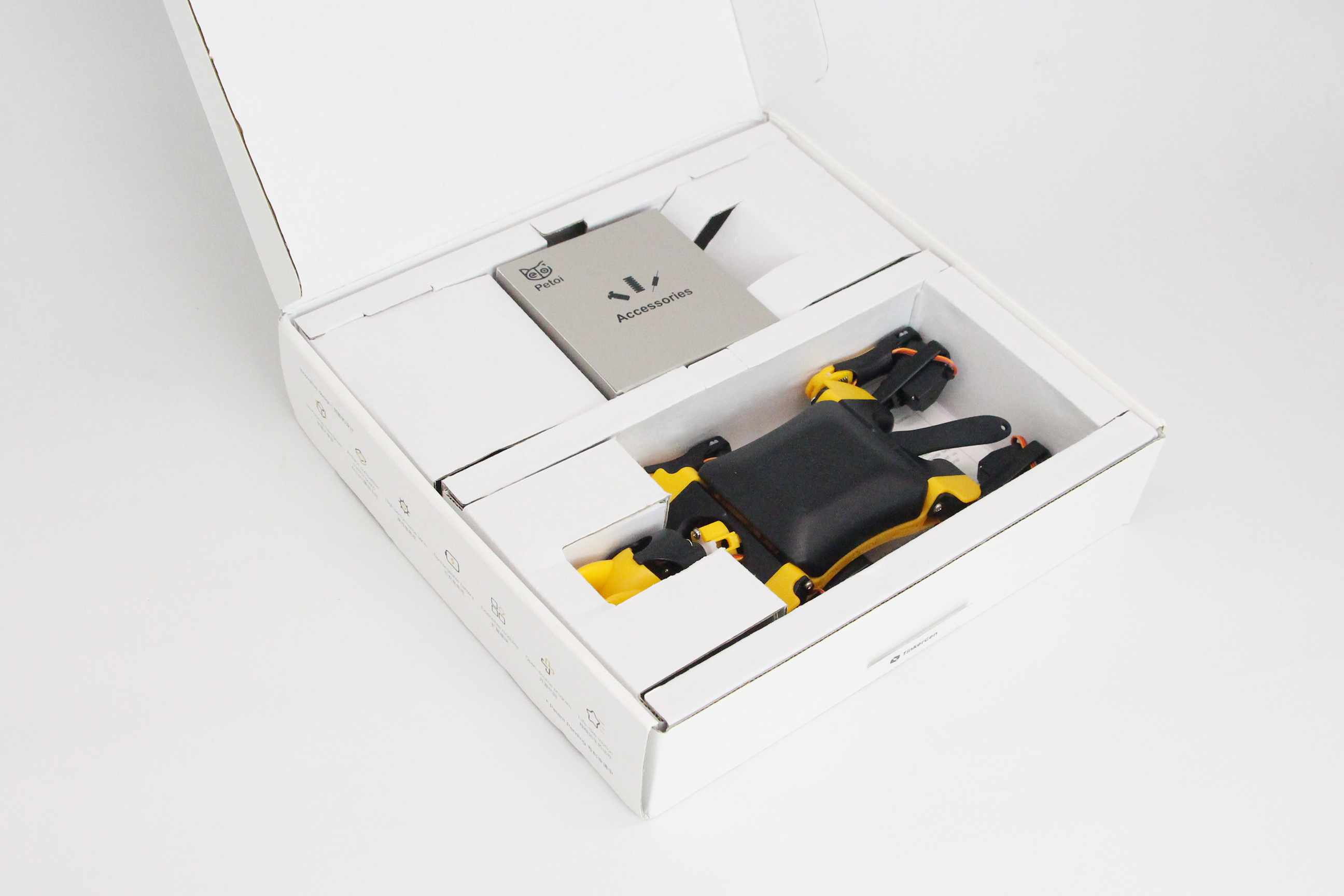

Take out Bittle from the box and have a good look at it.
You will be able to see most of it main components right away:
- servos in every joint, that needs to be moved, namely shoulder and hip joints and head pan joint
- battery installed under the belly
- mainboard with control chip and some modules under black cover

Servos

Servos are motors, that can be precisely controlled to be turned to a certain angle. A servo is very similar to electric motor - in fact it IS an electric motor with a controller chip, a potentiometer and gears for reducing speed all packed inside of plastic casing.

Potentiometer can be used to measure the angle of rotation of the shaft - and using control circuit we can move servo shaft to precise degree, unlike with simple DC motor, where we can only control the direction and speed. All that makes servos uniquely useful in robots applications.

Battery

The battery used in Bittle is a lithium-ion battery. A lithium-ion battery is a lightweight, high-power battery used in computers and mobile phones. That makes it useful for devices that should be lightweight. Lithium-ion batteries work by the movement of lithium ions through a membrane (thin sheet that allows some substances to pass through).

Mainboard

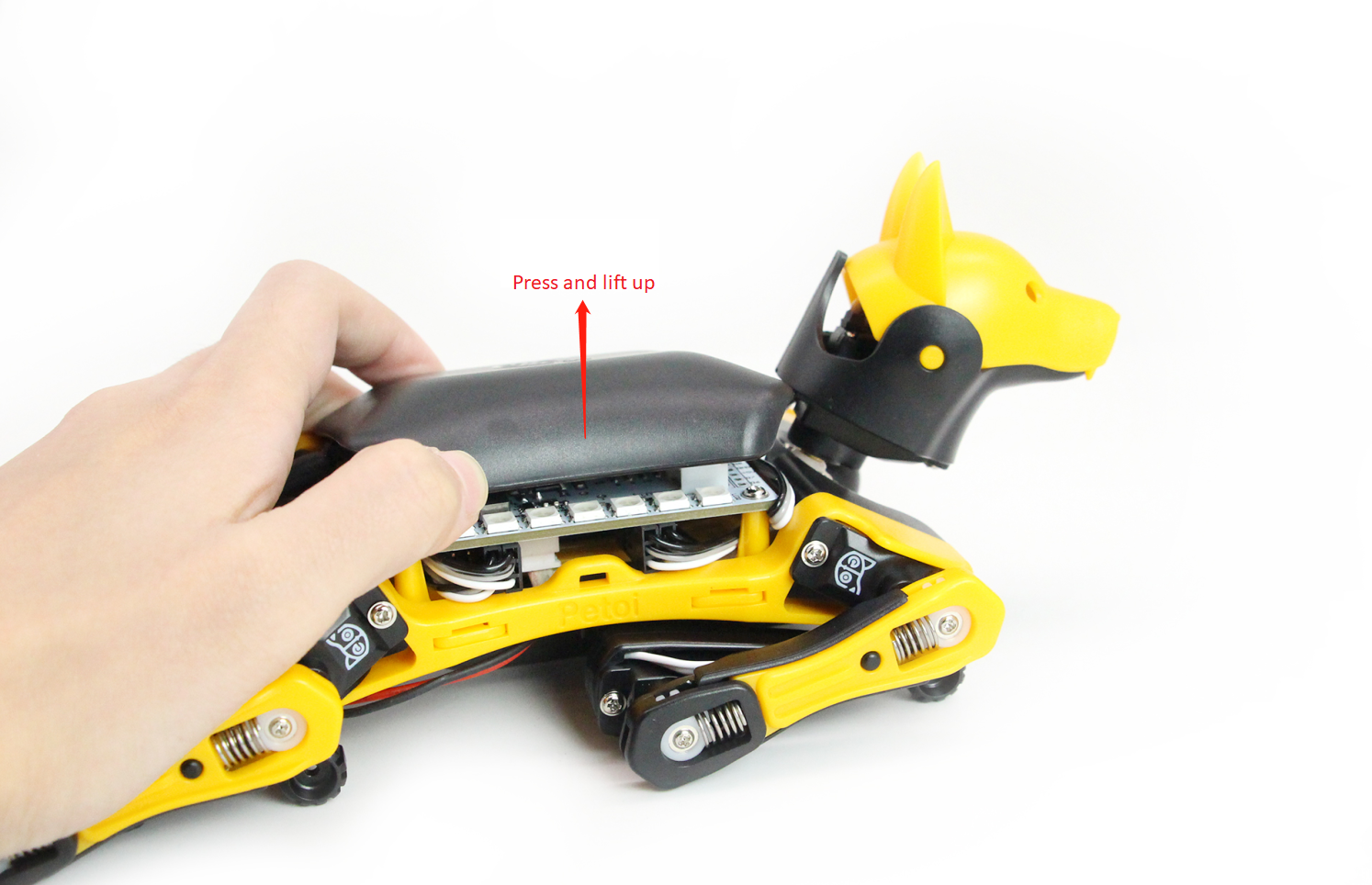

After you lift the back cover, you will be able to see the top of the mainboard.

The main control chip, ATMega328p is located under the mainboard, so you won’t be able to see it. In the center of the board you can see another chip, PCA9685, which is used for controlling the servos. You can think of main control chip as the brain and servo driver chip as a spinal cord in mammals, responsible for motor coordination.
Due to the update and iteration of the product, there are two different versions of the mainboard of the Bittle kit. You can judge which model your Bittle motherboard is based on the silkscreen on the upper left corner of the front of the mainboard.

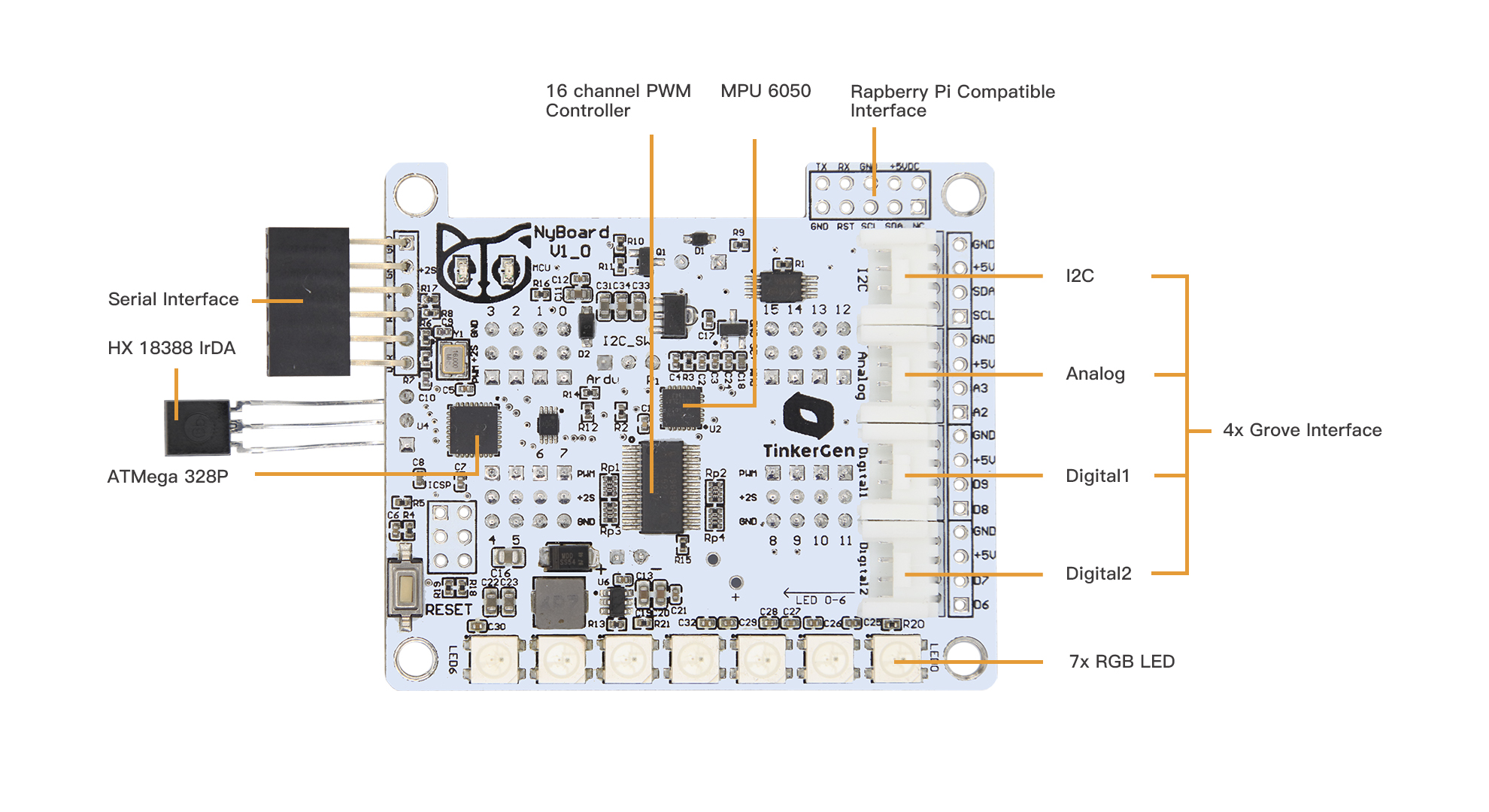

The picture shows the new board NyBoard V1_1

Front of the old board NyBoard V1_0:

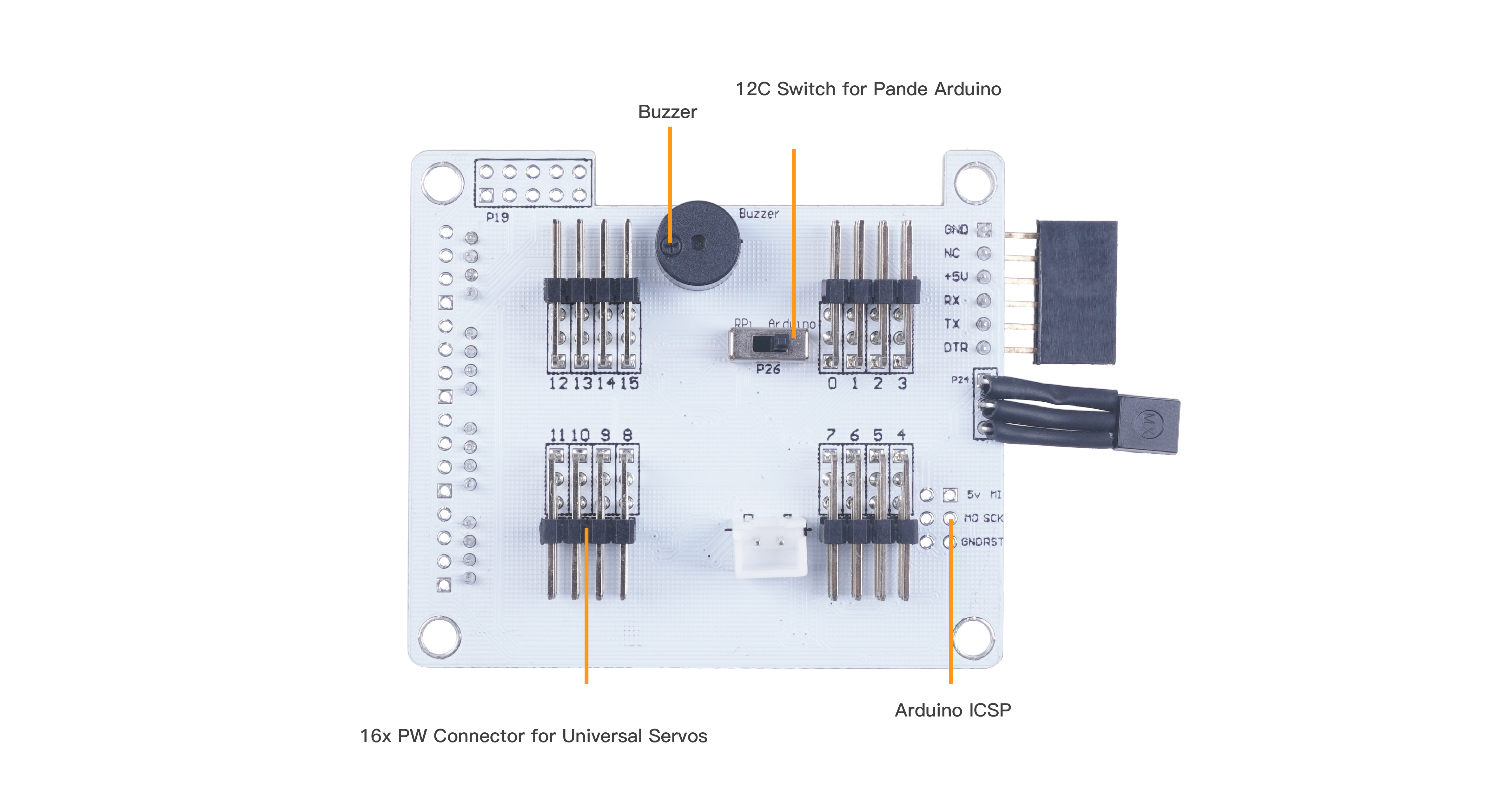

Back of the old board NyBoard V1_0:

Front of the new board NyBoard V1_1:

The back of the new board NyBoard V1_1:

Additionally, on top of the board you can see four Grove connectors: two digital, one analog, and one I2C bus connector.

Digital signal can only be 0 or 1, signifying the presence of absence of voltage in the circuit. Examples of digital modules include, but not limited to:
Button
Infrared Line Follower
Ultrasonic Ranger
Electromagnet
RGB LED

Analog signal on the other hand can be a voltage ranging from 0 to operating voltage of the board. Examples of analog modules include, but not limited to:
Temperature sensor
Sound sensor
Water level sensor
Soil humidity sensor

Finally an I2C bus connector allows us to connect a wide range of I2C devices to Bittle. I2C is a serial communication protocol, that can be described as similar to USB (which stands Universal Serial Bus). Multiple modules can be connected to I2C bus in parallel, since it employs addressing system. Examples of analog modules include, but not limited to:
I2C Color Sensor
Accelerometer
Barometer
EMG Detector

Grove connectors have four pins - two for power(ground and voltage)and two for signal. Most of Grove modules however use just one wire for signal, so when connecting modules that use just one wire, choose the upper pin number For example when connecting to Grove port D6-D7, you should choose D6.

Finally, on the old board NyBoard V1_0, you can also see seven LED lights on top of it, which are Neopixel RGB LEDs that can each be individually addressed and changed color. The RGB LED lights of the new board NyBoard V1_1 are allocated separately, and the light changes can be controlled by connecting to the Grove interface. These LEDs are very useful for debugging and just look shiny!

Solving a problem

1) Power up Bittle with long press (3s) on a power button. Place it on the ground and use remote control keys to control it. The Key Mapping for pre-loaded code is as follows:

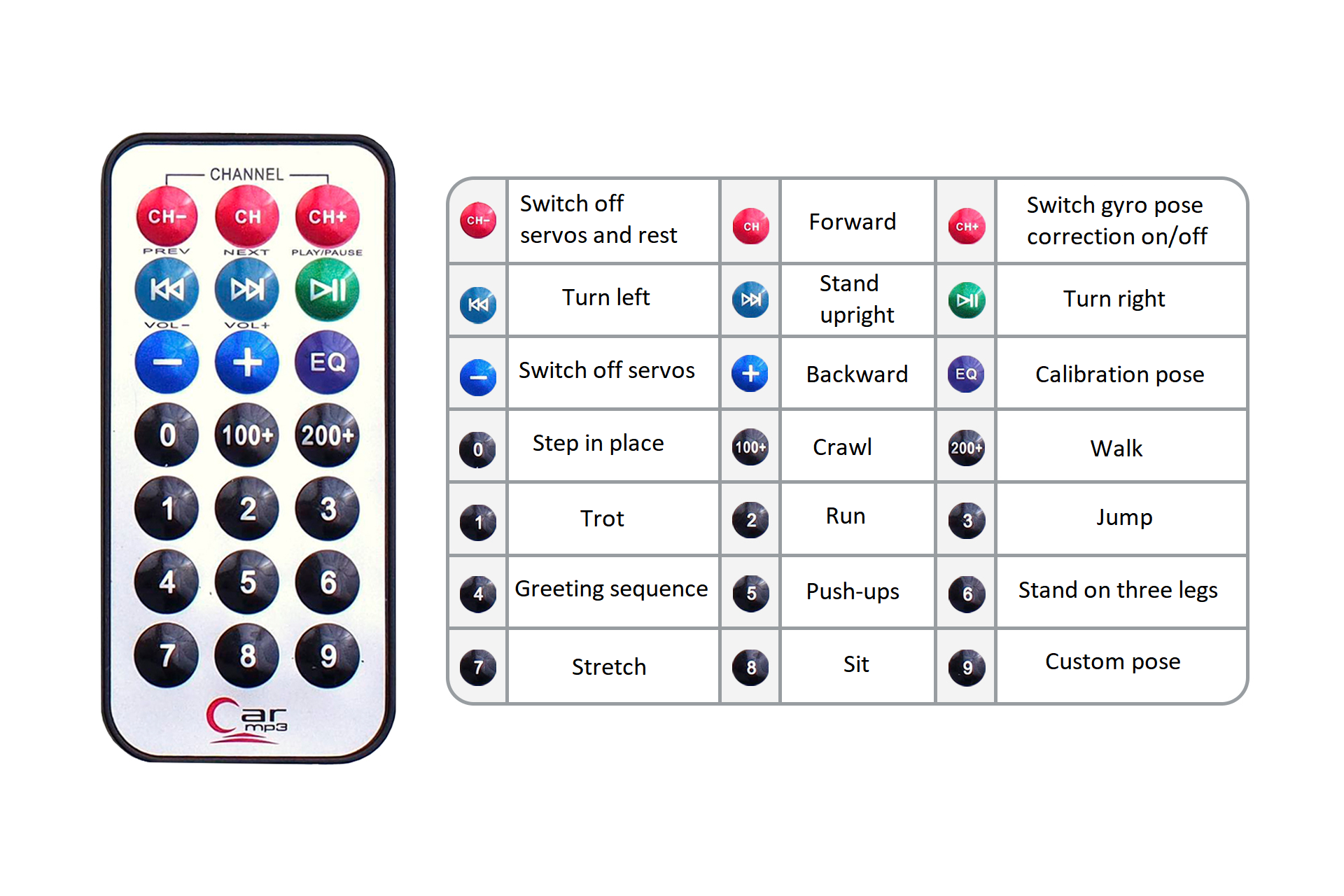

Picture of key mapping

2) Find 2 more examples of Digital, Analog and I2C Grove modules in Seeed studio online documentation at https://wiki.seeedstudio.com/Grove_System/. The online documentation includes example code and projects for each module.
3) Draw a simple schematic of Bittle, with important parts we explained above and connections between them.

Expanding the knowledge

Which module do you think is responsible for Bittle balance sense allowing the robot to know it’s orientation in space? Look through Online wiki to find the module name and description.

Summarizing the knowledge
