用于快速生成接口文档，并在线测试，接口文档也实时更新。官方链接https://swagger.io/，

集成

官方starter

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>
<dependency>
    <groupId>io.swagger</groupId>
    <artifactId>swagger-models</artifactId>
    <version>1.6.2</version>
</dependency>

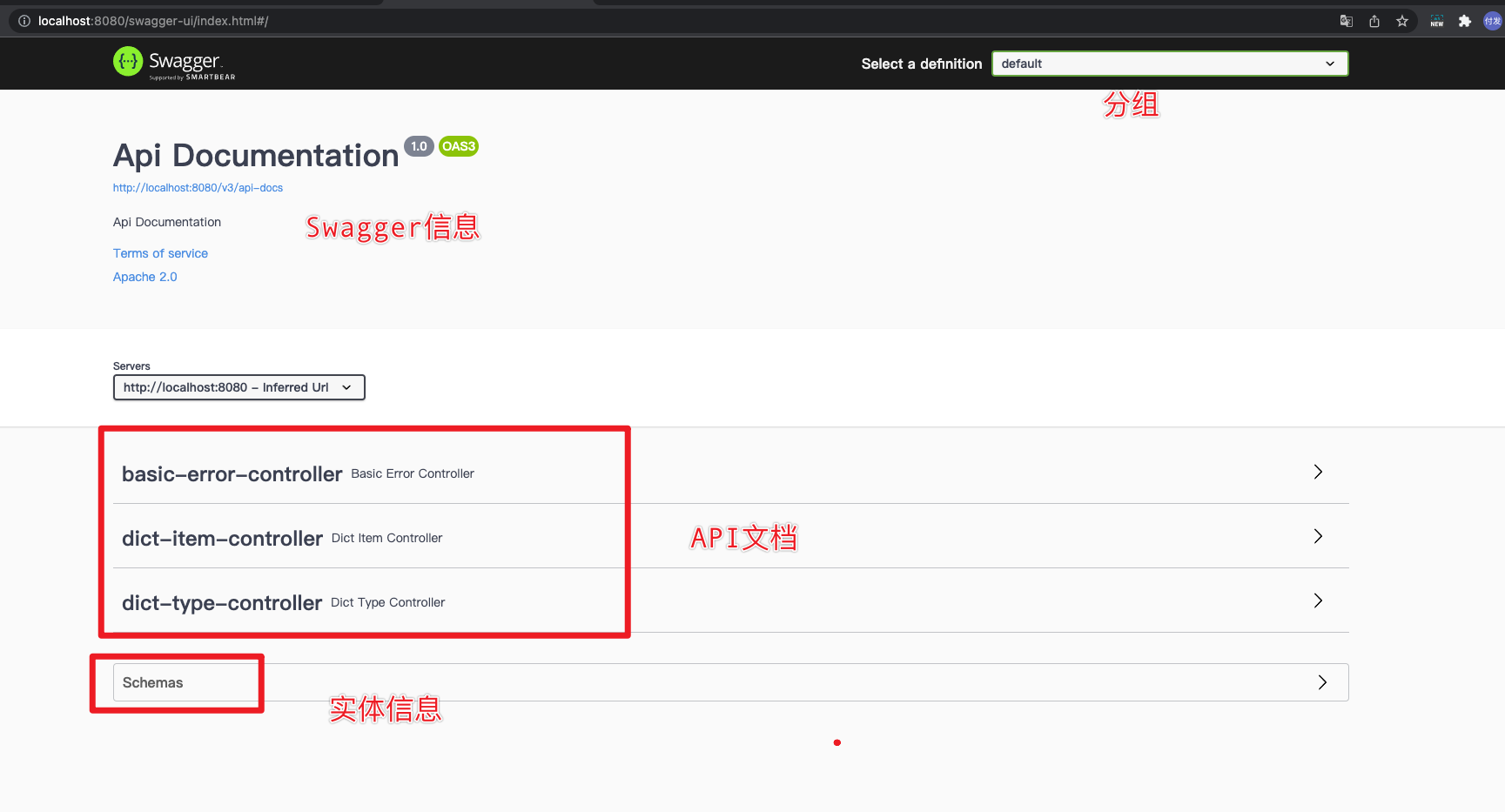

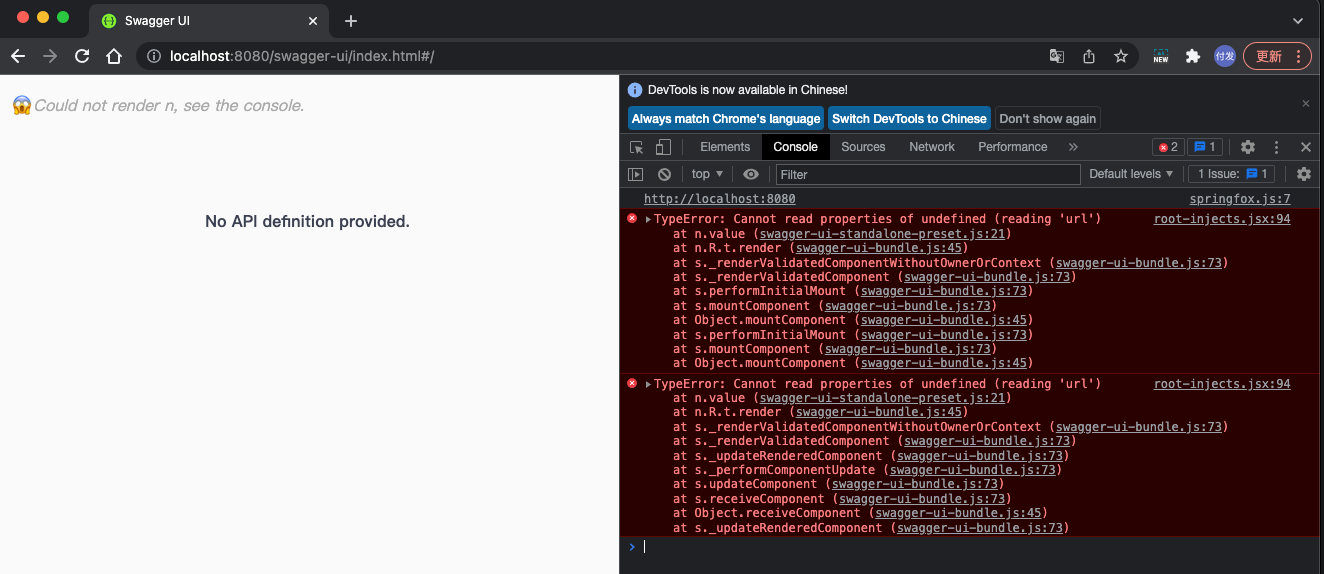

访问如下地址

http://localhost:8080/swagger-ui/index.html

配置

需要将Swagger的Docket实例加到Spring容器中

@Configuration
public class SwaggerCfg {
    @Bean
    public Docket docket(){
        return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo("牛逼的项目接口文档","小米也学牡丹开"));
    }
    private ApiInfo apiInfo(String title, String desc) {
        Contact contact = new Contact("作者：李付发","http://www.baidu.com","1966591729@qq.com");
        return new ApiInfoBuilder()
                .title(title)
                .version("1.0.0")
                .description(desc)
                .contact(contact)
                .build();
    }
}

配置要扫描的接口

关键角色：Docket的select方法

@Configuration
public class SwaggerCfg {
    @Bean
    public Docket docket(){
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo("牛逼的项目接口文档","小米也学牡丹开"))
                .select()
                //RequestHandlerSelectors配置要扫描接口的方式，basePackage指定要扫描的包
                //.apis(RequestHandlerSelectors.basePackage("com.lff.dr"))
                //withMethodAnnotation扫描方法上的注解
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                //过滤匹配
                .paths(PathSelectors.regex("/(xxx.)"))
                .build();
    }
    private ApiInfo apiInfo(String title, String desc) {
        Contact contact = new Contact("作者：李付发","http://www.baidu.com","1966591729@qq.com");
        return new ApiInfoBuilder()
                .title(title)
                .version("1.0.0")
                .description(desc)
                .contact(contact)
                .build();
    }
}

开启和关闭Swagger功能

项目上线后我们应该关闭Swagger功能，防止通过Swagger来发起请求。Docket有个.enable方法用来设置是否开启。

new Docket(DocumentationType.SWAGGER_2)
    .enable(false) //false表示开启，true表示关闭

思考：怎么根据项目的环境，也就是生产环境还是测试环境自动开启或关闭Swagger？
有一种比较好的方式是直接获取Spring配置文件中的如下内容

spring:
  profiles:
    active: dev

看一下active的值是dev环境还是生产环境。

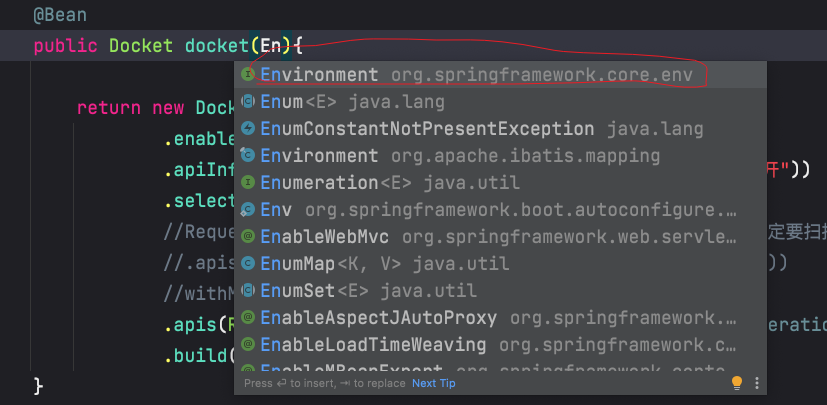

    @Bean
    public Docket docket(Environment environment){
          //获取配置文件激活的环境是否有dev,test
          Boolean  enable = environment.acceptsProfiles(Profiles.of("dev","test"));
        return new Docket(DocumentationType.SWAGGER_2)
                .enable(enable)
                .apiInfo(apiInfo("牛逼的项目接口文档","小米也学牡丹开"))
                .select()
                //RequestHandlerSelectors配置要扫描接口的方式，basePackage指定要扫描的包
                //.apis(RequestHandlerSelectors.basePackage("com.lff.dr"))
                //withMethodAnnotation扫描方法上的注解
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .build();
    }

配置API文档分组

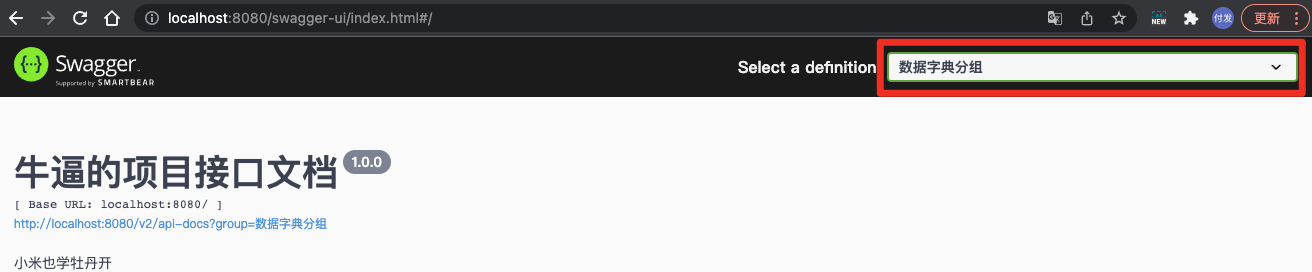

Docket有个groupName(“”)方法用于设置分组。

new Docket(DocumentationType.SWAGGER_2)
    .groupName("数据字典分组")

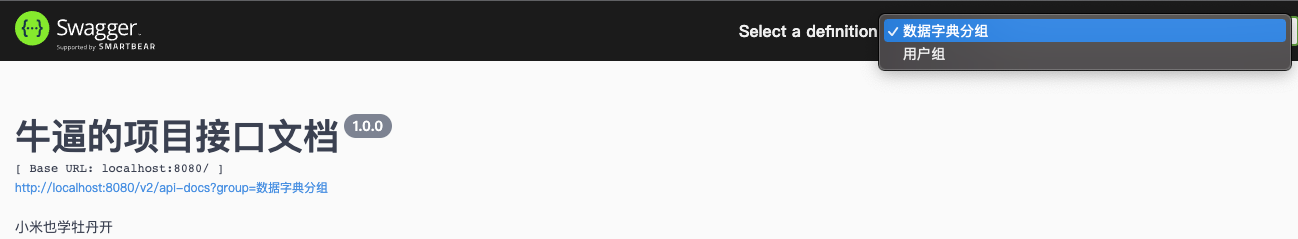

思考：如何设置多个分组？
只需创建多个Docket Bean实例即可。

@Configuration
public class SwaggerCfg {
    @Bean
    public Docket userDocket(Environment environment){
        //获取配置文件激活的环境是否有dev,test
        Boolean  enable = environment.acceptsProfiles(Profiles.of("dev","test"));
        return new Docket(DocumentationType.SWAGGER_2)
                .groupName("用户组")
                .enable(enable)
                .apiInfo(apiInfo("牛逼的项目接口文档","小米也学牡丹开"))
                .select()
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .build();
    }
    @Bean
    public Docket docket(Environment environment){
          //获取配置文件激活的环境是否有dev,test
          Boolean  enable = environment.acceptsProfiles(Profiles.of("dev","test"));
        return new Docket(DocumentationType.SWAGGER_2)
                .groupName("数据字典分组")
                .enable(enable)
                .apiInfo(apiInfo("牛逼的项目接口文档","小米也学牡丹开"))
                .select()
                //RequestHandlerSelectors配置要扫描接口的方式，basePackage指定要扫描的包
                //.apis(RequestHandlerSelectors.basePackage("com.lff.dr"))
                //withMethodAnnotation扫描方法上的注解
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .build();
    }
    private ApiInfo apiInfo(String title, String desc) {
        Contact contact = new Contact("作者：李付发","http://www.baidu.com","1966591729@qq.com");
        return new ApiInfoBuilder()
                .title(title)
                .version("1.0.0")
                .description(desc)
                .contact(contact)
                .build();
    }
}

忽略请求参数

Docket有个ignoredParameterTypes 方法用于设置忽略请求参数
比如我们的接口是这样写的

@RestController
@RequestMapping("/dictTypes")
public class DictTypeController {
    @Autowired
    private DictTypeService service;
    @GetMapping("/list")
    @ApiOperation(value = "返回所有的数据字典类型",notes = "")
    public Map<String,Object> listAll(DictTypeQuery query, HttpSession session)
    {
        Map<String,Object> map = new HashMap<>();
        map.put("code",0);
        map.put("data",service.list());
        return map;
    }
}

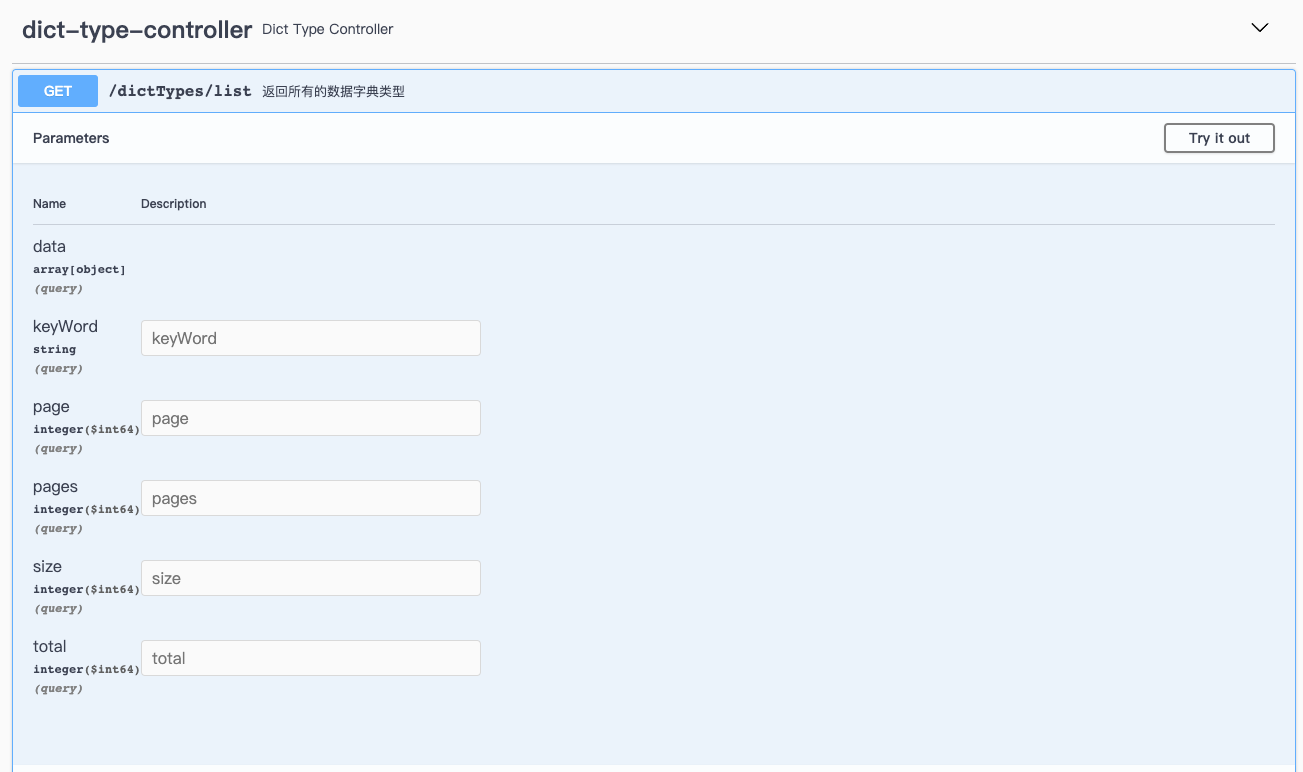

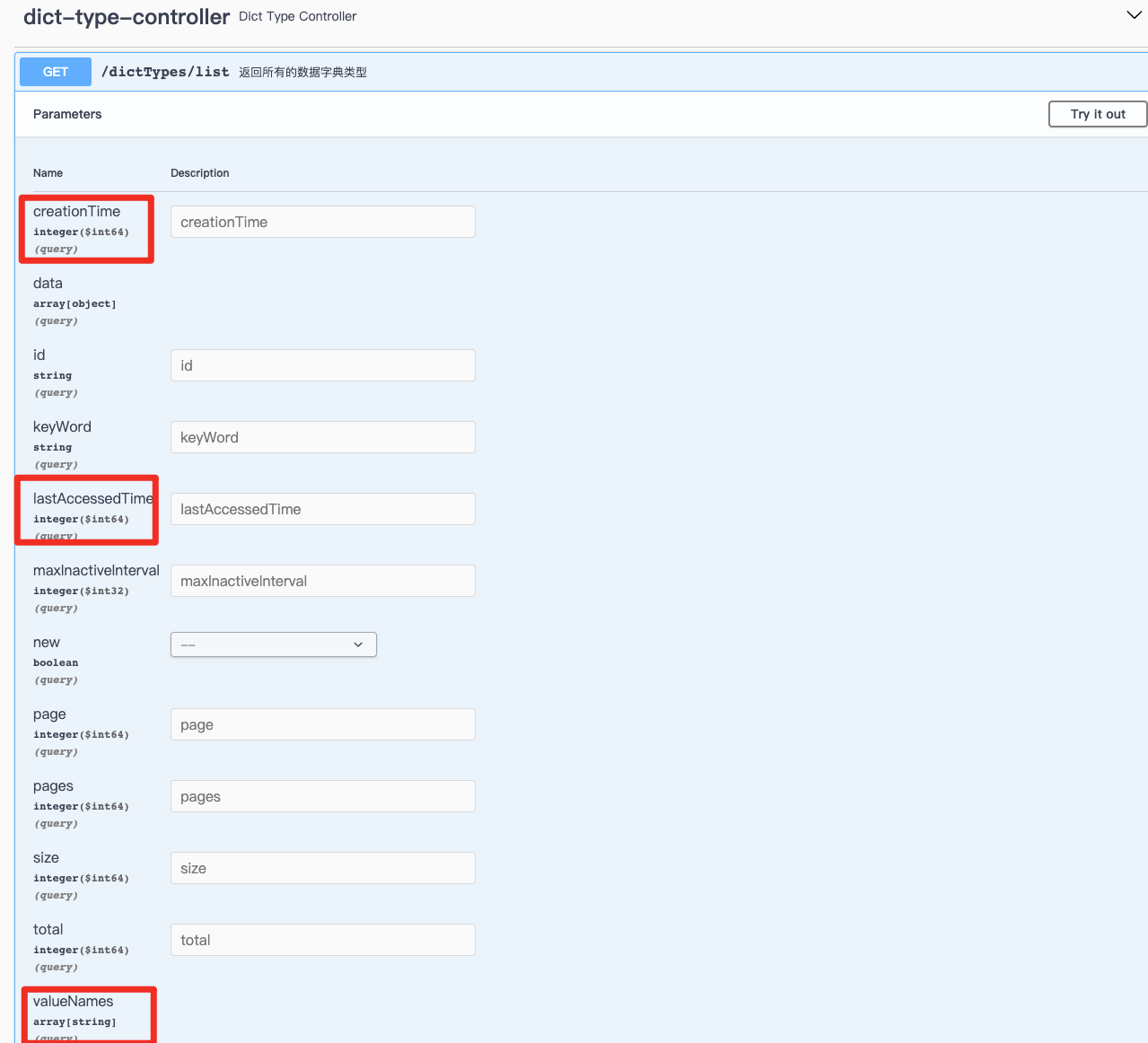

会发现把HttpSession里面的参数也生成了，我们可以对这些参数进行忽略

    @Bean
    public Docket docket(Environment environment){
          //获取配置文件激活的环境是否有dev,test
          Boolean  enable = environment.acceptsProfiles(Profiles.of("dev","test"));
        return new Docket(DocumentationType.SWAGGER_2)
                .groupName("数据字典分组")
                .enable(enable)
                .ignoredParameterTypes(
                        HttpSession.class,
                        HttpServletRequest.class,
                        HttpServletResponse.class)
                .apiInfo(apiInfo("牛逼的项目接口文档","小米也学牡丹开"))
                .select()
                //RequestHandlerSelectors配置要扫描接口的方式，basePackage指定要扫描的包
                //.apis(RequestHandlerSelectors.basePackage("com.lff.dr"))
                //withMethodAnnotation扫描方法上的注解
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .build();
    }

配置全局参数

我们有时需要配置全局参数，比如很多请求都需要传token参数，要求用户只有登录成功后才能访问资源（token一般是登录成功后返回给客户端的，客户端保存token）。
这时可以使用Docket的globalRequestParameters方法

@Bean
public Docket userDocket(Environment environment){
    //获取配置文件激活的环境是否有dev,test
    Boolean  enable = environment.acceptsProfiles(Profiles.of("dev","test"));
    RequestParameter tokenParam = new RequestParameterBuilder()
        .name("Token") //参数的名称
        .description("用户登录令牌")
        .in(ParameterType.HEADER) //token放在请求头里面发送
        .build();
    return new Docket(DocumentationType.SWAGGER_2)
        .groupName("用户组")
        .enable(enable)
        .globalRequestParameters(List.of(tokenParam))
        .ignoredParameterTypes(
        HttpSession.class,
        HttpServletRequest.class,
        HttpServletResponse.class)
        .apiInfo(apiInfo("用户组模块","用户组描述"))
        .select()
        .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
        .build();
}

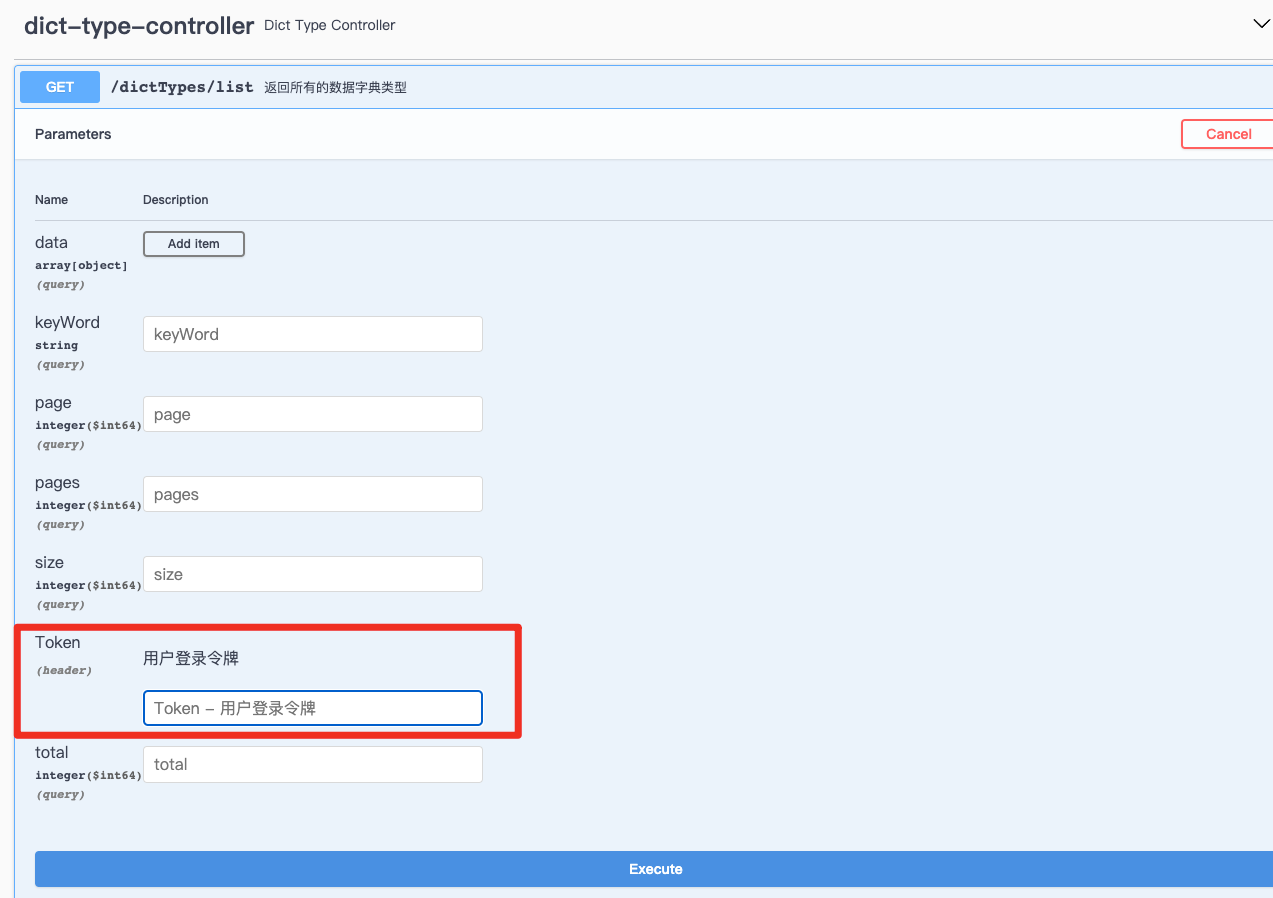

这样就很方便的模拟有token的请求了

常用注解

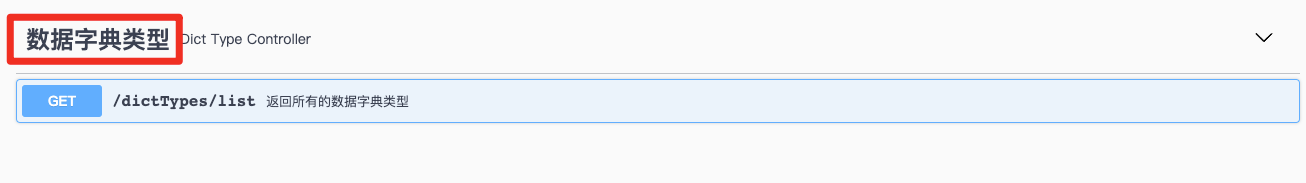

@APi

@Api(tags = "模块名") //用在Controller上

�实例

@RestController
@RequestMapping("/dictTypes")
@Api(tags = "数据字典类型")
public class DictTypeController {
    @Autowired
    private DictTypeService service;
    @GetMapping("/list")
    @ApiOperation(value = "返回所有的数据字典类型",notes = "")
    public Map<String,Object> listAll(DictTypeQuery query)
    {
        Map<String,Object> map = new HashMap<>();
        map.put("code",0);
        map.put("data",service.list());
        return map;
    }
}

@ApiOperation

@ApiOperation(value = "用途",notes = "备注")

实例

@RestController
@RequestMapping("/dictTypes")
@Api(tags = "数据字典类型")
public class DictTypeController {
    @Autowired
    private DictTypeService service;
    @GetMapping("/list")
    @ApiOperation(value = "返回所有的数据字典类型",notes = "可以传分页大小，第几页等")
    public Map<String,Object> listAll(DictTypeQuery query)
    {
        Map<String,Object> map = new HashMap<>();
        map.put("code",0);
        map.put("data",service.list());
        return map;
    }
}

@ApiModel、@ApiModelProperty

@ApiModel(value = "实体名称",description = "描述") //@ApiModel用在实体上
@ApiModelProperty(value = "属性名描述",required = false,hidden = false) //@ApiModelProperty用在实体的属性上,required是否必传，hidden在Swagger是否显示

实例

@ApiModel(value = "DictTypeQuery",description = "数据字典类型查询参数")
public class DictTypeQuery {
    @ApiModelProperty(value = "搜索关键字",required = false)
    private String keyWord;
    @ApiModelProperty(value = "客户端传递的页码",required = true)
    private Long page;
    @ApiModelProperty(value = "每页多少条数据")
    private Long size;
    @ApiModelProperty(hidden = true)
    private List<?> data;
    //查询的总页数
    @ApiModelProperty(hidden = true)
    private Long total;
    //总页数
    @ApiModelProperty(hidden = true)
    private Long pages;
}

@ApiParam

@ApiParam(value = "请求参数描述",required = false,hidden = false)

实例

@RestController
@RequestMapping("/dictTypes")
@Api(tags = "数据字典类型")
public class DictTypeController {
    @Autowired
    private DictTypeService service;
    @GetMapping("/list")
    @ApiOperation(value = "返回所有的数据字典类型",notes = "可以传分页大小，第几页等")

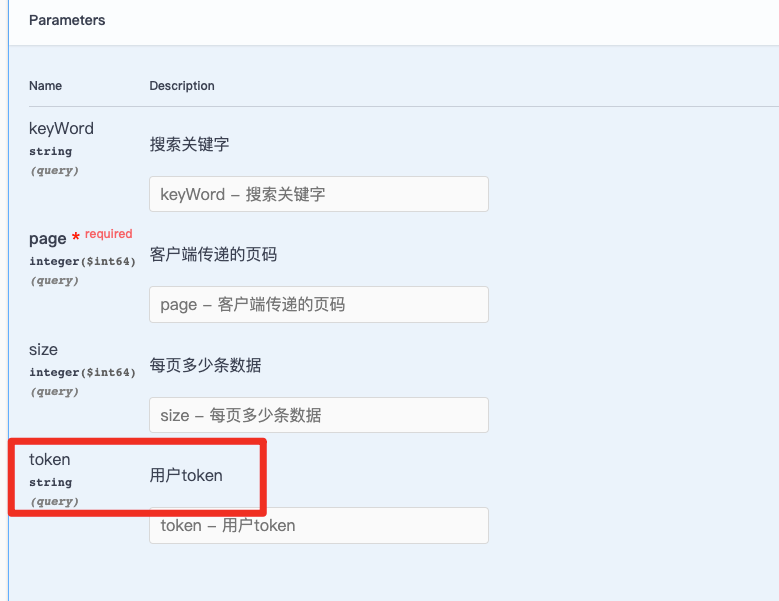

    public Map<String,Object> listAll(DictTypeQuery query,@ApiParam("用户token") String token)
    {
        Map<String,Object> map = new HashMap<>();
        map.put("code",0);
        map.put("data",service.list());
        return map;
    }
}

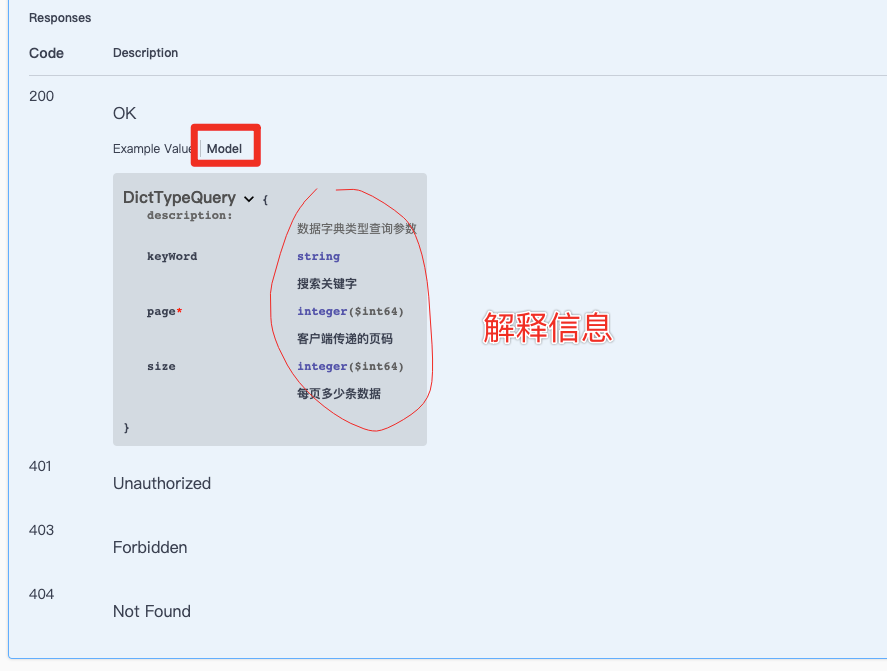

如果结果返回的是实体模型数据，结果也有注释。

@RestController
@RequestMapping("/dictTypes")
@Api(tags = "数据字典类型")
public class DictTypeController {
    @Autowired
    private DictTypeService service;
    @GetMapping("/list")
    @ApiOperation(value = "返回测试数据",notes = "哈哈")
    public DictTypeQuery listAll(DictTypeQuery query)
    {
        return new DictTypeQuery();
    }
}

一个比较完整的示例

import io.swagger.annotations.ApiOperation;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.env.Environment;
import org.springframework.core.env.Profiles;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.builders.RequestParameterBuilder;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.ParameterType;
import springfox.documentation.service.RequestParameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.util.List;
@Configuration
public class SwaggerCfg {
    @Autowired
    private Environment environment;
    @Bean
    public Docket group1() {
        return groupDocket("/(正则表达式)",
                "分组1", "描述");
    }
    @Bean
    public Docket group2() {
        return groupDocket("/(正则表达式)",
                "分组2", "描述");
    }
    @Bean
    public Docket group3() {
        return groupDocket("/(正则表达式)",
                "分组3", "描述");
    }
    public Docket basicDocket() {
        //根据环境是否启用Swagger功能
        boolean enable = environment.acceptsProfiles(Profiles.of("dev", "test"));
        //设置全局参数
        RequestParameter tokenParam = new RequestParameterBuilder()
                .name("Token")
                .description("用户登录令牌")
                .in(ParameterType.HEADER)
                .build();
        return new Docket(DocumentationType.SWAGGER_2)
                //设置全局参数
                .globalRequestParameters(List.of(tokenParam))
                .enable(enable)
                .ignoredParameterTypes(
                        HttpSession.class,
                        HttpServletRequest.class,
                        HttpServletResponse.class);
    }
    public Docket groupDocket(String regex, String title, String desc) {
        return basicDocket().groupName(title)
                .apiInfo(apiInfo(title, desc))
                .select()
                //根据是否有ApiOperation的方法，生成Swagger文档
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.regex(regex))
                .build();
    }
    private ApiInfo apiInfo(String title, String desc) {
        Contact contact = new Contact("作者：李付发","http://www.baidu.com","1966591729@qq.com");
        return new ApiInfoBuilder()
                .title(title)
                .version("1.0.0")
                .description(desc)
                .contact(contact)
                .build();
    }
}

总结：非常优秀的接口调试工具。
