大量的图片和小视频在服务器上，如何存储？如何保证高并发下的下载速度？

分布式与集群

分布式是多个人干不同的事，解决的是高并发问题。
集群是多个人干一件事，解决的是高可用问题。

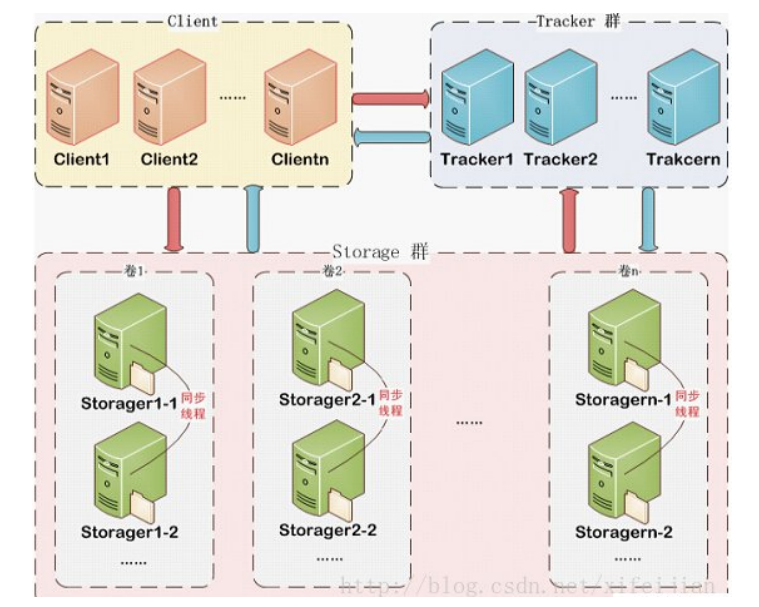

工作原理


Tracker （译：追踪者）
作用是负载均衡和调度，它管理着存储服务（Storage Server），可以理解为：“大管家，追踪者，调度员”；
Tracker Server可以集群，实现高可用，策略为“轮询”。

Storage （译：仓库; 贮存器）
作用是文件存储，客户端上传的文件最终存储到storage服务器上；
storage集群采用分组的方式，同组内的每台服务器是平等关系，数据同步，目的是实现数据备份，从而高可用，而不同组的服务器之间是不通信的；
同组内的每台服务器的存储量不一致的情况下，会选取容量最小的那个，所以同组内的服务器之间软硬件最好保持一致。
Storage Server会连接集群中的所有Tracker Server，定时向他们汇报自己的状态，例如：剩余空间，文件同步情况，文件上传下载次数等信息。

上传/下载

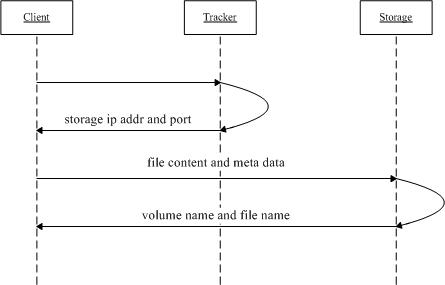

上传
FastDFS - 图2

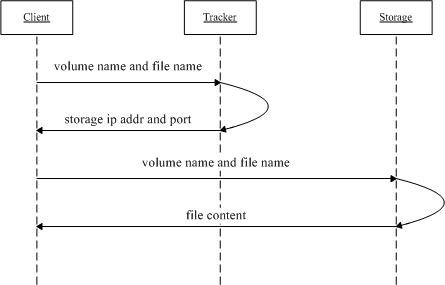

下载
FastDFS - 图3

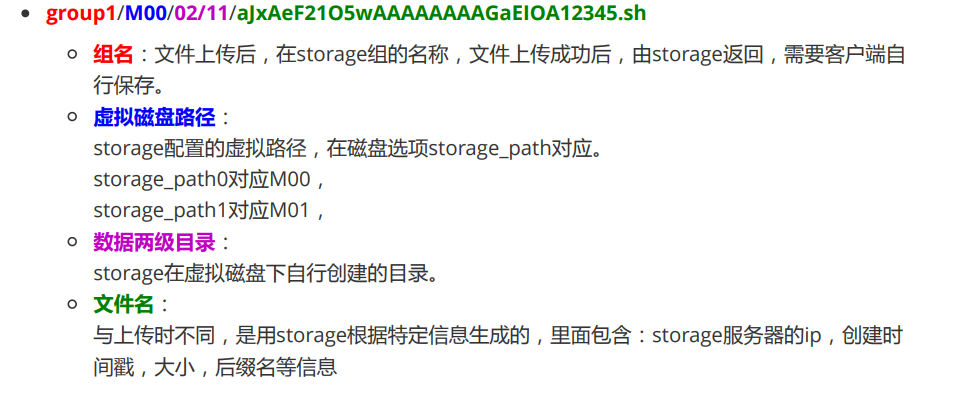

客户端上传文件后，storage会将文件id返回给客户端

上传示例代码

  1.     <dependencies>
  2.         <dependency>
  3.             <groupId>net.oschina.zcx7878</groupId>
  4.             <artifactId>fastdfs-client-java</artifactId>
  5.             <version>1.27.0.0</version>
  6.         </dependency>
  7.         <dependency>
  8.             <groupId>org.apache.commons</groupId>
  9.             <artifactId>commons-io</artifactId>
  10.             <version>1.3.2</version>
  11.         </dependency>
  12.     </dependencies>

  1. public class TestUpload {
  2.     public static void main(String[] args) throws MyException, IOException {
  3.         // 加载配置文件
  4.         ClientGlobal.initByProperties("config/fastdfs-client.properties");
  5.         // 创建tracker客户端
  6.         TrackerClient trackerClient = new TrackerClient();
  7.         // 通过tracker客户端获取tracker的连接服务并返回
  8.         TrackerServer trackerServer = trackerClient.getConnection();
  9.         // 声明storage服务
  10.         StorageServer storageServer = null;
  11.         // 定义storage客户端
  12.         StorageClient1 client = new StorageClient1(trackerServer,
  13.                 storageServer);
  14.         // 定义文件元信息
  15.         NameValuePair[] list = new NameValuePair[1];
  16.         list[0] = new NameValuePair("fileName","g1.png");
  17.         String fileID = client.upload_file1("C:\\Users\\86221\\Pictures\\grils\\g1.png", "png", list);
  18.         System.out.println("fileID = " + fileID);
  19.         // group1/M00/00/00/CgHc918f8l6AFYp0AAWICfQnHuk889.jpg
  20.         /*
  21.         group1：一台服务器，就是一个组
  22.         M00： store_path0 ----> /home/fastdfs/fdfs_storage/data
  23.         00/00：两级数据目录
  24.         */
  25.         trackerServer.close();
  26.     }
  27. }

查询示例代码

  1. public class TestQuery {
  2.     public static void main(String[] args) throws MyException, IOException {
  3.         // 加载配置文件
  4.         ClientGlobal.initByProperties("config/fastdfs-client.properties");
  5.         // 创建tracker客户端
  6.         TrackerClient trackerClient = new TrackerClient();
  7.         // 通过tracker客户端获取tracker的连接服务并返回
  8.         TrackerServer trackerServer = trackerClient.getConnection();
  9.         // 声明storage服务
  10.         StorageServer storageServer = null;
  11.         // 定义storage客户端
  12.         StorageClient1 client = new StorageClient1(trackerServer,
  13.                 storageServer);
  14.         FileInfo fileInfo = client.query_file_info1("group1/M00/00/00/wKgqg2GVCKOAfg_GAALKY1Ke7Rk381.png");
  15.         System.out.println(fileInfo);
  16.         trackerServer.close();
  17.     }
  18. }

下载示例代码

  1. public class TestDownLoad {
  2.     public static void main(String[] args) throws MyException, IOException {
  3.         ClientGlobal.initByProperties("config/fastdfs-client.properties");
  4.         // 创建tracker客户端
  5.         TrackerClient trackerClient = new TrackerClient();
  6.         // 通过tracker客户端获取tracker的连接服务并返回
  7.         TrackerServer trackerServer = trackerClient.getConnection();
  8.         // 声明storage服务
  9.         StorageServer storageServer = null;
  10.         // 定义storage客户端
  11.         StorageClient1 client = new StorageClient1(trackerServer,
  12.                 storageServer);
  13.         byte[] bytes = client.download_file1("group1/M00/00/00/wKgqg2GVCKOAfg_GAALKY1Ke7Rk381.png");
  14.         FileOutputStream fileOutputStream = new FileOutputStream(new File("girl.png"));
  15.         fileOutputStream.write(bytes);
  16.         fileOutputStream.close();
  17.         trackerServer.close();
  18.     }
  19. }

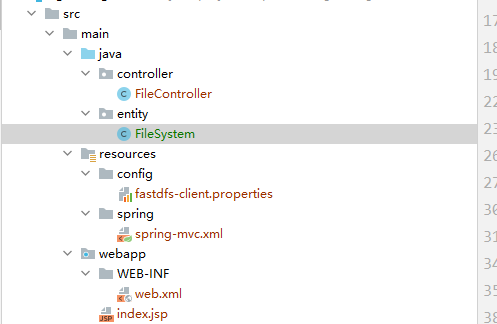

FastDFS实现多文件上传

其实还用了redis分布式锁。

依赖

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <project xmlns="http://maven.apache.org/POM/4.0.0"
  3.          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4.          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  5.     <modelVersion>4.0.0</modelVersion>
  7.     <groupId>com.ning</groupId>
  8.     <artifactId>lagou-imgServer</artifactId>
  9.     <version>1.0-SNAPSHOT</version>
  11.     <properties>
  12.         <maven.compiler.source>8</maven.compiler.source>
  13.         <maven.compiler.target>8</maven.compiler.target>
  14.     </properties>
  16.     <packaging>war</packaging>
  18.     <dependencies>
  19.         <!-- 因为有jsp页面，所以引用servlet依赖-->
  20.         <dependency>
  21.             <groupId>javax.servlet</groupId>
  22.             <artifactId>servlet-api</artifactId>
  23.             <scope>provided</scope>
  24.             <version>2.5</version>
  25.         </dependency>
  26.         <!-- 页面提交过来的请求，使用springmvc来处理-->
  27.         <dependency>
  28.             <groupId>org.springframework</groupId>
  29.             <artifactId>spring-webmvc</artifactId>
  30.             <version>5.2.7.RELEASE</version>
  31.         </dependency>
  32.         <!-- java连接fastDFS的客户端工具-->
  33.         <dependency>
  34.             <groupId>net.oschina.zcx7878</groupId>
  35.             <artifactId>fastdfs-client-java</artifactId>
  36.             <version>1.27.0.0</version>
  37.         </dependency>
  38.         <!-- 图片上传到FastDFS需要用的到IO工具-->
  39.         <dependency>
  40.             <groupId>org.apache.commons</groupId>
  41.             <artifactId>commons-io</artifactId>
  42.             <version>1.3.2</version>
  43.         </dependency>
  44.         <!-- 图片保存到web服务器需要用到的IO工具-->
  45.         <dependency>
  46.             <groupId>commons-fileupload</groupId>
  47.             <artifactId>commons-fileupload</artifactId>
  48.             <version>1.3.1</version>
  49.         </dependency>
  50.         <!--用来转换java对象和json字符串，注意，2.7以上版本必须搭配spring5.0以上-->
  51.         <dependency>
  52.             <groupId>com.fasterxml.jackson.core</groupId>
  53.             <artifactId>jackson-databind</artifactId>
  54.             <version>2.9.8</version>
  55.         </dependency>
  56.         <!--实现分布式锁的工具类-->
  57.         <dependency>
  58.             <groupId>org.redisson</groupId>
  59.             <artifactId>redisson</artifactId>
  60.             <version>3.6.1</version>
  61.         </dependency>
  62.         <!--spring操作redis的工具类-->
  63.         <dependency>
  64.             <groupId>org.springframework.data</groupId>
  65.             <artifactId>spring-data-redis</artifactId>
  66.             <version>2.3.2.RELEASE</version>
  67.         </dependency>
  68.         <!--redis客户端-->
  69.         <dependency>
  70.             <groupId>redis.clients</groupId>
  71.             <artifactId>jedis</artifactId>
  72.             <version>3.1.0</version>
  73.         </dependency>
  74.     </dependencies>
  76.     <build>
  77.         <plugins>
  78.             <plugin>
  79.                 <groupId>org.apache.tomcat.maven</groupId>
  80.                 <artifactId>tomcat7-maven-plugin</artifactId>
  81.                 <configuration>
  82.                     <port>8001</port>
  83.                     <path>/</path>
  84.                 </configuration>
  85.                 <executions>
  86.                     <execution>
  87.                         <phase>package</phase>
  88.                         <goals>
  89.                             <goal>run</goal>
  90.                         </goals>
  91.                     </execution>
  92.                 </executions>
  93.             </plugin>
  94.         </plugins>
  95.     </build>
  96. </project>
  1. web.xml
  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  3.          xmlns="http://xmlns.jcp.org/xml/ns/javaee"
  4.          xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
  5. http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
  6.          id="WebApp_ID" version="3.1">
  7.     <servlet>
  8.         <servlet-name>springMVC</servlet-name>
  9.         <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  10.         <init-param>
  11.             <param-name>contextConfigLocation</param-name>
  12.             <param-value>classpath:spring/spring-mvc.xml</param-value>
  13.         </init-param>
  14.     </servlet>
  15.     <servlet-mapping>
  16.         <servlet-name>springMVC</servlet-name>
  17.         <url-pattern>/</url-pattern>
  18.     </servlet-mapping>
  19. </web-app>
  1. index.jsp
  1. <%@ page contentType="text/html;charset=UTF-8" language="java" %>
  2. <html>
  3. <head>
  4.     <title>upload</title>
  5. </head>
  6. <body>
  7.     <form action="upload" method="post" enctype="multipart/form-data">
  8.         <input type="file" name="fname">
  9.         <br>
  10.         <button>提交</button>
  11.     </form>
  12.     <hr>
  13.     <form action="upload2" method="post" enctype="multipart/form-data" >
  14.         <input id="File1" name="fileUpload"  multiple="multiple" type="file" value="" />
  15.         <input id="" type="submit" value="上传" />
  16.     </form>
  17. </body>
  18. </html>
  1. spring/spring-mvc.xml
  1. <beans xmlns="http://www.springframework.org/schema/beans"
  2.        xmlns:mvc="http://www.springframework.org/schema/mvc"
  3.        xmlns:context="http://www.springframework.org/schema/context"
  4.        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.        xsi:schemaLocation="http://www.springframework.org/schema/beans
  6. http://www.springframework.org/schema/beans/spring-beans.xsd
  7. http://www.springframework.org/schema/mvc
  8. http://www.springframework.org/schema/mvc/spring-mvc.xsd
  9. http://www.springframework.org/schema/context
  10. http://www.springframework.org/schema/context/spring-context.xsd">
  11.     <!--扫描注解的包-->
  12.     <context:component-scan base-package="controller"/>
  13.     <!--扫描控制器中的注解：@Response-->
  14.     <mvc:annotation-driven/>
  15.     <!--上传文件的解析器（规定上传文件的大小限制）-->
  16.     <bean id="multipartResolver"
  17.           class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
  18.         <!-- 上传文件最大限制：2GB-->
  19.         <property name="maxUploadSize" value="2048000000"/>
  20.     </bean>
  21.     <bean id="stringRedisTemplate"
  22.           class="org.springframework.data.redis.core.StringRedisTemplate">
  23.         <property name="connectionFactory" ref="connectionFactory"></property>
  24.     </bean>
  25.     <bean id="connectionFactory"
  26.           class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
  27.         <property name="hostName" value="192.168.42.131"></property>
  28.         <property name="port" value="6379"/>
  29.     </bean>
  30. </beans>
  1. config/fastdfs-client.properties
  1. ##fastdfs-client.properties
  2. fastdfs.connect_timeout_in_seconds = 5
  3. fastdfs.network_timeout_in_seconds = 30
  4. fastdfs.charset = UTF-8
  5. fastdfs.http_anti_steal_token = false
  6. fastdfs.http_secret_key = FastDFS1234567890
  7. fastdfs.http_tracker_http_port = 80
  8. fastdfs.tracker_servers = 192.168.42.131:22122
  1. controller/FileController
  1. package controller;
  3. import entity.FileSystem;
  4. import org.csource.common.MyException;
  5. import org.csource.common.NameValuePair;
  6. import org.csource.fastdfs.*;
  7. import org.redisson.Redisson;
  8. import org.redisson.api.RLock;
  9. import org.redisson.config.Config;
  10. import org.springframework.beans.factory.annotation.Autowired;
  11. import org.springframework.context.annotation.Bean;
  12. import org.springframework.data.redis.core.StringRedisTemplate;
  13. import org.springframework.stereotype.Controller;
  14. import org.springframework.web.bind.annotation.RequestMapping;
  15. import org.springframework.web.bind.annotation.RequestParam;
  16. import org.springframework.web.bind.annotation.ResponseBody;
  17. import org.springframework.web.multipart.MultipartFile;
  18. import org.springframework.web.multipart.MultipartHttpServletRequest;
  19. import java.io.File;
  20. import java.io.IOException;
  21. import java.util.ArrayList;
  22. import java.util.UUID;
  23. import java.util.concurrent.TimeUnit;
  25. @Controller
  26. public class FileController {
  28.     @Autowired
  29.     private StringRedisTemplate stringRedisTemplate;
  31.     @Bean
  32.     public Redisson getRedisson() {
  33.         Config config = new Config();
  34.         config.useSingleServer().setAddress("redis://192.168.42.131:6379").setDatabase(0);
  35. //        config.useClusterServers().setScanInterval(2000).addNodeAddress("redis://192.168.42.131:6379",
  36. //                "redis://192.168.42.132:6379", "redis://192.168.42.133:6379");
  37.         return (Redisson) Redisson.create(config);
  39.     }
  41.     @Autowired
  42.     private Redisson redisson;
  46.     @RequestMapping("/upload")
  47.     @ResponseBody
  48.     public synchronized FileSystem upload(MultipartHttpServletRequest request) throws IOException, MyException {
  49.         FileSystem fileSystem = new FileSystem();
  50.         MultipartFile file = request.getFile("fname");
  51.         String originalFilename = file.getOriginalFilename();
  52.         String suffixName = originalFilename.substring(originalFilename.lastIndexOf(".") + 1);
  53.         String newFileName = UUID.randomUUID().toString() + "." +suffixName;
  54.         File locallFile = new File("D:/upload/" + newFileName);
  55.         file.transferTo(locallFile);
  56.         String newFilePath = locallFile.getAbsolutePath();
  57.         // to FastDFS
  58.         ClientGlobal.initByProperties("config/fastdfs-client.properties");
  59.         TrackerClient trackerClient = new TrackerClient();
  60.         TrackerServer trackerServer = trackerClient.getConnection();
  61.         StorageServer storageServer = null;
  62.         StorageClient1 storageClient1 = new StorageClient1(trackerServer, storageServer);
  63.         NameValuePair[] list = new NameValuePair[1];
  64.         list[0] = new NameValuePair("fileName", originalFilename);
  65.         String fileId = storageClient1.upload_file1(newFilePath, suffixName, list);
  66.         trackerServer.close();
  67.         fileSystem.setFileId(fileId);
  68.         fileSystem.setFileName(originalFilename);
  69.         fileSystem.setFilePath(fileId);
  70.         System.out.println(fileId);
  71.         return fileSystem;
  72.     }
  74.     @RequestMapping("/upload2")
  75.     @ResponseBody
  76.     public Object upload2(@RequestParam("fileUpload") MultipartFile[] files) {
  77.         RLock lock = redisson.getLock("videos");
  78.         if (files == null || files.length < 1) {
  79.             return "no file!";
  80.         }
  81.         lock.lock(files.length* 10L, TimeUnit.SECONDS);
  82.         ArrayList<FileSystem> arrayList = null;
  83.         try {
  84.             arrayList = new ArrayList<>();
  85.             for (MultipartFile file : files) {
  86.                 FileSystem fileSystem = new FileSystem();
  87.                 String originalFilename = file.getOriginalFilename();
  88.                 if (originalFilename.equals(""))
  89.                     continue;
  90.                 String suffixName = originalFilename.substring(originalFilename.lastIndexOf(".") + 1);
  91.                 String newFileName = UUID.randomUUID().toString() + "." +suffixName;
  92.                 File locallFile = new File("D:/upload/" + newFileName);
  93.                 file.transferTo(locallFile);
  94.                 String newFilePath = locallFile.getAbsolutePath();
  95.                 // to FastDFS
  96.                 ClientGlobal.initByProperties("config/fastdfs-client.properties");
  97.                 TrackerClient trackerClient = new TrackerClient();
  98.                 TrackerServer trackerServer = trackerClient.getConnection();
  99.                 StorageServer storageServer = null;
  100.                 StorageClient1 storageClient1 = new StorageClient1(trackerServer, storageServer);
  101.                 NameValuePair[] list = new NameValuePair[1];
  102.                 list[0] = new NameValuePair("fileName", originalFilename);
  103.                 String fileId = storageClient1.upload_file1(newFilePath, suffixName, list);
  104.                 trackerServer.close();
  105.                 fileSystem.setFileId(fileId);
  106.                 fileSystem.setFileName(originalFilename);
  107.                 fileSystem.setFilePath(fileId);
  108.                 System.out.println(fileId);
  109.                 arrayList.add(fileSystem);
  110.             }
  111.         } catch (IOException | IllegalStateException | MyException e) {
  112.             e.printStackTrace();
  113.         } finally {
  114.             lock.unlock();
  115.         }
  116.         return arrayList;
  117.     }
  118. }
  1. entity/FileSystem
  1. package entity;
  3. import java.io.Serializable;
  5. public class FileSystem implements Serializable {
  6.     private String fileId;
  7.     private String filePath;
  8.     private String fileName;
  10.     @Override
  11.     public String toString() {
  12.         return "FileSystem{" +
  13.                 "fileId='" + fileId + '\'' +
  14.                 ", filePath='" + filePath + '\'' +
  15.                 ", fileName='" + fileName + '\'' +
  16.                 '}';
  17.     }
  19.     public String getFileId() {
  20.         return fileId;
  21.     }
  23.     public void setFileId(String fileId) {
  24.         this.fileId = fileId;
  25.     }
  27.     public String getFilePath() {
  28.         return filePath;
  29.     }
  31.     public void setFilePath(String filePath) {
  32.         this.filePath = filePath;
  33.     }
  35.     public String getFileName() {
  36.         return fileName;
  37.     }
  39.     public void setFileName(String fileName) {
  40.         this.fileName = fileName;
  41.     }
  42. }
  1. 整体结构<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/12718322/1637215107910-7e3d871f-dbd3-46e3-b01a-8a415ea33a29.png#clientId=u689c66d6-b644-4&from=paste&height=324&id=u14905596&margin=%5Bobject%20Object%5D&name=image.png&originHeight=324&originWidth=497&originalType=binary&ratio=1&size=15701&status=done&style=none&taskId=u4e920521-72e5-4347-942d-182074f7492&width=497)
