一、Sleuth 支持追踪的组件
二、针对个别组件 Sleuth 实现进行剖析

code.7z

Spring Cloud Sleuth 通过埋点的方式实现分布式链路追踪。

一、Sleuth 支持追踪的组件

通过上面的配置类能够找到 Spring Cloud Sleuth 支持追踪的组件

针对个别组件进行简单测试

1.1、Schedule Trace 测试

zuul-client 定时请求 zuul-server 服务。

1.2、RestTemplate 调用 Trace 测试

zuul-client 通过 RestTemplate 发送 HTTP 请求 zuul-server 接口。

1.3、Feign 调用 Trace 测试

zuul-client 通过 feign 发起请求调用 zuul-server 服务。

1.4、Zuul Trace 测试

通过路由调用上面 Feign 测试中的接口，访问路径为： http://localhost:28080/zuul-client/trace-test/feign。

通过 zuul 路由到 zuul-client 然后在调用 zuul-server 。

1.5、更多自行测试

二、针对个别组件 Sleuth 实现进行剖析

虽然 sleuth 实现的组件很多，但是实现的方式基本都是一致的，通过注入提供有 trace 功能的类实现埋点。

2.1、Zuul + Feign trace 原理

brave 相关 Github 代码《zuul-工作流程》《Feign Client 请求调用》

通过一个 zuul -> client -> server 的调用案例，分析 zuul 和 Fiegn Trace 的实现原理

代码调用如下

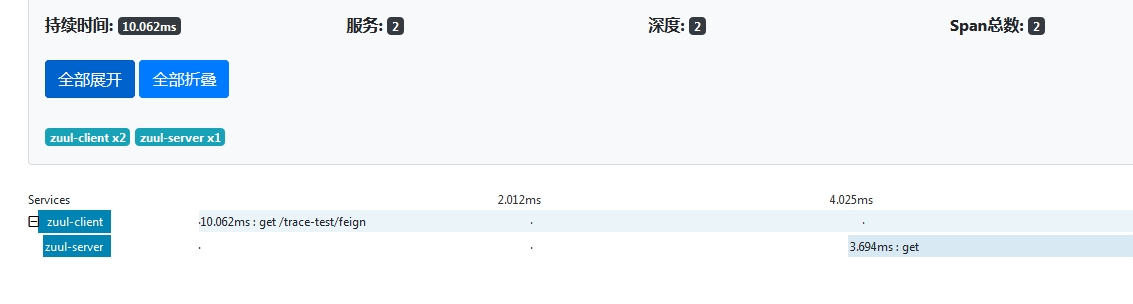

生成的 trace 链路如下

链路对应到数据库 zipkin_spans 中3条记录

`2.1.1、TracingFilter` 创建 `span`

Spring Boot 服务本身就是一个 Spring MVC Web 应用，所有处理请求由 DispatcherServlet 来完成。对此，Spring cloud 提供了 TracingFilter servlet filter 用来创建 span ，

TracingFilter 相关代码如下：

public final class TracingFilter implements Filter {
  @Override
  public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
      throws IOException, ServletException {
    HttpServletRequest httpRequest = (HttpServletRequest) request;
    HttpServletResponse httpResponse = servlet.httpResponse(response);
    // Prevent duplicate spans for the same request
    TraceContext context = (TraceContext) request.getAttribute(TraceContext.class.getName());
    if (context != null) {
      // A forwarded request might end up on another thread, so make sure it is scoped
      Scope scope = currentTraceContext.maybeScope(context);
      try {
        chain.doFilter(request, response);
      } finally {
        scope.close();
      }
      return;
    }
    Span span = handler.handleReceive(extractor, httpRequest);
    // Add attributes for explicit access to customization or span context
    request.setAttribute(SpanCustomizer.class.getName(), span.customizer());
    request.setAttribute(TraceContext.class.getName(), span.context());
    ......
  }
}

2.1.2、zuul 对 span 的标记(annotation)变更y已经处理：相关类 `TracePostZuulFilter`

TracePostZuulFilter 为 post 类型， order = 0 ，在 zuul 处理完请求之后，对 span 进行最后的标记(annotation)

部分代码如下：

class TracePostZuulFilter extends ZuulFilter {
  @Override
  public Object run() {
    if (log.isDebugEnabled()) {
      log.debug("Marking current span as handled");
    }
    HttpServletResponse response = RequestContext.getCurrentContext().getResponse();
    Throwable exception = RequestContext.getCurrentContext().getThrowable();
    Span currentSpan = this.tracer.currentSpan();
    this.handler.handleSend(response, exception, currentSpan);
    if (log.isDebugEnabled()) {
      log.debug("Handled send of " + currentSpan);
    }
    return null;
  }
}

2.1.3、Feign 对 span 的标记（annotation）变更处理 `TracingFeignClient`

部分代码如下：

final class TracingFeignClient implements Client {
  @Override
  public Response execute(Request request, Request.Options options) throws IOException {
    Map<String, Collection<String>> headers = new HashMap<>(request.headers());
    Span span = handleSend(headers, request, null);
    if (log.isDebugEnabled()) {
      log.debug("Handled send of " + span);
    }
    try (Tracer.SpanInScope ws = this.tracer.withSpanInScope(span)) {
      response = this.delegate.execute(modifiedRequest(request, headers), options);
      return response;
    }
    catch (IOException | RuntimeException | Error e) { ...... }
    finally {
      handleReceive(span, response, error);
      if (log.isDebugEnabled()) {
        log.debug("Handled receive of " + span);
      }
    }
  }
}

2.2、Schedule trace 实现原理

相关实现在 sleuth 项目中的位置

通过上图能够知道相关类 TraceSchedulingAspect ，看到该类也能够猜到通过 AOP 的方式实现的 Trace

来看看 TraceSchedulingAspect 相关代码

@Aspect
public class TraceSchedulingAspect {
  @Around("execution (@org.springframework.scheduling.annotation.Scheduled  * *.*(..))")
  public Object traceBackgroundThread(final ProceedingJoinPoint pjp) throws Throwable {
    if (this.skipPattern.matcher(pjp.getTarget().getClass().getName()).matches()) {
      return pjp.proceed();
    }
    String spanName = SpanNameUtil.toLowerHyphen(pjp.getSignature().getName());
    Span span = startOrContinueRenamedSpan(spanName);
    try (Tracer.SpanInScope ws = this.tracer.withSpanInScope(span.start())) {
      span.tag(CLASS_KEY, pjp.getTarget().getClass().getSimpleName());
      span.tag(METHOD_KEY, pjp.getSignature().getName());
      return pjp.proceed();
    }
    catch (Throwable ex) {
      String message = ex.getMessage() == null ? ex.getClass().getSimpleName()
          : ex.getMessage();
      span.tag("error", message);
      throw ex;
    }
    finally {
      span.finish();
    }
  }
  private Span startOrContinueRenamedSpan(String spanName) {
    Span currentSpan = this.tracer.currentSpan();
    if (currentSpan != null) {
      return currentSpan.name(spanName);
    }
    return this.tracer.nextSpan().name(spanName);
  }
}

直接通过 AOP 切注解 @Scheduled

2.3、RestTemplate trace 实现原理

Spring Cloud Sleuth 提供了 TracingClientHttpRequestInterceptor ，该类实现接口 ClientHttpRequestInterceptor 是 RestTemplate 请求拦截器。

TracingClientHttpRequestInterceptor 相关代码如下：

public final class TracingClientHttpRequestInterceptor implements ClientHttpRequestInterceptor {
  @Override
  public ClientHttpResponse intercept(HttpRequest request, byte[] body,
      ClientHttpRequestExecution execution) throws IOException {
    Span span = handler.handleSend(injector, request.getHeaders(), request);
    ClientHttpResponse response = null;
    Throwable error = null;
    try (Tracer.SpanInScope ws = tracer.withSpanInScope(span)) {
      return response = execution.execute(request, body);
    } catch (IOException | RuntimeException | Error e) {
      error = e;
      throw e;
    } finally {
      handler.handleReceive(response, error, span);
    }
  }
}
