runc NOTIFY_SOCKET 处理

the OCI runtime will proxy the socket into the container to receive ready notification.

podman原理：

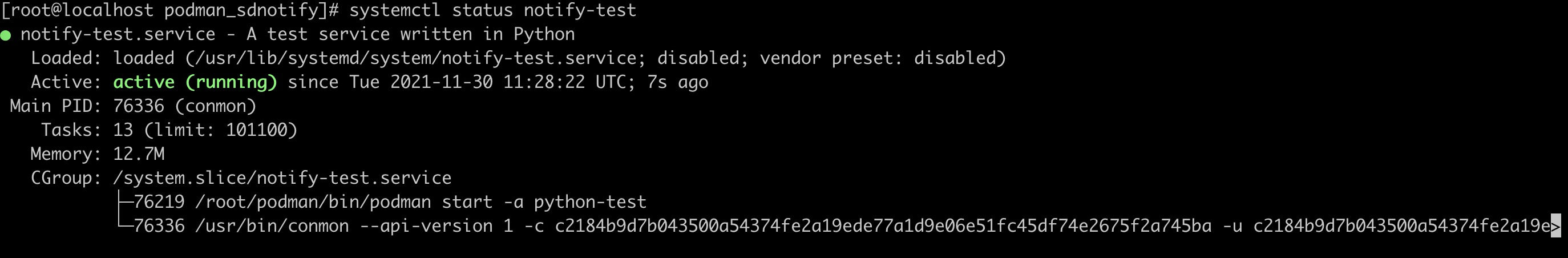

通过python测试NOTIFY_SOCKET. (service文件可以放到 /usr/lib/systemd/system/ 下测试)
https://stackoverflow.com/questions/63540832/how-to-run-a-service-running-in-a-container-in-systemd-including-systemd-notify
�

podman是自己建立一套NOTIFY_SOCKET的机制，没有复用runc的能力。

conmon通过socket读取 /var/lib/containers/storage/overlay-containers/c2184b9d7b043500a54374fe2a19ede77a1d9e06e51fc45df74e2675f2a745ba/userdata/notify/notify.sock，同时该socket文件会mount到容器里的/run/notify/notify.sock（容器内进程会写这个socket，因为这个socket会设置为NOTIFY_SOCKET）
�
当conmon读取READY=1，写入/run/systemd/notify到READY=1

podman会把MAINPID设置为conmon进程的PID

if c.config.SdNotifyMode != define.SdNotifyModeIgnore {
        payload := fmt.Sprintf("MAINPID=%d", c.state.ConmonPID)
        if c.config.SdNotifyMode == define.SdNotifyModeConmon {
            payload += "\n"
            payload += daemon.SdNotifyReady
        }
        if sent, err := daemon.SdNotify(false, payload); err != nil {
            logrus.Errorf("Notifying systemd of Conmon PID: %s", err.Error())
        } else if sent {
            logrus.Debugf("Notify sent successfully")
        }
    }

runc原理：

runc和podman是两套机制。

runc作为 OCI runtime，会启动一个gorouting代理NOTIFY_SOCKET的处理。

notify_socket.go

type notifySocket struct {
    socket     *net.UnixConn // 在容器外监听socketPath，容器内程序会向这个socket发送"READY=1"
    host       string // 通过环境变量NOTIFY_SOCKET设置的sock，容器外路径。从socket读取到"READY="之后，向这个发送"READY="和pid
    socketPath string // 是的notifySocket.socket使用的socket文件，容器外路径是/$rootfs/notify/notify.sock ，该文件会bind mount到容器内 /run/notify/notify.sock
}

func (n *notifySocket) run(pid1 int) error {
    if n.socket == nil {
        return nil
    }
    notifySocketHostAddr := net.UnixAddr{Name: n.host, Net: "unixgram"}
    client, err := net.DialUnix("unixgram", nil, &notifySocketHostAddr)
    if err != nil {
        return err
    }
    ticker := time.NewTicker(time.Millisecond * 100)
    defer ticker.Stop()
    // 获取容器内程序发送的 "READY=1"
    fileChan := make(chan []byte)
    go func() {
        for {
            buf := make([]byte, 4096)
            r, err := n.socket.Read(buf)
            if err != nil {
                return
            }
            got := buf[0:r]
            // systemd-ready sends a single datagram with the state string as payload,
            // so we don't need to worry about partial messages.
            for _, line := range bytes.Split(got, []byte{'\n'}) {
                if bytes.HasPrefix(got, []byte("READY=")) {
                    fileChan <- line
                    return
                }
            }
        }
    }()
    // 向NOTIFY_SOCKET对应的socket发送 "READY=1\nMAINPID=$pid"
    for {
        select {
        case <-ticker.C:
            _, err := os.Stat(filepath.Join("/proc", strconv.Itoa(pid1)))
            if err != nil {
                return nil
            }
        case b := <-fileChan:
            var out bytes.Buffer
            _, err = out.Write(b)
            if err != nil {
                return err
            }
            _, err = out.Write([]byte{'\n'})
            if err != nil {
                return err
            }
            _, err = client.Write(out.Bytes())
            if err != nil {
                return err
            }
            // now we can inform systemd to use pid1 as the pid to monitor
            // 使用容器的1号进程作为systemd的MAINPID
            newPid := "MAINPID=" + strconv.Itoa(pid1)
            _, err := client.Write([]byte(newPid + "\n"))
            if err != nil {
                return err
            }
            return nil
        }
    }
}
