第八节 多表操作

一、多表操作之一对多

commons-pool.jardruid-1.1.21.jarmysql-connector-java-5.1.37-bin.jar

1.1 数据表

比较经典的一对多的关系就是学生表与年级表，两张表中，学生是多方，年级是一方。因为:一个年级可以有多名学
生，但反过来一名学生只属于一个年级。先创建数据表

create table student (
stuid int primary key,
stuname varchar(5),
stuage int,
gid int
);
create table grade(
gradeid int primary key ,
gname varchar(5)
);
insert into grade values(1,'一年级');
insert into grade values(2,'二年级');
insert into grade values(3,'三年级');
insert into student values(1,'张三',18,1);
insert into student values(2,'李四',14,2);
insert into student values(3,'富贵',13,3);
insert into student values(4,'王芳',17,1);
insert into student values(5,'甜甜',15,2);

1.2 创建实体类

要求：类名=表名，列名=属性名(外键列也添加属性)

Student:
public class Student {
private int stuid;
private String stuName;
private int stuAge;
private int gid;
@Override
public String toString() {
return "Student{" +
"stuid=" + stuid +
", stuName='" + stuName + '\'' +
", stuAge=" + stuAge +
", gid=" + gid +
'}';
}
public int getStuid() {
return stuid;
}
public void setStuid(int stuid) {
this.stuid = stuid;
}
public String getStuName() {
return stuName;
}
public void setStuName(String stuName) {
this.stuName = stuName;
}
public int getStuAge() {
return stuAge;
}
public void setStuAge(int stuAge) {
this.stuAge = stuAge;
}
public int getGid() {
return gid;
}
public void setGid(int gid) {
this.gid = gid;
}
}

Grade:

public class Grade {
private int gradeId;
private String gname;
public int getGradeId() {
return gradeId;
}
public void setGradeId(int gradeId) {
this.gradeId = gradeId;
}
public String getGname() {
return gname;
}
public void setGname(String gname) {
this.gname = gname;
}
}

1.3 建立两表之间的属性关系

数据表是通过外键列来维系两表关系。实体类是通过属性来维系两表关系。在建立一对多关系时，我们分析到年级
是一方，学生是多方。一对多，是以一方为主，所以我们在一方添加多方的一个属性。那这个属性是对象还是集合
呢？这里记住一句话:一方存多方的集合，多方存一方的对象。所以需要在年级表中添加下列属性：
Grade新增代码:

private List<Student> studentList;
public List<Student> getStudentList() {
return studentList;
}
public void setStudentList(List<Student> studentList) {
this.studentList = studentList;
}

1.4 创建Dao层接口代码和实现类，操作数据库

Dao层

public interface GradeDao {
//查询某个年级信息(要求:展示年级名称和学生列表)
public Grade getGradeById(int id);
}

实现类:在实现类中需要连接数据库，并且查询结果来自于多张表。此时如何存储数据呢？给大家一个思路:1.在不
考虑两表的情况下，先存储各自表中的数据 2.结合上面步骤中添加属性的问题，考虑应该把哪个类添加到另外一个
类的属性中。代码如下：

public class GradeDaoImpl extends DruidUtil implements GradeDao {
@Override
public Grade getGradeById(int id){
//这里创建年级对象的操作要放在循环外，因为只需要创建一个年级对象即可
Grade grade = new Grade();
List<Student> students=new ArrayList<Student>();
Connection connection =null;
PreparedStatement preparedStatement =null;
ResultSet resultSet =null;
try {
connection = getConnection();
preparedStatement = connection.prepareStatement("select * from grade g,student s
where s.gid=g.gradeid and g.gradeid=?");
preparedStatement.setInt(1,id);
resultSet = preparedStatement.executeQuery();
//此时结果集中包含两张表的数据，我们先分别获取各自表中的数据
while(resultSet.next()){
//学生信息
Student student = new Student();
student.setStuid(resultSet.getInt("stuid"));
student.setStuName(resultSet.getString("stuname"));
student.setStuAge(resultSet.getInt("stuage"));
student.setGid(resultSet.getInt("gid"));
//年级信息
grade.setGname(resultSet.getString("gname"));
grade.setGradeId(resultSet.getInt("gradeid"));
//建立两者关系
students.add(student);
}
//将学生集合封装到年级中
grade.setStudentList(students);
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
close(connection,preparedStatement,resultSet);
}
return grade;
}
}

说明:这里比较难理解的是关于对象的创建以及属性赋值

1.5 测试类

public class Test1 {
public static void main(String[] args) {
GradeDao gradeDao = new GradeDaoImpl();
Grade grade = gradeDao.getGradeById(1);
System.out.println(grade.getGname());
List studentList = grade.getStudentList();
for (Student student : studentList) {
System.out.println(student);
}
}
}

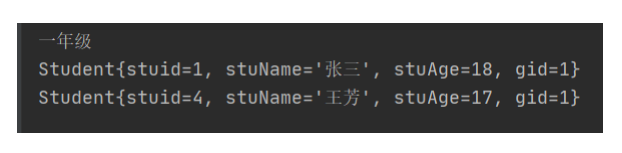

运行结果:

二、多表操作之多对一

2.1在上一步的基础上，完成多对一。

学生是多方，秉持着“一方存多方的集合，多方存一方的对象”，那么我们就
需要在多的一方，添加一方的一个对象。此时学生类中需要添加下列代码

private Grade grade;
public Grade getGrade() {
return grade;
}
public void setGrade(Grade grade) {
this.grade = grade;
}

2.2 在Dao层添加接口方法

public interface StudentDao {
//查询所有学生的信息(要求包含年级信息)
public List<Student> getAllStudent();
}

2.3添加实现类:实现类中主要考虑如何建立两者关联

public class StudentDaoImpl extends DruidUtil implements StudentDao {
@Override
public List<Student> getAllStudent() {
//这里创建学生集合对象，放在循环外部
List<Student> students=new ArrayList<Student>();
Connection connection =null;
PreparedStatement preparedStatement =null;
ResultSet resultSet =null;
try {
connection = getConnection();
preparedStatement = connection.prepareStatement("select * from grade g,student s
where s.gid=g.gradeid ");
resultSet = preparedStatement.executeQuery();
//此时结果集中包含两张表的数据，我们先分别获取各自表中的数据
while(resultSet.next()){
//学生信息
Student student = new Student();
student.setStuid(resultSet.getInt("stuid"));
student.setStuName(resultSet.getString("stuname"));
student.setStuAge(resultSet.getInt("stuage"));
student.setGid(resultSet.getInt("gid"));
//年级信息
Grade grade = new Grade();
grade.setGname(resultSet.getString("gname"));
grade.setGradeId(resultSet.getInt("gradeid"));
//建立两者关系
//将年级封装到学生中
student.setGrade(grade);
//将学生封装到学生集合中
students.add(student);
}
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
close(connection,preparedStatement,resultSet);
}
return students;
}
}

2..4 测试类:

public class Test2 {
public static void main(String[] args) {
StudentDao studentDao = new StudentDaoImpl();
List allStudent = studentDao.getAllStudent();
for (Student student : allStudent) {
System.out.println(student.getStuName()+”,”+student.getGrade().getGname());
}
}
}

运行结果：

三、多表操作之一对一

一对一在多表关系中存在场景不是很多，现在以妻子和丈夫的关系，模拟一对一的实现过程。

3.1 创建数据表

create table wife(
wifeid int PRIMARY key,
wifename varchar(5)
);
create table husband(
husid int PRIMARY KEY,
husname varchar(5),
wid int
);
insert into wife values(1,'黄晓明');
insert into wife values(2,'邓超');
insert into husband values(1,'baby',1);
insert into husband values(2,'孙俪',2);

3.2 创建实体类

public class Husband {
private int husId;
private String husName;
private int wid;
//setter and getter
}

public class Wife {
private int wifeId;
private String wifeName;
//setter and getter
}

建立实体类之间的一对一关系，还是依据“一方存多方的集合，多方存一方的对象”的原则，但是现在的问题是双方
都是一方数据，此时记住原则“一方存另一方的对象”。所以代码改成：
妻子一方添加丈夫的对象

public class Wife {
private int wifeId;
private String wifeName;
private Husband husband;
//setter and getter
}

丈夫一方添加妻子的对象

public class Husband {
private int husId;
private String husName;
private int wid;
private Wife wife;
//setter and getter
}

3.3 添加Dao和实现类

Dao:

public interface WifeDao {
//查询妻子信息(要求包含丈夫信息)
public Wife getByWifeId(int wifeId);
//查询丈夫信息(要求包含妻子信息)
public Husband getByHusId(int husId);
}

实现类:

public class WifeDaoImpl extends DruidUtil implements WifeDao {
@Override
public Wife getByWifeId(int wifeId) {
//这里创建妻子对象
Wife wife = new Wife();
Connection connection =null;
PreparedStatement preparedStatement =null;
ResultSet resultSet =null;
try {
connection = getConnection();
preparedStatement = connection.prepareStatement("select * from wife w,husband h
where w.wifeid=h.wid and w.wifeid=? ");
preparedStatement.setInt(1,wifeId);
resultSet = preparedStatement.executeQuery();
//此时结果集中包含两张表的数据，我们先分别获取各自表中的数据
while(resultSet.next()){
//妻子信息
wife.setWifeId(resultSet.getInt("wifeid"));
wife.setWifeName(resultSet.getString("wifename"));
//丈夫信息
Husband husband = new Husband();
husband.setHusId(resultSet.getInt("husid"));
husband.setHusName(resultSet.getString("husname"));
//建立两者关系
//将丈夫封装到妻子对象中
wife.setHusband(husband);
}
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
close(connection,preparedStatement,resultSet);
}
return wife;
}
@Override
public Husband getByHusId(int husId) {
//这里创建丈夫对象
Husband husband = new Husband();
Connection connection =null;
PreparedStatement preparedStatement =null;
ResultSet resultSet =null;
try {
connection = getConnection();
preparedStatement = connection.prepareStatement("select * from wife w,husband h
where w.wifeid=h.wid and h.husid=?");
preparedStatement.setInt(1,husId);
resultSet = preparedStatement.executeQuery();
//此时结果集中包含两张表的数据，我们先分别获取各自表中的数据
while(resultSet.next()){
//妻子信息
Wife wife = new Wife();
wife.setWifeId(resultSet.getInt("wifeid"));
wife.setWifeName(resultSet.getString("wifename"));
//丈夫信息
husband.setHusId(resultSet.getInt("husid"));
husband.setHusName(resultSet.getString("husname"));
//建立两者关系
//将妻子封装到丈夫对象中
husband.setWife(wife);
}
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
close(connection,preparedStatement,resultSet);
}
return husband;
}
}

3.4 测试类

public static void main(String[] args) {
WifeDao wifeDao = new WifeDaoImpl();
Husband husband = wifeDao.getByHusId(1);
System.out.println(husband.getHusName()+","+husband.getWife().getWifeName());
Wife wife = wifeDao.getByWifeId(2);
System.out.println(wife.getWifeName()+","+wife.getHusband().getHusName());
}

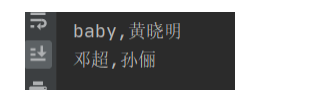

运行结果:

四、多表操作之多对多

多对多在现实场景中也是不很多，比较特殊的就是权限列表的三表关系。菜单表和角色表之间属于多对多。某个功
能菜单可以分配给多个角色，某个角色也可以拥有多个菜单，在这个分配过程中就是典型的多对多。在多对多中，
表的创建也比较有特点，必须是基于三张表来实现。

4.1 创建数据表

create table menu(
menuid int primary key,
menuname varchar(10)
);
create table role(
roleid int primary key,
rolename varchar(10)
);
create table middle(
middleid int primary key,
mid int,
rid int
);
insert into menu values(1,'用户管理');
insert into menu values(2,'菜单管理');
insert into menu values(3,'角色管理');
insert into role values(1,'超级管理员');
insert into role values(2,'管理员');
insert into role values(3,'总经理');
insert into middle values(1,1,1);
insert into middle values(2,2,1);
insert into middle values(3,3,1);
insert into middle values(4,1,2);
insert into middle values(5,2,2);
insert into middle values(6,1,3);

4.2 定义实体类：中间表不需要生成实体类

Menu:

public class Menu {
private int menuId;
private String menuName;
//getter and setter
}

Role:

public class Role {
private int roleId;
private String roleName;
//getter and setter
}

建立实体类之间的多对多关系，还是依据“一方存多方的集合，多方存一方的对象”的原则，但是现在的问题是双方
都是多方数据，此时记住原则“多方存另一方的集合”。代码如下:
Menu:

public class Menu {
private int menuId;
private String menuName;
private List<Role> roleList;
//getter and setter
}

Role:

public class Role {
private int roleId;
private String roleName;
private List<Menu> menuList;
//getter and setter
}

4.3 定义接口和实现类

Dao:

public interface RoleDao {
//查询某个角色信息(要求包含角色对应的菜单列表)
public Role findByRoleId(int roleId);
//查询某个菜单信息(要求包含菜单对应的角色列表)
public Menu findByMenuId(int menuId);
}
实现类:
PreparedStatement preparedStatement =null;
ResultSet resultSet =null;
try {
connection = getConnection();
preparedStatement = connection.prepareStatement("select * from role r,menu m,middle
mid where r.roleid=mid.rid and m.menuid= mid.mid and m.menuid=?");
preparedStatement.setInt(1,menuId);
resultSet = preparedStatement.executeQuery();
//此时结果集中包含两张表的数据，我们先分别获取各自表中的数据
while(resultSet.next()){
//角色信息
Role role = new Role();
role.setRoleId(resultSet.getInt("roleid"));
role.setRoleName(resultSet.getString("rolename"));
//菜单信息
menu.setMenuId(resultSet.getInt("menuid"));
menu.setMenuName(resultSet.getString("menuname"));
//建立两者关系
//将角色添加到菜单的属性中
roles.add(role);
}
menu.setRoleList(roles);
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
close(connection,preparedStatement,resultSet);
}
return menu;
}
}

4.4 测试类

public static void main(String[] args) {
RoleDao roleDao = new RoleDaoImpl();
Role role = roleDao.findByRoleId(1);
System.out.println(role.getRoleName());
List
