下载以及安装kafka_exporter

  1. #1、下载kafka_exporter
  2. ~# wget https://github.com/danielqsj/kafka_exporter/releases/download/v1.2.0/kafka_exporter-1.2.0.linux-amd64.tar.gz
  4. #2、解压，重命名
  5. ~# tar xf kafka_exporter-1.2.0.linux-amd64.tar.gz
  6. ~# mv kafka_exporter-1.2.0.linux-amd64 ../
  7. ~# mv kafka_exporter-1.2.0.linux-amd64/ kafka_exporter
  9. #3、把kafka_exporter配置成系统项
  10. ~# vim /etc/systemd/system/kafka_exporter.service
  11. [Unit]
  12. Description=kafka_exporter
  13. Documentation=https://prometheus.io/
  14. After=network.target
  16. [Service]
  17. Type=simple
  18. ExecStart=/usr/local/kafka_exporter/kafka_exporter --kafka.server=172.31.152.181:9092
  19. Restart=on-failure
  21. [Install]
  22. WantedBy=multi-user.target
  23. #注释：--kafka.server=kafkaIP地址:9092
  25. #4、加载开机自启动和启动服务
  26. ~# systemctl enable kafka_exporter.service
  27. ~# systemctl restart kafka_exporter.service
  28. ~# ss -lntp|grep 9308
  29. LISTEN     0      16384     [::]:9308                  [::]:*                   users:(("kafka_exporter",pid=11744,fd=5))
  31. #5、配置prometheus文件
  32. ~# vi prometheus.yml
  33.  - job_name: 'Kafka'
  34.     static_configs:
  35.       - targets: ['172.31.152.181:9308']
  36.       - targets: ['172.31.152.182:9308']
  37.       - targets: ['172.31.152.183:9308']
  38. #在配置文件最后一行进行配置
  40. #6、重启prometheus
  41. ~# systemctl restart prometheus

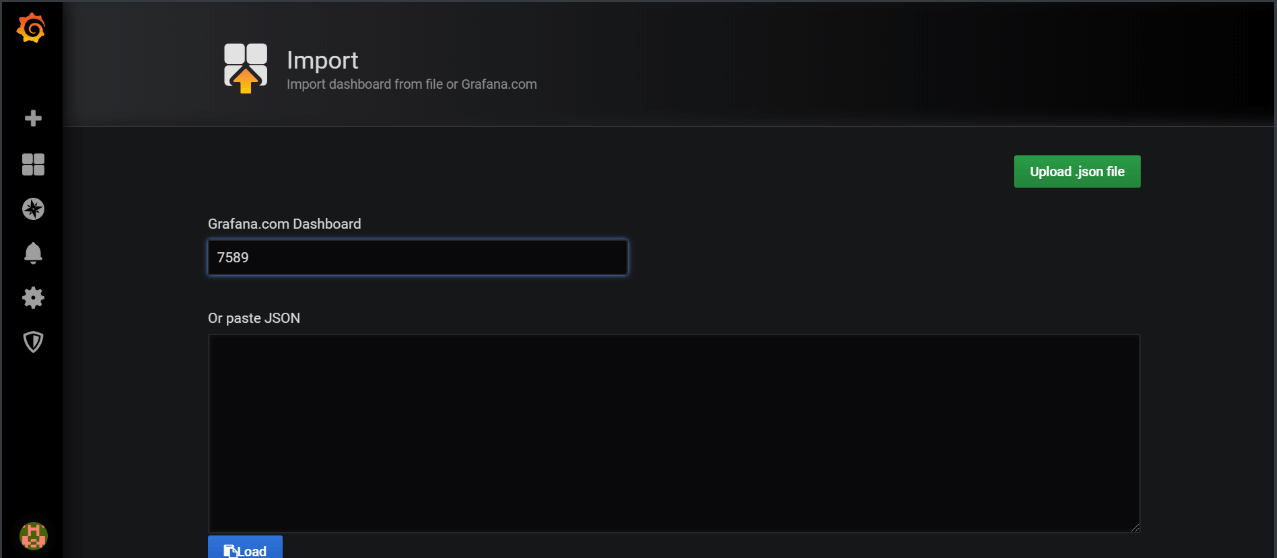

配置grafana：


最后效果图：
