Hive To Hive
一、源端
1、结构展示

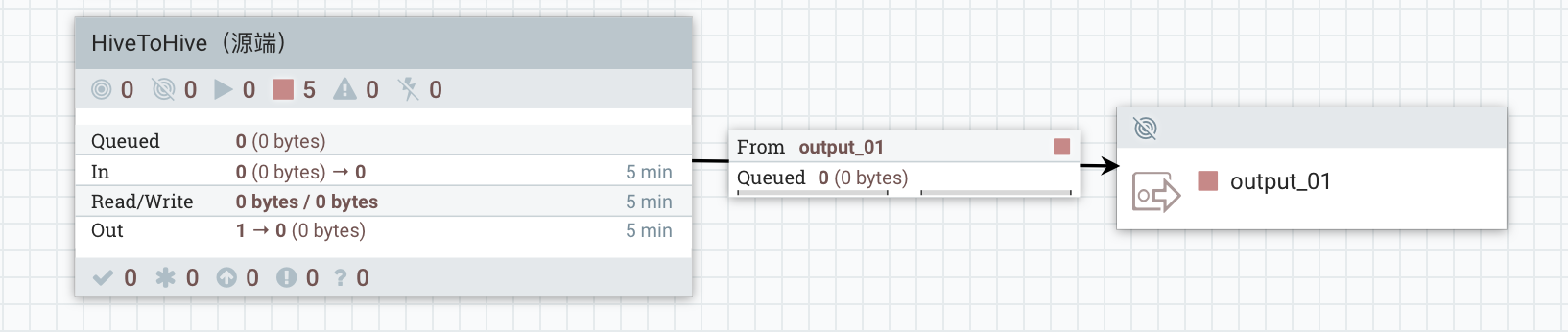

1.1 外层

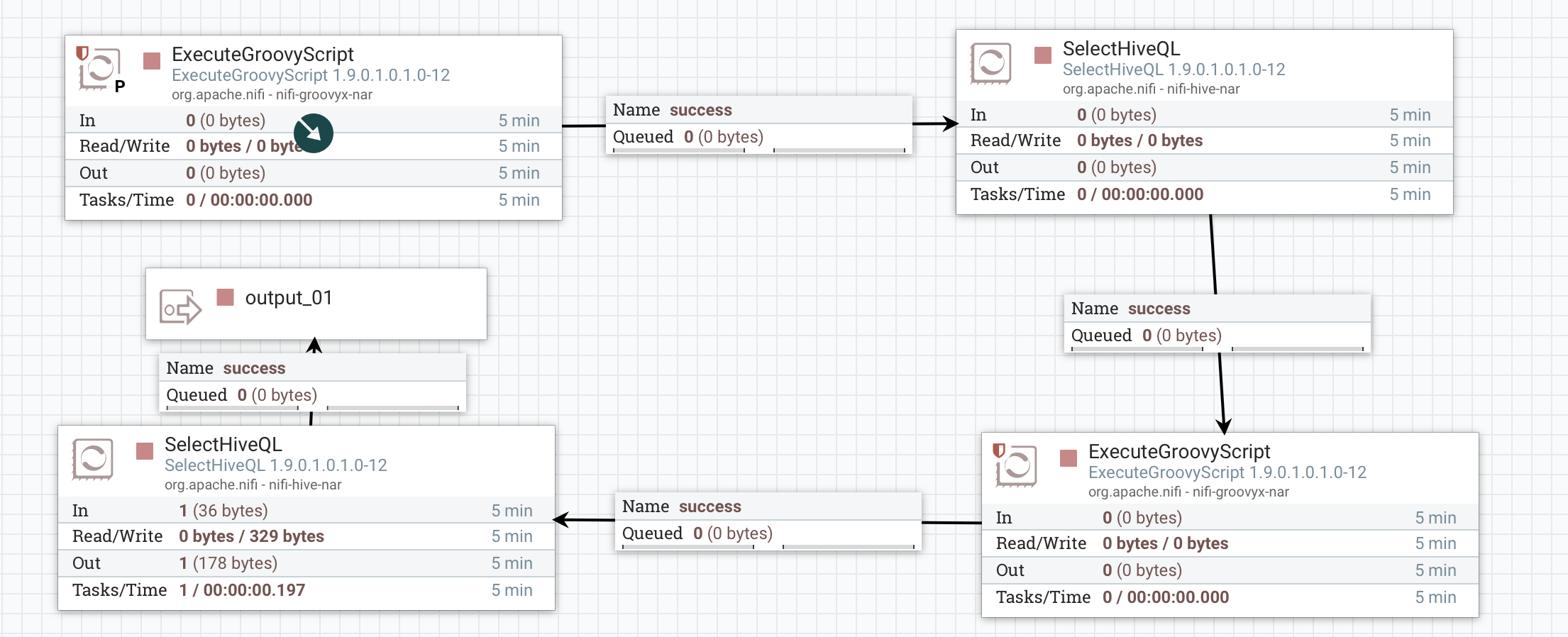

1.2 内层
2、Processor
2.1 ExecuteGroovyScript(1)

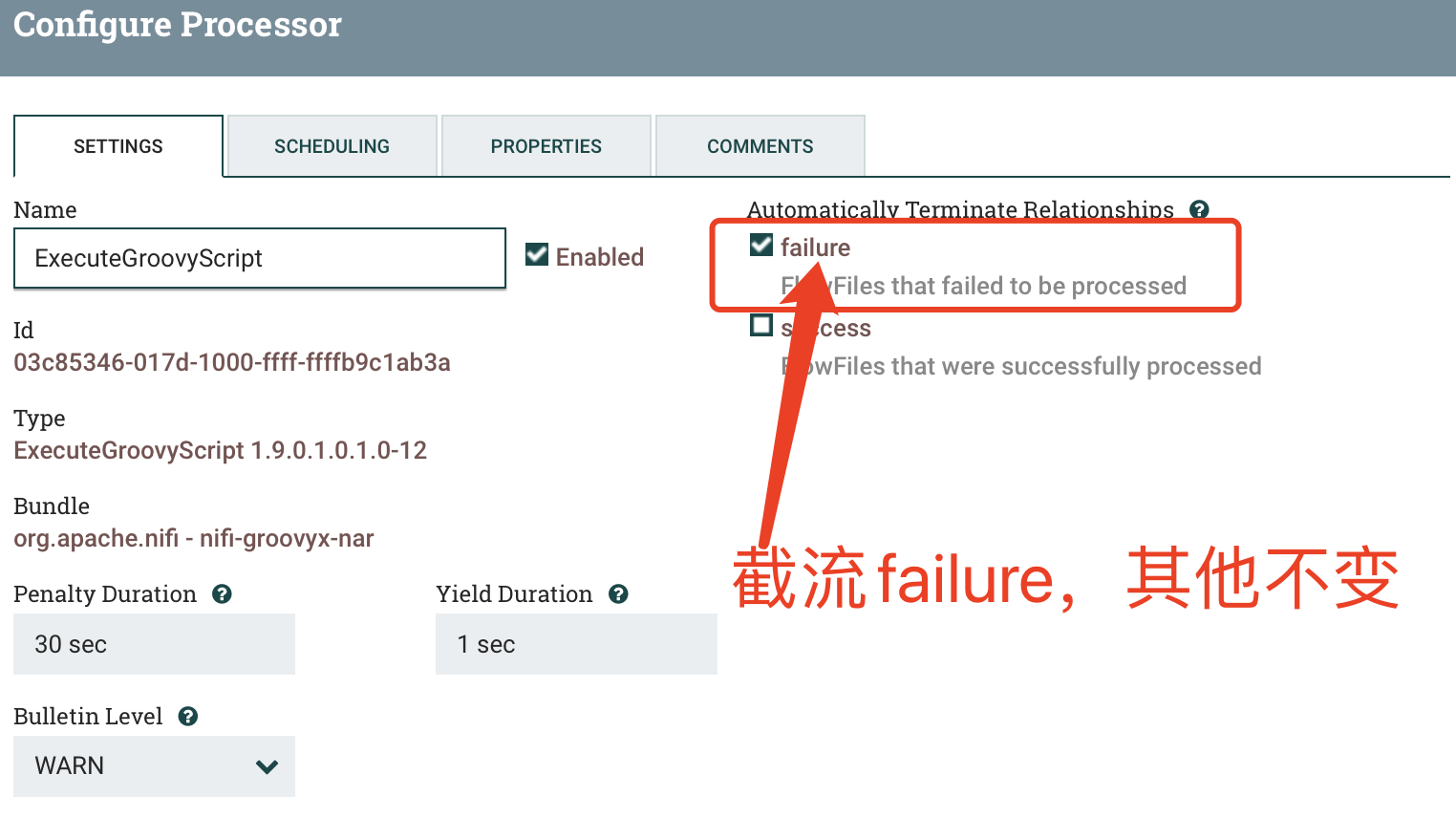

a) SETTINGS

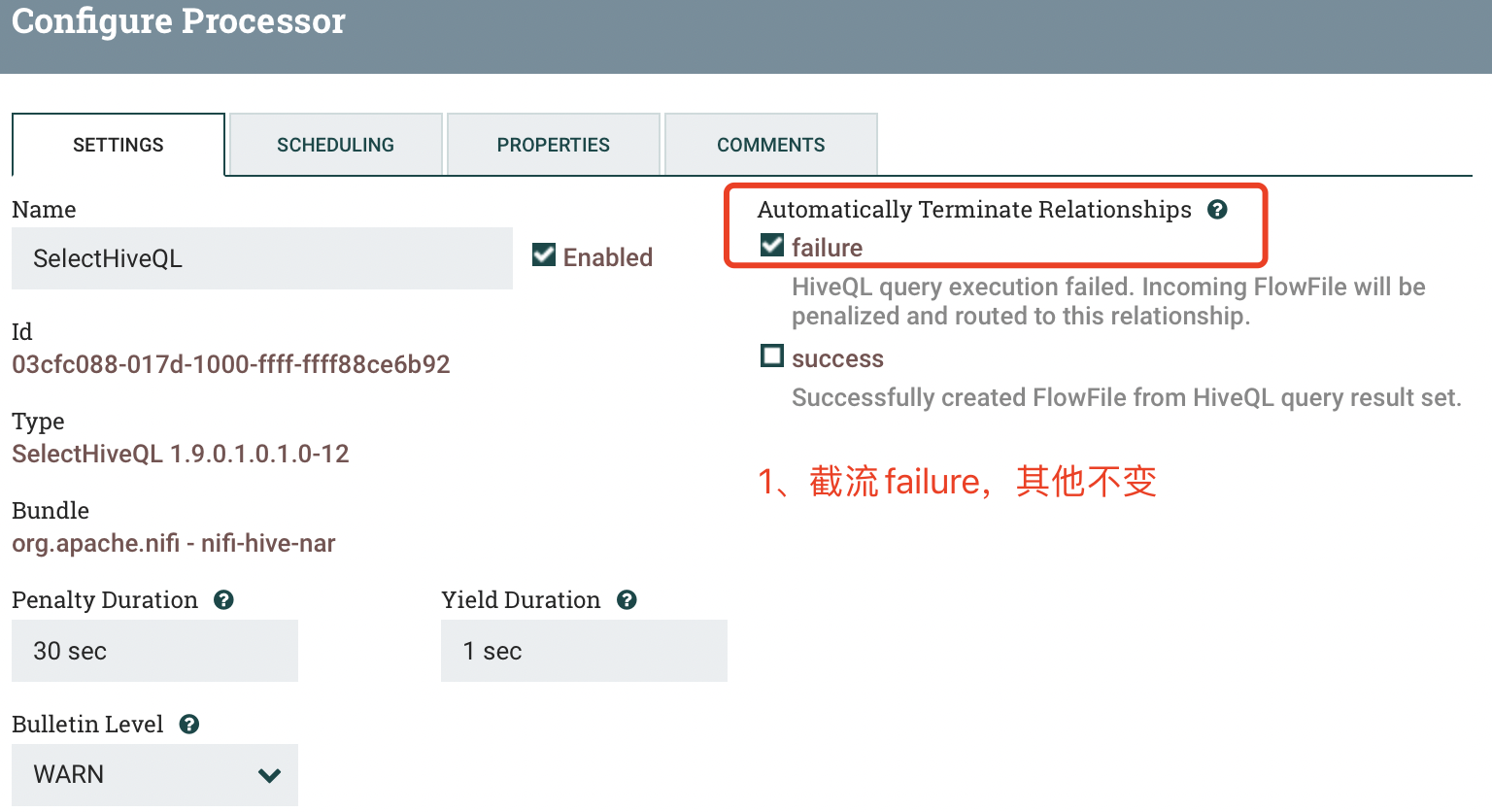

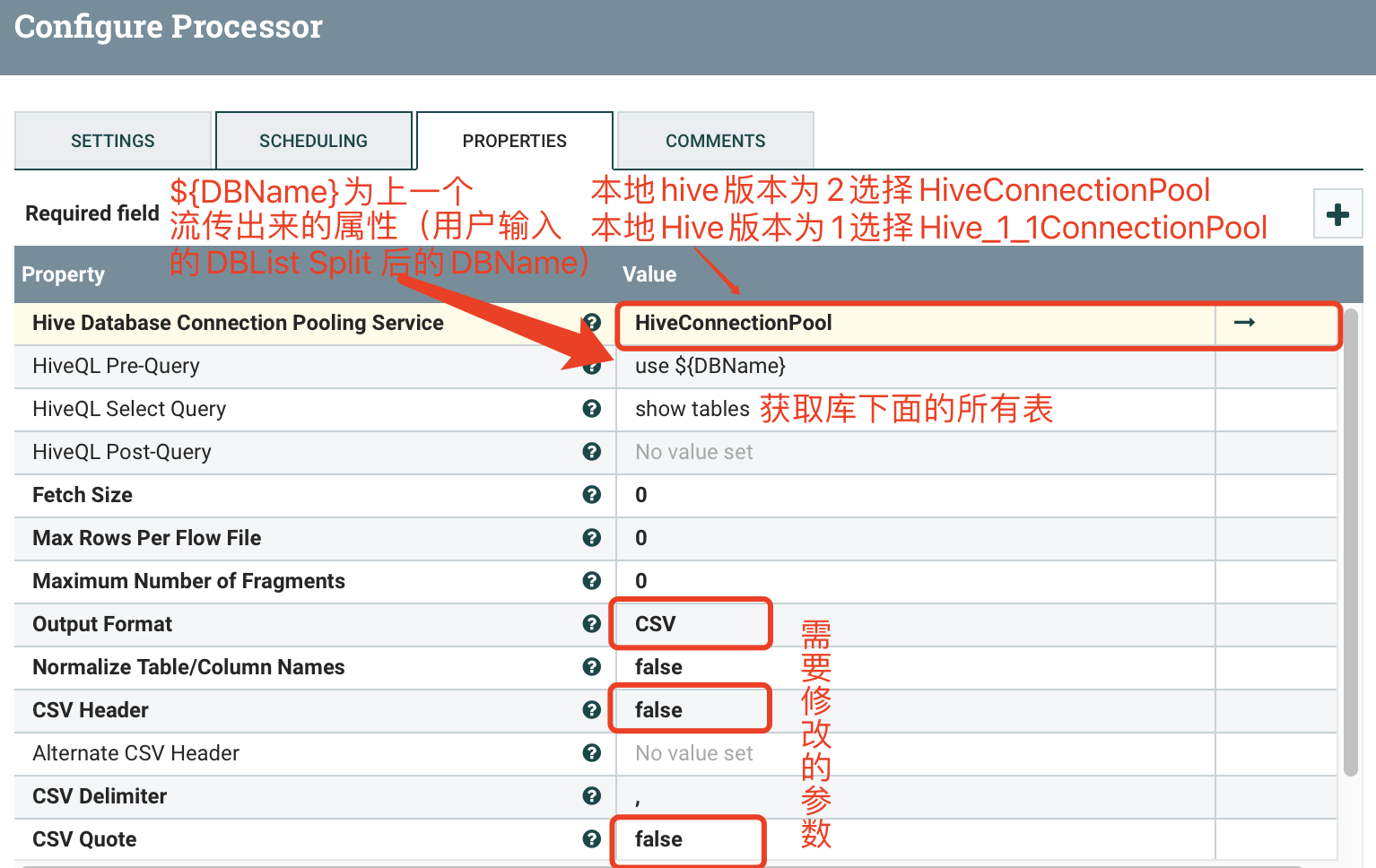

2.2 SelectHiveQL(1)
a) SETTINGS

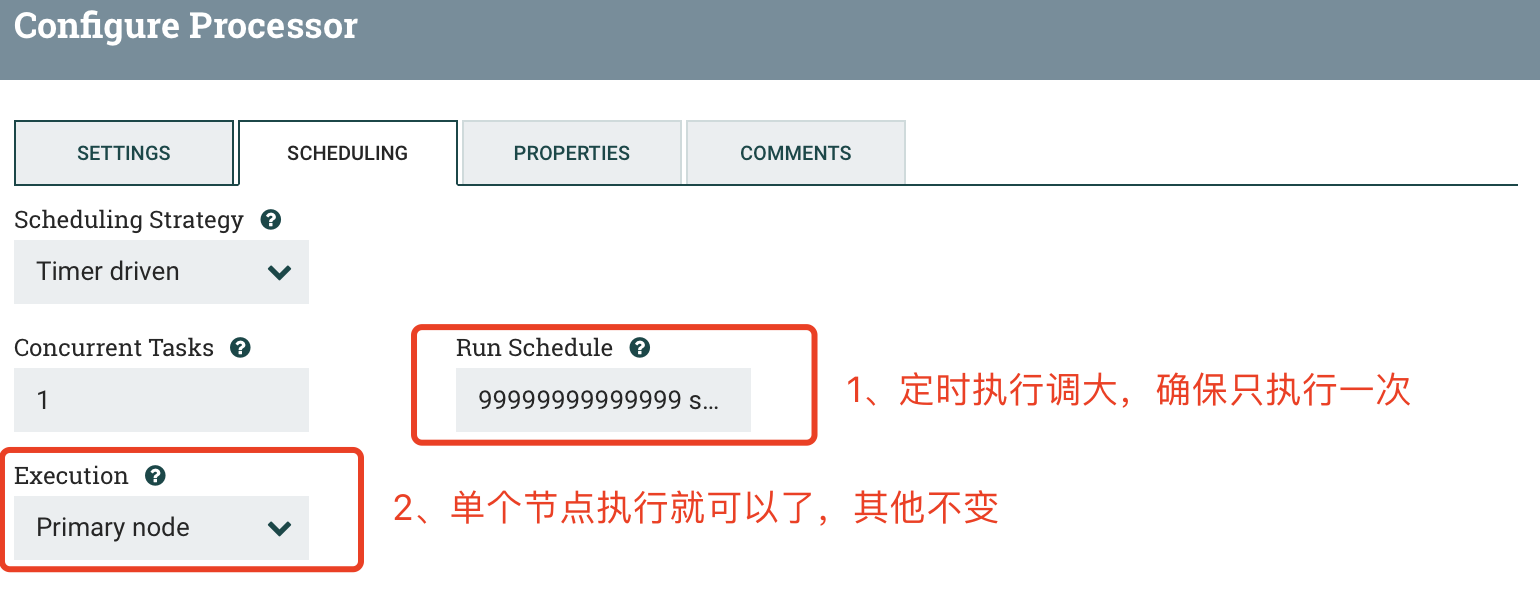

b) SCHEDULING

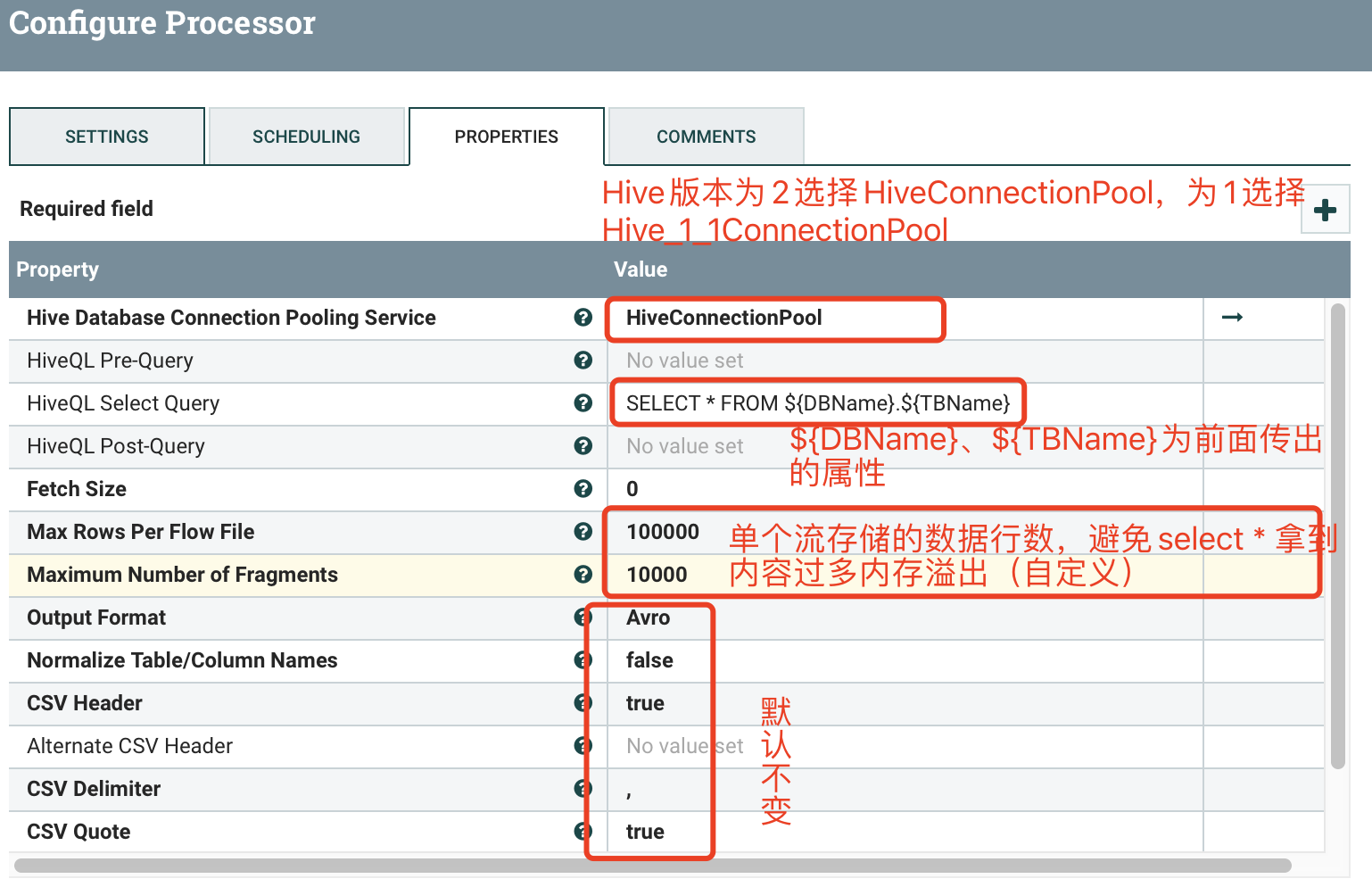

c) PROPERTIES

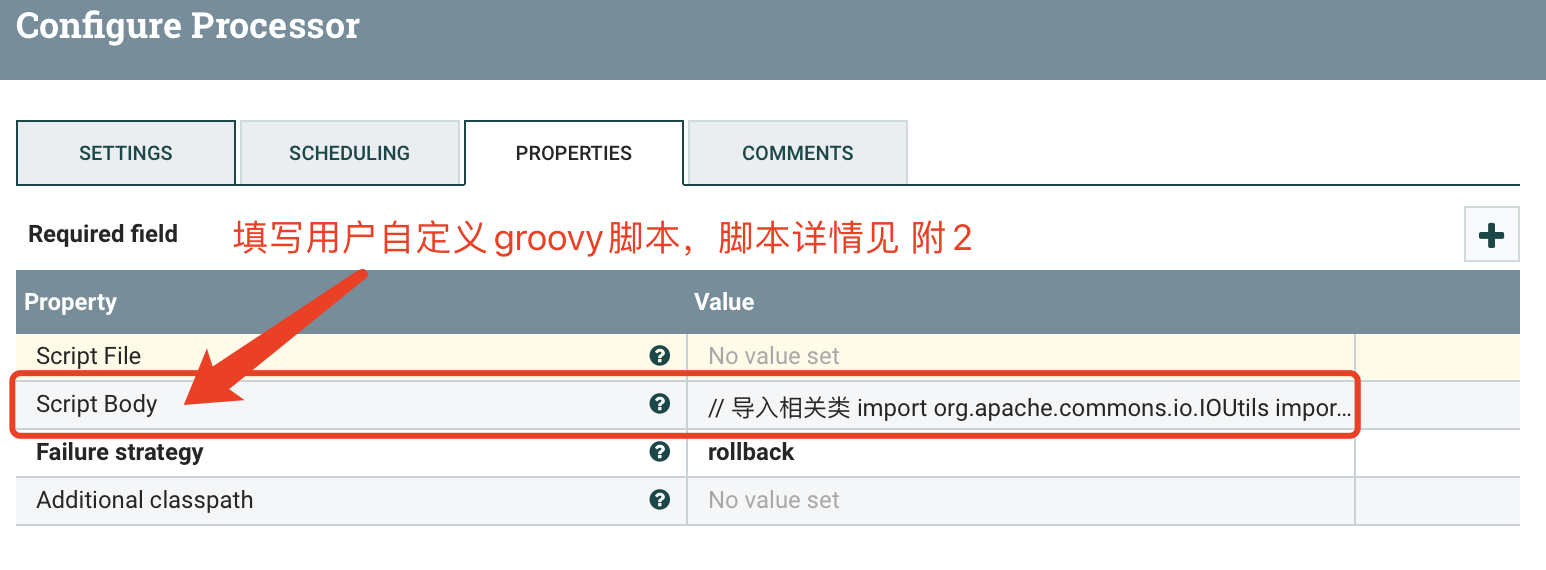

2.3 ExecuteGroovyScript(2)
a) SETTINGS

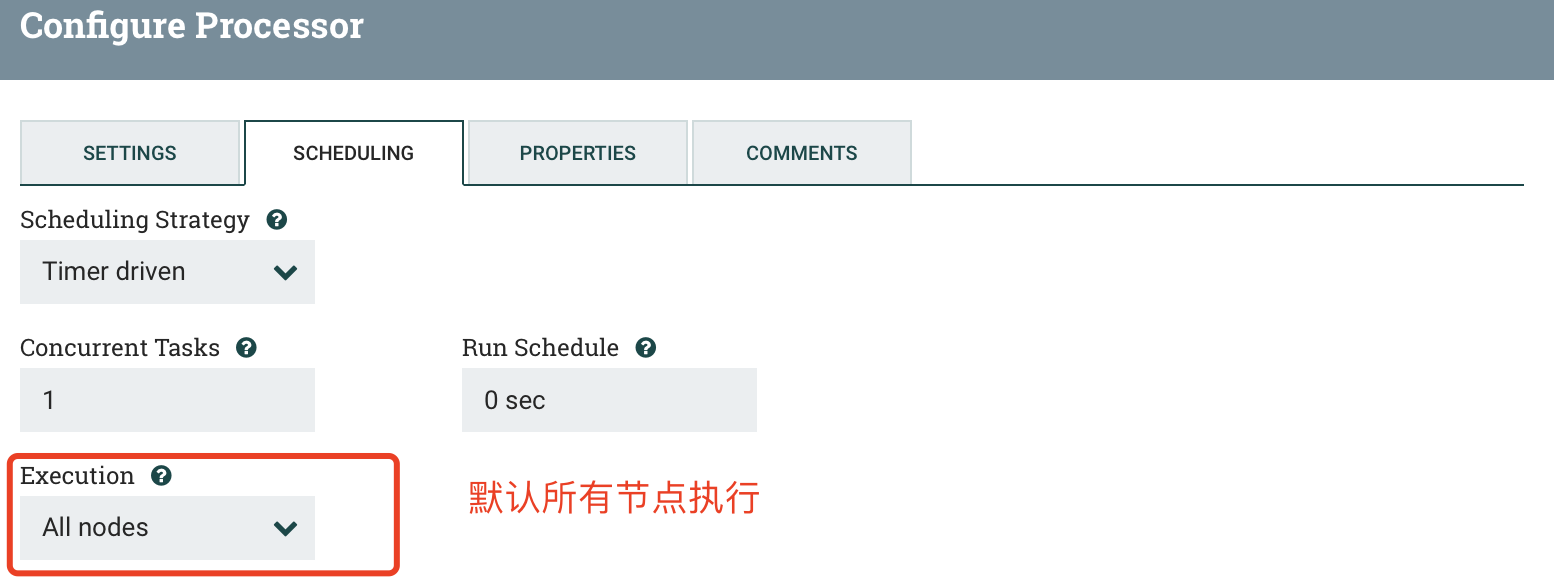

b) SCHEDULING

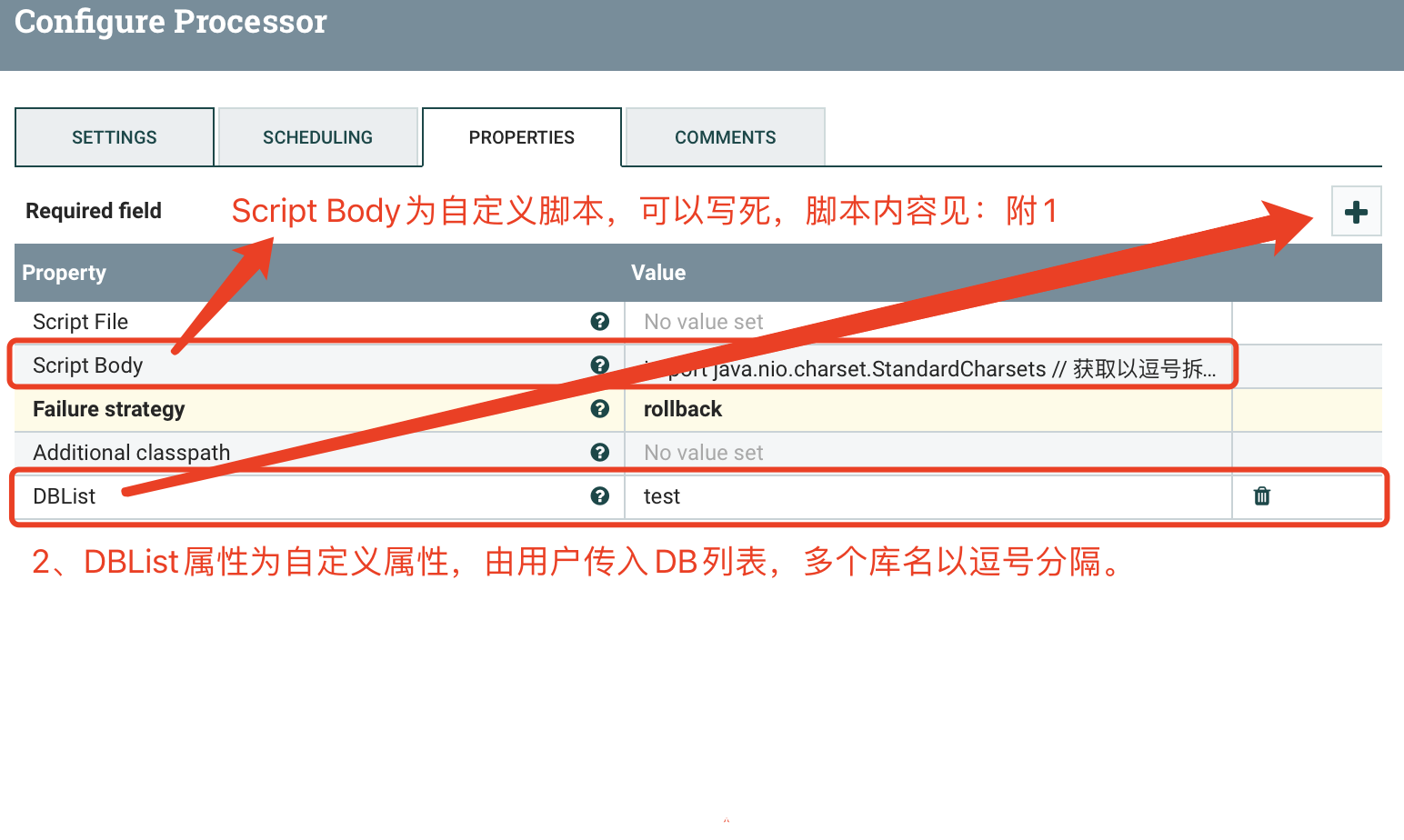

c) PROPERTIES
2.4 SelectHiveQL(2)
a) SETTINGS
b) SCHEDULING
c) PROPERTIES

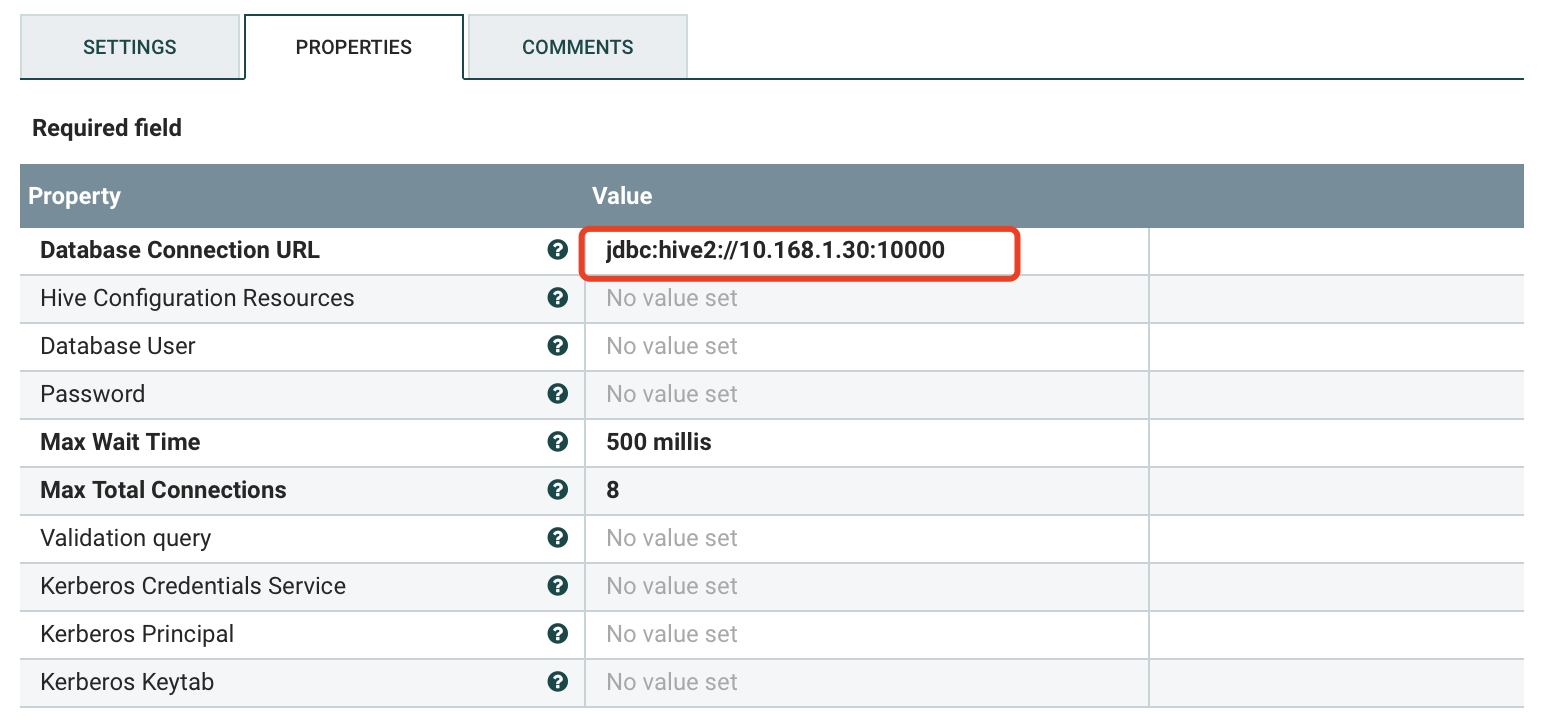

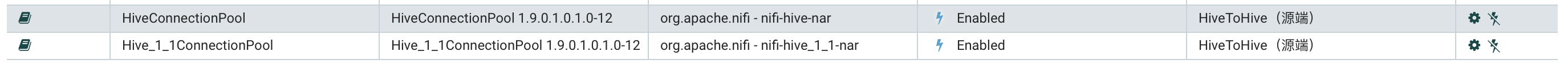

2.5 HiveConnectionPool、Hive_1_1ConnectionPool
a) PROPERTIES
b) HiveConnectionPool和Hive_1_1ConnectionPool配置参数一样
二、目标端
1、结构展示

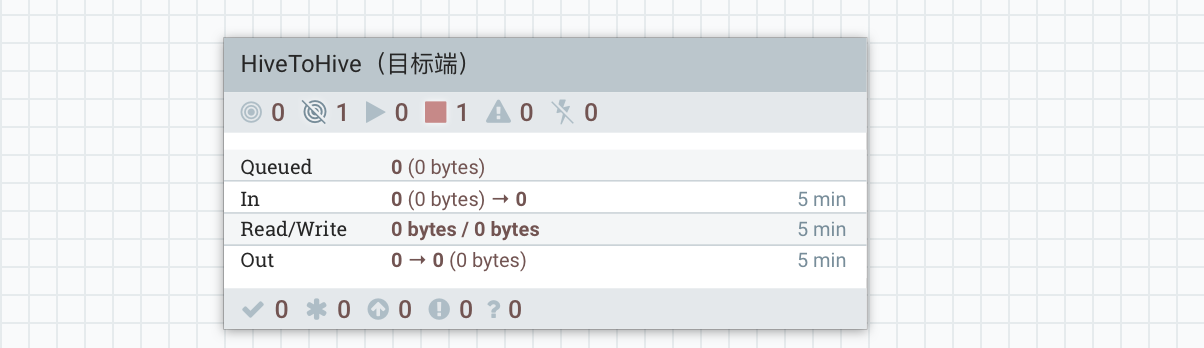

1.1 外层

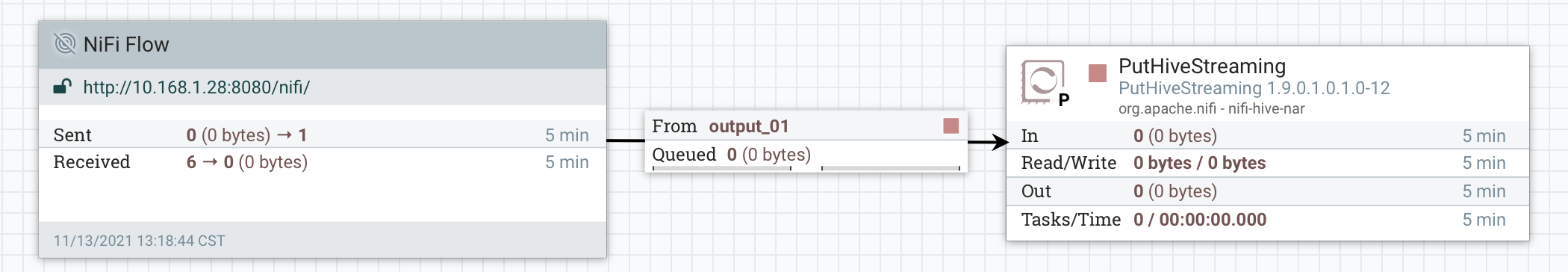

1.2 内层
2、Processor

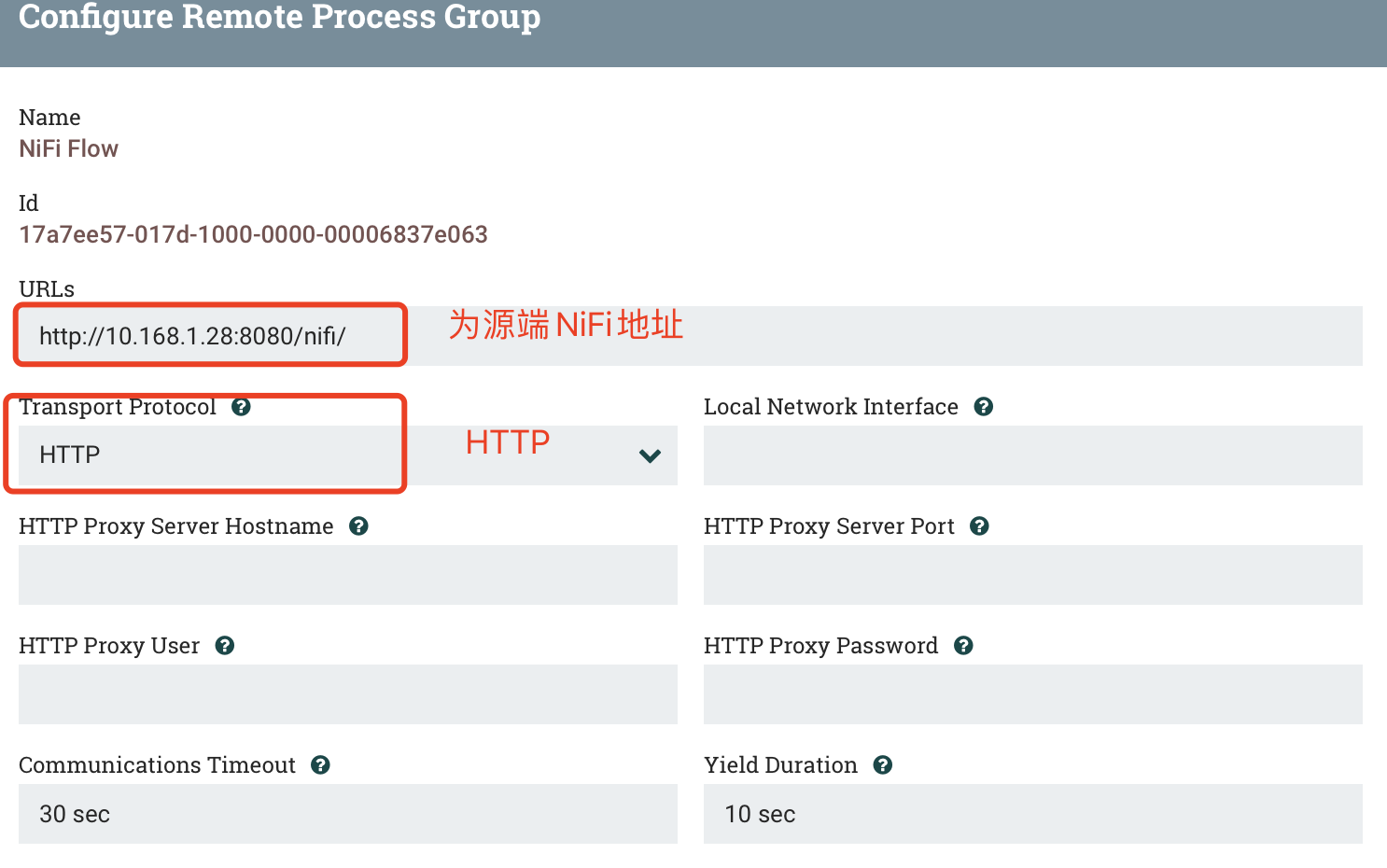

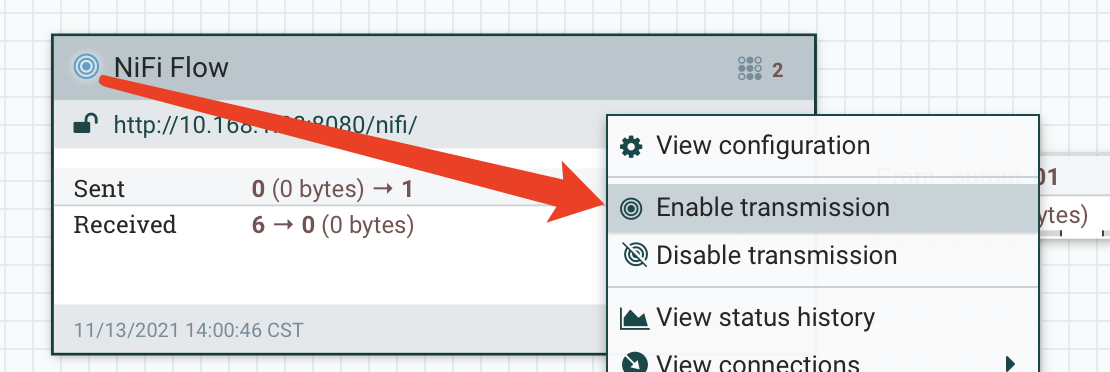

2.1 NiFi Flow
a) SETTINGS
b) SCHEDULING
c) PROPERTIES

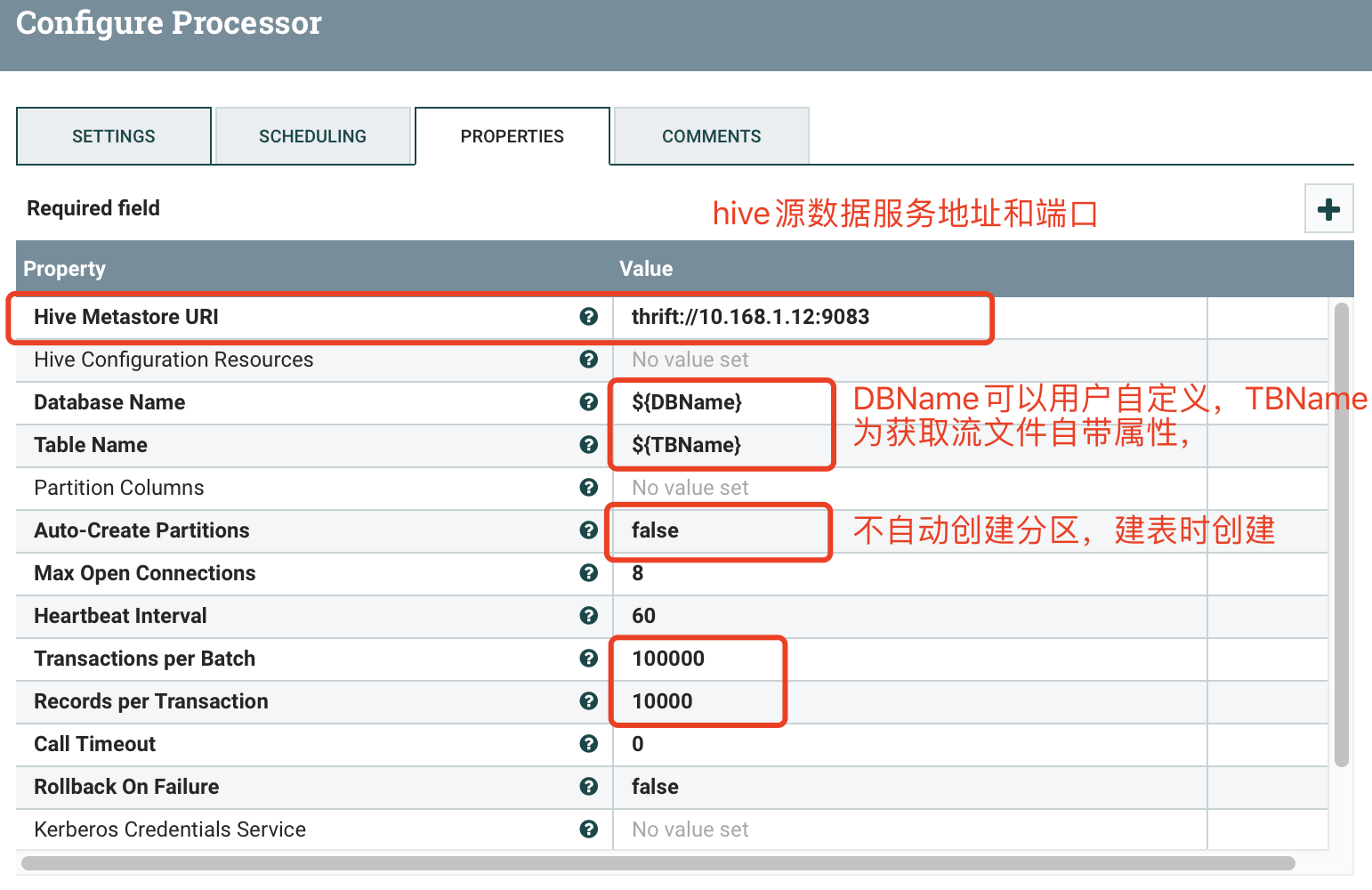

2.2 PutHiveStreaming

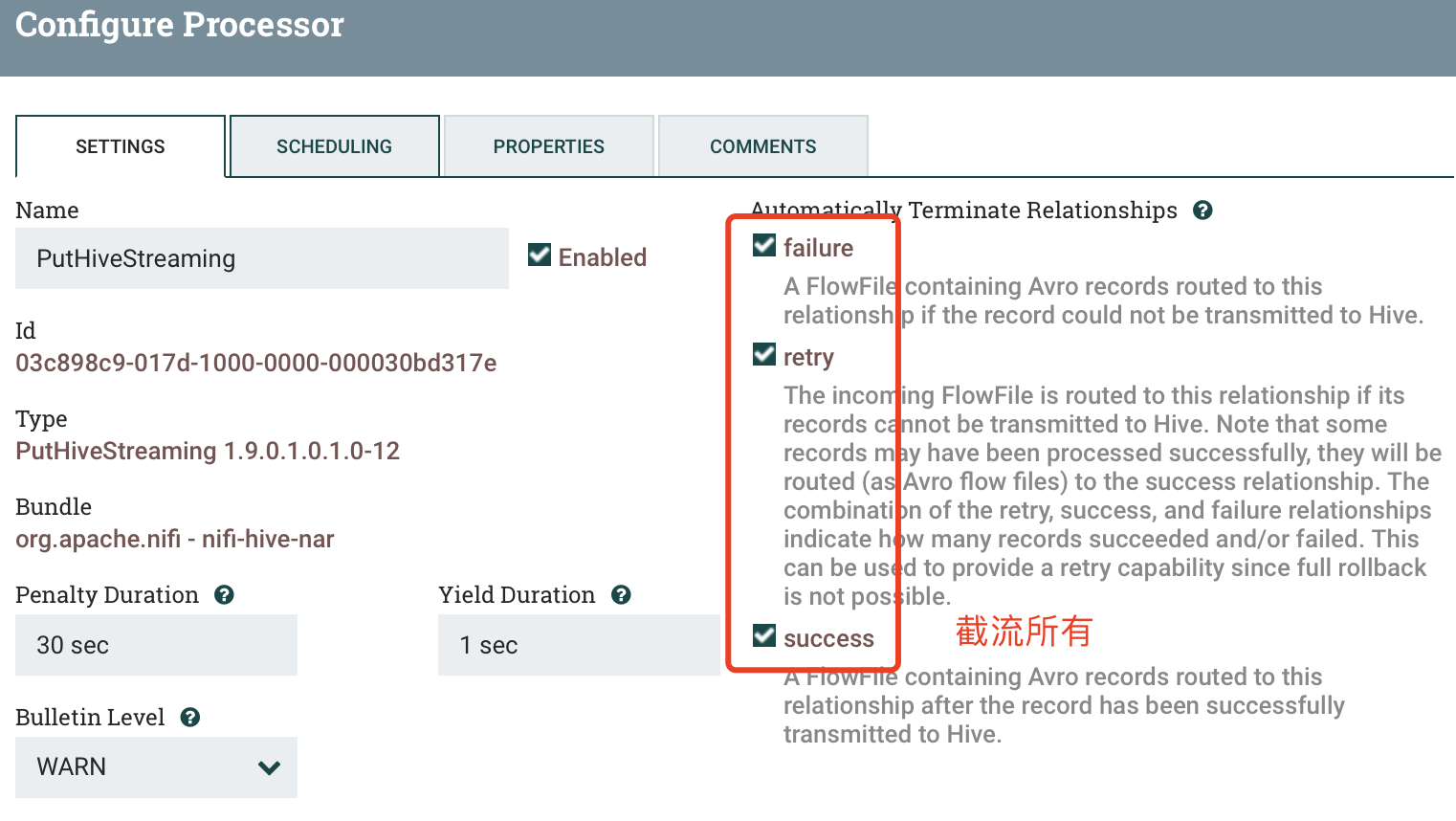

a) SETTINGS
b) SCHEDULING
c) PROPERTIES
三、附页
附1:
import java.nio.charset.StandardCharsets
// 获取以逗号拆分的库名字符串
String DBList = DBList
// 拆分库名
String[] data = DBList.split(“,”)
// 获取数据长度
int length = data.length;
if (length==0){
return
}
// 循环所有库
for (Integer i = 0; i < length; i++) {
if (data[i]==””){
session.transfer(flowFile,REL_FAILURE)
continue
}
flowFile = session.create()
// 添加属性
flowFile = session.putAttribute(flowFile, ‘DBName’, data[i])
// 写入flowFile中
session.write(flowFile, {outputStream ->
outputStream.write(data[i].toString().getBytes(StandardCharsets.UTF_8))
} as OutputStreamCallback)
// flowFile —> success
session.transfer(flowFile, REL_SUCCESS)
}
附2:
// 导入相关类
import org.apache.commons.io.IOUtils
import java.nio.charset.StandardCharsets
// 获取流文件
flowFile = session.get()
// 读取文件内容
def text = ‘’
session.read(flowFile, {
inputStream ->
text = IOUtils.toString(inputStream, StandardCharsets.UTF_8)
} as InputStreamCallback
)
// 获取DBName
def DBName = flowFile.getAttribute(‘DBName’)
if (text == ‘’) {
session.transfer(flowFile, REL_FAILURE)
return
}
// 拆分表名
String[] data = text.split(“\n”)
// 获取数据长度
int length = data.length;
// 循环所有库
for (Integer i = 0; i < length; i++) {
newFlowFile = session.create()
// 添加属性
newFlowFile = session.putAttribute(newFlowFile, ‘DBName’, DBName)
// 添加属性
newFlowFile = session.putAttribute(newFlowFile, ‘TBName’, data[i])
// 声明容器存储结果
StringBuffer stringBuffer = new StringBuffer()
stringBuffer.append(“{\”DBName\”:\””+ DBName + “\”,\”TBNaem\”:\”” + data[i] + “\”}”)
// 写入flowFile中
session.write(newFlowFile, {outputStream ->
outputStream.write(stringBuffer.toString().getBytes(StandardCharsets.UTF_8))
} as OutputStreamCallback)
// flowFile —> success
session.transfer(newFlowFile, REL_SUCCESS)
}
// flowFile —> success
session.transfer(flowFile, REL_FAILURE)
