Vue 实现展开折叠效果

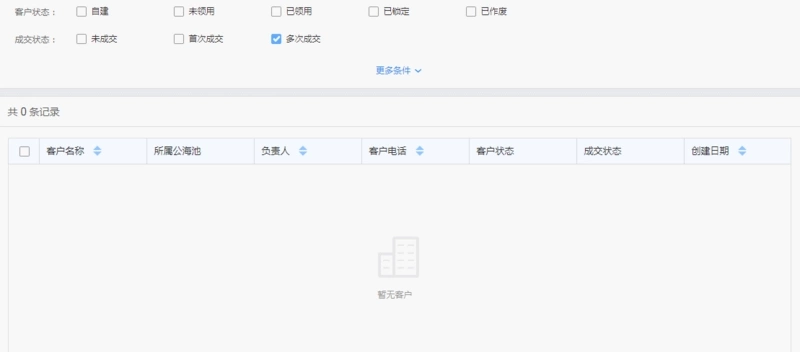

一、目标实现效果

除了使用jQuery的方式实现上述效果，同样可以在Vue实现，下面是解决办法：

二、步骤

1.创建collapse.js文件

  1. const elTransition =
  2.   "0.3s height ease-in-out, 0.3s padding-top ease-in-out, 0.3s padding-bottom ease-in-out";
  3. const Transition = {
  4.   "before-enter"(el) {
  5.     el.style.transition = elTransition;
  6.     if (!el.dataset) el.dataset = {};
  8.     el.dataset.oldPaddingTop = el.style.paddingTop;
  9.     el.dataset.oldPaddingBottom = el.style.paddingBottom;
  11.     el.style.height = 0;
  12.     el.style.paddingTop = 0;
  13.     el.style.paddingBottom = 0;
  14.   },
  16.   enter(el) {
  17.     el.dataset.oldOverflow = el.style.overflow;
  18.     if (el.scrollHeight !== 0) {
  19.       el.style.height = el.scrollHeight + "px";
  20.       el.style.paddingTop = el.dataset.oldPaddingTop;
  21.       el.style.paddingBottom = el.dataset.oldPaddingBottom;
  22.     } else {
  23.       el.style.height = "";
  24.       el.style.paddingTop = el.dataset.oldPaddingTop;
  25.       el.style.paddingBottom = el.dataset.oldPaddingBottom;
  26.     }
  28.     el.style.overflow = "hidden";
  29.   },
  31.   "after-enter"(el) {
  32.     el.style.transition = "";
  33.     el.style.height = "";
  34.     el.style.overflow = el.dataset.oldOverflow;
  35.   },
  37.   "before-leave"(el) {
  38.     if (!el.dataset) el.dataset = {};
  39.     el.dataset.oldPaddingTop = el.style.paddingTop;
  40.     el.dataset.oldPaddingBottom = el.style.paddingBottom;
  41.     el.dataset.oldOverflow = el.style.overflow;
  43.     el.style.height = el.scrollHeight + "px";
  44.     el.style.overflow = "hidden";
  45.   },
  47.   leave(el) {
  48.     if (el.scrollHeight !== 0) {
  49.       el.style.transition = elTransition;
  50.       el.style.height = 0;
  51.       el.style.paddingTop = 0;
  52.       el.style.paddingBottom = 0;
  53.     }
  54.   },
  56.   "after-leave"(el) {
  57.     el.style.transition = "";
  58.     el.style.height = "";
  59.     el.style.overflow = el.dataset.oldOverflow;
  60.     el.style.paddingTop = el.dataset.oldPaddingTop;
  61.     el.style.paddingBottom = el.dataset.oldPaddingBottom;
  62.   }
  63. };
  65. export default {
  66.   name: "collapseTransition",
  67.   functional: true,
  68.   render(h, { children }) {
  69.     const data = {
  70.       on: Transition
  71.     };
  72.     return h("transition", data, children);
  73.   }
  74. };

2.再次封装组件，提供slot插槽

  1. <template>
  2.     <view>
  3.         <collapse>
  4.             <div class="collapse-wrap" v-show="isActive">
  5.                 <!-- @slot default -->
  6.                 <slot></slot>
  7.             </div>
  8.         </collapse>
  9.     </view>
  10. </template>
  11. <script>
  12.     /**
  13.      * @description 折叠收缩组件
  14.      * @created by lishengsong
  15.      * @date 2020-04-24
  16.      */
  17.     import collapse from '@/plugins/uiTools/collapse.js'
  18.     export default {
  19.         components: {
  20.             collapse
  21.         },
  22.         props: {
  23.             isActive: {
  24.                 type: Boolean,
  25.                 default: true
  26.             }
  27.         },
  28.         onLoad() {
  29.             console.log(collapse);
  30.         },
  31.         watch: {
  32.             isActive(val) {
  33.                 return val
  34.             }
  35.         }
  36.     }
  37. </script>
  38. <style>
  39. </style>

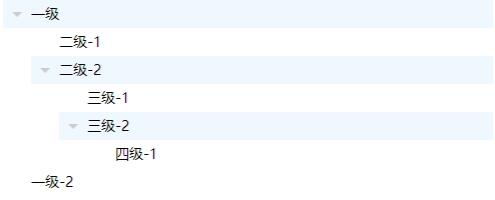

递归组件-树形控件预览及问题

交互特效001 - 图2

在编写树形组件时遇到的问题：
**

  • 组件如何才能递归调用？
  • 递归组件点击事件如何传递？

一、树形控件基本结构及样式

  1. <template>
  2.   <ul class="vue-tree">
  3.     <li class="tree-item">
  4.       <div class="tree-content"><!--节点内容-->
  5.         <div class="expand-arrow"></div><!--展开或收缩节点按钮-->
  6.         <div class="tree-label">小学</div><!--节点文本内容-->
  7.       </div>
  8.       <ul class="sub-tree"><!--子节点-->
  9.         <li class="tree-item expand">
  10.           <div class="tree-content">
  11.             <div class="expand-arrow"></div>
  12.             <div class="tree-label">语文</div>
  13.           </div>
  14.         </li>
  15.         <li class="tree-item">
  16.           <div class="tree-content">
  17.             <div class="expand-arrow"></div>
  18.             <div class="tree-label">数学</div>
  19.           </div>
  20.         </li>
  21.       </ul>
  22.     </li>
  23.   </ul>
  24. </template>
  25. <style lang="stylus">
  26. .vue-tree{
  27.   list-style: none;
  28.   padding: 0;
  29.   margin: 0;
  30.   .tree-item{
  31.     cursor: pointer;
  32.     transition: background-color .2s;
  33.     .tree-content{
  34.       position: relative;
  35.       padding-left: 28px;
  36.       &:hover{
  37.         background-color: #f0f7ff;
  38.       }
  39.     }
  40.     .expand-arrow{
  41.       position: absolute;
  42.       top: 0;
  43.       left: 0;
  44.       width: 28px;
  45.       height: 28px;
  46.       cursor: pointer;
  47.       &::after{
  48.         position: absolute;
  49.         top: 50%;
  50.         left: 50%;
  51.         display: block;
  52.         content: ' ';
  53.         border-width: 5px;
  54.         border-style: solid;
  55.         border-color: transparent;
  56.         border-left-color: #ccc;
  57.         margin: -5px 0 0 -2.5px;
  58.         transition: all .2s;
  59.       }
  60.     }
  61.     &.expand{
  62.       &>.tree-content{
  63.         background-color: #f0f7ff;
  64.         &>.expand-arrow{
  65.           &::after{
  66.             transform: rotate(90deg);
  67.             margin: -2.5px 0 0 -5px;
  68.           }
  69.         }
  70.       }
  71.     }
  72.     .tree-label{
  73.       height: 28px;
  74.       line-height: 28px;
  75.       font-size: 14px;
  76.     }
  77.     .sub-tree{
  78.       display: none;
  79.       list-style: none;
  80.       padding: 0 0 0 28px;
  81.       margin: 0;
  82.     }
  83.     &.expand>.sub-tree{
  84.       display: block;
  85.     }
  86.     &.no-child{
  87.       &>.tree-content{
  88.         &>.expand-arrow{
  89.           display: none;
  90.         }
  91.       }
  92.     }
  93.   }
  94. }
  95. </style>

二、组件目录及数据结构

目录结构
vue-tree

  • VueTree.vue 树形控件父组件
  • TreeItem.vue 树形控件递归组件

树形控件数据结构
**

  1. let treeData = [
  2.   {
  3.     text: "一级", // 显示的文字
  4.     expand: false, // 默认是否展开
  5.     children: [ // 子节点
  6.       {
  7.         text: "一级-1",
  8.         expand: false,
  9.       },
  10.       {
  11.         text: "一级-2",
  12.         expand: false,
  13.         children: [
  14.           {
  15.             text: "一级-2-1",
  16.             expand: false,
  17.           },
  18.           {
  19.             text: "一级-2-2",
  20.             expand: false,
  21.           }
  22.         ]
  23.       }
  24.     ]
  25.   }
  26. ];

1.TreeItem.vue 代码

  1. <template>
  2.   <li class="tree-item" :class="{expand: isExpand, 'no-child': !treeItemData.children || treeItemData.children.length  === 0}">
  3.     <div class="tree-content" @click="_clickEvent">
  4.       <div class="expand-arrow" @click.stop="expandTree()"></div>
  5.       <div class="tree-label">{{treeItemData.text}}</div>
  6.     </div>
  7.     <ul class="sub-tree" v-if="treeItemData.children && treeItemData.children.length > 0">
  8.       <!--TreeItem组件中调用TreeItem组件-->
  9.       <TreeItem
  10.         v-for="item in treeItemData.children"
  11.         :tree-item-data="item"
  12.         :key="uuid()"
  13.         :tree-click-event="treeClickEvent"></TreeItem>
  14.     </ul>
  15.   </li>
  16. </template>
  17. <script>
  18.   export default {
  19.     name: "TreeItem",
  20.     props: {
  21.       treeItemData: {
  22.         type: Object,
  23.         default(){
  24.           return {};
  25.         }
  26.       },
  27.       // 节点点击事件
  28.       treeClickEvent: {
  29.         type: Function,
  30.         default() {
  31.           return function () {};
  32.         }
  33.       }
  34.     },
  35.     data(){
  36.       return {
  37.         // 节点是否展开
  38.         isExpand: this.treeItemData.expand || false
  39.       }
  40.     },
  41.     methods: {
  42.       // 展开/收缩
  43.       expandTree(flag){
  44.         if(!this.treeItemData.children || this.treeItemData.children.length === 0){
  45.           return;
  46.         }
  47.         if(typeof flag === 'undefined'){
  48.           flag = !this.isExpand;
  49.         }else{
  50.           flag = !!flag;
  51.         }
  52.         this.isExpand = flag;
  53.       },
  54.       // 创建一个唯一id
  55.       uuid(){
  56.         let str = Math.random().toString(32);
  57.         str = str.substr(2);
  58.         return str;
  59.       },
  60.       // 节点点击事件
  61.       _clickEvent(){
  62.         // 如果有传递事件函数，则调用事件函数并传递当前节点数据及组件
  63.         if(this.treeClickEvent && typeof this.treeClickEvent === 'function'){
  64.           this.treeClickEvent(this.treeItemData, this);
  65.         }
  66.       }
  67.     }
  68.   }
  69. </script>

（一）解决组件如何才能递归调用问题

在组件模板内调用自身必须明确定义组件的name属性，并且递归调用时组件名称就是name属性。如在TreeItem.vue组件中组件的name名称为’TreeItem’，那么在template中调用时组件名称就必须是。
当然也可以全局注册组件，具体可以查看vue官方文档 递归组件

（二）解决递归组件点击事件如何传递问题

我这里的解决方案是使用props将事件函数传递进来，在点击节点的时候调用事件函数，并把相应的数据传递进去。
之前也尝试过使用$emit的形式并把数据传递过去，由于是递归组件，这样一直$emit，到最外层时传递的数据就变了，比如传递是第3层节点的数据，到最后执行时数据就变成第1层节点的数据了

2.VueTree.vue 组件

  1. <template>
  2.   <ul class="vue-tree">
  3.     <TreeItem
  4.         v-for="(item, index) in treeData"
  5.         :key="index"
  6.         :treeItemData="item"
  7.         :tree-click-event="treeClickEvent"></TreeItem>
  8.   </ul>
  9. </template>
  10. <script>
  11.   import TreeItem from "./TreeItem";
  12.   export default {
  13.     name: "VueTreeMenu",
  14.     components: {
  15.       TreeItem
  16.     },
  17.     props: {
  18.      // 树形控件数据
  19.       treeData: {
  20.         type: Array,
  21.         default(){
  22.           return [];
  23.         }
  24.       },
  25.       // 节点点击事件
  26.       treeClickEvent: {
  27.         type: Function,
  28.         default() {
  29.           return function () {};
  30.         }
  31.       }
  32.     }
  33.   }
  34. </script>
  35. <style lang="stylus">
  36. .vue-tree{
  37.   list-style: none;
  38.   padding: 0;
  39.   margin: 0;
  40.   .tree-item{
  41.     cursor: pointer;
  42.     transition: background-color .2s;
  43.     .tree-content{
  44.       position: relative;
  45.       padding-left: 28px;
  46.       &:hover{
  47.         background-color: #f0f7ff;
  48.       }
  49.     }
  50.     .expand-arrow{
  51.       position: absolute;
  52.       top: 0;
  53.       left: 0;
  54.       width: 28px;
  55.       height: 28px;
  56.       cursor: pointer;
  57.       &::after{
  58.         position: absolute;
  59.         top: 50%;
  60.         left: 50%;
  61.         display: block;
  62.         content: ' ';
  63.         border-width: 5px;
  64.         border-style: solid;
  65.         border-color: transparent;
  66.         border-left-color: #ccc;
  67.         margin: -5px 0 0 -2.5px;
  68.         transition: all .2s;
  69.       }
  70.     }
  71.     &.expand{
  72.       &>.tree-content{
  73.         background-color: #f0f7ff;
  74.         &>.expand-arrow{
  75.           &::after{
  76.             transform: rotate(90deg);
  77.             margin: -2.5px 0 0 -5px;
  78.           }
  79.         }
  80.       }
  81.     }
  82.     .tree-label{
  83.       height: 28px;
  84.       line-height: 28px;
  85.       font-size: 14px;
  86.     }
  87.     .sub-tree{
  88.       display: none;
  89.       list-style: none;
  90.       padding: 0 0 0 28px;
  91.       margin: 0;
  92.     }
  93.     &.expand>.sub-tree{
  94.       display: block;
  95.     }
  96.     &.no-child{
  97.       &>.tree-content{
  98.         /*padding-left: 0;*/
  99.         &>.expand-arrow{
  100.           display: none;
  101.         }
  102.       }
  103.     }
  104.   }
  105. }
  106. </style>

3.使用树形组件

  1. <template>
  2.   <div class="app" id="app">
  3.     <VueTree :tree-data="treeData2" :tree-click-event="treeClickEvent"></VueTree>
  4.   </div>
  5. </template>
  6. <script>
  7. import VueTree from "./components/vue-tree/VueTree";
  8. export default {
  9.   name: 'app',
  10.   data(){
  11.     return {
  12.       treeData2: [
  13.         {
  14.           text: "一级", // 显示的文字
  15.           expand: false, // 默认是否展开
  16.           children: [
  17.             {
  18.               text: "二级-1",
  19.               expand: false,
  20.             },
  21.             {
  22.               text: "二级-2",
  23.               expand: false,
  24.               children: [
  25.                 {
  26.                   text: "三级-1",
  27.                   expand: false,
  28.                 },
  29.                 {
  30.                   text: "三级-2",
  31.                   expand: false,
  32.                   children: [
  33.                     {
  34.                       text: "四级-1",
  35.                       expand: false,
  36.                     }
  37.                   ]
  38.                 }
  39.               ]
  40.             }
  41.           ]
  42.         },
  43.         {
  44.           text: "一级-2",
  45.           expand: false
  46.         }
  47.       ]
  48.     }
  49.   },
  50.   methods: {
  51.     treeClickEvent(item, treeItem){
  52.       console.log(item);
  53.     }
  54.   },
  55.   components: {
  56.     VueTree
  57.   }
  58. }
  59. </script>
