Base64 编码与解码通用函数 (原版：yxp-2017.02.15；修改：忘霄-2022.5.12)

;; base64 编码与解码通用函数   by. yxp  2017-02-15
;;功能：  base64 编码。将一个任意文件转换为 base64 码
;;参数：  file 需要编码的文件全路径
;;变量：  成功返回 txt 变量，输出 file 文件的 base64 编码
;;返回：  成功则返回 0，失败返回 nil
;;示例： (enbase64 "d:\\aa.bin" "d:\\aa.txt")
;;;(enbase64 "C:\\Users\\Admin\\Desktop\\BJPXGJ.slb" "C:\\Users\\Admin\\Desktop\\BJPXGJ.txt")
;;说明:  base64 编码。将一个任意文件转换为 base64 码
;;参数:file:需要编码的文件完整路径
;;参数:sfile:文件输出保存完整路径
;;返回:成功则返回 T，失败返回 nil
(defun enbase64(file sfile / bf-str->lst bin f msx msxb rado str strlst)
    (setq time0 (getvar "date"))
    (setq
        rado (vlax-create-object "adodb.stream")
        msx (vlax-create-object "msxml2.domdocument")
        file (findfile file)
    )
    (if (and rado msx file)
        (progn
            (defun BF-str->lst    (str del / pos)
                (if    (setq pos (vl-string-search del str))
                    (cons (substr str 1 pos)
                        (BF-str->lst (substr str (+ pos 1 (strlen del))) del)
                    )
                    (list str)
                )
            )
            (vlax-put-property rado 'type 1)
            (vlax-invoke-method rado 'open 'nil 'nil 'nil 'nil 'nil)
            (vlax-invoke-method rado 'loadfromfile file)
            (setq bin (vlax-invoke-method rado 'read 'nil))
            (vlax-invoke rado 'close)
            (vlax-release-object rado)  ;;释放对象
            (setq msx (vlax-create-object "msxml2.domdocument"))
            (setq msxb (vlax-invoke-method msx 'createelement "test"))
            (vlax-put-property msxb 'datatype "bin.base64")
            (vlax-put-property msxb 'nodetypedvalue bin)
            (setq str (vlax-get-property msxb 'text))
            (vlax-release-object msx)
            (setq strlst (BF-str->lst str "\n"))
            (setq f (open sfile "w"))
            (write-line "(setq strlist" f)
            (write-line "  '(" f)
            (foreach x strlst (write-line (strcat "     " (vl-prin1-to-string x)) f))
            (write-line "   )" f)
            (write-line ")" f)
            (close f)
            (setq time1 (getvar "date"))
            (princ (strcat "\nBase64编码耗时: " (rtos (* 86400 (- time1 time0)) 2 4) " 秒\n"))
            T
        )
        nil
    )
)
;;功能： base64 解码。base64 将文本转换为需要的二进制文件
;;参数： strlst - base64 码的字符串列表; file - 保存文件的全路径
;;返回：  成功则将 str 保存到 file，并返回 t，失败返回 nil
;;示例：(setq strlst '( "QXV0b0NBRCBTbGlkZSBMaWJyYXJ5IDEuMA0KGgAARgBJTUcxUjFDAAAAAAAAAAAAAAAAAAAA"
;;                                      "AAAAAAAAAAAAALAAAABJTUcxUjJDAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAN2TAQBJTUcx"
;;                                      "UjNDAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAKYCAwAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
;;                                      "AAAAAAAAAAAAACtwBABBdXRvQ0FEIFNsaWRlDQoaAFYCnwKhAmoimAACADQSAv8C/wD9BAD+"
;;                                  )
;;      )
;; (unbase64 strlst (strcat (Vla-Get-Path (Vlax-Get-Acad-Object)) "\\Support\\BJPXGJ.slb"))
(defun unbase64(strlst file / bin msx msxb wado)
    (setq
        wado (vlax-create-object "adodb.stream")
    msx (vlax-create-object "msxml2.domdocument")
    )
    (if(and wado msx)
        (progn
            (setq msxb (vlax-invoke-method msx 'createelement "test"))
            (vlax-put-property msxb 'datatype "bin.base64")
            (setq str (apply 'strcat strlst))
            (vlax-put-property msxb 'text str)
            (setq bin (vlax-get-property msxb 'nodetypedvalue))
            (vlax-release-object msx)
            (vlax-put-property wado 'type 1)
            (vlax-invoke-method wado 'open 'nil 'nil 'nil 'nil 'nil)
            (vlax-invoke-method wado 'write bin)
            (vlax-invoke-method wado 'savetofile file 2)
            (vlax-invoke-method wado 'close)
            (vlax-release-object wado)
            T
        )
        nil
    )
)

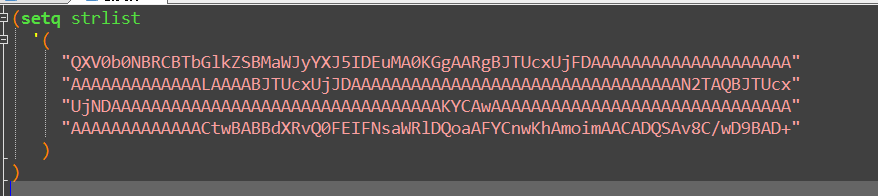

修改了下，输出文件就是这个样子
