环境搭建
从官方仓库 https://github.com/apache/rocketmq clone或者download源码。
源码目录结构
- broker: broker 模块（broke 启动进程）
- client ：消息客户端，包含消息生产者、消息消费者相关类
- common ：公共包
- dev ：开发者信息（非源代码）
- distribution ：部署实例文件夹（非源代码）
- example: RocketMQ 例代码
- filter ：消息过滤相关基础类
- filtersrv：消息过滤服务器实现相关类（Filter启动进程）
- logappender：日志实现相关类
- namesrv：NameServer实现相关类（NameServer启动进程）
- openmessageing：消息开放标准
- remoting：远程通信模块，给予Netty
- srcutil：服务工具类
- store：消息存储实现相关类
- style：checkstyle相关实现
- test：测试相关类
- tools：工具类，监控命令相关实现类
搭建
NameServer

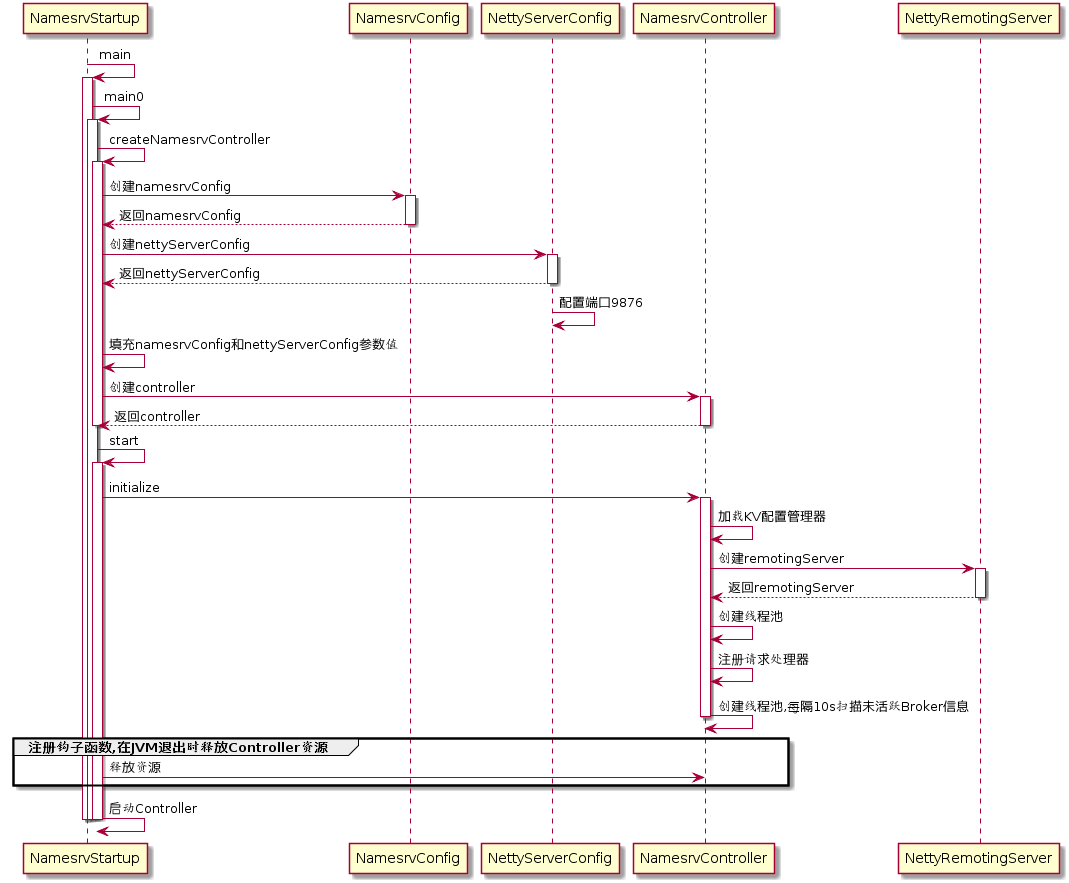

启动流程
代码：NamesrvStartup#createNamesrvController
//创建NamesrvConfigfinal NamesrvConfig namesrvConfig = new NamesrvConfig();//创建NettyServerConfigfinal NettyServerConfig nettyServerConfig = new NettyServerConfig();//设置启动端口号nettyServerConfig.setListenPort(9876);//解析启动-c参数if (commandLine.hasOption('c')) {String file = commandLine.getOptionValue('c');if (file != null) {InputStream in = new BufferedInputStream(new FileInputStream(file));properties = new Properties();properties.load(in);MixAll.properties2Object(properties, namesrvConfig);MixAll.properties2Object(properties, nettyServerConfig);namesrvConfig.setConfigStorePath(file);System.out.printf("load config properties file OK, %s%n", file);in.close();}}//解析启动-p参数if (commandLine.hasOption('p')) {InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_CONSOLE_NAME);MixAll.printObjectProperties(console, namesrvConfig);MixAll.printObjectProperties(console, nettyServerConfig);System.exit(0);}//将启动参数填充到namesrvConfig,nettyServerConfigMixAll.properties2Object(ServerUtil.commandLine2Properties(commandLine), namesrvConfig);//创建NameServerControllerfinal NamesrvController controller = new NamesrvController(namesrvConfig, nettyServerConfig);
代码：NamesrvController#initialize
public boolean initialize() {//加载KV配置this.kvConfigManager.load();//创建NettyServer网络处理对象this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService);//开启定时任务:每隔10s扫描一次Broker,移除不活跃的Brokerthis.remotingExecutor =Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_"));this.registerProcessor();this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {@Overridepublic void run() {NamesrvController.this.routeInfoManager.scanNotActiveBroker();}}, 5, 10, TimeUnit.SECONDS);//开启定时任务:每隔10min打印一次KV配置this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {@Overridepublic void run() {NamesrvController.this.kvConfigManager.printAllPeriodically();}}, 1, 10, TimeUnit.MINUTES);return true;}
代码：NamesrvStartup#start
//注册JVM钩子函数代码
Runtime.getRuntime().addShutdownHook(new ShutdownHookThread(log, new Callable<Void>() {
@Override
public Void call() throws Exception {
//释放资源
controller.shutdown();
return null;
}
}));
路由管理
NameServer的主要作用是为消息的生产者和消息消费者提供关于主题Topic的路由信息，那么NameServer需要存储路由的基础信息，还要管理Broker节点，包括路由注册、路由删除等。

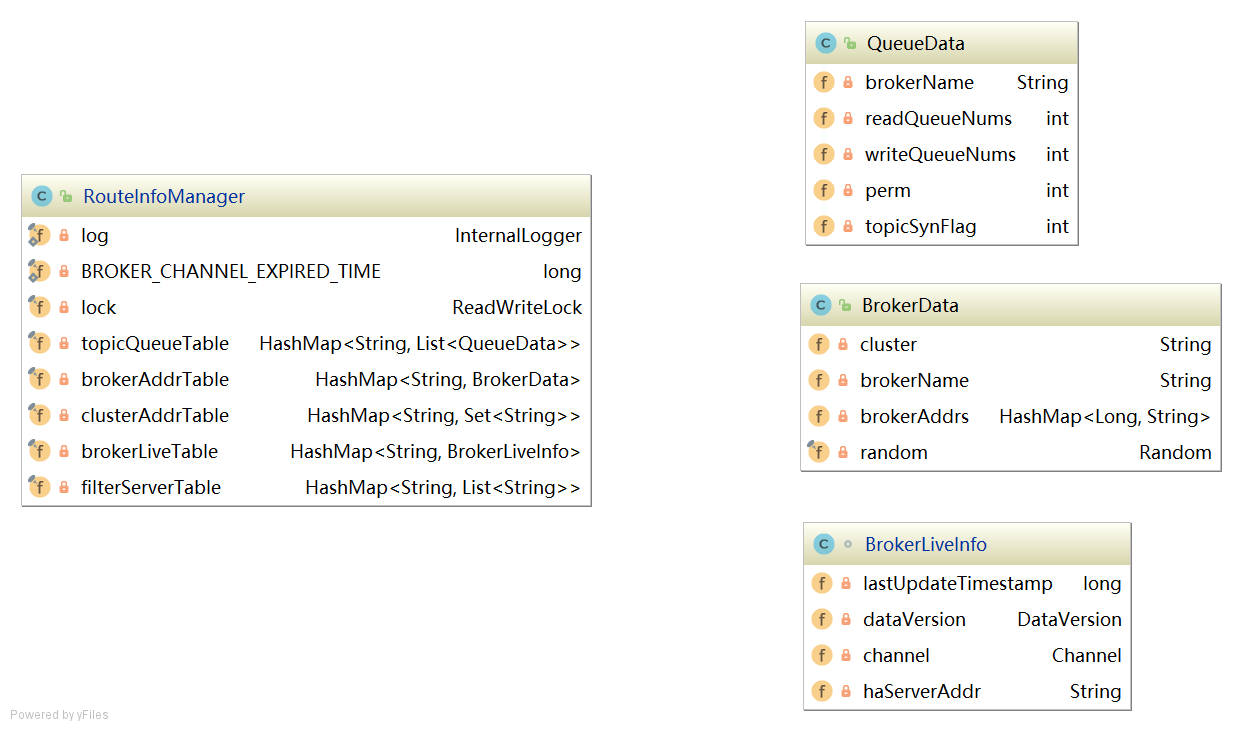

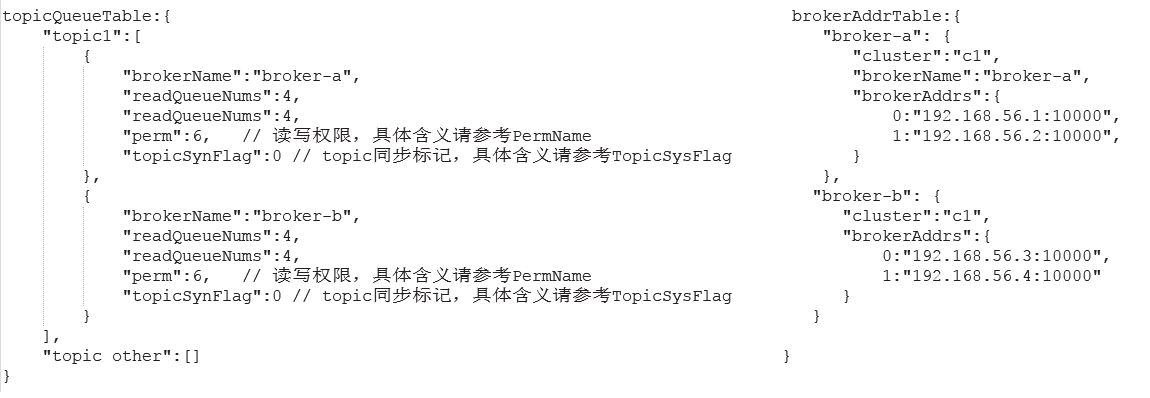

路由元信息
代码：RouteInfoManager
//Topic消息队列路由信息，消息发送时根据路由表进行负载均衡
private final HashMap<String/* topic */, List<QueueData>> topicQueueTable;
//Broker基础信息，包括brokerName、所属集群名称、主备Broker地址
private final HashMap<String/* brokerName */, BrokerData> brokerAddrTable;
//Broker集群信息，存储集群中所有Broker名称
private final HashMap<String/* clusterName */, Set<String/* brokerName */>> clusterAddrTable;
//Broker状态信息，NameServer每次收到心跳包是会替换该信息
private final HashMap<String/* brokerAddr */, BrokerLiveInfo> brokerLiveTable;
//Broker上的FilterServer列表，用于类模式消息过滤
private final HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
路由注册
1）发送心跳包
RocketMQ路由注册是通过Broker与NameServer的心跳功能实现的。Broker启动时向集群中所有的NameServer发送心跳信息，每隔30s向集群中所有NameServer发送心跳包，NameServer收到心跳包时会更新brokerLiveTable缓存中BrokerLiveInfo的lastUpdataTimeStamp信息，然后NameServer每隔10s扫描brokerLiveTable，如果连续120S没有收到心跳包，NameServer将移除Broker的路由信息同时关闭Socket连接。

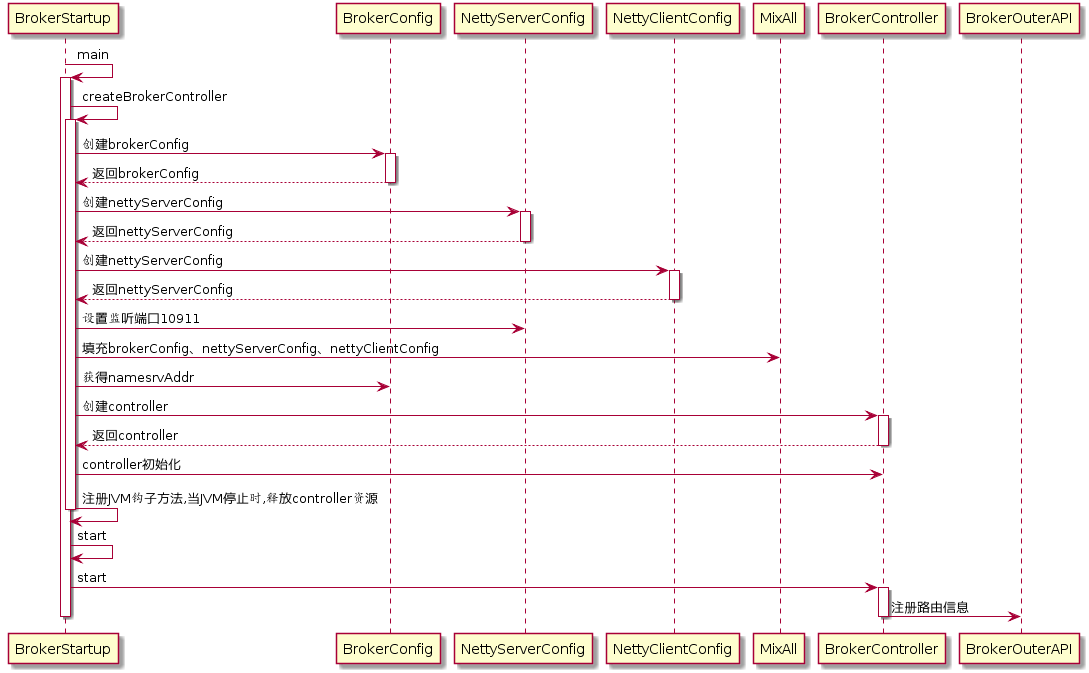

代码：BrokerController#start
//注册Broker信息
this.registerBrokerAll(true, false, true);
//每隔30s上报Broker信息到NameServer
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.registerBrokerAll(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)),
TimeUnit.MILLISECONDS);
代码：BrokerOuterAPI#registerBrokerAll
//获得nameServer地址信息
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
//遍历所有nameserver列表
if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
//封装请求头
final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
requestHeader.setBrokerAddr(brokerAddr);
requestHeader.setBrokerId(brokerId);
requestHeader.setBrokerName(brokerName);
requestHeader.setClusterName(clusterName);
requestHeader.setHaServerAddr(haServerAddr);
requestHeader.setCompressed(compressed);
//封装请求体
RegisterBrokerBody requestBody = new RegisterBrokerBody();
requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
requestBody.setFilterServerList(filterServerList);
final byte[] body = requestBody.encode(compressed);
final int bodyCrc32 = UtilAll.crc32(body);
requestHeader.setBodyCrc32(bodyCrc32);
final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(new Runnable() {
@Override
public void run() {
try {
//分别向NameServer注册
RegisterBrokerResult result = registerBroker(namesrvAddr,oneway, timeoutMills,requestHeader,body);
if (result != null) {
registerBrokerResultList.add(result);
}
log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
} catch (Exception e) {
log.warn("registerBroker Exception, {}", namesrvAddr, e);
} finally {
countDownLatch.countDown();
}
}
});
}
try {
countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
} catch (InterruptedException e) {
}
}
代码：BrokerOutAPI#registerBroker
if (oneway) {
try {
this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills);
} catch (RemotingTooMuchRequestException e) {
// Ignore
}
return null;
}
RemotingCommand response = this.remotingClient.invokeSync(namesrvAddr, request, timeoutMills);

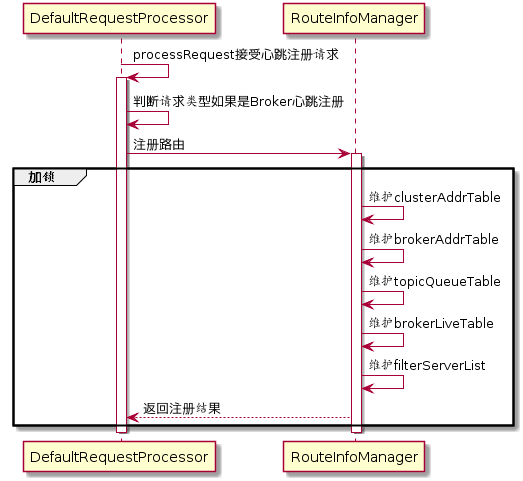

2）处理心跳包
org.apache.rocketmq.namesrv.processor.DefaultRequestProcessor网路处理类解析请求类型，如果请求类型是为REGISTER_BROKER，则将请求转发到RouteInfoManager#regiesterBroker
代码：DefaultRequestProcessor#processRequest
//判断是注册Broker信息
case RequestCode.REGISTER_BROKER:
Version brokerVersion = MQVersion.value2Version(request.getVersion());
if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
return this.registerBrokerWithFilterServer(ctx, request);
} else {
//注册Broker信息
return this.registerBroker(ctx, request);
}
代码：DefaultRequestProcessor#registerBroker
RegisterBrokerResult result = this.namesrvController.getRouteInfoManager().registerBroker(
requestHeader.getClusterName(),
requestHeader.getBrokerAddr(),
requestHeader.getBrokerName(),
requestHeader.getBrokerId(),
requestHeader.getHaServerAddr(),
topicConfigWrapper,
null,
ctx.channel()
);
代码：RouteInfoManager#registerBroker
维护路由信息
//加锁
this.lock.writeLock().lockInterruptibly();
//维护clusterAddrTable
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
if (null == brokerNames) {
brokerNames = new HashSet<String>();
this.clusterAddrTable.put(clusterName, brokerNames);
}
brokerNames.add(brokerName);
//维护brokerAddrTable
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
//第一次注册,则创建brokerData
if (null == brokerData) {
registerFirst = true;
brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
this.brokerAddrTable.put(brokerName, brokerData);
}
//非第一次注册,更新Broker
Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> item = it.next();
if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
it.remove();
}
}
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
registerFirst = registerFirst || (null == oldAddr);
//维护topicQueueTable
if (null != topicConfigWrapper && MixAll.MASTER_ID == brokerId) {
if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion()) ||
registerFirst) {
ConcurrentMap<String, TopicConfig> tcTable = topicConfigWrapper.getTopicConfigTable();
if (tcTable != null) {
for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
this.createAndUpdateQueueData(brokerName, entry.getValue());
}
}
}
}
代码：RouteInfoManager#createAndUpdateQueueData
private void createAndUpdateQueueData(final String brokerName, final TopicConfig topicConfig) {
//创建QueueData
QueueData queueData = new QueueData();
queueData.setBrokerName(brokerName);
queueData.setWriteQueueNums(topicConfig.getWriteQueueNums());
queueData.setReadQueueNums(topicConfig.getReadQueueNums());
queueData.setPerm(topicConfig.getPerm());
queueData.setTopicSynFlag(topicConfig.getTopicSysFlag());
//获得topicQueueTable中队列集合
List<QueueData> queueDataList = this.topicQueueTable.get(topicConfig.getTopicName());
//topicQueueTable为空,则直接添加queueData到队列集合
if (null == queueDataList) {
queueDataList = new LinkedList<QueueData>();
queueDataList.add(queueData);
this.topicQueueTable.put(topicConfig.getTopicName(), queueDataList);
log.info("new topic registered, {} {}", topicConfig.getTopicName(), queueData);
} else {
//判断是否是新的队列
boolean addNewOne = true;
Iterator<QueueData> it = queueDataList.iterator();
while (it.hasNext()) {
QueueData qd = it.next();
//如果brokerName相同,代表不是新的队列
if (qd.getBrokerName().equals(brokerName)) {
if (qd.equals(queueData)) {
addNewOne = false;
} else {
log.info("topic changed, {} OLD: {} NEW: {}", topicConfig.getTopicName(), qd,
queueData);
it.remove();
}
}
}
//如果是新的队列,则添加队列到queueDataList
if (addNewOne) {
queueDataList.add(queueData);
}
}
}
//维护brokerLiveTable
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,new BrokerLiveInfo(
System.currentTimeMillis(),
topicConfigWrapper.getDataVersion(),
channel,
haServerAddr));
//维护filterServerList
if (filterServerList != null) {
if (filterServerList.isEmpty()) {
this.filterServerTable.remove(brokerAddr);
} else {
this.filterServerTable.put(brokerAddr, filterServerList);
}
}
if (MixAll.MASTER_ID != brokerId) {
String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
if (masterAddr != null) {
BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
if (brokerLiveInfo != null) {
result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
result.setMasterAddr(masterAddr);
}
}
}
路由删除
Broker每隔30s向NameServer发送一个心跳包，心跳包包含BrokerId，Broker地址，Broker名称，Broker所属集群名称、Broker关联的FilterServer列表。但是如果Broker宕机，NameServer无法收到心跳包，此时NameServer如何来剔除这些失效的Broker呢？NameServer会每隔10s扫描brokerLiveTable状态表，如果BrokerLive的lastUpdateTimestamp的时间戳距当前时间超过120s，则认为Broker失效，移除该Broker，关闭与Broker连接，同时更新topicQueueTable、brokerAddrTable、brokerLiveTable、filterServerTable。
RocketMQ有两个触发点来删除路由信息：
- NameServer定期扫描brokerLiveTable检测上次心跳包与当前系统的时间差，如果时间超过120s，则需要移除broker。
- Broker在正常关闭的情况下，会执行unregisterBroker指令
这两种方式路由删除的方法都是一样的，就是从相关路由表中删除与该broker相关的信息。

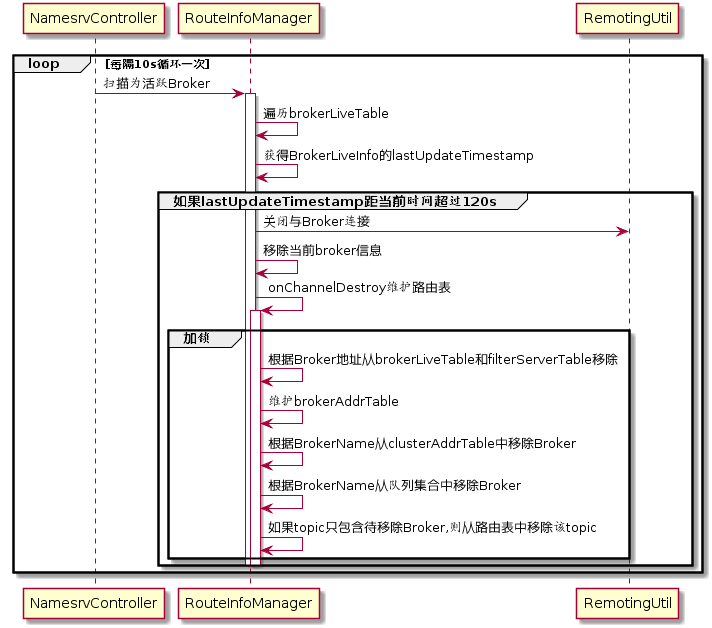

代码：NamesrvController#initialize
//每隔10s扫描一次为活跃Broker
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.scanNotActiveBroker();
}
}, 5, 10, TimeUnit.SECONDS);
代码：RouteInfoManager#scanNotActiveBroker
public void scanNotActiveBroker() {
//获得brokerLiveTable
Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();
//遍历brokerLiveTable
while (it.hasNext()) {
Entry<String, BrokerLiveInfo> next = it.next();
long last = next.getValue().getLastUpdateTimestamp();
//如果收到心跳包的时间距当时时间是否超过120s
if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
//关闭连接
RemotingUtil.closeChannel(next.getValue().getChannel());
//移除broker
it.remove();
//维护路由表
this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
}
}
}
代码：RouteInfoManager#onChannelDestroy
//申请写锁,根据brokerAddress从brokerLiveTable和filterServerTable移除
this.lock.writeLock().lockInterruptibly();
this.brokerLiveTable.remove(brokerAddrFound);
this.filterServerTable.remove(brokerAddrFound);
//维护brokerAddrTable
String brokerNameFound = null;
boolean removeBrokerName = false;
Iterator<Entry<String, BrokerData>> itBrokerAddrTable =this.brokerAddrTable.entrySet().iterator();
//遍历brokerAddrTable
while (itBrokerAddrTable.hasNext() && (null == brokerNameFound)) {
BrokerData brokerData = itBrokerAddrTable.next().getValue();
//遍历broker地址
Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> entry = it.next();
Long brokerId = entry.getKey();
String brokerAddr = entry.getValue();
//根据broker地址移除brokerAddr
if (brokerAddr.equals(brokerAddrFound)) {
brokerNameFound = brokerData.getBrokerName();
it.remove();
log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed",
brokerId, brokerAddr);
break;
}
}
//如果当前主题只包含待移除的broker,则移除该topic
if (brokerData.getBrokerAddrs().isEmpty()) {
removeBrokerName = true;
itBrokerAddrTable.remove();
log.info("remove brokerName[{}] from brokerAddrTable, because channel destroyed",
brokerData.getBrokerName());
}
}
//维护clusterAddrTable
if (brokerNameFound != null && removeBrokerName) {
Iterator<Entry<String, Set<String>>> it = this.clusterAddrTable.entrySet().iterator();
//遍历clusterAddrTable
while (it.hasNext()) {
Entry<String, Set<String>> entry = it.next();
//获得集群名称
String clusterName = entry.getKey();
//获得集群中brokerName集合
Set<String> brokerNames = entry.getValue();
//从brokerNames中移除brokerNameFound
boolean removed = brokerNames.remove(brokerNameFound);
if (removed) {
log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed",
brokerNameFound, clusterName);
if (brokerNames.isEmpty()) {
log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster",
clusterName);
//如果集群中不包含任何broker,则移除该集群
it.remove();
}
break;
}
}
}
//维护topicQueueTable队列
if (removeBrokerName) {
//遍历topicQueueTable
Iterator<Entry<String, List<QueueData>>> itTopicQueueTable =
this.topicQueueTable.entrySet().iterator();
while (itTopicQueueTable.hasNext()) {
Entry<String, List<QueueData>> entry = itTopicQueueTable.next();
//主题名称
String topic = entry.getKey();
//队列集合
List<QueueData> queueDataList = entry.getValue();
//遍历该主题队列
Iterator<QueueData> itQueueData = queueDataList.iterator();
while (itQueueData.hasNext()) {
//从队列中移除为活跃broker信息
QueueData queueData = itQueueData.next();
if (queueData.getBrokerName().equals(brokerNameFound)) {
itQueueData.remove();
log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed",
topic, queueData);
}
}
//如果该topic的队列为空,则移除该topic
if (queueDataList.isEmpty()) {
itTopicQueueTable.remove();
log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed",
topic);
}
}
}
//释放写锁
finally {
this.lock.writeLock().unlock();
}
路由发现
RocketMQ路由发现是非实时的，当Topic路由出现变化后，NameServer不会主动推送给客户端，而是由客户端定时拉取主题最新的路由。
代码：DefaultRequestProcessor#getRouteInfoByTopic
public RemotingCommand getRouteInfoByTopic(ChannelHandlerContext ctx,
RemotingCommand request) throws RemotingCommandException {
final RemotingCommand response = RemotingCommand.createResponseCommand(null);
final GetRouteInfoRequestHeader requestHeader =
(GetRouteInfoRequestHeader) request.decodeCommandCustomHeader(GetRouteInfoRequestHeader.class);
//调用RouteInfoManager的方法,从路由表topicQueueTable、brokerAddrTable、filterServerTable中分别填充TopicRouteData的List<QueueData>、List<BrokerData>、filterServer
TopicRouteData topicRouteData = this.namesrvController.getRouteInfoManager().pickupTopicRouteData(requestHeader.getTopic());
//如果找到主题对应你的路由信息并且该主题为顺序消息，则从NameServer KVConfig中获取关于顺序消息相关的配置填充路由信息
if (topicRouteData != null) {
if (this.namesrvController.getNamesrvConfig().isOrderMessageEnable()) {
String orderTopicConf =
this.namesrvController.getKvConfigManager().getKVConfig(NamesrvUtil.NAMESPACE_ORDER_TOPIC_CONFIG,
requestHeader.getTopic());
topicRouteData.setOrderTopicConf(orderTopicConf);
}
byte[] content = topicRouteData.encode();
response.setBody(content);
response.setCode(ResponseCode.SUCCESS);
response.setRemark(null);
return response;
}
response.setCode(ResponseCode.TOPIC_NOT_EXIST);
response.setRemark("No topic route info in name server for the topic: " + requestHeader.getTopic()
+ FAQUrl.suggestTodo(FAQUrl.APPLY_TOPIC_URL));
return response;
}
Producer

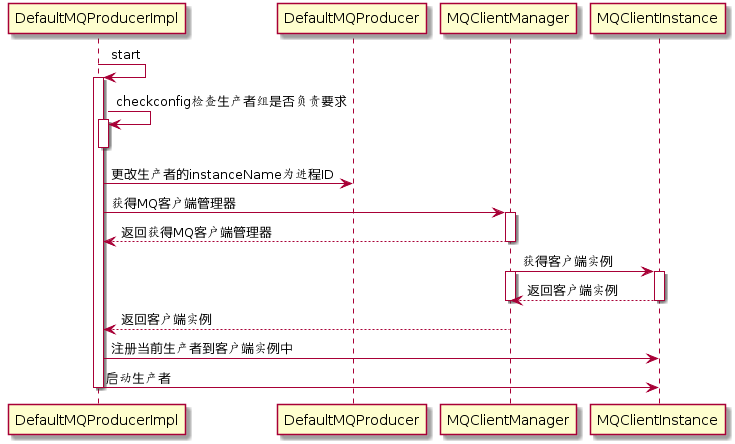

启动流程
代码：DefaultMQProducerImpl#start
public void start() throws MQClientException {
this.start(true);
}
public void start(final boolean startFactory) throws MQClientException {
switch (this.serviceState) {//初始化为ServiceState.CREATE_JUST
case CREATE_JUST:
this.serviceState = ServiceState.START_FAILED;
//检查生产者组是否满足要求
this.checkConfig();
//更改当前instanceName为进程ID
if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
this.defaultMQProducer.changeInstanceNameToPID();
}
//获得MQ客户端实例
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook);
//注册当前生产者到到MQClientInstance管理中,方便后续调用网路请求
boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
if (!registerOK) {
this.serviceState = ServiceState.CREATE_JUST;
throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
+ "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
null);
}
this.topicPublishInfoTable.put(this.defaultMQProducer.getCreateTopicKey(), new TopicPublishInfo());
//启动生产者 startFactory:true
if (startFactory) {
mQClientFactory.start();
}
log.info("the producer [{}] start OK. sendMessageWithVIPChannel={}", this.defaultMQProducer.getProducerGroup(),
this.defaultMQProducer.isSendMessageWithVIPChannel());
this.serviceState = ServiceState.RUNNING;
break;
case RUNNING:
case START_FAILED:
case SHUTDOWN_ALREADY:
throw new MQClientException("The producer service state not OK, maybe started once, "
+ this.serviceState
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
null);
default:
break;
}
this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();
this.startScheduledTask();
}
代码：MQClientManager#getOrCreateMQClientInstance
/*
整个JVM中只存在一个MQClientManager实例，维护一个MQClientInstance缓存表
ConcurrentMap<String clientId , MQClientInstance> factoryTable = new ConcurrentHashMap<String,MQClientInstance>();
同一个clientId只会创建一个MQClientInstance。
MQClientInstance封装了RocketMQ网络处理API，是消息生产者和消息消费者与NameServer、Broker打交道的网络通道
*/
public MQClientInstance getOrCreateMQClientInstance(final ClientConfig clientConfig,
RPCHook rpcHook) {
//构建客户端ID
String clientId = clientConfig.buildMQClientId();
//根据客户端ID或者客户端实例
MQClientInstance instance = this.factoryTable.get(clientId);
//实例如果为空就创建新的实例,并添加到实例表中
if (null == instance) {
instance =
new MQClientInstance(clientConfig.cloneClientConfig(),
this.factoryIndexGenerator.getAndIncrement(), clientId, rpcHook);
//存在重复的key，那么putIfAbsent不会放入值
MQClientInstance prev = this.factoryTable.putIfAbsent(clientId, instance);
if (prev != null) {
instance = prev;
log.warn("Returned Previous MQClientInstance for clientId:[{}]", clientId);
} else {
log.info("Created new MQClientInstance for clientId:[{}]", clientId);
}
}
return instance;
}
消息发送
消息存储
Consumer
若有收获，就点个赞吧
0 人点赞
