1、设置自带Series1的legend不显示，且MarkerMode为CheckboxandText

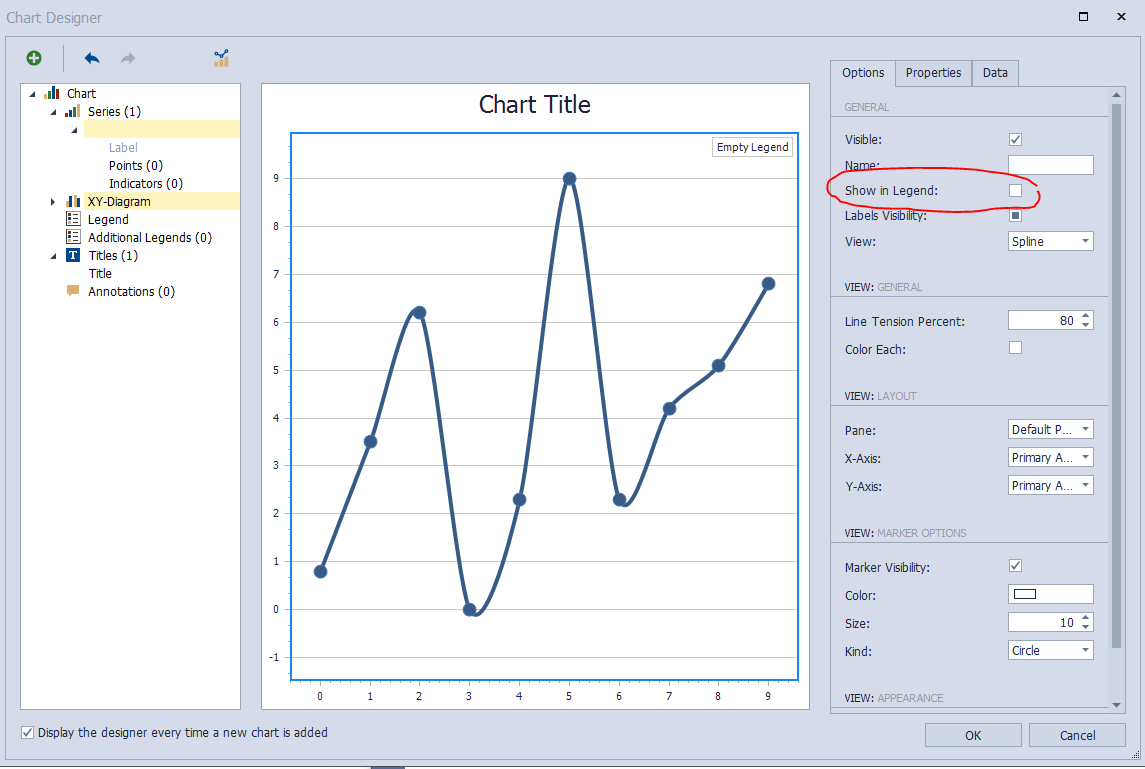

    先点击Run Designer —>点击Series1—取消勾选Show in Legend

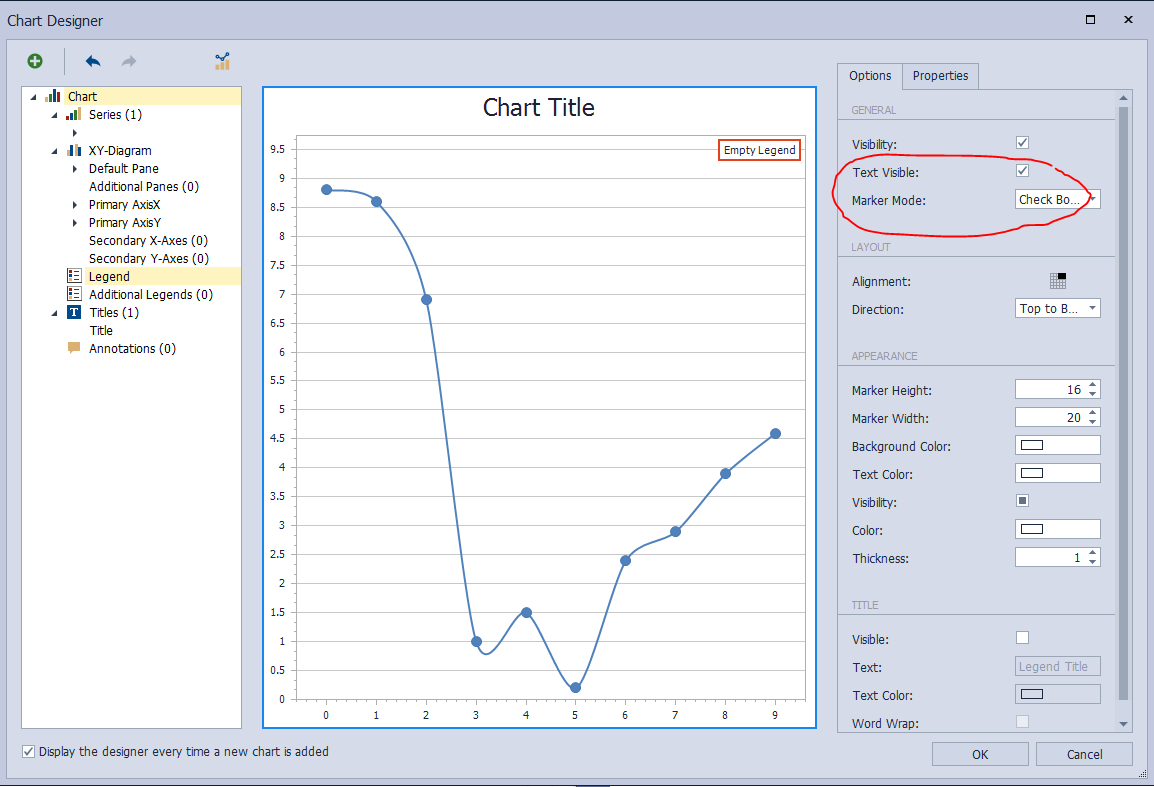

    下一步勾选 Text Visible 且MarkerMode设定

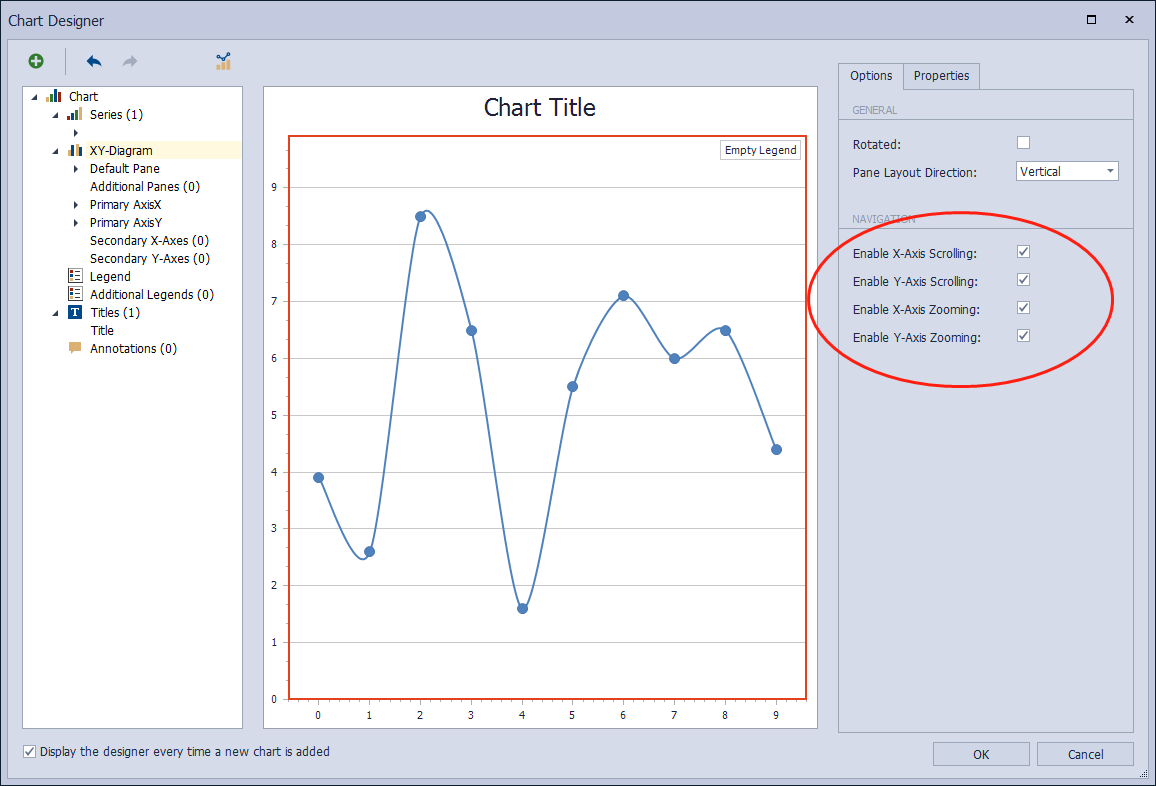

    同时设置一些其他的如XY轴可以缩放的和移动

    加上自己的一些代码

    1. private static void BindingCoordinate(ChartControl chartControl,ViewType viewType ,Color c, string name, Vector<double> x, Vector<double> y, bool flagScroll)
    2.         {
    3.             Series series = new Series(name, viewType);
    4.             XYDiagram diagram = chartControl.Diagram as XYDiagram;
    5.             int num = x.Count();
    6.             for (int i = 0; i < num; i++)
    7.             {
    8.                 SeriesPoint point = new SeriesPoint(x[i], y[i]);
    9.                 point.Color = c;
    10.                 series.Points.Add(point);
    11.             }
    13.             series.Name = name;
    14.             if (diagram != null)
    15.             {
    16.                 int x_margin = (int)(x.Max() - x.Min()) / num;
    17.                 int y_margin = (int)(y.Max() - y.Min()) / num;
    18.                 diagram.AxisX.Title.Alignment = StringAlignment.Center;
    19.                 diagram.AxisX.Title.EnableAntialiasing = DevExpress.Utils.DefaultBoolean.True;
    20.                 diagram.AxisX.WholeRange.Auto = false;
    21.                 diagram.AxisX.WholeRange.SetMinMaxValues(x.Min(), x.Max());
    22.                 //diagram.AxisX.WholeRange.SetMinMaxValues(x.Min() - x_margin, x.Max() + x_margin);
    24.                 diagram.AxisX.VisualRange.Auto = false;
    25.                 diagram.AxisX.VisualRange.SetMinMaxValues(x.Min() - x_margin, x.Max() + x_margin);
    26.                 //diagram.AxisX.VisualRange.SetMinMaxValues(x.Min(), x.Max());
    28.                 diagram.AxisX.VisualRange.SideMarginsValue = 0;
    29.                 diagram.AxisX.Title.Visibility = DevExpress.Utils.DefaultBoolean.True;
    30.                 diagram.AxisX.Title.Text = "东向坐标/m";
    32.                 diagram.AxisY.Title.Alignment = StringAlignment.Center;
    33.                 diagram.AxisY.Title.EnableAntialiasing = DevExpress.Utils.DefaultBoolean.True;
    34.                 diagram.AxisY.WholeRange.Auto = false;
    35.                 diagram.AxisY.WholeRange.SetMinMaxValues(y.Min(), y.Max());
    36.                 diagram.AxisY.VisualRange.Auto = false;
    37.                 diagram.AxisY.VisualRange.SetMinMaxValues(y.Min() - y_margin, y.Max() + y_margin);
    38.                 diagram.AxisY.VisualRange.SideMarginsValue = 0;
    39.                 diagram.AxisY.Title.Visibility = DevExpress.Utils.DefaultBoolean.True;
    40.                 diagram.AxisY.Title.Text = "北向坐标/m";
    42.                 chartControl.Series.Add(series);
    44.                 diagram.EnableAxisXZooming = flagScroll;
    45.                 diagram.EnableAxisXScrolling = flagScroll;
    46.                 diagram.EnableAxisYZooming = flagScroll;
    47.                 diagram.EnableAxisYScrolling = flagScroll;
    48.             }
    50.         }

    效果如下
