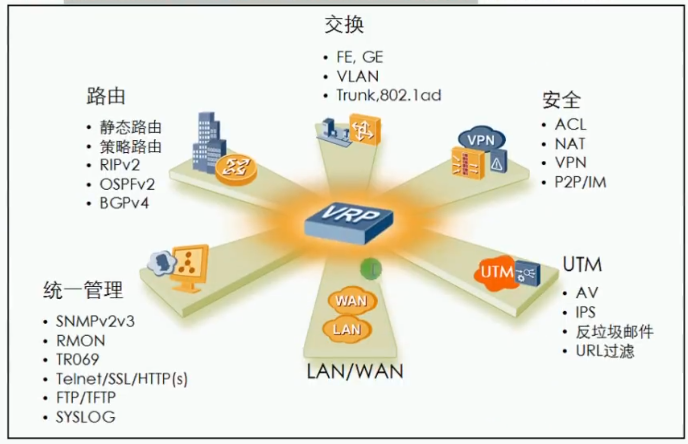

VRP是什么

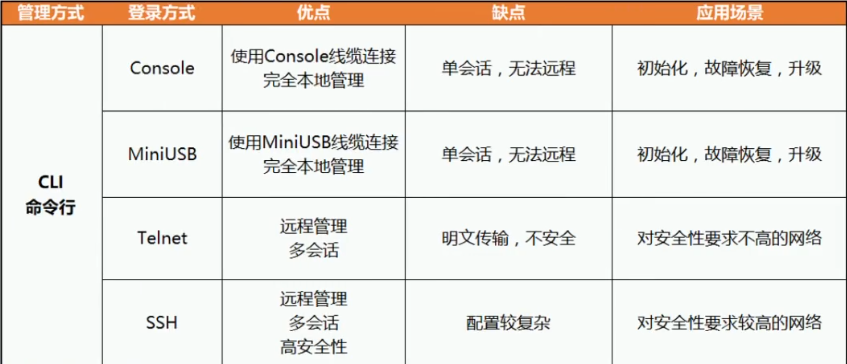

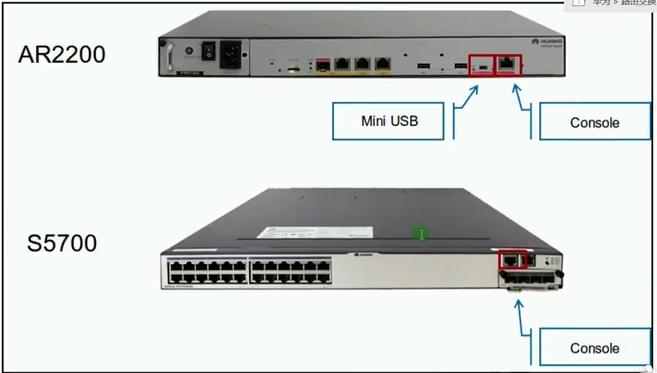

设备管理方式


VRP基础命令

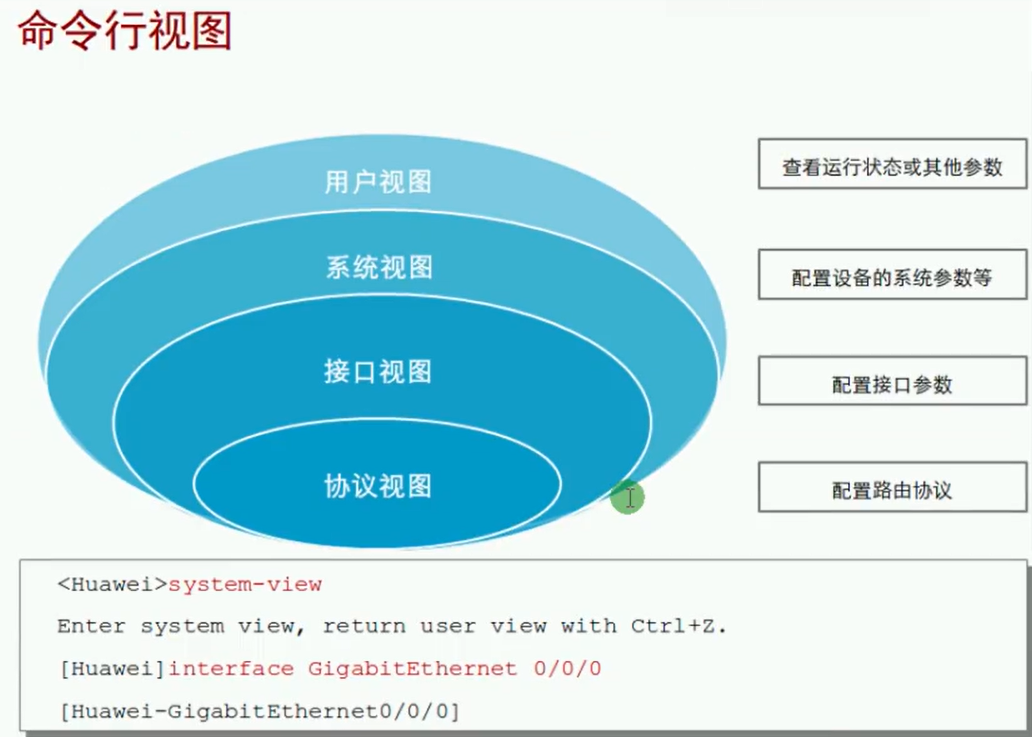

命令行视图

需要配置什么,就得进入什么视图中。 可以理解为模式
视图详情

命令行帮助 ?


查看接口状态(二层或三层)

display [ip] interface brief 查看接口信息

  1. [Huawei]display interface brief 查看2层口
  2. PHY: Physical
  3. *down: administratively down
  4. (l): loopback
  5. (s): spoofing
  6. (b): BFD down
  7. (e): ETHOAM down
  8. (dl): DLDP down
  9. (d): Dampening Suppressed
  10. InUti/OutUti: input utility/output utility
  11. Interface PHY Protocol InUti OutUti inErrors outErrors
  12. GigabitEthernet0/0/1 down down 0% 0% 0 0
  13. GigabitEthernet0/0/2 down down 0% 0% 0 0
  14. GigabitEthernet0/0/3 down down 0% 0% 0 0
  15. GigabitEthernet0/0/4 down down 0% 0% 0 0
  16. GigabitEthernet0/0/5 down down 0% 0% 0 0
  17. GigabitEthernet0/0/6 down down 0% 0% 0 0
  18. GigabitEthernet0/0/7 down down 0% 0% 0 0
  19. GigabitEthernet0/0/8 down down 0% 0% 0 0
  20. GigabitEthernet0/0/9 down down 0% 0% 0 0
  21. [Huawei]display ip interface brief 查看3层接口
  22. *down: administratively down
  23. ^down: standby
  24. (l): loopback
  25. (s): spoofing
  26. The number of interface that is UP in Physical is 1
  27. The number of interface that is DOWN in Physical is 2
  28. The number of interface that is UP in Protocol is 1
  29. The number of interface that is DOWN in Protocol is 2
  30. Interface IP Address/Mask Physical Protocol
  31. MEth0/0/1 unassigned down down
  32. NULL0 unassigned up up(s)
  33. Vlanif1 unassigned down down

显示系统版本

  1. [Huawei]display version
  2. Huawei Versatile Routing Platform Software
  3. VRP (R) software, Version 5.110 (S5700 V200R001C00)
  4. Copyright (c) 2000-2011 HUAWEI TECH CO., LTD
  5. Quidway S5700-28C-HI Routing Switch uptime is 0 week, 0 day, 1 hour, 27 minutes

显示已经连接的终端用户

  1. <Huawei>display users
  2. User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag
  3. + 0 CON 0 00:00:00 no
  4. Username : Unspecified
  5. <Huawei>

配置登入用户


VRP远程管理


TELNET服务

  1. 打开telnet服务
  2. telnet server enable
  3. 查看服务状态
  4. display telnet server status


配置远程登录

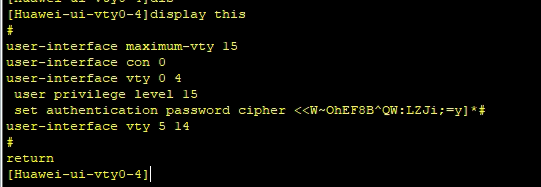

password

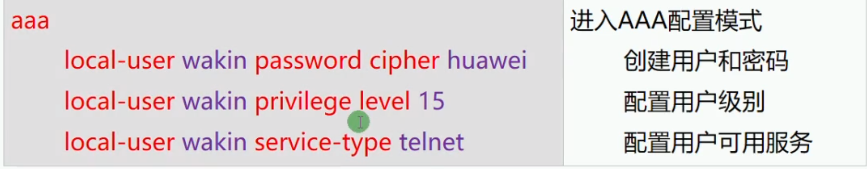

aaa

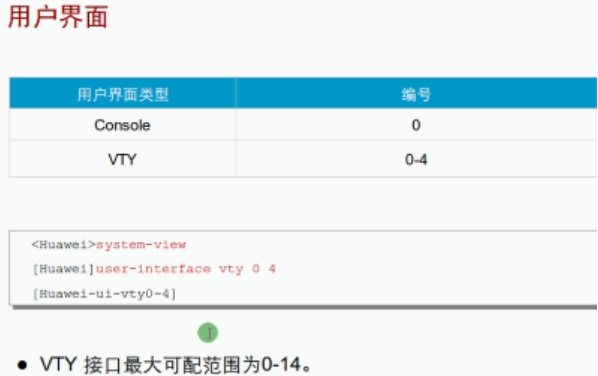

因为都是远程管理 所以都需要先选择 vty接口
选择之后进入 aaa模式即可开始配置

  1. [Huawei-aaa]display this
  2. #
  3. aaa
  4. authentication-scheme default
  5. authorization-scheme default
  6. accounting-scheme default
  7. domain default
  8. domain default_admin
  9. local-user admin password simple admin
  10. local-user admin service-type http
  11. local-user wakin password cipher $K&%QCXM$NYNZPO3JBXBHA!!
  12. local-user wakin privilege level 15
  13. local-user wakin service-type telnet terminal ssh
  14. #
  15. return
  16. [Huawei-aaa]

VRP文件系统

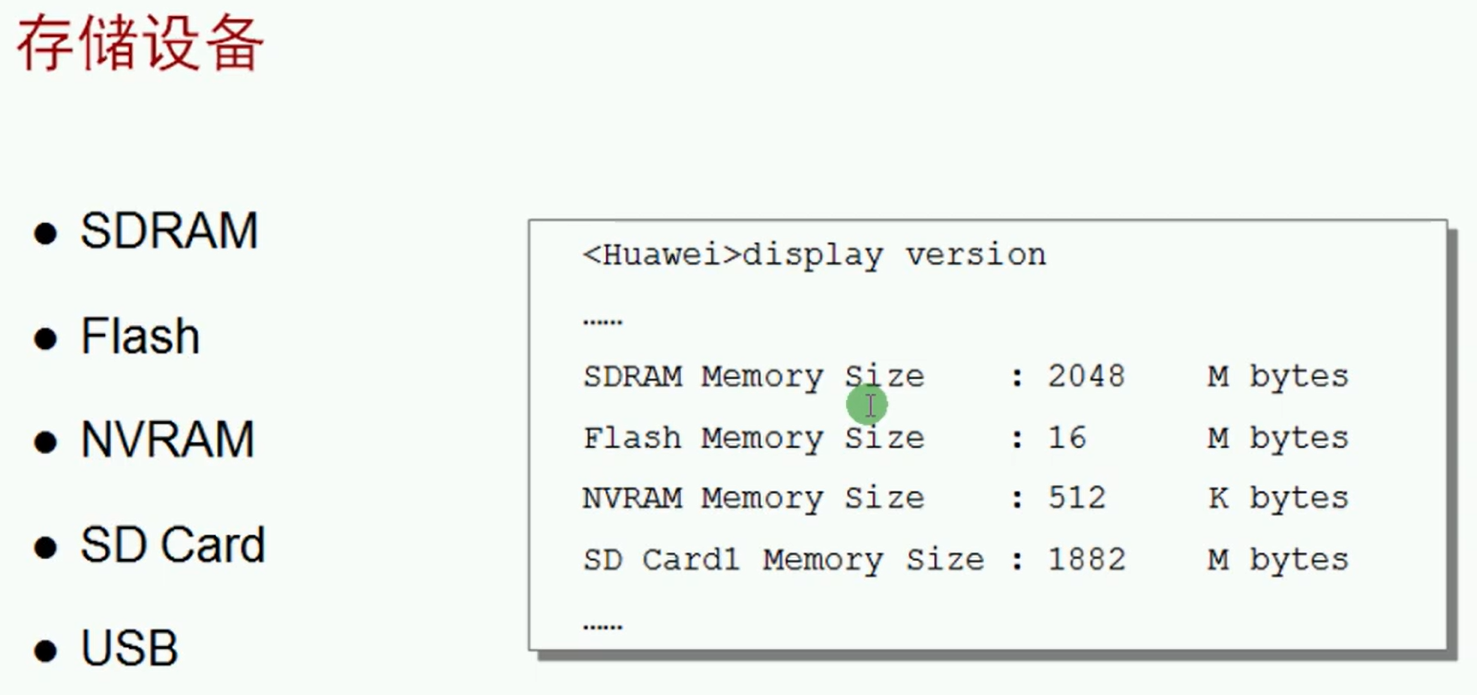

常见的存储设备

SDRAM 内存 (临时性存储) 断电后配置文件丢弃 (内存较大)
Flash 闪存 (永久性存储)
NVRAM 内存 断电后配置文件还在 (内存小)
SD card SD卡 (永久性存储)
USB (移动存储)

如何查看内存

  1. <Huawei>dir
  2. Directory of flash:/
  3. Idx Attr Size(Byte) Date Time(LMT) FileName
  4. 0 drw- - Jun 03 2021 04:15:21 dhcp
  5. 1 -rw- 121,802 May 26 2014 09:20:58 portalpage.zip
  6. 2 -rw- 2,263 Jun 03 2021 04:23:43 statemach.efs
  7. 3 -rw- 828,482 May 26 2014 09:20:58 sslvpn.zip
  8. 1,090,732 KB total (784,464 KB free)
  9. <Huawei>dis
  10. <Huawei>display ver
  11. Huawei Versatile Routing Platform Software
  12. VRP (R) software, Version 5.130 (AR1200 V200R003C00)
  13. Copyright (C) 2011-2012 HUAWEI TECH CO., LTD
  14. Huawei AR1220 Router uptime is 0 week, 0 day, 0 hour, 4 minutes
  15. BKP 0 version information:
  16. 1. PCB Version : AR01BAK1A VER.NC
  17. 2. If Supporting PoE : No
  18. 3. Board Type : AR1220
  19. 4. MPU Slot Quantity : 1
  20. 5. LPU Slot Quantity : 2
  21. MPU 0(Master) : uptime is 0 week, 0 day, 0 hour, 4 minutes
  22. MPU version information :
  23. 1. PCB Version : AR01SRU1A VER.A
  24. 2. MAB Version : 0
  25. 3. Board Type : AR1220
  26. 4. BootROM Version : 0
  27. <Huawei>

配置文件

VRP - 图19

delete文件后文件会存储在回收站”recycle-bin”中

  1. <Huawei>dir
  2. Directory of flash:/
  3. Idx Attr Size(Byte) Date Time(LMT) FileName
  4. 0 drw- - Jun 07 2021 04:41:52 dhcp
  5. 1 -rw- 121,802 May 26 2014 09:20:58 portalpage.zip
  6. 2 drw- - Jun 07 2021 04:47:15 1
  7. 3 -rw- 2,263 Jun 07 2021 04:41:36 statemach.efs
  8. 4 -rw- 828,482 May 26 2014 09:20:58 sslvpn.zip
  9. 5 -rw- 352 Jun 07 2021 04:48:26 private-data.txt
  10. 6 -rw- 541 Jun 07 2021 05:00:36 vrpcfg.zip
  11. 1,090,732 KB total (784,448 KB free)
  12. <Huawei>del
  13. <Huawei>delete v
  14. <Huawei>delete vrpcfg.zip
  15. Delete flash:/vrpcfg.zip? (y/n)[n]:y
  16. Info: Deleting file flash:/vrpcfg.zip...succeed.
  17. <Huawei>dir
  18. Directory of flash:/
  19. Idx Attr Size(Byte) Date Time(LMT) FileName
  20. 0 drw- - Jun 07 2021 04:41:52 dhcp
  21. 1 -rw- 121,802 May 26 2014 09:20:58 portalpage.zip
  22. 2 drw- - Jun 07 2021 04:47:15 1
  23. 3 -rw- 2,263 Jun 07 2021 04:41:36 statemach.efs
  24. 4 -rw- 828,482 May 26 2014 09:20:58 sslvpn.zip
  25. 5 -rw- 352 Jun 07 2021 04:48:26 private-data.txt
  26. 1,090,732 KB total (784,444 KB free)
  27. <Huawei>und
  28. <Huawei>undelete v
  29. <Huawei>undelete vrpcfg.zip
  30. Undelete flash:/vrpcfg.zip? (y/n)[n]:y
  31. %Undeleted file flash:/vrpcfg.zip.
  32. <Huawei>

配置文件管理
VRP - 图20
这里是比较save-config 与 current-config的差别,实际上save-config后会在/目录下生成一个名为vrpcfg.zip的文件

  1. <Huawei>dir
  2. Directory of flash:/
  3. Idx Attr Size(Byte) Date Time(LMT) FileName
  4. 0 drw- - Jun 07 2021 04:41:52 dhcp
  5. 1 -rw- 121,802 May 26 2014 09:20:58 portalpage.zip
  6. 2 drw- - Jun 07 2021 04:47:15 1
  7. 3 -rw- 2,263 Jun 07 2021 04:41:36 statemach.efs
  8. 4 -rw- 828,482 May 26 2014 09:20:58 sslvpn.zip
  9. 5 -rw- 352 Jun 07 2021 04:48:26 private-data.txt
  10. 1,090,732 KB total (784,448 KB free)
  11. <Huawei>save
  12. The current configuration will be written to the device.
  13. Are you sure to continue? (y/n)[n]:y
  14. It will take several minutes to save configuration file, please wait..........
  15. ...
  16. Configuration file had been saved successfully
  17. Note: The configuration file will take effect after being activated
  18. <Huawei>dir
  19. Directory of flash:/
  20. Idx Attr Size(Byte) Date Time(LMT) FileName
  21. 0 drw- - Jun 07 2021 04:41:52 dhcp
  22. 1 -rw- 121,802 May 26 2014 09:20:58 portalpage.zip
  23. 2 drw- - Jun 07 2021 04:47:15 1
  24. 3 -rw- 2,263 Jun 07 2021 04:41:36 statemach.efs
  25. 4 -rw- 828,482 May 26 2014 09:20:58 sslvpn.zip
  26. 5 -rw- 352 Jun 07 2021 04:48:26 private-data.txt
  27. 6 -rw- 541 Jun 07 2021 05:02:30 vrpcfg.zip
  28. 1,090,732 KB total (784,440 KB free)

VRP - 图22

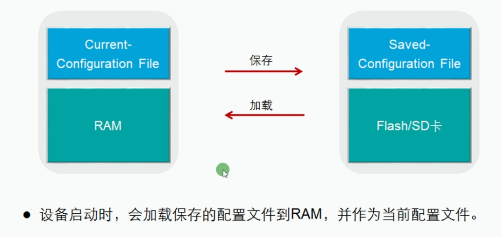

这里实际上在比较上面提到的,save-config 与 current-config,即一个存在内存中一个存在SD卡中的配置文件的差别。

  1. [R1]sys
  2. [R1]sysname R2
  3. [R2]q
  4. <R2>comp
  5. <R2>compare co
  6. <R2>compare configuration
  7. The current configuration is not the same as the next startup configuration fil
  8. e.
  9. ====== Current configuration line 2 ======
  10. sysname R2
  11. #
  12. snmp-agent local-engineid 800007DB03000000000000
  13. snmp-agent
  14. #
  15. clock timezone China-Standard-Time minus 08:00:00
  16. ====== Configuration file line 2 ======
  17. snmp-agent local-engineid 800007DB03000000000000
  18. snmp-agent
  19. #
  20. clock timezone China-Standard-Time minus 08:00:00
  21. #
  22. <R2>
  23. <R2>

虚拟机中是不存在配置的系统文件

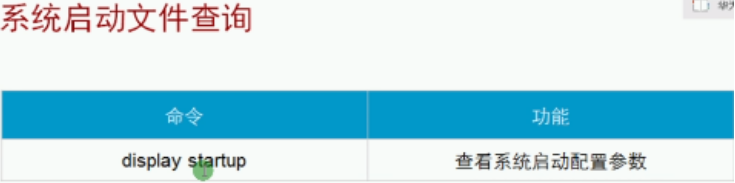

  1. <R2>display startup
  2. MainBoard:
  3. Startup system software: null
  4. Next startup system software: null
  5. Backup system software for next startup: null
  6. Startup saved-configuration file: flash:/vrpcfg.zip
  7. Next startup saved-configuration file: flash:/vrpcfg.zip
  8. Startup license file: null
  9. Next startup license file: null
  10. Startup patch package: null
  11. Next startup patch package: null
  12. Startup voice-files: null
  13. Next startup voice-files: null
  14. <R2>

真机中的配置文件
