补充

initialize

  • lookUpImpOrforward函数中会调用realizeAndInitializeIfNeeded_locked -> realizeClassMaybeSwiftAndLeaveLocked，即类的initialize方法 ```objectivec static Class realizeAndInitializeIfNeeded_locked(id inst, Class cls, bool initialize) { runtimeLock.assertLocked(); if (slowpath(!cls->isRealized())) {

    1.   cls = realizeClassMaybeSwiftAndLeaveLocked(cls, runtimeLock);
    2.   // runtimeLock may have been dropped but is now locked again

    }

    if (slowpath(initialize && !cls->isInitialized())) {

    1.   cls = initializeAndLeaveLocked(cls, inst, runtimeLock);
    2.   // runtimeLock may have been dropped but is now locked again
    4.   // If sel == initialize, class_initialize will send +initialize and
    5.   // then the messenger will send +initialize again after this
    6.   // procedure finishes. Of course, if this is not being called
    7.   // from the messenger then it won't happen. 2778172

    } return cls; }

  1. <a name="uO41r"></a>
  2. ## unrecognized selector
  4. - 方法找不到时，报经典错误unrecognized selector sent to instance 0x...........
  5. - 其调用流程为：
  6.    - lookUpImpOrForward(初始赋值forward_imp = (IMP)_objc_msgForward_impcache)
  7.    - 方法未找到时，imp = _objc_msgForward_impcache， _objc_msgForward_impcache被赋值给了imp
  8.    - _objc_msgForward_impcache汇编中调用了objc_defaultForwardHandler方法
  9.    - objc_defaultForwardHandler中执行了格式打印
  10. ```objectivec
  11. __attribute__((noreturn, cold)) void
  12. objc_defaultForwardHandler(id self, SEL sel)
  13. {
  14.     _objc_fatal("%c[%s %s]: unrecognized selector sent to instance %p "
  15.                 "(no message forward handler is installed)",
  16.                 class_isMetaClass(object_getClass(self)) ? '+' : '-',
  17.                 object_getClassName(self), sel_getName(sel), self);
  18. }

instrumentObjc函数

在lookupImpOrForward函数中，done：结束后调用了log_and_fill_cache，该函数中有一个判断是否支持写入messageLog，如果支持且开启，则可以在对应文件夹中找到消息发送的日志文件

  1. log_and_fill_cache(cls, imp, sel, inst, curClass);
  3. static void
  4. log_and_fill_cache(Class cls, IMP imp, SEL sel, id receiver, Class implementer)
  5. {
  6. #if SUPPORT_MESSAGE_LOGGING
  7.     ///<< implementer为传入的implementer，在lookupImpOrForward函数中，传入的是curClass为真
  8.     ///<< 所以此时objcMsgLogEnabled如果为真，则可以开启写入流程
  9.     if (slowpath(objcMsgLogEnabled && implementer)) {
  10.         bool cacheIt = logMessageSend(implementer->isMetaClass(),
  11.                                       cls->nameForLogging(),
  12.                                       implementer->nameForLogging(),
  13.                                       sel);
  14.         if (!cacheIt) return;
  15.     }
  16. #endif
  17.     cls->cache.insert(sel, imp, receiver);
  18. }
  20. ///<< logMessageSend写文件的地址为 "/tmp/msgSends-%d"
  21. bool logMessageSend(bool isClassMethod,
  22.                     const char *objectsClass,
  23.                     const char *implementingClass,
  24.                     SEL selector)
  25. {
  26.     char    buf[ 1024 ];
  28.     // Create/open the log file
  29.     if (objcMsgLogFD == (-1))
  30.     {
  31.         snprintf (buf, sizeof(buf), "/tmp/msgSends-%d", (int) getpid ());
  32.         objcMsgLogFD = secure_open (buf, O_WRONLY | O_CREAT, geteuid());
  33.         if (objcMsgLogFD < 0) {
  34.             // no log file - disable logging
  35.             objcMsgLogEnabled = false;
  36.             objcMsgLogFD = -1;
  37.             return true;
  38.         }
  39.     }
  40.     ...
  41. }

建立person类，在对应想打印的方法前后添加调用

  1. LGPerson *person = [LGPerson alloc];
  2. instrumentObjcMessageSends(YES);
  3. [person sayHello];
  4. instrumentObjcMessageSends(NO);

编译后在对应的temp文件夹下找到了msgSends-70902文件
msgSends-70902文件中记录的msgSend的流程

动态消息处理

lookUpImpOrForward中的单例

  • LOOKUP_RESOLVER = 2， 0011 & 0010 = 0010

    1. if (slowpath(behavior & LOOKUP_RESOLVER)) {
    2.  behavior ^= LOOKUP_RESOLVER; 异或
    3.  return resolveMethod_locked(inst, sel, cls, behavior);
    4. }

    resolveInstanceMethod

  • resolveInstanceMethod:(inst, sel, cls), 非元类时走这里

    • 进而包装resolve…method
      • resolve_sel = @selector(resolveInstanceMethod:) 实现了此方法，则进行容错处理
      • bool resolved = msg(cls, resolve_sel, sel) 根据resovled是否成功进行下一步处理
      • imp = looUpImpOrNilTryCache(inst, sel, cls)
    • 这里走两次原因是一次根据继承链查找，一次根据isa的走位图查找，所以后续可以写在NSObject分类中统一处理（resolveInstanceMethod + resolveClassMethod） ```objectivec

  • (BOOL)resolveInstanceMethod:(SEL)sel { // 来了两次 // 处理 sel -> imp

    IMP sayNBImp = class_getMethodImplementation(self, @selector(sayNB)); Method method = class_getInstanceMethod(self , @selector(sayNB)); const char * type = method_getTypeEncoding(method); if (sel == @selector(say666)) {

    1.   return class_addMethod(self, sel, sayNBImp, type);

    } return [super resolveInstanceMethod:sel]; } ```

    resolveClassMethod

  • resolveClassMethod:(inst, sel, cls)，元类时走这里 ```objectivec //// 元类的以对象方法的方法

  • (BOOL)resolveClassMethod:(SEL)sel{

    NSLog(@”resolveClassMethod :%@-%@”,self,NSStringFromSelector(sel));

    if (sel == @selector(sayHappy)) {

    1.   IMP sayNBImp     = class_getMethodImplementation(objc_getMetaClass("LGTeacher"), @selector(sayKC));
    2.   Method method    = class_getInstanceMethod(objc_getMetaClass("LGTeacher"), @selector(sayKC));
    3.   const char *type = method_getTypeEncoding(method);
    4.   return class_addMethod(objc_getMetaClass("LGTeacher"), sel, sayNBImp, type);

    }

    return [super resolveClassMethod:sel]; } ```

    AOP

  • 切面编程，上述在Person类中写的resolve方法，可以统一写在NSObject分类中，根据isa的走位图和继承链，会分别调用实例方法和对象方法共两次 ```objectivec
  • (void)sayNB{ NSLog(@”%@ - %s”,self , func); }
  • (void)sayKC{ NSLog(@”%@ - %s”,self , func); }

pragma clang diagnostic push

// 让编译器忽略错误

pragma clang diagnostic ignored “-Wundeclared-selector”

  • (BOOL)resolveInstanceMethod:(SEL)sel{ // resolveInstanceMethod :LGTeacher-say666 为什么是两次 家庭作业 // 处理 sel -> imp

    NSLog(@”resolveInstanceMethod :%@-%@”,self,NSStringFromSelector(sel));

    if (sel == @selector(say666)) {

    1.   IMP sayNBImp     = class_getMethodImplementation(self, @selector(sayNB));
    2.   Method method    = class_getInstanceMethod(self, @selector(sayNB));
    3.   const char *type = method_getTypeEncoding(method);
    4.   return class_addMethod(self, sel, sayNBImp, type);

    }else if (sel == @selector(sayHappy)) {

    1.   IMP sayNBImp     = class_getMethodImplementation(objc_getMetaClass("LGTeacher"), @selector(sayKC));
    2.   Method method    = class_getInstanceMethod(objc_getMetaClass("LGTeacher"), @selector(sayKC));
    3.   const char *type = method_getTypeEncoding(method);
    4.   return class_addMethod(objc_getMetaClass("LGTeacher"), sel, sayNBImp, type);

    } return NO; } @end

    pragma clang diagnostic pop

    ```

  • 本质就是通过say666() sel 查找imp的过程
    • 苹果给的一次机会
    • 写在NSObject分类中，全局方法找不到时，我们都能监听到
    • 命名规范：lg_model_traffic -> lg_home_didClickDetail -> pop home -> 发送消息给后台 -> 修改为题
    • 利用了Runtime特性
    • oop优缺点
      • 对象分工明确
      • 代码冗余，某一特性，需要继承（强依赖 - 强耦合）
    • aop 无入侵 - 动态注入代码，注意切入的方法以及切入的类
      • 会有性能消耗，此时是消息转发前的最后一次，后面的消息转发无意义，所以这里NSObject做Aop不好

消息转发

  • 消息转发分为快速转发和慢速转发，其实现是在CoreFoundation框架。

    forwardingTargetForSelector

  • 快速转发

  • 我给你，要不起，转给别人，找背锅侠
  • 所有方法找不到，都向Student类中堆积，看是否会实现

建立一个person类，一个student类，teacher声明一个say方法且未实现，在person中有对应声明和实现，运行时会报错

  1. LGPerson *person = [LGPerson alloc];
  2. [person sayHello];

在person类中加入forwardingTargetForSelector方法，则消息转发给了student处理

  1. - (id)forwardingTargetForSelector:(SEL)aSelector {
  2.     return [LGStudent alloc];
  3. }
  5. -[LGStudent sayHello]

methodSignatureForSelector

  • 慢速转发
  • methodSignatureForSelector 要和forwarInvocation配套使用才能生效，在methodSignatureForSelector方法签名后，系统会保存此方法。
    • methodSignature判断sel，进行签名
    • forwardInvocation处理
  • 签名即”V@:@”格式
  • 所有系统消息都称为事务，可做可不做。所以在methodSignature签名后，forwardInvocation中不处理也不会崩溃 ```objectivec

  • (NSMethodSignature *)methodSignatureForSelector:(SEL)aSelector{ NSLog(@”%s - %@”,func,NSStringFromSelector(aSelector)); if (aSelector == @selector(sayHello)) {

    1.   return [NSMethodSignature signatureWithObjCTypes:"v@:@"];

    } return [super methodSignatureForSelector:aSelector]; }

  • (void)forwardInvocation:(NSInvocation )anInvocation{ NSLog(@”%@ - %@”,anInvocation.target,NSStringFromSelector(anInvocation.selector)); LGStudent s = [LGStudent alloc]; if ([self respondsToSelector:anInvocation.selector]) {

    1.   [anInvocation invoke];

    }else if ([s respondsToSelector:anInvocation.selector]){

    1.   [anInvocation invokeWithTarget:s]; // s来接

    }else{

    1.   NSLog(@"%s - %@",__func__,NSStringFromSelector(anInvocation.selector));

    } } ```

    流程探索

    去除上述快速转发、慢速转发消息的处理，运行时崩溃在方法找不到，这是bt查看函数调用栈，发现CoreFoundation框架中的-[NSObject(NSObject) doesNotRecognizeSelector:] 与当前程序崩溃信息一致，其向前调用函数分别为forwarding和_CF_forwarding_prep_0

  • CoreFoundation静态库部分开源，查找不到forwarding和_CF_forwarding_prep_0，所用需要用CoreFoundation的动态库查看

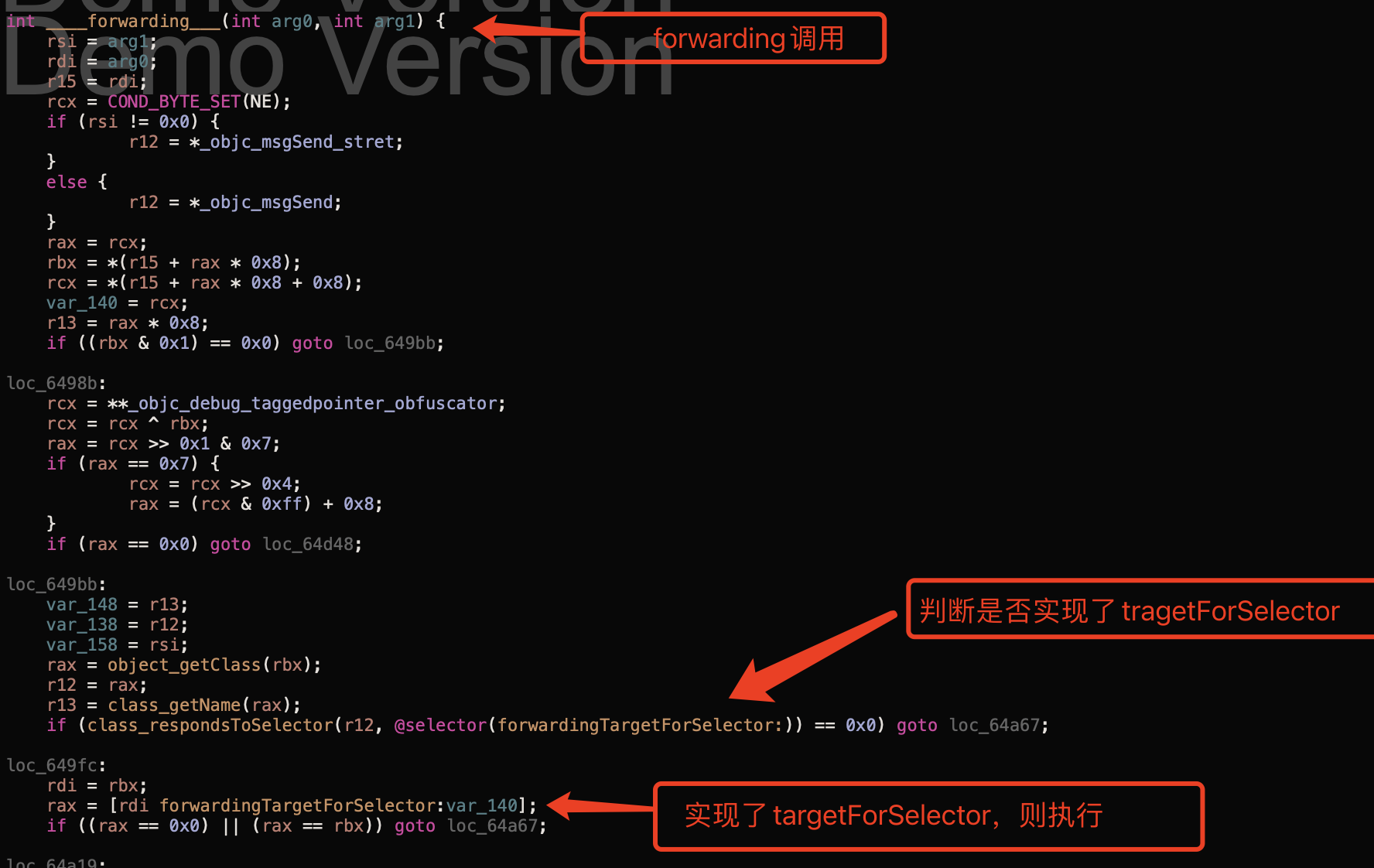

  • 通过hopper查看分析coreFoundation

未实现forwardingTargetForSelector则跳转loc_64a67

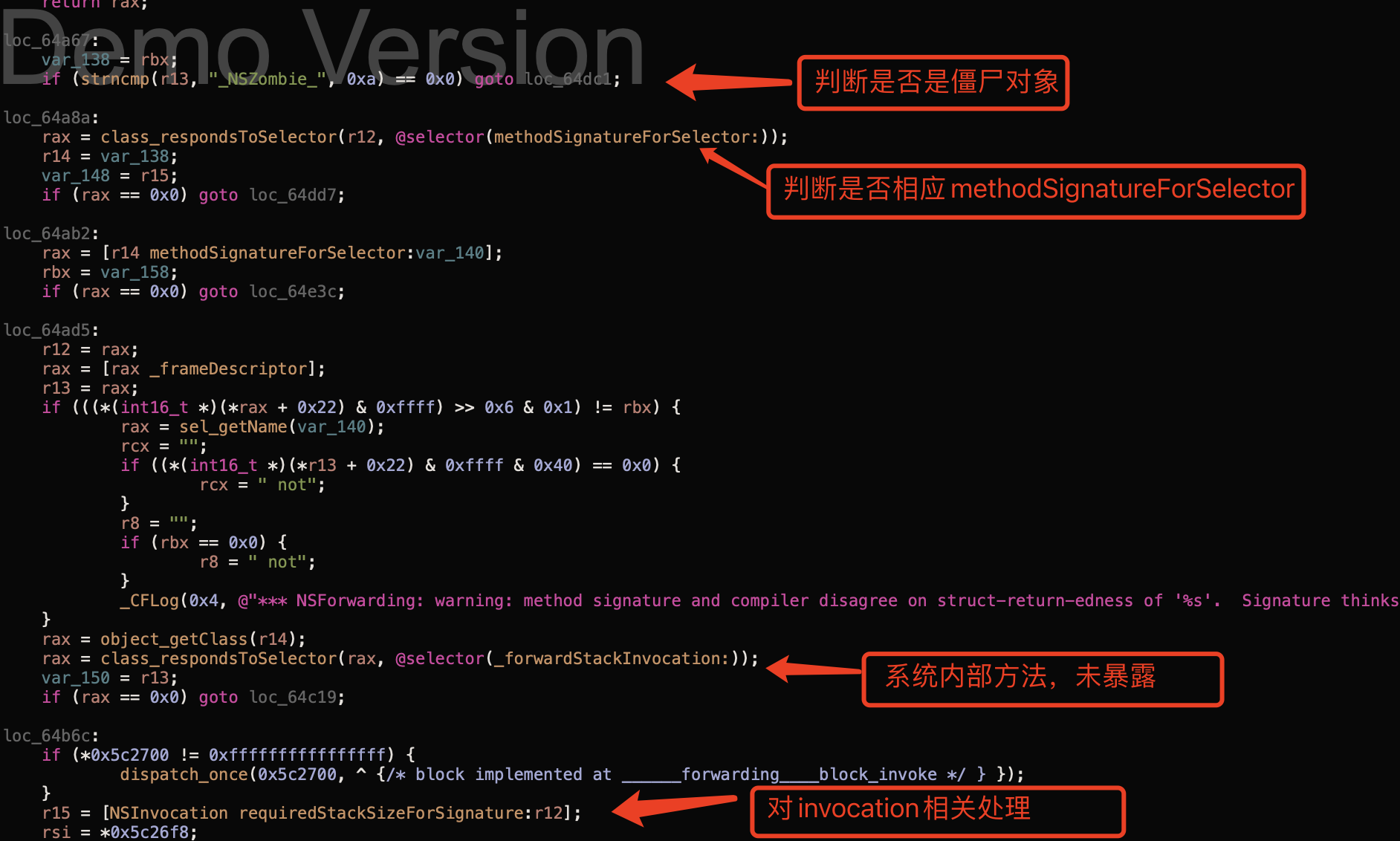

image.png流程继续进行，则会判断是否实现了forwardInvocation

  • 动态决议resolveInstanceMethod走两次的原因：
    • 第一次方法没有此方法，会调用resolveInstanceMethod方法
    • 通过bt查看堆栈信息，第二次则为
      • _CF_forwarding_prep_0
      • forwarding
      • [NSObject(NSObject) doesNotRecongnizeSelector:]
      • class_respondsToSelector_inst
      • lookUpImpOrNilTryCache

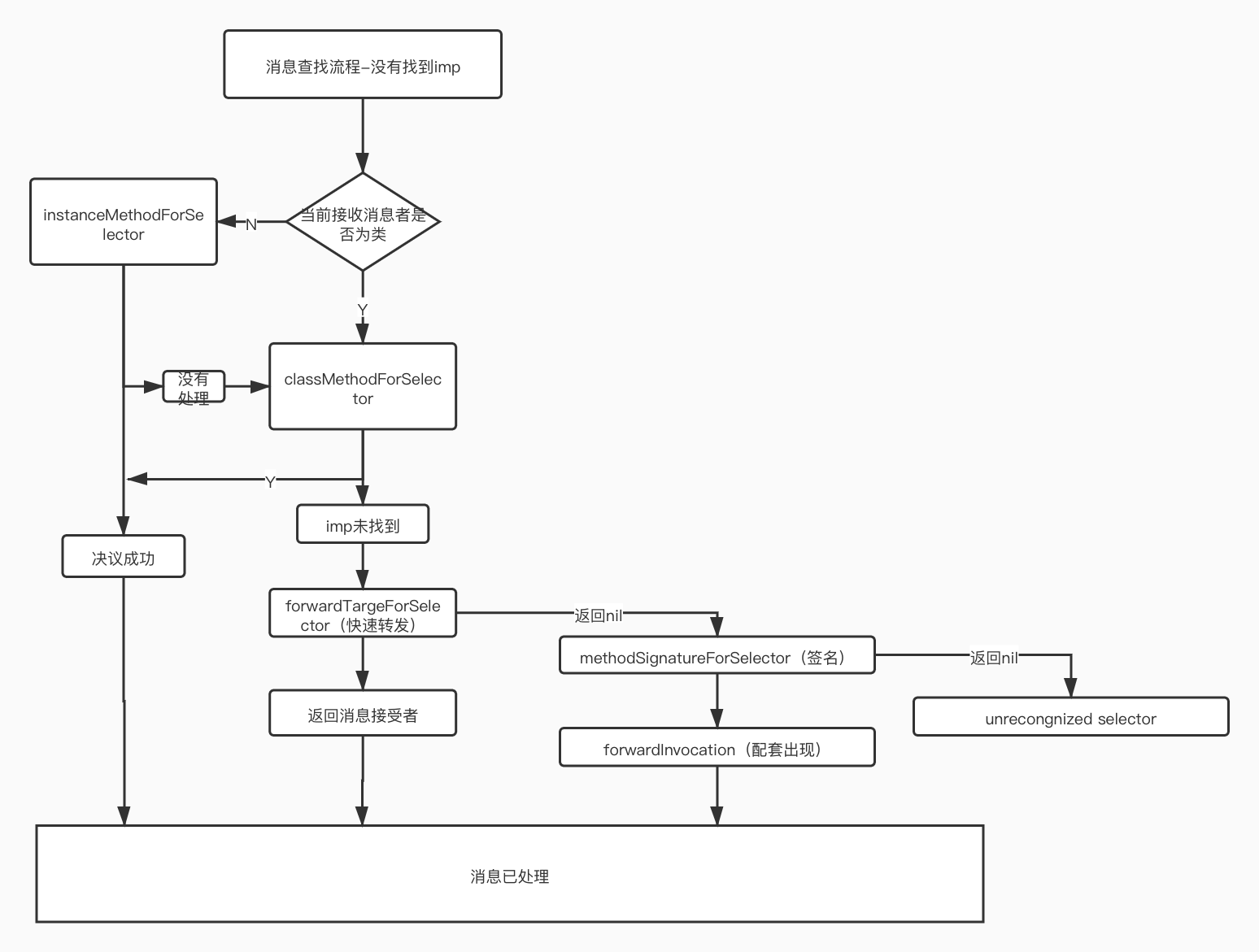

流程图
