前言
- iOS-block（上）对block种类进行了划分，由此也可以引出几个问题：
- 建立一个.c文件，包含了局部变量、block、block调用
- 通过xcrun编译为.cpp文件
xcrun -sdk iphoneos clang -arch arm64 -rewrite-objc block.c -o block.cpp
#include "stdio.h"int main() {int a = 18;void(^block)(void) = ^{printf("RaindyCool -");};block();return 0;}
- 在.cpp文件中找到main函数，将其强转等代码后进行精简

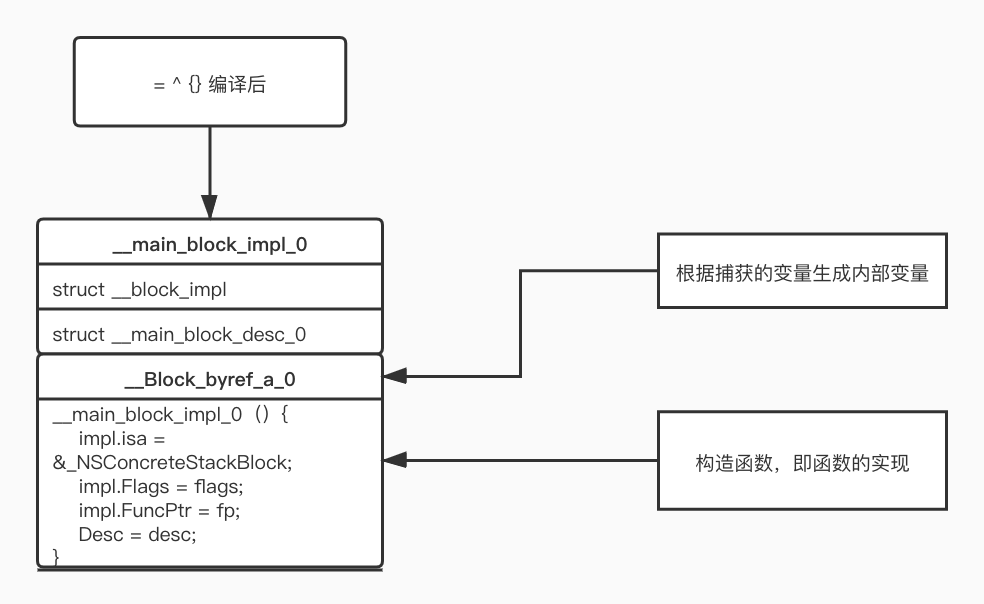

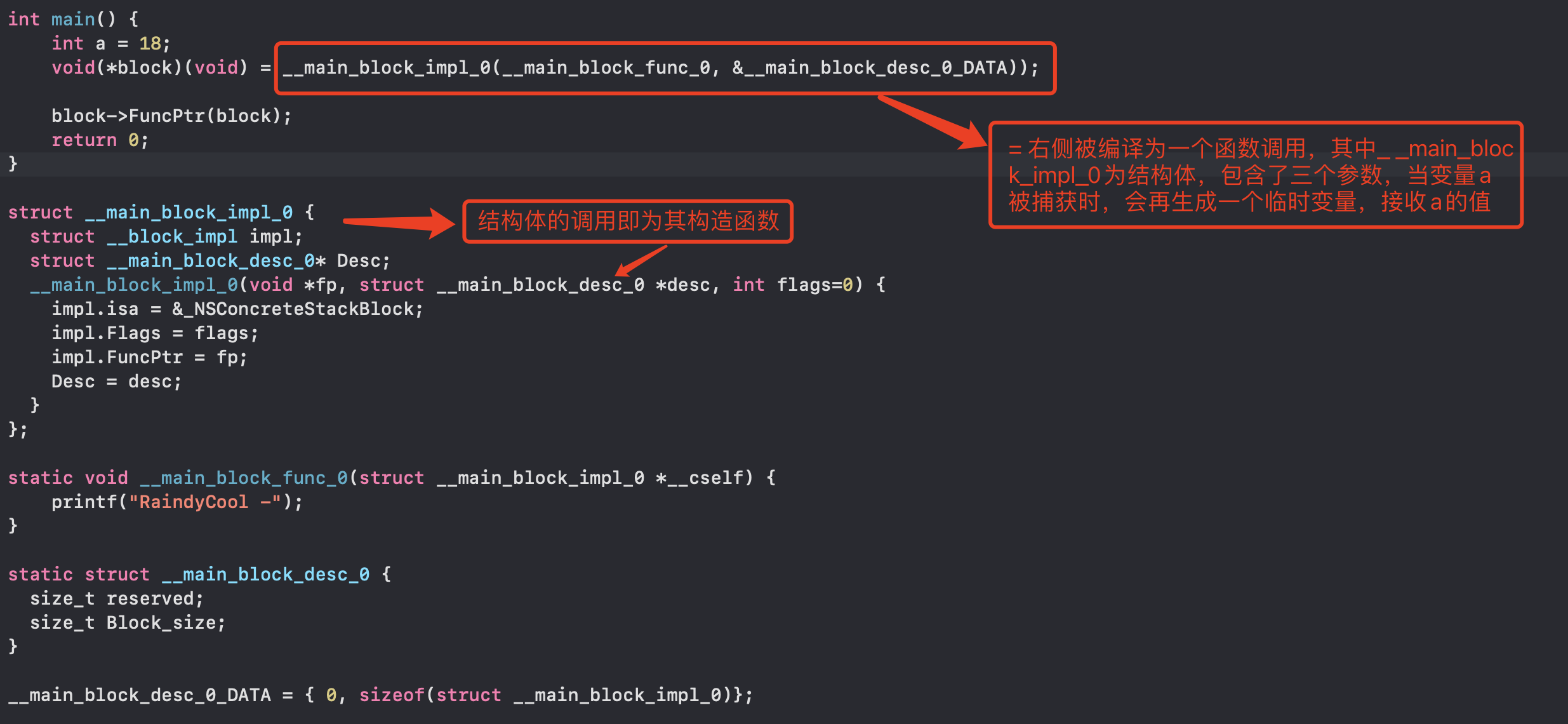

- block捕获变量会生成相应的成员变量，而等号右侧是函数指针
- block()调用相当于函数调用FuncPtr(block)
- block打印中加入对a的捕获printf(“RaindyCool - %d”, a)，编译后得到.cpp文件
- impl.FuncPtr = fp 函数式保存，在block()调用时调用（__block_impl *）block

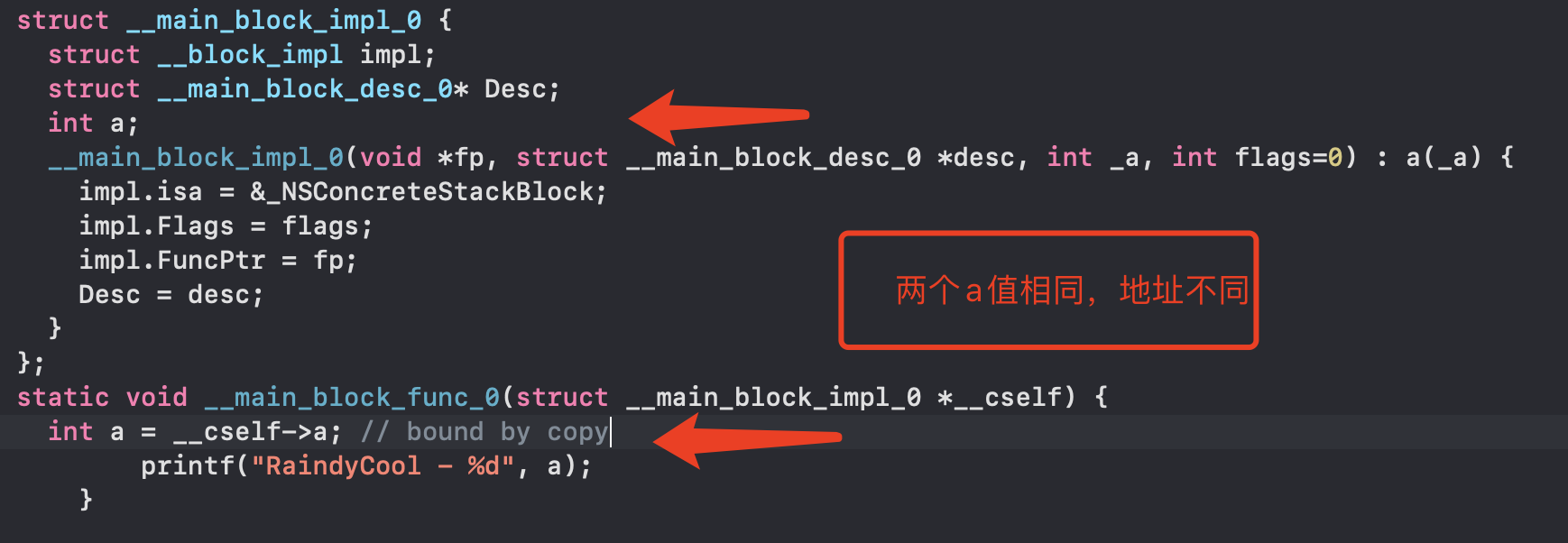

- 两个a的值相同，地址不同，所以是值拷贝

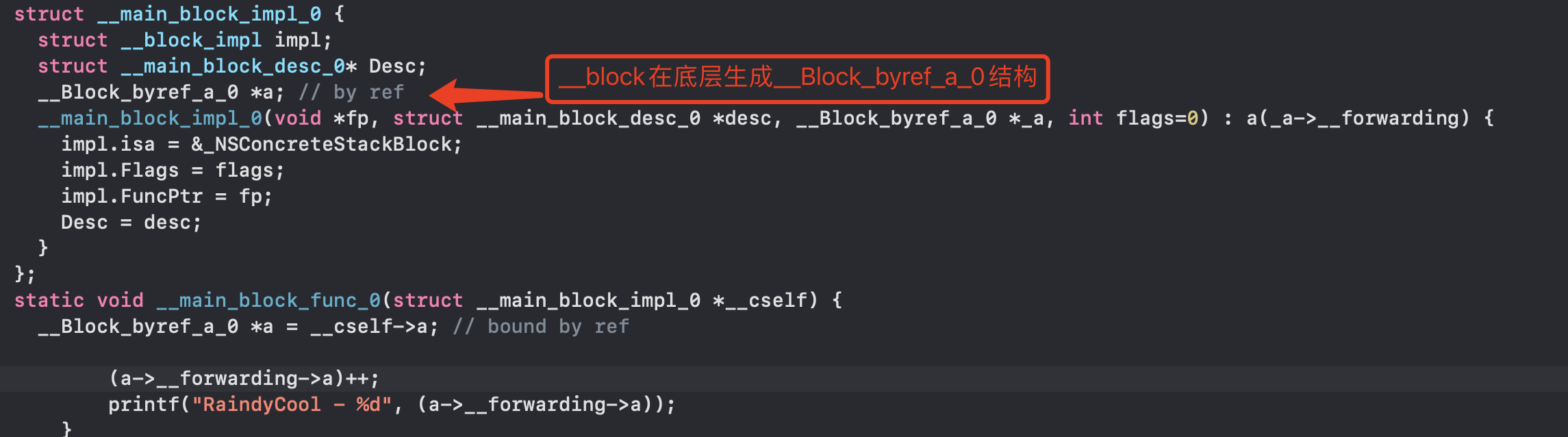

- 进一步改动，对a进行block修饰，同时在block中执行a++，此时编译后生成的是Block_byref_a_0
- Block_byref_a_0底层是结构体，其（Block_byref_a_0 *）类型的forwarding指针保存了传入的变量地址，然后通过参数_a->forwarding传递给了cself->a，使得block内部同外部可以访问同一片内存空间
- block主要作用，生成了一个block_byref_a_0的结构体，然后传给block指针地址
总结
- 当捕获外部变量时，block结构体中会增加一个成员变量a，并且构造函数也会增加一个参数a
- 如果没有__block修饰，则通过值拷贝方式，对成员变量a进行赋值
block执行时，通过cself->a，获取结构体中a的值，赋给Block_bref_a_0 *a
示例2
viewController建立如下代码，通过xcrun或clang编译得到.cpp文件 ```objectivec

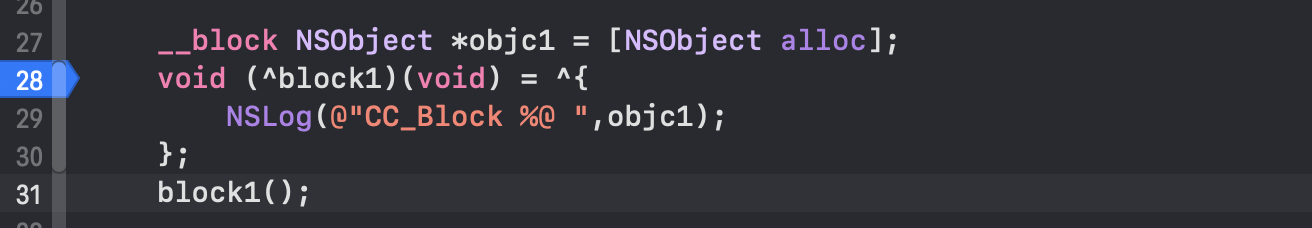

(void)viewDidLoad { [super viewDidLoad]; NSObject *objc = [NSObject alloc];
__block NSObject *objc1 = [NSObject alloc]; void (^block1)(void) = ^{
NSLog(@"LG_Block %@ ",objc1);
}; block1();
}

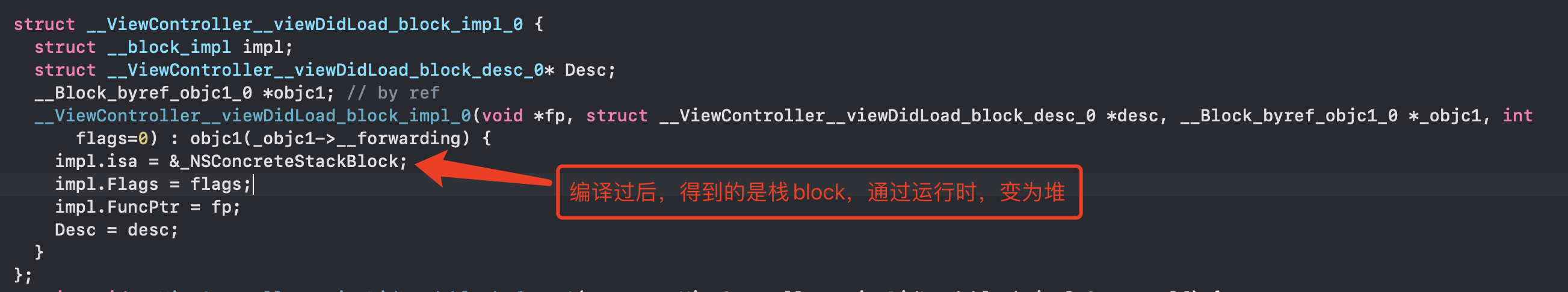

- **编译的文件中，isa指向了栈block，在运行时，栈block变为堆**- **fp是函数式保存，赋值给了impl -> FuncPtr，在block（）调用时，调用FuncPtr，即调用fp**<a name="AbfhO"></a>#### 总结- block是一个结构体，也可以认为是一个函数或者参数，通过函数式编程，将block任务保存到block结构体的FuncPtr属性中。block（）执行调用时即调用了impl->FuncPtr<a name="sja0p"></a>## 底层源码- **建立以下block代码，NSLog处断点调试，发现block底层是调用了objc_retainBlock**```objectivecNSObject *objc = [NSObject alloc];__block NSObject *objc1 = [NSObject alloc];void (^block1)(void) = ^{NSLog(@"CC_Block %@ ",objc1);};block1();
objc_retainBlock 则是调用了_Block_copy（运行时调用），经过_Block_copy则将block从栈拷贝到了堆，但是在objc底层库中我们并未找到_Block_copy的调用，而_Block_copy是在libsystem_blocks.dylib库中，但该库并未开源。解决方案有两个：
- 反汇编查看
- 替代工程libclosure-79
id objc_retainBlock(id x) {return (id)_Block_copy(x);}
libclosure-79源码中，_Block_copy调用如下
- 首先定义了Block_layout结构体（详解），对arg进行了类型转换
在编译器只有堆Block，运行时期发现是栈Block，同时还捕获了外部变量，则在堆上开辟内存空间，进行copy操作，同时将Block类型标记为堆Block ```objectivec // Copy, or bump refcount, of a block. If really copying, call the copy helper if present. void _Block_copy(const void arg) { struct Block_layout *aBlock;
if (!arg) return NULL;
// The following would be better done as a switch statement aBlock = (struct Block_layout )arg; if (aBlock->flags & BLOCK_NEEDS_FREE) { // latches on high latching_incr_int(&aBlock->flags); return aBlock; } else if (aBlock->flags & BLOCK_IS_GLOBAL) { return aBlock; } else {// 栈 - 堆 (编译期) // Its a stack block. Make a copy. size_t size = Block_size(aBlock); struct Block_layout result = (struct Block_layout *)malloc(size); if (!result) return NULL; memmove(result, aBlock, size); // bitcopy first
if __has_feature(ptrauth_calls)
// Resign the invoke pointer as it uses address authentication. result->invoke = aBlock->invoke;
if __has_feature(ptrauth_signed_block_descriptors)
if (aBlock->flags & BLOCK_SMALL_DESCRIPTOR) {uintptr_t oldDesc = ptrauth_blend_discriminator(&aBlock->descriptor,_Block_descriptor_ptrauth_discriminator);uintptr_t newDesc = ptrauth_blend_discriminator(&result->descriptor,_Block_descriptor_ptrauth_discriminator);result->descriptor =ptrauth_auth_and_resign(aBlock->descriptor,ptrauth_key_asda, oldDesc,ptrauth_key_asda, newDesc);}
endif
endif
// reset refcountresult->flags &= ~(BLOCK_REFCOUNT_MASK|BLOCK_DEALLOCATING); // XXX not neededresult->flags |= BLOCK_NEEDS_FREE | 2; // logical refcount 1_Block_call_copy_helper(result, aBlock);// Set isa last so memory analysis tools see a fully-initialized object.result->isa = _NSConcreteMallocBlock;return result;}
}

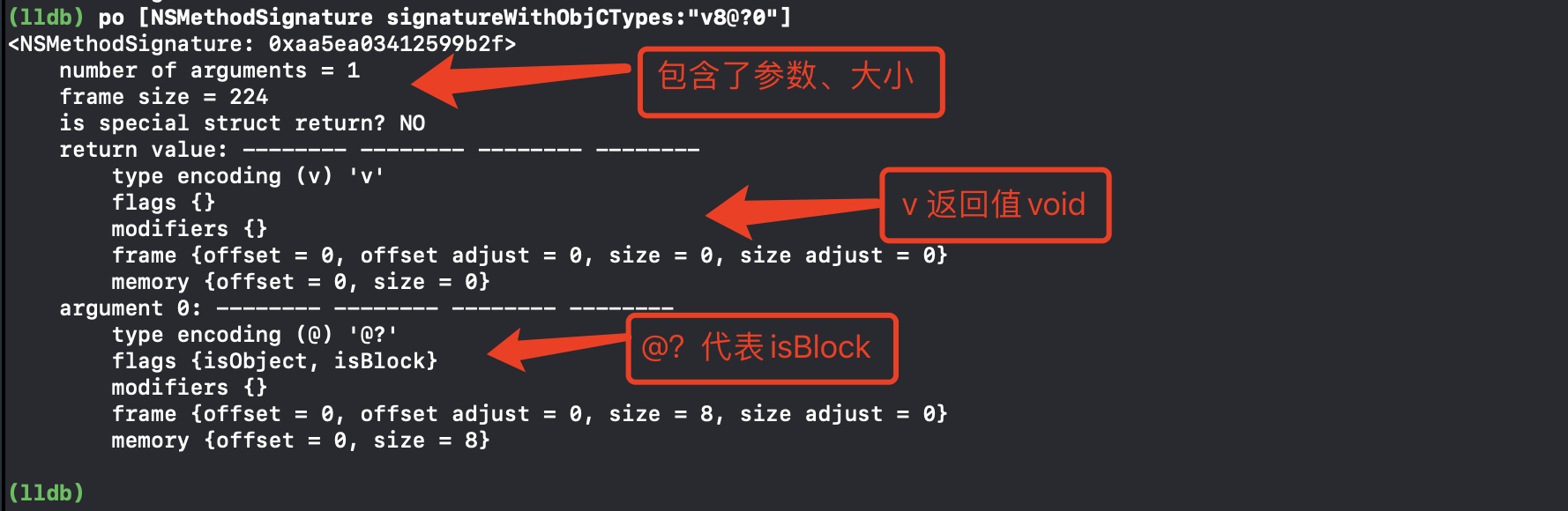

<a name="rQ4Ap"></a>### 示例3- 在viewDidLoad中加入以下代码，断点在block，运行- 同时下符号断点_Block_copy- 通过register read 查看x0寄存器，po得到的内存地址- 此时我们得到了一个栈Block，同时还展示了其包含的结构信息- signature，block的签名，方法调用本质是查找消息，消息找不到时（比如hook）会进入消息转发流程，首先要获取其签名信息，才能包装成invocation进行相关处理，所以签名是必要信息- po [NSMethodSignature signatureWithObjCTypes:"v8@?0"]查看内存信息- invoke，函数的调用者指针```objectivec(lldb) register read x0x0 = 0x000000016d85cec8(lldb) po 0x000000016d85cec8<__NSStackBlock__: 0x16d85cec8>signature: "v8@?0"invoke : 0x1025a4aa0 (/private/var/containers/Bundle/Application/38934E2E-F16E-4B76-AD32-3FBF58632FEC/005---GCDËøõÈò∂‰ΩøÁî®(‰∏ã).app/005---GCDËøõÈò∂‰ΩøÁî®(‰∏ã)`__29-[ViewController viewDidLoad]_block_invoke)copy : 0x1025a4ae0 (/private/var/containers/Bundle/Application/38934E2E-F16E-4B76-AD32-3FBF58632FEC/005---GCDËøõÈò∂‰ΩøÁî®(‰∏ã).app/005---GCDËøõÈò∂‰ΩøÁî®(‰∏ã)`__copy_helper_block_e8_32r)dispose : 0x1025a4b18 (/private/var/containers/Bundle/Application/38934E2E-F16E-4B76-AD32-3FBF58632FEC/005---GCDËøõÈò∂‰ΩøÁî®(‰∏ã).app/005---GCDËøõÈò∂‰ΩøÁî®(‰∏ã)`__destroy_helper_block_e8_32r)(lldb)
- 继续执行，在_Block_copy结束时断点，查看x0，发现已经变为了堆block
Block_layout
- isa -> 指向，区分栈block、堆block
- flags -> 可以存储很多数据信息，包括引用计数
- reserved -> 流程数据
- invoke -> 调用函数
descriptor -> 相关描述，比如是否正在析构、是否有keep函数
struct Block_layout {void * __ptrauth_objc_isa_pointer isa;volatile int32_t flags; // contains ref count 引用计数int32_t reserved;BlockInvokeFunction invoke;struct Block_descriptor_1 *descriptor;// imported variables};

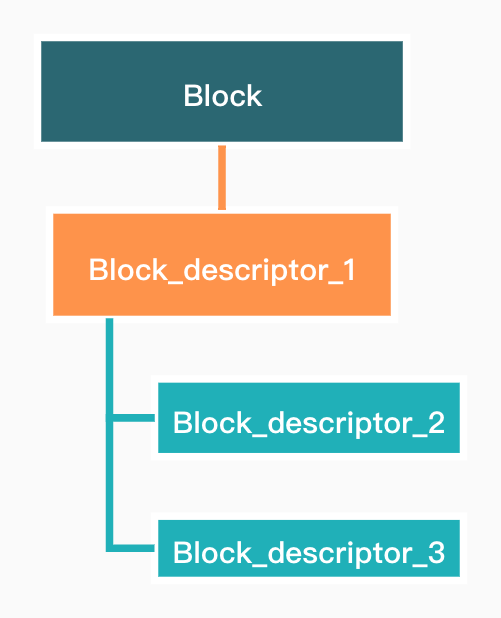

Block_layout中除了Block_descriptor_1还有Block_descriptor_2、Block_descriptor_3的定义
define BLOCK_DESCRIPTOR_2 1
struct Block_descriptor_2 { // requires BLOCK_HAS_COPY_DISPOSE BlockCopyFunction copy; BlockDisposeFunction dispose; };
define BLOCK_DESCRIPTOR_3 1
struct Block_descriptor_3 { // requires BLOCK_HAS_SIGNATURE const char signature; // 签名定义在description3中 const char layout; // contents depend on BLOCK_HAS_EXTENDED_LAYOUT };
//====================== static struct Block_descriptor_2 _Block_descriptor_2(struct Block_layout aBlock) { uint8_t desc = (uint8_t )_Block_get_descriptor(aBlock); desc += sizeof(struct Block_descriptor_1); return (struct Block_descriptor_2 *)desc; }
static struct Block_descriptor_3 _Block_descriptor_3(struct Block_layout aBlock) { uint8_t desc = (uint8_t )_Block_get_descriptor(aBlock); desc += sizeof(struct Block_descriptor_1); if (aBlock->flags & BLOCK_HAS_COPY_DISPOSE) { desc += sizeof(struct Block_descriptor_2); } return (struct Block_descriptor_3 *)desc; }

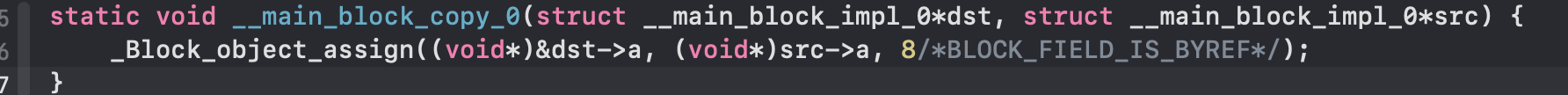

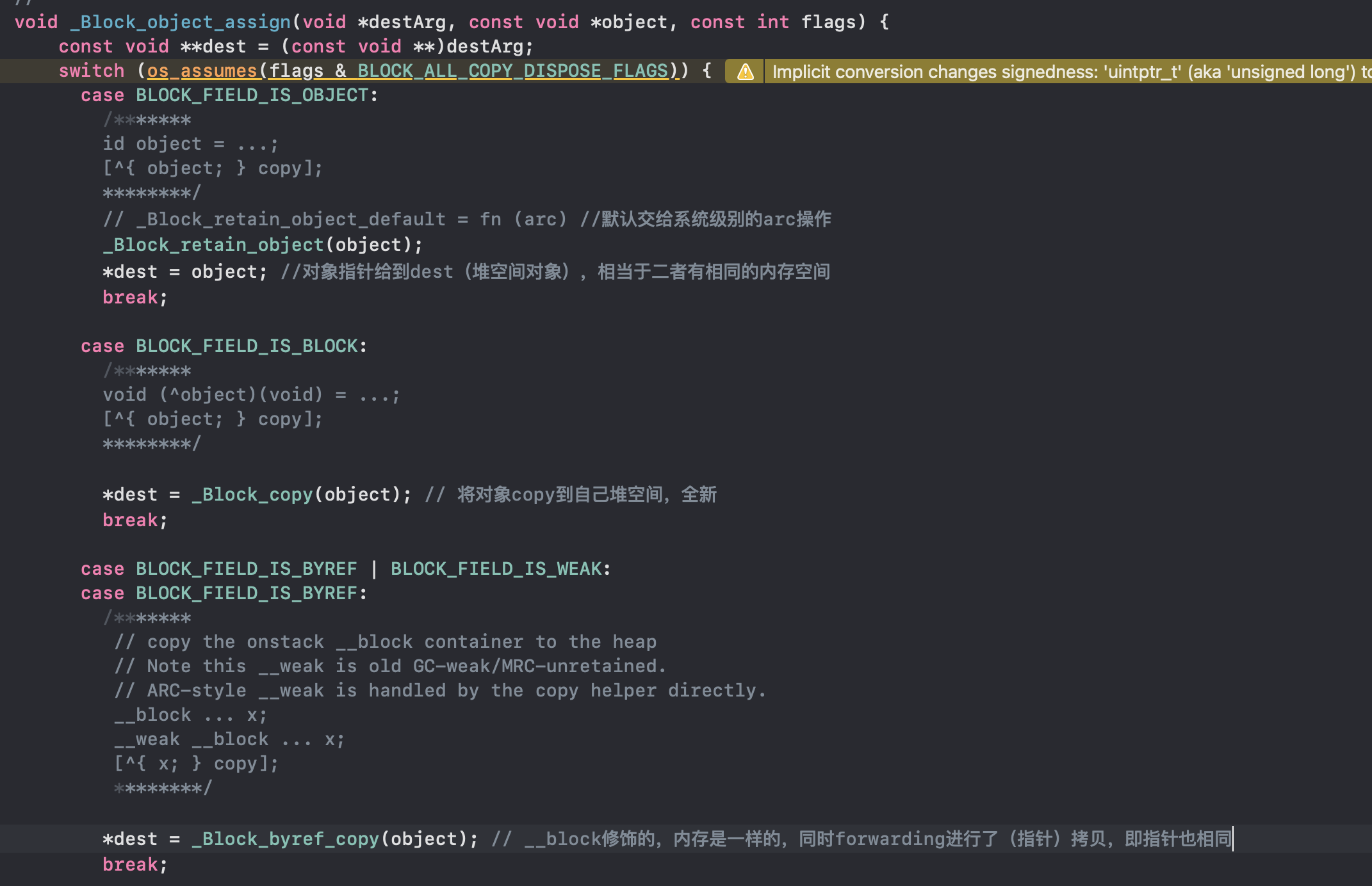

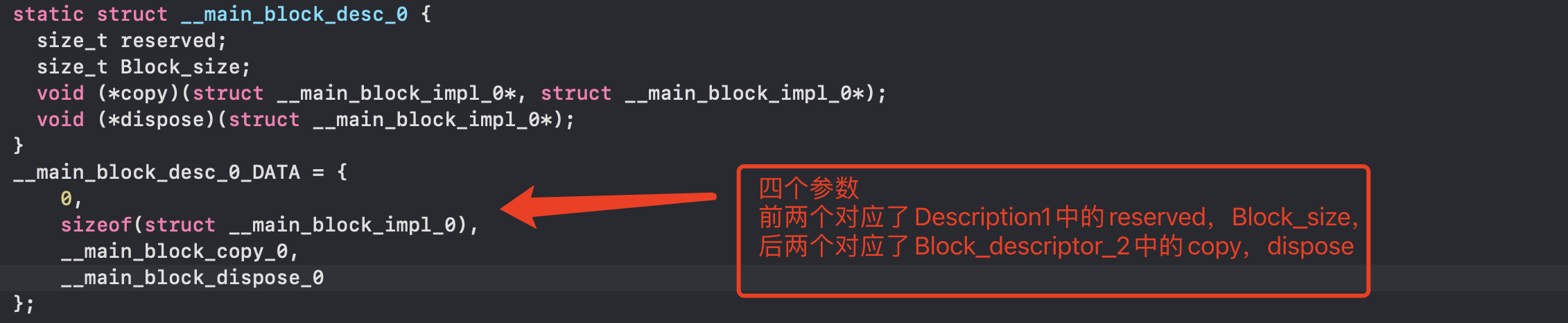

- **Block_descriptor_2和Block_descriptor_3可以分别通过前一个地址计算得到，它们的地址是连续的**<a name="GjZrm"></a>## block捕获的变量的生命周期- **继续观察上述.cpp文件，__main_block_desc_0中的数据结构即为Block_descriptor_1和Block_descriptor_2**- __main_block_copy_0实现包含了_Block_object_assign，并且包含一个8参数，其定义如下- The flags parameter of _Block_object_assign and _Block_object_dispose is set to，block对捕获变量的类型处理<br />* BLOCK_FIELD_IS_OBJECT (3), for the case of an Objective-C Object, // 普通对象object<br />* BLOCK_FIELD_IS_BLOCK (7), for the case of another Block, and // 其它block修饰的<br />* BLOCK_FIELD_IS_BYREF (8), for the case of a __block variable. // __block修饰的- 不同修饰，block进行的底层操作不同- BLOCK_FIELD_IS_OBJECT，仅进行指针拷贝- BLOCK_FIELD_IS_BLOCK，将对象拷贝，全新地址- BLOCK_FIELD_IS_BYREF，将对象和其指针一起拷贝，内部可修改外部（栈）的变量- _Block_byref_copy实现了byref_keep，即对对象进行copy，保持其生命周期- Block_byref_2包含两个参数，byref_keep和byref_destroy，在编译的.cpp文件中，分别被赋值__Block_byref_id_object_copy_131和__Block_byref_id_object_dispose_131```objectivecstatic struct Block_byref *_Block_byref_copy(const void *arg) {struct Block_byref *src = (struct Block_byref *)arg;// __block 内存是一样 同一个家伙//if ((src->forwarding->flags & BLOCK_REFCOUNT_MASK) == 0) {// src points to stackstruct Block_byref *copy = (struct Block_byref *)malloc(src->size);copy->isa = NULL;// byref value 4 is logical refcount of 2: one for caller, one for stackcopy->flags = src->flags | BLOCK_BYREF_NEEDS_FREE | 4;copy->forwarding = copy; // patch heap copy to point to itselfsrc->forwarding = copy; // patch stack to point to heap copycopy->size = src->size;if (src->flags & BLOCK_BYREF_HAS_COPY_DISPOSE) {// Trust copy helper to copy everything of interest// If more than one field shows up in a byref block this is wrong XXXstruct Block_byref_2 *src2 = (struct Block_byref_2 *)(src+1);struct Block_byref_2 *copy2 = (struct Block_byref_2 *)(copy+1);copy2->byref_keep = src2->byref_keep;copy2->byref_destroy = src2->byref_destroy;if (src->flags & BLOCK_BYREF_LAYOUT_EXTENDED) {struct Block_byref_3 *src3 = (struct Block_byref_3 *)(src2+1);struct Block_byref_3 *copy3 = (struct Block_byref_3*)(copy2+1);copy3->layout = src3->layout;}// 捕获到了外界的变量 - 内存处理 - 生命周期的保存(*src2->byref_keep)(copy, src);}else {// Bitwise copy.// This copy includes Block_byref_3, if any.memmove(copy+1, src+1, src->size - sizeof(*src));}}// already copied to heapelse if ((src->forwarding->flags & BLOCK_BYREF_NEEDS_FREE) == BLOCK_BYREF_NEEDS_FREE) {latching_incr_int(&src->forwarding->flags);}return src->forwarding;}struct Block_byref_2 {// requires BLOCK_BYREF_HAS_COPY_DISPOSEBlockByrefKeepFunction byref_keep; //= __Block_byref_id_object_copy_131BlockByrefDestroyFunction byref_destroy; // = __Block_byref_id_object_dispose_131};
- Block_byref_id_object_copy_131和Block_byref_id_object_dispose_131实现代码
- __Block_byref_id_object_copy_131中传入(char*)dst + 40相当于结构体内存平移，即object
- __block修饰的对象
- 首先进行栈->堆copy
- block捕获变量，捕获当前Block_byref，对Block_byref对象进行copy
- __Block_byref对其内部object进行变量copy
static void __Block_byref_id_object_copy_131(void *dst, void *src) {_Block_object_assign((char*)dst + 40, *(void * *) ((char*)src + 40), 131);}static void __Block_byref_id_object_dispose_131(void *src) {_Block_object_dispose(*(void * *) ((char*)src + 40), 131);}
