类的加载原理（中）

前言
补充
类处理流程-重点

前言

rwe什么时候有值，分类attachCategories加载时有

补充

承接上篇类的加载原理（上）内容
readClass中调用了addNamedClass，而addNamedClass调用了NXMapInsert，NXMapInsert为在table表中以key（类名）-value（地址）形式插入，此步骤也仅是可以通过名字拿到类地址，具体类是如何加载的呢？

static void addNamedClass(Class cls, const char *name, Class replacing = nil)
{
  runtimeLock.assertLocked();
  Class old;
  if ((old = getClassExceptSomeSwift(name))  &&  old != replacing) {
      inform_duplicate(name, old, cls);
      // getMaybeUnrealizedNonMetaClass uses name lookups.
      // Classes not found by name lookup must be in the
      // secondary meta->nonmeta table.
      addNonMetaClass(cls);
  } else {
      NXMapInsert(gdb_objc_realized_classes, name, cls);
  }
  ASSERT(!(cls->data()->flags & RO_META));
  // wrong: constructed classes are already realized when they get here
  // ASSERT(!cls->isRealized());
}

void *NXMapInsert(NXMapTable *table, const void *key, const void *value)

类处理流程-重点

map_images -> map_images_nolock -> _read_images

read_class在非懒加载类列表处理过程中，调用了realizeClassWithoutSwift，在类的慢速查找lookupImpOrForward中也会调用这个函数，所以realizeClassWithoutSwift是核心

// Realize non-lazy classes (for +load methods and static instances)
  for (EACH_HEADER) {
      classref_t const *classlist = hi->nlclslist(&count);
      for (i = 0; i < count; i++) {
          Class cls = remapClass(classlist[i]);
          if (!cls) continue;
          addClassTableEntry(cls);
          if (cls->isSwiftStable()) {
              if (cls->swiftMetadataInitializer()) {
                  _objc_fatal("Swift class %s with a metadata initializer "
                              "is not allowed to be non-lazy",
                              cls->nameForLogging());
              }
              // fixme also disallow relocatable classes
              // We can't disallow all Swift classes because of
              // classes like Swift.__EmptyArrayStorage
          }
          realizeClassWithoutSwift(cls, nil);
      }
  }

realizeClassWithoutSwift

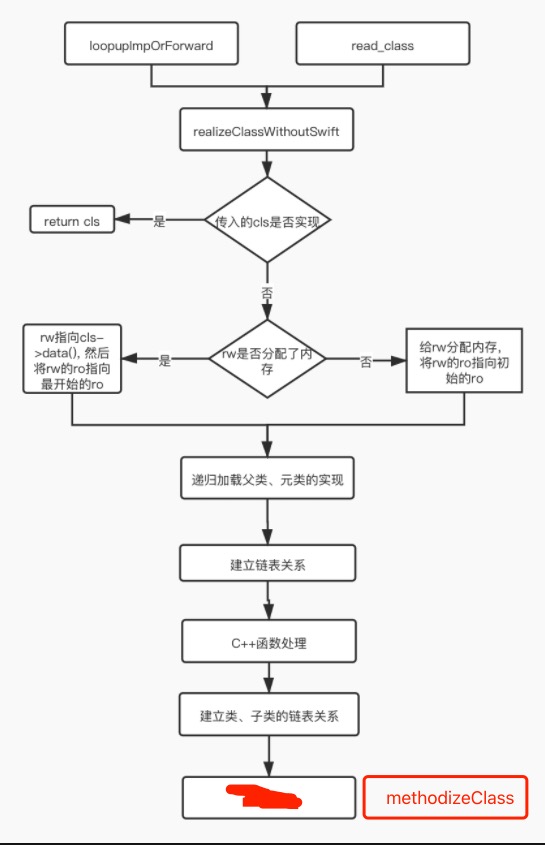

流程图-类的加载

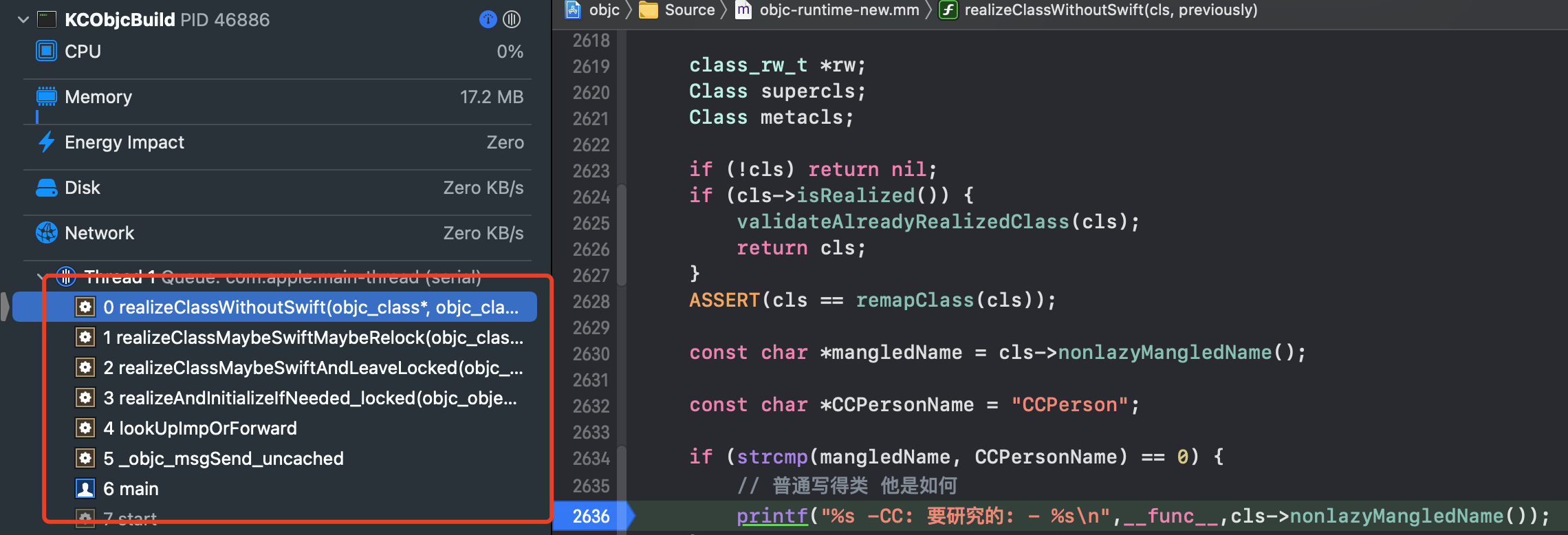

lookUpImpOrForward慢速查找也会调用realizeClassWithoutSwift方法
读取data，创建ro

查看ro的内存结构

在auto ro = (constclass_ro_t *)cls->data()处下断点，查看ro的内存结构，此时ro只有一个地址，其baseMethodList等还是没有具体的数据
类别买了房子，只写了名字，家具（有地址了）还没有放入

具体是在methodizeClass -> prepareMethodLists -> fixupMethodList(name, addr)加入到方法列表中，再根据地址排序

(lldb) p ro
(const class_ro_t *) $0 = 0x00000001000082f0
(lldb) p *$0
(const class_ro_t) $1 = {
flags = 0
instanceStart = 8
instanceSize = 8
reserved = 0
 = {
  ivarLayout = 0x0000000000000000
  nonMetaclass = nil
}
name = {
  std::__1::atomic<const char *> = "CCPerson" {
    Value = 0x0000000100003f5f "CCPerson"
  }
}
baseMethodList = 0x0000000100008338
baseProtocols = nil
ivars = nil
weakIvarLayout = 0x0000000000000000
baseProperties = nil
_swiftMetadataInitializer_NEVER_USE = {}
}

ro复制到rw

ro->rw的真正复制是在此时实现

rw = objc::zalloc();
rw->set_ro(ro);
rw->flags = RW_REALIZED|RW_REALIZING|isMeta;

cls->setData(rw);

if (ro->flags & RO_FUTURE) {
// This was a future class. rw data is already allocated.
   rw = cls->data();
   ro = cls->data()->ro();
   ASSERT(!isMeta);
   cls->changeInfo(RW_REALIZED|RW_REALIZING, RW_FUTURE);
} else {
   // Normal class. Allocate writeable class data.
   rw = objc::zalloc<class_rw_t>();
   rw->set_ro(ro);
   rw->flags = RW_REALIZED|RW_REALIZING|isMeta;
   cls->setData(rw);
}

元类设置

如果是元类，从NonpointerIsa其不需要任何信息，所以可以设置setInstancesRequireRawIsa为yes，当前前类在retain或release效率会更高

如果不是元类，但在环境变量中禁用了NonpointerIsa，同样其instancesRequireRawIsa为yes，提高效率

if (isMeta) {
      // Metaclasses do not need any features from non pointer ISA
      // This allows for a faspath for classes in objc_retain/objc_release.
      cls->setInstancesRequireRawIsa();
  } else {
      // Disable non-pointer isa for some classes and/or platforms.
      // Set instancesRequireRawIsa.
      bool instancesRequireRawIsa = cls->instancesRequireRawIsa();
      bool rawIsaIsInherited = false;
      static bool hackedDispatch = false;
      if (DisableNonpointerIsa) {
          // Non-pointer isa disabled by environment or app SDK version
          instancesRequireRawIsa = true;
      }
   ...
}

继承链设置

cls->setSuperclass(supercls);
cls->initClassIsa(metacls);

C++构造函数设置

```cpp if (ro->flags & RO_HAS_CXX_STRUCTORS) {

  cls->setHasCxxDtor();
  if (! (ro->flags & RO_HAS_CXX_DTOR_ONLY)) {
      cls->setHasCxxCtor();
  }

}

<a name="LK3Kk"></a>
#### 建立类、子类的关系链表
```cpp
// Connect this class to its superclass's subclass lists
    if (supercls) {
        addSubclass(supercls, cls);
    } else {
        addRootClass(cls);
    }

添加类

methodizeClass(cls, previously);

methodizeClass

添加类是在methodizeClass中处理
- 通过ro->baseMethods()获取methodList
- 如果存在list则进入prepareMethodLists
- prepareMethodList又会调用fixupMethodList
- fixupMethodList
  - 遍历methodLlist，将其sel取出设置到sel_registerNameNoLock（已注册类）中
  - SortBySELAddress，根据地址排序方法Sort by selector address. ```cpp static void fixupMethodList(method_list_t *mlist, bool bundleCopy, bool sort) { runtimeLock.assertLocked(); ASSERT(!mlist->isFixedUp());
  // fixme lock less in attachMethodLists ? // dyld3 may have already uniqued, but not sorted, the list if (!mlist->isUniqued()) { mutex_locker_t lock(selLock);

  // Unique selectors in list. for (auto& meth : *mlist) {
```
   const char *name = sel_cname(meth.name());
   meth.setName(sel_registerNameNoLock(name, bundleCopy));
```
  } }

  // Sort by selector address. // Don’t try to sort small lists, as they’re immutable. // Don’t try to sort big lists of nonstandard size, as stable_sort // won’t copy the entries properly. if (sort && !mlist->isSmallList() && mlist->entsize() == method_t::bigSize) { method_t::SortBySELAddress sorter; std::stable_sort(&mlist->begin()->big(), &mlist->end()->big(), sorter); }

  // Mark method list as uniqued and sorted. // Can’t mark small lists, since they’re immutable. if (!mlist->isSmallList()) { mlist->setFixedUp(); } } ```

  懒加载类和非懒加载类->load
赖加载类，使用时再加载，节约内存，增加编译速度 ——> 按需加载
如果类实现了+load方法，则就会走非懒加载类流程，进行上述类流程处理图，是一个耗时操作
只有类或者其分类都未实现load方法，则类的加载会在其第一次发送消息时处理，通过lookupImpOrForward->realizeClassWithoutSwift
- 将类中+load方法屏蔽，后在realizeClassWithoutSwift断点调试，可以验证此函数调用流程

音视频设备模块框架图 (3).jpg

分类

本质探索

在main函数中添加CCPerson的分类

clang -rewrite-objc main.m -o main.cpp 编译后的到CPP文件

分类CCPerson（CC)被编译为_category_t结构体

static struct _category_t *L_OBJC_LABEL_CATEGORY_$ [1] __attribute__((used, section ("__DATA, __objc_catlist,regular,no_dead_strip")))= {
  &_OBJC_$_CATEGORY_CCPerson_$_CC,
};

分类也是一个结构体类型
- name，就是CC
- cls，类名
- instance_methods，class_methods 分类没有元类，所以这里有两个参数，在attachToClass中同样有两个调用方法
  - attachCategories(cls, list.array(), list.count(), otherFlags | ATTACH_CLASS);
  - attachCategories(cls->ISA(), list.array(), list.count(), otherFlags | ATTACH_METACLASS);
- protocols，协议，
- properties，属性，
- 无set、get方法，通过关联对象来添加属性
```
struct _category_t {
const char *name;
struct _class_t *cls;
const struct _method_list_t *instance_methods;
const struct _method_list_t *class_methods;
const struct _protocol_list_t *protocols;
const struct _prop_list_t *properties;
};
```

此时是编译文件，还没有运行时，所以name等信息还不知道

static struct _category_t _OBJC_$_CATEGORY_CCPerson_$_CC __attribute__ ((used, section ("__DATA,__objc_const"))) =
{
  "CCPerson",
  0, // &OBJC_CLASS_$_CCPerson,
  (const struct _method_list_t *)&_OBJC_$_CATEGORY_INSTANCE_METHODS_CCPerson_$_CC,
  (const struct _method_list_t *)&_OBJC_$_CATEGORY_CLASS_METHODS_CCPerson_$_CC,
  0,
  (const struct _prop_list_t *)&_OBJC_$_PROP_LIST_CCPerson_$_CC,
};

引入 - categories

添加分类时，rwe可以赋上值，核心重点attachCategories

methodizeClass()函数中，rwe存在时，才会调用attachToClass，而rwe是否存在取决于extAllocIfNeeded函数
extAllocIfNeeded全局搜索，都与runtime有关，都是在运行时加载

调起attachCategories的地方

load_categories_nolock -> attachCategories

attachToClass -> attachCategories

class_rw_ext_t *extAllocIfNeeded() {
   auto v = get_ro_or_rwe();
   if (fastpath(v.is<class_rw_ext_t *>())) {
       return v.get<class_rw_ext_t *>(&ro_or_rw_ext);
   } else {
       return extAlloc(v.get<const class_ro_t *>(&ro_or_rw_ext));
   }
}
