前言：父类是子类的第一个成员变量，子类就拥有了父类的所有成员变量，叫结构体的伪继承

Class底层

Class是objc_class结构体指针，是objc_class的别名。

typedef struct objc_class *Class;

objc_class伪继承于objc_object，因此包含了isa，此外还有superclass、cache、bits几个成员变量，分析结构体内存，只需计算其成员变量大小。

struct objc_class : objc_object {
  objc_class(const objc_class&) = delete;
  objc_class(objc_class&&) = delete;
  void operator=(const objc_class&) = delete;
  void operator=(objc_class&&) = delete;
    // Class ISA;
    Class superclass;
    cache_t cache;             // formerly cache pointer and vtable
    class_data_bits_t bits;    // class_rw_t * plus custom rr/alloc flags

isa

元类分析

首先，我们建立一个person类，断点调试，通过lldb得到p的指针地址0x108cc2650

//mask 0x00007ffffffffff8
LGPerson *p = [LGPerson alloc];
(lldb) x p
0x108cc2650: 65 83 00 00 01 80 1d 01 00 00 00 00 00 00 00 00  e...............
0x108cc2660: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................

然后lldb命令x/4gx得到它的类内存结构，第一个为isa的地址0x011d800100008365。通过OC本质探索一文，我们可以通过isa & mask得到类地址0x0000000100008360，po得到了person类

(lldb) x/4gx 0x108cc2650
0x108cc2650: 0x011d800100008365 0x0000000000000000
0x108cc2660: 0x0000000000000000 0x0000000000000000
(lldb) p/x 0x011d800100008365 & 0x00007ffffffffff8
(long) $13 = 0x0000000100008360
(lldb) po 0x0000000100008360
LGPerson

此时，我们再通过x/4gx 类地址0x0000000100008360，又得到一个新的类内存结构，po 其isa & mask竟然也得到了Person类，其地址是0x0000000100008338，这个类地址和上面的0x0000000100008360哪一个是真正的person类地址呢？

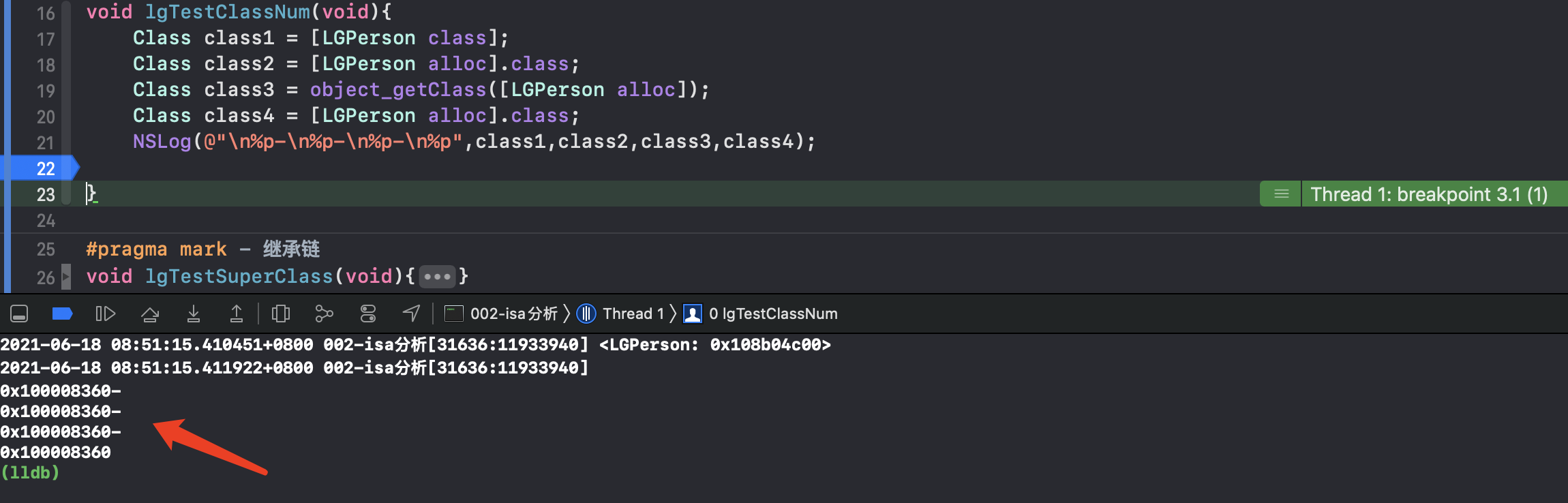

通过打印类地址，确定person类，其地址为0x100008360
那另外一个地址是什么？我们可以通过MachOView分析Mach-o文件，首先确定了person类地址为0x100008360

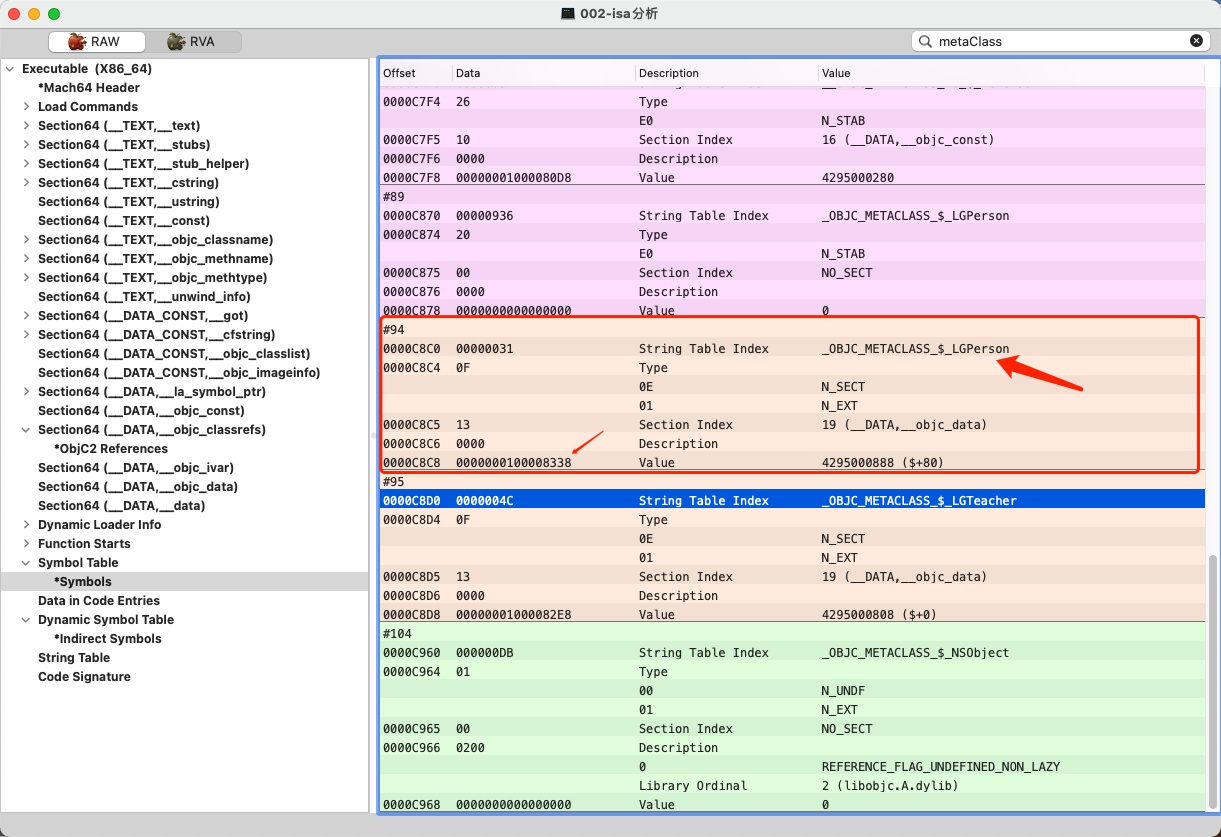

在符号表中，我们找到了内存地址为0x0000000100008338的类，它是_objc_metaClass_LGPerson类型，是一个元类，由person类的isa指向，元类是由系统编译时自动生成的。

根元类分析

继续上面的逻辑，p/x 元类isa & mask，po 元类isa & mask得到的了NSObject类，所以person元类的isa指向了NSObject，这里NSObject的isa与superClass地址相同，都是0x00007fff8897eca0

(lldb) x/4gx 0x0000000100008338
0x100008338: 0x00007fff8897eca0 0x00007fff8897eca0
0x100008348: 0x0000000108cc2670 0x0002e03500000003
(lldb) p/x 0x00007fff8897eca0 & 0x00007ffffffffff8
(long) $28 = 0x00007fff8897eca0
(lldb) po 0x00007fff8897eca0
NSObject

重复操作上面逻辑，观察NSObject类的isa指向了自己，这时执行p/x NSObject.class和x/4gx，发现其isa地址同样为0x00007fff8897eca0，所以这里NSObject为根元类

(lldb) x/4gx 0x00007fff8897eca0
0x7fff8897eca0: 0x00007fff8897eca0 0x00007fff8897ecc8
0x7fff8897ecb0: 0x0000000108b06f60 0x0005e03100000007
(lldb) p/x 0x00007fff8897eca0 & 0x00007ffffffffff8
(long) $30 = 0x00007fff8897eca0
(lldb) po 0x00007fff8897eca0
NSObject
(lldb) p/x NSObject.class
(Class) $32 = 0x00007fff8897ecc8 NSObject
(lldb) x/4gx 0x00007fff8897ecc8
0x7fff8897ecc8: 0x00007fff8897eca0 0x0000000000000000
0x7fff8897ecd8: 0x0000000108cbc610 0x0001801000000003

isa流程


superClass

通过以下代码打印，得到superClass的对应关系

void lgTestNSObject(void){
    // NSObject实例对象
    NSObject *object1 = [NSObject alloc];
    // NSObject类
    Class class = object_getClass(object1);
    // NSObject元类
    Class metaClass = object_getClass(class);
    // NSObject根元类
    Class rootMetaClass = object_getClass(metaClass);
    // NSObject根根元类
    Class rootRootMetaClass = object_getClass(rootMetaClass);
    NSLog(@"\n%p 实例对象\n%p 类\n%p 元类\n%p 根元类\n%p 根根元类",object1,class,metaClass,rootMetaClass,rootRootMetaClass);
    // LGPerson元类
    Class pMetaClass = object_getClass(LGPerson.class);
    Class psuperClass = class_getSuperclass(pMetaClass);
    NSLog(@"%@ - %p",psuperClass,psuperClass);
    // LGTeacher -> LGPerson -> NSObject
    // 元类也有一条继承链
    Class tMetaClass = object_getClass(LGTeacher.class);
    Class tsuperClass = class_getSuperclass(tMetaClass);
    NSLog(@"%@ - %p",tsuperClass,tsuperClass);
    // NSObject 根类特殊情况
    Class nsuperClass = class_getSuperclass(NSObject.class);
    NSLog(@"%@ - %p",nsuperClass,nsuperClass);
    // 根元类 -> NSObject
    Class rnsuperClass = class_getSuperclass(metaClass);
    NSLog(@"%@ - %p",rnsuperClass,rnsuperClass);
}
0x10893d4c0 实例对象
0x7fff8897ecc8 类
0x7fff8897eca0 元类
0x7fff8897eca0 根元类
0x7fff8897eca0 根根元类
NSObject - 0x7fff8897eca0
LGPerson - 0x100008338
(null) - 0x0
NSObject - 0x7fff8897ecc8

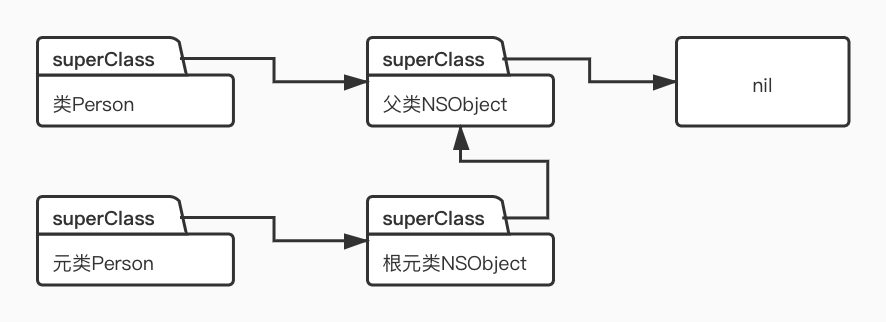

superClass流程


cache

cache_t同样是结构体，其大小与变量有关

_bucketsAndMaybeMask是uintptr_t类型，就是unsignedlong ，大小为8字节
union为联合体，取内存较大成员变量
- _maybeMask是mask_t（uint32_t）类型，占4字节，_flags为uint16_t，占2字节，_occupied为uint16_t，占2字节
- _originalPreoptCache为结构体指针，占8个字节

因此cache大小为16字节

struct cache_t {
private:
  explicit_atomic<uintptr_t> _bucketsAndMaybeMask;
  union {
      struct {
          explicit_atomic<mask_t>    _maybeMask;
#if __LP64__
          uint16_t                   _flags;
#endif
          uint16_t                   _occupied;
      };
      explicit_atomic<preopt_cache_t *> _originalPreoptCache;
  };

bits

bits在底层是class_data_bits_t结构体，而class_data_bits_t关键就是返回class_rw_t指针 ``` struct class_data_bits_t { friend objc_class;

// Values are the FAST_ flags above. uintptr_t bits; private: …

public:

class_rw_t* data() const {
    return (class_rw_t *)(bits & FAST_DATA_MASK);
}
...

}

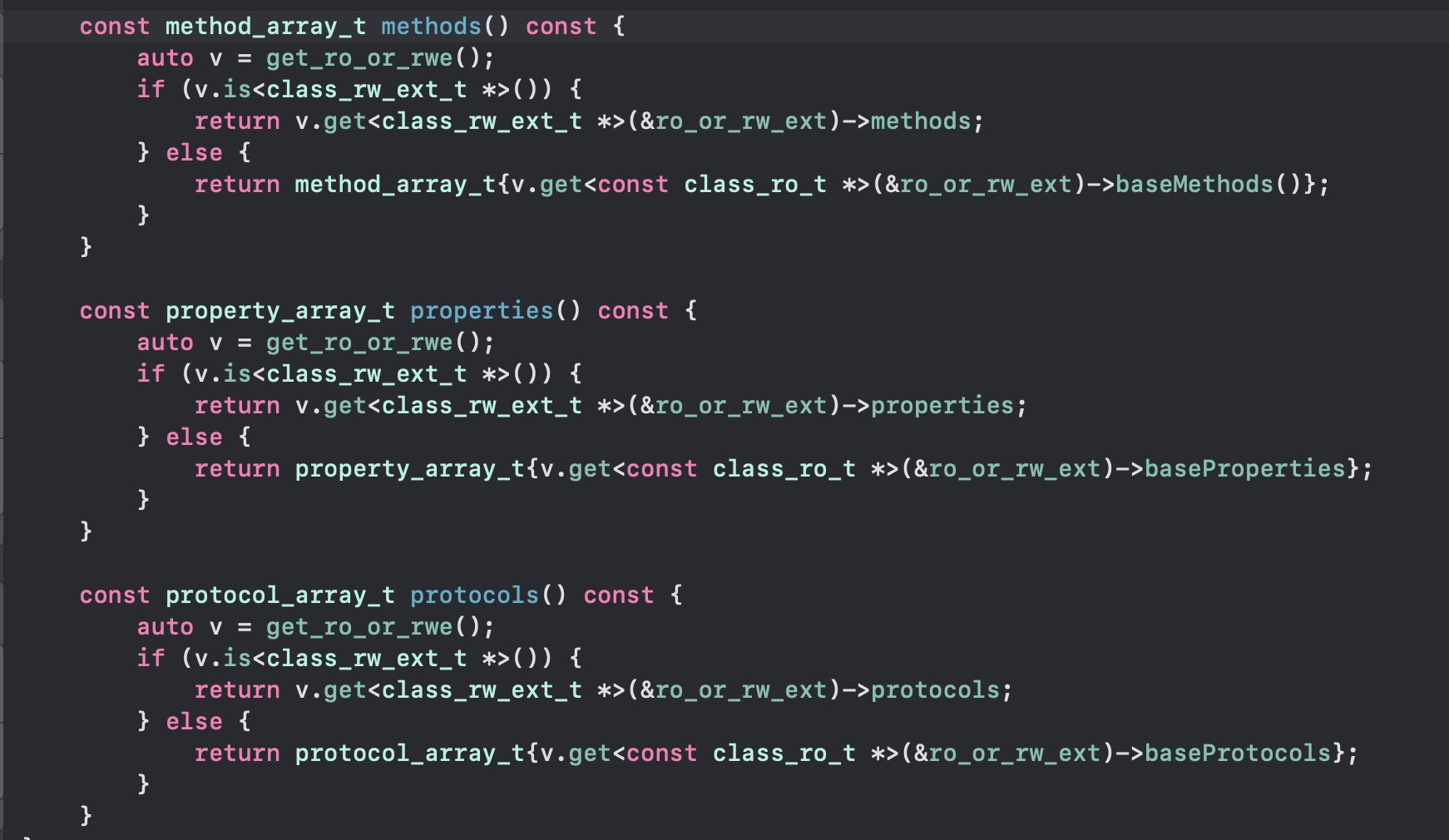

`class_rw_t`同样是一个结构体，其包含了`ro、method_array_t、property_array_t、protocol_array_t`方法调用<br />![1624002856890.jpg](https://cdn.nlark.com/yuque/0/2021/jpeg/21860440/1624002968995-b326f2fe-7852-4801-93a1-7e672094035d.jpeg#clientId=u6e1da652-1a75-4&from=drop&id=u96486672&margin=%5Bobject%20Object%5D&name=1624002856890.jpg&originHeight=1010&originWidth=1742&originalType=binary&ratio=1&size=210350&status=done&style=none&taskId=u57a82d04-89e8-45e2-8247-24a875ee243)<br />我们可以通过lldb调试验证下bits中包含的属性，在类结构体中（方法存储在方法区，不占用结构体内存）
- 第一成员变量`isa`，占8字节
- 第二成员变量`superClass`，占8字节
- 第三成员变量`cache`，占16字节
因此，第四成员变量`bits`地址，可以通过类地址 + 32得到

(lldb) p/x LGPerson.class (Class) $3 = 0x0000000100008380 LGPerson (lldb) p (class_data_bits_t)(0x0000000100008380 + 32) (class_data_bits_t) $4 = (bits = 4441863924)

得到class_data_bits_t后，可以依次取出其中的property，method，ivars

(lldb) p $4.data() (class_rw_t ) $5 = 0x0000000108c176f0 (lldb) p ($5).properties() (const property_array_t) $6 = { list_array_tt = { = { list = { ptr = 0x0000000100008260 } arrayAndFlag = 4295000672 } } } (lldb) p $6.list.ptr (property_list_t const) $7 = 0x0000000100008260 (lldb) p $7 (property_list_t) $8 = { entsize_list_tt = (entsizeAndFlags = 16, count = 2) } (lldb) p $8.get(0) (property_t) $9 = (name = “name”, attributes = “T@\”NSString\”,C,N,V_name”) (lldb) p $8.get(1) (property_t) $10 = (name = “hobby”, attributes = “T@\”NSString\”,C,N,V_hobby”)

```
(lldb) p/x LGPerson.class
(Class) $0 = 0x0000000100008380 LGPerson
(lldb) p *(class_data_bits_t*)(0x0000000100008380 + 32)
(class_data_bits_t) $1 = (bits = 4443234692)
(lldb) p $1.data()
(class_rw_t *) $2 = 0x0000000108d66180
(lldb) p *$2
(class_rw_t) $3 = {
  flags = 2148007936
  witness = 1
  ro_or_rw_ext = {
    std::__1::atomic<unsigned long> = {
      Value = 4295000344
    }
  }
  firstSubclass = nil
  nextSiblingClass = NSUUID
}
(lldb) p $3.methods()
(const method_array_t) $4 = {
  list_array_tt<method_t, method_list_t, method_list_t_authed_ptr> = {
     = {
      list = {
        ptr = 0x0000000100008160
      }
      arrayAndFlag = 4295000416
    }
  }
}
(lldb) p $4.list.ptr
(method_list_t *const) $5 = 0x0000000100008160
(lldb) p *$5
(method_list_t) $6 = {
  entsize_list_tt<method_t, method_list_t, 4294901763, method_t::pointer_modifier> = (entsizeAndFlags = 27, count = 6)
}
(lldb) p $6.get(0).big
(method_t::big) $7 = {
  name = "hobby"
  types = 0x0000000100003f53 "@16@0:8"
  imp = 0x0000000100003dc0 (KCObjcBuild`-[LGPerson hobby])
}
  Fix-it applied, fixed expression was:
    $6.get(0).big()
(lldb) p $6.get(1).big
(method_t::big) $8 = {
  name = "sayNB"
  types = 0x0000000100003f5b "v16@0:8"
  imp = 0x0000000100003d50 (KCObjcBuild`-[LGPerson sayNB])
}
  Fix-it applied, fixed expression was:
    $6.get(1).big()
(lldb) p $6.get(2).big
(method_t::big) $9 = {
  name = "setHobby:"
  types = 0x0000000100003f6f "v24@0:8@16"
  imp = 0x0000000100003df0 (KCObjcBuild`-[LGPerson setHobby:])
}
  Fix-it applied, fixed expression was:
    $6.get(2).big()
(lldb) p $6.get(3).big
(method_t::big) $10 = {
  name = "init"
  types = 0x0000000100003f53 "@16@0:8"
  imp = 0x0000000100003cf0 (KCObjcBuild`-[LGPerson init])
}
  Fix-it applied, fixed expression was:
    $6.get(3).big()
(lldb) p $6.get(4).big
(method_t::big) $11 = {
  name = "name"
  types = 0x0000000100003f53 "@16@0:8"
  imp = 0x0000000100003d60 (KCObjcBuild`-[LGPerson name])
}
  Fix-it applied, fixed expression was:
    $6.get(4).big()
(lldb) p $6.get(5).big
(method_t::big) $12 = {
  name = "setName:"
  types = 0x0000000100003f6f "v24@0:8@16"
  imp = 0x0000000100003d90 (KCObjcBuild`-[LGPerson setName:])
}
  Fix-it applied, fixed expression was:
    $6.get(5).big()

(lldb) p/x LGPerson.class
(Class) $0 = 0x0000000100008380 LGPerson
(lldb) p *(class_data_bits_t *)(0x0000000100008380 + 32)
(class_data_bits_t) $1 = (bits = 4441981524)
(lldb) p $1.data()
(class_rw_t *) $2 = 0x0000000108c34250
(lldb) p (*$2).ro()
(const class_ro_t *) $3 = 0x0000000100008118
(lldb) p (*$3).ivars
(const ivar_list_t *const) $4 = 0x00000001000081f8
(lldb) p *$4
(const ivar_list_t) $5 = {
  entsize_list_tt<ivar_t, ivar_list_t, 0, PointerModifierNop> = (entsizeAndFlags = 32, count = 3)
}
(lldb) p $5.get(0)
(ivar_t) $6 = {
  offset = 0x0000000100008318
  name = 0x0000000100003f19 "subject"
  type = 0x0000000100003f63 "@\"NSString\""
  alignment_raw = 3
  size = 8
}
(lldb) p $5.get(1)
(ivar_t) $7 = {
  offset = 0x0000000100008320
  name = 0x0000000100003f21 "_name"
  type = 0x0000000100003f63 "@\"NSString\""
  alignment_raw = 3
  size = 8
}
(lldb) p $5.get(2)
(ivar_t) $8 = {
  offset = 0x0000000100008328
  name = 0x0000000100003f27 "_hobby"
  type = 0x0000000100003f63 "@\"NSString\""
  alignment_raw = 3
  size = 8
}
