2.1 解析器模块

2.1.1 XPath简介

2.1.2 XPathParser

XPathParser属性字段

  private Document document;
  private boolean validation;
  private EntityResolver entityResolver;  // 用于加载本地DTD文件
  private Properties variables; // mybatis-config.xml中properties标签定义的键值对集合
  private XPath xpath;

Reflector

public class Reflector {
  private static final String[] EMPTY_STRING_ARRAY = new String[0];
  private Class<?> type;
  private String[] readablePropertyNames = EMPTY_STRING_ARRAY;
  private String[] writeablePropertyNames = EMPTY_STRING_ARRAY;
  private Map<String, Invoker> setMethods = new HashMap<String, Invoker>();
  private Map<String, Invoker> getMethods = new HashMap<String, Invoker>();
  private Map<String, Class<?>> setTypes = new HashMap<String, Class<?>>();
  private Map<String, Class<?>> getTypes = new HashMap<String, Class<?>>();
  private Constructor<?> defaultConstructor;
  private Map<String, String> caseInsensitivePropertyMap = new HashMap<String, String>();
  public Reflector(Class<?> clazz) {
    type = clazz;
    addDefaultConstructor(clazz);
    addGetMethods(clazz);
    addSetMethods(clazz);
    addFields(clazz);
    readablePropertyNames = getMethods.keySet().toArray(new String[getMethods.keySet().size()]);
    writeablePropertyNames = setMethods.keySet().toArray(new String[setMethods.keySet().size()]);
    for (String propName : readablePropertyNames) {
      caseInsensitivePropertyMap.put(propName.toUpperCase(Locale.ENGLISH), propName);
    }
    for (String propName : writeablePropertyNames) {
      caseInsensitivePropertyMap.put(propName.toUpperCase(Locale.ENGLISH), propName);
    }
  }
//....
}

addMethod()和addField()在向上述集合添加元素时，会将getter/setter方法对于的Method对象以及字段对应的Field对象封装成Invoker对象，Invoker接口的定义如下：

public interface Invoker {
  // 调用获取指定字段的值或执行指定的方法
  Object invoke(Object target, Object[] args) throws IllegalAccessException, InvocationTargetException;
  Class<?> getType(); // 返回属性相应的类型
}

ReflectorFactory主要实现了对Reflector对象的创建和缓存，定义：

public interface ReflectorFactory {
  boolean isClassCacheEnabled();  // 检测该ReflectorFactory对象是否会缓存Reflector对象
  void setClassCacheEnabled(boolean classCacheEnabled);   // 设置是否缓存Reflector对象
  Reflector findForClass(Class<?> type);  // 寻找或创建指定class对于的Reflector对象
}

public native boolean isAssignableFrom(Class<?> cls);

确定此 Class 对象表示的类或接口是否与指定的 Class 参数表示的类或接口相同，或者是其超类或超接口。

2.2.2 TypeParameterResolver

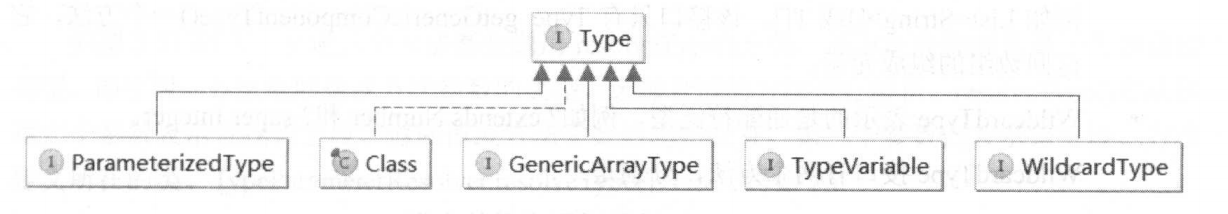

• Class
• ParameterizedType 表示参数化类型，例如List<String>, Map<Interger, String>, Service<User>
  • Type getRawType()：返回参数化类型中的原始类型，例如List<String>的原始类型为List
  • Type[] getActualTypeArguments()
  • Type getOwnerType()：返回所属类型，例如存在A<T>类，其中定义了内部类InnerA<T>，则InnerA<T>所属的类型为A<T>，如果是顶层类型则返回null
• TypeVariable表示的是类型变量，它用来反映在JVM编译该泛型前的信息。例如List<T>中的T就是类型变量
  • Type[] getBounds()：获取类型变量的上边界，如未声明上边界则默认为Object例如class Test<K extends Person>中K的上界就是Person
  • D getGenericDeclaration(): 获取声明该类型变量的原始类型
  • String getName()：获取在源码中定义时的名字
• GenericArrayType表示的是数组类型且组成元素是ParameterizedType或TypeVariable
• WildcardType表示的是通配符类型

TypeParameterResolver.resolverFieldType()

  public static Type resolveFieldType(Field field, Type srcType) {
    Type fieldType = field.getGenericType();  // 获取字段的声明类型
    Class<?> declaringClass = field.getDeclaringClass();  // 获取字段定义所在类的class对象
    return resolveType(fieldType, srcType, declaringClass);
  }

  private static Type resolveType(Type type, Type srcType, Class<?> declaringClass) {
    if (type instanceof TypeVariable) {
      return resolveTypeVar((TypeVariable<?>) type, srcType, declaringClass);
    } else if (type instanceof ParameterizedType) {
      return resolveParameterizedType((ParameterizedType) type, srcType, declaringClass);
    } else if (type instanceof GenericArrayType) {
      return resolveGenericArrayType((GenericArrayType) type, srcType, declaringClass);
    } else {
      return type;
    }
  }

private static ParameterizedType resolveParameterizedType(ParameterizedType parameterizedType, Type srcType, Class<?> declaringClass) {
    Class<?> rawType = (Class<?>) parameterizedType.getRawType();
    Type[] typeArgs = parameterizedType.getActualTypeArguments();
    Type[] args = new Type[typeArgs.length];
    for (int i = 0; i < typeArgs.length; i++) {
      if (typeArgs[i] instanceof TypeVariable) {
        args[i] = resolveTypeVar((TypeVariable<?>) typeArgs[i], srcType, declaringClass);
      } else if (typeArgs[i] instanceof ParameterizedType) {
        args[i] = resolveParameterizedType((ParameterizedType) typeArgs[i], srcType, declaringClass);
      } else if (typeArgs[i] instanceof WildcardType) {
        args[i] = resolveWildcardType((WildcardType) typeArgs[i], srcType, declaringClass);
      } else {
        args[i] = typeArgs[i];
      }
    }
    return new ParameterizedTypeImpl(rawType, null, args);
  }
