ODS 层的设计要点如下：

• ODS 层的表结构设计受业务系统同步过来的数据结构
• ODS 层保存全部历史数据，所以压缩格式选择压缩高 ( gzip )
• ODS 层表名的命名规范：ods表名单分区增量全量标识（ inc / full ）

日志表

日志数据格式

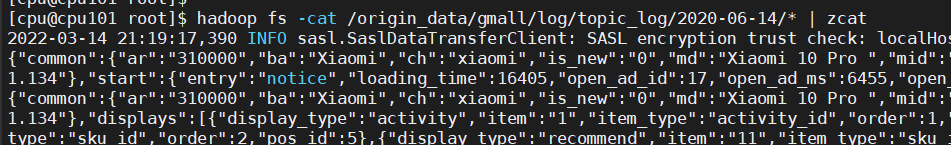

hadoop fs -cat /origin_data/gmall/log/topic_log/2020-06-14/* | zcat

{
    "common": {            -- 环境信息
        "ar": "440000",        -- 地区编码
        "ba": "Xiaomi",        -- 手机品牌
        "ch": "vivo",        -- 渠道
        "is_new": "1",        -- 是否首日使用，首次使用的当日，该字段值为1，过了24:00，该字段置为0
        "md": "Xiaomi 9",    -- 手机型号
        "mid": "mid_625416",    -- 设备id
        "os": "Android 11.0",    -- 操作系统
        "uid": "209",            -- 会员id
        "vc": "v2.1.111"        -- app版本号
    },
    "page": {                -- 页面信息
        "during_time": 2815,        -- 持续时间毫秒
        "item": "28",               -- 目标id
        "item_type": "sku_id",        -- 目标类型
        "last_page_id": "register",     -- 上页类型
        "page_id": "good_detail",    -- 页面ID
        "source_type": "promotion"     -- 来源类型
    },
    "actions": [            -- 动作(事件)
        {
            "action_id": "get_coupon",  -- 动作id
            "item": "2",                 -- 目标id
            "item_type": "coupon_id",      -- 目标类型
            "ts": 1592144742407            -- 动作时间戳
        }
    ],
    "displays": [                    -- 曝光信息
        {
            "display_type": "promotion",    -- 曝光类型
            "item": "32",                  -- 曝光对象id
            "item_type": "sku_id",           -- 曝光对象类型
            "order": 1,                      -- 出现顺序
            "pos_id": 1                      -- 曝光位置
        }
    ],
    "start": {                -- 启动日志
        "entry": "icon",        -- icon 手机图标  notice 通知   install 安装后启动
        "loading_time": 18803,   -- 启动加载时间
        "open_ad_id": 7,        -- 广告页ID
        "open_ad_ms": 3449,         -- 广告总共播放时间
        "open_ad_skip_ms": 1989  --  用户跳过广告时点
    },
    "err": {                  -- 错误
        "error_code": "1234",      -- 错误码
        "msg": "***********"      -- 错误信息
    },
    "ts": 1592144741000        -- 跳入时间戳
}

建表数据

-- 删除表
DROP TABLE IF EXISTS ods_log_inc;
-- 创建外部表
CREATE EXTERNAL TABLE ods_log_inc
(
    `common`   STRUCT<ar :STRING, ba :STRING, ch :STRING, is_new :STRING, md :STRING, mid :STRING, os :STRING, uid
                      :STRING, vc :STRING> COMMENT '公共信息',
    `page`     STRUCT<during_time :BIGINT, item :STRING, item_type :STRING, last_page_id :STRING, page_id :STRING,
                      source_type :STRING> COMMENT '页面信息',
    `actions`  ARRAY<STRUCT<action_id:STRING, item:STRING, item_type:STRING, ts:BIGINT>> COMMENT '动作信息',
    `displays` ARRAY<STRUCT<display_type :STRING, item :STRING, item_type :STRING, `order` :STRING, pos_id
                            :STRING>> COMMENT '曝光信息',
    `start`    STRUCT<entry :STRING, loading_time :BIGINT, open_ad_id :BIGINT, open_ad_ms :BIGINT, open_ad_skip_ms
                      :BIGINT> COMMENT '启动信息',
    `err`      STRUCT<error_code:BIGINT, msg:STRING> COMMENT '错误信息',
    `ts`       BIGINT COMMENT '时间戳'
) COMMENT '活动信息表'
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe'
    LOCATION '/warehouse/gmall/ods/ods_log_inc/';

数据装载

load data inpath '/origin_data/gmall/log/topic_log/2020-06-14'
    into table ods_log_inc
    partition (dt = '2020-06-14');

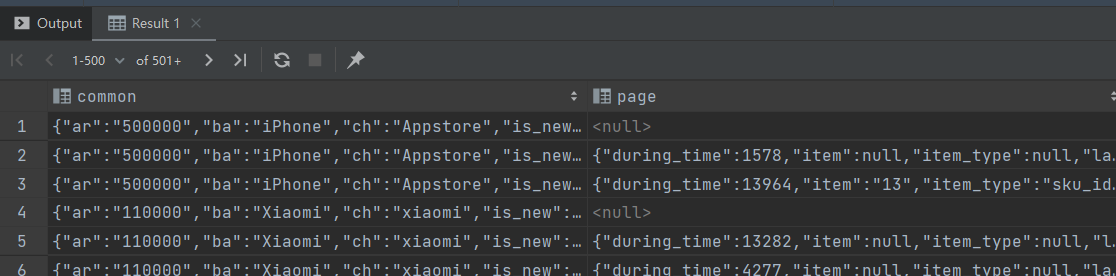

查询数据

-- 查询数据

select common,
       page,
       actions,
       displays,
       `start`,
       err,
       ts,
       dt
from ods_log_inc
where dt = '2020-06-14';

每日数据装载脚本

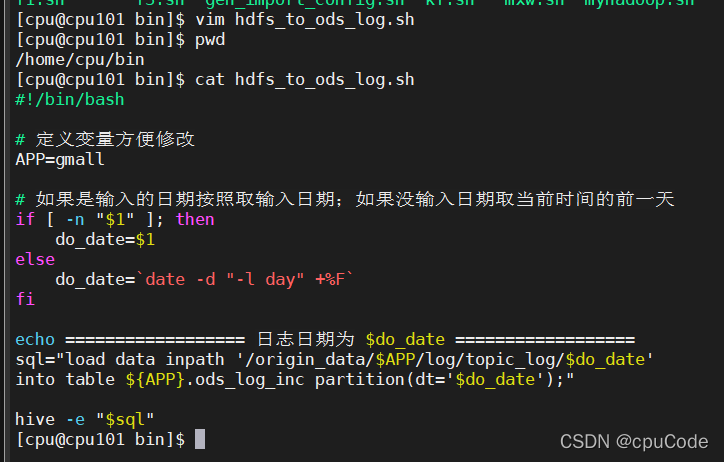

在 cpu101 的 /home/cpu/bin 目录下创建 hdfs_to_ods_log.sh

vim hdfs_to_ods_log.sh

内容 :

#!/bin/bash

# 定义变量方便修改
APP=gmall

# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ]; then
    do_date=$1
else
    do_date=`date -d "-l day" +%F`
fi

echo ================== 日志日期为 $do_date ==================
sql="load data inpath '/origin_data/$APP/log/topic_log/$do_date'
into table ${APP}.ods_log_inc partition(dt='$do_date');"

hive -e "$sql"

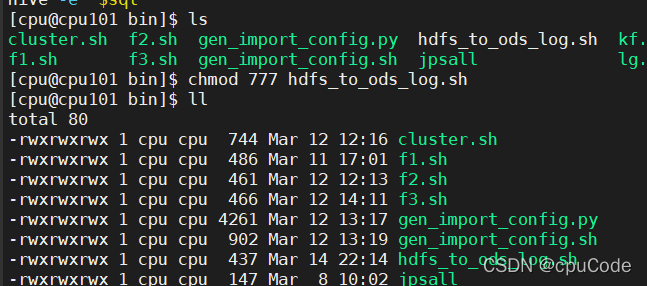

增加脚本执行权限

chmod 777 hdfs_to_ods_log.sh

脚本用法 :

hdfs_to_ods_log.sh 2020-06-14

业务表

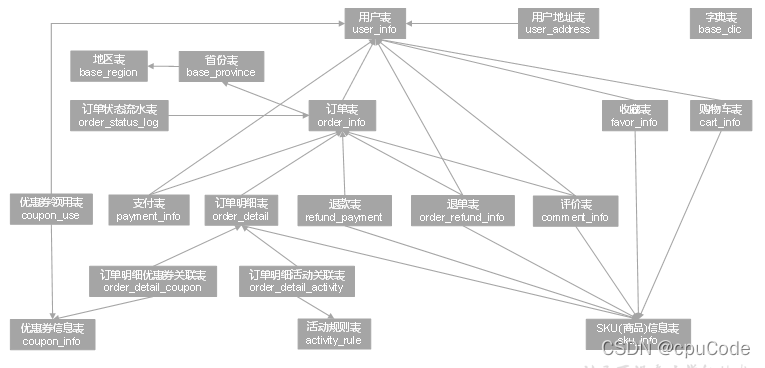

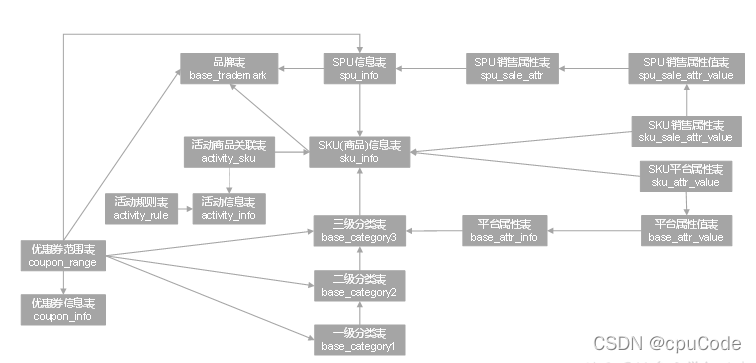

后台管理系统 :

全量表

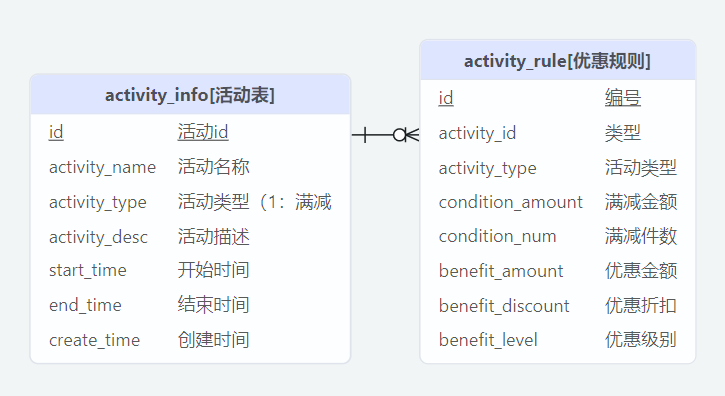

活动信息表

-- 删除 活动信息表
DROP TABLE IF EXISTS ods_activity_info_full;

-- 创建外部 活动信息表
CREATE EXTERNAL TABLE ods_activity_info_full(
    `id`            STRING COMMENT '活动id',
    `activity_name` STRING COMMENT '活动名称',
    `activity_type` STRING COMMENT '活动类型',
    `activity_desc` STRING COMMENT '活动描述',
    `start_time`    STRING COMMENT '开始时间',
    `end_time`      STRING COMMENT '结束时间',
    `create_time`   STRING COMMENT '创建时间'
) COMMENT '活动信息表'
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_activity_info_full/';

装载该分区数据

-- 装载数据

load data inpath '/origin_data/gmall/db/activity_info_full/2020-06-14'
    into table ods_activity_info_full
    partition (dt = '2020-06-14');

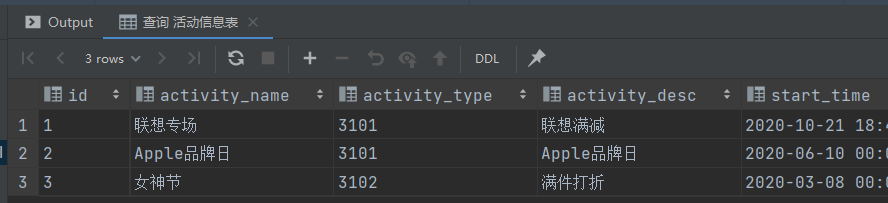

查询活动信息表

-- 查询 活动信息表

select id,
       activity_name,
       activity_type,
       activity_desc,
       start_time,
       end_time,
       create_time,
       dt
from ods_activity_info_full
where dt = '2020-06-14';

活动规则表

-- 删除 活动规则表
DROP TABLE IF EXISTS ods_activity_rule_full;

-- 创建外部 活动规则表
CREATE EXTERNAL TABLE ods_activity_rule_full(
    `id`               STRING COMMENT '编号',
    `activity_id`      STRING COMMENT '类型',
    `activity_type`    STRING COMMENT '活动类型',
    `condition_amount` DECIMAL(16, 2) COMMENT '满减金额',
    `condition_num`    BIGINT COMMENT '满减件数',
    `benefit_amount`   DECIMAL(16, 2) COMMENT '优惠金额',
    `benefit_discount` DECIMAL(16, 2) COMMENT '优惠折扣',
    `benefit_level`    STRING COMMENT '优惠级别'
) COMMENT '活动规则表'
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_activity_rule_full/';

装载该分区数据

-- 装载数据

load data inpath '/origin_data/gmall/db/activity_rule_full/2020-06-14'
    into table ods_activity_rule_full
    partition (dt = '2020-06-14');

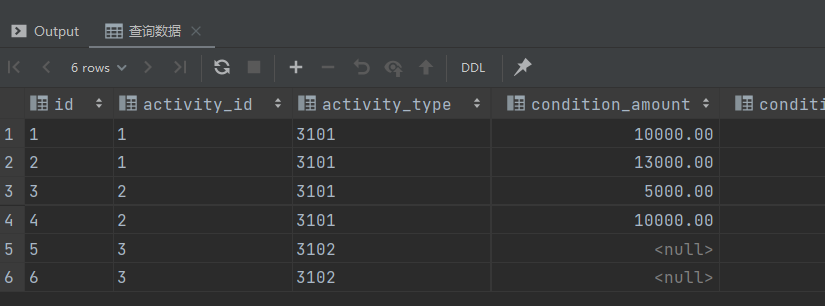

查询数据

-- 查询数据

select id,
       activity_id,
       activity_type,
       condition_amount,
       condition_num,
       benefit_amount,
       benefit_discount,
       benefit_level,
       dt
from ods_activity_rule_full
where dt = '2020-06-14';

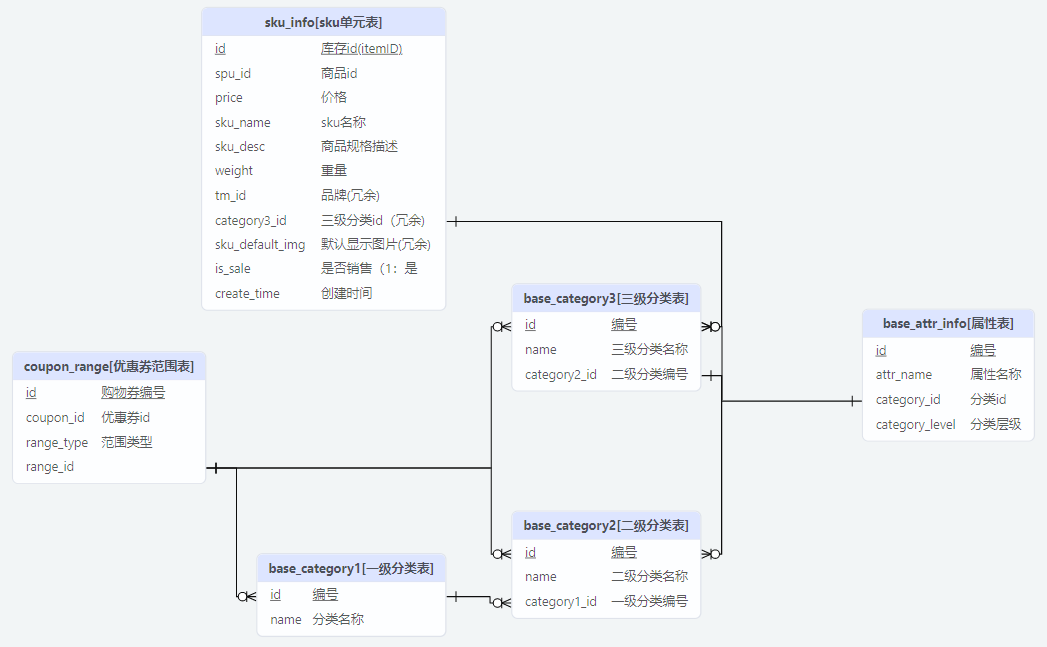

一级品类表

-- 删除 一级品类表

drop table if exists ods_base_category1_full;

-- 创建 一级品类表

create external table ods_base_category1_full (
    `id` string comment '编号',
    `name` string comment '分类名称'
) comment '一级品类表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
    null defined as ''
    location '/warehouse/gmall/ods/ods_base_category1_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/base_category1_full/2020-06-14'
    into table ods_base_category1_full
    partition (dt = '2020-06-14');

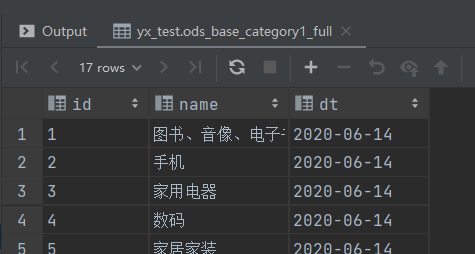

查询数据

-- 查询数据

select id,
       name,
       dt
from ods_base_category1_full
where dt = '2020-06-14';

二级品类表

-- 删除 二级品类表
drop table if exists ods_base_category2_full;

-- 创建 二级品类表
create external table ods_base_category2_full
(
    `id`           string comment '编号',
    `name`         string comment '二级分类名称',
    `category1_id` string comment '一级分类编号'
) comment '二级品类表'
    partitioned by (`dt` STRING)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_base_category2_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/base_category2_full/2020-06-14'
    into table ods_base_category2_full
    partition (dt = '2020-06-14');

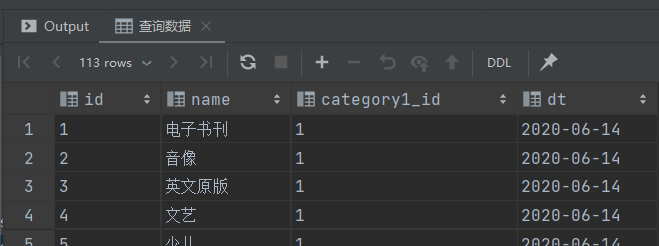

查询数据

-- 查询数据
select id,
       name,
       category1_id,
       dt
from ods_base_category2_full
where dt = '2020-06-14';

三级品类表

-- 删除 三级品类表

drop table if exists ods_base_category3_full;

-- 创建外部 三级品类表

create external table ods_base_category3_full
(
    `id`           string comment '编号',
    `name`         string comment '三级分类名称',
    `category2_id` string comment '二级分类编号'
) comment '三级品类表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_base_category3_full/';

装载数据

-- 装载数据

load data inpath '/origin_data/gmall/db/base_category3_full/2020-06-14'
    into table ods_base_category3_full
    partition (dt = '2020-06-14');

查询数据

-- 查询数据
select id,
       name,
       category2_id,
       dt
from ods_base_category3_full
where dt = '2020-06-14';

编码字典表

-- 删除 编码字典表
drop table if exists ods_base_dic_full;

-- 创建 编码字典表
create external table ods_base_dic_full
(
    `dic_code`     string comment '编号',
    `dic_name`     string comment '编码名称',
    `parent_code`  string comment '父编号',
    `create_time`  string comment '创建日期',
    `operate_time` string comment '修改日期'
) comment '编码字典表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_base_dic_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/base_dic_full/2020-06-14'
    into table ods_base_dic_full
    partition (dt = '2020-06-14');

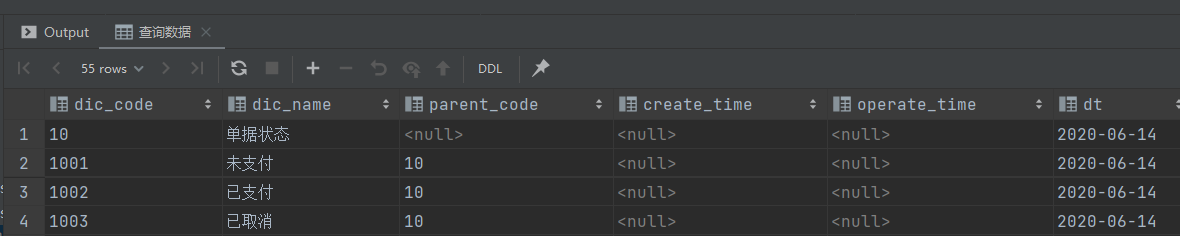

查询数据

-- 查询数据
select dic_code,
       dic_name,
       parent_code,
       create_time,
       operate_time,
       dt
from ods_base_dic_full
where dt = '2020-06-14';

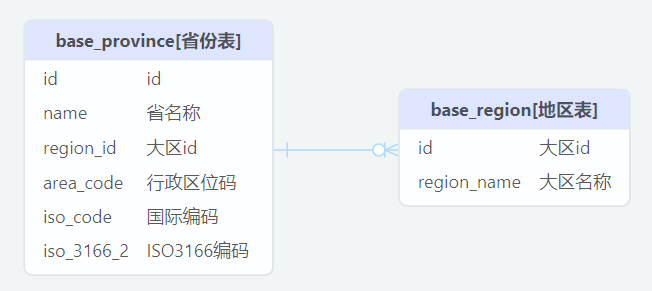

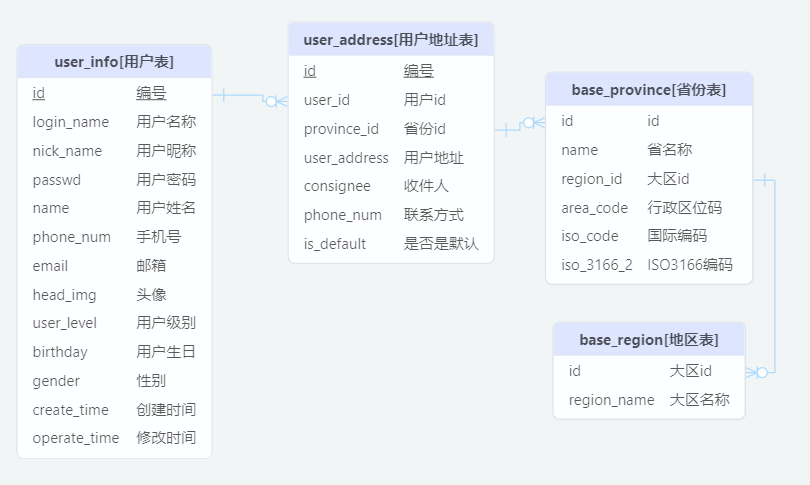

省份表

-- 删除 省份表
drop table if exists ods_base_province_full;

-- 创建 省份表
create external table ods_base_province_full
(
    `id`         string comment '编号',
    `name`       string comment '省份名称',
    `region_id`  string comment '地区ID',
    `area_code`  string comment '地区编码',
    `iso_code`   string comment '旧版ISO-3166-2编码，供可视化使用',
    `iso_3166_2` string comment '新版IOS-3166-2编码，供可视化使用'
) comment '省份表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_base_province_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/base_province_full/2020-06-14'
    into table ods_base_province_full
    partition (dt = '2020-06-14');

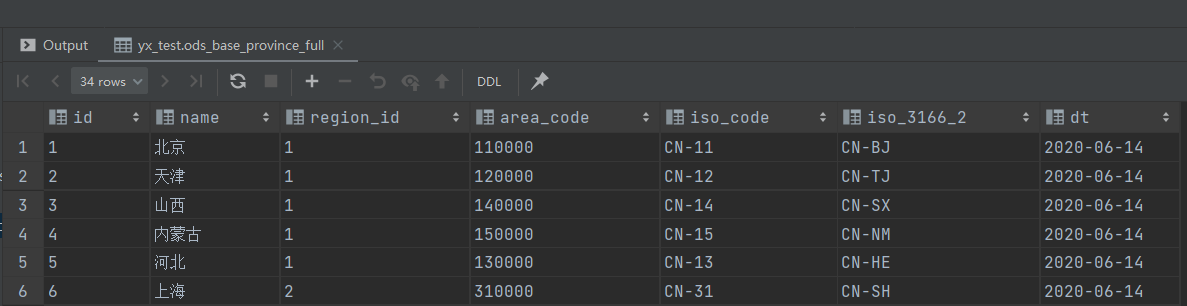

查询数据

-- 查询数据
select id,
       name,
       region_id,
       area_code,
       iso_code,
       iso_3166_2,
       dt
from ods_base_province_full
where dt = '2020-06-14';

地区表

-- 删除 地区表
drop table if exists ods_base_region_full;

-- 创建 地区表
create external table ods_base_region_full
(
    `id`          string comment '编号',
    `region_name` string comment '地区名称'
) comment ''
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_base_region_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/base_region_full/2020-06-14'
    into table ods_base_region_full
    partition (dt = '2020-06-14');

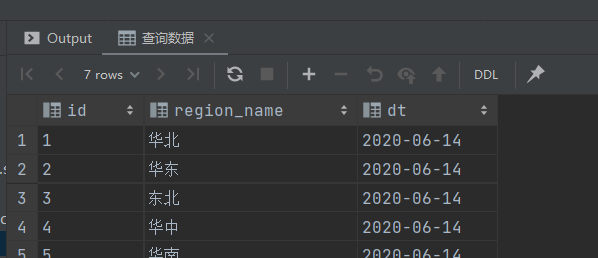

查询数据

-- 查询数据
select id,
       region_name,
       dt
from ods_base_region_full
where dt = '2020-06-14';

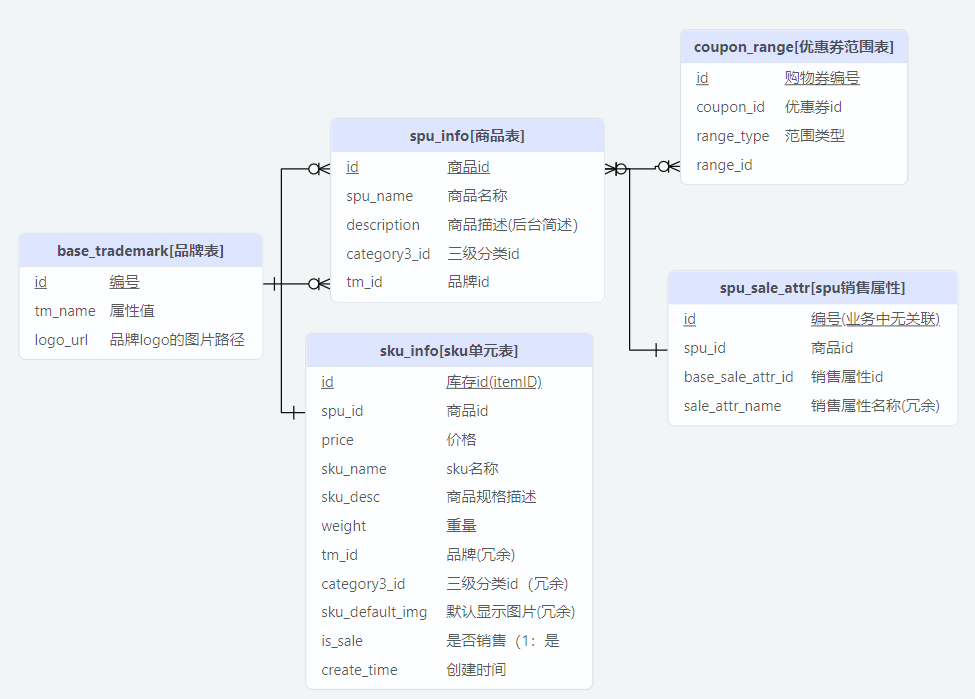

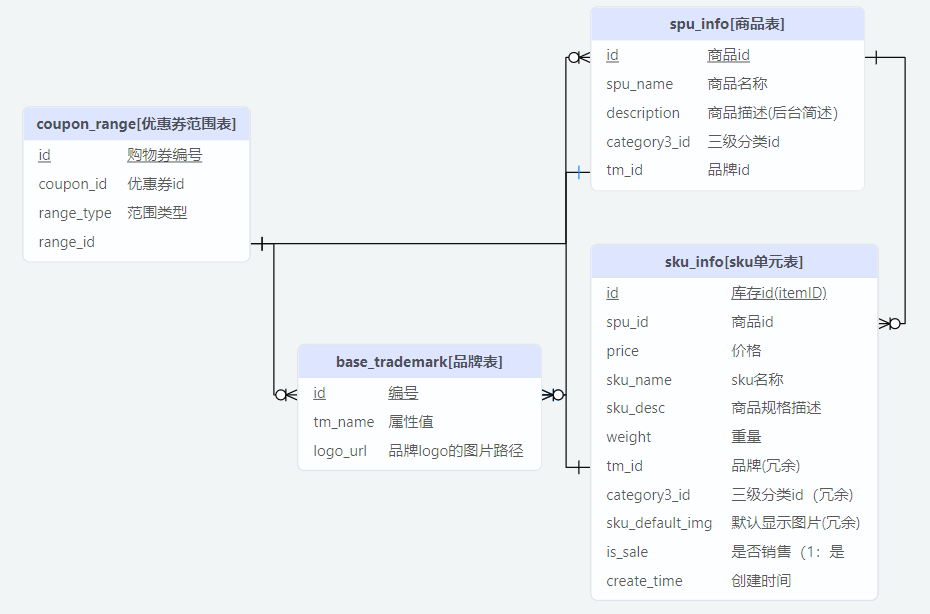

品牌表

DROP TABLE IF EXISTS ods_base_trademark_full;

CREATE EXTERNAL TABLE ods_base_trademark_full(
    `id`       STRING COMMENT '编号',
    `tm_name`  STRING COMMENT '品牌名称',
    `logo_url` STRING COMMENT '品牌logo的图片路径'
) COMMENT '品牌表'
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_base_trademark_full/';

装载数据

load data inpath '/origin_data/gmall/db/base_trademark_full/2020-06-14'
    into table ods_base_trademark_full
    partition (dt = '2020-06-14');

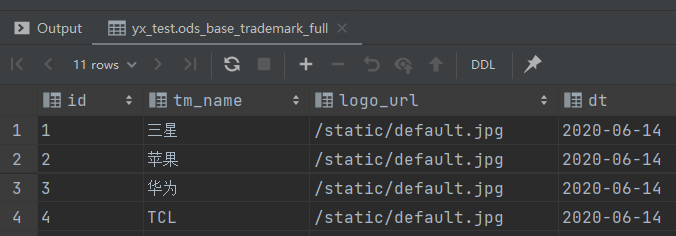

查询数据

select id,
       tm_name,
       logo_url,
       dt
from ods_base_trademark_full
where dt = '2020-06-14';

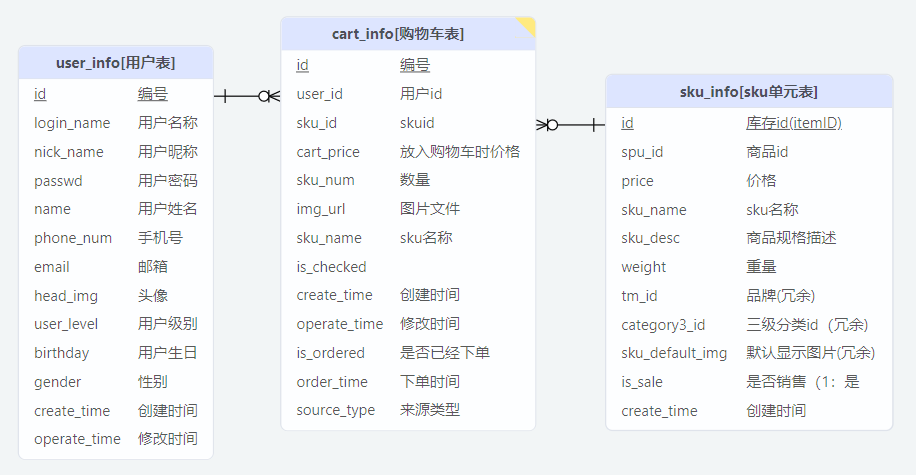

购物车表

-- 删除 购物车表
drop table if exists ods_cart_info_full;

-- 创建 购物车表
create external table ods_cart_info_full
(
    `id`           string comment '编号',
    `user_id`      string comment '用户id',
    `sku_id`       string comment 'sku_id',
    `cart_price`   decimal(16, 2) comment '放入购物车时价格',
    `sku_num`      bigint comment '数量',
    `img_url`      string comment '商品图片地址',
    `sku_name`     string comment 'sku名称 (冗余)',
    `is_checked`   string comment '是否被选中',
    `create_time`  string comment '创建时间',
    `operate_time` string comment '修改时间',
    `is_ordered`   string comment '是否已经下单',
    `order_time`   string comment '下单时间',
    `source_type`  string comment '来源类型',
    `source_id`    string comment '来源编号'
) comment '购物车全量表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_cart_info_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/cart_info_full/2020-06-14'
    into table ods_cart_info_full
    partition (dt = '2020-06-14');

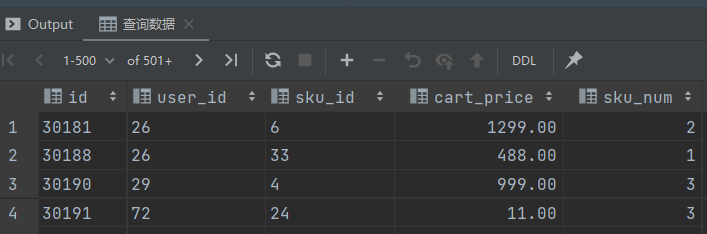

查询数据

select id,
       user_id,
       sku_id,
       cart_price,
       sku_num,
       img_url,
       sku_name,
       is_checked,
       create_time,
       operate_time,
       is_ordered,
       order_time,
       source_type,
       source_id,
       dt
from ods_cart_info_full
where dt = '2020-06-14';

优惠券信息表

-- 删除 优惠券信息表
drop table if exists ods_coupon_info_full;

-- 创建 优惠券信息表
create external table ods_coupon_info_full
(
    `id`               string comment '购物券编号',
    `coupon_name`      string comment '购物券名称',
    `coupon_type`      string comment '购物券类型 1 现金券 2 折扣券 3 满减券 4 满件打折券',
    `condition_amount` DECIMAL(16, 2) COMMENT '满额数',
    `condition_num`    BIGINT COMMENT '满件数',
    `activity_id`      STRING COMMENT '活动编号',
    `benefit_amount`   DECIMAL(16, 2) COMMENT '减金额',
    `benefit_discount` DECIMAL(16, 2) COMMENT '折扣',
    `create_time`      STRING COMMENT '创建时间',
    `range_type`       STRING COMMENT '范围类型 1、商品 2、品类 3、品牌',
    `limit_num`        BIGINT COMMENT '最多领用次数',
    `taken_count`      BIGINT COMMENT '已领用次数',
    `start_time`       STRING COMMENT '开始领取时间',
    `end_time`         STRING COMMENT '结束领取时间',
    `operate_time`     STRING COMMENT '修改时间',
    `expire_time`      STRING COMMENT '过期时间'
) comment '优惠券信息表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_coupon_info_full/';

-- 装载数据
load data inpath '/origin_data/gmall/db/coupon_info_full/2020-06-14'
    into table ods_coupon_info_full
    partition (dt = '2020-06-14');

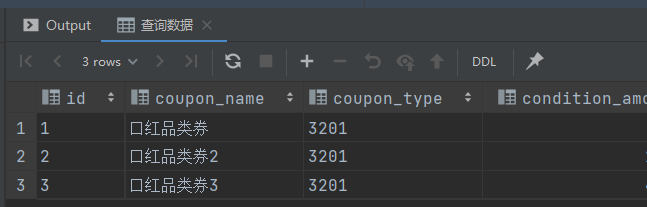

-- 查询数据
select id,
       coupon_name,
       coupon_type,
       condition_amount,
       condition_num,
       activity_id,
       benefit_amount,
       benefit_discount,
       create_time,
       range_type,
       limit_num,
       taken_count,
       start_time,
       end_time,
       operate_time,
       expire_time,
       dt
from ods_coupon_info_full
where dt = '2020-06-14';

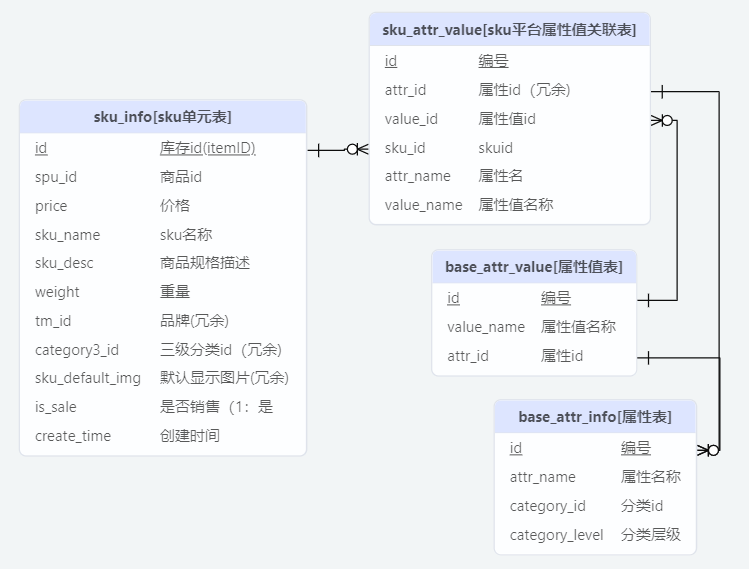

商品平台属性表

创建 商品平台属性表

-- 删除 商品平台属性表
drop table if exists ods_sku_attr_value_full;

-- 创建 商品平台属性表
create external table ods_sku_attr_value_full
(
    `id`          string comment '编号',
    `attr_id`     string comment '平台属性ID',
    `value_id`    string comment '平台属性值ID',
    `sku_id`      string comment '商品ID',
    `attr_name`   string comment '平台属性名称',
    `values_name` string comment '平台属性值名称'
) comment 'sku平台属性表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_sku_attr_value_full/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/sku_attr_value_full/2020-06-14'
    into table ods_sku_attr_value_full
    partition (dt = '2020-06-14');

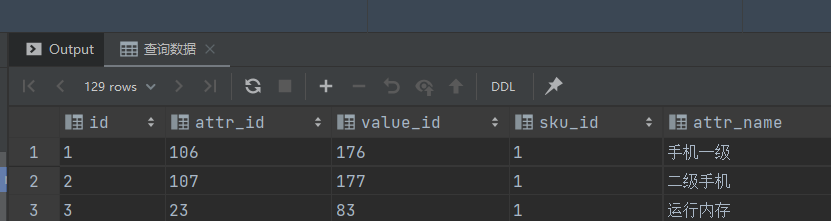

查询数据

-- 查询数据
select id,
       attr_id,
       value_id,
       sku_id,
       attr_name,
       values_name,
       dt
from ods_sku_attr_value_full
where dt = '2020-06-14';

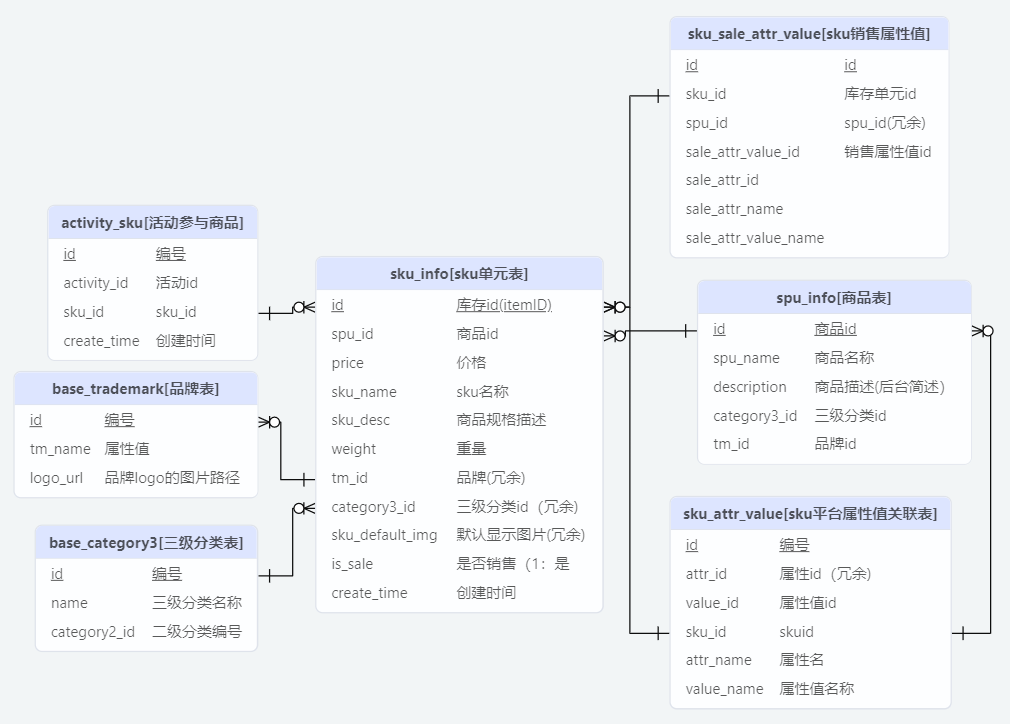

商品表

-- 删除 商品表
drop table if exists ods_sku_info_full;

-- 创建 商品表
create external table ods_sku_info_full
(
    `id`              string comment 'skuId',
    `spu_id`          string comment 'spuid',
    `price`           decimal(16, 2) comment '价格',
    `sku_name`        string comment '商品名称',
    `sku_desc`        string comment '商品描述',
    `weight`          decimal(16, 2) comment '重量',
    `tm_id`           string comment '品牌id',
    `category3_id`    string comment '品类id',
    `sku_default_igm` string comment '商品图片地址',
    `is_sale`         string comment '是否在售',
    `create_time`     string comment '创建时间'
) comment 'SKU商品表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_sku_info_full/';

-- 装载数据
load data inpath '/origin_data/gmall/db/sku_info_full/2020-06-14'
    into table ods_sku_info_full
    partition (dt = '2020-06-14');

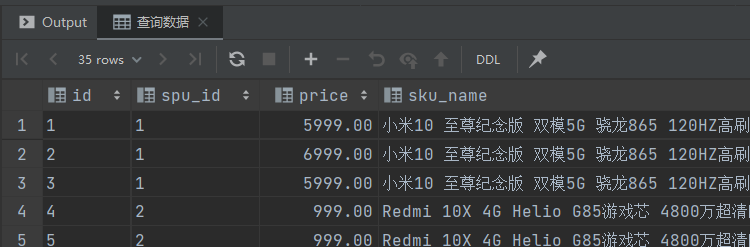

-- 查询数据
select id,
       spu_id,
       price,
       sku_name,
       sku_desc,
       weight,
       tm_id,
       category3_id,
       sku_default_igm,
       is_sale,
       create_time,
       dt
from ods_sku_info_full
where dt = '2020-06-14';

商品销售属性值表

-- 删除 商品销售属性值表
DROP TABLE IF EXISTS ods_sku_sale_attr_value_full;

-- 创建 商品销售属性值表
CREATE EXTERNAL TABLE ods_sku_sale_attr_value_full(
    `id`                   STRING COMMENT '编号',
    `sku_id`               STRING COMMENT 'sku_id',
    `spu_id`               STRING COMMENT 'spu_id',
    `sale_attr_value_id`   STRING COMMENT '销售属性值id',
    `sale_attr_id`         STRING COMMENT '销售属性id',
    `sale_attr_name`       STRING COMMENT '销售属性名称',
    `sale_attr_value_name` STRING COMMENT '销售属性值名称'
) COMMENT 'sku销售属性名称'
    PARTITIONED BY (`dt` STRING)
    ROW FORMAT DELIMITED FIELDS TERMINATED BY '\t'
    NULL DEFINED AS ''
    LOCATION '/warehouse/gmall/ods/ods_sku_sale_attr_value_full/';

-- 装载数据
load data inpath '/origin_data/gmall/db/sku_sale_attr_value_full/2020-06-14'
    into table ods_sku_sale_attr_value_full
    partition (dt = '2020-06-14');

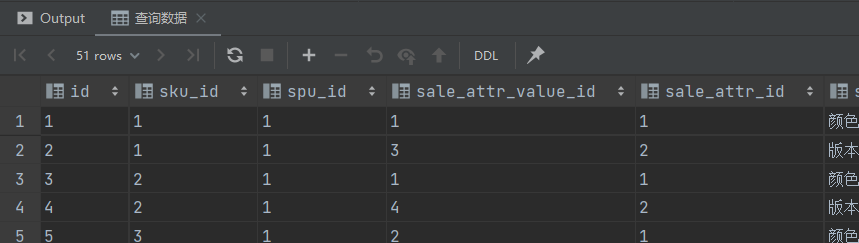

-- 查询数据
select id,
       sku_id,
       spu_id,
       sale_attr_value_id,
       sale_attr_id,
       sale_attr_name,
       sale_attr_value_name,
       dt
from ods_sku_sale_attr_value_full
where dt = '2020-06-14';

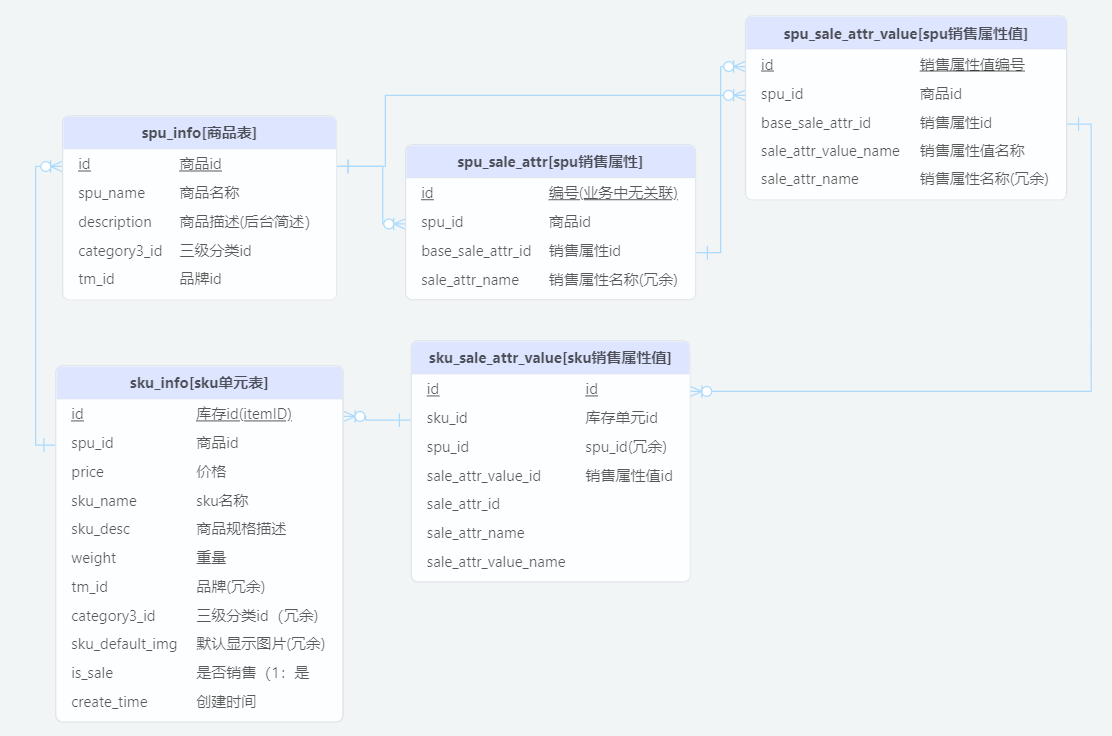

SPU表

-- 删除 SPU表
drop table if exists ods_spu_info_full;

-- 创建 SPU表
create external table ods_spu_info_full
(
    `id`           STRING COMMENT 'spu_id',
    `spu_name`     STRING COMMENT 'spu名称',
    `description`  STRING COMMENT '描述信息',
    `category3_id` STRING COMMENT '品类id',
    `tm_id`        STRING COMMENT '品牌id'
) comment 'SPU商品表'
    partitioned by (`dt` string)
    row format delimited fields terminated by '\t'
        null defined as ''
    location '/warehouse/gmall/ods/ods_spu_info_full/';

-- 加载数据
load data inpath '/origin_data/gmall/db/spu_info_full/2020-06-14'
    into table ods_spu_info_full
    partition (dt = '2020-06-14');

-- 查询
select id,
       spu_name,
       description,
       category3_id,
       tm_id,
       dt
from ods_spu_info_full
where dt = '2020-06-14';

增量表

电商业务表 :

购物车表

hadoop fs -cat /origin_data/gmall/db/cart_info_inc/2020-06-14 | zcat

sql :

-- 删除购物车表
drop table if exists ods_cart_info_inc;

-- 创建 购物车表
create external table ods_cart_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, user_id :string,sku_id :string, cart_price :decimal(16, 2), sku_num :bigint,img_url
                  :string,sku_name :string,is_checked :string,create_time :string, operate_time :string,is_ordered
                  :string,order_time :string,source_type :string,source_id :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '购物车增量表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_cart_info_inc/';

-- 转载数据
load data inpath '/origin_data/gmall/db/cart_info_inc/2020-06-14'
    overwrite into table ods_cart_info_inc
    partition (dt = '2020-06-14');

-- 查询数据
set hive.execution.engine = spark;
select type,
       ts,
       data.id,
       data.user_id,
       data.sku_id,
       data.create_time,
       data.source_id,
       data.source_type,
       data.sku_num,
       old['id'] as old_id,
       old['user_id'] as old_user_id,
       old['sku_id'] as old_sku_id,
       old['create_time'] as old_sku_id,
       old['source_id'] as old_source_id,
       old['source_type'] as old_source_type,
       old['sku_num'] as old_sku_num,
       dt
from ods_cart_info_inc
where dt = '2020-06-14'
limit 100;

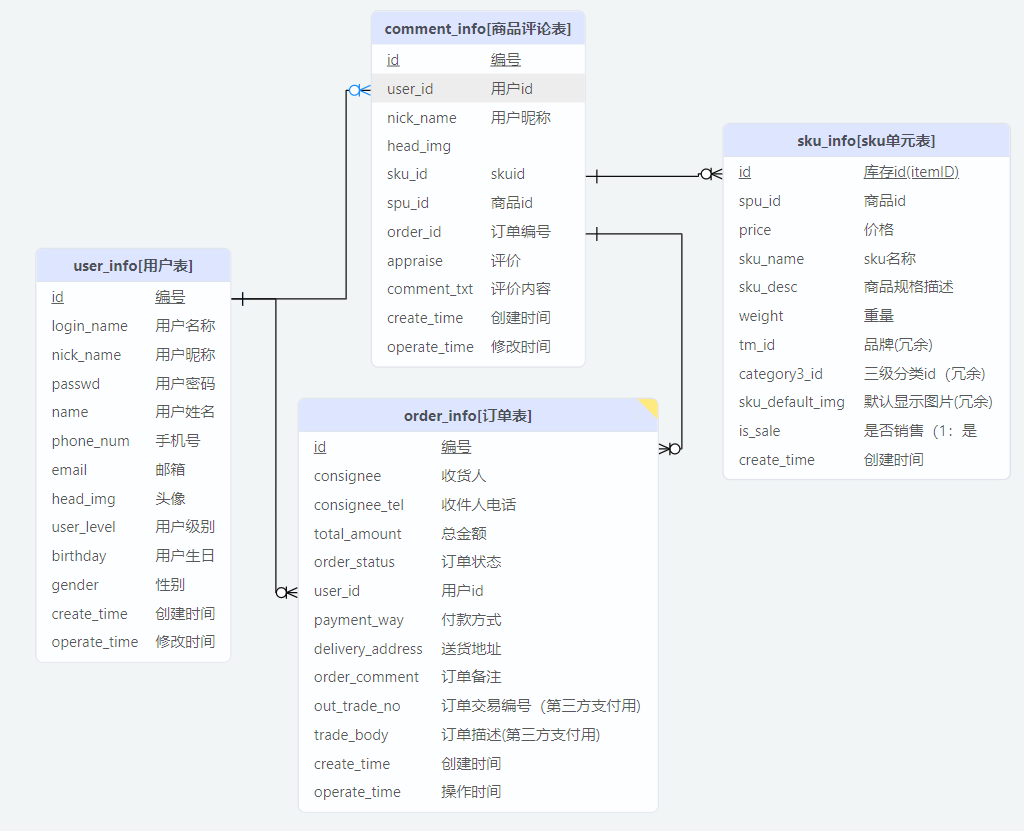

评论表

-- 删除评论表
drop table if exists ods_comment_info_inc;

-- 创建 评论表
create external table ods_comment_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, user_id :string, nick_name :string, head_img :string, sku_id :string,spu_id :string,
                  order_id :string, appraise :string, comment_txt :string, create_time :string, operate_time
                  :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '评论表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_comment_info_inc/';

-- 装载数据
load data inpath '/origin_data/gmall/db/comment_info_inc/2020-06-14'
    into table ods_comment_info_inc
    partition (dt = '2020-06-14');

-- 查询数据
select type,
       ts,
       data.id,
       data.user_id,
       data.nick_name,
       data.head_img,
       data.sku_id,
       data.spu_id,
       data.order_id,
       data.appraise,
       data.comment_txt,
       data.create_time,
       data.operate_time
       old,
       dt
from ods_comment_info_inc
where dt = '2020-06-14';

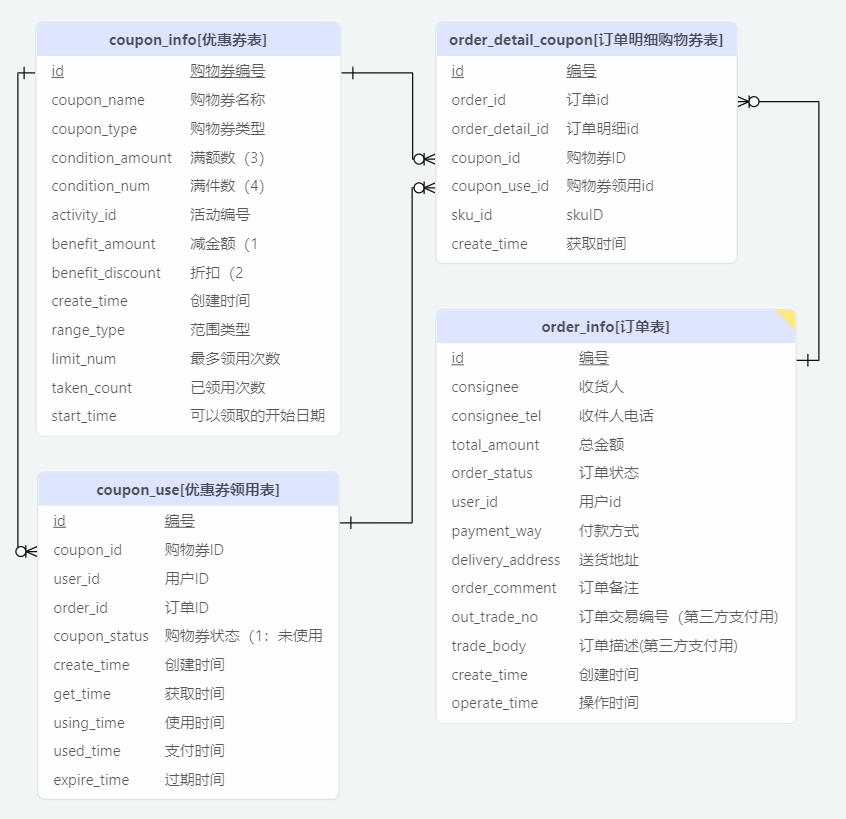

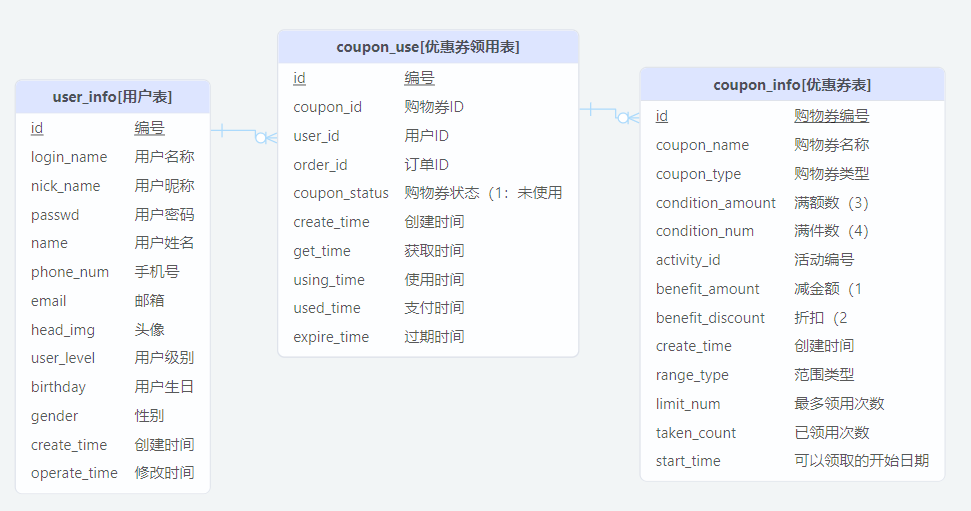

优惠券领用表

建表

-- 删除 优惠券领用表
drop table if exists ods_coupon_use_inc;

-- 创建 优惠券领用表
create external table ods_coupon_use_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, coupon_id :string, user_id :string, order_id :string, coupon_status :string, get_time
                  :string, using_time :string, used_time :string, expire_time :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '优惠券领用表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_coupon_use_inc/';

装载数据

set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/coupon_use_inc/${do_date}'
    into table ods_coupon_use_inc
    partition (dt = '${do_date}');

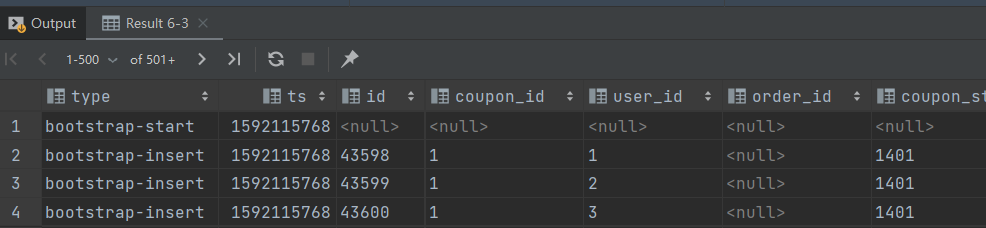

查询数据

set hivevar:do_date = 2020-06-14;
select type,
       ts,
       data.id,
       data.coupon_id,
       data.user_id,
       data.order_id,
       data.coupon_status,
       data.get_time,
       data.using_time,
       data.used_time,
       data.expire_time,
       old,
       old['id'] as old_id,
       old['coupon_id'] as old_coupon_id,
       old['user_id'] as old_user_id,
       old['order_id'] as old_order_id,
       old['coupon_status'] as old_coupon_status,
       old['get_time'] as old_get_time,
       old['using_time'] as old_using_time,
       old['used_time'] as old_used_time,
       old['expire_time'] as old_expire_time,
       dt
from ods_coupon_use_inc
where dt = '${do_date}';

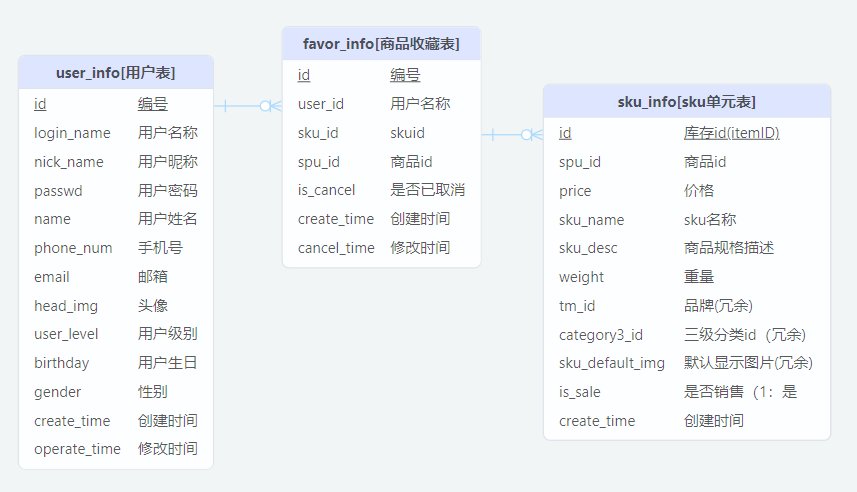

收藏表

建表

-- 删除 收藏表
drop table if exists ods_favor_info_inc;

-- 创建 收藏表
create external table ods_favor_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, user_id :string, sku_id :string, spu_id :string, is_cancel :string, create_time :string,
                  cancel_time :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '收藏表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_favor_info_inc/';

装载数据

-- 装载数据
load data inpath '/origin_data/gmall/db/favor_info_inc/2020-06-14'
    into table ods_favor_info_inc
    partition (dt = '2020-06-14');

查询数据

-- 查询数据

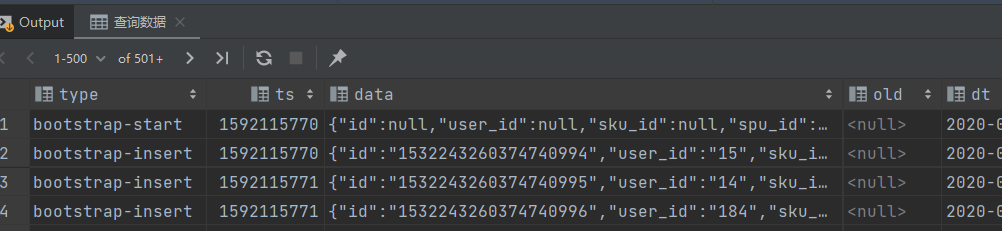

select type,
       ts,
       data,
       old,
       dt
from ods_favor_info_inc
where dt = '2020-06-14';

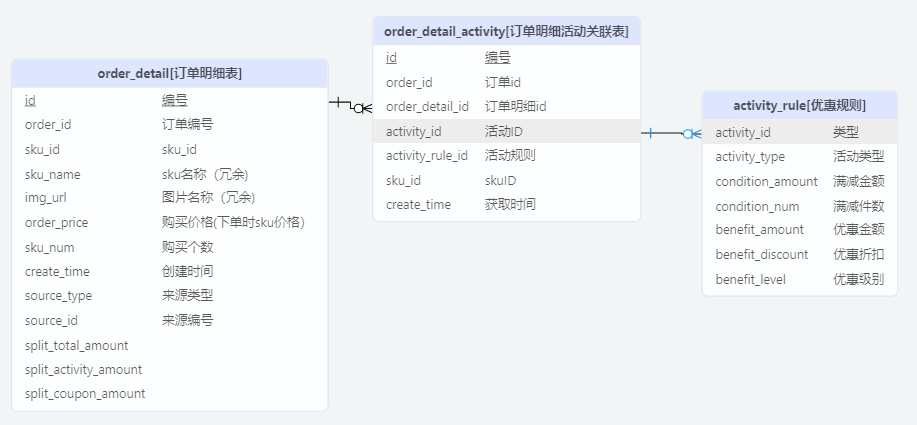

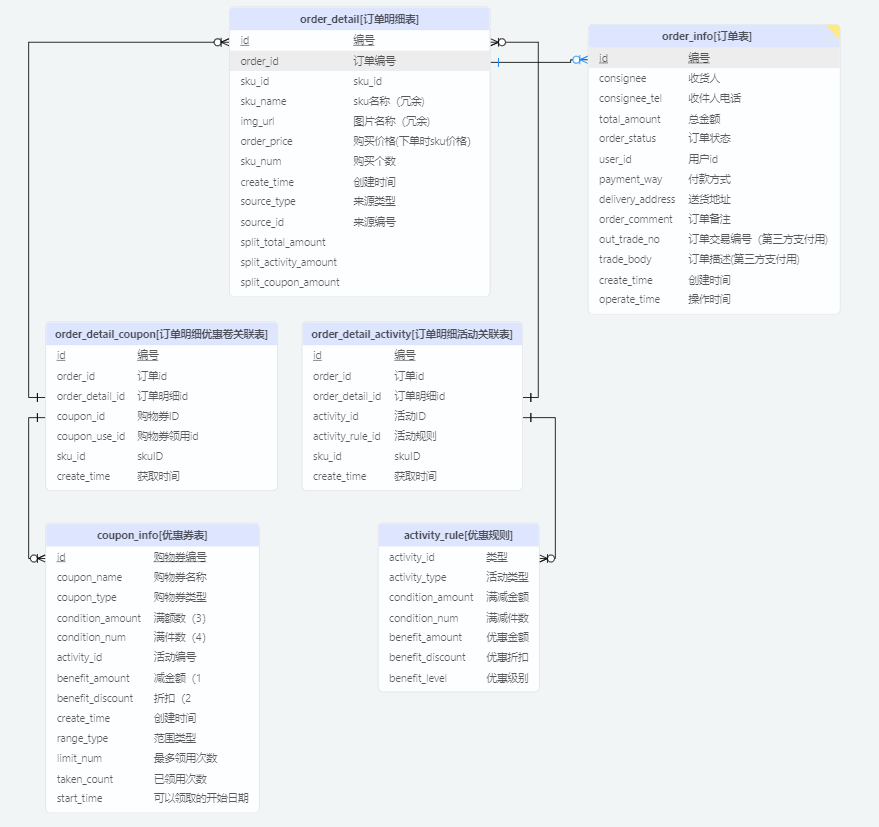

订单明细表

-- 创建 订单明细表
drop table if exists ods_order_detail_inc;

create external table ods_order_detail_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, order_id :string, sku_id :string, sku_name :string, img_url :string, order_price
                  :decimal(16, 2), sku_num :bigint, create_time :string, source_type :string, source_id :string,
                  split_total_amount :decimal(16, 2), split_activity_amount :decimal(16, 2), split_coupon_amount
                  :decimal(16, 2)> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '订单明细表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_order_detail_inc/';

装载数据

-- 装载数据
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/order_detail_inc/${do_date}'
    into table ods_order_detail_inc
    partition (dt = '${do_date}');

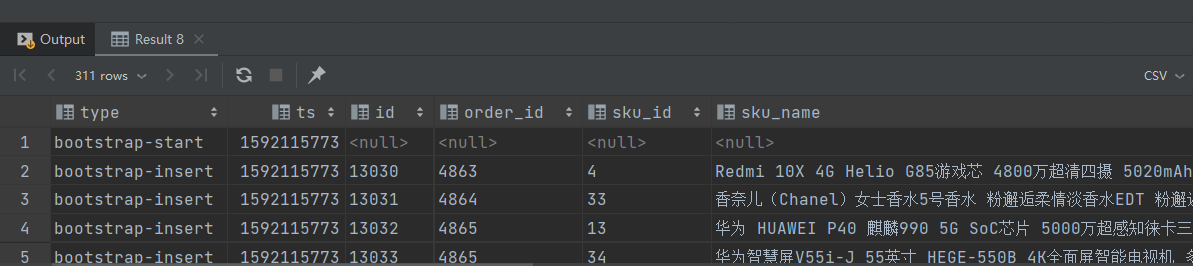

查询数据

-- 查询数据
set hivevar:do_date = 2020-06-14;
select type,
       ts,
       data.id,
       data.order_id,
       data.sku_id,
       data.sku_name,
       data.img_url,
       data.order_price,
       data.sku_num,
       data.create_time,
       data.source_type,
       data.source_id,
       data.split_total_amount,
       data.split_activity_amount,
       data.split_coupon_amount,
       old,
       dt
from ods_order_detail_inc
where dt = '${do_date}'
limit 10;

订单明细活动关联表

-- 创建 订单明细活动关联表
drop table if exists ods_order_detail_activity_inc;

create external table ods_order_detail_activity_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, order_id :string, order_detail_id :string, activity_id :string, activity_rule_id :string,
                  sku_id :string, create_time :string> comment '数据',
    `old`  map<string,string> COMMENT '旧值'
) comment '订单明细活动关联表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_order_detail_activity_inc/';

-- 装载数据
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/order_detail_activity_inc/${do_date}'
    into table ods_order_detail_activity_inc
    partition (dt = '${do_date}');

-- 查询数据
select type,
       ts,
       data.id ,
       data.order_id ,
       data.order_detail_id ,
       data.activity_id ,
       data.activity_rule_id ,
       data.sku_id ,
       data.create_time ,
       old,
       dt
from ods_order_detail_activity_inc
where dt = '${do_date}'
limit 10;

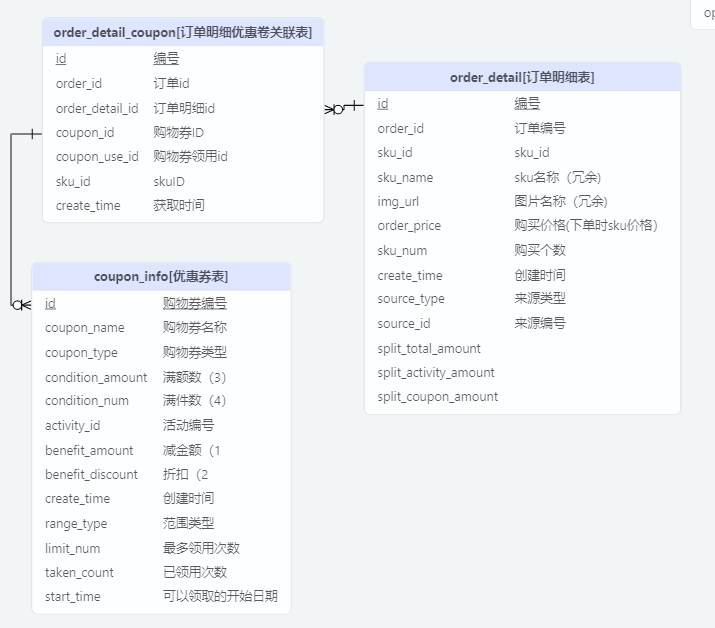

订单明细优惠券关联表

-- 创建 订单明细优惠券关联表
drop table if exists ods_order_detail_coupon_inc;

create external table ods_order_detail_coupon_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string, order_id :string, order_detail_id :string, coupon_id :string, coupon_use_id :string,
                  sku_id :string, create_time :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '订单明细优惠券关联表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_order_detail_coupon_inc/';

装载数据 :

-- 装载数据
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/order_detail_coupon_inc/${do_date}'
    into table ods_order_detail_coupon_inc
    partition (dt = '${do_date}');

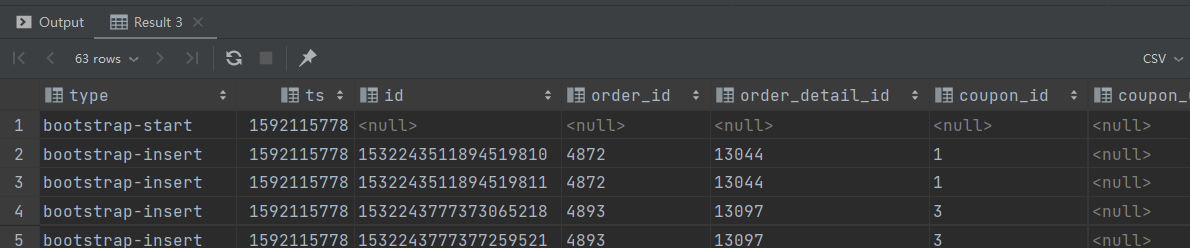

查询数据 :

select type,
       ts,
       data.id,
       data.order_id,
       data.order_detail_id,
       data.coupon_id,
       data.coupon_use_id,
       data.sku_id,
       data.create_time,
       old
from ods_order_detail_coupon_inc
where dt = '${do_date}';

订单表

-- 创建订单表
drop table if exists ods_order_info_inc;

create external table ods_order_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id, data.consignee, data.consignee_tel, data.total_amount, data.order_status, data.user_id, data.
                  payment_way,delivery_address, data.order_comment, out_trade_no, data.trade_body, data.create_time,operate_time,
                  data.expire_time, data.process_status, data.tracking_no, data.parent_order_id, data.img_url,
                  province_id, data.activity_reduce_amount, data.coupon_reduce_amount, original_total_amount, data.
                  freight_fee, data.freight_fee_reduce, data.refundable_time> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '订单表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_order_info_inc/';

装载数据

-- 装载数据
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/order_info_inc/${do_date}'
    into table ods_order_info_inc
    partition (dt = '${do_date}');

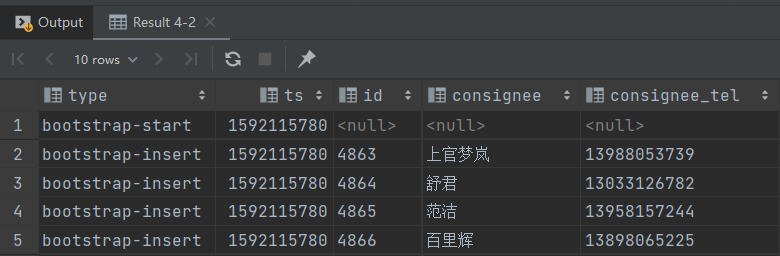

查询数据

set hivevar:do_date = 2020-06-14;
select type,
       ts,
       data.id,
       data.consignee,
       data.consignee_tel,
       data.total_amount,
       data.order_status,
       data.user_id,
       data.payment_way,
       data.delivery_address,
       data.order_comment,
       data.out_trade_no,
       data.trade_body,
       data.create_time,
       data.operate_time,
       data.expire_time,
       data.process_status,
       data.tracking_no,
       data.parent_order_id,
       data.img_url,
       data.province_id,
       data.activity_reduce_amount,
       data.coupon_reduce_amount,
       data.original_total_amount,
       data.freight_fee,
       data.freight_fee_reduce,
       data.refundable_time,
       old,
       dt
from ods_order_info_inc
where dt = '${do_date}'
limit 10;

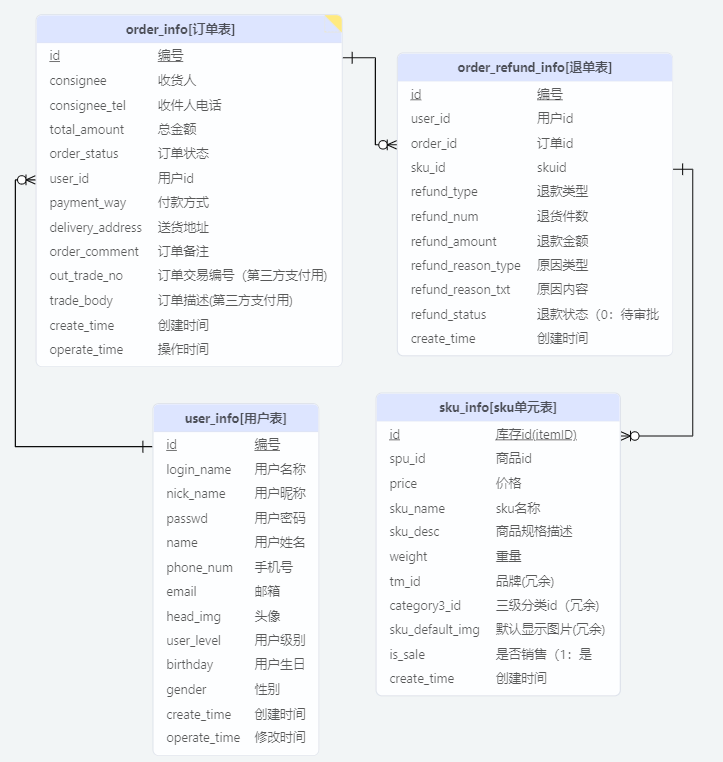

退单表

-- 退单表
drop table if exists ods_order_refund_info_inc;

create external table ods_order_refund_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string,user_id :string,order_id :string,sku_id :string,refund_type :string,refund_num :bigint,refund_amount
                  :decimal(16, 2),refund_reason_type :string,refund_reason_txt :string,refund_status :string,create_time
                  :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '退单表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_order_refund_info_inc/';

装载数据

-- 装载数据
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/order_refund_info_inc/${do_date}'
    into table ods_order_refund_info_inc
    partition (dt = '${do_date}');

查询数据

-- 查询数据
select type,
       ts,
       data.id,
       data.user_id,
       data.order_id,
       data.sku_id,
       data.refund_type,
       data.refund_num,
       data.refund_amount,
       data.refund_reason_type,
       data.refund_reason_txt,
       data.refund_status,
       data.create_time,
       old,
       dt
from ods_order_refund_info_inc
where dt = '${do_date}'
limit 10;

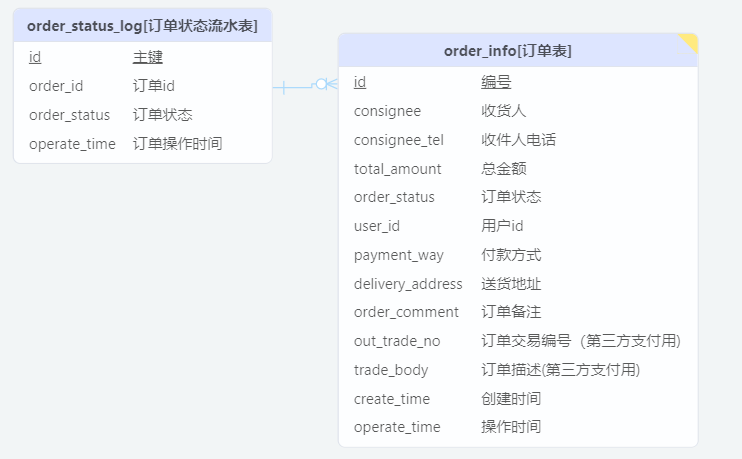

订单状态流水表

-- 创建订单状态流水表
drop table if exists ods_order_status_log_inc;

create external table ods_order_status_log_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string,order_id :string,order_status :string,operate_time :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '订单状态流水表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_order_status_log_inc/';

-- 订单状态流水表
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/order_status_log_inc/${do_date}'
    into table ods_order_status_log_inc
    partition (dt = '${do_date}');

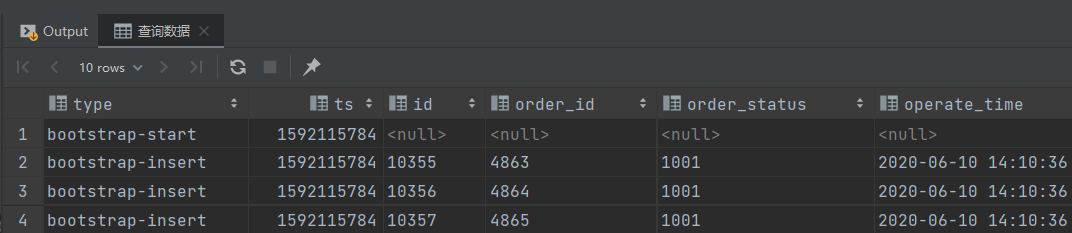

-- 查询数据
select type,
       ts,
       data.id,
       data.order_id,
       data.order_status,
       data.operate_time,
       old,
       dt
from ods_order_status_log_inc
where dt = '${do_date}'
limit 10;

支付表

-- 查询支付表
drop table if exists ods_payment_info_inc;

create external table ods_payment_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string,out_trade_no :string,order_id :string,user_id :string,payment_type :string,trade_no
                  :string,total_amount :decimal(16, 2),subject :string,payment_status :string,create_time :string,callback_time
                  :string,callback_content :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '支付表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_payment_info_inc/';

-- 订单状态流水表
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/payment_info_inc/${do_date}'
    into table ods_payment_info_inc
    partition (dt = '${do_date}');

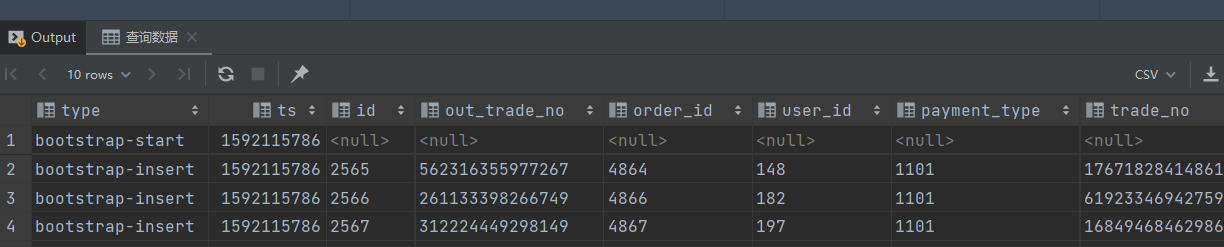

-- 查询数据
select type,
       ts,
       data.id,
       data.out_trade_no,
       data.order_id,
       data.user_id,
       data.payment_type,
       data.trade_no,
       data.total_amount,
       data.subject,
       data.payment_status,
       data.create_time,
       data.callback_time,
       data.callback_content,
       old,
       dt
from ods_payment_info_inc
where dt = '${do_date}'
limit 10;

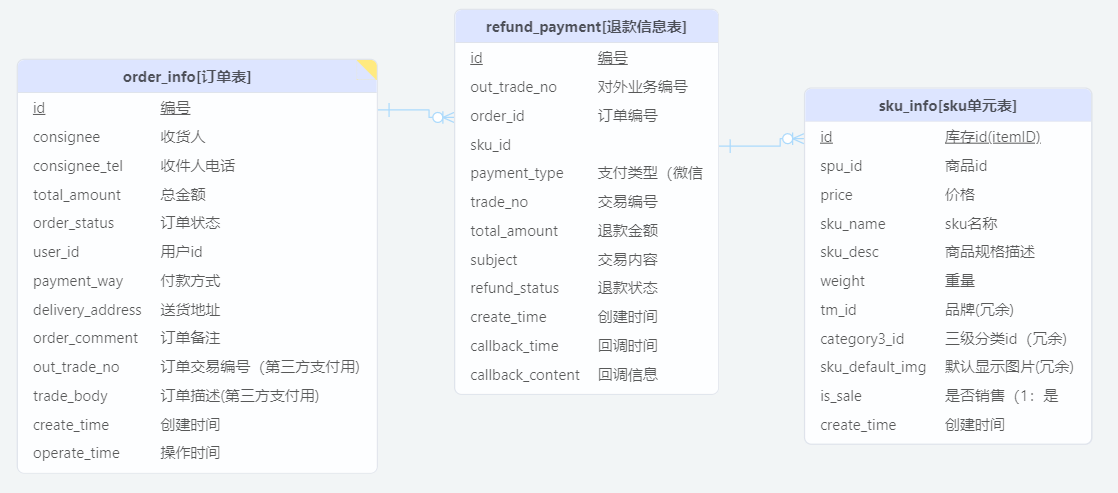

退款表

-- 退款表
drop table if exists ods_refund_payment_inc;

create external table ods_refund_payment_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string,out_trade_no :string,order_id :string,sku_id :string,payment_type :STRING,trade_no :string,total_amount
                  :decimal(16, 2),subject :string,refund_status :string,create_time :string,callback_time :string,callback_content
                  :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '退款表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_refund_payment_inc/';

-- 装载数据
set hivevar:do_date = 2020-06-14;
load data inpath '/origin_data/gmall/db/refund_payment_inc/${do_date}'
    into table ods_refund_payment_inc
    partition (dt = '${do_date}');

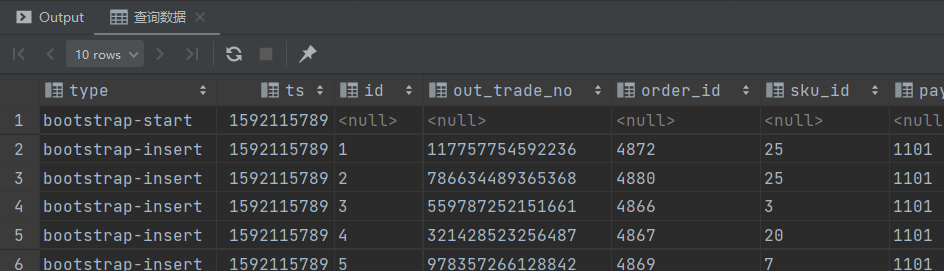

-- 查询数据
select type,
       ts,
       data.id,
       data.out_trade_no,
       data.order_id,
       data.sku_id,
       data.payment_type,
       data.trade_no,
       data.total_amount,
       data.subject,
       data.refund_status,
       data.create_time,
       data.callback_time,
       data.callback_content,
       old,
       dt
from ods_refund_payment_inc
where dt = '${do_date}'
limit 10;

用户表

-- 创建用户表
drop table if exists ods_user_info_inc;

create external table ods_user_info_inc
(
    `type` string comment '变动类型',
    `ts`   bigint comment '变动时间',
    `data` struct<id :string,login_name :string,nick_name :string,passwd :string,name :string,phone_num :string,email
                  :string,head_img :string,user_level :string,birthday :string,gender :string,create_time :string,operate_time
                  :string,status :string> comment '数据',
    `old`  map<string,string> comment '旧值'
) comment '用户表'
    partitioned by (`dt` string)
    row format serde 'org.apache.hadoop.hive.serde2.JsonSerDe'
    location '/warehouse/gmall/ods/ods_user_info_inc/';

-- 装载数据
load data inpath '/origin_data/gmall/db/user_info_inc/2020-06-14'
    into table ods_user_info_inc
    partition (dt = '2020-06-14');

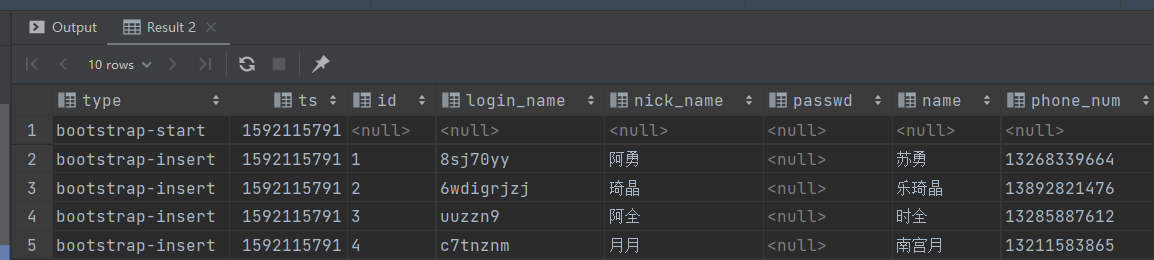

-- 查询数据
select type,
       ts,
       data.id,
       data.login_name,
       data.nick_name,
       data.passwd,
       data.name,
       data.phone_num,
       data.email,
       data.head_img,
       data.user_level,
       data.birthday,
       data.gender,
       data.create_time,
       data.operate_time,
       data.status,
       old,
       dt
from ods_user_info_inc
where dt = '2020-06-14'
limit 10;

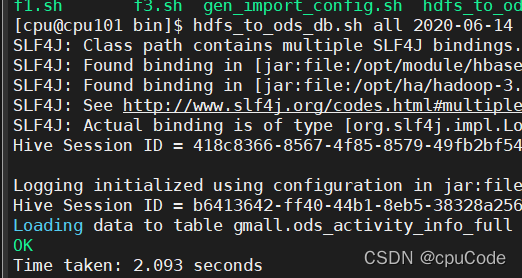

数据装载脚本

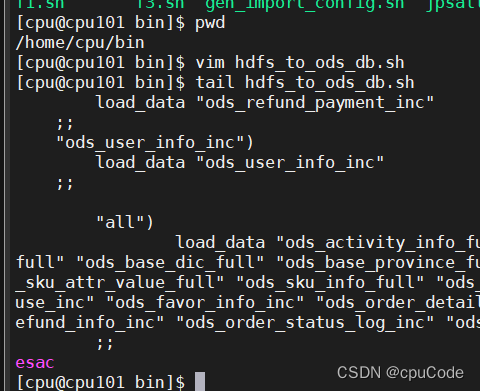

在 cpu101 的 /home/cpu/bin 目录下创建 hdfs_to_ods_db.sh

vim hdfs_to_ods_db.sh

#!/bin/bash

APP=gmall

if [ -n "$2" ] ;then
   do_date=$2
else
   do_date=`date -d '-1 day' +%F`
fi

load_data(){
    sql=""
    for i in $*; do
        #判断路径是否存在
        hadoop fs -test -e /origin_data/$APP/db/${i:4}/$do_date
        #路径存在方可装载数据
        if [[ $? = 0 ]]; then
            sql=$sql"load data inpath '/origin_data/$APP/db/${i:4}/$do_date' OVERWRITE into table ${APP}.$i partition(dt='$do_date');"
        fi
    done
    hive -e "$sql"
}

case $1 in
    "ods_activity_info_full")
        load_data "ods_activity_info_full"
    ;;
    "ods_activity_rule_full")
        load_data "ods_activity_rule_full"
    ;;
    "ods_base_category1_full")
        load_data "ods_base_category1_full"
    ;;
    "ods_base_category2_full")
        load_data "ods_base_category2_full"
    ;;
    "ods_base_category3_full")
        load_data "ods_base_category3_full"
    ;;
    "ods_base_dic_full")
        load_data "ods_base_dic_full"
    ;;
    "ods_base_province_full")
        load_data "ods_base_province_full"
    ;;
    "ods_base_region_full")
        load_data "ods_base_region_full"
    ;;
    "ods_base_trademark_full")
        load_data "ods_base_trademark_full"
    ;;
    "ods_cart_info_full")
        load_data "ods_cart_info_full"
    ;;
    "ods_coupon_info_full")
        load_data "ods_coupon_info_full"
    ;;
    "ods_sku_attr_value_full")
        load_data "ods_sku_attr_value_full"
    ;;
    "ods_sku_info_full")
        load_data "ods_sku_info_full"
    ;;
    "ods_sku_sale_attr_value_full")
        load_data "ods_sku_sale_attr_value_full"
    ;;
    "ods_spu_info_full")
        load_data "ods_spu_info_full"
    ;;

    "ods_cart_info_inc")
        load_data "ods_cart_info_inc"
    ;;
    "ods_comment_info_inc")
        load_data "ods_comment_info_inc"
    ;;
    "ods_coupon_use_inc")
        load_data "ods_coupon_use_inc"
    ;;
    "ods_favor_info_inc")
        load_data "ods_favor_info_inc"
    ;;
    "ods_order_detail_inc")
        load_data "ods_order_detail_inc"
    ;;
    "ods_order_detail_activity_inc")
        load_data "ods_order_detail_activity_inc"
    ;;
    "ods_order_detail_coupon_inc")
        load_data "ods_order_detail_coupon_inc"
    ;;
    "ods_order_info_inc")
        load_data "ods_order_info_inc"
    ;;
    "ods_order_refund_info_inc")
        load_data "ods_order_refund_info_inc"
    ;;
    "ods_order_status_log_inc")
        load_data "ods_order_status_log_inc"
    ;;
    "ods_payment_info_inc")
        load_data "ods_payment_info_inc"
    ;;
    "ods_refund_payment_inc")
        load_data "ods_refund_payment_inc"
    ;;
    "ods_user_info_inc")
        load_data "ods_user_info_inc"
    ;;

    "all")
        load_data "ods_activity_info_full" "ods_activity_rule_full" "ods_base_category1_full" "ods_base_category2_full" "ods_base_category3_full" "ods_base_dic_full" "ods_base_province_full" "ods_base_region_full" "ods_base_trademark_full" "ods_cart_info_full" "ods_coupon_info_full" "ods_sku_attr_value_full" "ods_sku_info_full" "ods_sku_sale_attr_value_full" "ods_spu_info_full" "ods_cart_info_inc" "ods_comment_info_inc" "ods_coupon_use_inc" "ods_favor_info_inc" "ods_order_detail_inc" "ods_order_detail_activity_inc" "ods_order_detail_coupon_inc" "ods_order_info_inc" "ods_order_refund_info_inc" "ods_order_status_log_inc" "ods_payment_info_inc" "ods_refund_payment_inc" "ods_user_info_inc"
    ;;
esac

增加脚本执行权限

chmod 777 hdfs_to_ods_db.sh

脚本用法 :

hdfs_to_ods_db.sh all 2020-06-14
