Telnet协议是TCP/IP协议族中的一员,是Internet远程登陆服务的标准协议和主要方式。它为用户提供了在本地计算机上完成远程主机工作的能力。在终端使用者的电脑上使用telnet程序,用它连接到服务器。终端使用者可以在telnet程序中输入命令,这些命令会在服务器上运行,就像直接在服务器的控制台上输入一样。可以在本地就能控制服务器。要开始一个telnet会话,必须输入用户名和密码来登录服务器。Telnet是常用的远程控制Web服务器的方法。
环境
- Cisco Packet Tracer 5.3
- Windows 10
操作

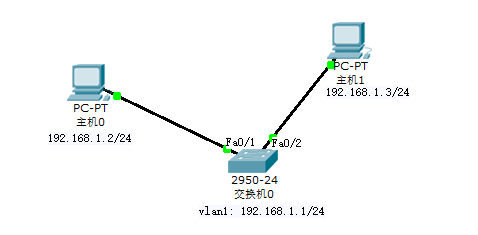

操作:按照如图所示连接拓扑图
(1)配置PC IP
(2)配置交换机VLAN1 IP ``` / part1 为vlan配置ip并开启vlan / Switch>enable Switch#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Switch(config)#interface vlan 1 Switch(config-if)#ip address 192.168.1.1 255.255.255.0 Switch(config-if)#no shutdownPC0 设置
192.168.1.2/24
PC1 设置
192.168.1.3/24
%LINK-5-CHANGED: Interface Vlan1, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to up Switch(config-if)#
/ Part2 查看已配置的IP / Switch(config-if)#^Z Switch# %SYS-5-CONFIG_I: Configured from console by console
Switch#show running-config … interface Vlan1 ip address 192.168.1.1 255.255.255.0
/ Part3 开启Vlan /
Switch#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#interface vlan 1
Switch(config-if)#no shutdown
/ Part4 查看Vlan状态 / Switch(config-if)#^Z Switch# %SYS-5-CONFIG_I: Configured from console by console
Switch#show interfaces vlan 1 Vlan1 is up, line protocol is up …
**(3)配置交换机本地登录口令**
/ Part 1 设置明文密码/ Switch#conf t Enter configuration commands, one per line. End with CNTL/Z. Switch(config)#enable password 123 // 注:取消密码可用no enable password
/ Part 2查看设置的密码 / Switch(config)#^Z Switch# %SYS-5-CONFIG_I: Configured from console by console
Switch#show running-config … enable password 123 …
**(4)配置交换机远程登陆及验证**
Switch#conf t Enter configuration commands, one per line. End with CNTL/Z. Switch(config)#line vty 0 Switch(config-line)#password 123 //(Telnet密码为123) Switch(config-line)#login local //(login是开启远程登录密码验证,login local不但要求TELNET密码,还要求提供用户名) Switch(config-line)#
**(5)添加可远程登陆交换机的用户**
/ Part 1 添加用户 / Switch#conf t Enter configuration commands, one per line. End with CNTL/Z. Switch(config)#line vty 0 Switch(config-line)#password 123 Switch(config-line)#login local Switch(config-line)# Switch(config-line)#exit Switch(config)#username admin password admin
/ Part 2 查看添加的用户 / Switch(config)#exit Switch# %SYS-5-CONFIG_I: Configured from console by console
Switch#show running-config … username admin password 0 admin …
**(6)测试连接**
// 在PC0的CMD中测试 / Part 1 Ping交换机 / PC>ping 192.168.1.1
Pinging 192.168.1.1 with 32 bytes of data:
Reply from 192.168.1.1: bytes=32 time=5ms TTL=255 Reply from 192.168.1.1: bytes=32 time=5ms TTL=255 Reply from 192.168.1.1: bytes=32 time=6ms TTL=255 Reply from 192.168.1.1: bytes=32 time=6ms TTL=255
Ping statistics for 192.168.1.1: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 5ms, Maximum = 6ms, Average = 5ms
/ Part 2 Telnet 连接交换机 / PC>telnet 192.168.1.1 Trying 192.168.1.1 …Open
User Access Verification
Username: admin Password: Switch>
**(7)配置多用户连接**
// 在PC0连接的前提下,再使用PC1尝试连接 / Part 1 PC1 Ping Switch / PC>ping 192.168.1.1
Pinging 192.168.1.1 with 32 bytes of data:
Request timed out. Reply from 192.168.1.1: bytes=32 time=6ms TTL=255 Reply from 192.168.1.1: bytes=32 time=6ms TTL=255 Reply from 192.168.1.1: bytes=32 time=5ms TTL=255
Ping statistics for 192.168.1.1: Packets: Sent = 4, Received = 3, Lost = 1 (25% loss), Approximate round trip times in milli-seconds: Minimum = 5ms, Maximum = 6ms, Average = 5ms
/ Part 2 PC1 Telnet 连接Swithc / PC>telnet 192.168.1.1 Trying 192.168.1.1 …Open
[Connection to 192.168.1.1 closed by foreign host] // 连接失败,因为交换机vty设置只能同时打开一个会话,下面设置一下,使两台PC可同时访问
/ Part 3 修改Tenlet配置 / // 可直接在PC0直接进行 Switch#conf t Enter configuration commands, one per line. End with CNTL/Z. Switch(config)#line vty 0 1 Switch(config-line)#password 123 Switch(config-line)#^Z
/ Part 4 重新尝试Part 2 / PC>telnet 192.168.1.1 Trying 192.168.1.1 …Open
User Access Verification
