一、流程审批介绍

对审批表单进行改造，核心操作功能如下：
1、根据当前节点信息获取当前的formkey，通过key查询对应的自定义表单进行展示。
2、根据当前节点信息获取当前节点的隐藏和展示字段设置信息，根据设置信息设置表单。

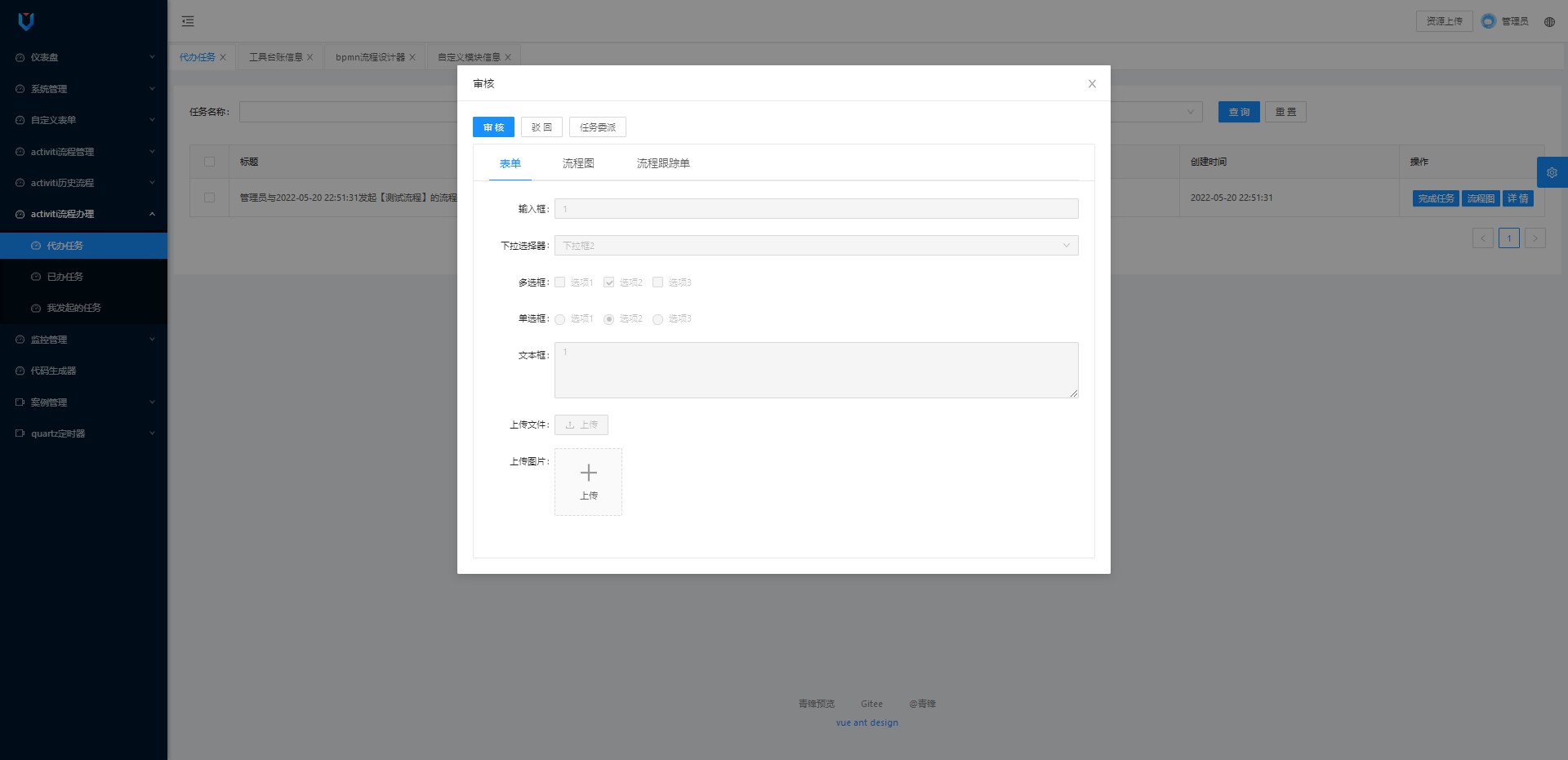

二、流程审核前端功能改造

审核FormCheck改造

1、新增VDataCheck审核表单组件

  1. <VDataCheck
  2.           ref="checkRef"
  3.           :record="record"
  4.           v-if="record.businessKey.indexOf('customize') != -1"
  5.           @finishResponse="finishResponse"
  6.         ></VDataCheck>

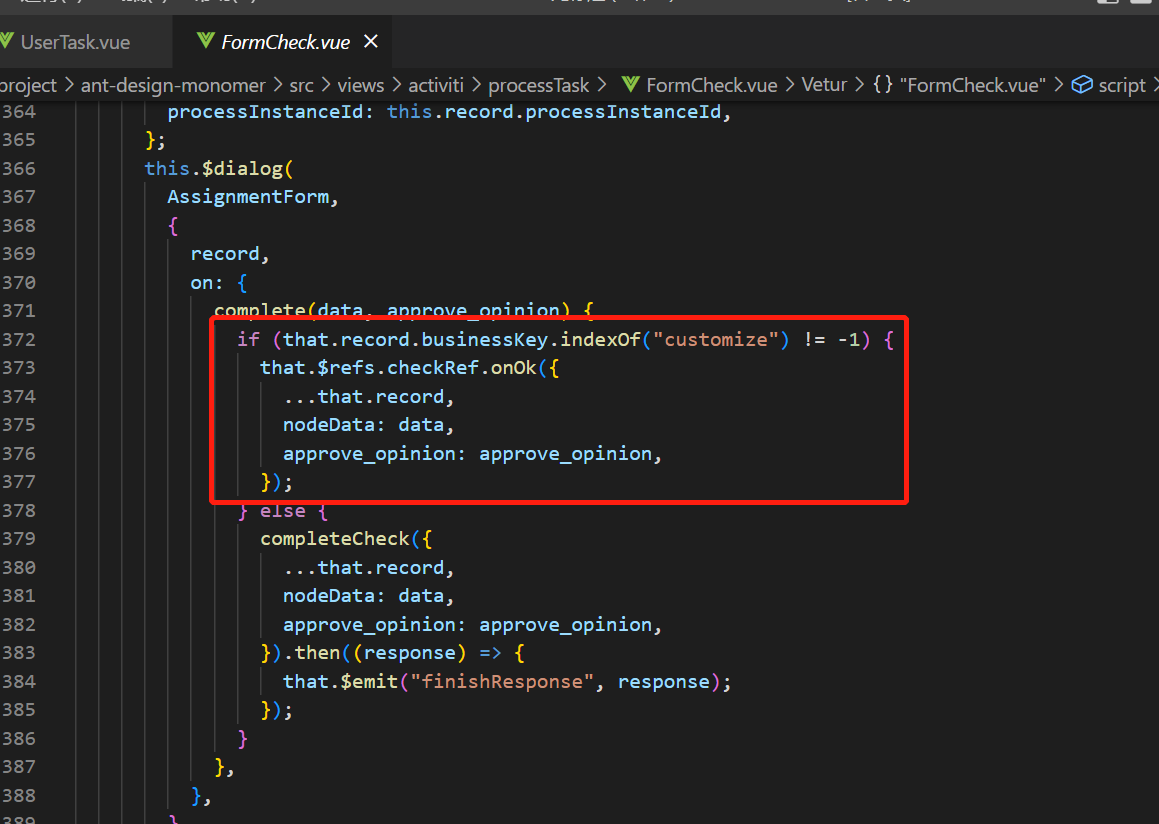

2、点击审核方法，调用VDataCheck组件中的onOk方法。
同理：表单驳回和任务委派同样增加对表单的编辑及改造。

新增Check审核表单组件

  1. <template>
  2.   <div>
  3.     <!-- <a-skeleton active v-show="!initStatus" :paragraph="{ rows: 10 }" /> -->
  4.     <!-- <a-spin size="large" v-show="!initStatus" /> -->
  5.     <k-form-build
  6.       ref="kfb"
  7.       :value="jsonData"
  8.       :dynamicData="dynamicData"
  9.       v-show="visable"
  10.     />
  11.   </div>
  12. </template>
  13. <script>
  14. import {
  15.   findVFormInfo,
  16.   saveOrUpdate,
  17.   findVDataInfo,
  18.   findVFormData,
  19.   rejectAnyNod,
  20.   delegateTask,
  21. } from "@/api/customize/vdata";
  22. import { findDictionaryList } from "@/api/system/dictionary";
  23. import { findFormParams } from "@/api/activiti/processTask";
  24. export default {
  25.   // 声明当前子组件接收父组件传递的属性
  26.   props: {
  27.     record: {
  28.       type: Object,
  29.       default: null,
  30.     },
  31.   },
  32.   data() {
  33.     return {
  34.       jsonData: {},
  35.       form_data: {},
  36.       dynamicData: {},
  37.       form: {},
  38.       initStatus: false,
  39.       visable: false,
  40.       menu_id: "",
  41.       table_id: "",
  42.       hideFieldKey: "",
  43.     };
  44.   },
  45.   mounted() {
  46.     //查询菜单配置信息
  47.     let data = this.record.businessKey.split(":");
  48.     this.initData(data[2]);
  49.     this.menu_id = data[2];
  50.   },
  51.   updated() {
  52.     //查询编辑项内容
  53.     let data = this.record.businessKey.split(":");
  54.     this.initFormData(data[2], data[3]);
  55.   },
  56.   methods: {
  57.     initData(menu_id) {
  58.       findVFormInfo({ menu_id: menu_id, formKey: this.record.formKey }).then(
  59.         (response) => {
  60.           this.form_data = response.data.data;
  61.           this.table_id = this.form_data.id;
  62.           this.dynamicData = response.data.object;
  63.           this.jsonData = JSON.parse(this.form_data.table_content);
  64.         }
  65.       );
  66.     },
  67.     initFormData(menu_id, id) {
  68.       findVDataInfo({
  69.         table_id: this.record.formKey,
  70.         menu_id: menu_id,
  71.         id: id,
  72.       }).then((response) => {
  73.         this.form = response.data;
  74.         this.$refs.kfb.setData(response.data);
  75.         this.initStatus = true;
  76.         this.$refs.kfb.disableAll();
  77.         findFormParams({
  78.           nodeType: "nodeType",
  79.           taskId: this.record.id,
  80.         }).then((response) => {
  81.           this.visable = true;
  82.           let data = response.data.data;
  83.           if (data.writeFieldKey != undefined) {
  84.             this.$refs.kfb.enable(data.writeFieldKey.split(","));
  85.           }
  86.           if (data.hideFieldKey != undefined) {
  87.             this.$refs.kfb.hide(data.hideFieldKey.split(","));
  88.             this.hideFieldKey = data.hideFieldKey;
  89.           }
  90.         });
  91.       });
  92.     },
  93.     currentUserOrganize(value) {},
  94.     onOk(data) {
  95.       return new Promise((resolve) => {
  96.         // 使用getData函数获取数据
  97.         this.$refs.kfb
  98.           .getData()
  99.           .then((values) => {
  100.             for (let k in values) {
  101.               if (Array.isArray(values[k]) && values[k].length > 0) {
  102.                 if (
  103.                   Object.prototype.toString.call(values[k][0]) ==
  104.                   "[object String]"
  105.                 ) {
  106.                   values[k] = values[k].join(",");
  107.                 } else if (
  108.                   Object.prototype.toString.call(values[k][0]) ==
  109.                   "[object Object]"
  110.                 ) {
  111.                   for (let j in values[k]) {
  112.                     if (
  113.                       Array.isArray(values[k][j]) &&
  114.                       values[k][j].length > 0
  115.                     ) {
  116.                       values[k][j] = values[k][j].join(",");
  117.                     }
  118.                   }
  119.                 }
  120.               }
  121.             }
  122.             saveOrUpdate({
  123.               taskId: data.id,
  124.               approve_opinion: data.approve_opinion,
  125.               nodeData: data.nodeData,
  126.               // businessKey: data.businessKey,
  127.               // assignee: data.assignee,
  128.               // assignee_name: data.assignee_name,
  129.               // originalAssignee: data.originalAssignee,
  130.               // executionId: data.executionId,
  131.               // formKey: data.formKey,
  132.               // procdef_name: data.procdef_name,
  133.               // processDefinitionId: data.processDefinitionId,
  134.               // processInstanceId: data.processInstanceId,
  135.               // start_user_name: data.start_user_name,
  136.               // suspensionState: data.suspensionState,
  137.               // taskDefinitionKey: data.taskDefinitionKey,
  138.               // tenantId: data.tenantId,
  139.               submitType: "3",
  140.               ...values,
  141.               id: this.form.id,
  142.               table_id: this.table_id,
  143.               menu_id: this.menu_id,
  144.               hideFieldKey: this.hideFieldKey,
  145.             }).then((response) => {
  146.               this.$emit("finishResponse", response);
  147.               resolve(true);
  148.             });
  149.           })
  150.           .catch(() => {});
  151.       });
  152.     },
  153.     onRejectAnyNode(data) {
  154.       return new Promise((resolve) => {
  155.         // 使用getData函数获取数据
  156.         this.$refs.kfb
  157.           .getData()
  158.           .then((values) => {
  159.             for (let k in values) {
  160.               if (Array.isArray(values[k]) && values[k].length > 0) {
  161.                 if (
  162.                   Object.prototype.toString.call(values[k][0]) ==
  163.                   "[object String]"
  164.                 ) {
  165.                   values[k] = values[k].join(",");
  166.                 } else if (
  167.                   Object.prototype.toString.call(values[k][0]) ==
  168.                   "[object Object]"
  169.                 ) {
  170.                   for (let j in values[k]) {
  171.                     if (
  172.                       Array.isArray(values[k][j]) &&
  173.                       values[k][j].length > 0
  174.                     ) {
  175.                       values[k][j] = values[k][j].join(",");
  176.                     }
  177.                   }
  178.                 }
  179.               }
  180.             }
  181.             rejectAnyNod({
  182.               taskId: data.id,
  183.               flowElementId: data.flowElementId,
  184.               ...values,
  185.               id: this.form.id,
  186.               table_id: this.table_id,
  187.               menu_id: this.menu_id,
  188.               hideFieldKey: this.hideFieldKey,
  189.             }).then((response) => {
  190.               this.$emit("finishResponse", response);
  191.               resolve(true);
  192.             });
  193.           })
  194.           .catch(() => {});
  195.       });
  196.     },
  198.     onDelegateTask(data) {
  199.       return new Promise((resolve) => {
  200.         // 使用getData函数获取数据
  201.         this.$refs.kfb
  202.           .getData()
  203.           .then((values) => {
  204.             for (let k in values) {
  205.               if (Array.isArray(values[k]) && values[k].length > 0) {
  206.                 if (
  207.                   Object.prototype.toString.call(values[k][0]) ==
  208.                   "[object String]"
  209.                 ) {
  210.                   values[k] = values[k].join(",");
  211.                 } else if (
  212.                   Object.prototype.toString.call(values[k][0]) ==
  213.                   "[object Object]"
  214.                 ) {
  215.                   for (let j in values[k]) {
  216.                     if (
  217.                       Array.isArray(values[k][j]) &&
  218.                       values[k][j].length > 0
  219.                     ) {
  220.                       values[k][j] = values[k][j].join(",");
  221.                     }
  222.                   }
  223.                 }
  224.               }
  225.             }
  226.             delegateTask({
  227.               taskId: data.taskId,
  228.               userId: data.userId,
  229.               userName: data.userName,
  230.               ...values,
  231.               id: this.form.id,
  232.               table_id: this.table_id,
  233.               menu_id: this.menu_id,
  234.               hideFieldKey: this.hideFieldKey,
  235.             }).then((response) => {
  236.               this.$emit("finishResponse", response);
  237.               resolve(true);
  238.             });
  239.           })
  240.           .catch(() => {});
  241.       });
  242.     },
  243.     onCancel() {
  244.       return new Promise((resolve) => {
  245.         resolve(true);
  246.       });
  247.     },
  248.   },
  249. };
  250. </script>

businessKey内容分析：

business:customize:自定义模块menu_id:当前数据id

String businessKey = “business:customize:”+pd.get(“menu_id”)+”:”+id;

根据formKey查询当前自定义表单信息

form_data：查询当前自定义数据表的信息，含有k-form-design设计内容。
table_id：form_data自定义数据表的主键id。
dynamicData：动态字段-如下拉框、单选框、多选框绑定的数据字典信息，此处dynamicData需要在jsonData初始化之前渲染。

 findVFormInfo({ menu_id: menu_id, formKey: this.record.formKey }).then(
        (response) => {
          this.form_data = response.data.data;
          this.table_id = this.form_data.id;
          this.dynamicData = response.data.object;
          this.jsonData = JSON.parse(this.form_data.table_content);
        }
      );

对应后台方法如下：

/**
* @title findVFormInfo
* @description 查询自定义表单信息
* @author Administrator
* @updateTime 2021/10/3 0003 10:21
*/
@GetMapping("/findVFormInfo")
public void findVFormInfo(HttpServletRequest request, HttpServletResponse response) throws Exception {
    PageData pd = new PageData(request);
    Vform vform = null;
    if(Verify.verifyIsNotNull(pd.get("formKey"))){
        vform = vformService.getById(pd.get("formKey").toString());
    }else{
        Vmenu vmenu = vmenuService.getById(pd.get("menu_id").toString());
        vform = vformService.getById(vmenu.getTable_id());
    }
    //查询主表信息和主表字段信息-组织动态参数
    QueryWrapper queryWrapper = new QueryWrapper();
    queryWrapper.eq("table_id",vform.getId());
    List<Vfield> vfields = vfieldService.list(queryWrapper);
    PageData dynamicData = new PageData();
    for (Vfield vfield:vfields) {
        if("select,checkbox,radio".indexOf(vfield.getField_type())!=-1&&vfield.getDynamic().equals("true")){
            Dictionary dictionary = new Dictionary();
            dictionary.setParent_code(vfield.getDynamicKey());
            List<Dictionary> list = dictionaryService.findList(dictionary);
            List<PageData> dynamicList = new ArrayList<PageData>();
            list.forEach(item->{
                PageData p = new PageData();
                p.put("label",item.getName());
                p.put("value",item.getId());
                dynamicList.add(p);
            });
            dynamicData.put(vfield.getDynamicKey(),dynamicList);
        }
    }
    vform.setVfields(vfields);
    //查询组织关联子表的动态参数
    QueryWrapper formWrapper = new QueryWrapper();
    formWrapper.eq("main_id",vform.getId());
    List<Vform> listChild = vformService.list(formWrapper);
    for (Vform vformChild:listChild) {
        QueryWrapper qWrapper = new QueryWrapper();
        qWrapper.eq("table_id",vformChild.getId());
        List<Vfield> vfieldsChild = vfieldService.list(qWrapper);

        for (Vfield vfield:vfieldsChild) {
            if("select,checkbox,radio".indexOf(vfield.getField_type())!=-1&&vfield.getDynamic().equals("true")){
                Dictionary dictionary = new Dictionary();
                dictionary.setParent_code(vfield.getDynamicKey());
                List<Dictionary> list = dictionaryService.findList(dictionary);
                List<PageData> dynamicList = new ArrayList<PageData>();
                list.forEach(item->{
                    PageData p = new PageData();
                    p.put("label",item.getName());
                    p.put("value",item.getId());
                    dynamicList.add(p);
                });
                dynamicData.put(vfield.getDynamicKey(),dynamicList);
            }
        }
        vform.setVfields(vfieldsChild);
    }
    Json json = new Json();
    json.setData(vform);
    json.setObject(dynamicData);
    json.setSuccess(true);
    this.writeJson(response,json);
    }

查询表单数据和writeFieldKey/hideFieldKey

1、数据渲染：this.$refs.kfb.setData(response.data);
2、设置表单不可编辑：this.$refs.kfb.disableAll(); 自己写的disableAll，默认组件是没有的，组件设置表单不可编辑模式如下：
如果设置：:disabled=”true”，就无法控制可编辑项了。
3、查询writeFieldKey和hideFieldKey
设置表单可编辑项：this.$refs.kfb.enable(data.writeFieldKey.split(“,”));
设置表单隐藏项：this.$refs.kfb.hide(data.hideFieldKey.split(“,”));

findVDataInfo({
        table_id: this.record.formKey,
        menu_id: menu_id,
        id: id,
      }).then((response) => {
        this.form = response.data;
        this.$refs.kfb.setData(response.data);
        this.initStatus = true;
        this.$refs.kfb.disableAll();
        findFormParams({
          nodeType: "nodeType",
          taskId: this.record.id,
        }).then((response) => {
          this.visable = true;
          let data = response.data.data;
          if (data.writeFieldKey != undefined) {
            this.$refs.kfb.enable(data.writeFieldKey.split(","));
          }
          if (data.hideFieldKey != undefined) {
            this.$refs.kfb.hide(data.hideFieldKey.split(","));
            this.hideFieldKey = data.hideFieldKey;
          }
        });
      });

查询findFormParams参数后台方法

此方法主要查询：writeFieldKey和hideFieldKey，如果需要查询参数，则需要解析xml，具体方法如下：
1、根据流程对象获取当前bpmnModel，再根据bpmnModel获取xmlContenxt，通过XmlUtil.readXML解析xml，再通过XmlUtil.getNodeListByXPath(“//*[name()=’bpmn2:userTask’]”, document);获取流程图中所有的userTask节点。

//根据流程定义id获取bpmnModel对象
            bpmnModel = repositoryService.getBpmnModel(processDefinition.getId());

            //创建转换对象
            BpmnXMLConverter converter = new BpmnXMLConverter();
            //把bpmnModel对象转换成字符
            byte[] bytes = converter.convertToXML(bpmnModel);
            String xmlContenxt = new String(bytes);
            System.out.println(xmlContenxt);
            Document document = XmlUtil.readXML(xmlContenxt);
           NodeList node = XmlUtil.getNodeListByXPath("//*[name()='bpmn2:userTask']", document);

2、通过获取的节点信息，进一步对xml内容进行解析，获取对应的formKey和writeFieldKey/hideFieldKey
完整代码如下：

/**
     * @title findFormParams
     * @description 查询表单参数
     * @author Administrator
     * @updateTime 2022/5/9 0009 21:42
     */
    @PostMapping("/findFormParams")
    public void findFormParams(@RequestBody PageData pd,HttpServletRequest request,HttpServletResponse response) throws Exception {
        List<PageData> list = new ArrayList<PageData>();
        //获取当前节点信息
        BpmnModel bpmnModel = null;
        if (pd.get("nodeType").equals("startNode")) {//未启动
            ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery().processDefinitionKey(pd.getString("processDefinitionKey")).latestVersion().singleResult();
            //根据流程定义id获取bpmnModel对象
            bpmnModel = repositoryService.getBpmnModel(processDefinition.getId());

            //创建转换对象
            BpmnXMLConverter converter = new BpmnXMLConverter();
            //把bpmnModel对象转换成字符
            byte[] bytes = converter.convertToXML(bpmnModel);
            String xmlContenxt = new String(bytes);
            System.out.println(xmlContenxt);
            Document document = XmlUtil.readXML(xmlContenxt);
            NodeList node = XmlUtil.getNodeListByXPath("//*[name()='findFormParams']", document);
            String formKey = "";
            String writeFieldKey = "";
            String hideFieldKey = "";
            for (int i = 0; i < node.getLength(); i++) {
                if(Verify.verifyIsNotNull(node.item(i).getAttributes().getNamedItem("activiti:formKey"))){
                    formKey = node.item(i).getAttributes().getNamedItem("activiti:formKey").getNodeValue();
                }
//                System.out.println(node.item(i).getNodeName() + "---" + node.item(i).getAttributes().getNamedItem("id") + "---" + node.item(i).getAttributes().getNamedItem("name") + "---" + node.item(i).getAttributes().getNamedItem("activiti:formKey").getNodeValue());
                NodeList childList = node.item(i).getChildNodes();
                for (int j = 0; j < childList.getLength(); j++) {
//                    System.out.println(childList.item(j).getNodeName());
                    if (childList.item(j).getNodeName() != "extensionElements") {
                        continue;
                    }
                    NodeList cls = childList.item(j).getChildNodes();
                    for (int m = 0; m < cls.getLength(); m++) {
                        if (cls.item(m).getNodeName() != "activiti:field") {
                            continue;
                        }
                        if(Verify.verifyIsNotNull(cls.item(m).getAttributes().getNamedItem("writeFieldKey"))){
                            writeFieldKey = cls.item(m).getAttributes().getNamedItem("writeFieldKey").getNodeValue();
                        }
                        if(Verify.verifyIsNotNull(cls.item(m).getAttributes().getNamedItem("hideFieldKey").getNodeValue())){
                            hideFieldKey = cls.item(m).getAttributes().getNamedItem("hideFieldKey").getNodeValue();
                        }
                        System.out.println(cls.item(m).getAttributes().getNamedItem("elementText"));
                    }
                }
            }
            pd.put("formKey",formKey);
            pd.put("writeFieldKey",writeFieldKey);
            pd.put("hideFieldKey",hideFieldKey);
        } else {//已启动
            Task task = taskService.createTaskQuery().taskId(pd.get("taskId").toString()).singleResult();

            pd.put("model_id", task.getProcessDefinitionId().split(":")[0]);
            //根据流程定义id获取bpmnModel对象
            bpmnModel = repositoryService.getBpmnModel(task.getProcessDefinitionId());

            //创建转换对象
            BpmnXMLConverter converter = new BpmnXMLConverter();
            //把bpmnModel对象转换成字符
            byte[] bytes = converter.convertToXML(bpmnModel);
            String xmlContenxt = new String(bytes);
            System.out.println(xmlContenxt);
            Document document = XmlUtil.readXML(xmlContenxt);
            NodeList node = XmlUtil.getNodeListByXPath("//*[name()='bpmn2:userTask']", document);

            String formKey = "";
            String writeFieldKey = "";
            String hideFieldKey = "";
            for (int i = 0; i < node.getLength(); i++) {
                System.out.println(task.getTaskDefinitionKey()+":::"+node.item(i).getAttributes().getNamedItem("id").getNodeValue());
                if(task.getTaskDefinitionKey().equals(node.item(i).getAttributes().getNamedItem("id").getNodeValue())){
                    if(Verify.verifyIsNotNull(node.item(i).getAttributes().getNamedItem("activiti:formKey"))){
                        formKey = node.item(i).getAttributes().getNamedItem("activiti:formKey").getNodeValue();
                    }
//                    System.out.println(node.item(i).getNodeName() + "---" + node.item(i).getAttributes().getNamedItem("id") + "---" + node.item(i).getAttributes().getNamedItem("name") + "---" + node.item(i).getAttributes().getNamedItem("activiti:formKey").getNodeValue());
                    NodeList childList = node.item(i).getChildNodes();
                    for (int j = 0; j < childList.getLength(); j++) {
                        if (childList.item(j).getNodeName() != "extensionElements") {
                            continue;
                        }
                        NodeList cls = childList.item(j).getChildNodes();
                        for (int m = 0; m < cls.getLength(); m++) {
                            if (cls.item(m).getNodeName() != "activiti:field") {
                                continue;
                            }
                            if(Verify.verifyIsNotNull(cls.item(m).getAttributes().getNamedItem("writeFieldKey"))){
                                writeFieldKey = cls.item(m).getAttributes().getNamedItem("writeFieldKey").getNodeValue();
                            }
                            if(Verify.verifyIsNotNull(cls.item(m).getAttributes().getNamedItem("hideFieldKey"))){
                                hideFieldKey = cls.item(m).getAttributes().getNamedItem("hideFieldKey").getNodeValue();
                            }
//                        System.out.println(cls.item(m).getAttributes().getNamedItem("elementText"));
                        }
                    }
                }
            }
            pd.put("formKey",formKey);
            pd.put("writeFieldKey",writeFieldKey);
            pd.put("hideFieldKey",hideFieldKey);
        }
        Json json = new Json();
        json.setData(pd);
        json.setSuccess(true);
        json.setMsg("数据获取成功。");
        this.writeJson(response,json);
    }

新增流程审核、流程驳回、流程委派

为什么称为新增呢？因为之前的方法没有关联表单，仅仅是单纯的流程走向，本次因为设计到对表单的编辑，在执行流程操作之前需要先进行流程表单的存储。此处介绍流程审批，流程驳回和流程委派模式一致。

saveOrUpdate({
              taskId: data.id,
              approve_opinion: data.approve_opinion,
              nodeData: data.nodeData,
              submitType: "3",
              ...values,
              id: this.form.id,
              table_id: this.table_id,
              menu_id: this.menu_id,
              hideFieldKey: this.hideFieldKey,
            }).then((response) => {
              this.$emit("finishResponse", response);
              resolve(true);
            });
          })

后端代码位置，具体细节可以查看源码分析：
