1.IDEA新建project工作空间
- 微服务cloud整体聚合父工程Project
- 父工程POM
2.Rest微服务工程构建
- 构建步骤
- 测试

1.IDEA新建project工作空间

微服务cloud整体聚合父工程Project

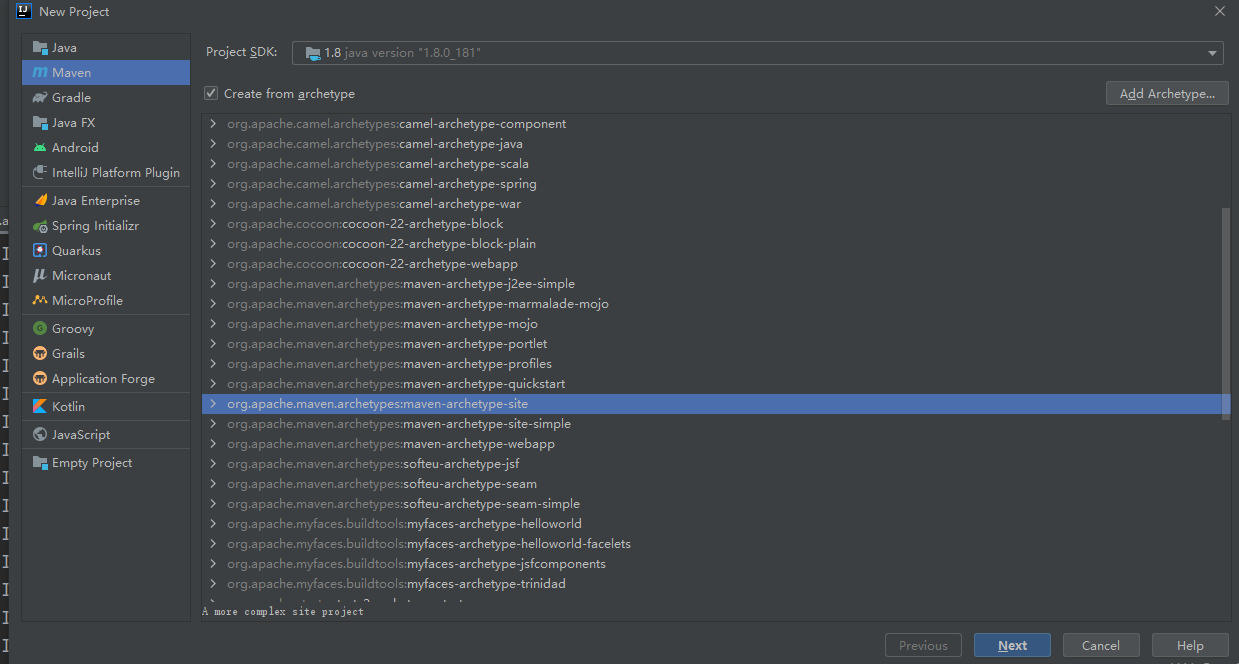

New Project
2.聚合总父工程名字
3 Maven选版本
4.工程名字

6.注解生效激活
7.java编译版本选8

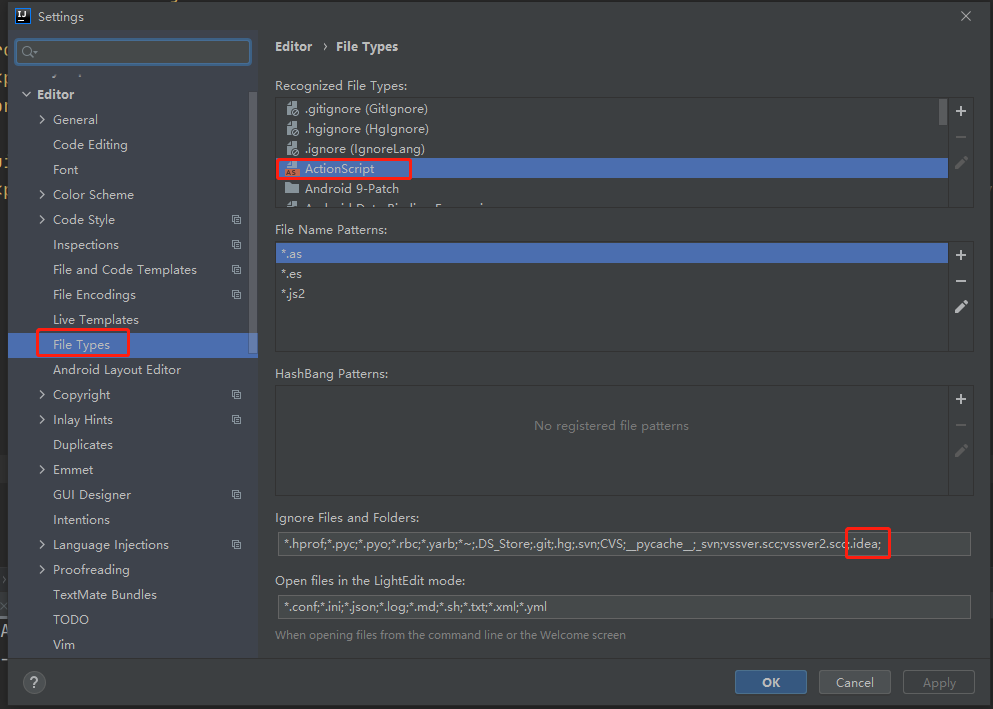

8 File Type过滤
过滤掉.idea

父工程POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.yuanzi</groupId>
    <artifactId>springcloud</artifactId>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>cloud-provider-payment8001</module>
    </modules>
    <packaging>pom</packaging>
    <!-- 统一管理jar包版本 -->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <mysql.version>5.1.47</mysql.version>
        <druid.version>1.1.16</druid.version>
        <mybatis.spring.boot.version>1.3.0</mybatis.spring.boot.version>
    </properties>
    <!-- 子模块继承之后，提供作用：锁定版本+子modlue不用写groupId和version  -->
    <dependencyManagement>
        <dependencies>            <!--spring boot 2.2.2-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.2.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>            <!--spring cloud Hoxton.SR1-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>            <!--spring cloud alibaba 2.1.0.RELEASE-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.1.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.spring.boot.version}</version>
            </dependency>
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
                <optional>true</optional>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

2.Rest微服务工程构建

构建步骤

2.1 建module

建cloud-provider-payment8001 创建完成后请回到父工程查看pom文件变化

2.2 改POM

修改子模块的POM文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud</artifactId>
        <groupId>com.yuanzi</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>cloud-provider-payment8001</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>

        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!--jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

2.3 写YML

新建 application.yml文件, 修改

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource            # 当前数据源操作类型
    driver-class-name: org.gjt.mm.mysql.Driver              # mysql驱动包 com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/db2019?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 123456

mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: com.yuanzi.springcloud.entities    # 所有Entity别名类所在包

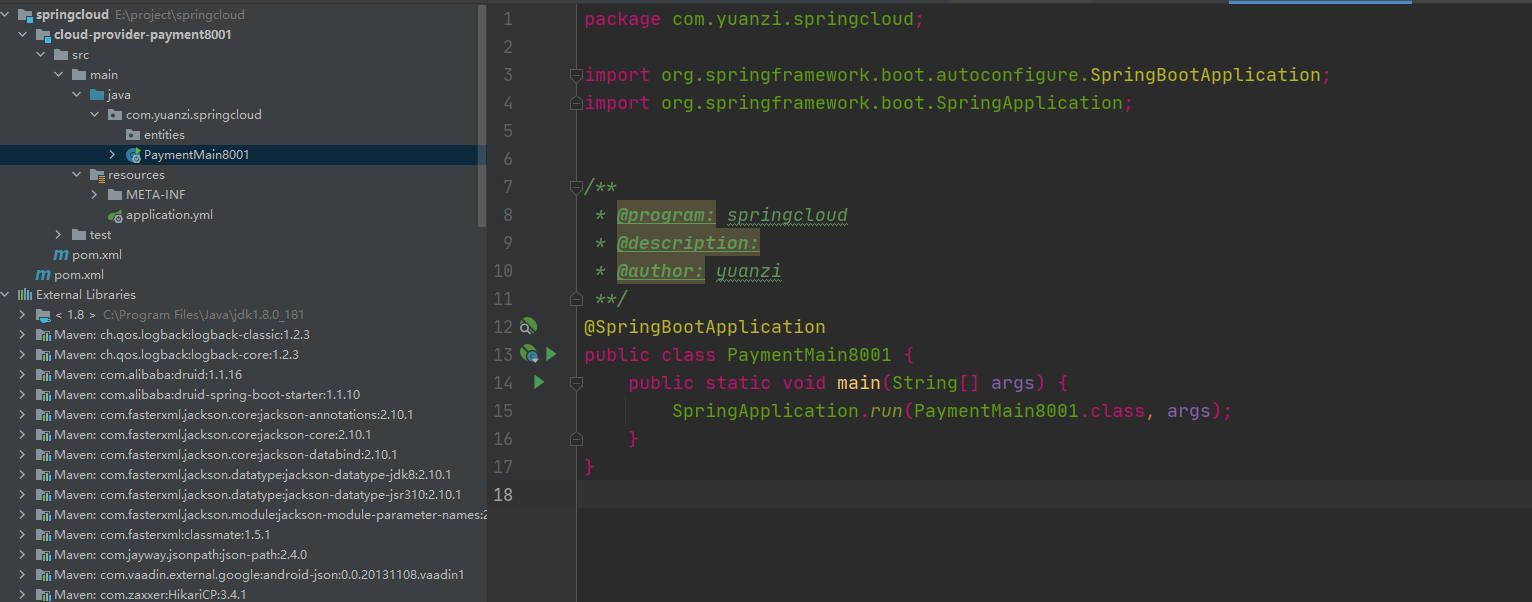

2.4 主启动


2.5 业务类

建表SQL

 CREATE TABLE `payment` (
                                               `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
                         `serial` varchar(200) DEFAULT '',
                         PRIMARY KEY (`id`))
                         ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

entities

com.yuanzi.springcloud.entities.Payment类

package com.yuanzi.springcloud.entities;

import java.io.Serializable;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @program: springcloud
 * @description:
 * @author: yuanzi
 **/
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private long id;
    private String serial;
}

com.yuanzi.springcloud.entities.CommonResult类

package com.yuanzi.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @program: springcloud
 * @description:
 * @author: yuanzi
 **/
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;

    public CommonResult(Integer code, String message){
        this(code,message,null);
    }
}

dao
接口PaymentDao

package com.yuanzi.springcloud.dao;

import com.yuanzi.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

/**
 * @program: springcloud
 * @description:
 * @author: yuanzi
 * @create: 2021-06-21 19:37
 **/
@Mapper
public interface PaymentDao {

    public int create(Payment payment);

    public Payment getPaymentById(@Param("id") long id);
}

mybaits的映射文件PaymentMapper.xml
路径src\main\resources\mapper\PaymentMapper.xml

<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.yuanzi.springcloud.dao.PaymentDao">
    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial) values(#{serial})
    </insert>

    <resultMap id="BaseResultMap" type="com.yuanzi.springcloud.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <id column="serial" property="serial" jdbcType="VARCHAR"/>
    </resultMap>

    <select id="getPaymentById" parameterType="Long" resultMap="BaseResultMap">
        select * from payment where id = #{id}
    </select>
</mapper>

service
接口PaymentService

package com.yuanzi.springcloud.service;

import com.yuanzi.springcloud.entities.Payment;

public interface PaymentService {

    public int create(Payment payment);

    public Payment getPaymentById(Long id);

}

实现类
实现类PaymentServiceImpl

package com.yuanzi.springcloud.service.Impl;


import com.yuanzi.springcloud.dao.PaymentDao;
import com.yuanzi.springcloud.entities.Payment;
import com.yuanzi.springcloud.service.PaymentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @program: springcloud
 * @description:
 * @author: yuanzi
 **/
@Service
public class PaymentServiceImpl implements PaymentService {

    @Autowired
    private PaymentDao paymentDao;

    public int create(Payment payment){
        return paymentDao.create(payment);
    }

    public Payment getPaymentById(Long id){
        return paymentDao.getPaymentById(id);
    }
}

controller

package com.yuanzi.springcloud.Controller;

import javax.annotation.Resource;

import com.yuanzi.springcloud.entities.CommonResult;
import com.yuanzi.springcloud.entities.Payment;
import com.yuanzi.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;

/**
 * @program: springcloud
 * @description:
 * @author: yuanzi
 **/
@Controller
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @PostMapping(value = "/payment/create")
    public CommonResult create(Payment payment){
        int result = paymentService.create(payment);
        log.info("****插入结果: " +result);
        if (result > 0){
            return new CommonResult(200, "插入数据库成功", result);
        }else {
            return new CommonResult(400, "插入失败", null);
        }
    }

    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") long id){
        Payment result = paymentService.getPaymentById(id);
        log.info("****获取结果: " +result);
        if (result != null){
            return new CommonResult(200, "数据获取成功", result);
        }else {
            return new CommonResult(400, "没有对应记录,查询id: " + id, null);
        }
    }
}
