08-prometheus监控（一）

监控概述
监控规划
Prometheus

监控概述

系统底层监控
- CPU
- 内存
- 网卡
- 磁盘
- 带宽利用率
- 延迟、丢包
- 交换机，路由器，防火墙等基础设施
web监控
- web打开速度
- URL状态码
- API接口可用性
业务监控
- 订单交易量
- 活跃用户
- 可用性
中间件监控
- 数据库
- MQ
  监控规划

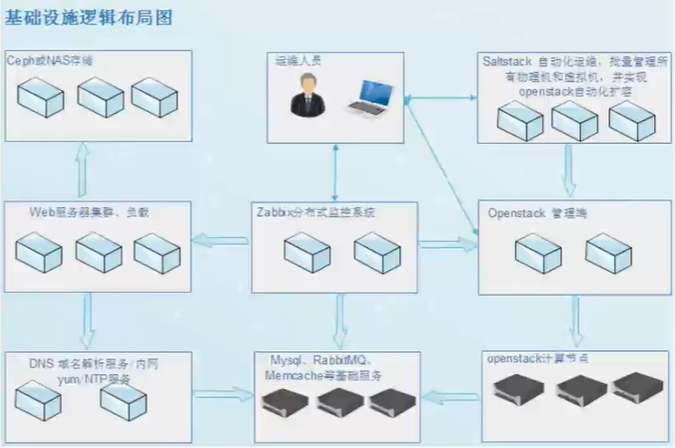

基础设施监控

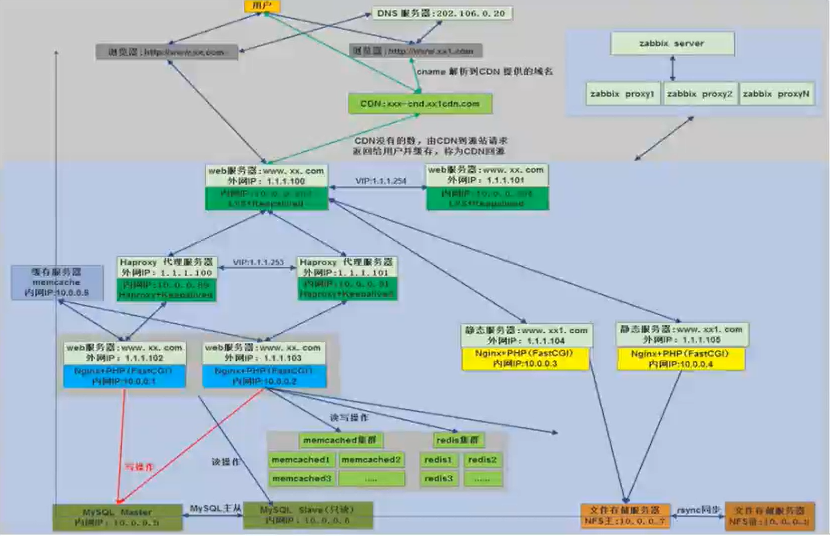

业务维度监控

Prometheus

简介

官网：https://prometheus.io/
github：https://github.com/prometheus/prometheus

组件介绍
prometheus server: 数据query，store，scripy
prometheus targets：静态收集的目标服务数据
service discovery：动态发现服务
prometheus alerting：报警通知
push gateway：数据收集代理服务
data visualization andexport: 数据可视化与数据导出

部署方式

部署官方站点： https://prometheus.io/docs/prometheus/latest/installation/
部署os: ubuntu20.04LTS

基于docker容器部署
部署节点主机名&ip: prometheus-server1 10.168.56.111

docker 安装

root@prometheus-server1:~# curl -fsSL https://get.docker.com | bash -s docker --mirror Aliyun

配置镜像加速并重启docker ```bash tee /etc/docker/daemon.json <<-‘EOF’ { “registry-mirrors”: [“https://0b8hhs68.mirror.aliyuncs.com“], “data-root”: “/data/docker” } EOF

systemctl restart docker


3. 基于docker部署prometheus
```bash
root@prometheus-server1:~#root@prometheus-server1:/data/apps/prometheus# docker run -p 9090:9090 prom/prometheus

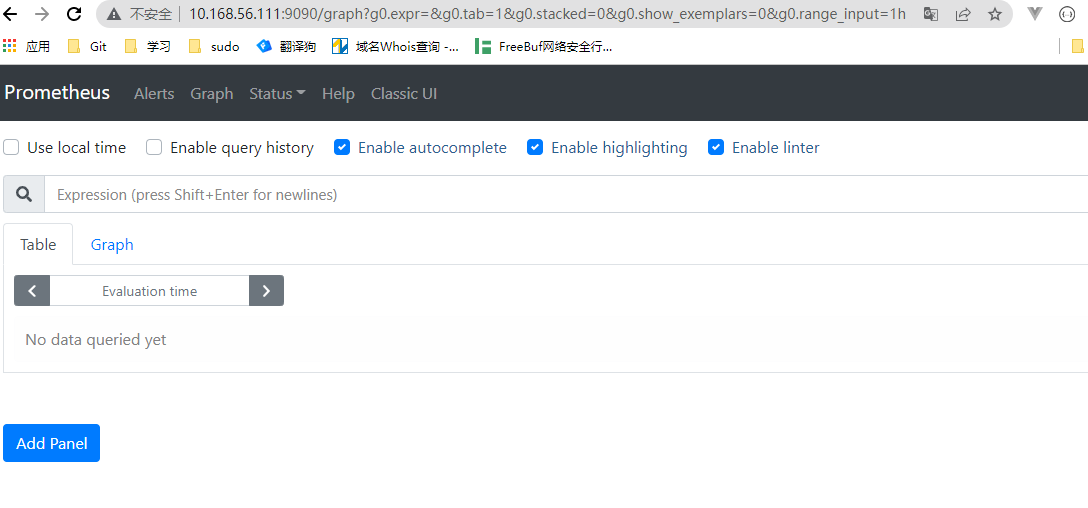

web访问

基于k8s operator部署

https://github.com/prometheus-operator/kube-prometheus
按照k8s版本部署对应的kube-prometheus
需要将prometheus, grafana, alertmanager服务通过nodePort做暴露即可

apt 安装
```
apt update -y
apt search prometheus
apt install prometheus -y
```
基于二进制方式部署
软件下载地址：https://prometheus.io/download/

安装prometheus

root@prometheus-server1:~# cd /data/apps/
root@prometheus-server1:/data/apps# wget https://github.com/prometheus/prometheus/releases/download/v2.33.1/prometheus-2.33.1.linux-amd64.tar.gz
root@prometheus-server1:/data/apps# tar xf prometheus-2.33.1.linux-amd64.tar.gz
root@prometheus-server1:/data/apps# ln -sv prometheus-2.33.1.linux-amd64 prometheus

配置systemctl 并做开机自启动 ```bash root@prometheus-server1:~# cd /data/apps/prometheus root@prometheus-server1:/data/apps/prometheus# mkdir data root@prometheus-server1:/data/apps/prometheus# tee /etc/systemd/system/prometheus.service <<-‘EOF’ [Unit] Description=”prometheus” Documentation=https://prometheus.io/ After=network.target

[Service] Type=simple ExecStart=/data/apps/prometheus/prometheus —config.file=/data/apps/prometheus/prometheus.yml —storage.tsdb.path=/data/apps/prometheus/data —web.enable-lifecycle

Restart=on-failure RestartSecs=5s SuccessExitStatus=0 LimitNOFILE=65536 StandardOutput=syslog StandardError=syslog SyslogIdentifier=prometheus

[Install] WantedBy=multi-user.target EOF

root@prometheus-server1:/data/apps/prometheus# systemctl enable prometheus.service root@prometheus-server1:/data/apps/prometheus# systemctl start prometheus.service root@prometheus-server1:/data/apps/prometheus# systemctl status prometheus.service

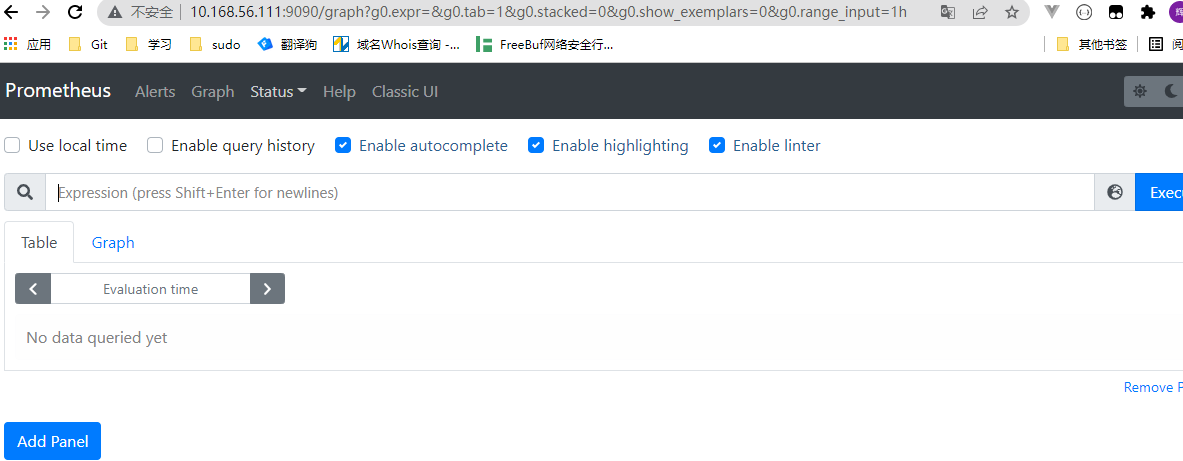

3. web节点访问

![image.png](https://cdn.nlark.com/yuque/0/2022/png/2391625/1644247353236-8bf836f5-0b5e-4ded-b745-6e637829b504.png#clientId=u8130affa-b051-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=461&id=uf864154d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=461&originWidth=1183&originalType=binary&ratio=1&rotation=0&showTitle=false&size=43726&status=done&style=none&taskId=uacafc351-6b01-49a5-bcb1-f08f9092e17&title=&width=1183)

4. 动态reload命令
```bash
root@prometheus-server1:/data/apps/prometheus# curl -X POST http://localhost:9090/-/reload

部署node-exporter并设置开机自启动(部署在10.168.56.111,10.168.56.112) ```bash root@prometheus-server1:~# cd /data/apps/ root@prometheus-server1:/data/apps# wget https://github.com/prometheus/node_exporter/releases/download/v1.3.1/node_exporter-1.3.1.linux-amd64.tar.gz root@prometheus-server1:/data/apps# ln -sv node_exporter-1.3.1.linux-amd64 node_exporter root@prometheus-server1:/data/apps# cat < /etc/systemd/system/node_exporter.service [Unit] Description=Node Exporter Wants=network-online.target After=network-online.target

[Service] ExecStart=/data/apps/node_exporter/node_exporter StandardOutput=syslog StandardError=syslog SyslogIdentifier=node_exporter [Install] WantedBy=default.target EOF

root@prometheus-server1:/data/apps# systemctl enable node_exporter.service root@prometheus-server1:/data/apps# systemctl start node_exporter.service root@prometheus-server1:/data/apps# systemctl status node_exporter.service


6. prometheus配置监控node节点
```bash
root@prometheus-server1:~# vim /data/apps/prometheus/prometheus.yml
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093
rule_files:
  # - "first_rules.yml"
scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]
  - job_name: "node_exporter"
    static_configs:
      - targets: ["10.168.56.111:9100","10.168.56.112:9100"]

root@prometheus-server1:~# curl -X POST http://localhost:9090/-/reload

查看target

blackbox Exporter

监控对象
- http/https: url/api可用性检测
- tcp：端口监听检测
- icmp：主机存活检测
- DNS：域名解析

部署blackbox exporter(10.168.56.112) ```bash root@blackbox-exporter:~# mkdir /data/apps/ && cd /data/apps/ root@blackbox-exporter:/data/apps# wget https://github.com/prometheus/blackbox_exporter/releases/download/v0.19.0/blackbox_exporter-0.19.0.linux-amd64.tar.gz root@blackbox-exporter:/data/apps# tar xf blackbox_exporter-0.19.0.linux-amd64.tar.gz root@blackbox-exporter:/data/apps# ln -sv blackbox_exporter-0.19.0.linux-amd64 blackbox_exporter root@blackbox-exporter:/data/apps# cat < /etc/systemd/system/blackbox.service [Unit] Description=blackbox_exporter Exporter Wants=network-online.target After=network-online.target

[Service] ExecStart=/data/apps/blackbox_exporter/blackbox_exporter —config.file=/data/apps/blackbox_exporter/blackbox.yml StandardOutput=syslog StandardError=syslog SyslogIdentifier=blackbox_exporter [Install] WantedBy=default.target EOF

root@blackbox-exporter:/data/apps# systemctl enable blackbox.service root@blackbox-exporter:/data/apps# systemctl start blackbox.service root@blackbox-exporter:/data/apps# systemctl status blackbox.service


2. prometheus配置blackbox监控http状态, icmp，tcp端口
```bash
root@prometheus-server1:~# vim /data/apps/prometheus/prometheus.yml
...
scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["localhost:9090"]
  - job_name: "node_exporter"
    static_configs:
      - targets: ["10.168.56.111:9100","10.168.56.112:9100"]
  - job_name: 'http_status'
    metrics_path: /probe
    params:
      module: [http_2xx]
    static_configs:
      - targets: ['http://www.tianyancha.com','http://10.168.56.112:9090','http://www.baidu.com']
        labels:
          group: web
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: url
      - target_label: __address__
        replacement: 10.168.56.112:9115
  - job_name: "ping"
    metrics_path: /probe
    params:
      module: [icmp]
    static_configs:
      - targets: ['10.168.56.112','223.6.6.6']
        labels:
          instance: 'icmp-ping'
          group: 'icmp'
    relabel_configs:
     - source_labels: [__address__]
       target_label: __param_target
     - source_labels: [__param_target]
       target_label: ip
     - target_label: __address__
       replacement: 10.168.56.112:9115
  - job_name: "tcp_connect"
    metrics_path: /probe
    params:
      module: [tcp_connect]
    static_configs:
      - targets: ['10.168.56.112:9100','10.168.56.111:80']
        labels:
          instance: 'tcp_connect'
          group: 'tcp'
    relabel_configs:
     - source_labels: [__address__]
       target_label: __param_target
     - source_labels: [__param_target]
       target_label: ip
     - target_label: __address__
       replacement: 10.168.56.112:9115

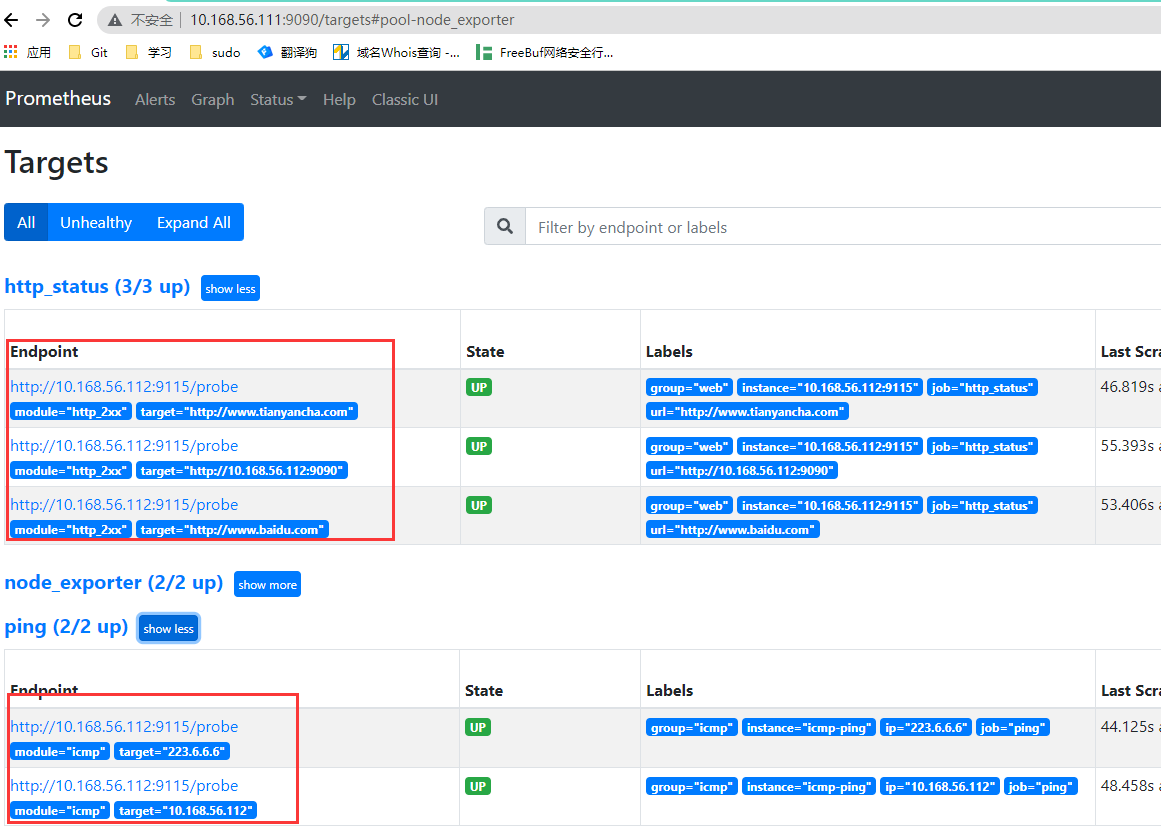

查看状态

Grafana

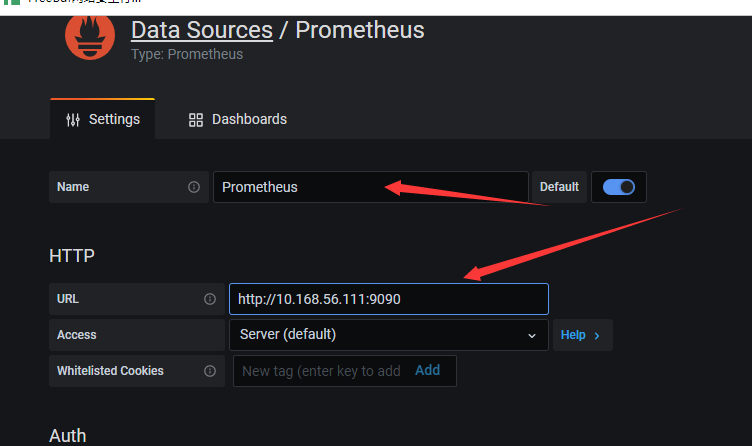

图形界面，可以将promethues作为数据源，展示其数据

安装grafana(10.168.56.112节点)

apt-get install -y adduser libfontconfig1
wget https://dl.grafana.com/enterprise/release/grafana-enterprise_7.5.13_amd64.deb
dpkg -i grafana-enterprise_7.5.13_amd64.deb
systemctl enable grafana-server.service
systemctl start grafana-server.service
systemctl status grafana-server.service
