一、SqlSessionFactory

用于在连接或数据源中创建SqlSession，是一个单纯的创建SqlSession的工厂接口。

public interface SqlSessionFactory {
  SqlSession openSession();
  SqlSession openSession(boolean autoCommit);
  SqlSession openSession(Connection connection);
  SqlSession openSession(TransactionIsolationLevel level);
  SqlSession openSession(ExecutorType execType);
  SqlSession openSession(ExecutorType execType, boolean autoCommit);
  SqlSession openSession(ExecutorType execType, TransactionIsolationLevel level);
  SqlSession openSession(ExecutorType execType, Connection connection);
  Configuration getConfiguration();
}

二、SqlSession

The primary Java interface for working with MyBatis. Through this interface you can execute commands, get mappers and manage transactions.

如下图可见，SqlSession封装了我们所有的增删改查操作，是一个很重要的接口

三、mapper的生成

1、猜想的生成过程

自旋可以回忆：https://www.yuque.com/wangchao-volk4/fdw9ek/xmkynl

public class SupkingxLock {
    private static final Unsafe unsafe;
    private static final long valueOffset;
    private volatile int value = 0;
    static {
        try {
            Class<Unsafe> unsafeClass = Unsafe.class;
            Field theUnsafe = unsafeClass.getDeclaredField("theUnsafe");
            theUnsafe.setAccessible(true);
            unsafe = (Unsafe) theUnsafe.get(null);
            valueOffset = unsafe.objectFieldOffset
                    (SupkingxLock.class.getDeclaredField("value"));
        } catch (Exception ex) {
            throw new Error(ex);
        }
    }
    public void lock() {
        // 自旋
        for (; ; ) {
            // this 当前对象本身，valueOffset 位移偏移量，0:内存中的真值，1:将要变成的值
            if (unsafe.compareAndSwapInt(this, valueOffset, 0, 1)) {
                return;
            }
            // 如果不是自己想要的值，则将当前线程让出去
            Thread.yield();
        }
    }
    public void unlock() {
        value = 0;
    }
    public static void main(String[] args) {
        System.out.println(unsafe);
    }
}

public class MyBatisEnhance {
    public static final Map<Class<?>, Object> objectMap = new HashMap<>();
    private static SupkingxLock supkingxLock = new SupkingxLock();
    static class MapperScanner {
        private String mapperLocation;
        public List<Class<?>> scanMapper() {
            List<Class<?>> classList = new ArrayList<>();
            for (int i = 0; i < 500000000; i++) {
                classList.add(MyBatisEnhance.class);
            }
            return new ArrayList<>();
        }
        public String getMapperLocation() {
            return mapperLocation;
        }
        public void setMapperLocation(String mapperLocation) {
            this.mapperLocation = mapperLocation;
        }
    }
    /**
     * 可以优化来加个锁，实际Mybatis中并没有加锁
     * @param object
     */
    public static void put(Object object) {
        supkingxLock.lock();
        objectMap.put(object.getClass(), object);
        supkingxLock.unlock();
    }
    public static void main(String[] args) {
        String mapperLocation = "classpath:mapper/*.xml";
        MapperScanner mapperScanner = new MapperScanner();
        mapperScanner.setMapperLocation(mapperLocation);
        /**
         * 一千个？？
         */
        List<Class<?>> classes = mapperScanner.scanMapper();
        // 解析xml
        // 。。。。。。。。
        long start = System.currentTimeMillis();
        // 将这1000个mapper添加到map中
        classes.forEach(aClass -> objectMap.put(aClass, new Object()));
//        classes.parallelStream().forEach(aClass -> put(new Object()));
        long end = System.currentTimeMillis();
        System.out.println(end - start);
    }
}

2、MyBatis中mapper产生的实现方式

2.1 代码入口

public static void main(String[] args) throws IOException {
        InputStream in = Resources.getResourceAsStream("SqlMapConfig.xml");
        SqlSessionFactoryBuilder builder = new SqlSessionFactoryBuilder();
        SqlSessionFactory factory = builder.build(in);
        SqlSession session = factory.openSession();
        //获得dao 的代理对象
        UserMapper userMapper = session.getMapper(UserMapper.class);
        User user = userMapper.queryById(21);
        System.out.println(user.toString());
    }

通过上述代码，很明显可以只知道，第一步载入 xml 文件，是从 SqlSessionFactoryBuilder 开始的

2.2 SqlSessioinFactoryBuilder

这个类负责解析 xml 并 build出 SqlSessionFactory

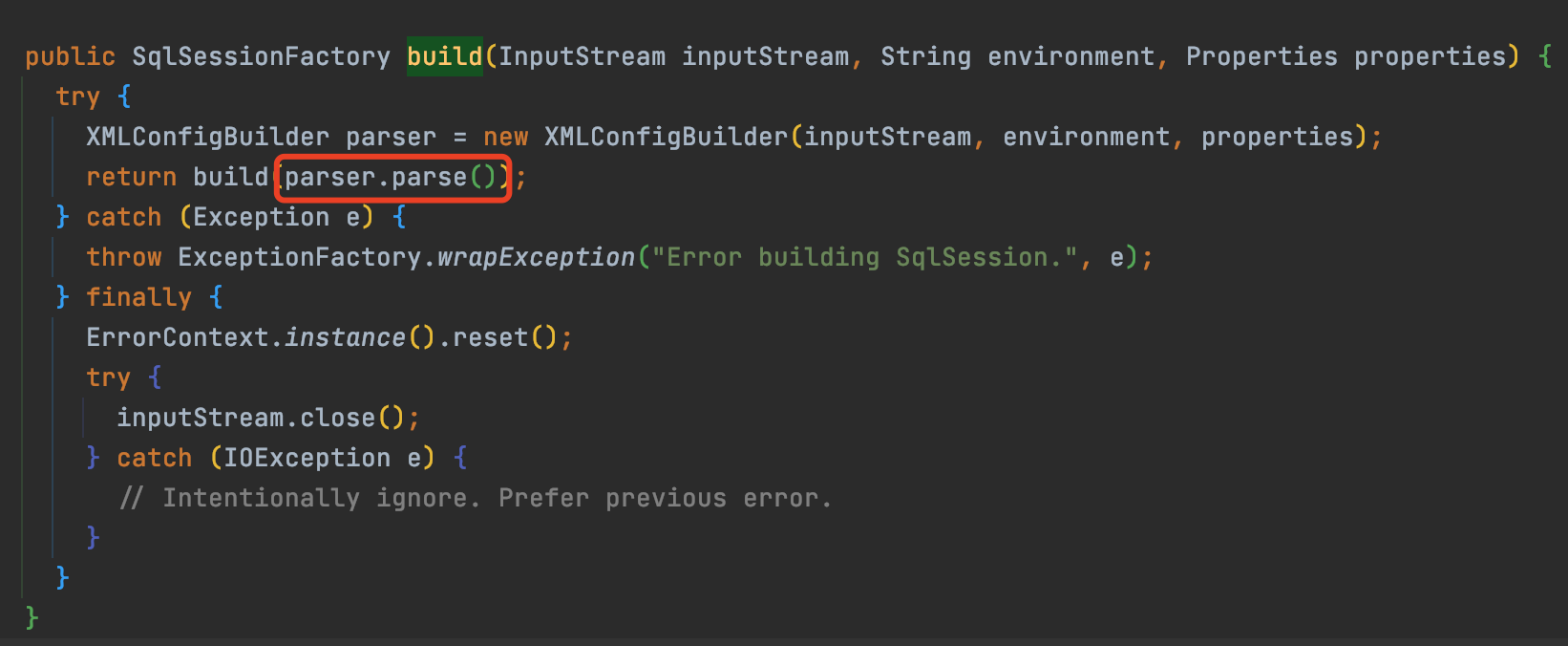

2.2.1 解析xml的入口

org.apache.ibatis.session.SqlSessionFactoryBuilder#build(java.io.InputStream, java.lang.String, java.util.Properties)

2.2.2 解析 xml 并将 mapper(interface)放入到configuration中

parse—>parseConfiguration—>mapperElement—>configuration.addMappers(mapperPackage);

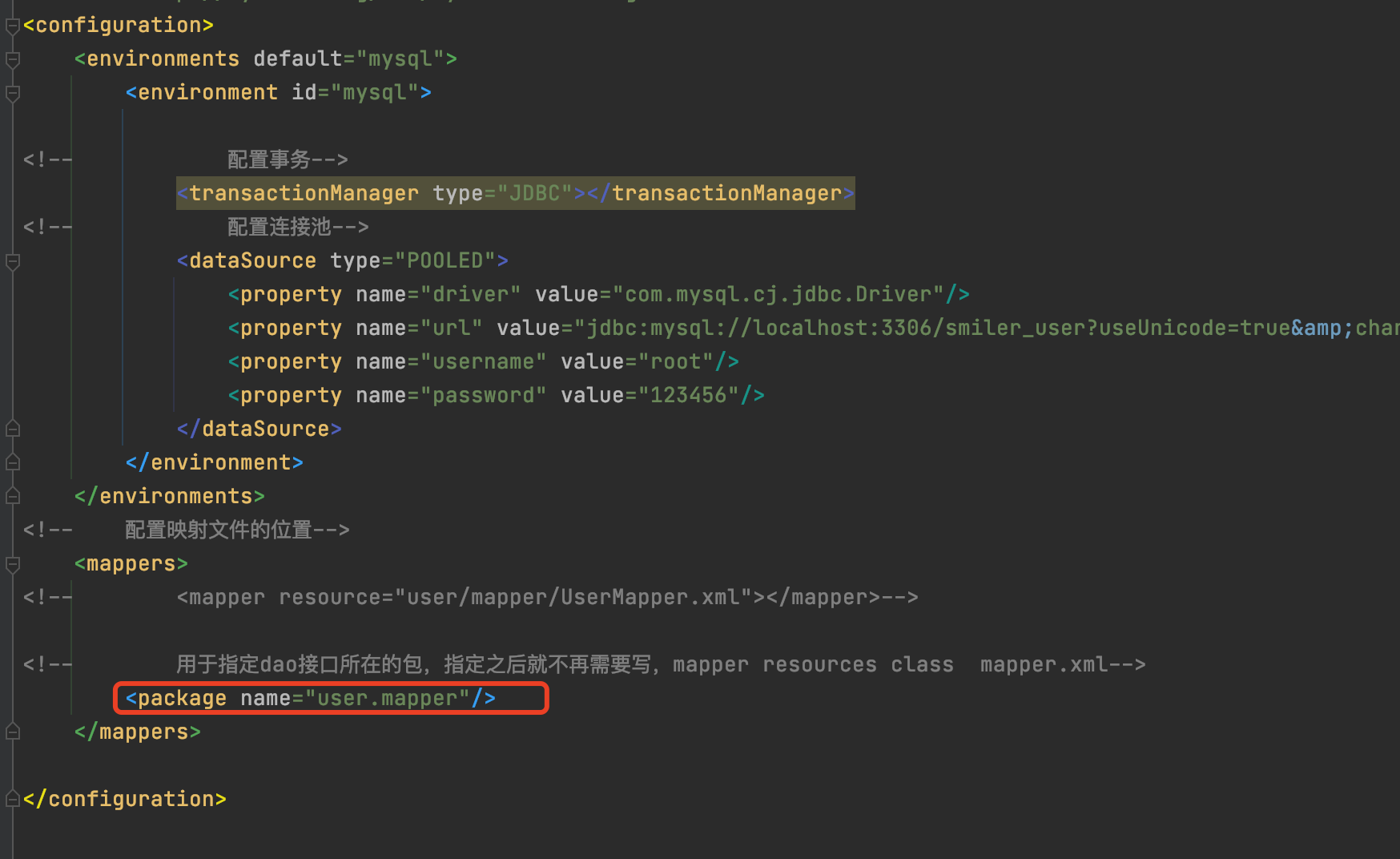

根据配置文件中标签的配置方式，如果指定了 package，则直接configuration.addMappers；
如果是指定了标签mapper，则进入下图红框标出的位置，mapperParser.parse->bindMapperForNamespace

这个parse是用来解析写了sql的mapper.xml文件的

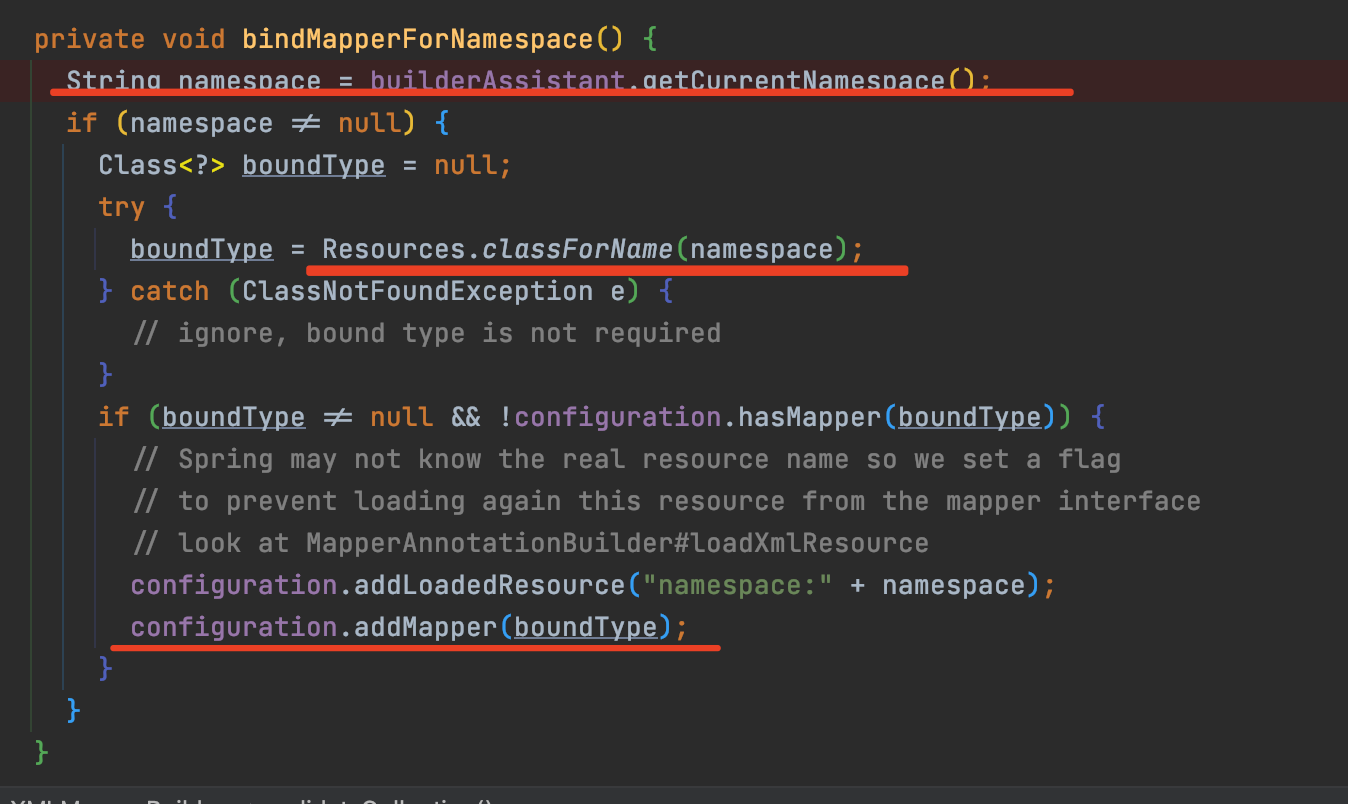

在 bindMapperForNamespace 方法中，通过书写了 sql 的 mapper.xml 文件中的 nameSpace 标签获取 mapper接口的全类名，然后通过反射获取到这个接口，最后将其 add 到 configuration 中

2.2.3 addMapper

addMapper方法就是将接口mapper的位置作为key，value是一个封装了接口mapper的 MapperProxyFactory 对象。

private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();
public void addMappers(String packageName, Class<?> superType) {
    ResolverUtil<Class<?>> resolverUtil = new ResolverUtil<>();
    resolverUtil.find(new ResolverUtil.IsA(superType), packageName);
    Set<Class<? extends Class<?>>> mapperSet = resolverUtil.getClasses();
    for (Class<?> mapperClass : mapperSet) {
      addMapper(mapperClass);
    }
  }
public <T> void addMapper(Class<T> type) {
    if (type.isInterface()) {
      if (hasMapper(type)) {
        throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
      }
      boolean loadCompleted = false;
      try {
       // 接口mapper的位置作为key，value是一个封装了接口mapper的 MapperProxyFactory 对象。
        knownMappers.put(type, new MapperProxyFactory<>(type));
        // It's important that the type is added before the parser is run
        // otherwise the binding may automatically be attempted by the
        // mapper parser. If the type is already known, it won't try.
        MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
        parser.parse();
        loadCompleted = true;
      } finally {
        if (!loadCompleted) {
          knownMappers.remove(type);
        }
      }
    }
  }

2.2.4 MapperProxyFactory

public class MapperProxyFactory<T> {
  private final Class<T> mapperInterface;
  private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap<>();
  public MapperProxyFactory(Class<T> mapperInterface) {
    this.mapperInterface = mapperInterface;
  }
  public Class<T> getMapperInterface() {
    return mapperInterface;
  }
  public Map<Method, MapperMethodInvoker> getMethodCache() {
    return methodCache;
  }
  @SuppressWarnings("unchecked")
  protected T newInstance(MapperProxy<T> mapperProxy) {
    return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
  }
  public T newInstance(SqlSession sqlSession) {
    final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
    return newInstance(mapperProxy);
  }
}

上述代码中的 MapperProxyFactory 中只是将 mapper 直接放到了 mapperInterface中，并没有区分这个mapper有注解的(@Select)，还是用xml的。

这里接着 addMapper说
接着parser.parse()—>loadXmlResource()载入带sql的xml文件—->parseStatement(method)，解析mapper接口上的注解方法，失败之后catch放入到configuration.addIncompleteMethod，然后再次parsePendingMethods执行失败的东西。
parse结束后，回到最上面 https://www.yuque.com/wangchao-volk4/fdw9ek/xpdqrv#lp5zo build返回 DefaultSqlSessionFactory 默认的。

3、是否可以优化 addMapper 方法

�这段代码并没用锁，也没有用ConcurrentHashMap。也没有使用并行流（parallelStream().forEach(aClass -> put(new Object()) 的这种添加方式。是不是可以优化一下？？？
什么时候应该用 parallelStream？可以参考现成的案例 java.util.Arrays#parallelSort(byte[])。
当数量小于 2的13次方或者并行数量是1的时候，用串行流，否则就要用并行流。

/**
     * The minimum array length below which a parallel sorting
     * algorithm will not further partition the sorting task. Using
     * smaller sizes typically results in memory contention across
     * tasks that makes parallel speedups unlikely.
     */
    private static final int MIN_ARRAY_SORT_GRAN = 1 << 13;
 public static void parallelSort(byte[] a) {
        int n = a.length, p, g;
        if (n <= MIN_ARRAY_SORT_GRAN ||
            (p = ForkJoinPool.getCommonPoolParallelism()) == 1)
            DualPivotQuicksort.sort(a, 0, n - 1);
        else
            new ArraysParallelSortHelpers.FJByte.Sorter
                (null, a, new byte[n], 0, n, 0,
                 ((g = n / (p << 2)) <= MIN_ARRAY_SORT_GRAN) ?
                 MIN_ARRAY_SORT_GRAN : g).invoke();
    }

四、获取mapper

public static void main(String[] args) throws IOException {
        InputStream in = Resources.getResourceAsStream("SqlMapConfig.xml");
        SqlSessionFactoryBuilder builder = new SqlSessionFactoryBuilder();
        SqlSessionFactory factory = builder.build(in);
        SqlSession session = factory.openSession();
        //获得dao 的代理对象
        UserMapper userMapper = session.getMapper(UserMapper.class);
        User user = userMapper.queryById(21);
        System.out.println(user.toString());
    }

2.2.3 结束之后，我们获取到了一个 SqlSessionFactory，接口用这个工厂生产一个 SqlSession。

1、openSession

private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
        // 获得配置
      final Environment environment = configuration.getEnvironment();
        // 从配置中获得事务
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
        // 创建事务
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
        // 创建执行器
      final Executor executor = configuration.newExecutor(tx, execType);
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

2、getMapper

通过创建的 SqlSession 中的 getMapper方法来获取mapper。其实就是获取 knownMappers 中的值(MapperProxyFactory)类型，接着，利用 MapperProxyFactory 中的 newInstance 方法创建一个代理对象（用的是jdk的proxy代理）。

knownMappers 中的值是在 addMapper 时放入的

 public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
    if (mapperProxyFactory == null) {
      throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
    }
    try {
      return mapperProxyFactory.newInstance(sqlSession);
    } catch (Exception e) {
      throw new BindingException("Error getting mapper instance. Cause: " + e, e);
    }
  }

3、执行mapper

从MapperProxyFactory中获取到代理mapper后，就要开始执行。jdk的proxy的执行核心就是 InvocationHandler。请移步到下一节 3、MyBatis中关于mapper的执行过程

�
