7.1 CDC简介
7.1.1 什么是CDC
CDC 是 Change Data Capture(变更数据获取)的简称。核心思想是，监测并捕获数据库的变动（包括数据或数据表的插入、更新以及删除等），将这些变更按发生的顺序完整记录下来，写入到消息中间件中以供其他服务进行订阅及消费。
7.1.2 CDC的种类
CDC 主要分为基于查询和基于 Binlog 两种方式，我们主要了解一下这两种之间的区别：
| 基于查询的CDC | 基于Binlog的CDC | |
|---|---|---|
| 开源产品 | Sqoop、Kafka JDBC Source | Canal、Maxwell、Debezium |
| 执行模式 | Batch | Streaming |
| 是否可以捕获所有数据变化 | 否 | 是 |
| 延迟性 | 高延迟 | 低延迟 |
| 是否增加数据库压力 | 是 | 否 |
7.1.3 Flink-CDC
Flink 社区开发了 flink-cdc-connectors 组件，这是一个可以直接从 MySQL、PostgreSQL等数据库直接读取全量数据和增量变更数据的 source 组件。目前也已开源，开源地址：
https://github.com/ververica/flink-cdc-connectors

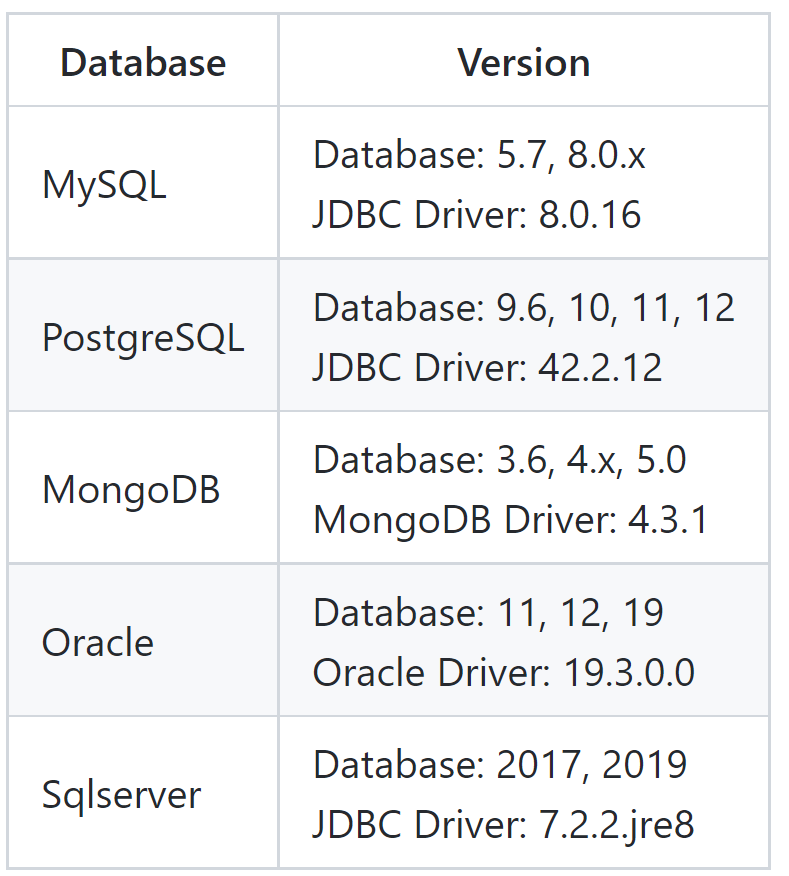

7.1.4 示例版本
hadoop:3.3.1
flink:1.13.2
flink-CDC:1.4.0
7.1.5 踩坑记录
7.2 FlinkCDC-DataStream案例

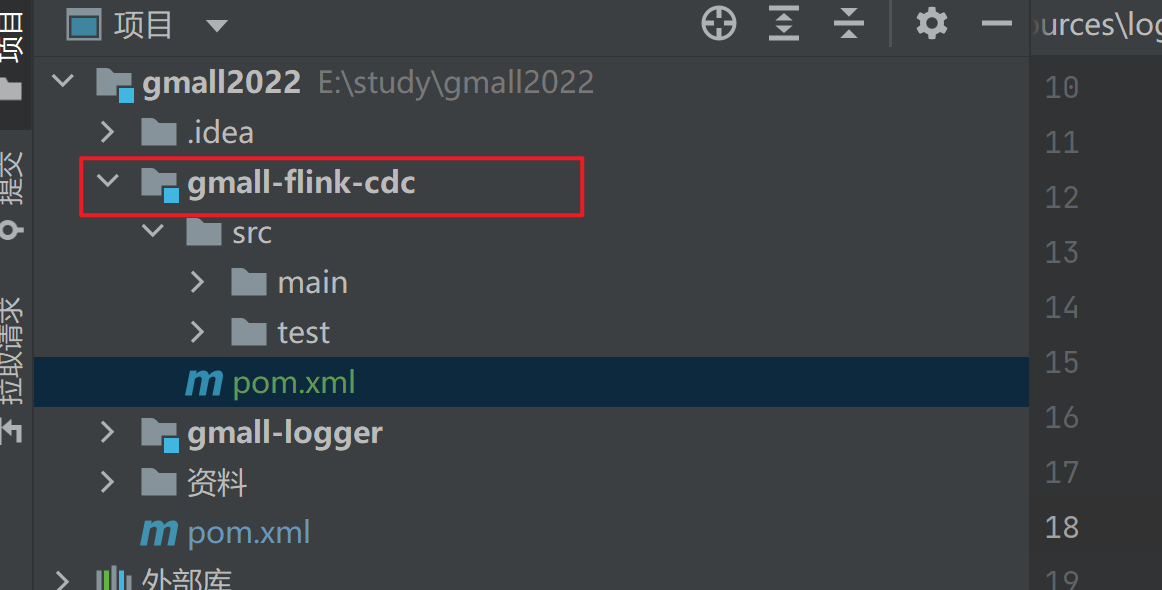

7.2.1 创建maven项目并导入依赖
添加如下依赖,https://search.maven.org/,从maven中央仓库查找到flink CDC最新的版本为2.1.1
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><parent><artifactId>gmall2022</artifactId><groupId>org.example</groupId><version>1.0</version></parent><modelVersion>4.0.0</modelVersion><artifactId>gmall-flink-cdc</artifactId><properties><maven.compiler.source>8</maven.compiler.source><maven.compiler.target>8</maven.compiler.target><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding></properties><dependencies><dependency><groupId>org.apache.flink</groupId><artifactId>flink-java</artifactId><version>1.13.2</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-streaming-java_2.12</artifactId><version>1.13.2</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-clients_2.12</artifactId><version>1.13.2</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-table-api-scala-bridge_2.12</artifactId><version>1.13.2</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-table-planner_2.12</artifactId><version>1.13.2</version></dependency><dependency><groupId>org.apache.hadoop</groupId><artifactId>hadoop-client</artifactId><version>3.3.1</version></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>8.0.25</version></dependency><dependency><groupId>com.alibaba.ververica</groupId><!-- add the dependency matching your database --><artifactId>flink-connector-mysql-cdc</artifactId><!-- the dependency is available only for stable releases. --><version>1.4.0</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.79</version></dependency></dependencies><build><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-assembly-plugin</artifactId><version>3.0.0</version><configuration><descriptorRefs><descriptorRef>jar-with-dependencies</descriptorRef></descriptorRefs></configuration><executions><execution><id>make-assembly</id><phase>package</phase><goals><goal>single</goal></goals></execution></executions></plugin></plugins></build></project>
7.2.2 FlinkCDC-DataStream代码
package com.djin.flinkcdc;
import com.alibaba.ververica.cdc.connectors.mysql.MySQLSource;
import com.alibaba.ververica.cdc.connectors.mysql.table.StartupOptions;
import com.alibaba.ververica.cdc.debezium.DebeziumSourceFunction;
import com.alibaba.ververica.cdc.debezium.StringDebeziumDeserializationSchema;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.restartstrategy.RestartStrategies;
import org.apache.flink.runtime.state.filesystem.FsStateBackend;
import org.apache.flink.runtime.state.hashmap.HashMapStateBackend;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.CheckpointConfig;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class FlinkMySQLCDC {
public static void main(String[] args) throws Exception {
// 1 创建mySqlSource
DebeziumSourceFunction<String> mySqlSource = MySQLSource.<String>builder()
.hostname("node001")
.port(3306)
.databaseList("gmall2022")
.tableList() //可选配置项,如果不指定该参数,则会
//读取上一个配置下的所有表的数据，注意：指定的时候需要使用"db.table"的方式
.username("root")
.password("123456")
.deserializer(new StringDebeziumDeserializationSchema())
.startupOptions(StartupOptions.initial())
.build();
// 2 配置执行环境，Flink-CDC将读取binlog的位置信息以状态的方式保存再CK，如果想要做断点续传，需要从Checkpoint或者Savepoint启动程序
// 2.1 创建执行环境
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 2.2 开启Checkpoint,每隔5秒钟做一次CK
env.enableCheckpointing(5000L);
// 2.3 指定CK的一致性语义
// env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
// 2.4 设置任务关闭的时候保留最后一次CK数据
env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.
ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
// 2.5 指定从CK自动重启策略
env.setRestartStrategy(RestartStrategies.fixedDelayRestart(3,2000L));
// 2.6 设置状态后端
env.setStateBackend(new HashMapStateBackend());
env.getCheckpointConfig().setCheckpointStorage("hdfs://node001:8020/flinkCDC");
//env.setStateBackend(new FsStateBackend("hdfs://node001:8082/flinkCDC"));
// 2.7 设置访问HDFS的用户名
System.setProperty("HADOOP_USER_NAME", "djin");
// 3 创建Flink-MySQL-CDC的Source
DataStreamSource<String> mySQL_source = env.addSource(mySqlSource);
mySQL_source.setParallelism(1);
// 4 打印数据
mySQL_source.print().setParallelism(1);
// 5 启动任务
env.execute("FlinkCDC");
}
}
7.2.3 FlinkCDC-DataStream运行测试
1）打包并上传至 Linux
2）开启 MySQL Binlog 并重启 MySQL

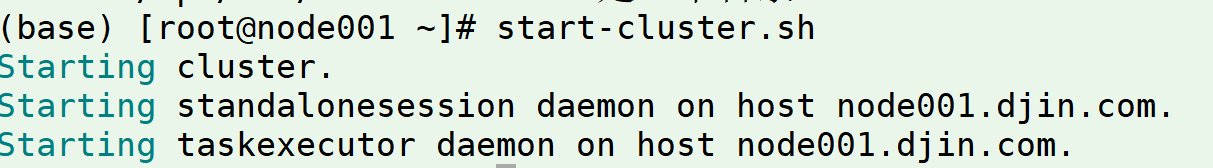

3）启动 Flink 集群
4）启动hdfs集群

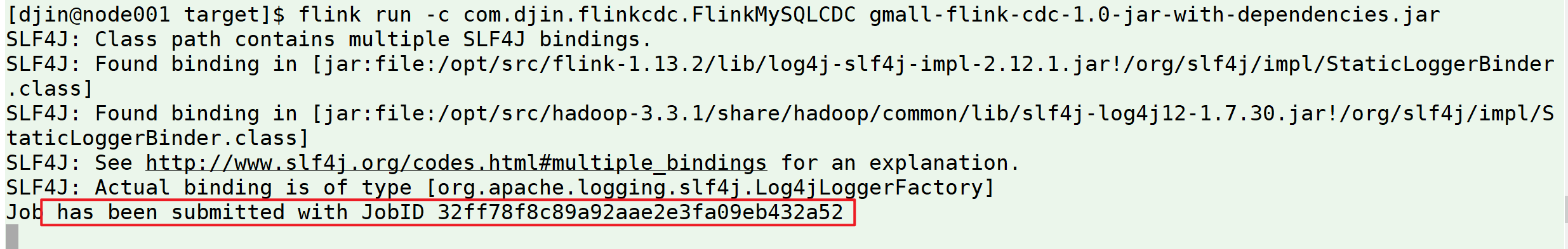

5）启动程序
[djin@node001 target]$ flink run -c com.djin.flinkcdc.FlinkMySQLCDC gmall-flink-cdc-1.0-jar-with-dependencies.jar

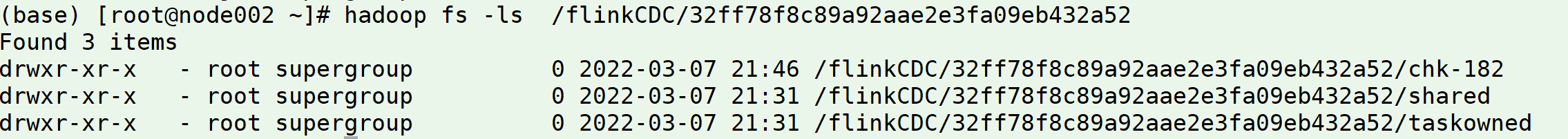

查看检查点

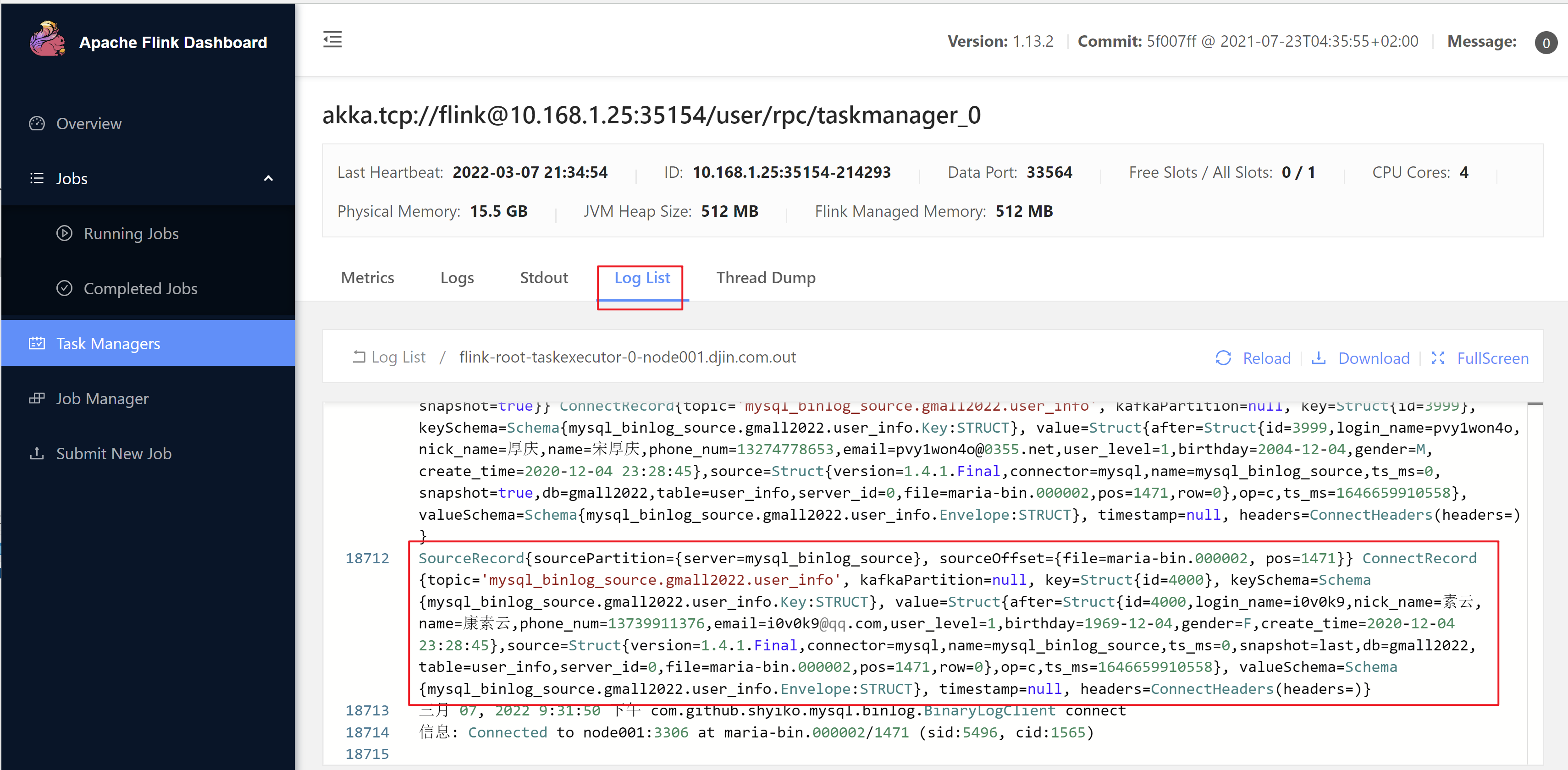

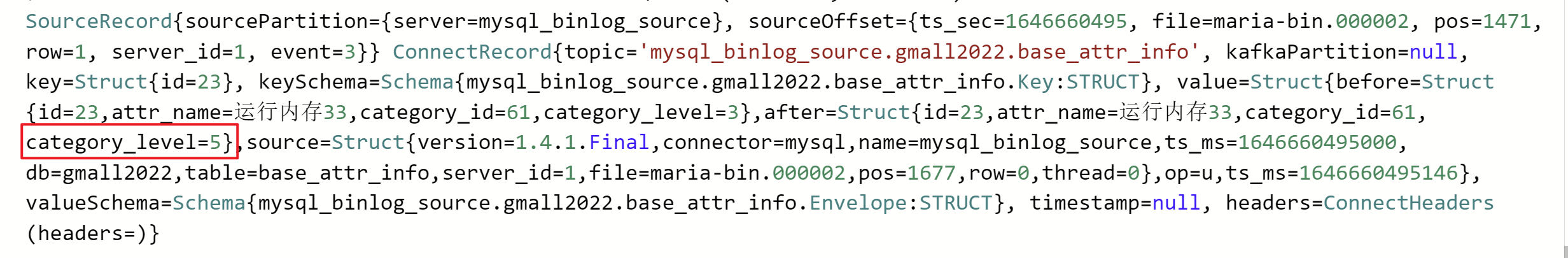

6）在 MySQL 的 base_attr_info 表中添加、修改或者删除数据

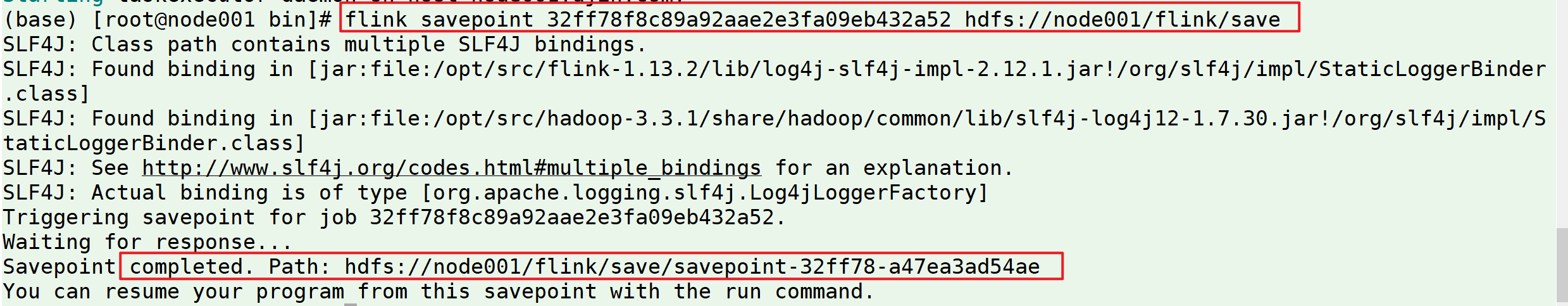

7）给当前的 Flink 程序创建 Savepoint
32ff78f8c89a92aae2e3fa09eb432a52 为启动时看到的jobID

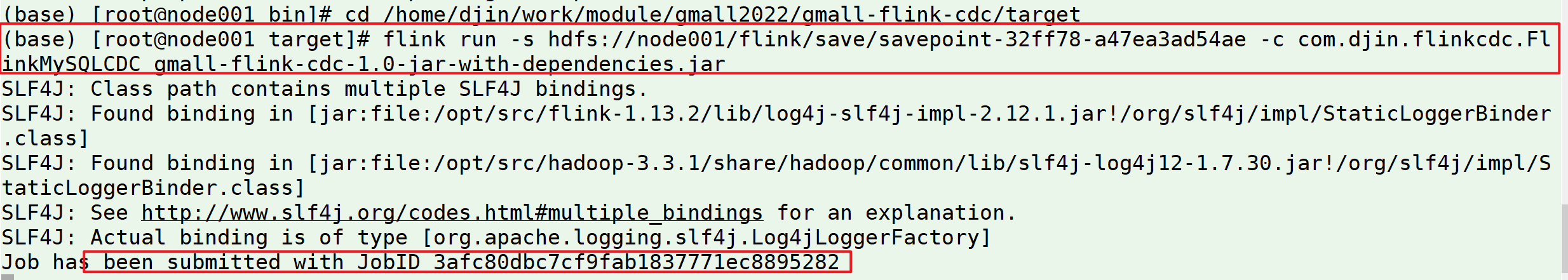

8）从Savepoint启动
7.3 FlinkCDC-Sql案例
7.3.1 添加依赖
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-planner-blink_2.12</artifactId>
<version>1.13.2</version>
</dependency>
7.3.2 FlinkCDC-Sql示例代码
package com.djin.flinkcdc;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.TableResult;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
public class FlinkSqlCDC {
public static void main(String[] args) throws Exception {
//1.创建执行环境
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setParallelism(1);
StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);
//1.创建FlinkSql-MySql-CDC的source
tableEnv.executeSql("create table user_info(" +
"id int," +
"name string," +
"phone_num string" +
")with(" +
"'connector'='mysql-cdc'," +
"'hostname'='node001'," +
"'port'='3306'," +
"'username'='root'," +
"'password'='123456'," +
"'database-name'='gmall2022'," +
"'table-name'='user_info')");
TableResult tableResult = tableEnv.executeSql("select * from user_info");
tableResult.print();
env.execute("FlinkSql-CDC");
}
}

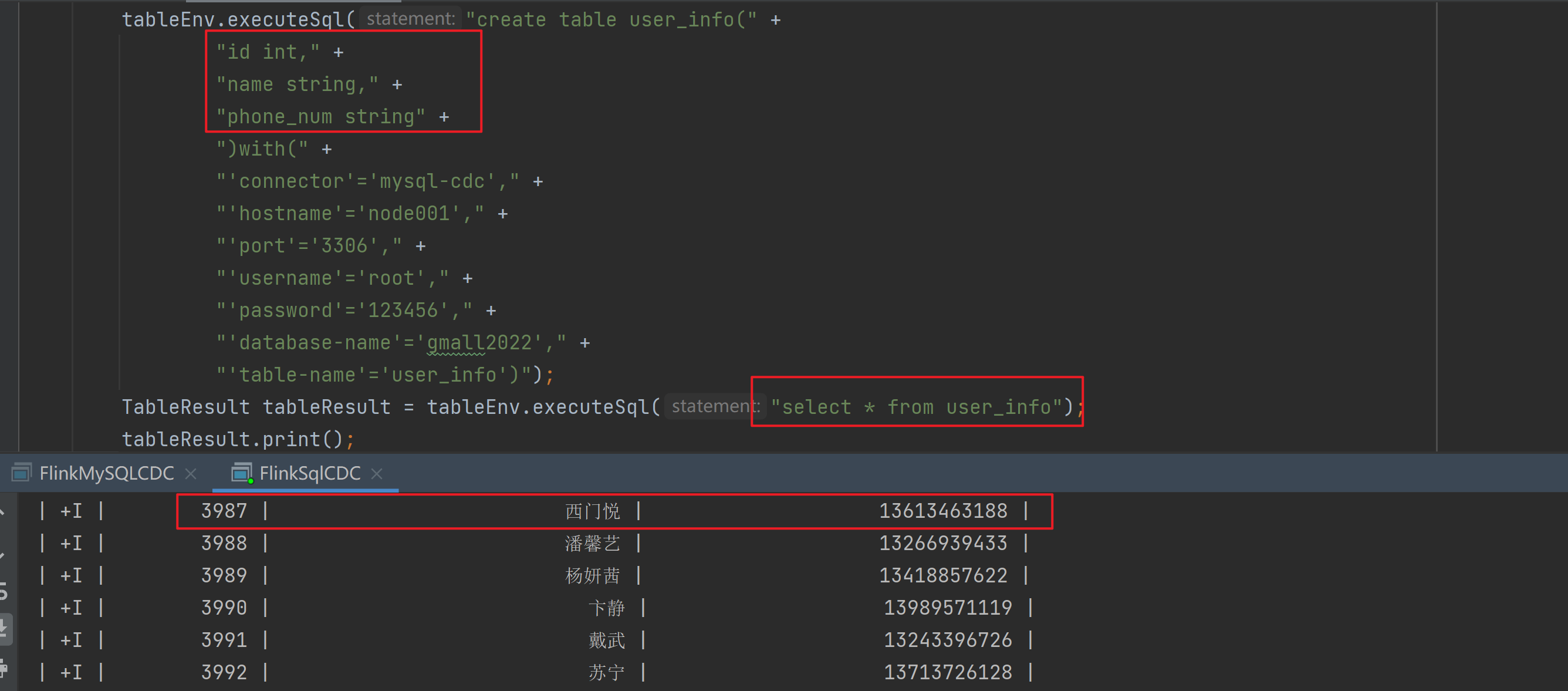

7.3.3 FlinkCDC-Sql运行结果
7.4 自定义反序列化器案例
7.4.1 自定义反序列化器代码
继承DebeziumDeserializationSchema自定义反序列化器:
package com.djin.flinkcdc.base;
import com.alibaba.fastjson.JSONObject;
import com.alibaba.ververica.cdc.debezium.DebeziumDeserializationSchema;
import io.debezium.data.Envelope;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.util.Collector;
import org.apache.kafka.connect.data.Field;
import org.apache.kafka.connect.data.Struct;
import org.apache.kafka.connect.source.SourceRecord;
public class MyJsonDeserializationSchema implements DebeziumDeserializationSchema {
// 自定义数据解析器
@Override
public TypeInformation getProducedType() {
return TypeInformation.of(String.class);
}
@Override
public void deserialize(SourceRecord sourceRecord, Collector collector) throws Exception {
//获取主题信息，包含数据库和表名:mysql_binlog_source.gmall2022.user_info
String topic = sourceRecord.topic();
String[] arr = topic.split("\\.");
String db = arr[1];
String tableName = arr[2];
//获取操作类型 READ DELETE UPDATE CREATE
String operation = Envelope.operationFor(sourceRecord).toString().toLowerCase();
//获取值信息并转换为Struct类型
Struct value = (Struct) sourceRecord.value();
//获取转换后的数据
Struct after = value.getStruct("after");
//创建JSON对象用于存储数据信息
JSONObject data = new JSONObject();
for (Field field : after.schema().fields()) {
Object o = after.get(field);
data.put(field.name(), o);
}
//创建JSON对象用于封装最终返回值数据信息
JSONObject result = new JSONObject();
result.put("operation", operation);
result.put("data", data);
result.put("database", db);
result.put("table", tableName);
//发送数据至下游
collector.collect(result.toJSONString());
}
}

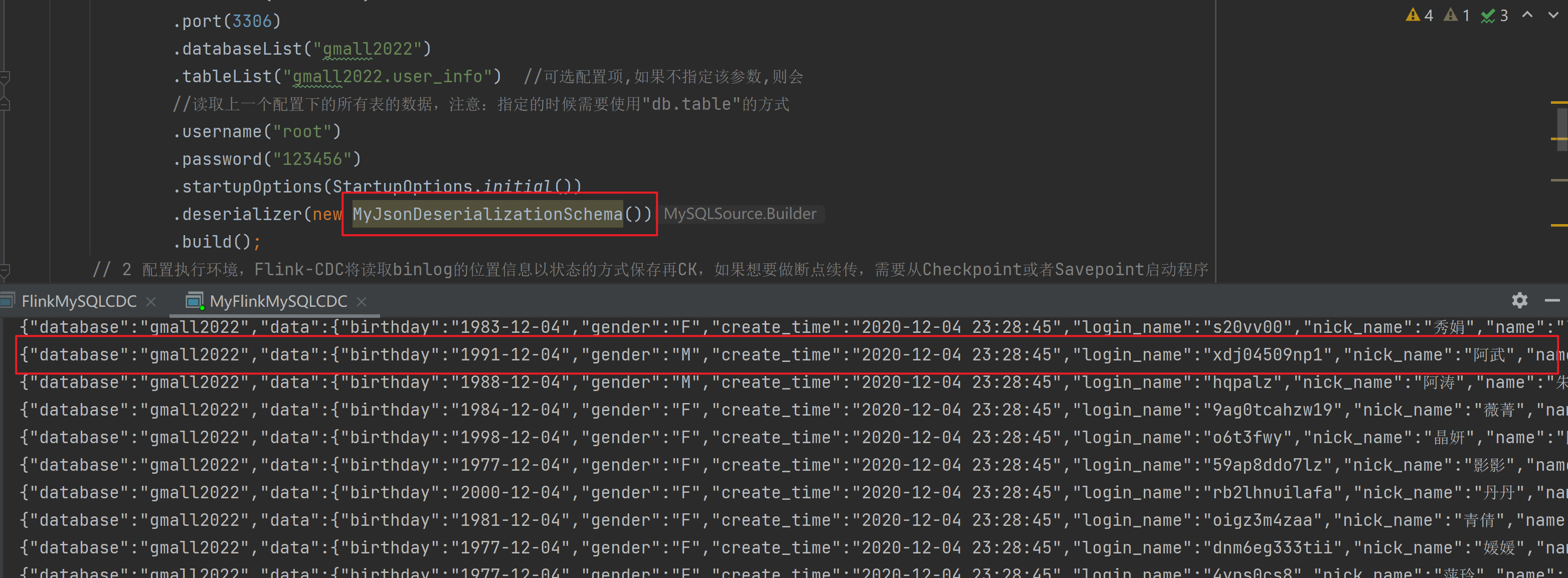

7.4.2 自定义反序列化器运行
将DataStream案例中的反序列化器替换为自定义反序列化器并执行:
示例代码：
package com.djin.flinkcdc;
import com.alibaba.ververica.cdc.connectors.mysql.MySQLSource;
import com.alibaba.ververica.cdc.connectors.mysql.table.StartupOptions;
import com.alibaba.ververica.cdc.debezium.DebeziumSourceFunction;
import com.djin.flinkcdc.base.MyJsonDeserializationSchema;
import org.apache.flink.api.common.restartstrategy.RestartStrategies;
import org.apache.flink.runtime.state.hashmap.HashMapStateBackend;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.CheckpointConfig;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class MyFlinkMySQLCDC {
public static void main(String[] args) throws Exception {
// 1 创建mySqlSource
DebeziumSourceFunction mySqlSource = MySQLSource.<String>builder()
.hostname("node001")
.port(3306)
.databaseList("gmall2022")
.tableList("gmall2022.user_info") //可选配置项,如果不指定该参数,则会
//读取上一个配置下的所有表的数据，注意：指定的时候需要使用"db.table"的方式
.username("root")
.password("123456")
.startupOptions(StartupOptions.initial())
.deserializer(new MyJsonDeserializationSchema())
.build();
// 2 配置执行环境，Flink-CDC将读取binlog的位置信息以状态的方式保存再CK，如果想要做断点续传，需要从Checkpoint或者Savepoint启动程序
// 2.1 创建执行环境
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 2.2 开启Checkpoint,每隔5秒钟做一次CK
env.enableCheckpointing(5000L);
// 2.3 指定CK的一致性语义
env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
// 2.4 设置任务关闭的时候保留最后一次CK数据
env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.
ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
// 2.5 指定从CK自动重启策略
env.setRestartStrategy(RestartStrategies.fixedDelayRestart(3, 2000L));
// 2.6 设置状态后端
env.setStateBackend(new HashMapStateBackend());
env.getCheckpointConfig().setCheckpointStorage("hdfs://node001:8020/flinkCDC");
//env.setStateBackend(new FsStateBackend("hdfs://node001:8082/flinkCDC"));过期
// 2.7 设置访问HDFS的用户名
System.setProperty("HADOOP_USER_NAME", "djin");
// 3 创建Flink-MySQL-CDC的Source
DataStreamSource<String> mySQL_source = env.addSource(mySqlSource);
mySQL_source.setParallelism(1);
// 4 打印数据
mySQL_source.print().setParallelism(1);
// 5 启动任务
env.execute("MyFlinkCDC");
}
}
