定义
是一组过程、方法与系统统称,用于促进开发(应用程序/软件工程)、技术运营和质量保障(QA)部门之间的沟通写作与整合。
Dev:开发人员;
**Ops:运维人员;

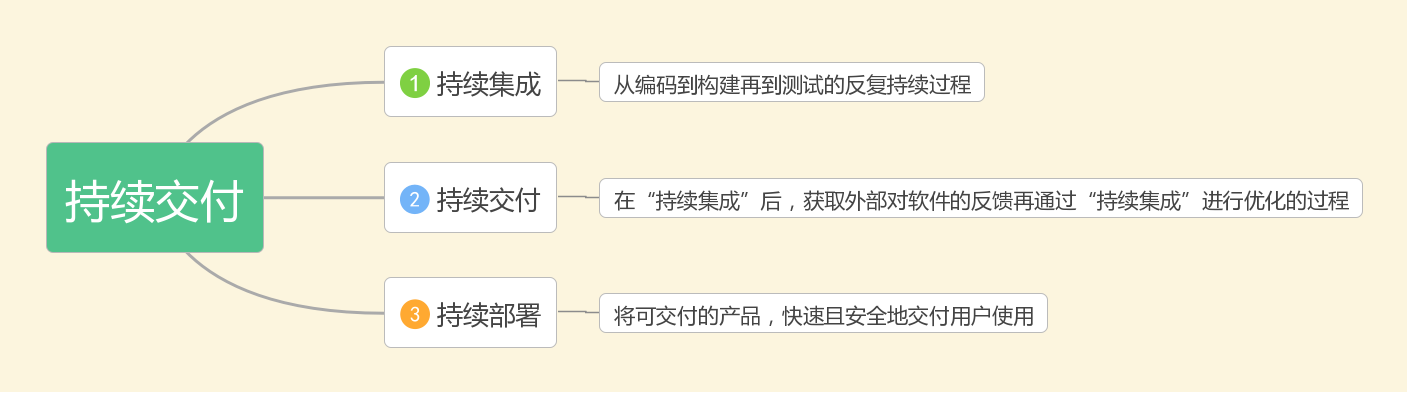

持续集成:将应用程序部署之前需要进行开发、测试、构建的过程成为持续集成
持续部署:在敏捷开发中,短时间内将程序多次部署
**
DevOps主要方式

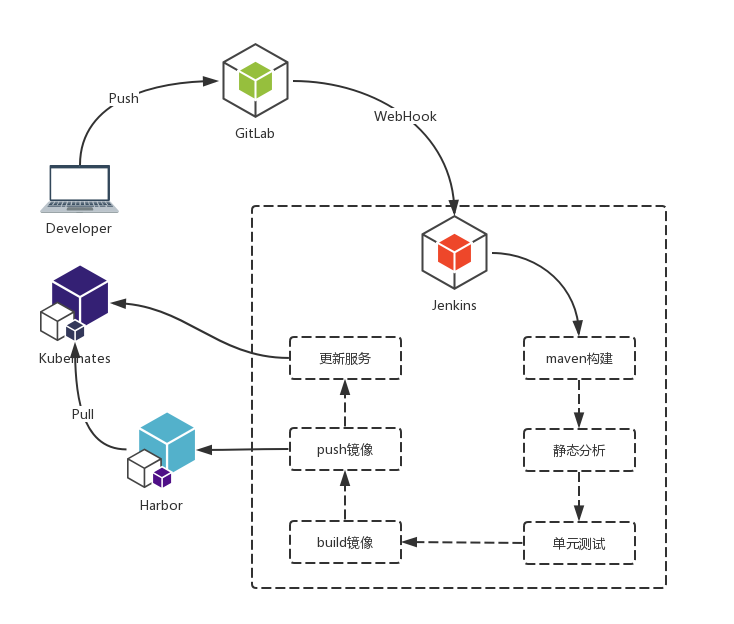

一、 开源自建(基于jenkins)
- 开发提交代码 -> GitLab
- GitLab 通过 WebHook 触发Jenkins构建
- Jenkins 跑构建流程
- 更新 Harbor 的镜像
- 通知K8s触发更新服务
二 云运营商(阿里云或腾讯云)
阿里云和腾讯云所提供的组件都是基于jenkins
目前使用
pipeline {
agent any
environment {
VERSION = readMavenPom().getVersion()
}
stages {
stage("检出") {
steps {
checkout([
$class: 'GitSCM',
branches: [[name: env.GIT_BUILD_REF]],
userRemoteConfigs: [[
url: env.GIT_REPO_URL,
credentialsId: env.CREDENTIALS_ID
]]])
}
}
stage("构建") {
steps {
echo "构建中..."
sh 'mvn clean package -Dmaven.test.skip=true'
sh 'ls target/'
echo "构建完成."
// 演示怎样产生构建物
script {
def exists = fileExists "README.md"
if (!exists) {
writeFile(file: "README.md", text: "Helloworld")
}
}
archiveArtifacts artifacts: "README.md", fingerprint: true
// archiveArtifacts artifacts: "**/target/*.jar", fingerprint: true // 收集构建产物
}
}
stage("测试") {
steps {
echo "单元测试中..."
// 请在这里放置您项目代码的单元测试调用过程,例如:
// sh "mvn test" // mvn 示例
// sh "make test" // make 示例
echo "单元测试完成."
// 演示怎么样生成测试报告
writeFile(file: 'TEST-demo.junit4.AppTest.xml', text: '''
<testsuite name="demo.junit4.AppTest" time="0.053" tests="3" errors="0" skipped="0" failures="0">
<properties>
</properties>
<testcase name="testApp" classname="demo.junit4.AppTest" time="0.003"/>
<testcase name="test1" classname="demo.junit4.AppTest" time="0"/>
<testcase name="test2" classname="demo.junit4.AppTest" time="0"/>
</testsuite>
''')
junit '*.xml'
// junit "target/surefire-reports/*.xml" // 收集单元测试报告的调用过程
}
}
stage("部署") {
steps {
echo "部署中..."
script {
// 您可以在此执行任意的 groovy 脚本
def remote = [:]
remote.name = 'VM-16-8-centos'
remote.allowAnyHosts = true
remote.host = '106.55.34.215'
remote.port = 22
remote.user = 'root'
withCredentials([sshUserPrivateKey(credentialsId: "66172def-3047-49e3-acbe-d14105375159",keyFileVariable: 'id_rsa')]) {
remote.identityFile = "~/.ssh/id_rsa"
// 读取的凭据将以环境的变量的形式获取 SSH_PRIVATE_KEY_PATH (SSH_PRIVATE_KEY_PATH 为私钥路径)
//sshCommand remote: remote, sudo: true, command: "jps -ml | grep $DEPOT_NAME-*.jar"
sshCommand remote: remote, sudo: true, command: "rm -rf /opt/$DEPOT_NAME-*.jar"
sshPut remote: remote, from: "target/$DEPOT_NAME-${env.VERSION}.jar", into: "/opt/"
sshCommand remote: remote, command: "nohup java -jar /opt/$DEPOT_NAME-${env.VERSION}.jar >/dev/null 2>&1 &"
}
}
echo "部署完成"
}
}
}
}
