使光滑
    这个程序重复读取一个模拟输入，分析一个运行均值，并且打印到电脑。这个例子用在你想使跳动的不规则的传感值变得光滑的时候，示范了怎么用保存数组。
    硬件要求

    • Arduino or Genuino 开发板
    • 10k ohm 电位计

    电路

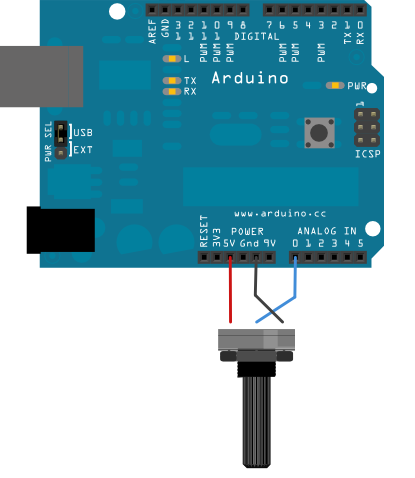

    模拟-使光滑 - 图1
    把电位计的一个引脚连接到5V，中间引脚连接到模拟引脚A0，最后的引脚连接到地。
    原理图
    模拟-使光滑 - 图2
    样例代码
    下面的代码顺序保存10个模拟引脚的读取值，一个接一个放进一个数组里。每一次有新的值，把所有值加起来，然后取平均值，把这个平均值用作顺滑输出的数据。因为这种平均每次加一个新的值到数组里（好过一次等够10个新值），分析运行的均值之间并没有滞后时间。
    改变数组的大小，通过改变 numReadings 为一个更大的值将会使保存数据变得比之前光滑。

    1. /*
    2.   Smoothing
    3.   Reads repeatedly from an analog input, calculating a running average
    4.   and printing it to the computer.  Keeps ten readings in an array and
    5.   continually averages them.
    6.   The circuit:
    7.     * Analog sensor (potentiometer will do) attached to analog input 0
    8.   Created 22 April 2007
    9.   By David A. Mellis  <dam@mellis.org>
    10.   modified 9 Apr 2012
    11.   by Tom Igoe
    12.   http://www.arduino.cc/en/Tutorial/Smoothing
    13.   This example code is in the public domain.
    14. */
    15. // Define the number of samples to keep track of.  The higher the number,
    16. // the more the readings will be smoothed, but the slower the output will
    17. // respond to the input.  Using a constant rather than a normal variable lets
    18. // use this value to determine the size of the readings array.
    19. const int numReadings = 10;
    20. int readings[numReadings];      // the readings from the analog input
    21. int readIndex = 0;              // the index of the current reading
    22. int total = 0;                  // the running total
    23. int average = 0;                // the average
    24. int inputPin = A0;
    25. void setup() {
    26.   // initialize serial communication with computer:
    27.   Serial.begin(9600);
    28.   // initialize all the readings to 0:
    29.   for (int thisReading = 0; thisReading < numReadings; thisReading++) {
    30.     readings[thisReading] = 0;
    31.   }
    32. }
    33. void loop() {
    34.   // subtract the last reading:
    35.   total = total - readings[readIndex];
    36.   // read from the sensor:
    37.   readings[readIndex] = analogRead(inputPin);
    38.   // add the reading to the total:
    39.   total = total + readings[readIndex];
    40.   // advance to the next position in the array:
    41.   readIndex = readIndex + 1;
    42.   // if we're at the end of the array...
    43.   if (readIndex >= numReadings) {
    44.     // ...wrap around to the beginning:
    45.     readIndex = 0;
    46.   }
    47.   // calculate the average:
    48.   average = total / numReadings;
    49.   // send it to the computer as ASCII digits
    50.   Serial.println(average);
    51.   delay(1);        // delay in between reads for stability
    52. }

    [Get Code]
