导读

由于项目需要，这里面整合springboot和kafka，简单的介绍其使用教程。

使用

初始

依赖POM

在springboot项目中引入kafka的依赖。

  1. <!--kafka,这里没有加版本号，使用的是springboot默认的，不然容易出现版本不一致导致错误-->
  2. <dependency>
  3.     <groupId>org.springframework.kafka</groupId>
  4.     <artifactId>spring-kafka</artifactId>
  5. </dependency>
  7. <!--fastjson-->
  8. <dependency>
  9.     <groupId>com.alibaba</groupId>
  10.     <artifactId>fastjson</artifactId>
  11.     <version>1.2.71</version>
  12. </dependency>

配置文件

  • application.properties

    1. spring.application.name=kafka-ts
    2. server.port=8080
    3. #============== kafka ===================
    4. # 指定kafka 代理地址，可以多个
    5. spring.kafka.bootstrap-servers=localhost:9092
    6. #=============== provider  =======================
    7. spring.kafka.producer.retries=3
    8. # 每次批量发送消息的数量
    9. spring.kafka.producer.batch-size=16384
    10. spring.kafka.producer.buffer-memory=33554432
    11. # 指定消息key和消息体的编解码方式
    12. spring.kafka.producer.key-serializer=org.apache.kafka.common.serialization.StringSerializer
    13. spring.kafka.producer.value-serializer=org.apache.kafka.common.serialization.StringSerializer
    14. #=============== consumer  =======================
    15. # 指定默认消费者group id
    16. spring.kafka.consumer.group-id=ts-log-group
    17. spring.kafka.consumer.auto-offset-reset=earliest
    18. spring.kafka.consumer.enable-auto-commit=true
    19. spring.kafka.consumer.auto-commit-interval=100
    20. # 指定消息key和消息体的编解码方式
    21. spring.kafka.consumer.key-deserializer=org.apache.kafka.common.serialization.StringDeserializer
    22. spring.kafka.consumer.value-deserializer=org.apache.kafka.common.serialization.StringDeserializer

  • application.yml ```yaml server: port: 8080 spring: application: name: kafka-ts

    指定kafka 代理地址，可以多个

    kafka: bootstrap-servers: localhost:9092 producer: #生产者

    1. retries: 3 #重试次数
    2. batch-size: 16384 #每次批量发送消息的数量
    3. buffer-memory: 3354432
    4. key-serializer: org.apache.kafka.common.serialization.StringSerializer #指定消息key和消息体的编解码方式
    5. value-serializer: org.apache.kafka.common.serialization.StringSerializer

    consumer: #消费者

    1. group-id: ts-log-group
    2. auto-offset-reset: earliest
    3. enable-auto-commit: true
    4. auto-commit-interval: 100
    5. key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
    6. value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
  1. <a name="ynKSE"></a>
  2. ### 实体类
  3. ```java
  4. import com.fasterxml.jackson.annotation.JsonFormat;
  5. import lombok.Data;
  7. import java.util.Date;
  9. @Data
  10. public class Ts {
  11.     private String id;
  12.     private String name;
  13.     private Integer age;
  14.     @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
  15.     private Date cTime;
  16.     @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
  17.     private Date insertime;
  18.     @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
  19.     private Date updateTime;
  20. }

生产者

  1. import com.alibaba.fastjson.JSON;
  2. import com.ifs.Ts;
  3. import org.slf4j.Logger;
  4. import org.slf4j.LoggerFactory;
  5. import org.springframework.beans.factory.annotation.Autowired;
  6. import org.springframework.kafka.core.KafkaTemplate;
  7. import org.springframework.stereotype.Component;
  9. import java.util.Date;
  11. /**
  12.  * kafka的生产者
  13.  *
  14.  * @author heioky
  15.  * @date 2020/10/27
  16.  */
  17. @Component
  18. public class TsProducer {
  19.     Logger logger = LoggerFactory.getLogger(TsProducer.class);
  20.     @Autowired
  21.     private KafkaTemplate kafkaTemplate;
  24.     /**
  25.      * @Description: 生产者发送消息
  26.      * @return: void
  27.      * @Author: heioky
  28.      * @Date:2020/10/27 13:48
  29.      */
  30.     public void send(int i) {
  31.         long beginTime = System.currentTimeMillis();
  32.         Ts ts = new Ts();
  33.         ts.setId(String.valueOf(i));
  34.         ts.setUpdateTime(new Date());
  35.         ts.setAge(18);
  36.         ts.setName("不知火");
  37.         kafkaTemplate.send("kafka-ts", JSON.toJSONString(ts));
  38.         long endTime = System.currentTimeMillis();
  39.         logger.info("生产者发送消息，消耗时间: {}ms", endTime - beginTime);
  40.     }
  41. }

消费者

  1. import org.apache.kafka.clients.consumer.ConsumerRecord;
  2. import org.slf4j.Logger;
  3. import org.slf4j.LoggerFactory;
  4. import org.springframework.kafka.annotation.KafkaListener;
  5. import org.springframework.stereotype.Component;
  7. import java.util.Optional;
  10. /**
  11.  * kafka的消费者
  12.  *
  13.  * @author heioky
  14.  * @date 2020/10/27
  15.  */
  16. @Component
  17. public class TsConsumer {
  18.     Logger logger = LoggerFactory.getLogger(TsConsumer.class);
  20.     /**
  21.      * @Description: 消费者消费数据，这里面topic可以是一个或者多个
  22.      * @Param: [consumerRecord]
  23.      * @return: void
  24.      * @Author: heioky
  25.      * @Date:2020/10/27 14:09
  26.      */
  27.     @KafkaListener(topics = {"kafka-ts"})
  28.     public void getMsgInfo(ConsumerRecord<?, ?> consumerRecord) {
  29.         //判断是否为null
  30.         Optional<?> kafkaMessage = Optional.ofNullable(consumerRecord.value());
  31.         if (kafkaMessage.isPresent()) {
  32.             //得到Optional实例中的值
  33.             Object message = kafkaMessage.get();
  34.             logger.info("获取消费消息:{}", message);
  35.         }
  37.     }
  39. }

启动类

  1. import com.ifs.kafka.TsProducer;
  2. import org.springframework.beans.factory.annotation.Autowired;
  3. import org.springframework.boot.CommandLineRunner;
  4. import org.springframework.boot.SpringApplication;
  5. import org.springframework.boot.autoconfigure.SpringBootApplication;
  8. /**
  9.  * 启动
  10.  *
  11.  * @author heioky
  12.  * @date 2020/10/27
  13.  */
  14. @SpringBootApplication
  15. public class Sinfo implements CommandLineRunner {
  16.     @Autowired
  17.     private TsProducer tsProducer;
  19.     public static void main(String[] args) {
  20.         SpringApplication.run(Sinfo.class, args);
  21.     }
  23.     @Override
  24.     public void run(String... args) throws Exception {
  25.         for (int i = 1; i <= 10; i++) {
  26.             tsProducer.send(i);
  27.         }
  28.     }
  29. }

控制台打印

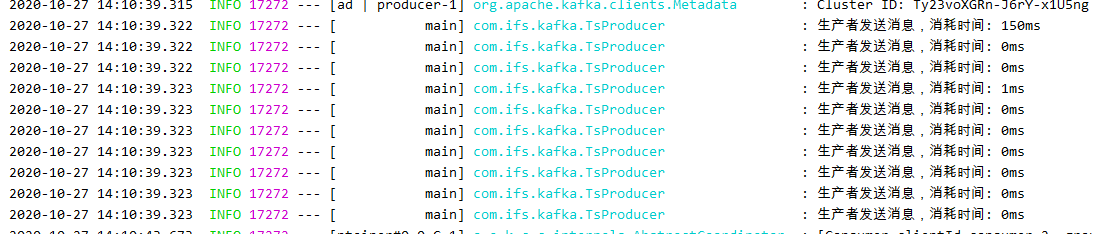

  • 生产者

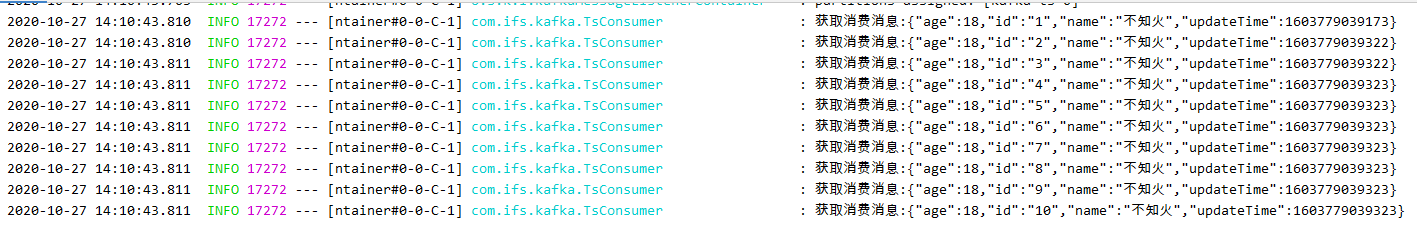

  • 消费者


问题

  1. Caused by: java.lang.ClassNotFoundException: org.springframework.core.log.LogAccessor
  2.     at java.net.URLClassLoader.findClass(URLClassLoader.java:382) ~[na:1.8.0_202]
  3.     at java.lang.ClassLoader.loadClass(ClassLoader.java:424) ~[na:1.8.0_202]
  4.     at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:349) ~[na:1.8.0_202]
  5.     at java.lang.ClassLoader.loadClass(ClassLoader.java:357) ~[na:1.8.0_202]
  6.     ... 25 common frames omitted

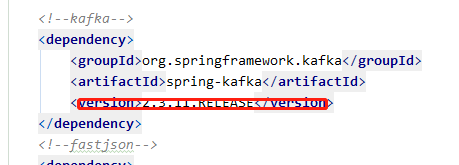

原因：spring-kafka的版本和springboot的不一致导致的，去掉其版本号，使用springboot默认的即可。

接收多个topic

  • 消费者，使用@KafkaListeners注解来接受多个消息。

    1.   /**
    2.    * @Description: 消费者消费数据，这里面topic可以是一个或者多个
    3.    * @Param: [consumerRecord]
    4.    * @return: void
    5.    * @Author: heioky
    6.    * @Date:2020/10/27 14:09
    7.    */
    8.   @KafkaListeners({
    9.           @KafkaListener(topics = {"kafka-ts"}, groupId = "ts-log-group"),
    10.           @KafkaListener(topics = {"kafka-two"}, groupId = "ts-log-group")
    11.   })
    12.   public void getMsgInfo(String record) {
    13.       //判断是否为null
    14.       Optional<?> kafkaMessage = Optional.ofNullable(record);
    15.       if (kafkaMessage.isPresent()) {
    16.           //得到Optional实例中的值
    17.           Object message = kafkaMessage.get();
    18.           logger.info("获取消费消息:{}", message);
    19.       }
    21.   }

  • 生产者指定对应的topic

    1. /**
    2.    * @Description: 生产者发送消息
    3.    * @return: void
    4.    * @Author: heioky
    5.    * @Date:2020/10/27 13:48
    6.    */
    7.   public void sendTow(String unid) {
    8.       long beginTime = System.currentTimeMillis();
    9.       Ts ts = new Ts();
    10.       ts.setId(unid);
    11.       ts.setUpdateTime(new Date());
    12.       ts.setAge(23);
    13.       ts.setName("妖刀姬");
    14.       kafkaTemplate.send("kafka-two", JSON.toJSONString(ts));
    15.       long endTime = System.currentTimeMillis();
    16.       logger.info("生产者sendTow发送消息，消耗时间: {}ms", endTime - beginTime);
    17.   }

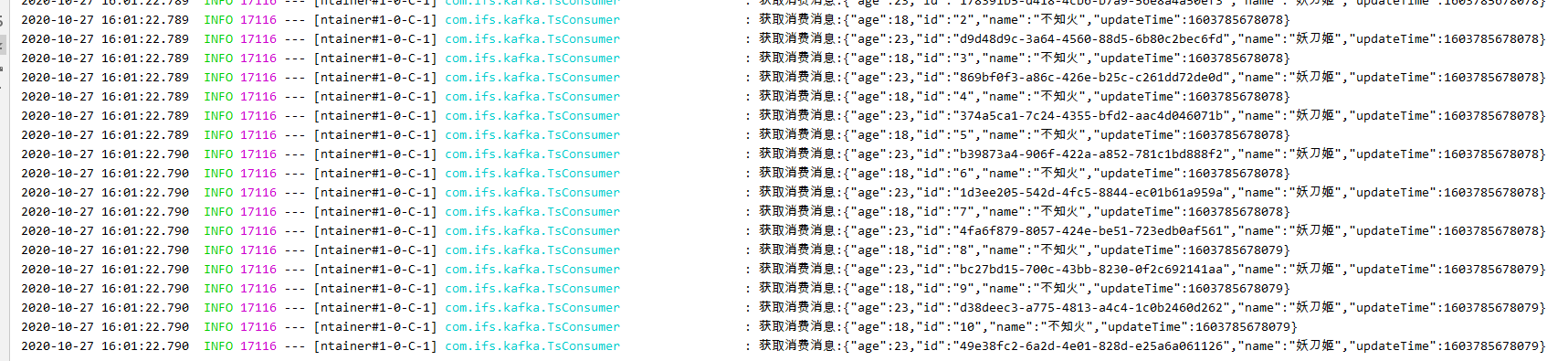

  • 控制台打印


END

搞定~
