写Java Web项目时会发现，一个中型或者大型项目 随着代码的增多，会发现：代码既可以写在src目录下，也可以 写在WebContent目录下。src下可以建很多包 ，WebContent下可以建很多文件夹。 所以问题就来了：一个新的类 到底往哪个目录下的哪个文件夹里写？ 此时解决办法就是：需要一个模式去规范，到底哪个类该往哪里写。
1.MVC设计模式

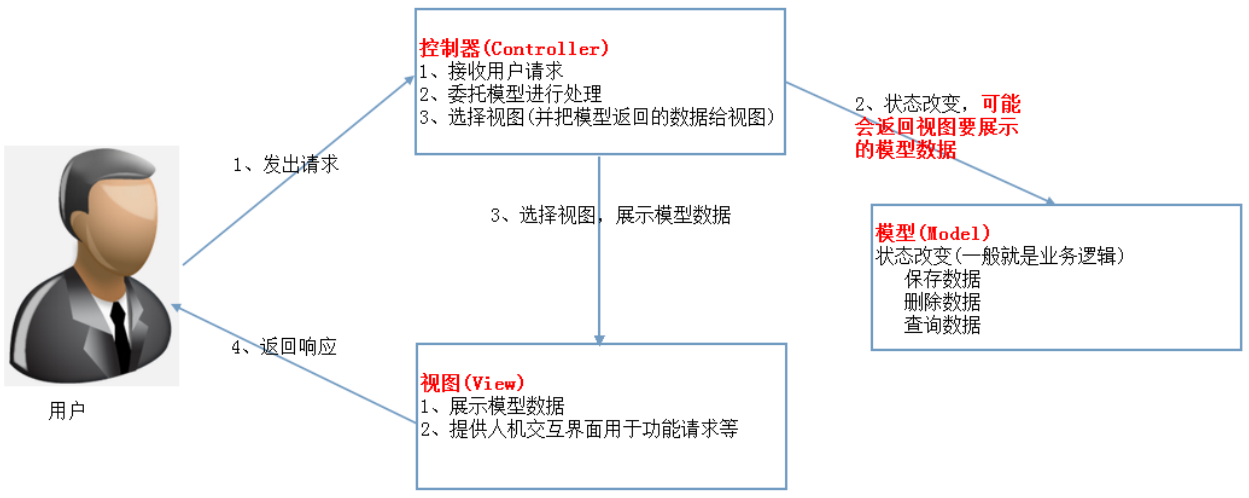

Web MVC中的M(模型) - V(视图) - C(控制器)概念和标准MVC概念一样，我们再看一下Web MVC标准架构，如下图所示：
在Web MVC模式下，模型无法主动推数据给视图，如果用户想要视图更新，需要再发送一次请求（即请求-响应模型）。
M：(Model) 模型 : 应用程序的核心功能，管理这个模块中用的数据和值（bean,dao）；
JavaBeans :是Java中一种特殊的类（换言之：JavaBean就是一个Java类）.一个Java类 ，满足以下要求，则可称为一个JavaBeana. public修饰的类，提供public 无参构造方法b. 所有属性 都是privateC. 提供getter和setter方法从使用层面来看，JavaBean分为2大类：a. 封装业务逻辑的JavaBean(eg:LoginDao.java 封装了登录逻辑)b. 封装数据的JavaBean(实体类：eg：Student.java Vadio.java 。往往对应于数据库中的一张表，即数据库中有个Student表，项目中就有个Student.java类)通常:表名=类名，列名=属性名JavaBean是一个可以重复使用的组件，通过编写一个组件来实现某种通用功能，“一次编写、任何地方执行、任何地方重用”。
V(View )视图: 视图提供模型的展示，管理模型如何显示给用户，它是应用程序的外观；（jsp/html）
C(Controller)控制器: 对用户的输入做出反应，管理用户和视图的交互，是连接模型和视图的枢纽。(servlet/service)
MVC用于将web（UI）层进行职责解耦
2.三层架构
三层架构 通常意义上的三层架构就是将整个业务应用划分为：表现层（UI）、业务逻辑层（BLL）、数据访问层（DAL）。区分层次的目的即为了“高内聚，低耦合”的思想。
1、表现层（UI）：通俗讲就是展现给用户的界面，即用户在使用一个系统的时候他的所见所得。 jsp/html
2、业务逻辑层（BLL）：
针对具体问题的操作，也可以说是对数据层的操作，对数据业务逻辑处理。servlet,service
3、数据访问层（DAL）：
该层所做事务直接操作数据库，针对数据的增添、删除、修改、更新、查找等。dao表现层实现的代表作品是Struts,springmvc框架，业务层实现的代表作品是Spring，持久层实现的代表作品是Hibernate,mybatis。
层就相当于一个黑盒子，我们不用知道它内部怎么实现，只需要知道如何去调用它就行了。每层只与上下相邻的两层打交道。当一层内部由于技术变迁发生变化时，只要接口不变，其他层不用做任何改变。分层之后灵活性提高，也便于团队分工开发。

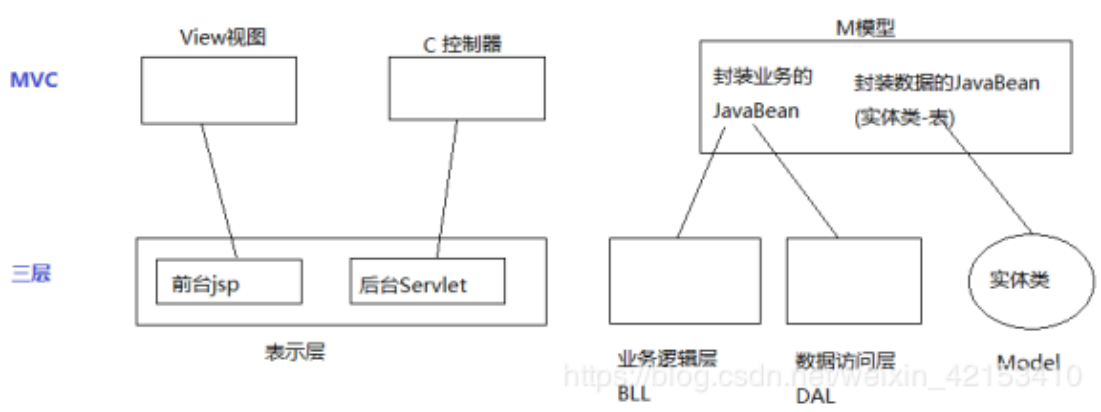

3.三层架构和MVC的区别与联系
MVC是 Model-View-Controller，严格说这三个加起来以后才是三层架构中的UI层，也就是说，MVC把三层架构中的UI层再度进行了分化，分成了控制器、视图、实体三个部分，控制器完成页面逻辑，通过实体来与界面层完成通话；而C层直接与三层中的BLL进行对话。
MVC可以是三层中的一个表现层框架，属于表现层。三层和mvc可以共存。
三层是基于业务逻辑来分的，而MVC是基于页面来分的。
MVC主要用于表现层，3层主要用于体系架构，3层一般是表现层、中间层、数据层，其中表现层又可以分成M、V、C，(Model View Controller)模型－视图－控制器
MVC是表现模式（Presentation Pattern）
三层架构是典型的架构模式（Architecture Pattern）
三层架构的分层模式是典型的上下关系，上层依赖于下层。但MVC作为表现模式是不存在上下关系的，而是相互协作关系。即使将MVC当作架构模式，也不是分层模式。MVC和三层架构基本没有可比性，是应用于不同领域的技术。
4.小试牛刀
1、代码
bean：student
package com.zh.bean;/*** @Author: deemoHui* @Description:* @Date Created in 2020-09-08 19:39* @Modified By:*/public class Student {private int studentId;private String studentNo;private String studentName;private int studentAge;private int gradeId;public Student() {}public Student(int studentId, String studentNo, String studentName, int studentAge, int gradeId) {this.studentId = studentId;this.studentNo = studentNo;this.studentName = studentName;this.studentAge = studentAge;this.gradeId = gradeId;}public int getStudentId() {return studentId;}public void setStudentId(int studentId) {this.studentId = studentId;}public String getStudentNo() {return studentNo;}public void setStudentNo(String studentNo) {this.studentNo = studentNo;}public String getStudentName() {return studentName;}public void setStudentName(String studentName) {this.studentName = studentName;}public int getStudentAge() {return studentAge;}public void setStudentAge(int studentAge) {this.studentAge = studentAge;}public int getGradeId() {return gradeId;}public void setGradeId(int gradeId) {this.gradeId = gradeId;}}
dao:
package com.zh.dao;import com.zh.bean.Student;import java.util.List;/**@Author: deemoHui@Description:@Date Created in 2020-09-08 19:43@Modified By:*/public interface StudentDao {/*** 增加* @param student 学生* @return 是否添加成功*/public boolean add(Student student);/*** 删除* @param student 学生* @return 是否删除成功*/public boolean delete(Student student);/*** 修改* @param student 学生* @return 是否更改成功*/public boolean update(Student student);/*** 查询* @return 学生列表*/public List<Student> getAll();}
package com.zh.dao.implement;import com.zh.bean.Student;import com.zh.dao.StudentDao;import com.zh.util.DruidUtil;import java.sql.Connection;import java.sql.PreparedStatement;import java.sql.ResultSet;import java.sql.SQLException;import java.util.ArrayList;import java.util.List;/*** @Author: deemoHui* @Description:* @Date Created in 2020-09-08 19:41* @Modified By:*/public class StudentDaoImpl extends DruidUtil implements StudentDao {@Overridepublic boolean add(Student student) {String studentNo = student.getStudentNo();String studentName = student.getStudentName();int studentAge = student.getStudentAge();int gradeId;gradeId = student.getGradeId();Connection connection = null;PreparedStatement preparedStatement = null;try {connection = getConnection();if (connection != null) {preparedStatement = connection.prepareStatement("INSERT INTO student VALUES (null, ?, ?, ?, ?)");preparedStatement.setString(1, studentNo);preparedStatement.setString(2, studentName);preparedStatement.setInt(3, studentAge);preparedStatement.setInt(4, gradeId);preparedStatement.execute();return true;}} catch (SQLException e) {e.printStackTrace();} finally {close(connection, preparedStatement);}return false;}@Overridepublic boolean delete(Student student) {String studentNo = student.getStudentNo();Connection connection = null;PreparedStatement preparedStatement = null;try {connection = getConnection();if (connection != null) {preparedStatement = connection.prepareStatement("delete from student where studentno = ?");preparedStatement.setString(1, studentNo);preparedStatement.execute();return true;}} catch (SQLException e) {e.printStackTrace();} finally {close(connection, preparedStatement);}return false;}@Overridepublic boolean update(Student student) {String studentNo = student.getStudentNo();String studentName = student.getStudentName();int studentAge = student.getStudentAge();int gradeId;gradeId = student.getGradeId();Connection connection = null;PreparedStatement preparedStatement = null;try {connection = getConnection();if (connection != null) {preparedStatement = connection.prepareStatement("update student set stuname = ?,stuage = ?,gradeid = ? where studentno = ?");preparedStatement.setString(1, studentName);preparedStatement.setInt(2, studentAge);preparedStatement.setInt(3, gradeId);preparedStatement.setString(4, studentNo);preparedStatement.execute();return true;}} catch (SQLException e) {e.printStackTrace();} finally {close(connection, preparedStatement);}return false;}@Overridepublic List<Student> getAll() {List<Student> list = new ArrayList<>();Connection connection = null;PreparedStatement preparedStatement = null;ResultSet resultSet = null;try {connection = getConnection();String sql = "select * from student";if (connection != null) {preparedStatement = connection.prepareStatement(sql);resultSet = preparedStatement.executeQuery();while (resultSet.next()) {Student student = new Student();student.setStudentId(resultSet.getInt("studentid"));student.setStudentNo(resultSet.getString("studentno"));student.setStudentName(resultSet.getString("stuname"));student.setStudentAge(resultSet.getInt("stuage"));student.setGradeId(resultSet.getInt("gradeid"));list.add(student);}}} catch (SQLException e) {e.printStackTrace();} finally {close(connection, preparedStatement, resultSet);}return list;}}
service:
package com.zh.service;
import com.zh.bean.Student;
import java.util.List;
/**
* @Author: deemoHui
* @Description:
* @Date Created in 2020-09-08 19:45
* @Modified By:
*/
public interface StudentService {
/**
* 增加
* @param student 学生
* @return 是否添加成功
*/
public boolean add(Student student);
/**
* 删除
* @param student 学生
* @return 是否删除成功
*/
public boolean delete(Student student);
/**
* 修改
* @param student 学生
* @return 是否更改成功
*/
public boolean update(Student student);
/**
* 查询
* @return 学生列表
*/
public List<Student> getAll();
}
package com.zh.service.implement;
import com.zh.bean.Student;
import com.zh.dao.StudentDao;
import com.zh.dao.implement.StudentDaoImpl;
import com.zh.service.StudentService;
import java.util.List;
/**
* @Author: deemoHui
* @Description:
* @Date Created in 2020-09-08 19:45
* @Modified By:
*/
public class StudentServiceImpl implements StudentService {
private final StudentDao dao = new StudentDaoImpl();
@Override
public boolean add(Student student) {
return dao.add(student);
}
@Override
public boolean delete(Student student) {
return dao.delete(student);
}
@Override
public boolean update(Student student) {
return dao.update(student);
}
@Override
public List<Student> getAll() {
return dao.getAll();
}
}
util:
package com.zh.util;
import com.alibaba.druid.pool.DruidDataSourceFactory;
import javax.sql.DataSource;
import javax.xml.transform.Result;
import java.io.IOException;
import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.Properties;
public class DruidUtil {
private static DataSource ds;
static{
try {
Properties ppt = new Properties();
ppt.load(DruidUtil.class.getClassLoader().getResourceAsStream("druid.properties"));
ds = DruidDataSourceFactory.createDataSource(ppt);
} catch (Exception e) {
e.printStackTrace();
}
}
/**
* 从连接池中取出一个连接给用户
* @return
*/
public static Connection getConnection(){
try {
return ds.getConnection();
} catch (SQLException throwables) {
throwables.printStackTrace();
}
return null;
}
public static void close(Connection conn, Statement state, ResultSet rs){
try {
rs.close();
} catch (Exception throwables) {
throwables.printStackTrace();
}
try {
state.close();
} catch (Exception throwables) {
throwables.printStackTrace();
}
try {
conn.close();
} catch (Exception throwables) {
throwables.printStackTrace();
}
}
public static void close(Connection conn, Statement state){
try {
state.close();
} catch (Exception throwables) {
throwables.printStackTrace();
}
try {
conn.close();
} catch (Exception throwables) {
throwables.printStackTrace();
}
}
}
web:

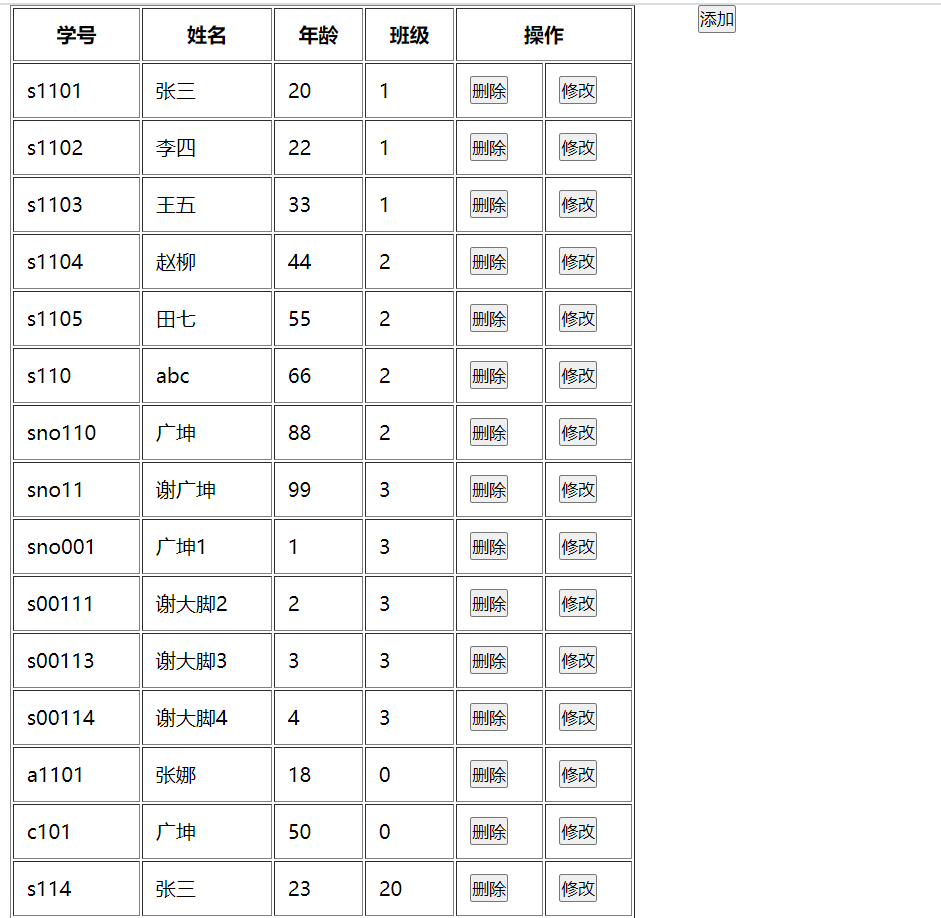

AddStudentServlet
package com.zh.web;
import com.zh.bean.Student;
import com.zh.service.StudentService;
import com.zh.service.implement.StudentServiceImpl;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;
/**
* @Author: deemoHui
* @Description:
* @Date Created in 2020-09-08 20:43
* @Modified By:
*/
@WebServlet(value = "/addStudent")
public class AddStudentServlet extends HttpServlet {
@Override
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
resp.setContentType("text/html;charset=utf-8");
PrintWriter writer = resp.getWriter();
//1.接受参数
String studentNo = req.getParameter("studentNo");
String studentName = req.getParameter("studentName");
int studentAge = Integer.parseInt(req.getParameter("studentAge"));
int gradeId = Integer.parseInt(req.getParameter("gradeId"));
//2.调取service方法
Student student = new Student(-1, studentNo, studentName, studentAge, gradeId);
StudentService studentService=new StudentServiceImpl();
boolean status = studentService.add(student);
//3.跳转页面
// 插入成功，弹窗提示，并查询后跳转到展示界面
if(status){
// 查询所有，跳转展示页面
List<Student> students = studentService.getAll();
HttpSession session = req.getSession();
session.setAttribute("students",students);
writer.write("<script>alert('添加成功');location.href='/show.jsp'</script>");
// req.getRequestDispatcher("show.jsp").forward(req,resp);
}else{
writer.write("<script>alert('添加失败');location.href='/show.jsp'</script>");
}
}
}

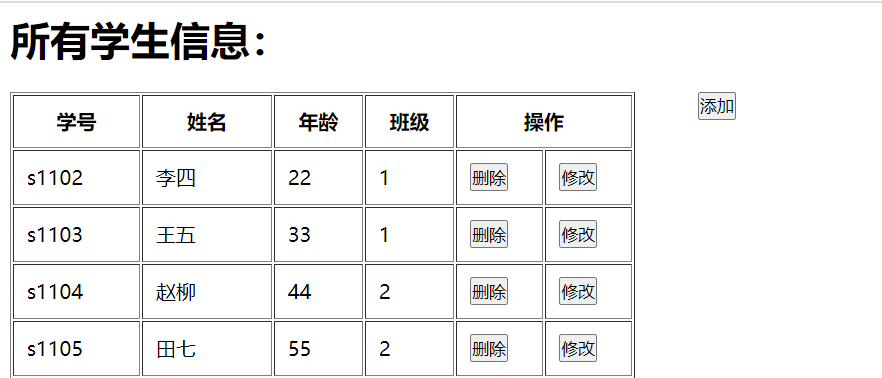

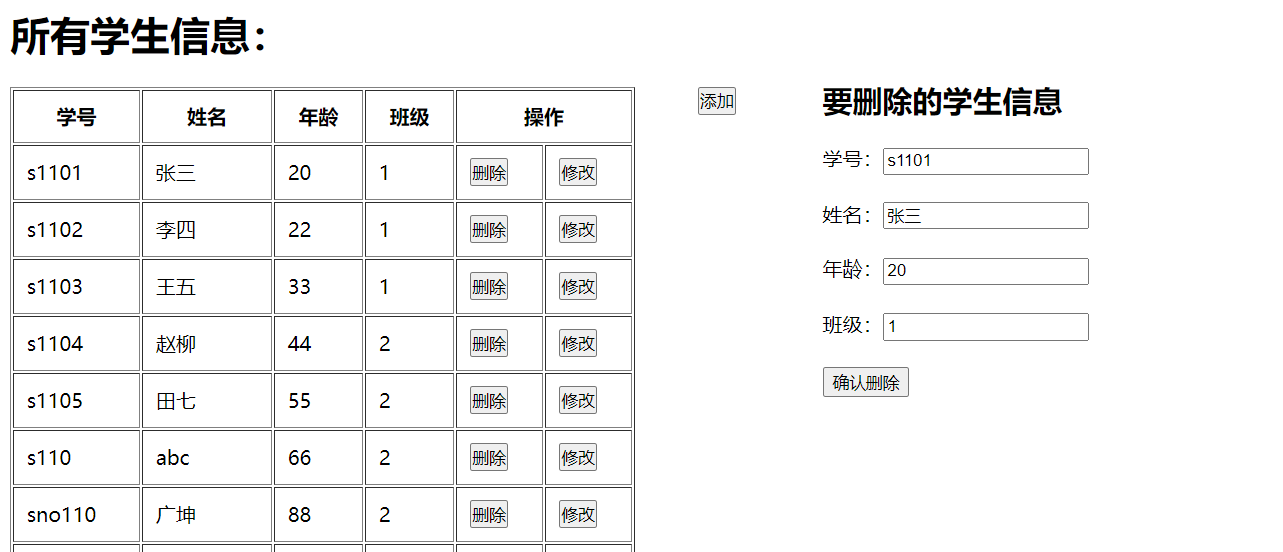

DeleteStudentServlet
package com.zh.web;
import com.zh.bean.Student;
import com.zh.service.StudentService;
import com.zh.service.implement.StudentServiceImpl;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;
/**
* @Author: deemoHui
* @Description:
* @Date Created in 2020-09-08 20:43
* @Modified By:
*/
@WebServlet(value = "/deleteStudent")
public class DeleteStudentServlet extends HttpServlet {
@Override
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
resp.setCharacterEncoding("utf-8");
resp.setContentType("text/html;charset=utf-8");
PrintWriter writer = resp.getWriter();
//1.接受参数
String studentNo = req.getParameter("studentNo");
String studentName = req.getParameter("studentName");
String studentAge1 = req.getParameter("studentAge");
System.out.println(studentNo);
System.out.println(studentName);
System.out.println(studentAge1);
System.out.println("----------------------------------------");
int studentAge = Integer.parseInt(studentAge1);
int gradeId = Integer.parseInt(req.getParameter("gradeId"));
//2.调取service方法
Student student = new Student(-1, studentNo, studentName, studentAge, gradeId);
StudentService studentService=new StudentServiceImpl();
boolean status = studentService.delete(student);
//3.跳转页面
// 插入成功，弹窗提示，并查询后跳转到展示界面
if(status){
List<Student> students = studentService.getAll();
HttpSession session = req.getSession();
session.setAttribute("students",students);
writer.write("<script>alert('删除成功');location.href='/show.jsp'</script>");
// req.getRequestDispatcher("show.jsp").forward(req,resp);
}else{
writer.write("<script>alert('删除失败');location.href='/show.jsp'</script>");
}
}
}

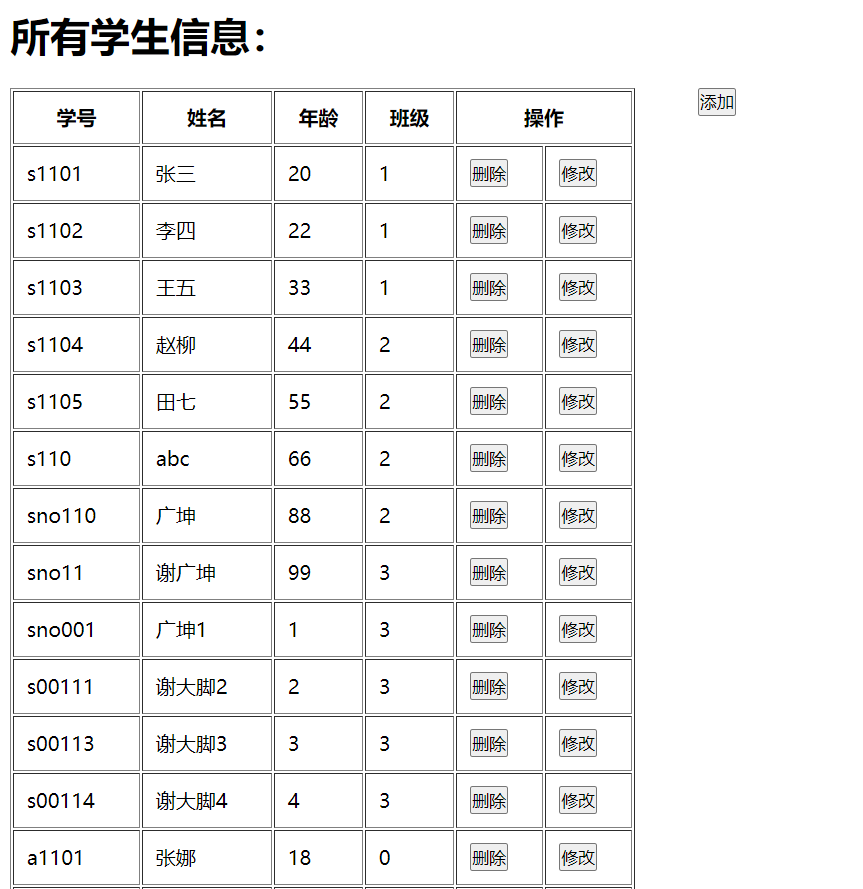

GetAllStudentServlet
package com.zh.web;
import com.zh.bean.Student;
import com.zh.service.StudentService;
import com.zh.service.implement.StudentServiceImpl;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
import java.util.List;
/**
* @Author: deemoHui
* @Description:
* @Date Created in 2020-09-08 20:42
* @Modified By:
*/
@WebServlet(value = "/getAllStudent")
public class GetAllStudentServlet extends HttpServlet {
@Override
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
//1.接受参数
//2.调取service方法
StudentService studentService=new StudentServiceImpl();
List<Student> students = studentService.getAll();
//3.跳转页面
HttpSession session = req.getSession();
session.setAttribute("students",students);
req.getRequestDispatcher("show.jsp").forward(req,resp);
}
}

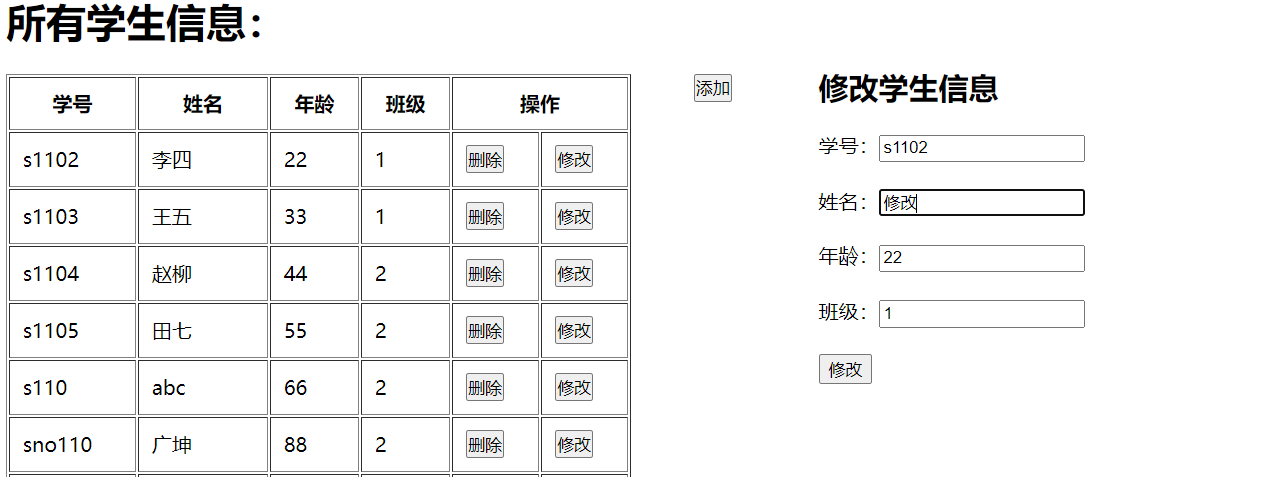

UpdateStudentServlet
package com.zh.web;
import com.zh.bean.Student;
import com.zh.service.StudentService;
import com.zh.service.implement.StudentServiceImpl;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;
/**
* @Author: deemoHui
* @Description:
* @Date Created in 2020-09-08 20:43
* @Modified By:
*/
@WebServlet(value = "/updateStudent")
public class UpdateStudentServlet extends HttpServlet {
@Override
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
resp.setCharacterEncoding("utf-8");
resp.setContentType("text/html;charset=utf-8");
PrintWriter writer = resp.getWriter();
//1.接受参数
String studentNo = req.getParameter("studentNo");
String studentName = req.getParameter("studentName");
int studentAge = Integer.parseInt(req.getParameter("studentAge"));
int gradeId = Integer.parseInt(req.getParameter("gradeId"));
//2.调取service方法
Student student = new Student(-1, studentNo, studentName, studentAge, gradeId);
StudentService studentService=new StudentServiceImpl();
boolean status = studentService.update(student);
//3.跳转页面
// 插入成功，弹窗提示，并查询后跳转到展示界面
if(status){
// 查询所有，跳转展示页面
List<Student> students = studentService.getAll();
HttpSession session = req.getSession();
session.setAttribute("students",students);
writer.write("<script>alert('修改成功');location.href='/show.jsp'</script>");
// req.getRequestDispatcher("show.jsp").forward(req,resp);
}else{
writer.write("<script>alert('修改失败');location.href='/show.jsp'</script>");
}
}
}
druid.properties
url=jdbc:mysql://localhost:3306/mvc?useUnicode=true&characterEncoding=utf-8
username=root
#password=123456
driverClassName=com.mysql.jdbc.Driver
initialSize=5
maxActive=10
minIdle=5
maxWait=3000
index.jsp
<%--
Created by IntelliJ IDEA.
User: zlz1314
Date: 2020/9/8
Time: 19:33
To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>班班班</title>
</head>
<body>

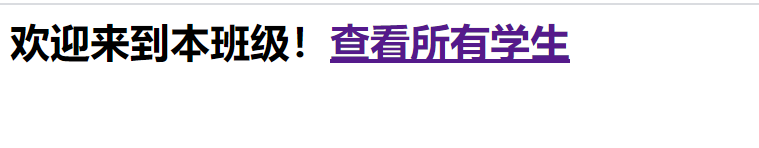

<h1>欢迎来到本班级！<a href="getAllStudent">查看所有学生</a></h1>
</body>
</html>
show.jsp
<%--
Created by IntelliJ IDEA.
User: zlz1314
Date: 2020/9/8
Time: 21:29
To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>道徒</title>
<style>
div,button{margin:0px;padding:0px;}
.data{float: left;}
.btn{float: left;width: 100px;height: 200px; margin-left: 50px;}
#add{display: none;float: left;margin-top: -25px;}
#update{display: none;float: left;margin-top: -25px;}
#del{display: none;float: left;margin-top: -25px;}
</style>
<script src="./jquery-3.5.0.min.js"></script>
</head>
<body>
<h1>所有学生信息：</h1>
<div class="data">
<table id="tid" width="500" border="1" cellpadding="10">
<thead>
<tr>
<th>学号</th>
<th>姓名</th>
<th>年龄</th>
<th>班级</th>
<th colspan="2">操作</th>
</tr>
</thead>
<tbody>
<c:forEach items="${students}" var="student">
<tr>
<td>${student.studentNo}</td>
<td>${student.studentName}</td>
<td>${student.studentAge}</td>
<td>${student.gradeId}</td>
<td><button >删除</button></td>
<td><button >修改</button></td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
<div class="btn">
<button class="addb">添加</button>
</div>
<div id="add">
<h2>添加学生信息</h2>
<form action="addStudent" name="add" method="POST" >
学号：<input type="text" name="studentNo"/><br/><br/>
姓名：<input type="text" name="studentName"/><br/><br/>
年龄：<input type="text" name="studentAge"/><br/><br/>
班级：<input type="text" name="gradeId"/><br/><br/>
<input type="submit" value="添加"/>
</form>
</div>
<div id="update">
<h2>修改学生信息</h2>
<form action="updateStudent" name="update" method="POST" >
学号：<input type="text" name="studentNo" readonly="readonly"><br/><br/>
姓名：<input type="text" name="studentName"/><br/><br/>
年龄：<input type="text" name="studentAge"/><br/><br/>
班级：<input type="text" name="gradeId"/><br/><br/>
<input type="submit" value="修改"/>
</form>
</div>
<div id="del">
<h2>要删除的学生信息</h2>
<form action="deleteStudent" name="del" method="POST" >
学号：<input type="text" name="studentNo" readonly="readonly"><br/><br/>
姓名：<input type="text" name="studentName" readonly="readonly"><br/><br/>
年龄：<input type="text" name="studentAge" readonly="readonly"><br/><br/>
班级：<input type="text" name="gradeId" readonly="readonly"><br/><br/>
<input type="submit" value="确认删除"/>
</form>
</div>
</body>
<script>
//删除
$("#tid tbody tr td:nth-child(5)").click(function(){
$("#add").css({"display":"none"});
$("#update").css({"display":"none"});
$("#del").css({"display":"block"});
var tr = $(this).prevAll();
// console.log($(tr[3]).html());
$("#del input[name = 'studentNo']").attr("value",$(tr[3]).html());
$("#del input[name = 'studentName']").attr("value",$(tr[2]).html());
$("#del input[name = 'studentAge']").attr("value",$(tr[1]).html());
$("#del input[name = 'gradeId']").attr("value",$(tr[0]).html());
})
// 添加
$(".addb").click(function(){
$("#del").css({"display":"none"});
$("#update").css({"display":"none"});
$("#add").css({"display":"block"})
})
// 修改
$("#tid tbody tr td:last-child").click(function(){
$("#add").css({"display":"none"});
$("#del").css({"display":"none"});
$("#update").css({"display":"block"});
var tr = $(this).prevAll();
$("#update input[name = 'studentNo']").attr("value",$(tr[4]).html());
$("#update input[name = 'studentName']").attr("value",$(tr[3]).html());
$("#update input[name = 'studentAge']").attr("value",$(tr[2]).html());
$("#update input[name = 'gradeId']").attr("value",$(tr[1]).html());
});
</script>
</html>

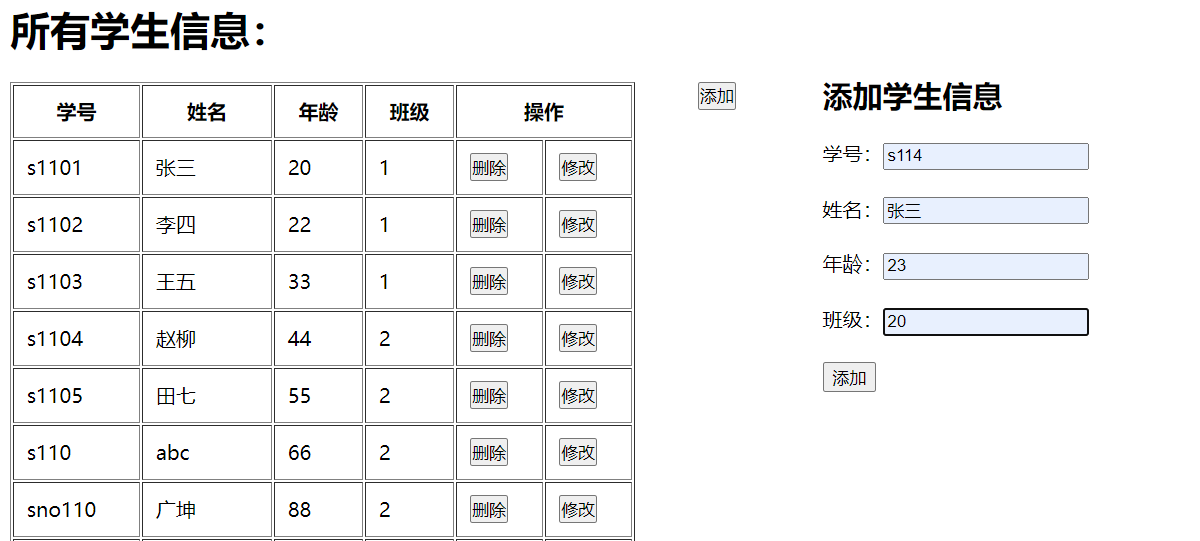

2、运行截图
3、总结
1、总体逻辑
- 先建立各个层次的包
- 写Bean类
- 写Dao类
- 写service类
- 写servlet类
- 写JSP
2、如何通过js点击事件获取到所有的td中的值，并把其填写到右侧的对应input中？
我最初的设想是，通过被点击的 this 获取其 parent，再按照eq函数获取，但是发现，td获取到的parent不对，不是tr，不能通过tr的eq来获取其他的td。查阅了挺久手册之后，通过prevall获取到了其前边的所有td，但是顺序是反的
即tr[0]是被点击元素的上一个，而不是tr中的第一个td。var tr = $(this).prevAll(); $("#del input[name = 'studentNo']").attr("value",$(tr[3]).html()); $("#del input[name = 'studentName']").attr("value",$(tr[2]).html()); $("#del input[name = 'studentAge']").attr("value",$(tr[1]).html()); $("#del input[name = 'gradeId']").attr("value",$(tr[0]).html());
然后是填充input内容，这里需要使用attr(“value”,$(tr[0]).html())，而不是html或者text，因为是属性值。
3、对于修改和删除，不希望更改某些数据，怎么做（disabled 和 readonly）
对于修改，为了保证能从数据库查询到数据，不能让他全部修改，我决定保留学号，不被修改。对于删除，则是所有信息都不被操作，怎么实现呢？
我开始使用了disabled，但是这会导致一个问题，即提交表单的时候，是没有数据提交过去的，即servlet中使用getParameter是获取到的null，解决办法是使用readonly，但是效果我不是很满意，因为readonly看上去还是可以点击的，只是点击了之后没有光标。
若有收获，就点个赞吧
0 人点赞
