简介

Swagger是一款目前世界最流行的API管理工具。目前Swagger已经形成一个生态圈，能够管理API的整个生命周期，从设计、文档到测试与部署。Swagger有几个重要特性：

代码侵入式注解
遵循YAML文档格式
非常适合三端（PC、iOS及Android）的API管理，尤其适合前后端完全分离的架构模式。
减少没有必要的文档，符合敏捷开发理念
功能强大

作用

接口的文档在线自动生成
功能测试

优点
大大减少前后端的沟通
方便查找和测试接口
提高团队的开发效率

方便新人了解项目

1、配置swagger

引入依赖

      <!-- swagger -->
      <dependency>
          <groupId>io.springfox</groupId>
          <artifactId>springfox-swagger2</artifactId>
          <version>2.9.2</version>
      </dependency>
      <dependency>
          <groupId>io.springfox</groupId>
          <artifactId>springfox-swagger-ui</artifactId>
          <version>2.9.2</version>
      </dependency>

配置类 ```java package com.zh.upload.config;

import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import springfox.documentation.builders.ApiInfoBuilder; import springfox.documentation.builders.PathSelectors; import springfox.documentation.builders.RequestHandlerSelectors; import springfox.documentation.service.ApiInfo; import springfox.documentation.spi.DocumentationType; import springfox.documentation.spring.web.plugins.Docket; import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**

Swagger 配置文件

@author zlz1314 */ @Configuration @EnableSwagger2 public class SwaggerConfig { @Bean public Docket createRestApi() {

 return new Docket(DocumentationType.SWAGGER_2)
         .apiInfo(apiInfo())
         .select()
         .apis(RequestHandlerSelectors.basePackage("com.zh.upload")) //swagger搜索的包
         .paths(PathSelectors.any()) //swagger路径匹配
         .build();

}

private ApiInfo apiInfo() {

 return new ApiInfoBuilder()
         .title("文件上传文档")
         .description("使用FastDfs文件上传")
         .version("version 1.0")
         .build();

} } ```

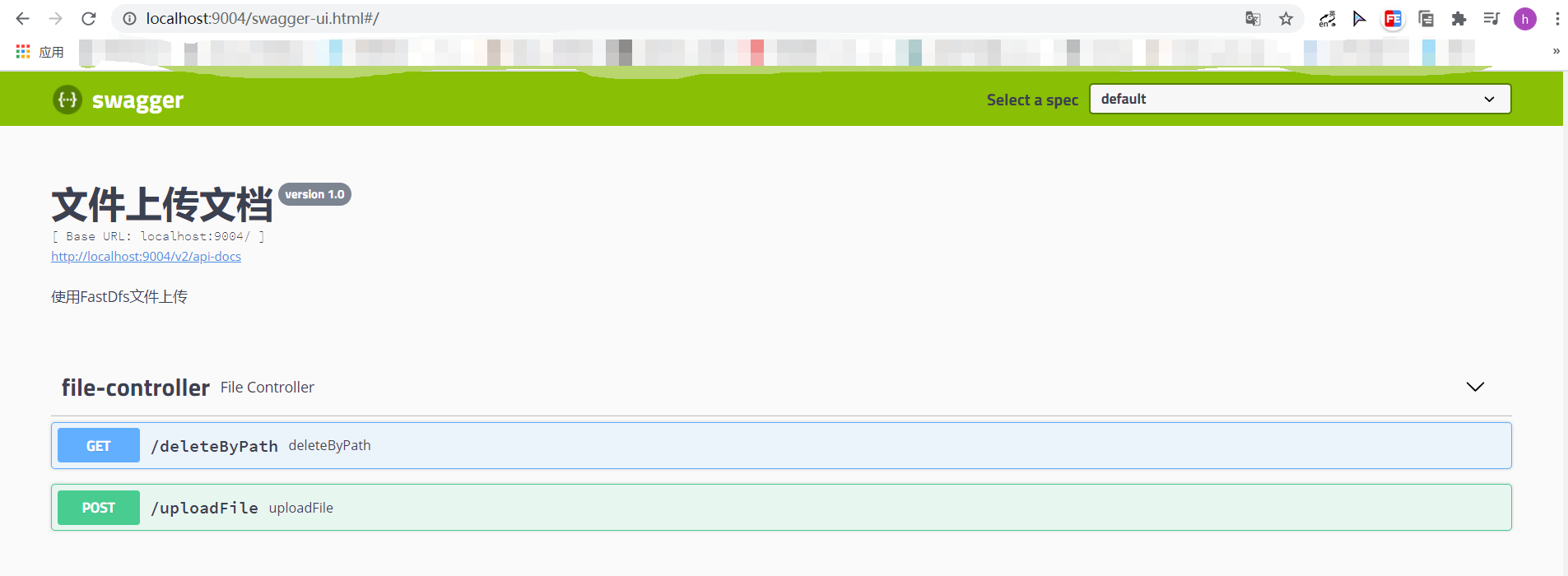

启动注册中心和upload服务，访问地址：
http://localhost:9004/swagger-ui.html#/

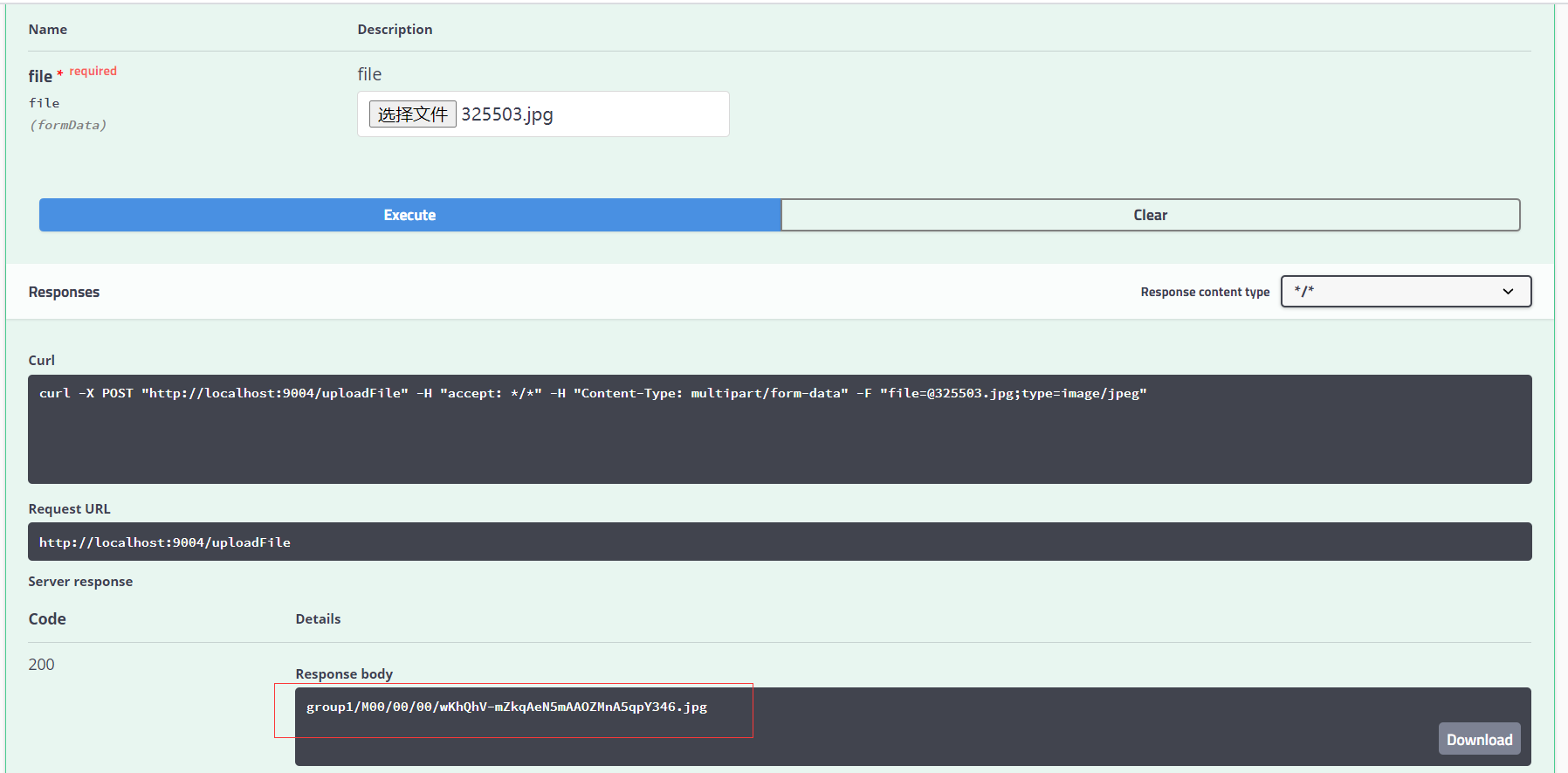

测试上传：

确实可以哦。

2、常用注解

swagger通过在controller中声明注解，对API文档进行说明

1、@Api()：用在请求的类上，表示对类的说明，也代表了这个类是swagger2的资源
参数：

tags：说明该类的作用，参数是个数组，可以填多个。
value="该参数没什么意义，在UI界面上不显示，所以不用配置"
description = "用户基本信息操作"

2、@ApiOperation()：用于方法，表示一个http请求访问该方法的操作
参数：

value="方法的用途和作用"
notes="方法的注意事项和备注"
tags：说明该方法的作用，参数是个数组，可以填多个。
格式：tags={"作用1","作用2"}
（在这里建议不使用这个参数，会使界面看上去有点乱，前两个常用）

3、@ApiModel()：用于响应实体类上，用于说明实体作用
参数：

description="描述实体的作用"

4、@ApiModelProperty：用在属性上，描述实体类的属性
参数：

value="用户名" 描述参数的意义
name="name" 参数的变量名
required=true 参数是否必选

5、@ApiImplicitParams：用在请求的方法上，包含多@ApiImplicitParam
6、@ApiImplicitParam：用于方法，表示单独的请求参数
参数：

name="参数ming"
value="参数说明"
dataType="数据类型"
paramType="query" 表示参数放在哪里
· header 请求参数的获取：@RequestHeader
· query 请求参数的获取：@RequestParam
· path（用于restful接口） 请求参数的获取：@PathVariable
· body（不常用）
· form（不常用）
defaultValue="参数的默认值"
required="true" 表示参数是否必须传

7、@ApiParam()：用于方法，参数，字段说明表示对参数的要求和说明
参数：

name="参数名称"
value="参数的简要说明"
defaultValue="参数默认值"
required="true" 表示属性是否必填，默认为false

8、@ApiResponses：用于请求的方法上，根据响应码表示不同响应
一个@ApiResponses包含多个@ApiResponse
9、@ApiResponse：用在请求的方法上，表示不同的响应
参数：

code="404" 表示响应码(int型)，可自定义
message="状态码对应的响应信息"

10、@ApiIgnore()：用于类或者方法上，不被显示在页面上

3、使用

实体类

package com.zh.upload.domain;

import io.swagger.annotations.ApiModel;

/**
 * @Author: deemoHui
 */
@ApiModel("用户对象模型")
public class User {
    private Long id;
    private String username;
    private String password;
    private String email;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }
}

controller

package com.zh.upload.controller;

import com.zh.upload.domain.User;
import io.swagger.annotations.*;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import springfox.documentation.annotations.ApiIgnore;

import javax.xml.ws.Response;

/**
 * /user post 新增
 * /{id} delete 删除
 * /{id} put 更新
 * /{id} get 根据id加载
 * /list-page post 分页查询
 *
 * @author zlz1314
 */
@RestController
@RequestMapping("/user")
@Api(tags = {"用户管理API"})
public class UserController {
    @PostMapping
    @ApiOperation(value = "新增用户", notes = "新增后返回当前用户")
    @ApiResponses({
            @ApiResponse(code = 200, message = "返回成功", response = User.class),
            @ApiResponse(code = 400, message = "参数没有填好(id==1)", response = User.class),
            @ApiResponse(code = 401, message = "权限不足(id==2)", response = User.class),
    })
    public ResponseEntity<User> add(User user) {
        if (user.getId() == 1) {
            //400
            return new ResponseEntity<>(user, HttpStatus.BAD_REQUEST);
        } else if (user.getId() == 2) {
            //401
            return new ResponseEntity<>(user, HttpStatus.UNAUTHORIZED);
        } else {
            return ResponseEntity.ok(user);
        }
    }

    @PutMapping
    @ApiOperation(value = "修改用户", notes = "修改后返回当前用户")
    @ApiResponses({
            @ApiResponse(code = 200, message = "返回成功", response = User.class),
            @ApiResponse(code = 400, message = "参数没有填好(id==1)", response = User.class),
            @ApiResponse(code = 401, message = "权限不足(id==2)", response = User.class),
    })
    public ResponseEntity<User> update(User user) {
        if (user.getId() == 1) {
            //400
            return new ResponseEntity<>(user, HttpStatus.BAD_REQUEST);
        } else if (user.getId() == 2) {
            //401
            return new ResponseEntity<>(user, HttpStatus.UNAUTHORIZED);
        } else {
            return ResponseEntity.ok(user);
        }
    }

    @DeleteMapping("/{id}")
    @ApiOperation(value = "删除用户", notes = "删除后返回当前id")
    @ApiResponses({
            @ApiResponse(code = 200, message = "返回成功", response = User.class),
            @ApiResponse(code = 400, message = "参数没有填好(id==1)", response = User.class),
            @ApiResponse(code = 401, message = "权限不足(id==2)", response = User.class),
    })
    @ApiImplicitParam(paramType = "path", name = "id", value = "用户主键ID", required = true)
    public ResponseEntity<Long> delete(@PathVariable Long id) {
        if (id == 1) {
            //400
            return new ResponseEntity<>(id, HttpStatus.BAD_REQUEST);
        } else if (id == 2) {
            //401
            return new ResponseEntity<>(id, HttpStatus.UNAUTHORIZED);
        } else {
            return ResponseEntity.ok(id);
        }
    }

    @GetMapping("/{id}")
    @ApiIgnore
    public ResponseEntity<Long> toUpdate(@PathVariable Long id) {
        if (id == 1) {
            //400
            return new ResponseEntity<>(id, HttpStatus.BAD_REQUEST);
        } else if (id == 2) {
            //401
            return new ResponseEntity<>(id, HttpStatus.UNAUTHORIZED);
        } else {
            return ResponseEntity.ok(id);
        }
    }

    @PostMapping("/list-page")
    @ApiOperation(value = "分页查询", notes = "得到分页查询对象pageInfo")
    @ApiImplicitParams({
            @ApiImplicitParam(paramType = "query", name = "pageNum", value = "当前页",
                    required = false, defaultValue = "1"),
            @ApiImplicitParam(paramType = "query", name = "pageSize", value = "每页行数",
                    required = false, defaultValue = "10")
    })
    public ResponseEntity<String> findByPage(
            @RequestParam(defaultValue = "1", required = false) Integer pageNum,
            @RequestParam(defaultValue = "10", required = false) Integer pageSize) {
        return ResponseEntity.ok("find page result...");
    }
}

结果

4、给账单项目加上Api文档

1、引入swagger依赖

        <!-- swagger -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>

2、配置类

package com.zh.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * Swagger 配置文件
 *
 * @author zlz1314
 */
@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.zh"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("账单管理文档")
                .description("账单管理")
                .version("version 1.0")
                .build();
    }
}

3、修改实体类

package com.zh.bean;

import com.fasterxml.jackson.annotation.JsonIgnore;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

import javax.persistence.*;
import java.io.Serializable;
import java.util.Date;

import io.swagger.annotations.ApiModel;

/**
 * @Author: deemoHui
 * @Description:
 * @Date Created in 2020-10-19 12:45
 * @Modified By:
 */

@Table(name = "bill_")
@Data
@ApiModel("账单模型")
public class Bill implements Serializable {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id_")
    @ApiModelProperty(value = "主键id")
    private Long id;

    @ApiModelProperty(value = "账单标题")
    @Column(name = "title_")
    private String title;

    @ApiModelProperty(value = "账单创建时间")
    @Column(name = "bill_time_")
    private Date billTime;

    @ApiModelProperty(value = "账单类型id")
    @Column(name = "type_id_")
    private Long typeId;

    @ApiModelProperty(value = "账单的金额")
    @Column(name = "price_")
    private Double price;

    @ApiModelProperty(value = "账单说明")
    @Column(name = "explain_")
    private String explain;

    /**
     * 类别名称
     */
    @Transient
    @ApiModelProperty(value = "账单类型名称")
    @JsonIgnore
    private String typeName;
    /**
     * 开始时间:用于查询
     */
    @Transient
    @ApiModelProperty(value = "账单起始时间")
    @JsonIgnore
    private Date date1;
    /**
     * 结束时间：用于查询
     */
    @Transient
    @ApiModelProperty(value = "账单结束时间")
    @JsonIgnore
    private Date date2;
}

这里只放一个，其他的都是类似的
4、修改controller

package com.zh.controller;


import com.zh.bean.Bill;
import com.zh.bean.BillType;
import com.zh.bean.TableData;
import com.zh.service.BillService;
import com.zh.service.TypeService;
import io.swagger.annotations.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.*;

import java.util.List;


/**
 * @Author: deemoHui
 * @Description:
 * @Date Created in 2020-10-19 13:05
 * @Modified By:
 */
@RestController
@RequestMapping("/bill")
@RefreshScope //刷新配置
@Api(tags = {"账单管理API"})
public class BillController {
    @Autowired
    private TypeService typeService;
    @Autowired
    private BillService billService;
    @Value("${test.name}")
    private String name;

    /**
     * 查询所有的账单
     * @param page
     * @param limit
     * @param bill
     * @return
     */
    @PostMapping("/list")
    @ApiOperation(value = "账单列表", notes = "按条件查询后返回账单列表")
    @ApiResponses({
            @ApiResponse(code = 200, message = "返回成功", response = TableData.class)
    })
    @ApiImplicitParams({
            @ApiImplicitParam(paramType = "query", name = "page", value = "当前页", defaultValue = "1"),
            @ApiImplicitParam(paramType = "query", name = "limit", value = "每页行数", defaultValue = "10")
    })
    public TableData<Bill> list(
            @RequestParam(defaultValue = "1") int page,
            @RequestParam(defaultValue = "10") int limit,
            @ModelAttribute Bill bill) {
        List<Bill> bills = billService.list(bill, page, limit);
        int count = billService.selectBillCount(bill);
        return new TableData<>(0, "成功", count, bills);
    }

    /**
     * 添加
     *
     * @param b
     * @return
     */
    @PostMapping("/add")
    @ApiOperation(value = "添加账单", notes = "添加成功后返回账单列表")
    @ApiResponses({
            @ApiResponse(code = 200, message = "成功", response = Integer.class),
    })
    public Integer add(@ModelAttribute Bill b) {
        int result = billService.add(b);
        return result > 0 ? 1 : 0;
    }

    /**
     * 删除
     *
     * @param id
     * @return
     */
    @GetMapping("/delete/{id}")
    @ApiOperation(value = "删除账单", notes = "根据id删除账单，成功后返回账单列表")
    @ApiResponses({
            @ApiResponse(code = 200, message = "成功", response = Integer.class),
    })
    @ApiImplicitParams({
            @ApiImplicitParam(paramType = "path",name = "id", value = "账单id", dataType = "long",required = true)
    })
    public Integer delete(@PathVariable("id") Long id) {
        int delete = billService.delete(id);
        return delete > 0 ? 1 : 0;
    }

    /**
     * 修改
     *
     * @param id
     * @return
     */
    @GetMapping("/toUpdate/{id}")
    @ApiOperation(value = "修改账单", notes = "根据id修改账单，跳转到修改页面，并自动填充账单信息")
    @ApiResponses({
            @ApiResponse(code = 200, message = "成功", response = Bill.class),
    })
    @ApiImplicitParams({
            @ApiImplicitParam(paramType = "path",name = "id", value = "账单id", dataType = "long",required = true)
    })
    public Bill toUpdate(@PathVariable("id") Long id) {
        Bill bill = billService.getById(id);
        System.out.println("配置文件中的test.name为：" + name);
        return bill;
    }

    /**
     * 修改
     *
     * @param b
     * @return
     */
    @PostMapping("/update")
    @ApiOperation(value = "修改账单", notes = "根据id修改账单，成功后跳转到账单列表")
    @ApiResponses({
            @ApiResponse(code = 200, message = "成功", response = Integer.class),
    })
    public Integer update(@ModelAttribute Bill b) {
        int update = billService.update(b);
        return update > 0 ? 1 : 0;
    }

    @GetMapping("/types")
    @ApiOperation(value = "查询账单类型", notes = "查询账单类型，返回账单类型列表，用于填充类型")
    @ApiResponses({
            @ApiResponse(code = 200, message = "成功", response = Bill.class)
    })
    public List<BillType> getTypes() {
        return typeService.list();
    }

}

注意：

如果不想展示实体类某些字段在swagger上，需要在字段上加上@JsonIgnore注解
controller类里是想表单提交，则用@ModelAttribute Bill bill）

ok，运行起来，并且访问http://localhost:9091/swagger-ui.html
运行时报错：
Illegal DefaultValue null for parameter type integer
也还能正常运行，但就是看着不爽
解决办法：忽略原版本的swagger-annotations和swagger-models，添加1.5.21版本的，也就是在原来的pom文件中添加这两个依赖就好了

        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-annotations</artifactId>
            <version>1.5.21</version>
        </dependency>
        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-models</artifactId>
            <version>1.5.21</version>
        </dependency

**

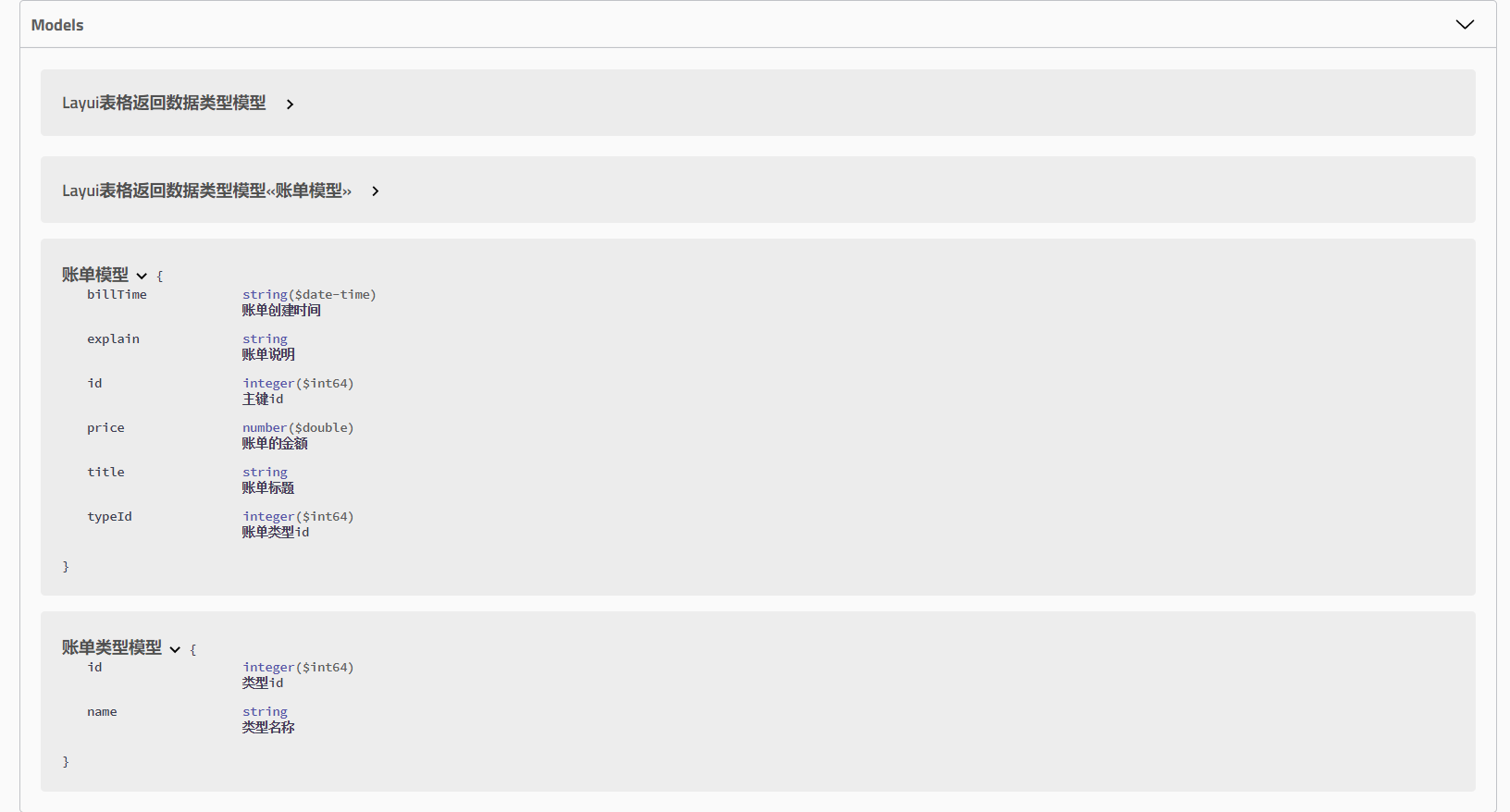

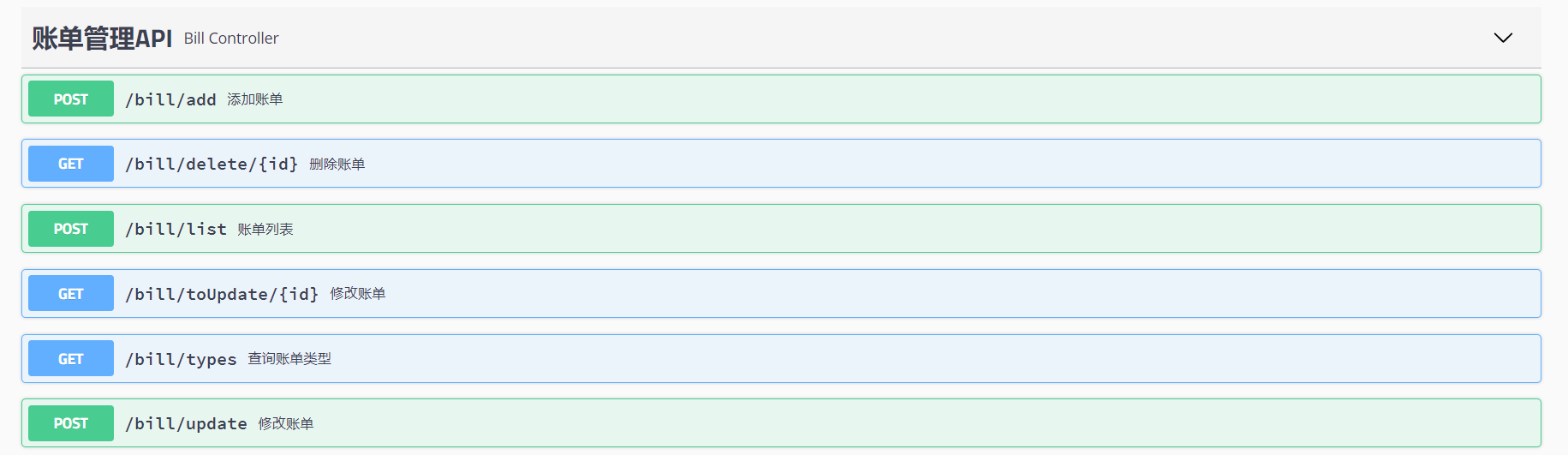

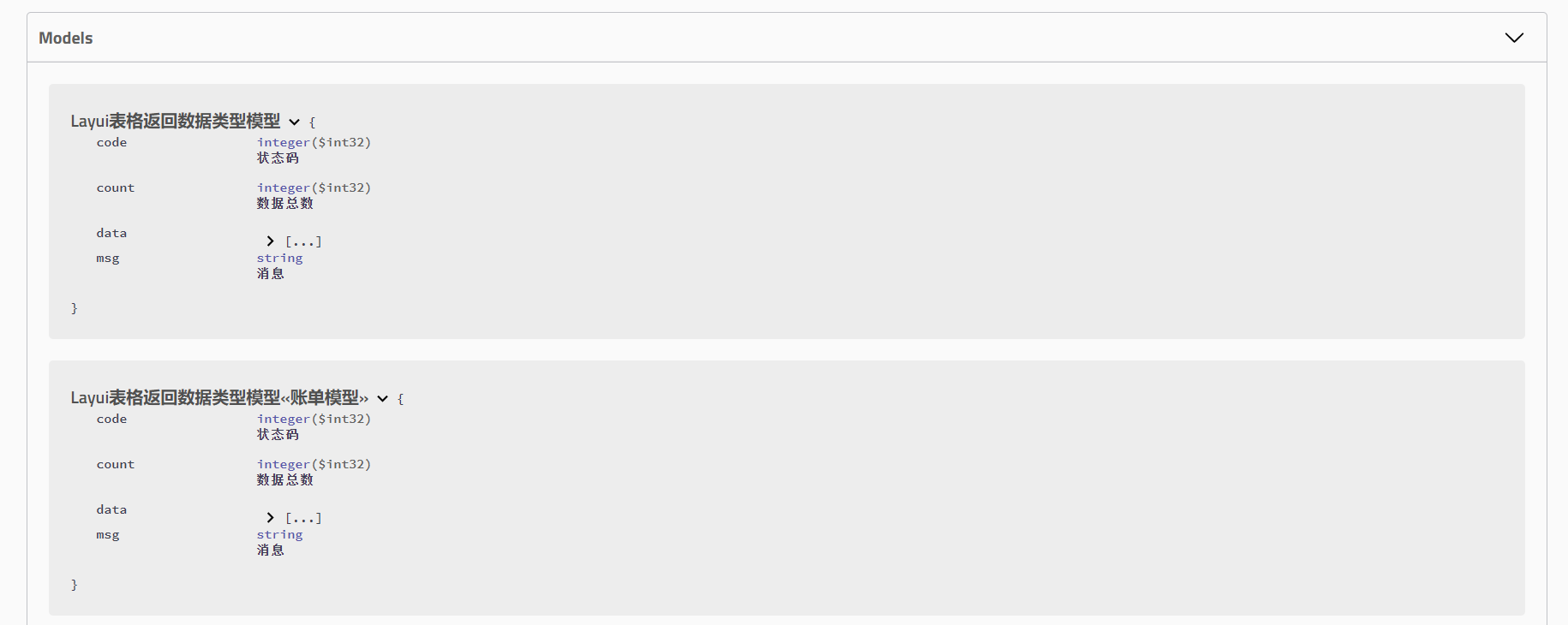

效果如下：

测试一下add

Java学习笔记

第2节 Swagger

简介

1、配置swagger

2、常用注解

3、使用

4、给账单项目加上Api文档
