编码和解码的基本介绍
- 编写网络应用程序时, 因为数据在网络中传输的都是二进制字节码数据, 在发送数据时就需要编码, 接收数据时就需要解码
- codec(编解码器) 的组成部分有两个 : decoder(解码器)和encoder(编码器). encoder负责把业务数据转换成字节码数据, decoder负责把字节码数据转换成业务数据
Netty 本身的编解码的机制和问题分析
- Netty自身提供了一些codec(编解码器)
- Netty提供的编码器
- StringEncoder, 对字符串数据进行编码
- ObjectEncoder, 对Java对象进行编码
- ……
- Netty提供的解码器
- StringDecoder: 对字符串数据进行解码
- ObjectDecoder: 对Java对象进行解码
- ……
- Netty本身自带的ObjectDecoder和ObjectEncoder可以用来实现Pojo对象或各种业务对象的编码和解码,底层使用的依然是Java序列化技术, 而Java序列化技术本身效率就不高, 存在如下问题
- 无法跨语言
- 序列化后的体积太大, 是二进制编码的5倍多
- 序列化性能太低
=> 引出新的解决方案[Google 的 ProtoBuf]
Protobuf
Protobuf基本介绍和使用示意图
- Protobuf是Google发布的开源项目, 全称 Google Protocol Buffers ,是一种 轻便高效的结构化数据存储格式,可以用于结构化数据串行化, 或者说序列化, 它很适合做数据存储或者RPC[远程过程调用]数据交换格式
- 目前很多公司 http + JSON -> tcp + protobuf
- 参考文档: https://developers.google.com/protocol-buffers/docs/proto 语言指南
- Protobuf是以message的方式来管理数据的
- 支持跨平台, 跨语言, 即[客户端和服务器端可以是不同的语言编写的] (支持目前绝大多数语言, 例如C++, C#, Java, Python等)
- 高性能, 高可靠性
- 使用Protobuf编译器能自动生成代码, Protobuf是将类的定义使用.proto文件进行描述, 说明, 在IDEA中编写.proto文件时, 会自动提示是否下载 .proto编写插件, 可以让语法高亮
- 然后通过protoc.exe编译器根据.proto自动生成.java文件
- Protobuf使用示意图
Protobuf快速入门案例
编写程序, 使用Protobuf完成如下功能
- 客户端可以发送一个Student POJO对象到服务器(通过Protobuf编码)
- 服务器能接受Student POJO对象, 并显示信息(通过Protobuf解码)
引入Protobuf的依赖
<!-- https://mvnrepository.com/artifact/com.google.protobuf/protobuf-java -->
<dependency>
<groupId>com.google.protobuf</groupId>
<artifactId>protobuf-java</artifactId>
<version>3.6.1</version>
</dependency>
数据类型
特殊字段
定义其他复杂类型参考:https://blog.csdn.net/lijingjingchn/article/details/89466437
软件
新建Student.proto
syntax = "proto3"; // 版本
option java_outer_classname = "StudentPOJO"; // Java的外部类名
// protobuf 使用message 管理数据
message Student { // 会在 StudentPOJO外部类中生成一个内部类 Student, 它是真正发送的POJO对象
/**
表示 在Student类中有一个属性名字为 id , 类型为int32(Protobuf类型) 1表示序号, 不是值
*/
int32 id = 1;
string name = 2;
}
根据.proto文件生成Java文件
将写好的文件放入bin文件夹中
在当前位置启动cmd
执行编译
protoc.exe --java_out=. Student.proto
将生成的文件拷贝到项目中
生成后的文件
不粘贴了[太大了],自己看一下吧
新建NettyServer
package com.dance.netty.netty.protobuf;
import com.dance.netty.netty.protobuf.pojo.StudentPOJO;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.protobuf.ProtobufDecoder;
public class NettyServer {
public static void main(String[] args) throws InterruptedException {
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup, workerGroup) //设置两个线程组
.channel(NioServerSocketChannel.class) // 使用NioServerSocketChannel作为服务器的通道实现
.option(ChannelOption.SO_BACKLOG, 128) // 设置线程队列等待连接个数
.childOption(ChannelOption.SO_KEEPALIVE, true) // 设置保持活动连接状态
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel socketChannel) throws Exception {
ChannelPipeline pipeline = socketChannel.pipeline();
// 加入protobuf的解码器 指定解码默认实例
pipeline.addLast(new ProtobufDecoder(StudentPOJO.Student.getDefaultInstance()));
pipeline.addLast(new NettyServerHandler());
}
});
System.out.println("server is ready......");
ChannelFuture channelFuture = serverBootstrap.bind(6668).sync();
channelFuture.channel().closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
新建NettyServerhandler
package com.dance.netty.netty.protobuf;
import com.dance.netty.netty.protobuf.pojo.StudentPOJO;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import java.nio.charset.StandardCharsets;
public class NettyServerHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
// 读取从客户端发送的额StudentPOJO.student
StudentPOJO.Student student = (StudentPOJO.Student) msg;
System.out.println("客户端发送的数据:" + student.getId() + " " + student.getName());
}
@Override
public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
ctx.writeAndFlush(Unpooled.copiedBuffer("Hello 客户端", StandardCharsets.UTF_8));
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
ctx.close();
cause.printStackTrace();
}
}
新建NettyClient
package com.dance.netty.netty.protobuf;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.protobuf.ProtobufDecoder;
import io.netty.handler.codec.protobuf.ProtobufEncoder;
public class NettyClient {
public static void main(String[] args) throws InterruptedException {
EventLoopGroup eventExecutors = new NioEventLoopGroup();
try {
Bootstrap bootstrap = new Bootstrap();
bootstrap.group(eventExecutors)
.channel(NioSocketChannel.class)
.handler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel socketChannel) throws Exception {
ChannelPipeline pipeline = socketChannel.pipeline();
// 加入处理Protobuf的编码器
pipeline.addLast(new ProtobufEncoder());
pipeline.addLast(new NettyClientHandler());
}
});
System.out.println("客户端 ok !");
ChannelFuture sync = bootstrap.connect("127.0.0.1", 6668).sync();
sync.channel().closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
eventExecutors.shutdownGracefully();
}
}
}
新建NettyClientHandler
package com.dance.netty.netty.protobuf;
import com.dance.netty.netty.protobuf.pojo.StudentPOJO;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import java.nio.charset.StandardCharsets;
public class NettyClientHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
// 发送一个Student对象到服务器
StudentPOJO.Student dance = StudentPOJO.Student.newBuilder().setId(4).setName("dance").build();
ctx.writeAndFlush(dance);
}
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
ByteBuf byteBuf = (ByteBuf) msg;
System.out.println("服务器回复的消息: " + byteBuf.toString(StandardCharsets.UTF_8));
System.out.println("服务器地址: " + ctx.channel().remoteAddress());
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
ctx.close();
cause.printStackTrace();
}
}
测试
启动Server
启动Client
server is ready......
客户端发送的数据:4 dance
客户端 ok !
服务器回复的消息: Hello 客户端
服务器地址: /127.0.0.1:6668
使用SimpleChannelInBoundHandler定义泛型
package com.dance.netty.netty.protobuf;
import com.dance.netty.netty.protobuf.pojo.StudentPOJO;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.channel.SimpleChannelInboundHandler;
import java.nio.charset.StandardCharsets;
//public class NettyServerHandler extends ChannelInboundHandlerAdapter {
public class NettyServerHandler extends SimpleChannelInboundHandler<StudentPOJO.Student> {
@Override
public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
ctx.writeAndFlush(Unpooled.copiedBuffer("Hello 客户端", StandardCharsets.UTF_8));
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
ctx.close();
cause.printStackTrace();
}
@Override
protected void channelRead0(ChannelHandlerContext ctx, StudentPOJO.Student msg) throws Exception {
System.out.println("客户端发送的数据:" + msg.getId() + " " + msg.getName());
}
}
Protobuf快速入门实例2
需求
- 编写程序, 使用Protobuf完成如下功能
- 客户端可以随机发送studentPOJO/workerPOJO对象到服务器(通过Protobuf编码)
- 服务器接收StudentPOJO/WorkerPOJO对象, (需要判断是那种类型), 并显示信息(通过Protobuf解码)
- 具体 看老师演示(show time)
编写proto文件
```protobuf syntax = “proto3”; // 版本
option optimize_for = SPEED; // 加快解析
option java_package = “com.dance.netty.netty.protobuf2.pojo”; // 指定包
option java_outer_classname = “MyDataInfo”; // Java的外部类名
message MyMessage{ // 定义一个枚举类型 enum DataType { StudentType = 0; WorkerType = 1; }
// 用DataType来标识传的是哪个枚举类型 DataType dataType = 1;
// 表示每次枚举类型最多只能出现其中的一个, 节省空间 oneof dataBody{ Student student = 2; Worker worker = 3; } }
message Student { int32 id = 1; string name = 2; }
message Worker { int32 id = 1; string name = 2; }
<a name="it3KZ"></a>

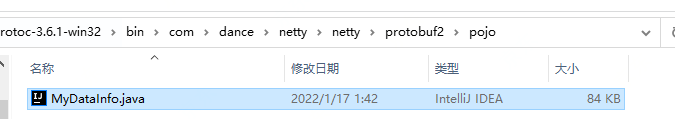

## 生成java类型并拷贝到项目
![image.png](https://cdn.nlark.com/yuque/0/2022/png/1603133/1642355225899-1e1fb139-c962-4a93-a454-aebfcdce45b2.png#clientId=u66ea8a04-e6a3-4&crop=0&crop=0&crop=1&crop=1&from=paste&id=u32c07338&margin=%5Bobject%20Object%5D&name=image.png&originHeight=119&originWidth=675&originalType=binary&ratio=1&rotation=0&showTitle=false&size=10373&status=done&style=none&taskId=u6390539d-8413-4a64-8a5e-bf8dd300d23&title=)<br />好大~
<a name="wDQme"></a>
## 根据之前的案例1修改
<a name="K63PO"></a>
### 修改NettyClientHandler
```java
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
// 随机发送Student或者Worker
int i = new Random().nextInt(3);
MyDataInfo.MyMessage myMessage = null;
if(0 == i){
myMessage = MyDataInfo.MyMessage.newBuilder()
.setDataType(MyDataInfo.MyMessage.DataType.StudentType)
.setStudent(MyDataInfo.Student.newBuilder().setId(1).setName("flower").build()).build();
}else{
myMessage = MyDataInfo.MyMessage.newBuilder()
.setDataType(MyDataInfo.MyMessage.DataType.StudentType)
.setWorker(MyDataInfo.Worker.newBuilder().setId(2).setName("dance").build()).build();
}
ctx.writeAndFlush(myMessage);
}
修改NettyServer
pipeline.addLast(new ProtobufDecoder(MyDataInfo.MyMessage.getDefaultInstance()));
修改NettyServerHandler
public class NettyServerHandler extends SimpleChannelInboundHandler<MyDataInfo.MyMessage> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, MyDataInfo.MyMessage msg) throws Exception {
if(msg.getDataType() == MyDataInfo.MyMessage.DataType.StudentType){
System.out.println("客户端发送的数据:" + msg.getStudent().getId() + " " + msg.getStudent().getName());
}else if(msg.getDataType() == MyDataInfo.MyMessage.DataType.WorkerType){
System.out.println("客户端发送的数据:" + msg.getWorker().getId() + " " + msg.getWorker().getName());
}
}
测试
client
客户端 ok !
服务器回复的消息: Hello 客户端
服务器地址: /127.0.0.1:6668
Server
server is ready......
客户端发送的数据:2 dance
客户端发送的数据:2 dance
客户端发送的数据:1 flower
