通过 https://www.yuque.com/zhanyifan-rkxpe/grf7g5/aqcdng 上一篇blog中都知道，事务通过在容器中添加了一个Advisor(BeanFactoryTransactionAttributeSourceAdvisor)，以及对应的TransactionInceptor，来实现的事务。

在创建Bean时，调用通过@Import导入进来的BeanPostProcessor，在 postProcessBeforeInstantiation 中进行切面的解析，在postProcessAfterInitialization 进行创建动态代理。具体的解析切面流程如下。

调用postProcessBeforeInstantiation

  1. public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
  2.     Object cacheKey = this.getCacheKey(beanClass, beanName);
  3.     if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
  4.         if (this.advisedBeans.containsKey(cacheKey)) {
  5.             return null;
  6.         }
  7.         // isInfrastructureClass 判断是否bean是否是一个切面类(Advisor/Advice这种)
  8.         // shouldSkip 中判断这个Bean是否需要跳过
  9.         if (this.isInfrastructureClass(beanClass) || this.shouldSkip(beanClass, beanName)) {
  10.             this.advisedBeans.put(cacheKey, Boolean.FALSE);
  11.             return null;
  12.         }
  13.     }
  14.     // 这下面的基本都不会执行
  15.     TargetSource targetSource = this.getCustomTargetSource(beanClass, beanName);
  16.     if (targetSource != null) {
  17.         if (StringUtils.hasLength(beanName)) {
  18.             this.targetSourcedBeans.add(beanName);
  19.         }
  21.         Object[] specificInterceptors = this.getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
  22.         Object proxy = this.createProxy(beanClass, beanName, specificInterceptors, targetSource);
  23.         this.proxyTypes.put(cacheKey, proxy.getClass());
  24.         return proxy;
  25.     } else {
  26.         return null;
  27.     }
  28. }

shouldSkip(AspectJAwareAdvisorAutoProxyCreator中重写了)

  1. protected boolean shouldSkip(Class<?> beanClass, String beanName) {
  2.     // 寻找候选的Advisor，这个方法在AnnotationAwareAspectJAutoProxyCreator中又重写了
  3.     List<Advisor> candidateAdvisors = this.findCandidateAdvisors();
  4.     Iterator var4 = candidateAdvisors.iterator();
  6.     Advisor advisor;
  7.     do {
  8.         if (!var4.hasNext()) {
  9.             return super.shouldSkip(beanClass, beanName);
  10.         }
  12.         advisor = (Advisor)var4.next();
  13.     } while(!(advisor instanceof AspectJPointcutAdvisor) || !((AspectJPointcutAdvisor)advisor).getAspectName().equals(beanName));
  15.     return true;
  16. }

AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors方法

  1. protected List<Advisor> findCandidateAdvisors() {
  2.     // super方法是解析传统的通过Advisor类实现的切面
  3.     List<Advisor> advisors = super.findCandidateAdvisors();
  4.     if (this.aspectJAdvisorsBuilder != null) {
  5.         // 而这个方法，是通过@AspectJ方式来解析的切面
  6.         advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
  7.     }
  9.     return advisors;
  10. }

super.findCandidateAdvisors()

Spring Transaction 就是通过这个方法，在容器中自己添加了一个Advisor来实现的。

  1. this.advisorRetrievalHelper.findAdvisorBeans();
  2. // 关键代码，找到容器中所有的Advisor 类型的bean
  3. String[] advisorNames = this.cachedAdvisorBeanNames;
  4. if (advisorNames == null) {
  5.     advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Advisor.class, true, false);
  6.     this.cachedAdvisorBeanNames = advisorNames;
  7. }

aspectJAdvisorsBuilder.buildAspectJAdvisors()

  1. // 部分代码
  2. public List<Advisor> buildAspectJAdvisors() {
  3.         List<String> aspectNames = this.aspectBeanNames;
  4.         if (aspectNames == null) {
  5.             synchronized(this) {
  6.                 aspectNames = this.aspectBeanNames;
  7.                 if (aspectNames == null) {
  8.                     List<Advisor> advisors = new ArrayList();
  9.                     List<String> aspectNames = new ArrayList();
  10.                     // 找出所有的Object(即所有的bean)
  11.                     String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Object.class, true, false);
  12.                     String[] var18 = beanNames;
  13.                     int var19 = beanNames.length;
  15.                     for(int var7 = 0; var7 < var19; ++var7) {
  16.                         String beanName = var18[var7];
  17.                         if (this.isEligibleBean(beanName)) {
  18.                             Class<?> beanType = this.beanFactory.getType(beanName);
  19.                             // 然后通过判断类上面是否标注了@AspectJ注解来判断是否要解析成一个切面，
  20.                             // 然后将@Before这些东西，解析成Advisor，注册到容器中
  21.                             if (beanType != null && this.advisorFactory.isAspect(beanType)) {
  22.                                 aspectNames.add(beanName);
  23.                                 AspectMetadata amd = new AspectMetadata(beanType, beanName);
  24.                                 if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
  25.                                     MetadataAwareAspectInstanceFactory factory = new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
  26.                                     List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);

解析切面完成之后，就到了创建动态代理

wrapIfNecessary

  1. protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
  2.     if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
  3.         return bean;
  4.     } else if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
  5.         return bean;
  6.     } else if (!this.isInfrastructureClass(bean.getClass()) && !this.shouldSkip(bean.getClass(), beanName)) {
  7.         // 关键代码，用来找到符合这个Bean的切面
  8.         Object[] specificInterceptors = this.getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, (TargetSource)null);
  9.         if (specificInterceptors != DO_NOT_PROXY) {
  10.             this.advisedBeans.put(cacheKey, Boolean.TRUE);
  11.             Object proxy = this.createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
  12.             this.proxyTypes.put(cacheKey, proxy.getClass());
  13.             return proxy;
  14.         } else {
  15.             this.advisedBeans.put(cacheKey, Boolean.FALSE);
  16.             return bean;
  17.         }
  18.     } else {
  19.         this.advisedBeans.put(cacheKey, Boolean.FALSE);
  20.         return bean;
  21.     }
  22. }

getAdvicesAndAdvisorsForBean

  1. @Nullable
  2. protected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
  3.     List<Advisor> advisors = this.findEligibleAdvisors(beanClass, beanName);
  4.     return advisors.isEmpty() ? DO_NOT_PROXY : advisors.toArray();
  5. }

findEligibleAdvisors

  1. protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
  2.     List<Advisor> candidateAdvisors = this.findCandidateAdvisors();
  3.     // 找到可以应用的Advisor
  4.     List<Advisor> eligibleAdvisors = this.findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
  5.     this.extendAdvisors(eligibleAdvisors);
  6.     if (!eligibleAdvisors.isEmpty()) {
  7.         eligibleAdvisors = this.sortAdvisors(eligibleAdvisors);
  8.     }
  10.     return eligibleAdvisors;
  11. }

findAdvisorsThatCanApply

  1. protected List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {
  2.     ProxyCreationContext.setCurrentProxiedBeanName(beanName);
  4.     List var4;
  5.     try {
  6.         // 关键
  7.         var4 = AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
  8.     } finally {
  9.         ProxyCreationContext.setCurrentProxiedBeanName((String)null);
  10.     }
  12.     return var4;
  13. }

调用Advisor中的pointCut，中的matches方法，进行切面的匹配

  1. public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
  2.         if (advisor instanceof IntroductionAdvisor) {
  3.             return ((IntroductionAdvisor)advisor).getClassFilter().matches(targetClass);
  4.         } else if (advisor instanceof PointcutAdvisor) {
  5.             PointcutAdvisor pca = (PointcutAdvisor)advisor;
  6.             return canApply(pca.getPointcut(), targetClass, hasIntroductions);
  7.         } else {
  8.             return true;
  9.         }
  10.     }

所以，事务的切面匹配，也是这套流程，在 BeanFactoryTransactionAttributeSourceAdvisor，内部的pointCut类型为 TransactionAttributeSourcePointcut。

TransactionAttributeSourcePointcut#matches方法

  1. public boolean matches(Method method, Class<?> targetClass) {
  2.     // 获取到的事务属性源，默认是 AnnotationTransactionAttributeSource
  3.     TransactionAttributeSource tas = this.getTransactionAttributeSource();
  4.     return tas == null || tas.getTransactionAttribute(method, targetClass) != null;
  5. }

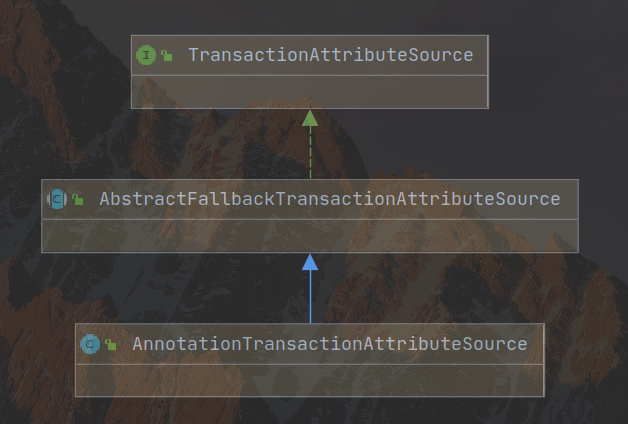

AnnotationTransactionAttributeSource的继承图谱
所以，调用的getTransactionAttribute方法为 org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource中的getTransactionAttribute。(这里，就是最关键的Transactional的解析)

  1. @Nullable
  2. public TransactionAttribute getTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
  3.     // 判断是不是Object类型，是的话，直接走
  4.     if (method.getDeclaringClass() == Object.class) {
  5.         return null;
  6.     } else {
  8.         Object cacheKey = this.getCacheKey(method, targetClass);
  9.         TransactionAttribute cached = (TransactionAttribute)this.attributeCache.get(cacheKey);
  10.         if (cached != null) {
  11.             return cached == NULL_TRANSACTION_ATTRIBUTE ? null : cached;
  12.         } else {
  13.             // 查找@Transactional注解
  14.             TransactionAttribute txAttr = this.computeTransactionAttribute(method, targetClass);
  15.             // 找不到，放入一个默认的TransactionAttribute
  16.             if (txAttr == null) {
  17.                 this.attributeCache.put(cacheKey, NULL_TRANSACTION_ATTRIBUTE);
  18.             } else {
  19.                 String methodIdentification = ClassUtils.getQualifiedMethodName(method, targetClass);
  20.                 if (txAttr instanceof DefaultTransactionAttribute) {
  21.                     ((DefaultTransactionAttribute)txAttr).setDescriptor(methodIdentification);
  22.                 }
  24.                 if (this.logger.isTraceEnabled()) {
  25.                     this.logger.trace("Adding transactional method '" + methodIdentification + "' with attribute: " + txAttr);
  26.                 }
  28.                 this.attributeCache.put(cacheKey, txAttr);
  29.             }
  31.             return txAttr;
  32.         }
  33.     }
  34. }

最关键的代码

  1. @Nullable
  2. protected TransactionAttribute computeTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
  3.     // 判断这个方法是不是public的，如果不是，调用不了，走了
  4.     if (this.allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
  5.         return null;
  6.     } else {
  7.         Method specificMethod = AopUtils.getMostSpecificMethod(method, targetClass);
  8.         // 第一步，找目标类，看有没有注解，有了直接返回
  9.         TransactionAttribute txAttr = this.findTransactionAttribute(specificMethod);
  10.         if (txAttr != null) {
  11.             return txAttr;
  12.         } else {
  13.             // 如果目标类没有，找实现类
  14.             txAttr = this.findTransactionAttribute(specificMethod.getDeclaringClass());
  15.             if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
  16.                 return txAttr;
  17.             } else {
  18.                 if (specificMethod != method) {
  19.                     // 找实现类的接口方法
  20.                     txAttr = this.findTransactionAttribute(method);
  21.                     if (txAttr != null) {
  22.                         return txAttr;
  23.                     }
  24.                     // 找实现类的接口上
  25.                     txAttr = this.findTransactionAttribute(method.getDeclaringClass());
  26.                     if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
  27.                         return txAttr;
  28.                     }
  29.                 }
  31.                 return null;
  32.             }
  33.         }
  34.     }
  35. }
