目录
几个基础概念
索引的作用
索引种类
索引为何不可用
索引原则与误区
执行计划
测试案例
几个基础概念
用户
api@’192.168.1.1’
api@’192.168.1.%’
api@’%’
权限
应用程序:增删改查
用户:只读->从库
其他操作:自动化运维平台
索引的作用
提高查询效率
消除数据分组/排序
避免”回表”查询
优化聚合查询
用于多表JOIN关联查询
利用唯一性约束,保证数据唯一性
InnoDB行锁实现
增加I/O成本
增加磁盘空间
不适合的索引,或索引过多,都不是好事
索引种类
BTREE,InnoDB & MyISAM
Fractal TREE,TokuDB
HASH HEAP NDB InnoDB AHI
RTREE
FULLTEXT
索引讲解
聚集索引
主键索引
唯一索引
联合索引
覆盖索引
前缀索引

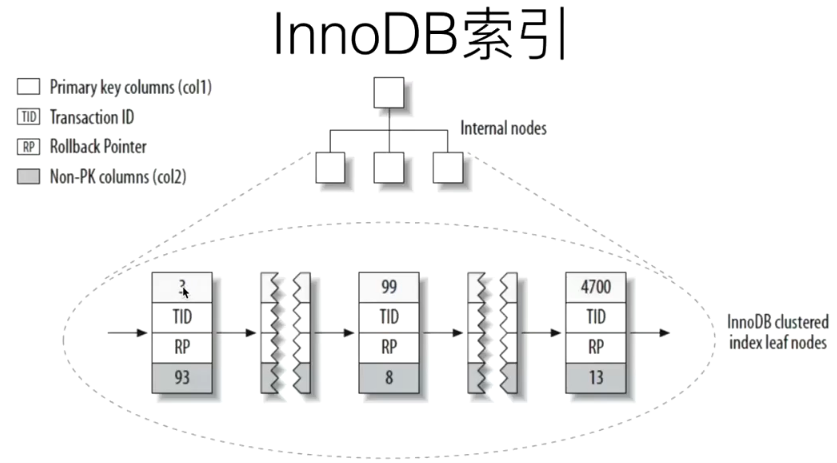

聚集索引
聚集索引是一种特殊的索引,该索引中键值的逻辑顺序决定了表数据行的物理顺序;
每张表只能建一个聚集索引,除了TokuDB引擎;
InnoDB中,聚集索引即表,表即聚集索引;
MyISAM没有聚集索引的概念
- 聚集索引优先选择列
INT/BIGINT;
数据连续(单调顺序)递增/自增;
- 不建议的聚集索引
修改频繁的列;
新增数据太过离散随机;
- InnoDB聚集索引选择次序原则
显示声明的主键;
第一个NOT NULL的唯一索引
ROWID(实例级,6bytes)
创建测试表1(显示指定主键)
mysql> create table t(id int auto_increment,name varchar(10),primary key(id));
Query OK, 0 rows affected (0.02 sec)
TABLE: name test/t, id 23, flags 1, columns 5, indexes 2, appr.rows 0
COLUMNS: id: DATA_INT DATA_BINARY_TYPE DATA_NOT_NULL len 4; name: DATA_VARMYSQL len 30; DB_ROW_ID: DATA_SYS prtype 256 len 6; DB_TRX_ID: DATA_SYS prtype 257 len 6; DB_ROLL_PTR: DATA_SYS prtype 258 len 7;
INDEX: name PRIMARY, id 25, fields 1/4, uniq 1, type 3
root page 3, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: id DB_TRX_ID DB_ROLL_PTR name
INDEX: name idx_name, id 26, fields 1/2, uniq 2, type 0
root page 4, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: name id
从上面可以看到InnoDB选择了主键id作为唯一索引,而索引idx_name为普通索引
创建测试表2(不指定主键且指定一个非空唯一索引)
mysql> create table t1(id int ,name varchar(10) not null,unique key idx_name(name));
Query OK, 0 rows affected (0.01 sec)
TABLE: name test/t1, id 25, flags 1, columns 5, indexes 1, appr.rows 0
COLUMNS: id: DATA_INT DATA_BINARY_TYPE len 4; name: DATA_VARMYSQL DATA_NOT_NULL len 30; DB_ROW_ID: DATA_SYS prtype 256 len 6; DB_TRX_ID: DATA_SYS prtype 257 len 6; DB_ROLL_PTR: DATA_SYS prtype 258 len 7;
INDEX: name idx_name, id 29, fields 1/4, uniq 1, type 3
root page 3, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: name DB_TRX_ID DB_ROLL_PTR id
从日志看到,聚集索引选择的是idx_name
创建测试表3(不指定主键也无非空唯一索引)
mysql> create table t2(id int ,name varchar(10),key idx_name(name));
Query OK, 0 rows affected (0.02 sec)
TABLE: name test/t2, id 26, flags 1, columns 5, indexes 2, appr.rows 0
COLUMNS: id: DATA_INT DATA_BINARY_TYPE len 4; name: DATA_VARMYSQL len 30; DB_ROW_ID: DATA_SYS prtype 256 len 6; DB_TRX_ID: DATA_SYS prtype 257 len 6; DB_ROLL_PTR: DATA_SYS prtype 258 len 7;
INDEX: name GEN_CLUST_INDEX, id 30, fields 0/5, uniq 1, type 1
root page 3, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: DB_ROW_ID DB_TRX_ID DB_ROLL_PTR id name
INDEX: name idx_name, id 31, fields 1/2, uniq 2, type 0
root page 4, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: name DB_ROW_ID
从日志可以看出,InnoDB选择的是rowid作为聚集索引
创建测试表4(包含以上三种索引)
mysql> create table t3(id int auto_increment,name1 varchar(10) not null,name2 varchar(10),primary key(id),unique key idx_name1(name1),key idx_name2(name2));
Query OK, 0 rows affected (0.02 sec)
TABLE: name test/t3, id 27, flags 1, columns 6, indexes 3, appr.rows 0
COLUMNS: id: DATA_INT DATA_BINARY_TYPE DATA_NOT_NULL len 4; name1: DATA_VARMYSQL DATA_NOT_NULL len 30; name2: DATA_VARMYSQL len 30; DB_ROW_ID: DATA_SYS prtype 256 len 6; DB_TRX_ID: DATA_SYS prtype 257 len 6; DB_ROLL_PTR: DATA_SYS prtype 258 len 7;
INDEX: name PRIMARY, id 32, fields 1/5, uniq 1, type 3
root page 3, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: id DB_TRX_ID DB_ROLL_PTR name1 name2
INDEX: name idx_name1, id 33, fields 1/2, uniq 1, type 2
root page 4, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: name1 id
INDEX: name idx_name2, id 34, fields 1/2, uniq 2, type 0
root page 5, appr.key vals 0, leaf pages 1, size pages 1
FIELDS: name2 id
从日志看出,InnoDB还是选择的是主键作为聚集索引
主键索引
主键由表中一个或多个字段组成,它的值用于唯一地标识表中的某一条记录;
在表引用中,主键在一个表中引用来自于另一个表中的特定记录(外键foreign key应用);
保证数据的完整性;
加快数据的操作速度;
主键值不能重复,也不能包含NULL;
- 主键选择建议
对业务透明,无意义,免受业务变化的影响;
很少修改和删除
最好是自增;
不要具有动态属性,例如随机值;
- 糟糕的主键选择:
UUID
char/varchar

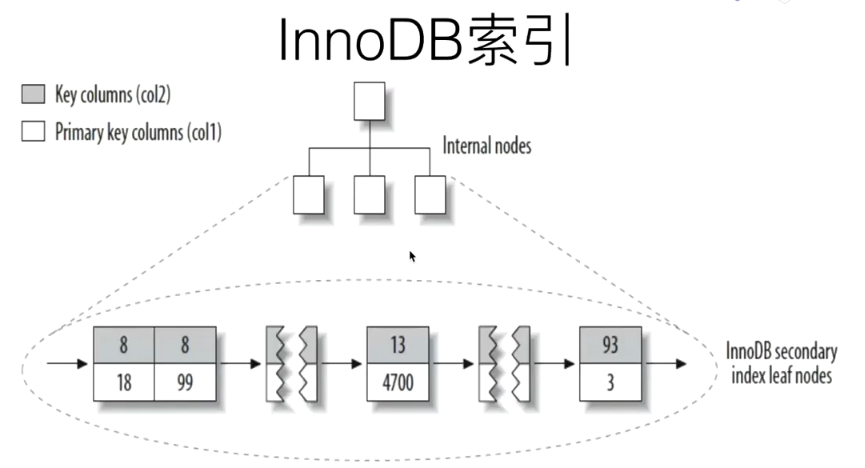

辅助索引
非聚集索引,或者二级索引,俗称普通索引
当通过InnoDB辅助索引来查找数据的时候,辅助索引会通过页级的指针来找到主键索引的主键,然后通过该主键索引找到相应的行数据
索引定义时,不管有无显示包含主键,实际都会存储主键值;
在5.6.9后,优化器已能自动识别索引末尾的主键值(Index Extensions),在这之前则需要显式加上主键列才可以被识别;
WHERE c1 = ? AND PK = ?
WHERE c1 = ? ORDER BY PK
唯一索引
不允许具有索引值相同的行,从而禁止重复的索引或键值
在唯一约束上,和主键一样(以MyISAM引擎为代表)
其他不同的方面:
唯一索引允许有空值(NULL)
一个表只能有一个主键,但可以有多个唯一索引
InnoDB表中主键必须是聚集索引,但聚集索引可能不是主键
唯一索引约束可临时禁用,但主键不能
联合索引
多列组成,所以也叫多列索引
适合WHERE条件中的多列组合
有时候,还可以用于避免回表(覆盖索引)
MySQL还不支持多列不同的排序规则(MySQL 8.0起支持)
联合索引建议
A.WHERE条件中,经常同时出现的列放在联合索引中
B.把选择性(过滤性/基数)大的列放在联合索引的最左边
如果第一列是范围查询,就无法用到后面的列了,可以利用ICP的特性
覆盖索引就是只要利用索引数就可以得到所有的数据了
示例
root@localhost [xucl]>show create table test\G
*************************** 1. row ***************************
Table: test
Create Table: CREATE TABLE `test` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`a` varchar(10) DEFAULT NULL,
`b` varchar(10) DEFAULT NULL,
`c` varchar(10) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `idx_a_b_c` (`a`,`b`,`c`)
) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
root@localhost [xucl]>explain select * from test where a='a';
+----+-------------+-------+------------+------+---------------+-----------+---------+-------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-----------+---------+-------+------+----------+-------------+
| 1 | SIMPLE | test | NULL | ref | idx_a_b_c | idx_a_b_c | 33 | const | 5 | 100.00 | Using index |
+----+-------------+-------+------------+------+---------------+-----------+---------+-------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
root@localhost [xucl]>explain select * from test where a='a' and b='b';
+----+-------------+-------+------------+------+---------------+-----------+---------+-------------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-----------+---------+-------------+------+----------+-------------+
| 1 | SIMPLE | test | NULL | ref | idx_a_b_c | idx_a_b_c | 66 | const,const | 2 | 100.00 | Using index |
+----+-------------+-------+------------+------+---------------+-----------+---------+-------------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
root@localhost [xucl]>explain select * from test where a='a' and b='b' and c='c';
+----+-------------+-------+------------+------+---------------+-----------+---------+-------------------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-----------+---------+-------------------+------+----------+-------------+
| 1 | SIMPLE | test | NULL | ref | idx_a_b_c | idx_a_b_c | 99 | const,const,const | 1 | 100.00 | Using index |
+----+-------------+-------+------------+------+---------------+-----------+---------+-------------------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
覆盖索引
选择的列+where就可以覆盖索引
执行计划里面type=index,表示full index scan,
extra中显示using index表示覆盖索引
示例
root@localhost [xucl]>create table tx(
-> id int(11) not null auto_increment comment '记录ID',
-> shid int(11) not null comment '商店ID',
-> gid int(11) not null comment '物品ID',
-> type tinyint(11) not null comment '支付方式',
-> price int(11) not null comment '物品价格',
-> comment varchar(200) not null comment '备注',
-> primary key(id),
-> unique key uk_shid_gid(shid,gid),
-> key idx_price(price),
-> key idx_type(type)
-> )engine=innodb auto_increment=1 default charset=utf8;
Query OK, 0 rows affected (0.01 sec)
root@localhost [xucl]>explain select id,shid,gid from tx order by shid,gid;
+----+-------------+-------+------------+-------+---------------+-------------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-------------+---------+------+------+----------+-------------+
| 1 | SIMPLE | tx | NULL | index | NULL | uk_shid_gid | 8 | NULL | 1 | 100.00 | Using index |
+----+-------------+-------+------------+-------+---------------+-------------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
前缀索引
- 部分索引的原因
A.char/varchar太长全部做索引的话,效率太差,存在浪费
B.或者blob/text类型不能整列作为索引列,因此需要使用前缀索引
- 部分索引选择建议
A.统计平均值
B.满足80%~90%覆盖度就够
- 缺点
无法利用前缀索引完成排序
示例1
root@localhost [xucl]>create table t_text(id int auto_increment primary key,url text);
Query OK, 0 rows affected (0.02 sec)
root@localhost [xucl]>select * from t_text\G
*************************** 1. row ***************************
id: 1
url: http://www.seomofo.com/experiments/title-and-h1-of-this-post-but-for-the-sake-of-keyword-prominence-stuffing-im-going-to-mention-it-again-using-various-synonyms-stemmed-variations-and-of-coursea-big-fat-prominent-font-size-heres-the-stumper-that-stumped-me-what-is-the-max-number-of-chars-in-a-url-that-google-is-willing-to-crawl-and-index-for-whatever-reason-i-thought-i-had-read-somewhere-that-googles-limit-on-urls-was-255-characters-but-that-turned-out-to-be-wrong-so-maybe-i-just-made-that-number-up-the-best-answer-i-could-find-was-this-quote-from-googles-webmaster-trends-analyst-john-mueller-we-can-certainly-crawl-and-index-urls-over-1000-characters-long-but-that-doesnt-mean-that-its-a-good-practice-the-setup-for-this-experiment-is-going-to-be-pretty-simple-im-going-to-edit-the-permalink-of-this-post-to-be-really-really-long-then-im-going-to-see-if-google-indexes-it-i-might-even-see-if-yahoo-and-bing-index-iteven-though-no-one-really-cares-what-those-assholes-are-doing-url-character-limits-unrelated-to-google-the-question-now-is-how-many-characters-should-i-make-the-url-of-this-post-there-are-a-couple-of-sources-ill-reference-to-help-me-make-this-decision-the-first-is-this-quote-from-the-microsoft-support-pages-microsoft-internet-explorer-has-a-maximum-uniform-resource-locator-url-length-of-2083-characters-internet-explorer-also-has-a-maximum-path-length-of-2048-characters-this-limit-applies-to-both-post-request-and-get-request-urls-the-second-source-ill-cite-is-the-http-11-protocol-which-says-the-http-protocol-does-not-place-any-a-priori-limit-on-the-length-of-a-uri-servers-must-be-able-to-handle-the-uri-of-any-resource-they-serve-and-should-be-able-to-handle-uris-of-unbounded-length-if-they-provide-get-based-forms-that-could-generate-such-uris-a-server-should-return-414-request-uri-too-long-status-if-a-uri-is-longer.html
1 row in set (0.00 sec)
root@localhost [xucl]>select length(url) from t_text;
+-------------+
| length(url) |
+-------------+
| 1855 |
+-------------+
1 row in set (0.00 sec)
root@localhost [xucl]>create index idx_url on t_text(url);
ERROR 1170 (42000): BLOB/TEXT column 'url' used in key specification without a key length
root@localhost [xucl]>create index idx_url on t_text(url(255));
Query OK, 0 rows affected (0.03 sec)
Records: 0 Duplicates: 0 Warnings: 0
root@localhost [xucl]>show index from t_text;
+--------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| Table | Non_unique | Key_name | Seq_in_index | Column_name | Collation | Cardinality | Sub_part | Packed | Null | Index_type | Comment | Index_comment |
+--------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| t_text | 0 | PRIMARY | 1 | id | A | 1 | NULL | NULL | | BTREE | | |
| t_text | 1 | idx_url | 1 | url | A | 1 | 255 | NULL | YES | BTREE | | |
+--------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
2 rows in set (0.00 sec)
示例2
root@localhost [xucl]>create table t_varchar(id int auto_increment primary key,url varchar(4000));
Query OK, 0 rows affected (0.02 sec)
root@localhost [xucl]>create index idx_url on t_varchar(url);
ERROR 1071 (42000): Specified key was too long; max key length is 3072 bytes
root@localhost [xucl]>create index idx_url on t_varchar(url(1000));
Query OK, 0 rows affected (0.03 sec)
Records: 0 Duplicates: 0 Warnings: 0
root@localhost [xucl]>explain select * from t_varchar where url like 'http%';
+----+-------------+-----------+------------+-------+---------------+---------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-----------+------------+-------+---------------+---------+---------+------+------+----------+-------------+
| 1 | SIMPLE | t_varchar | NULL | range | idx_url | idx_url | 3003 | NULL | 1 | 100.00 | Using where |
+----+-------------+-----------+------------+-------+---------------+---------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
索引最大长度767bytes
启用innodb_large_prefix,增加到3072bytes,只针对DYNAMIC、COMPRESSED格式管用
对于REDUNDANT、COMPACT格式,最大索引长度还是767bytes
MyISAM表索引最大长度是1000bytes
最大默认排序长度1024bytes
索引为何不可用
通过索引扫描的记录数超过20%-30%,可能会变成全表扫描
联合索引中,第一个查询条件不是最左索引列
模糊查询条件最左以通配符%开始
多表关联时,排序字段不属于驱动表,无法利用索引完成排序
JOIN查询时,关联数据类型(字符集)不一致也会导致索引不可用
索引原则与误区
原则1:单表索引数不要超过5个
root@localhost [xucl]>show create table wcmchnldoc\G
*************************** 1. row ***************************
Table: wcmchnldoc
Create Table: CREATE TABLE `wcmchnldoc` (
`CHNLID` int(11) NOT NULL,
`DOCID` int(11) NOT NULL,
`DOCORDER` int(11) NOT NULL DEFAULT '0',
`DOCSTATUS` int(11) NOT NULL DEFAULT '0',
`CRUSER` varchar(100) NOT NULL DEFAULT 'admin',
....
PRIMARY KEY (`RECID`),
KEY `IX_WCMCHNLDOC_CHNL_DOC` (`CHNLID`,`DOCID`) USING BTREE,
KEY `IX_WCMCHNLDOC_CHNL_ORDER` (`CHNLID`,`DOCORDER`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRDEPT` (`CRDEPT`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRTIMEUDSCSDF` (`CRTIME`,`CRUSER`,`DOCSTATUS`,`CHNLID`,`SITEID`,`DOCFORM`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRTIMEUDSCSDO` (`CRTIME`,`CRUSER`,`DOCSTATUS`,`CHNLID`,`SITEID`,`DOCOUTUPID`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRTIMEUDSCSM` (`CRTIME`,`CRUSER`,`DOCSTATUS`,`CHNLID`,`SITEID`,`MODAL`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRUSER` (`CRUSER`) USING BTREE,
KEY `IX_WCMCHNLDOC_DOCFIRSTPUBTIME` (`DOCFIRSTPUBTIME`) USING BTREE,
KEY `IX_WCMCHNLDOC_DOCTYPE` (`DOCTYPE`) USING BTREE,
KEY `IX_WCMCHNLDOC_DOCID_MODAL` (`DOCID`,`MODAL`) USING BTREE,
KEY `IX_WCMChnlDoc_OriginDocId_SiteId_CrTime` (`OriginDocId`,`SITEID`,`CRTIME`) USING BTREE,
KEY `IX_WCMChnlDoc_SiteId_OriginDocId` (`SITEID`,`OriginDocId`) USING BTREE,
KEY `IX_WCMChnlDoc_CrUserStatus` (`DOCKIND`,`CRUSER`,`DOCSTATUS`),
KEY `IX_WCMChnlDoc_SiteIdStatus` (`DOCKIND`,`SITEID`,`DOCSTATUS`),
KEY `IX_WCMChnlDoc_PubTimeChnlStatus` (`DOCKIND`,`DOCPUBTIME`,`CHNLID`,`DOCSTATUS`),
KEY `IX_WCMChnlDoc_CrUserSiteStatus` (`DOCKIND`,`CRUSER`,`SITEID`,`DOCSTATUS`),
KEY `idx_DocId_SrcMetaDataId` (`DOCID`,`SrcMetaDataId`),
KEY `idx_SrcMetaDataId` (`SrcMetaDataId`),
KEY `idx_doc_chl_sta_pub` (`DOCKIND`,`CHNLID`,`DOCSTATUS`,`ISTIMINGPUBLISH`,`OPERTIME`),
KEY `idx_chnlid_docstatus_dockind_docpubtime` (`CHNLID`,`DOCSTATUS`,`DOCKIND`,`DOCPUBTIME`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8
root@localhost [xucl]>show create table wcmchnldoc\G
*************************** 1. row ***************************
Table: wcmchnldoc
Create Table: CREATE TABLE `wcmchnldoc` (
`CHNLID` int(11) NOT NULL,
`DOCID` int(11) NOT NULL,
`DOCORDER` int(11) NOT NULL DEFAULT '0',
`DOCSTATUS` int(11) NOT NULL DEFAULT '0',
`CRUSER` varchar(100) NOT NULL DEFAULT 'admin',
`CRTIME` datetime DEFAULT NULL,
....
PRIMARY KEY (`id`),
UNIQUE KEY `uk_recid` (`RECID`),
KEY `idx_docpuburl_doctype` (`DOCPUBURL`,`DOCTYPE`)
) ENGINE=InnoDB AUTO_INCREMENT=7824427 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
大小对比
MariaDB [information_schema]> select (sum(DATA_LENGTH)+sum(INDEX_LENGTH))/1024/1024/1024 from tables where table_name = 'wcmchnldoc';
+-----------------------------------------------------+
| (sum(DATA_LENGTH)+sum(INDEX_LENGTH))/1024/1024/1024 |
+-----------------------------------------------------+
| 7.618774414063 |
+-----------------------------------------------------+
1 row in set (0.02 sec)
root@localhost [xucl]>select (sum(DATA_LENGTH)+sum(INDEX_LENGTH))/1024/1024/1024 from information_schema.tables where table_name = 'wcmchnldoc';
+-----------------------------------------------------+
| (sum(DATA_LENGTH)+sum(INDEX_LENGTH))/1024/1024/1024 |
+-----------------------------------------------------+
| 1.877914428711 |
+-----------------------------------------------------+
1 row in set (0.00 sec)
数据导入对比
root@localhost [xucl]>load data infile '/tmp/wcmchnldoc' into table wcmchnldoc;
Query OK, 1000000 rows affected (2 min 20.64 sec)
Records: 1000000 Deleted: 0 Skipped: 0 Warnings: 0
root@localhost [xucl]>load data infile '/tmp/wcmchnldoc' into table wcmchnldoc;
Query OK, 1000000 rows affected (23.89 sec)
Records: 1000000 Deleted: 0 Skipped: 0 Warnings: 0
原则2:单个索引列不要超过5个
原则3:多列索引满足最左匹配原则
原则4:区分度高的列放在索引的左边
root@localhost [xucl]>show create table ttt\G
*************************** 1. row ***************************
Table: ttt
Create Table: CREATE TABLE `ttt` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`status` int(11) DEFAULT NULL,
`chnnel_id` int(11) DEFAULT NULL,
`docid` int(11) DEFAULT NULL,
`remark` varchar(100) DEFAULT '',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_docid` (`docid`),
KEY `idx_status_chnnel_docid` (`status`,`chnnel_id`,`docid`)
) ENGINE=InnoDB AUTO_INCREMENT=19 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
root@localhost [xucl]>select * from ttt;
+-----+--------+-----------+-------+--------+
| id | status | chnnel_id | docid | remark |
+-----+--------+-----------+-------+--------+
| 19 | 1 | 1 | 120 | |
| 20 | 1 | 1 | 121 | |
| 21 | 1 | 2 | 122 | |
| 22 | 1 | 2 | 123 | |
| 23 | 0 | 3 | 124 | |
| 24 | 0 | 3 | 125 | |
| 25 | 0 | 4 | 126 | |
| 26 | 0 | 5 | 127 | |
|
...
| 99 | 1 | 1 | 201 | |
| 100 | 1 | 1 | 202 | |
| 101 | 1 | 2 | 203 | |
| 102 | 1 | 2 | 204 | |
| 103 | 0 | 3 | 205 | |
| 104 | 0 | 3 | 206 | |
| 105 | 0 | 4 | 207 | |
| 106 | 0 | 5 | 208 | |
| 107 | 1 | 1 | 209 | |
| 108 | 1 | 1 | 210 | |
| 109 | 1 | 2 | 211 | |
| 110 | 1 | 2 | 212 | |
| 111 | 0 | 3 | 213 | |
| 112 | 0 | 3 | 214 | |
| 113 | 0 | 4 | 215 | |
| 114 | 0 | 5 | 216 | |
| 115 | 1 | 1 | 217 | |
| 116 | 1 | 1 | 218 | |
| 117 | 1 | 2 | 219 | |
| 118 | 1 | 2 | 220 | |
| 119 | 0 | 3 | 221 | |
| 120 | 0 | 3 | 222 | |
| 121 | 0 | 4 | 223 | |
| 122 | 0 | 5 | 224 | |
+-----+--------+-----------+-------+--------+
103 rows in set (0.00 sec)
root@localhost [xucl]>select count(distinct(status))/count(*),count(distinct(chnnel_id))/count(*),count(distinct(docid))/count(*) from ttt;
+----------------------------------+-------------------------------------+---------------------------------+
| count(distinct(status))/count(*) | count(distinct(chnnel_id))/count(*) | count(distinct(docid))/count(*) |
+----------------------------------+-------------------------------------+---------------------------------+
| 0.0194 | 0.0485 | 1.0000 |
+----------------------------------+-------------------------------------+---------------------------------+
1 row in set (0.00 sec)
root@localhost [xucl]>explain select * from ttt where status=1 and chnnel_id=2 and docid in (120,121,122,130);
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | ttt | NULL | ALL | NULL | NULL | NULL | NULL | 8 | 12.50 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
root@localhost [xucl]>create index idx_status_chnnel_docid on ttt(status,chnnel_id,docid);
Query OK, 0 rows affected (0.02 sec)
Records: 0 Duplicates: 0 Warnings: 0
root@localhost [xucl]>show index from ttt;
+-------+------------+-------------------------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| Table | Non_unique | Key_name | Seq_in_index | Column_name | Collation | Cardinality | Sub_part | Packed | Null | Index_type | Comment | Index_comment |
+-------+------------+-------------------------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| ttt | 0 | PRIMARY | 1 | id | A | 8 | NULL | NULL | | BTREE | | |
| ttt | 0 | uk_docid | 1 | docid | A | 8 | NULL | NULL | YES | BTREE | | |
| ttt | 1 | idx_status_chnnel_docid | 1 | status | A | 2 | NULL | NULL | YES | BTREE | | |
| ttt | 1 | idx_status_chnnel_docid | 2 | chnnel_id | A | 5 | NULL | NULL | YES | BTREE | | |
| ttt | 1 | idx_status_chnnel_docid | 3 | docid | A | 8 | NULL | NULL | YES | BTREE | | |
+-------+------------+-------------------------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
5 rows in set (0.00 sec)
root@localhost [xucl]>explain select * from ttt where status=1 and chnnel_id=2 and docid in (120,121,122,130);
+----+-------------+-------+------------+-------+----------------------------------+-------------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+----------------------------------+-------------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | ttt | NULL | range | uk_docid,idx_status_chnnel_docid | idx_status_chnnel_docid | 15 | NULL | 4 | 100.00 | Using index condition |
+----+-------------+-------+------------+-------+----------------------------------+-------------------------+---------+------+------+----------+-----------------------+
1 row in set, 1 warning (0.00 sec)
#假如有如下SQL如何能够利用到该索引呢?
root@localhost [xucl]>explain select * from ttt where chnnel_id=2 and docid in (120,121,122,130);
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | ttt | NULL | ALL | NULL | NULL | NULL | NULL | 103 | 4.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
root@localhost [xucl]>explain select * from ttt where status in (0,1) and chnnel_id=2 and docid in (120,121,122,130);
+----+-------------+-------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | ttt | NULL | range | idx_status_chnnel_docid | idx_status_chnnel_docid | 15 | NULL | 8 | 100.00 | Using index condition |
+----+-------------+-------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+-----------------------+
1 row in set, 1 warning (0.00 sec)
原则5:default ‘’与default null
误区1:谓词’!=’无法用到索引
root@localhost [xucl]>show create table test\G
*************************** 1. row ***************************
Table: test
Create Table: CREATE TABLE `test` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`a` varchar(10) DEFAULT NULL,
`b` varchar(10) DEFAULT NULL,
`c` varchar(10) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `idx_a_b_c` (`a`,`b`,`c`)
) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
root@localhost [xucl]>select * from test where a is not null;
+----+------+------+------+
| id | a | b | c |
+----+------+------+------+
| 2 | a | a | |
| 3 | a | a | d |
| 1 | a | b | c |
| 4 | a | b | d |
| 5 | a | e | d |
| 6 | b | e | d |
| 7 | e | e | d |
| 8 | g | e | d |
| 9 | h | e | d |
| 10 | h | i | d |
+----+------+------+------+
10 rows in set (0.00 sec)
root@localhost [xucl]>desc select * from test where a !='a';
+----+-------------+-------+------------+-------+---------------+-----------+---------+------+------+----------+--------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-----------+---------+------+------+----------+--------------------------+
| 1 | SIMPLE | test | NULL | range | idx_a_b_c | idx_a_b_c | 33 | NULL | 6 | 100.00 | Using where; Using index |
+----+-------------+-------+------------+-------+---------------+-----------+---------+------+------+----------+--------------------------+
1 row in set, 1 warning (0.00 sec)
误区2:谓词’is not null’无法用到索引
root@localhost [xucl]>desc select * from test where a is not null;
+----+-------------+-------+------------+-------+---------------+-----------+---------+------+------+----------+--------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-----------+---------+------+------+----------+--------------------------+
| 1 | SIMPLE | test | NULL | index | idx_a_b_c | idx_a_b_c | 99 | NULL | 10 | 100.00 | Using where; Using index |
+----+-------------+-------+------------+-------+---------------+-----------+---------+------+------+----------+--------------------------+
1 row in set, 1 warning (0.00 sec)
执行计划
示例
root@localhost [xucl]>explain SELECT wcmchnldoc0_.recid AS recid1_1_, wcmchnldoc0_.chnlid AS chnlid2_1_, wcmchnldoc0_.docfirstpubtime AS docfirst3_1_, wcmchnldoc0_.docid AS docid4_1_, wcmchnldoc0_.docpubtime AS docpubti5_1_, wcmchnldoc0_.docpuburl AS docpubur6_1_, wcmchnldoc0_.doctype AS doctype7_1_, wcmchnldoc0_.modal AS modal8_1_ FROM wcmchnldoc wcmchnldoc0_ WHHERE wcmchnldoc0_.docpuburl = 'http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml' AND wcmchnldoc0_.doctype <> 4;
+----+-------------+--------------+------------+------+---------------+------+---------+------+---------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------------+------------+------+---------------+------+---------+------+---------+----------+-------------+
| 1 | SIMPLE | wcmchnldoc0_ | NULL | ALL | NULL | NULL | NULL | NULL | 7531425 | 9.00 | Using where |
+----+-------------+--------------+------------+------+---------------+------+---------+------+---------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
注意事项
type:all全表扫描,最糟糕的情况;index全索引扫描,大部分情况下一样糟糕
key_len计算规则
正常地,等于索引列字节长度
字符串类型需要同时考虑字符集因素
若允许NULL再+1
变长类型(VARCHAR),再+2
key_len只计算利用索引完成数据过滤时的索引长度
不包括用于GROUP BY/ORDER BY的索引的长度
extra说明:
Using filesort
没有办法利用现有索引进行排序,需要额外排序
建议:根据排序需要,创建相应合适的索引
Using index
- 利用覆盖索引,无需回表即可取得结果数据
Using temporary
- 需要用临时表存储结果集,通常是因为group by的列上没有索引也有可能是因为同时有group by和order by,但group by和order by的列又不一样
优化案例
案例1(hash)
root@localhost [xucl]>show create table wcmchnldoc\G
*************************** 1. row ***************************
Table: wcmchnldoc
Create Table: CREATE TABLE `wcmchnldoc` (
`CHNLID` int(11) NOT NULL,
`DOCID` int(11) NOT NULL,
`DOCORDER` int(11) NOT NULL DEFAULT '0',
`DOCSTATUS` int(11) NOT NULL DEFAULT '0',
`CRUSER` varchar(100) NOT NULL DEFAULT 'admin',
`CRTIME` datetime DEFAULT NULL,
`DOCPUBTIME` datetime DEFAULT NULL,
`DOCPUBURL` varchar(300) DEFAULT NULL,
`RECID` int(11) NOT NULL,
`DOCORDERPRI` int(11) NOT NULL DEFAULT '0',
`INVALIDTIME` datetime DEFAULT NULL,
`OPERUSER` varchar(50) DEFAULT NULL,
`OPERTIME` datetime DEFAULT NULL,
`MODAL` int(11) DEFAULT '1',
`DOCRELTIME` datetime DEFAULT NULL,
`DOCCHANNEL` int(11) DEFAULT NULL,
`DOCFLAG` int(11) DEFAULT NULL,
`DOCKIND` int(11) DEFAULT '0',
`SITEID` int(11) NOT NULL DEFAULT '0',
`SRCSITEID` int(11) NOT NULL DEFAULT '0',
`DOCFIRSTPUBTIME` datetime DEFAULT NULL,
`NODEID` int(11) DEFAULT '0',
`CRDEPT` varchar(200) DEFAULT NULL,
`DOCOUTUPID` int(11) DEFAULT '0',
`DOCFORM` int(11) DEFAULT '0',
`DOCLEVEL` int(11) DEFAULT NULL,
`attachpic` smallint(6) DEFAULT NULL,
`POSCHNLID` int(11) DEFAULT '0',
`ISPUSHTOPCHNL` int(2) DEFAULT '0',
`HIDDEN` int(2) DEFAULT '0',
`DOCTYPE` int(2) DEFAULT '0',
`ISTIMINGPUBLISH` int(2) DEFAULT '0',
`GDORDER` int(2) DEFAULT NULL,
`setTopInfo` varchar(100) DEFAULT NULL,
`OriginDocId` int(9) DEFAULT NULL,
`ATTACHVIDEO` int(2) DEFAULT '0',
`ATTACHAUDIO` int(2) DEFAULT '0',
`SrcMetaDataId` int(11) DEFAULT NULL,
`pubUser` varchar(50) DEFAULT NULL,
`mrsFlag` int(2) DEFAULT NULL,
`timingPubUser` varchar(50) DEFAULT NULL,
`isTransmit` int(2) DEFAULT NULL,
`TIMINGPUBUSERDEPT` varchar(200) DEFAULT NULL,
`PUBUSERDEPT` varchar(200) DEFAULT NULL,
`DocOldStatus` int(11) DEFAULT '0',
`isZhengShen` int(2) DEFAULT '0',
`ClientExamine` int(2) DEFAULT '0',
`srcChannelId` int(11) DEFAULT NULL,
PRIMARY KEY (`RECID`),
KEY `IX_WCMCHNLDOC_CHNL_DOC` (`CHNLID`,`DOCID`) USING BTREE,
KEY `IX_WCMCHNLDOC_CHNL_ORDER` (`CHNLID`,`DOCORDER`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRDEPT` (`CRDEPT`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRTIMEUDSCSDF` (`CRTIME`,`CRUSER`,`DOCSTATUS`,`CHNLID`,`SITEID`,`DOCFORM`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRTIMEUDSCSDO` (`CRTIME`,`CRUSER`,`DOCSTATUS`,`CHNLID`,`SITEID`,`DOCOUTUPID`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRTIMEUDSCSM` (`CRTIME`,`CRUSER`,`DOCSTATUS`,`CHNLID`,`SITEID`,`MODAL`) USING BTREE,
KEY `IX_WCMCHNLDOC_CRUSER` (`CRUSER`) USING BTREE,
KEY `IX_WCMCHNLDOC_DOCFIRSTPUBTIME` (`DOCFIRSTPUBTIME`) USING BTREE,
KEY `IX_WCMCHNLDOC_DOCTYPE` (`DOCTYPE`) USING BTREE,
KEY `IX_WCMCHNLDOC_DOCID_MODAL` (`DOCID`,`MODAL`) USING BTREE,
KEY `IX_WCMChnlDoc_OriginDocId_SiteId_CrTime` (`OriginDocId`,`SITEID`,`CRTIME`) USING BTREE,
KEY `IX_WCMChnlDoc_SiteId_OriginDocId` (`SITEID`,`OriginDocId`) USING BTREE,
KEY `IX_WCMChnlDoc_CrUserStatus` (`DOCKIND`,`CRUSER`,`DOCSTATUS`),
KEY `IX_WCMChnlDoc_SiteIdStatus` (`DOCKIND`,`SITEID`,`DOCSTATUS`),
KEY `IX_WCMChnlDoc_PubTimeChnlStatus` (`DOCKIND`,`DOCPUBTIME`,`CHNLID`,`DOCSTATUS`),
KEY `IX_WCMChnlDoc_CrUserSiteStatus` (`DOCKIND`,`CRUSER`,`SITEID`,`DOCSTATUS`),
KEY `idx_DocId_SrcMetaDataId` (`DOCID`,`SrcMetaDataId`),
KEY `idx_SrcMetaDataId` (`SrcMetaDataId`),
KEY `idx_doc_chl_sta_pub` (`DOCKIND`,`CHNLID`,`DOCSTATUS`,`ISTIMINGPUBLISH`,`OPERTIME`),
KEY `idx_chnlid_docstatus_dockind_docpubtime` (`CHNLID`,`DOCSTATUS`,`DOCKIND`,`DOCPUBTIME`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8
root@localhost [xucl]>SELECT
-> wcmchnldoc0_.recid AS recid1_1_,
-> wcmchnldoc0_.chnlid AS chnlid2_1_,
-> wcmchnldoc0_.docfirstpubtime AS docfirst3_1_,
-> wcmchnldoc0_.docid AS docid4_1_,
-> wcmchnldoc0_.docpubtime AS docpubti5_1_,
-> wcmchnldoc0_.docpuburl AS docpubur6_1_,
-> wcmchnldoc0_.doctype AS doctype7_1_,
-> wcmchnldoc0_.modal AS modal8_1_
-> FROM
-> wcmchnldoc wcmchnldoc0_
-> WHERE
-> wcmchnldoc0_.docpuburl = 'http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml'
-> AND wcmchnldoc0_.doctype <> 4;
+-----------+------------+---------------------+-----------+---------------------+--------------------------------------------------------------------+-------------+-----------+
| recid1_1_ | chnlid2_1_ | docfirst3_1_ | docid4_1_ | docpubti5_1_ | docpubur6_1_ | doctype7_1_ | modal8_1_ |
+-----------+------------+---------------------+-----------+---------------------+--------------------------------------------------------------------+-------------+-----------+
| 8114327 | 4297 | 2018-07-21 20:49:13 | 7834159 | 2018-07-21 20:49:13 | http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml | 2 | 1 |
+-----------+------------+---------------------+-----------+---------------------+--------------------------------------------------------------------+-------------+-----------+
1 row in set (50.47 sec)
root@localhost [xucl]>explain SELECT wcmchnldoc0_.recid AS recid1_1_, wcmchnldoc0_.chnlid AS chnlid2_1_, wcmchnldoc0_.docfirstpubtime AS docfirst3_1_, wcmchnldoc0_.docid AS docid4_1_, wcmchnldoc0_.docpubtime AS docpubti5_1_, wcmchnldoc0_.docpuburl AS docpubur6_1_, wcmchnldoc0_.doctype AS doctype7_1_, wcmchnldoc0_.modal AS modal8_1_ FROM wcmchnldoc wcmchnldoc0_ WHHERE wcmchnldoc0_.docpuburl = 'http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml' AND wcmchnldoc0_.doctype <> 4;
+----+-------------+--------------+------------+------+---------------+------+---------+------+---------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------------+------------+------+---------------+------+---------+------+---------+----------+-------------+
| 1 | SIMPLE | wcmchnldoc0_ | NULL | ALL | NULL | NULL | NULL | NULL | 7531425 | 9.00 | Using where |
+----+-------------+--------------+------------+------+---------------+------+---------+------+---------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
优化1:
root@localhost [xucl]>show create table wcmchnldoc\G
*************************** 1. row ***************************
Table: wcmchnldoc
Create Table: CREATE TABLE `wcmchnldoc` (
`CHNLID` int(11) NOT NULL,
`DOCID` int(11) NOT NULL,
`DOCORDER` int(11) NOT NULL DEFAULT '0',
`DOCSTATUS` int(11) NOT NULL DEFAULT '0',
`CRUSER` varchar(100) NOT NULL DEFAULT 'admin',
`CRTIME` datetime DEFAULT NULL,
`DOCPUBTIME` datetime DEFAULT NULL,
`DOCPUBURL` varchar(300) DEFAULT NULL,
`RECID` int(11) NOT NULL,
`DOCTYPE` int(2) DEFAULT '0',
`id` int(11) NOT NULL AUTO_INCREMENT,
PRIMARY KEY (`id`),
UNIQUE KEY `uk_recid` (`RECID`),
KEY `idx_docpuburl_doctype` (`DOCPUBURL`,`DOCTYPE`)
) ENGINE=InnoDB AUTO_INCREMENT=7824427 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
root@localhost [xucl]>SELECT wcmchnldoc0_.recid AS recid1_1_, wcmchnldoc0_.chnlid AS chnlid2_1_, wcmchnldoc0_.docfirstpubtime AS docfirst3_1_, wcmchnldoc0_.docid AS docid4_1_, wcmchnldoc0_.docpubtime AS docpubti5_1_, wcmchnldoc0_.docpuburl AS docpubur6_1_, wcmchnldoc0_.doctype AS doctype7_1_, wcmchnldoc0_.modal AS modal8_1_ FROM wcmchnldoc wcmchnldoc0_ WHERE wcmchnldoc0_.docpuburl = 'http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml' AND wcmchnldoc0_.doctype <> 4;
+-----------+------------+---------------------+-----------+---------------------+--------------------------------------------------------------------+-------------+-----------+
| recid1_1_ | chnlid2_1_ | docfirst3_1_ | docid4_1_ | docpubti5_1_ | docpubur6_1_ | doctype7_1_ | modal8_1_ |
+-----------+------------+---------------------+-----------+---------------------+--------------------------------------------------------------------+-------------+-----------+
| 8114327 | 4297 | 2018-07-21 20:49:13 | 7834159 | 2018-07-21 20:49:13 | http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml | 2 | 1 |
+-----------+------------+---------------------+-----------+---------------------+--------------------------------------------------------------------+-------------+-----------+
1 row in set (0.00 sec)
优化2:
增加列
docpuburl_crc32
增加索引
idx_crc32
root@localhost [xucl]>show create table wcmchnldoc\G
*************************** 1. row ***************************
Table: wcmchnldoc
Create Table: CREATE TABLE `wcmchnldoc` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`DOCPUBURL` varchar(300) DEFAULT NULL,
`RECID` int(11) NOT NULL,
`DOCORDERPRI` int(11) NOT NULL DEFAULT '0',
`INVALIDTIME` datetime DEFAULT NULL,
`OPERUSER` varchar(50) DEFAULT NULL,
`DOCTYPE` int(2) DEFAULT '0',
`docpuburl_crc32` bigint(20) DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `uk_recid` (`RECID`),
KEY `idx_docpuburl_doctype` (`DOCPUBURL`,`DOCTYPE`),
KEY `idx_crc32` (`docpuburl_crc32`)
) ENGINE=InnoDB AUTO_INCREMENT=7824427 DEFAULT CHARSET=utf8
root@localhost [xucl]>desc SELECT wcmchnldoc0_.recid AS recid1_1_, wcmchnldoc0_.chnlid AS chnlid2_1_, wcmchnldoc0_.docfirstpubtime AS docfirst3_1_, wcmchnldoc0_.docid AS docid4_1_, wcmmchnldoc0_.docpubtime AS docpubti5_1_, wcmchnldoc0_.docpuburl AS docpubur6_1_, wcmchnldoc0_.doctype AS doctype7_1_, wcmchnldoc0_.modal AS modal8_1_ FROM wcmchnldoc wcmchnldoc0_ WHEREE wcmchnldoc0_.docpuburl_crc32 = 466484933 AND wcmchnldoc0_.doctype <> 4;
+----+-------------+--------------+------------+------+---------------+-----------+---------+-------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------------+------------+------+---------------+-----------+---------+-------+------+----------+-------------+
| 1 | SIMPLE | wcmchnldoc0_ | NULL | ref | idx_crc32 | idx_crc32 | 9 | const | 2 | 90.00 | Using where |
+----+-------------+--------------+------------+------+---------------+-----------+---------+-------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
问题点:
hash值重复
解决方法
root@localhost [xucl]>explain SELECT wcmchnldoc0_.recid AS recid1_1_, wcmchnldoc0_.chnlid AS chnlid2_1_, wcmchnldoc0_.docfirstpubtime AS docfirst3_1_, wcmchnldoc0_.docid AS docid4_1_, wcmchnldoc0_.docpubtime AS docpubti5_1_, wcmchnldoc0_.docpuburl AS docpubur6_1_, wcmchnldoc0_.doctype AS doctype7_1_, wcmchnldoc0_.modal AS modal8_1_ FROM wcmchnldoc wcmchnldoc0_ WHHERE wcmchnldoc0_.docpuburl_crc32 = 466484933 AND wcmchnldoc0_.doctype <> 4 AND wcmchnldoc0_.docpuburl = 'http://photo.zjol.com.cn/yuanchuang/201807/t20180721_7834159.shtml';
+----+-------------+--------------+------------+------+---------------------------------+-----------+---------+-------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------------+------------+------+---------------------------------+-----------+---------+-------+------+----------+-------------+
| 1 | SIMPLE | wcmchnldoc0_ | NULL | ref | idx_docpuburl_doctype,idx_crc32 | idx_crc32 | 9 | const | 2 | 2.50 | Using where |
+----+-------------+--------------+------------+------+---------------------------------+-----------+---------+-------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
案例2(索引字段顺序)
MariaDB [trswcmtest]> explain select SITEID,RECID,CHNLID,DOCID,DOCORDER,DOCSTATUS,CRUSER,CRTIME,DOCPUBTIME,DOCPUBURL,DOCORDERPRI,INVALIDTIME,OPERUSER,OPERTIME,MODAL,DOCRELTIME,DOCCHANNEL,DOCFLAG,DOCKIND,'zjrb_mlf',now(),now(),'xuguozheng','xuguozheng' from wcmchnldoc where DOCPUBTIME >= date_add(STR_TO_DATE('2018-08-14', '%Y-%m-%d'), interval -14 day) and DOCPUBTIME <= STR_TO_DATE('2018-08-14', '%Y-%m-%d') and SITEID=198 and DOCSTATUS=10;
+------+-------------+------------+------+----------------------------------+----------------------------------+---------+-------+---------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+------+-------------+------------+------+----------------------------------+----------------------------------+---------+-------+---------+-------------+
| 1 | SIMPLE | wcmchnldoc | ref | IX_WCMChnlDoc_SiteId_OriginDocId | IX_WCMChnlDoc_SiteId_OriginDocId | 4 | const | 2362574 | Using where |
+------+-------------+------------+------+----------------------------------+----------------------------------+---------+-------+---------+-------------+
1 row in set (0.00 sec)
....
| 198 | 8255364 | 12425 | 7966282 | 27419 | 10 | mll | 2018-08-08 06:59:38 | 2018-08-08 07:02:26 | NULL | 0 | NULL | mll | 2018-08-08 07:02:26 | 1 | 2018-08-08 06:59:38 | 12425 | NULL | 6 | zjrb_mlf | 2018-08-14 17:52:12 | 2018-08-14 17:52:12 | xuguozheng | xuguozheng |
Ctrl-C -- query killed. Continuing normally.
+--------+---------+--------+---------+----------+-----------+-----------------+---------------------+---------------------+--------------------------------------------------------------------------+-------------+-------------+-----------------+---------------------+-------+---------------------+------------+---------+---------+----------+---------------------+---------------------+------------+------------+
10227 rows in set (1.42 sec)
create index idx_siteid_docstatus_pubtime on wcmchnldoc(siteid,docstatus,DOCPUBTIME);
MariaDB [trswcmtest]> explain select SITEID,RECID,CHNLID,DOCID,DOCORDER,DOCSTATUS,CRUSER,CRTIME,DOCPUBTIME,DOCPUBURL,DOCORDERPRI,INVALIDTIME,OPERUSER,OPERTIME,MODAL,DOCRELTIME,DOCCHANNEL,DOCFLAG,DOCKIND,'zjrb_mlf',now(),now(),'xuguozheng','xuguozheng' from wcmchnldoc where DOCPUBTIME >= date_add(STR_TO_DATE('2018-08-14', '%Y-%m-%d'), interval -14 day) and DOCPUBTIME <= STR_TO_DATE('2018-08-14', '%Y-%m-%d') and SITEID=198 and DOCSTATUS=10;
+------+-------------+------------+-------+---------------------------------------------------------------+------------------------------+---------+------+-------+-----------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+------+-------------+------------+-------+---------------------------------------------------------------+------------------------------+---------+------+-------+-----------------------+
| 1 | SIMPLE | wcmchnldoc | range | IX_WCMChnlDoc_SiteId_OriginDocId,idx_siteid_docstatus_pubtime | idx_siteid_docstatus_pubtime | 14 | NULL | 20312 | Using index condition |
+------+-------------+------------+-------+---------------------------------------------------------------+------------------------------+---------+------+-------+-----------------------+
1 row in set (0.00 sec)
...
| 2018-08-07 11:01:23 | 1 | 2018-08-03 07:41:44 | 11494 | NULL | 6 | zjrb_mlf | 2018-08-14 18:02:01 | 2018-08-14 18:02:01 | xuguozheng | xuguozheng |
Ctrl-C -- query killed. Continuing normally.
+--------+---------+--------+---------+----------+-----------+-----------------+---------------------+---------------------+--------------------------------------------------------------------------+-------------+-------------+-----------------+---------------------+-------+---------------------+------------+---------+---------+----------+---------------------+---------------------+------------+------------+
10227 rows in set (0.05 sec)
案例3(关联字段类型不一致)
17:06:51 root@mysql3306.sock [xucl]>show create table table_a\G
*************************** 1. row ***************************
Table: table_a
Create Table: CREATE TABLE `table_a` (
`id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增ID',
`code` varchar(20) NOT NULL COMMENT '编码',
PRIMARY KEY (`id`),
KEY `code` (`code`)
) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
17:07:26 root@mysql3306.sock [xucl]>show create table table_b\G
*************************** 1. row ***************************
Table: table_b
Create Table: CREATE TABLE `table_b` (
`code` int(10) unsigned NOT NULL COMMENT '编码',
`name` varchar(20) NOT NULL COMMENT '名称',
KEY `code` (`code`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
17:07:28 root@mysql3306.sock [xucl]>select * from table_a;
+----+------+
| id | code |
+----+------+
| 1 | 1001 |
| 5 | 1001 |
| 3 | 1002 |
| 6 | 1002 |
| 2 | A001 |
| 4 | B001 |
+----+------+
6 rows in set (0.00 sec)
17:07:34 root@mysql3306.sock [xucl]>select * from table_b;
+------+---------+
| code | name |
+------+---------+
| 1001 | 测试1 |
| 1002 | 测试2 |
+------+---------+
2 rows in set (0.00 sec)
17:07:36 root@mysql3306.sock [xucl]>explain SELECT count(1) FROM `table_a` a LEFT JOIN table_b b ON a.code = b.code WHERE b.code =1001;
+----+-------------+-------+------+---------------+------+---------+-------+------+------------------------------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+------+---------+-------+------+------------------------------------------------+
| 1 | SIMPLE | b | ref | code | code | 4 | const | 1 | Using index |
| 1 | SIMPLE | a | ALL | code | NULL | NULL | NULL | 6 | Range checked for each record (index map: 0x2) |
+----+-------------+-------+------+---------------+------+---------+-------+------+------------------------------------------------+
2 rows in set (0.00 sec)
17:07:38 root@mysql3306.sock [xucl]>explain SELECT count(1) FROM `table_a` a LEFT JOIN table_b b ON a.code = convert(b.code, char)
-> WHERE b.code =1001;
+----+-------------+-------+------+---------------+------+---------+-------+------+--------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+------+---------+-------+------+--------------------------+
| 1 | SIMPLE | b | ref | code | code | 4 | const | 1 | Using index |
| 1 | SIMPLE | a | ref | code | code | 62 | const | 2 | Using where; Using index |
+----+-------------+-------+------+---------------+------+---------+-------+------+--------------------------+
2 rows in set (0.00 sec)
案例4(字符集类型不一致)
17:25:11 root@mysql3306.sock [xucl]>show create table t1\G
*************************** 1. row ***************************
Table: t1
Create Table: CREATE TABLE `t1` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(20) DEFAULT NULL,
`code` varchar(50) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `idx_code` (`code`),
KEY `idx_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=16 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
17:25:20 root@mysql3306.sock [xucl]>show create table t2\G
*************************** 1. row ***************************
Table: t2
Create Table: CREATE TABLE `t2` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(20) DEFAULT NULL,
`code` varchar(50) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `idx_code` (`code`),
KEY `idx_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8mb4
1 row in set (0.00 sec)
17:24:53 root@mysql3306.sock [xucl]>select * from t1;
+----+------+----------------------------------+
| id | name | code |
+----+------+----------------------------------+
| 6 | aaaa | 0752b0e3c72d4f5c701728db8ea8a3f9 |
| 7 | bbbb | 36d8147db18d55e64c8b5ea8679328b7 |
| 8 | cccc | dc3bab5197eeb6b315204f0af563c961 |
| 9 | dddd | 1bb4dc313a54e4c0ee04644d2a1fe900 |
+----+------+----------------------------------+
4 rows in set (0.00 sec)
17:24:57 root@mysql3306.sock [xucl]>select * from t2;
+----+------+----------------------------------+
| id | name | code |
+----+------+----------------------------------+
| 6 | aaaa | bca3bc1eb999136d6e6f877d9accc918 |
| 7 | bbbb | 77dd5d07ea1c458afd76c8a6d953cf0a |
| 8 | cccc | 3ac617d1857444e5383f074c60af7efd |
| 9 | dddd | 8a77a32a7e0825f7c8634226105c42e5 |
| 10 | eeee | 0c7fc18b8995e9e31ca774b1312be035 |
+----+------+----------------------------------+
5 rows in set (0.00 sec)
root@localhost [xucl]>desc select * from t2 left join t1 on t1.code = t2.code where t2.name = 'dddd';
+----+-------------+-------+------------+------+---------------+----------+---------+-------+------+----------+----------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+----------+---------+-------+------+----------+----------------------------------------------------+
| 1 | SIMPLE | t2 | NULL | ref | idx_name | idx_name | 83 | const | 1 | 100.00 | NULL |
| 1 | SIMPLE | t1 | NULL | ALL | NULL | NULL | NULL | NULL | 4 | 100.00 | Using where; Using join buffer (Block Nested Loop) |
+----+-------------+-------+------------+------+---------------+----------+---------+-------+------+----------+----------------------------------------------------+
2 rows in set, 1 warning (0.00 sec)
root@localhost [xucl]>show create table t3\G
*************************** 1. row ***************************
Table: t3
Create Table: CREATE TABLE `t3` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(20) DEFAULT NULL,
`code` varchar(50) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `idx_code` (`code`),
KEY `idx_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=16 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)
root@localhost [xucl]>select * from t3;
+----+------+----------------------------------+
| id | name | code |
+----+------+----------------------------------+
| 11 | aaaa | bca3bc1eb999136d6e6f877d9accc918 |
| 12 | bbbb | 77dd5d07ea1c458afd76c8a6d953cf0a |
| 13 | cccc | 3ac617d1857444e5383f074c60af7efd |
| 14 | dddd | 8a77a32a7e0825f7c8634226105c42e5 |
| 15 | eeee | 0c7fc18b8995e9e31ca774b1312be035 |
+----+------+----------------------------------+
5 rows in set (0.00 sec)
root@localhost [xucl]>desc select * from t3 left join t1 on t1.code = t3.code where t3.name = 'dddd';
+----+-------------+-------+------------+------+---------------+----------+---------+--------------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+----------+---------+--------------+------+----------+-------+
| 1 | SIMPLE | t3 | NULL | ref | idx_name | idx_name | 63 | const | 1 | 100.00 | NULL |
| 1 | SIMPLE | t1 | NULL | ref | idx_code | idx_code | 153 | xucl.t3.code | 1 | 100.00 | NULL |
+----+-------------+-------+------------+------+---------------+----------+---------+--------------+------+----------+-------+
2 rows in set, 1 warning (0.00 sec)
