package org.apache.flink.streaming.api.operators;
import org.apache.flink.annotation.PublicEvolving;
import org.apache.flink.metrics.MetricGroup;
import org.apache.flink.runtime.checkpoint.CheckpointOptions;
import org.apache.flink.runtime.jobgraph.OperatorID;
import org.apache.flink.runtime.state.CheckpointListener;
import org.apache.flink.runtime.state.CheckpointStreamFactory;
import org.apache.flink.streaming.runtime.streamrecord.StreamRecord;
import org.apache.flink.util.Disposable;
import java.io.Serializable;
/**

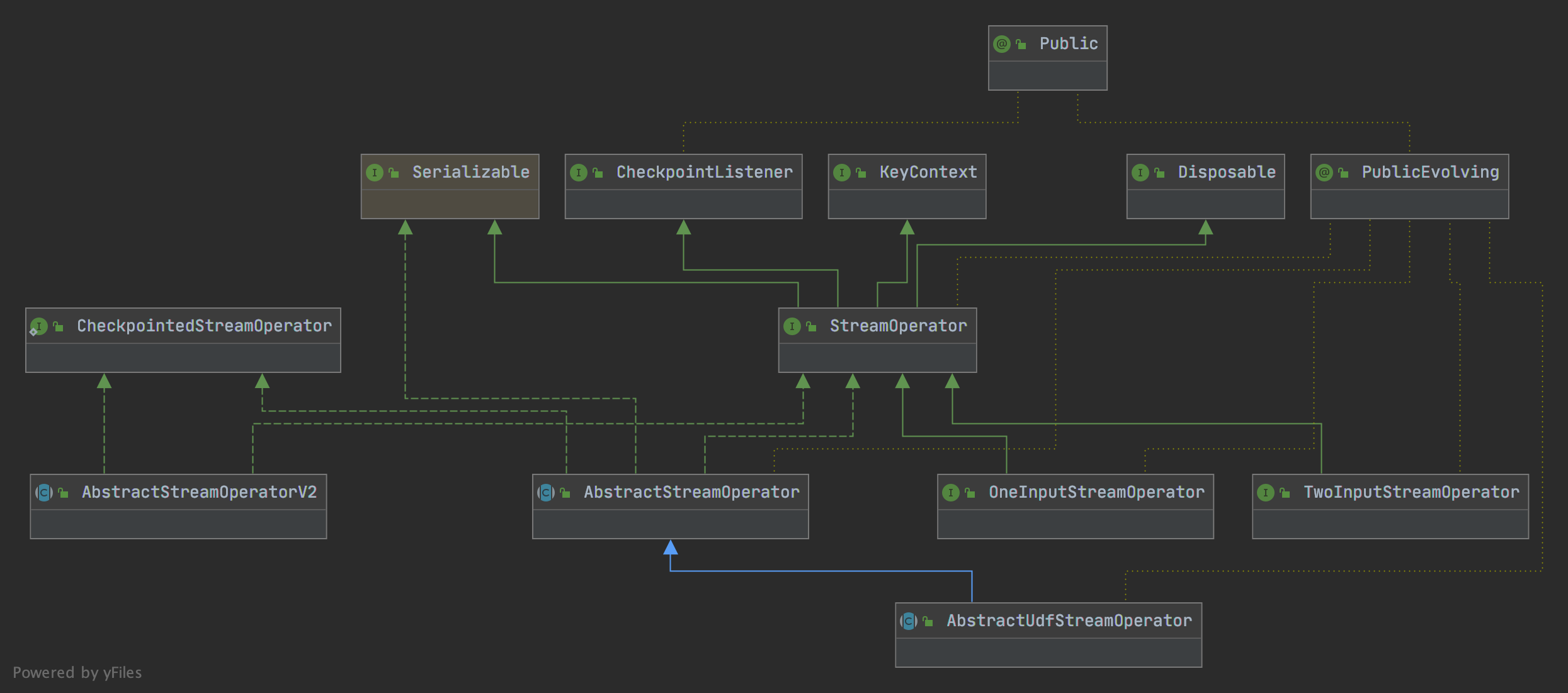

 * Basic interface for stream operators. Implementers would implement one of
 * {@link org.apache.flink.streaming.api.operators.OneInputStreamOperator} or
 * {@link org.apache.flink.streaming.api.operators.TwoInputStreamOperator} to create operators
 * that process elements.
 *
 * <p>The class {@link org.apache.flink.streaming.api.operators.AbstractStreamOperator}
 * offers default implementation for the lifecycle and properties methods.
 *
 * <p>Methods of {@code StreamOperator} are guaranteed not to be called concurrently. Also, if using
 * the timer service, timer callbacks are also guaranteed not to be called concurrently with
 * methods on {@code StreamOperator}.
 *
 * @param <OUT> The output type of the operator
 */
@PublicEvolving
public interface StreamOperator<OUT> extends CheckpointListener, KeyContext, Disposable, Serializable {
    // ------------------------------------------------------------------------
    //  life cycle
    // ------------------------------------------------------------------------
    /**
     * This method is called immediately before any elements are processed, it should contain the
     * operator's initialization logic.
     *
     * @implSpec In case of recovery, this method needs to ensure that all recovered data is processed before passing
     * back control, so that the order of elements is ensured during the recovery of an operator chain (operators
     * are opened from the tail operator to the head operator).
     *
     * @throws java.lang.Exception An exception in this method causes the operator to fail.
     */
    void open() throws Exception;
    /**
     * This method is called after all records have been added to the operators via the methods
     * {@link org.apache.flink.streaming.api.operators.OneInputStreamOperator#processElement(StreamRecord)}, or
     * {@link org.apache.flink.streaming.api.operators.TwoInputStreamOperator#processElement1(StreamRecord)} and
     * {@link org.apache.flink.streaming.api.operators.TwoInputStreamOperator#processElement2(StreamRecord)}.
     *
     * <p>The method is expected to flush all remaining buffered data. Exceptions during this
     * flushing of buffered should be propagated, in order to cause the operation to be recognized
     * as failed, because the last data items are not processed properly.
     *
     * @throws java.lang.Exception An exception in this method causes the operator to fail.
     */
    void close() throws Exception;
    /**
     * This method is called at the very end of the operator's life, both in the case of a successful
     * completion of the operation, and in the case of a failure and canceling.
     *
     * <p>This method is expected to make a thorough effort to release all resources
     * that the operator has acquired.
     */
    @Override
    void dispose() throws Exception;
    // ------------------------------------------------------------------------
    //  state snapshots
    // ------------------------------------------------------------------------
    /**
     * This method is called when the operator should do a snapshot, before it emits its
     * own checkpoint barrier.
     *
     * <p>This method is intended not for any actual state persistence, but only for emitting some
     * data before emitting the checkpoint barrier. Operators that maintain some small transient state
     * that is inefficient to checkpoint (especially when it would need to be checkpointed in a
     * re-scalable way) but can simply be sent downstream before the checkpoint. An example are
     * opportunistic pre-aggregation operators, which have small the pre-aggregation state that is
     * frequently flushed downstream.
     *
     * <p><b>Important:</b> This method should not be used for any actual state snapshot logic, because
     * it will inherently be within the synchronous part of the operator's checkpoint. If heavy work is done
     * within this method, it will affect latency and downstream checkpoint alignments.
     *
     * @param checkpointId The ID of the checkpoint.
     * @throws Exception Throwing an exception here causes the operator to fail and go into recovery.
     */
    void prepareSnapshotPreBarrier(long checkpointId) throws Exception;
    /**
     * Called to draw a state snapshot from the operator.
     *
     * @return a runnable future to the state handle that points to the snapshotted state. For synchronous implementations,
     * the runnable might already be finished.
     *
     * @throws Exception exception that happened during snapshotting.
     */
    OperatorSnapshotFutures snapshotState(
        long checkpointId,
        long timestamp,
        CheckpointOptions checkpointOptions,
        CheckpointStreamFactory storageLocation) throws Exception;
    /**
     * Provides a context to initialize all state in the operator.
     */
    void initializeState(StreamTaskStateInitializer streamTaskStateManager) throws Exception;
    // ------------------------------------------------------------------------
    //  miscellaneous
    // ------------------------------------------------------------------------
    void setKeyContextElement1(StreamRecord<?> record) throws Exception;
    void setKeyContextElement2(StreamRecord<?> record) throws Exception;
    MetricGroup getMetricGroup();
    OperatorID getOperatorID();
}
